Neon Light Housing – S1220 Black Side Edge Lighting | 12x20mm Silicone LED Channel System | IP67 Waterproof | 10mm PCB Width | 164FT/50M | Local Stock US/UK/DE

Compatible LED Compatible LED Strip Width: 10mm

Pack Size: 164FT/50M*1

Variant

Price:

$390.00 USD ($2.37 / feet)

Quantity:

Share this product

Version	Package Included
164FT/50M	1 × 50M Neon Light Housing, 50 × End Caps (with hole), 50 × End Caps (without hole), 150 × Mounting Clips & Screws
16.4FT/5M*10	10 × 5M Neon Light Housings, 50 × End Caps (with hole), 50 × End Caps (without hole), 150 × Mounting Clips & Screws

New generation silicone tube housing, fire-proof grade V0, high temperature resistance -20°C to 150°C
Flexible replacement for LED aluminum channels; longer continuous lengths available with no black area
Ideal for DIY neon LED signs or letters; easy to bend and turn while protecting the LED strip inside
Improved light transmittance up to 60%–80%
IP67 waterproof and dustproof; provides reliable protection for LED strips
Spotless luminous effect when paired with suitable high-density LED strip models

Compatible LED Strip Width: 10 mm
Pack Size: 164FT/50M × 1; 16.4FT/5M × 10

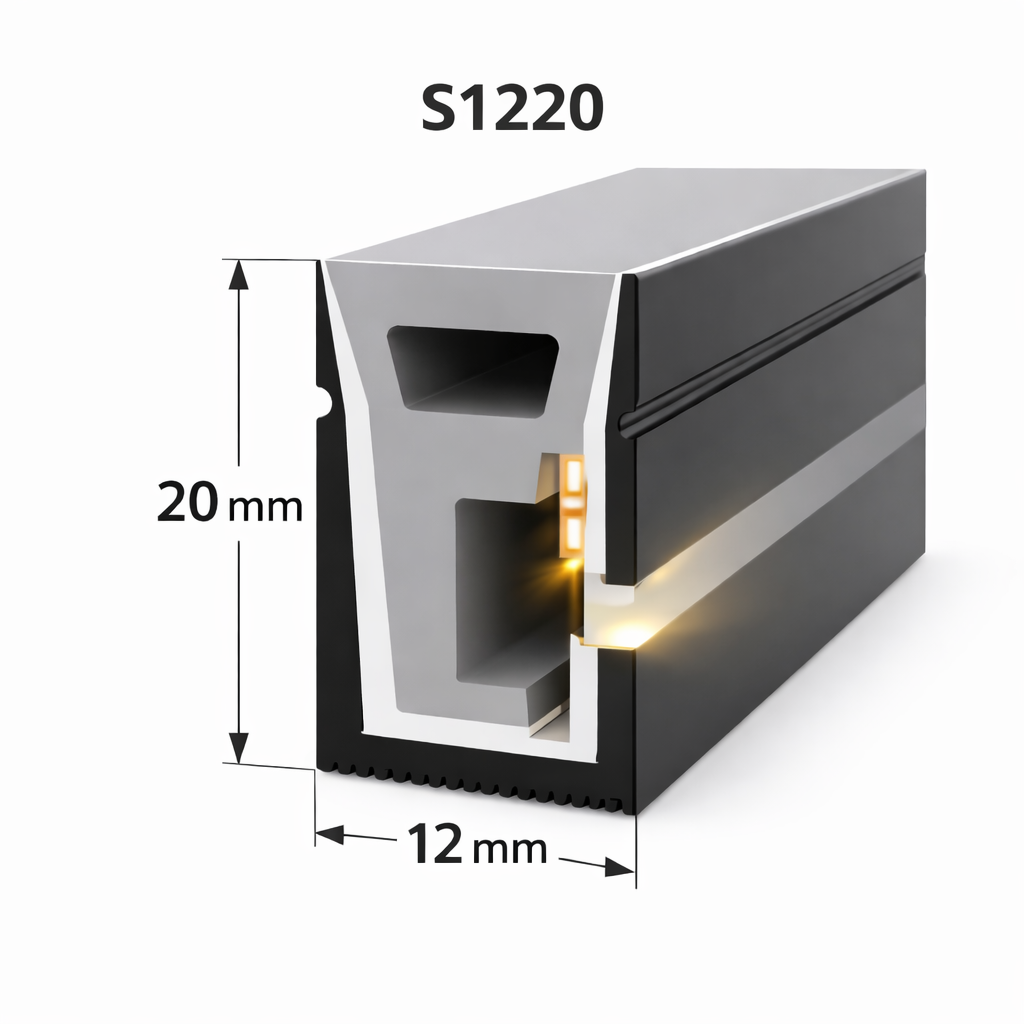

Housing Size (W × H): 12 × 20 mm
Lighting Direction: Side edge lighting
Housing Material: Flexible silicone, fire-proof grade V0
Waterproof Rating: IP67 (requires sealed end caps with gel)
Accessories per meter: 1 × End Cap (with hole), 1 × End Cap (without hole), 3 × Mounting Clips & Screws

Insert LED strip by tying it to a string and pulling through channel; apply lubricating oil or wax for smoother installation
Manual installation recommended only up to 10 m length
Use high-density LED strips (e.g., 120 LEDs/m) for spotless lighting effect
Custom housing lengths available; contact for special requirements
Cut housing carefully and straight with proper scissors to ensure tight sealing with end caps
