Description

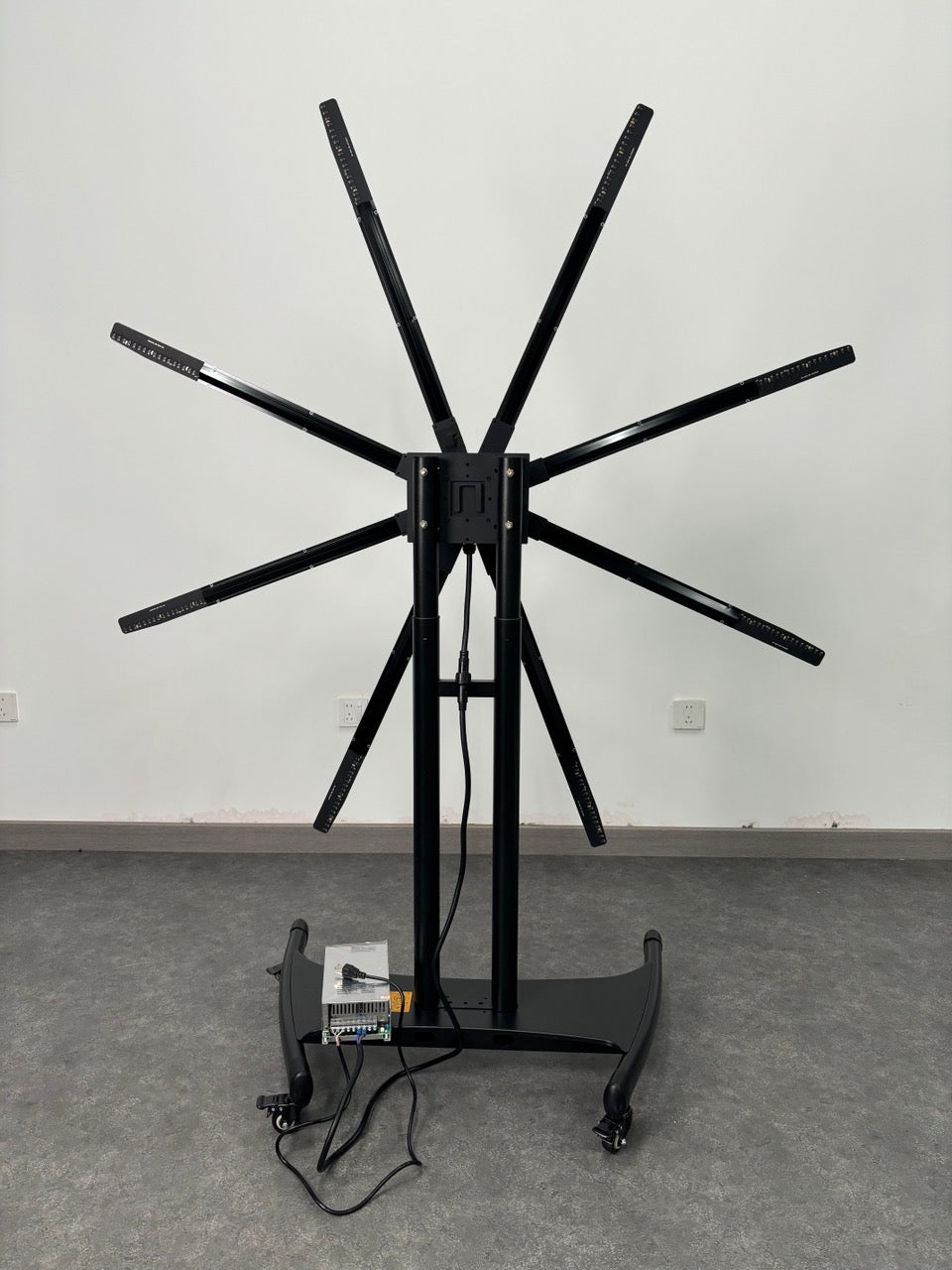

M Series Extra-Large 3D Hologram Fan LED Display – 130cm (51.2”) / 150cm (59.1”) | High Brightness Holographic Advertising Projector | Fan Only / with Floor Stand (Heavy-Duty Frame)
Package Included
| Version | Package Included |
|---|---|
| 130cm Fan Only, US / UK / EU / AU (shipped according to country) |

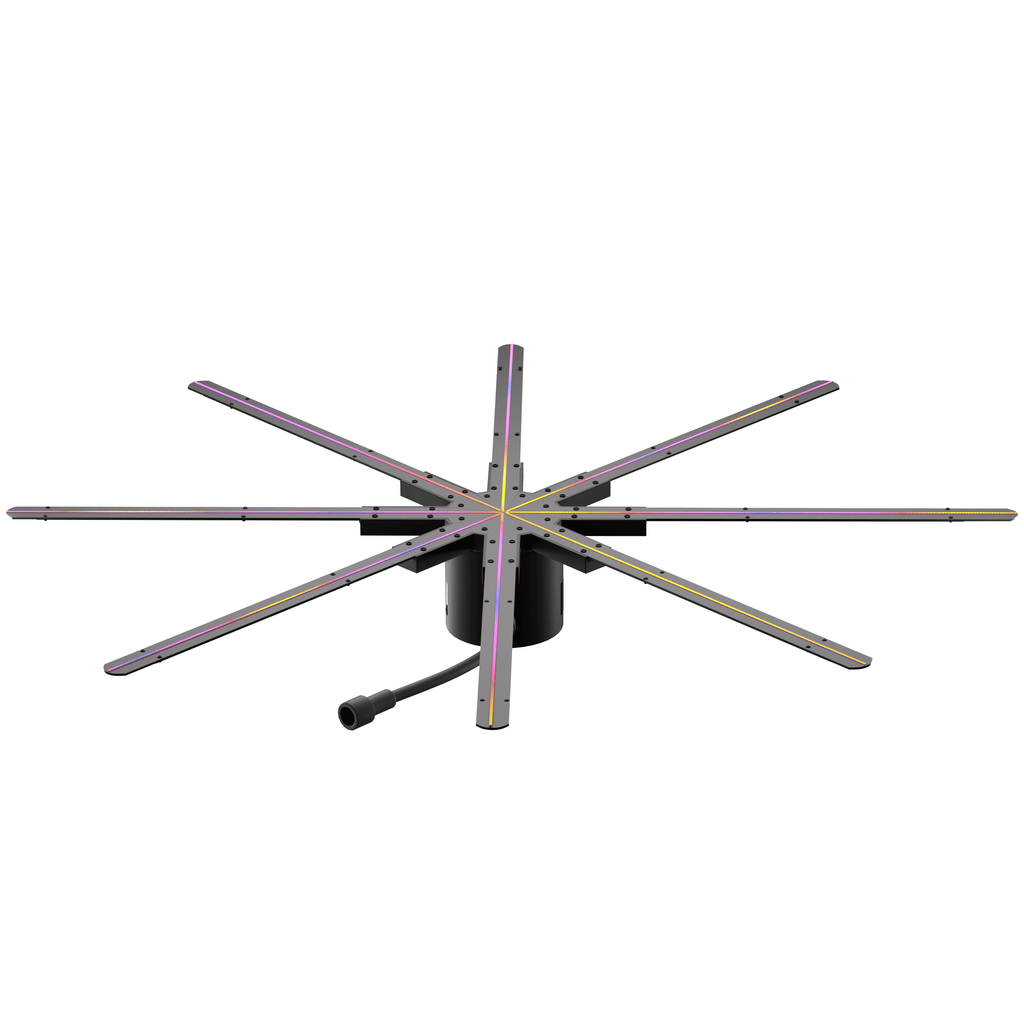

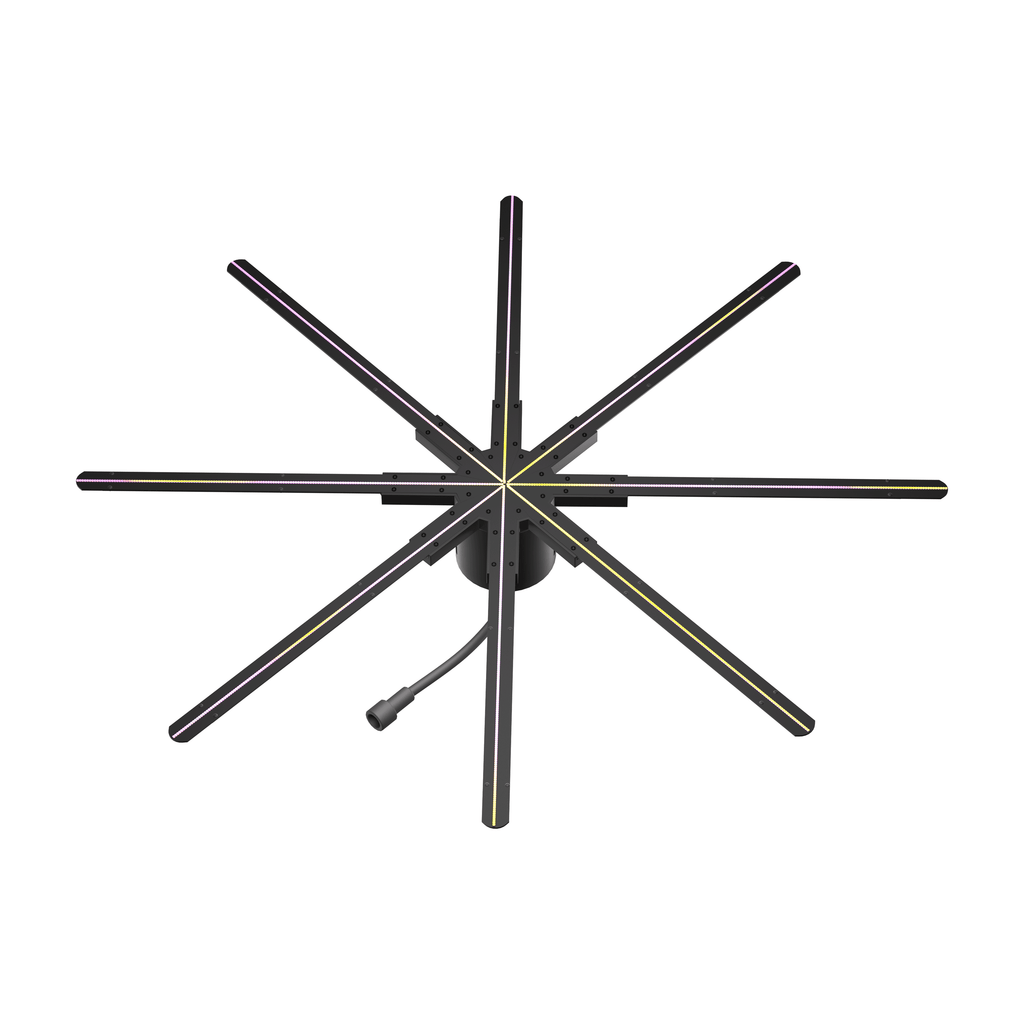

1 × 8 light blade 3D Hologram Fan (need assemble) 1 × Switching Power Supply (110V/220V AC selectable via switch at side) 1 × Air-flight Case 1 × Manual |
| 130cm Fan with Floor Stand, US / UK / EU / AU (shipped according to country) |

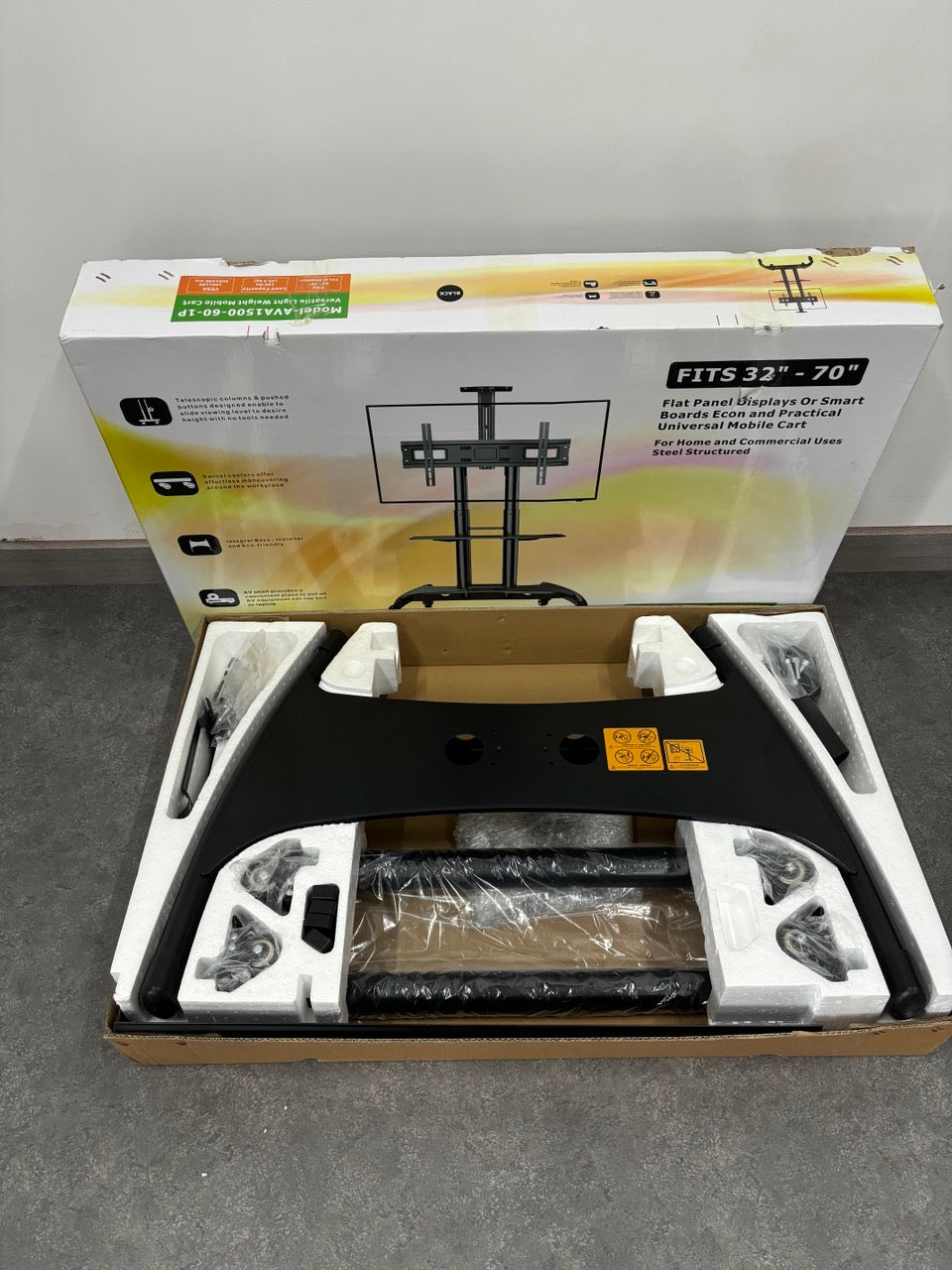

1 × 8 light blade 3D Hologram Fan (need assemble) 1 × Switching Power Supply (110V/220V AC selectable via switch at side) 1 × Air-flight Case 1 × Manual 1 × Floor-stand |
| 150cm Fan Only, US / UK / EU / AU (shipped according to country) |
1 × 8 light blade 3D Hologram Fan (need assemble) 1 × Switching Power Supply (110V/220V AC selectable via switch at side) 1 × Air-flight Case 1 × Manual |

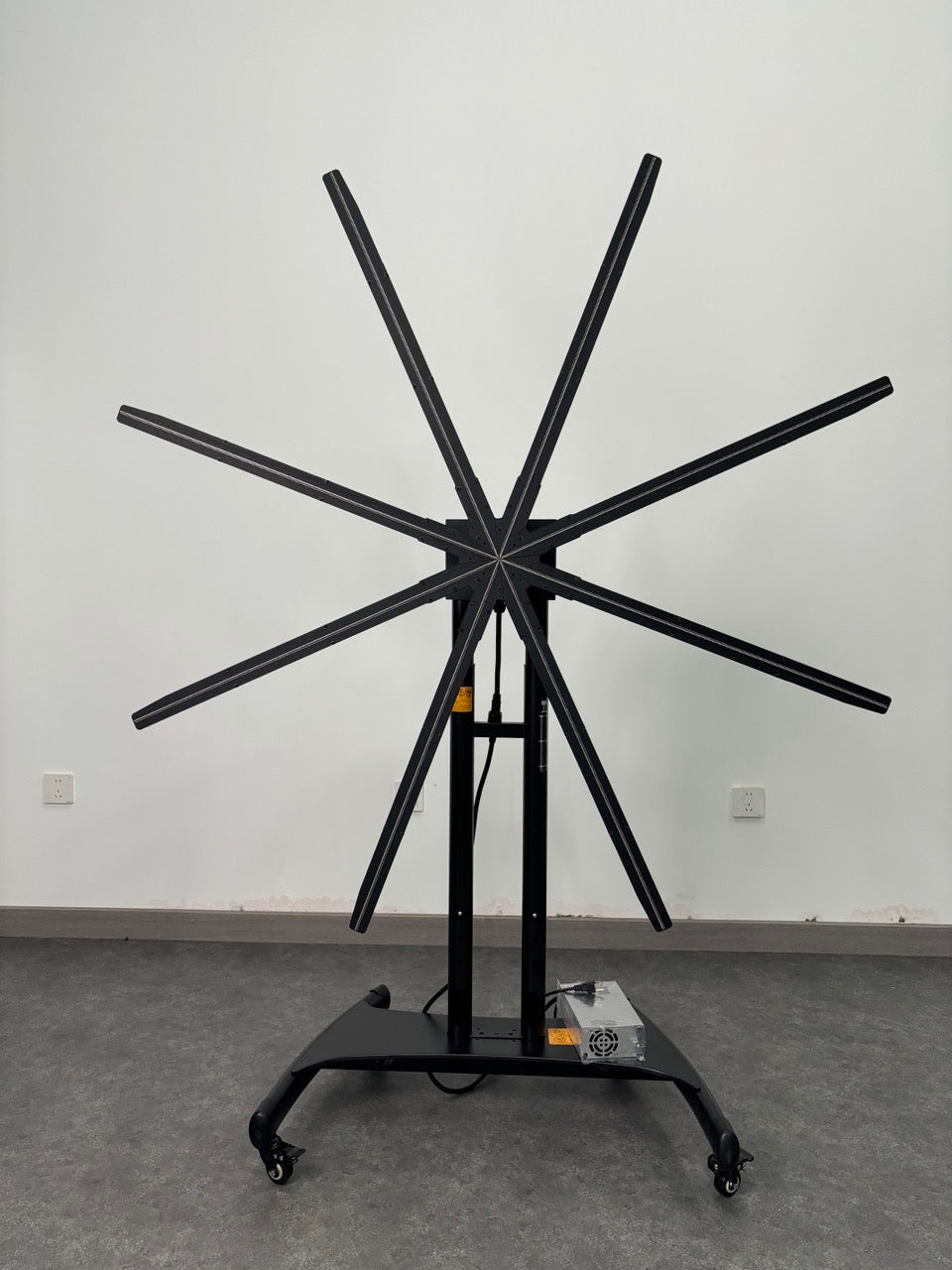

| 150cm Fan with Floor Stand, US / UK / EU / AU (shipped according to country) |
1 × 8 light blade 3D Hologram Fan (need assemble) 1 × Switching Power Supply (110V/220V AC selectable via switch at side) 1 × Air-flight Case 1 × Manual 1 × Floor-stand |
About this item
- High-brightness 3D hologram fan for eye-catching advertising and immersive visual effects.
- Available in multiple diameters (130cm / 150cm) and configurations (Fan Only, Fan with Floor Stand).
- Durable construction with upgraded LED blades for long-lasting performance.

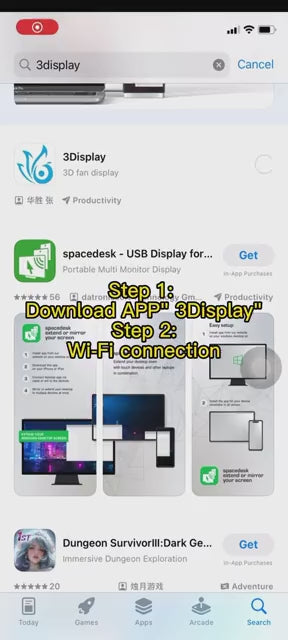

- Content management flexibility: USB upload, mobile app, and cloud CMS platform.

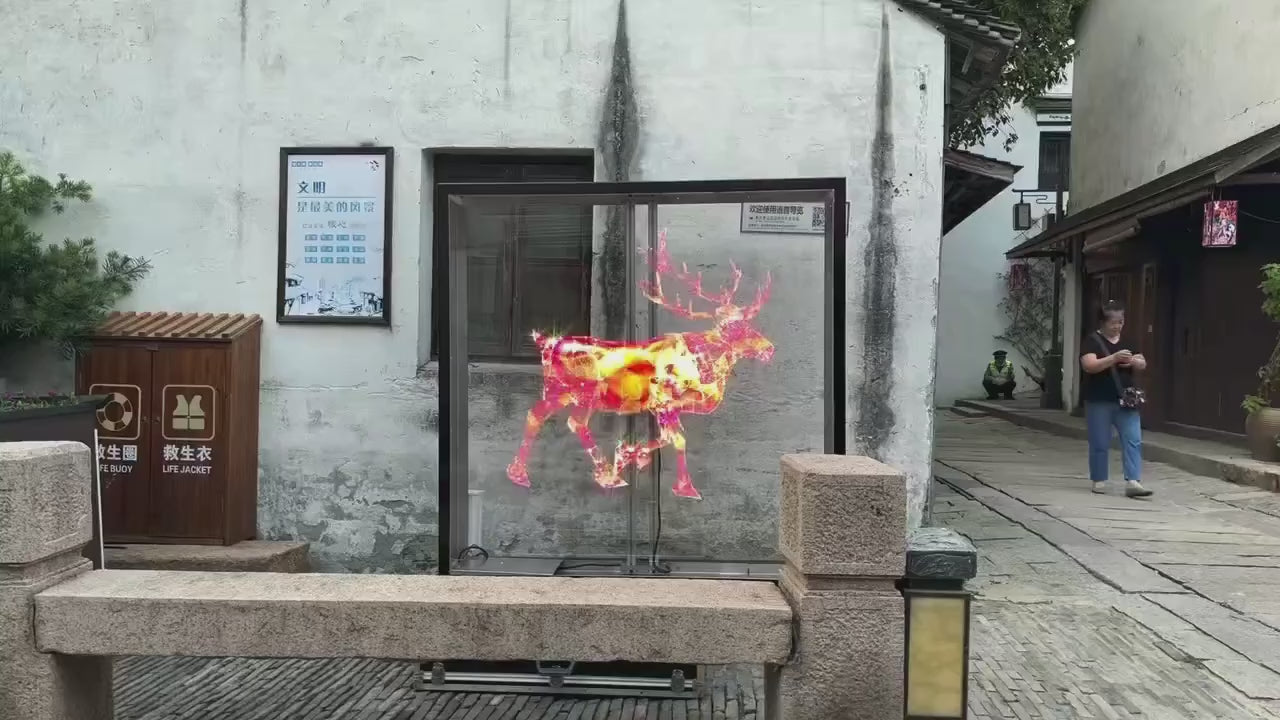

- Suitable for retail stores, exhibitions, events, airports, shopping malls, and creative installations.
Order & Logistics
- Lead Time: 5–7 days if not in stock
- Standard fans & stands: usually ship within 1–3 business days
- Versions with Floor Stand or protective housing: usually 3–6 business days
- Packing: Reinforced cardboard carton with foam protection
- Shipping: Ships from headquarters warehouse. Delivery: 7–25 days standard / 3–10 days express
Specifications
| Parameter | 130M(S13) | 150M(S15) |
|---|---|---|
| System | Android | Android |
| Main control | A40I (Quad-core 1.2GHz) | A40I (Quad-core 1.2GHz) |
| Display size | 130×130CM | 151×151CM |
| Resolution | 2800×3066 | 2800×3072 |
| LED quantity | 3066 | 3072 |
| View angle | 176° | 176° |
| Power rate | 450W/24V | 485W/24V |
| Input Voltage | 100-240VAC, 50/60HZ | 100-240VAC, 50/60HZ |
| Storage | 8GB | 8GB |
| Format | MP4/JPG | MP4/JPG |
| Audio output | Support | Support |
| Cloud control | Support | Support |
| Video Processing | FPGA hardware | FPGA hardware |
| Sync | LAN splice/Cloud stitching | LAN splice/Cloud stitching |
| Decoding | hard decoding | hard decoding |
| Drive IC | ICN2153 | ICN2153 |
| Sync distance | 1071mm | 1071mm |
| Content upload | APP Web, PC | APP Web, PC |
| Support | Windows, IOS, Android | Windows, IOS, Android |
| G.W. | 4.5KG | 6KG |
| Permeability | 90% | 90% |
| Noise | 70db | 80db |
| Brightness | 3000cd/m² | 3000cd/m² |
| FPS | 24FPS | 24FPS |
| Rotation Speed | 360/m | 350/m |
| Material | Aluminum alloy profile | Aluminum alloy profile |
| Lifespan | 30000hrs | 30000hrs |
| Warranty | 12 months | 12 months |
| Package | 800×430×250mm, G.W.: 18KG | 800×430×250mm, G.W.: 20KG |
Usage Notes / Operation Tips
- Remote Controller can be used as auxiliary control
- How to rotate the screen
- How to set fixed IP address
- How to upgrade MagicPlayer to new version
- How to splice multiple LCD bar screens on XiaoHui Cloud
Applications
- Retail shelf-edge displays
- Shopping mall signage
- Exhibition & trade show displays
- Airport / metro / bus station information boards
- Creative installations & advertising walls
