Description

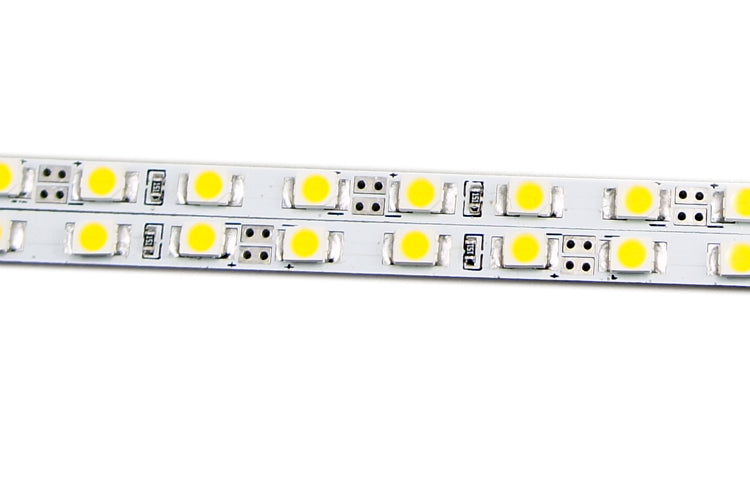

Rigid LED Strip Light SMD2835 – 120 LEDs/M, 12V/24V DC, 4mm Ultra-Narrow Bare PCB, 1 Meter (40'') Length, White & Blue, Green, Red Options, High Brightness Indoor Lighting
Package Included:
| Version | Package Included |
| 20pcs Pack | 20pcs of the 1Meter LED Rigid Strip |
| 50pcs Pack | 50pcs of the 1Meter LED Rigid Strip |
| 100pcs Pack |
100pcs of the 1Meter LED Rigid Strip |
Order & Logistics:
- Lead Time: Typically 3–5 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR
Product Features:
-

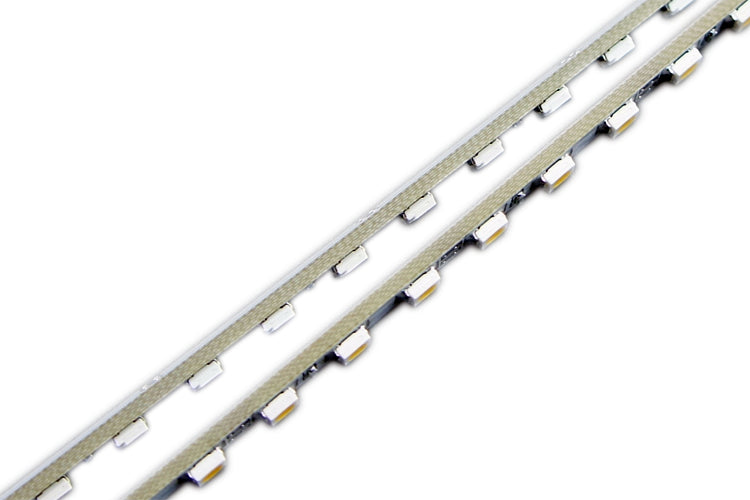

Ultra-Narrow 4mm Bare PCB Design – Compact 4mm width ideal for slim aluminum profiles, light boxes, and decorative applications where space is limited.
-
12V or 24V Options for Versatility – Compatible with both 12V and 24V DC power inputs, offering flexibility for different project requirements or system setups.
-
High-Brightness SMD2835 LEDs – Equipped with 120 premium SMD2835 chips per meter for uniform, bright illumination and consistent color output.
-
Multiple Color Temperatures & Blue Option – Available in 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White), 8000K (Daylight Blue White), and Blue, suitable for different ambient and display lighting needs.
-
Optimized Length for Easy Integration – Pre-cut 1meter (40”) rigid bars for convenient installation, reducing wiring complexity and ensuring clean, professional setups.
-
Reliable & Energy Efficient – Low power consumption with stable performance and long lifespan, perfect for continuous indoor operation in showcases, signage, and architectural lighting.

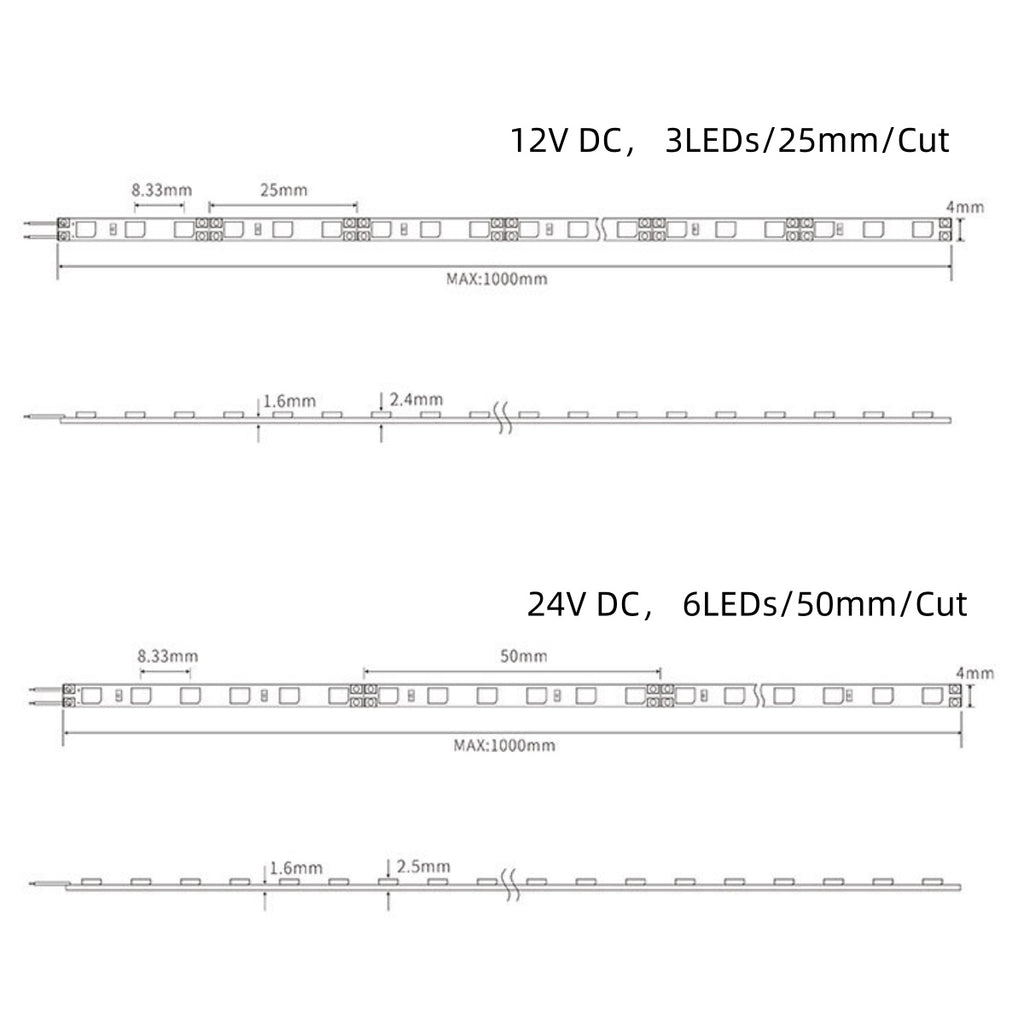

Specification
| Specification | Details |
| Product Type | Rigid LED Strip Light (Bare PCB Type) |
| LED Type | SMD2835 |
| LED Density | 120 LEDs per meter |
| PCB Width | 4 mm (Ultra Narrow) |
| Length | 1 meters (40”) |
| Voltage | DC 12V / 24V |
| Power Consumption | 12W per meter (approx.) |
| Color Options | 3000K / 4000K / 6500K / 8000K / Blue / Red / Green |
| Beam Angle | 120° |
| Waterproof Rating | IP20 (Non-Waterproof, Indoor Use Only) |
| Material | Rigid Bare PCBA |
| Operating Temperature | -20°C ~ +50°C |
| Luminous Efficiency | ≥100 lm/W |
| Package Options | 20 pcs / 50 pcs / 100 pcs per pack |
| Certifications | CE, RoHS |
| Applications | Display shelves, under-cabinet lighting, light boxes, decorative strips, DIY lighting projects |
Wiring Tips
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
