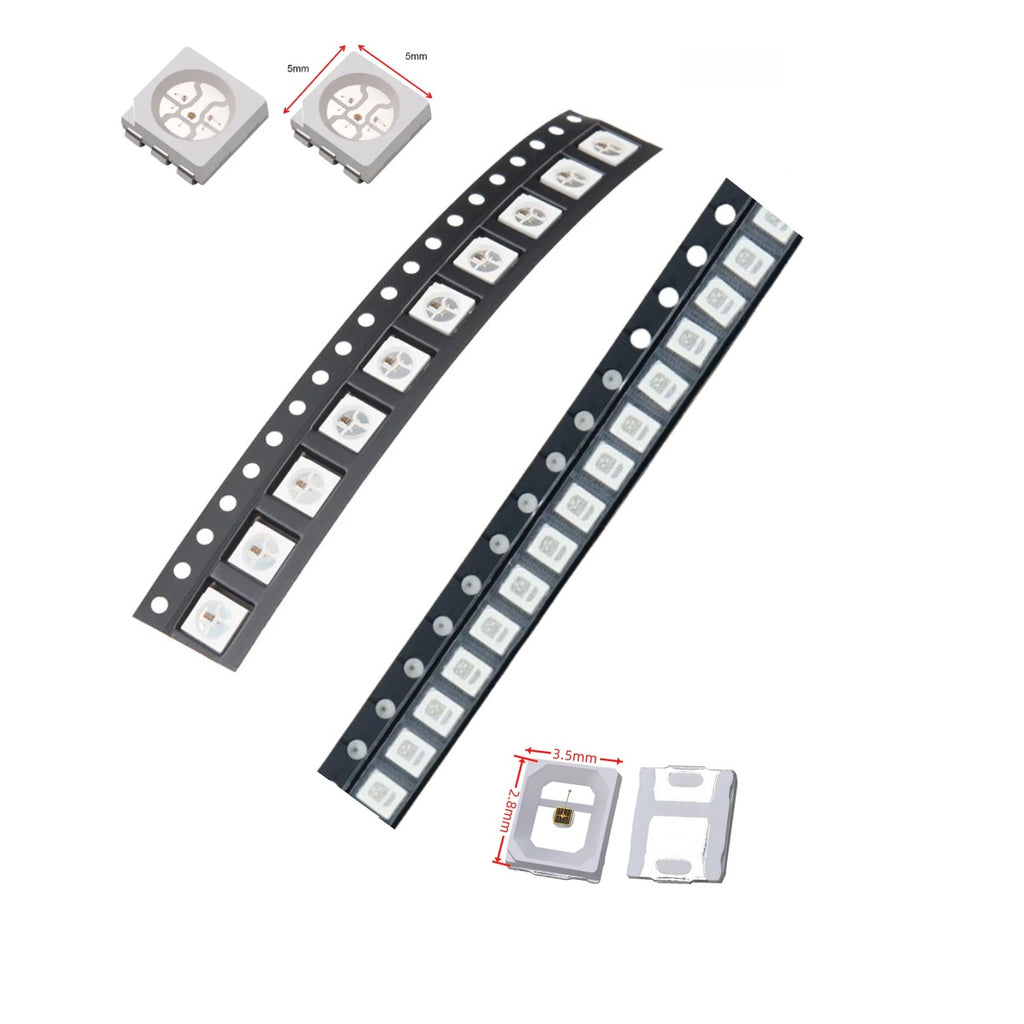

Infrared LED Sample Pack – 850nm / 940nm | 0.2W & 0.5W | SMD2835 / SMD5050 | 4 Models × 100pcs for Prototyping & Evaluation
About this item
- Sample pack containing 4 different infrared LED models: 850nm and 940nm wavelengths.
- Includes both 0.2W and 0.5W power ratings in SMD2835 and SMD5050 packages.
- Designed for prototyping, testing, and evaluation of IR-based projects.
- Enables quick assessment of performance across common IR wavelengths and package types.
- Each model includes 100 pieces for comprehensive trial and development use.
Package Included
| Model | Package Included |
| 0.2W / SMD2835 / 850nm | 100pcs 0.2W SMD2835 850nm Infrared LED |
| 0.5W / SMD2835 / 850nm | 100pcs 0.5W SMD2835 850nm Infrared LED |
| 0.2W / SMD5050 / 940nm | 100pcs 0.2W SMD5050 940nm Infrared LED |
| 0.5W / SMD5050 / 940nm | 100pcs 0.5W SMD5050 940nm Infrared LED |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box.
- Shipping: Ships from local warehouses (3–7 days) if available, or from our China warehouse (7–25 days standard / 3–10 days express).
Features
- High reliability and long lifespan.
- Precise wavelength control.
- Low thermal resistance and high luminous efficiency.
Applications
- Prototyping and testing IR-based electronic projects
- Evaluation of 850nm and 940nm infrared LED performance
- Remote control, security, and sensing applications
- Night vision and optical communication trials
- Research and development in infrared technology
Caution
Usage & Storage
- Avoid high ambient temperatures to prevent brightness and performance degradation.
- Store unopened LEDs at 5–30°C, <60% RH; after opening, store at <30% RH and use within 168 hours (MSL3).
- Dehumidify if exposure exceeds the time limit.
ESD Protection
- Handle with anti-static wrist strap or gloves.
- Ground all tools and work surfaces.
- Use anti-static packaging during storage and transport.
Soldering
- Follow recommended reflow profile; max 2 cycles.
- Manual soldering: ≤300°C, ≤3s, ≤30W.
Cleaning
- Use isopropyl alcohol; avoid corrosive cleaners.
