Description

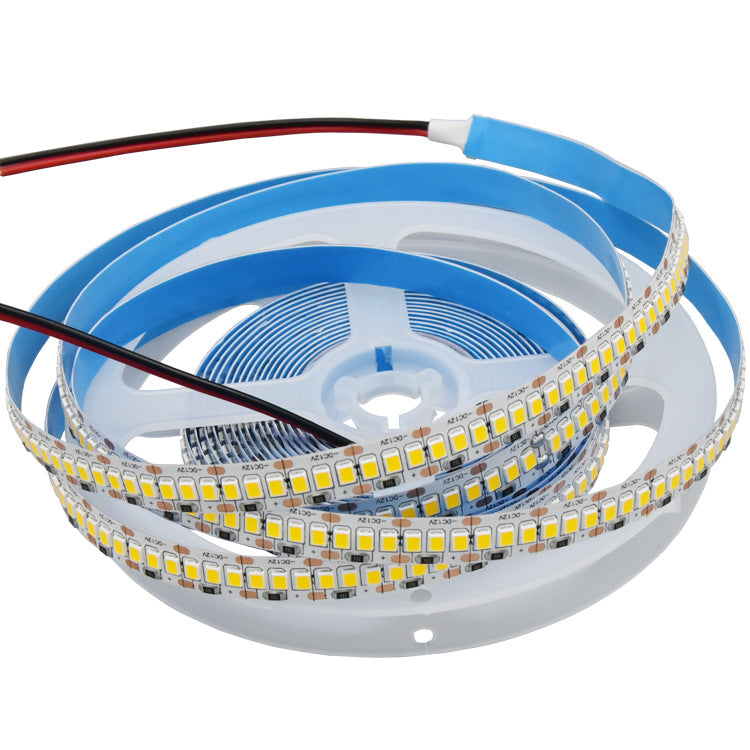

High Density SMD2835 LED Strip Light | 240 LEDs/m | 18W/m | 12V DC | 10mm PCB | 5m Roll | 3000K/4000K/6000K | IP00/IP67 Options
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 100 Rolls × 5 m (1640 ft total) (Strip Only) | 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
Order & Logistics:
- Lead Time: Typically 3–5 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
-
High Density & Ultra Bright – 240 LEDs per meter (1200 LEDs per roll), delivering uniform, shadow-free lighting with 18W per meter power.
-

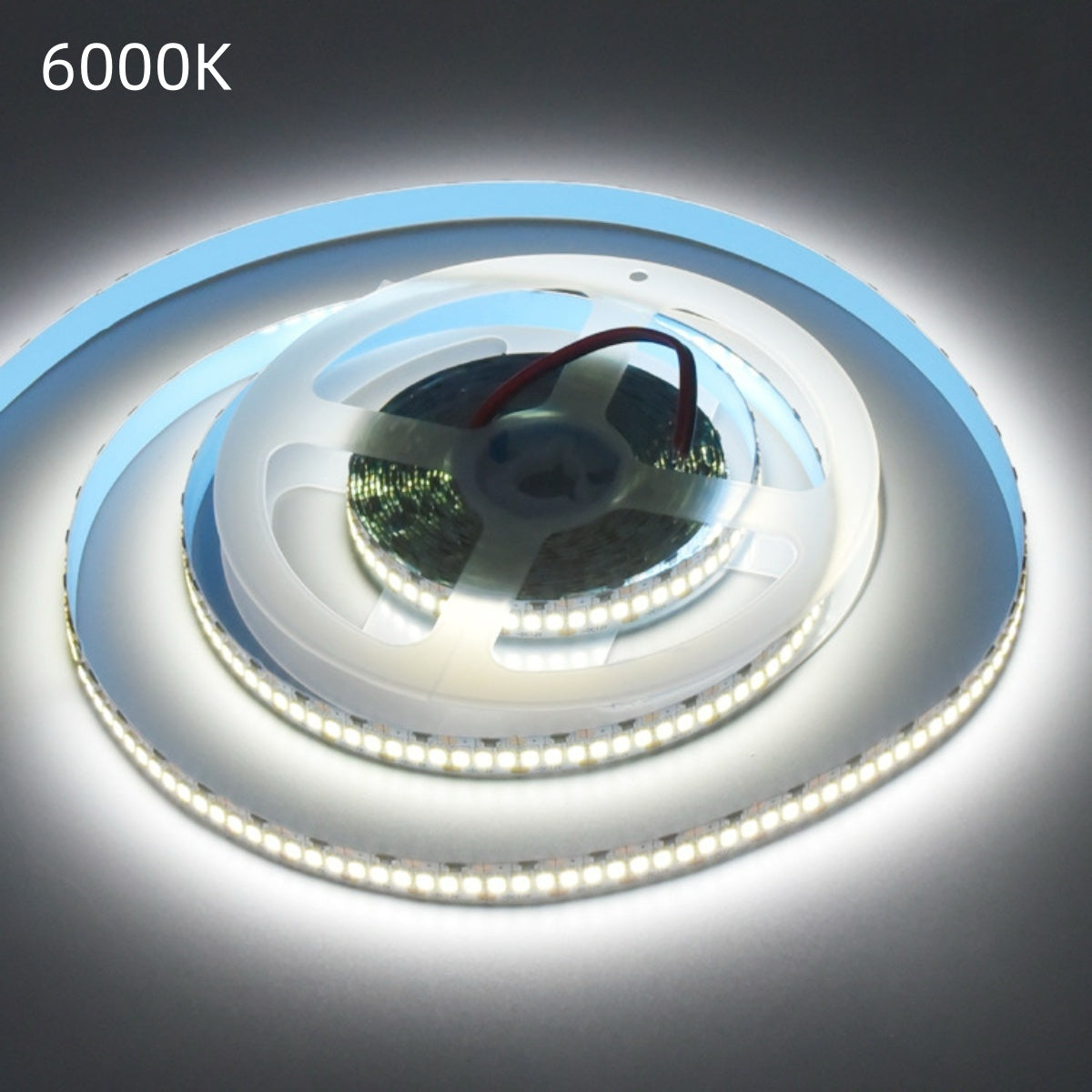

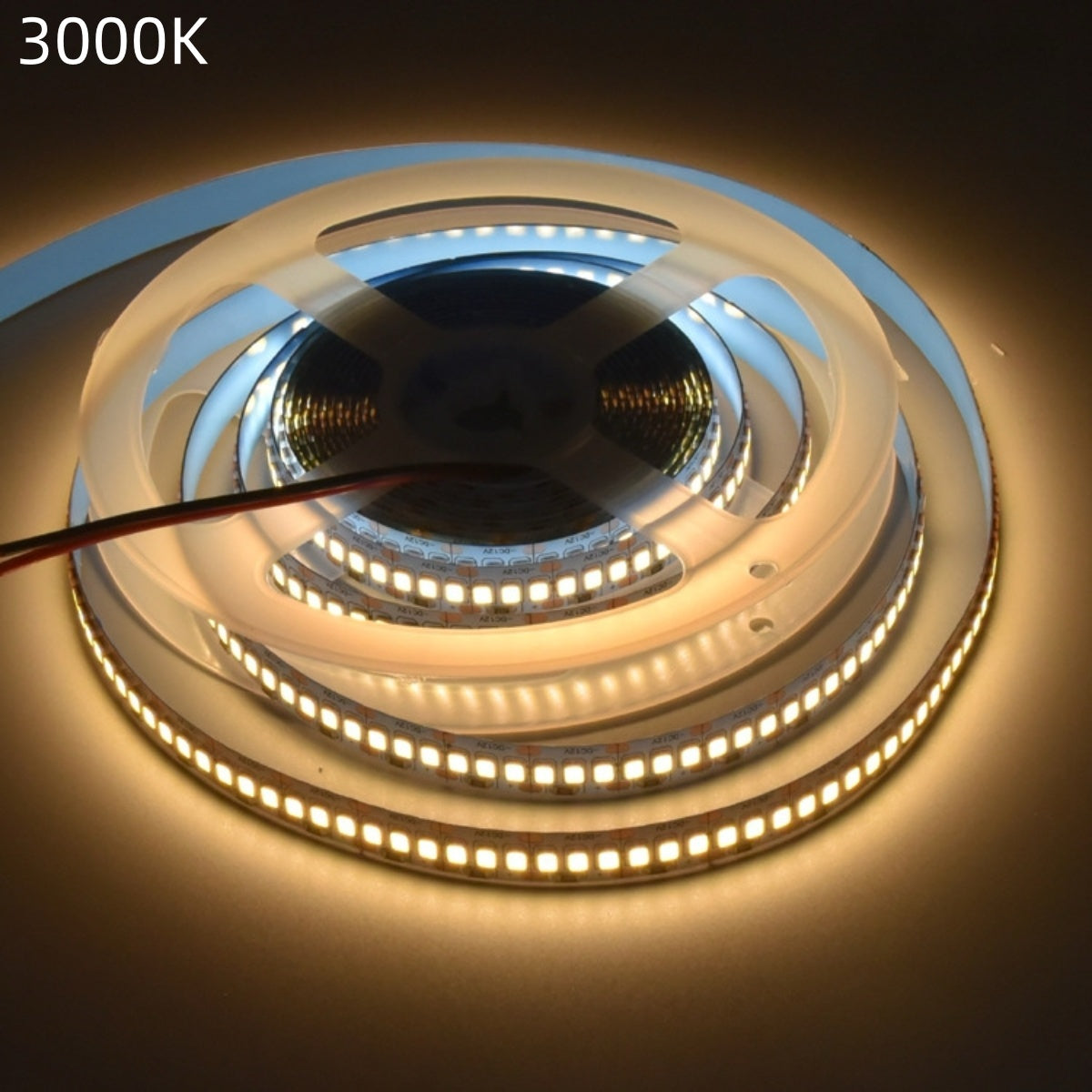

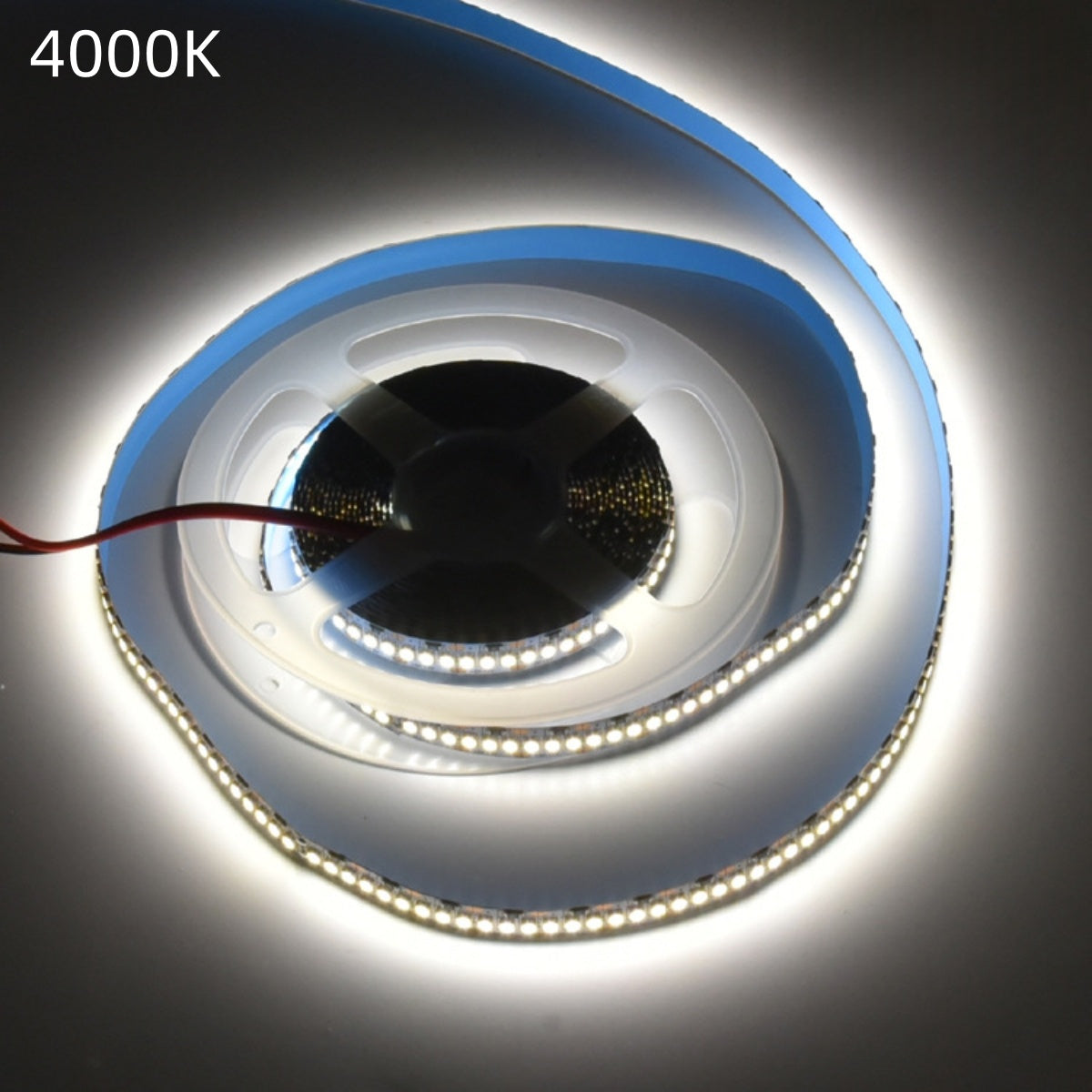

Multiple Color Temperatures – Available in 3000K warm white, 4000K neutral white, and 6000K cool white for versatile applications.
-

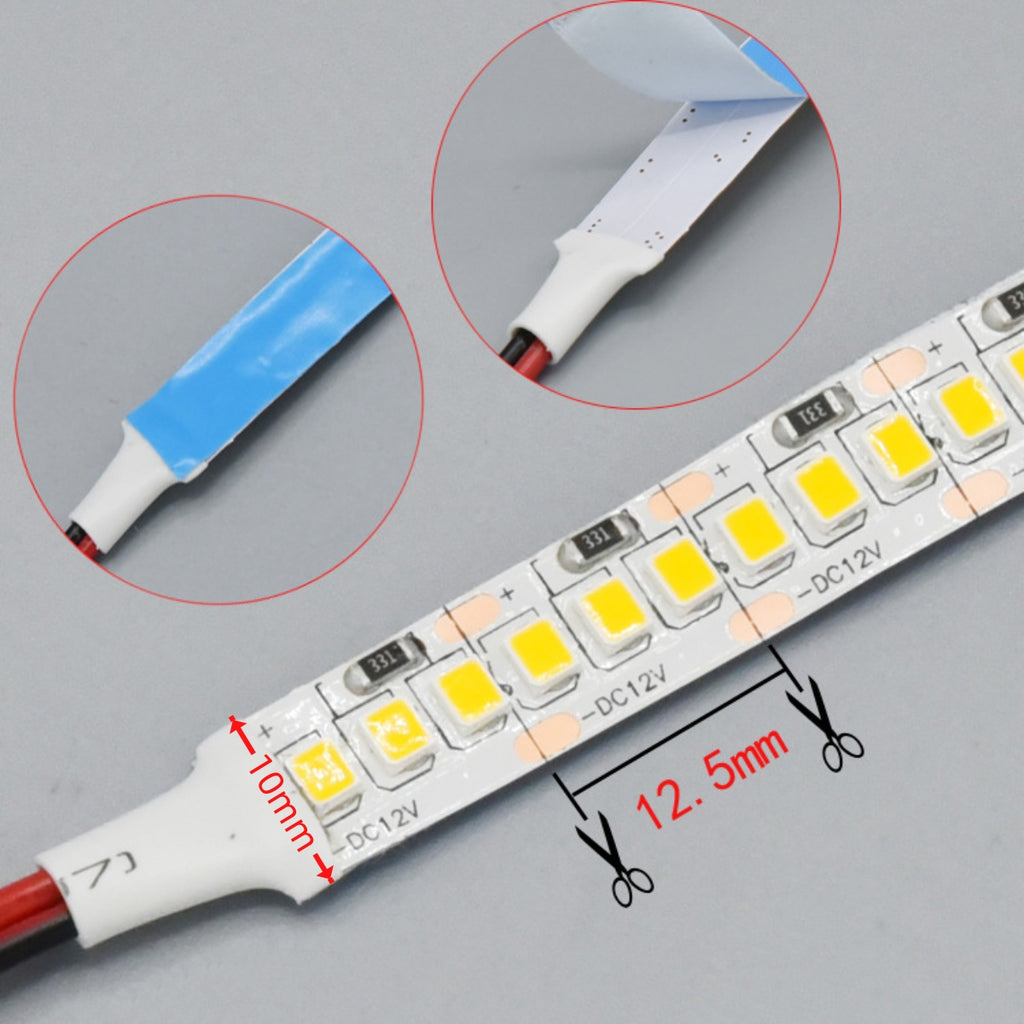

Flexible Installation – 10mm wide PCB with cuttable design (every 1 LED), ideal for custom lengths in residential and commercial projects.
-
Waterproof Options – Choose from IP00 (non-waterproof) for indoor use, or IP67 (silicone tube encapsulation) for outdoor and damp environments.
-
Standard Roll Length – Supplied in convenient 5m (16.4ft) rolls; bulk packs (20 or 100 rolls) available for large projects or wholesale orders.
Technical Specifications Table：
| Specification | Details |
| LED Type | SMD2835 |
| LED Quantity | 240 LEDs/m (1200 LEDs per 5m roll) |
| Power Consumption (max) | 18W/m (90W per roll) |
| Lumen Output | 100LM/Watt |
| Input Voltage | 12V DC |
| Color Options | 3000K Warm White / 4000K Neutral White / 6000K Cool White |
| PCB Width | 10mm White PCB |
| Beam Angle | 120° |
| Cutting Unit | Every 1 LED (easy customization) |
| IP Grade | IP00 (Non-Waterproof) / IP67 (Silicone Tube Waterproof) |
| Roll Length | 5m (16.4ft) per roll |
| Package Options | 1 Roll × 5m / 20 Rolls × 5m / 100 Rolls × 5m |
| Lifespan | 50,000 hours (typical) |
| Applications | Cabinet lighting, signage, architectural accents, display showcases |
Strip Details
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
