Description

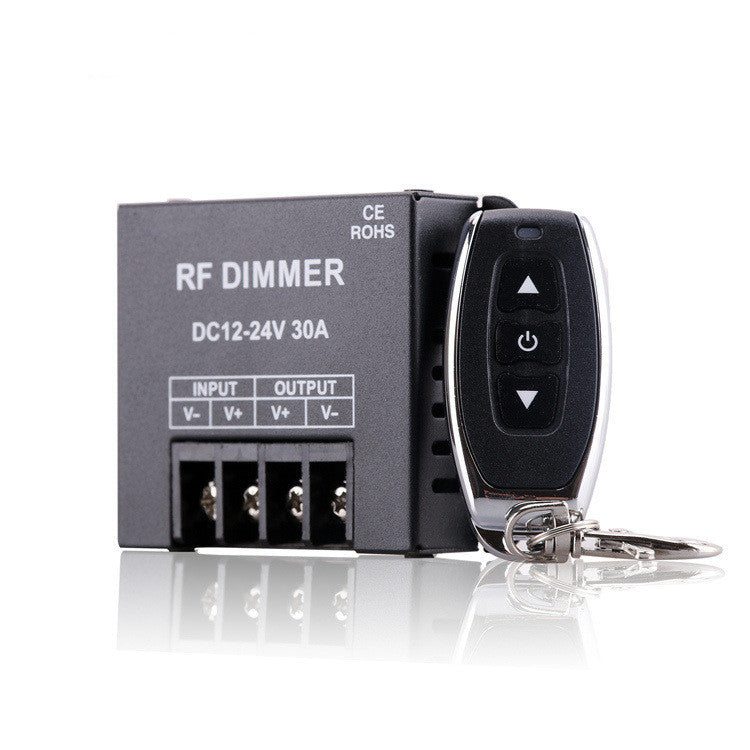

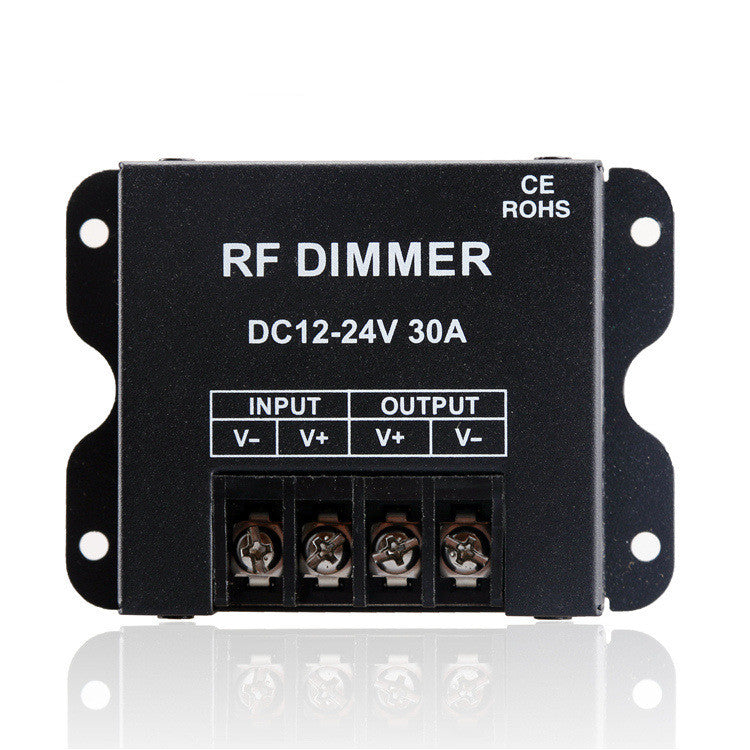

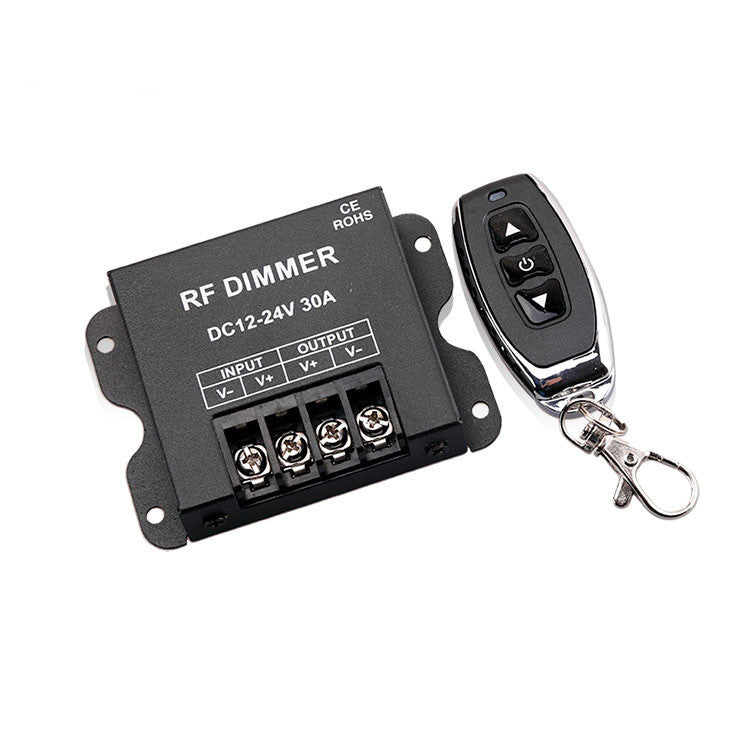

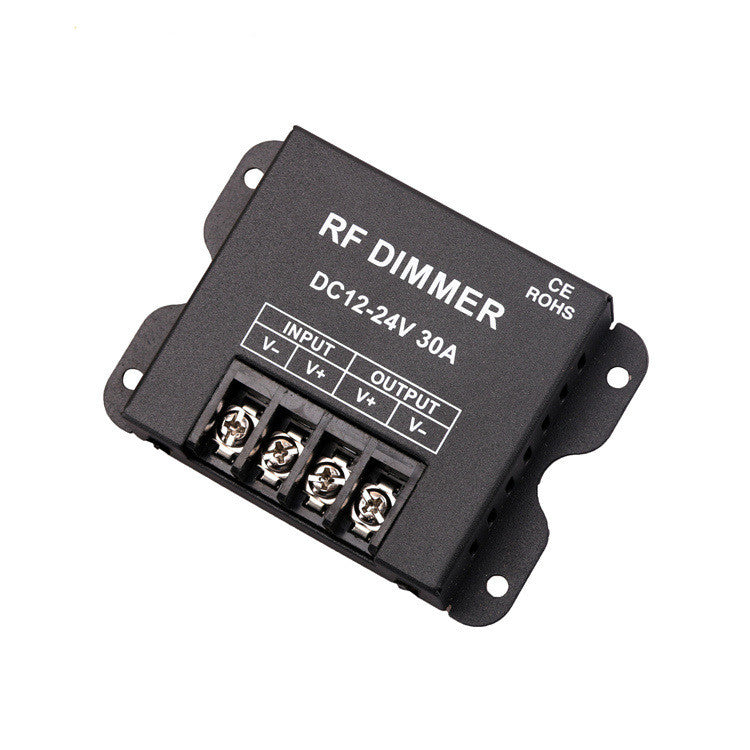

Single Color LED Strip Controller – DC12V-24V 30A | High Power RF Remote LED Dimmer Controller | For 5050/3528 LED Strips
1. Package Included
| Connector | Pack Size | Package Included |
| Screw Terminal Block | 1-Pack | 1 × Controller, 1 × RF Remote |
Order & Logistics
- Lead Time: Ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Dispatched from headquarters warehouse
- Express Shipping (DHL/UPS/FedEx): 3–10 days
- Free Shipping: Orders over $399 qualify for free standard shipping
About this item
- High Power Controller: Designed for single color 5050/3528 LED strips with high load capacity
- Working Voltage: DC 12V–24V, Max Current ≤30A
- Dimming Range: 0–100% stepless dimming, smooth and flicker-free
- Operation: Controlled by RF remote, easy to install and adjust brightness
- Stable Performance: PWM digital dimming, prevents inrush current and extends LED lifespan
Key Specifications
- Input Voltage: DC 12V–24V
- Input Current: ≤30A
- Max Power: 12V ≤360W / 24V ≤720W
- Dimming Range: 0–100% brightness adjustable
- Working Temperature: -20°C ~ 60°C
- Net Weight: 100g / Gross Weight: 110g
- Material: Metal Housing
- Dimensions: 85 × 66 × 20 mm
- Control Method: RF Remote (stepless dimming + dynamic modes)
Usage Notes / Installation Tips
- Ensure your LED strips are single color and operate within DC 12–24V
- Do not exceed 30A total load; use amplifiers if more strips need to be connected
- Check screw terminal wiring carefully to avoid polarity errors
- Install in dry and ventilated environments for best heat dissipation
- Keep remote within range; avoid obstacles for stable control
Applications
- Single color LED strips (5050/3528)
- Residential lighting: living rooms, bedrooms, kitchens
- Commercial spaces: shops, offices, restaurants
- Display cases and retail counters
- DIY LED dimming projects requiring high load capacity
