ES Series Foldable Commercial LED Grow Light 240W / 360W / 480W / 720W – Full Spectrum, Foldable Bar Design

Package Included

About this item

• Commercial-grade ES Series LED grow light designed for premium indoor cultivation with full-spectrum output across the entire plant lifecycle.

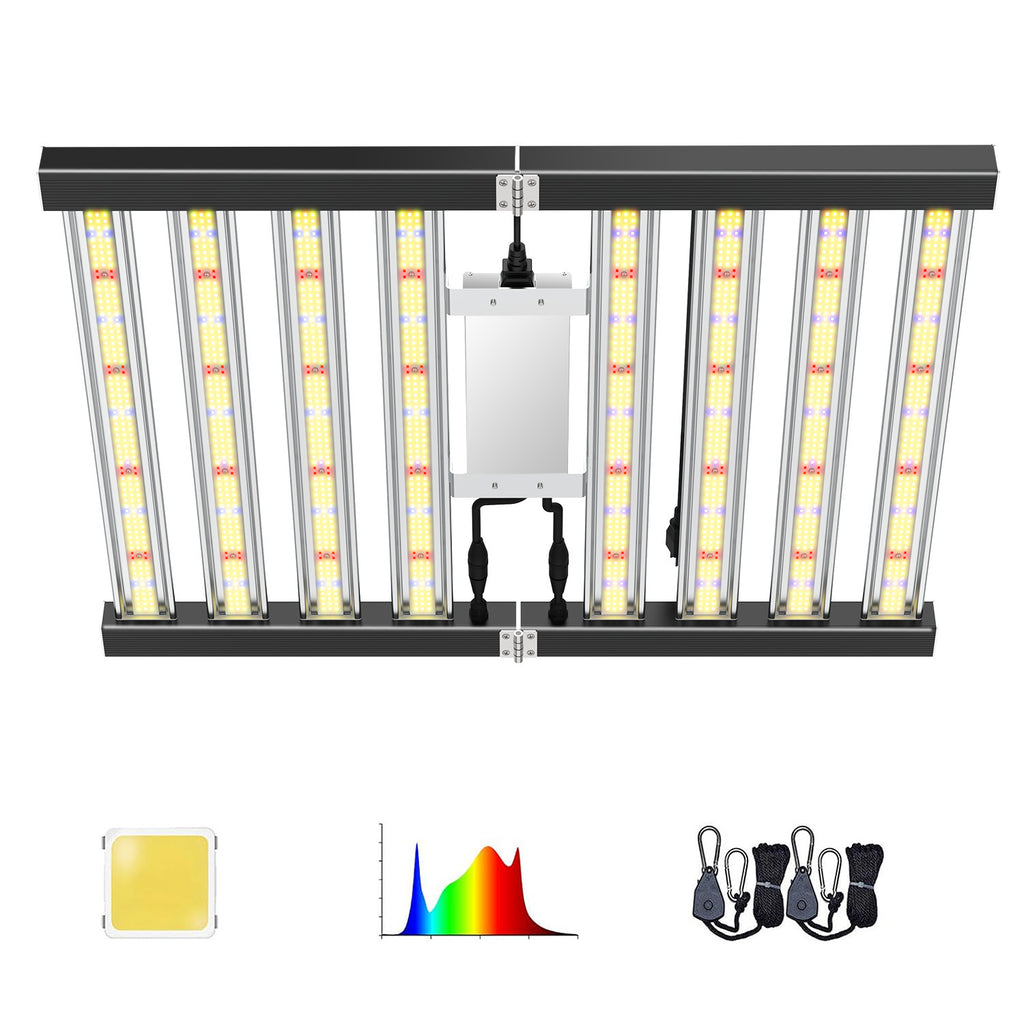

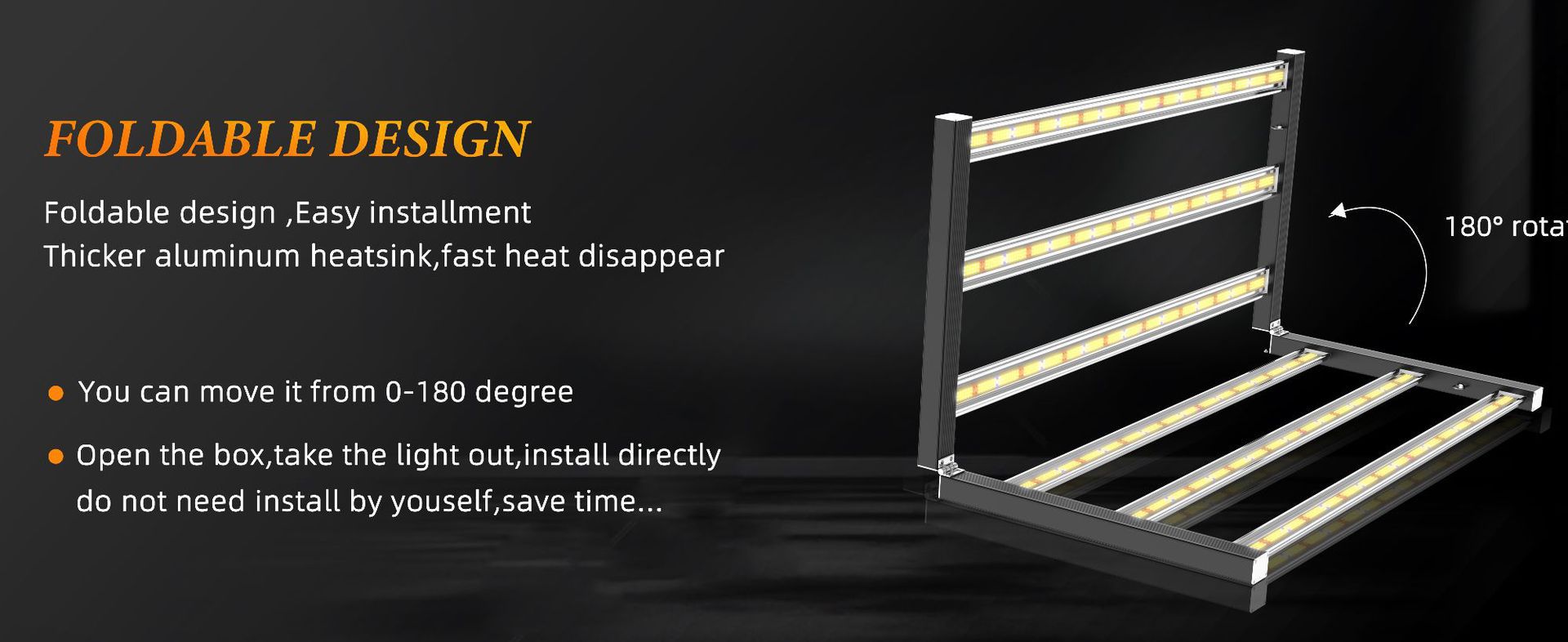

• Foldable multi-bar structure (0–180°) provides flexible coverage adjustment and uniform canopy distribution for dense planting.

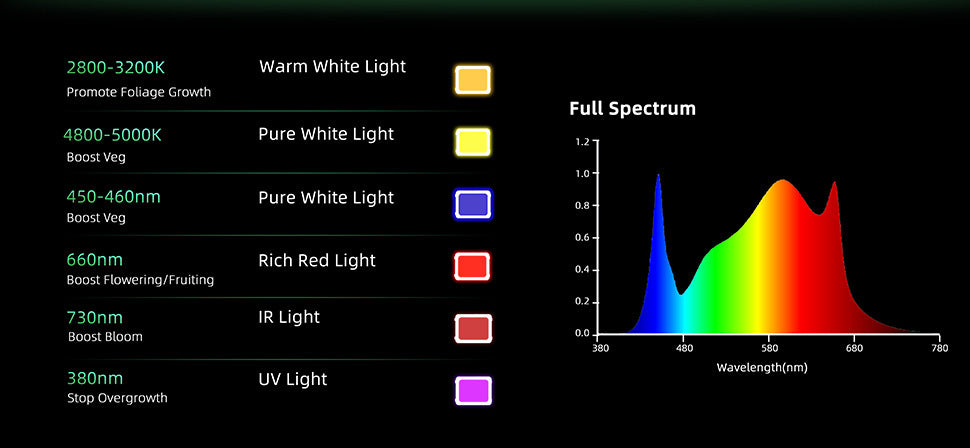

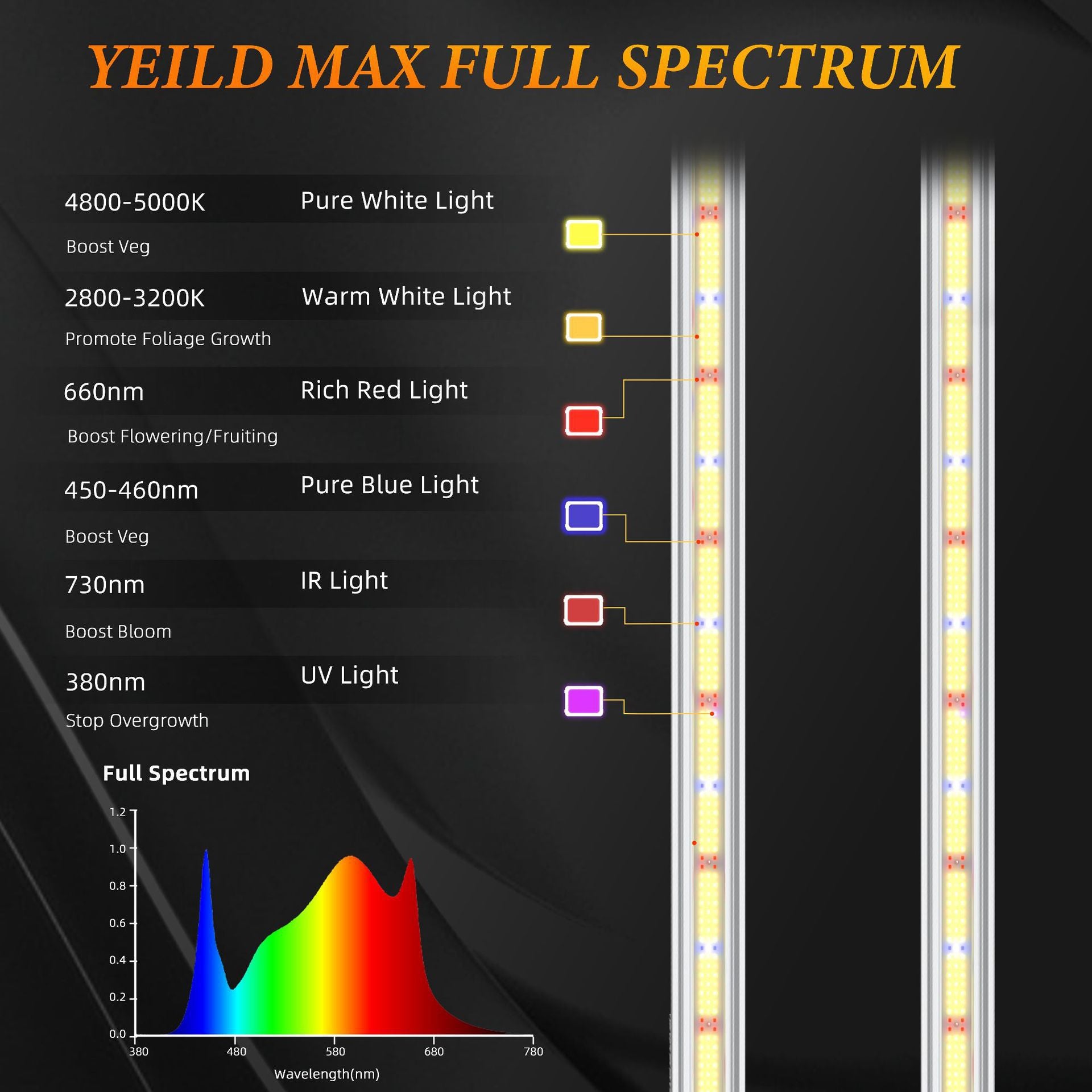

• Full spectrum with UV & IR: 2800–3000K + 4800–5000K, Blue 450–460nm, Deep Red 660nm, Far Red IR 730nm, UV 380nm.

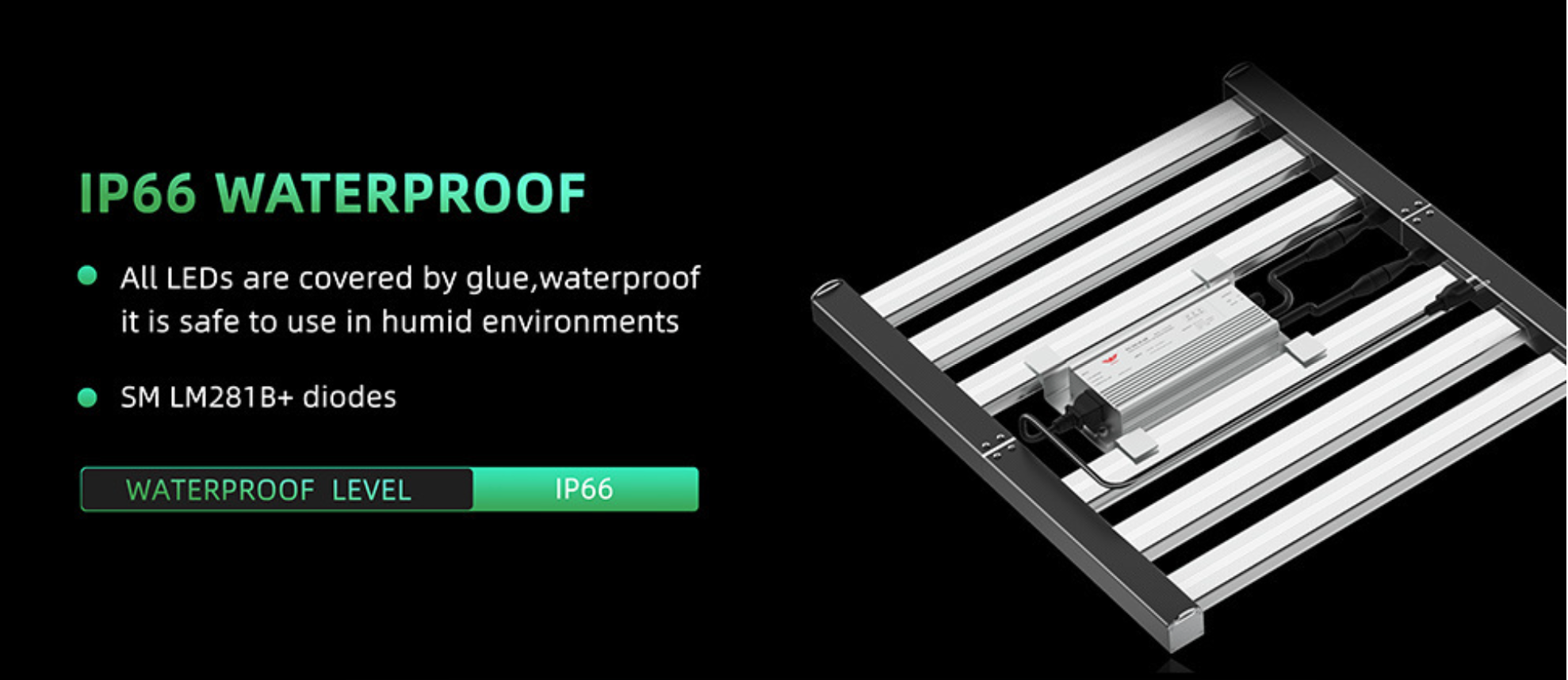

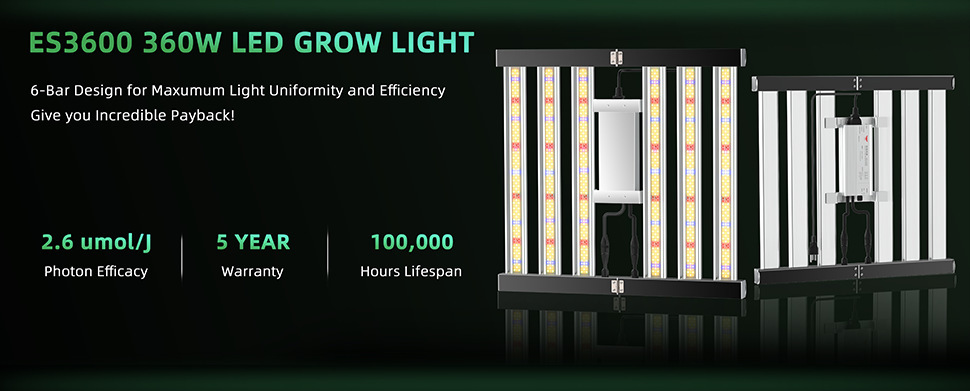

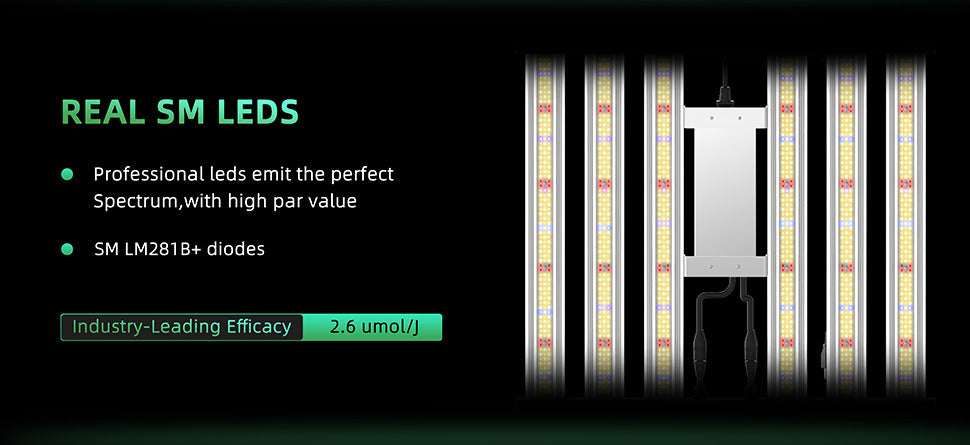

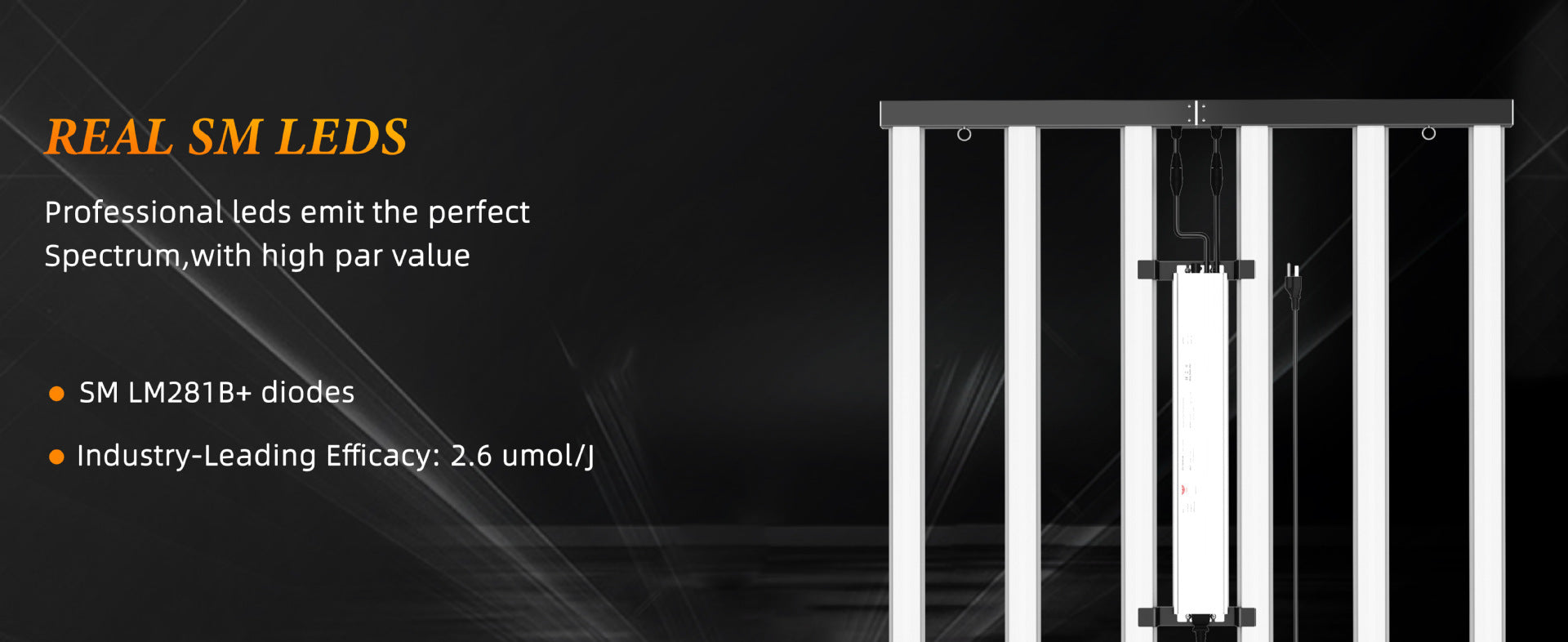

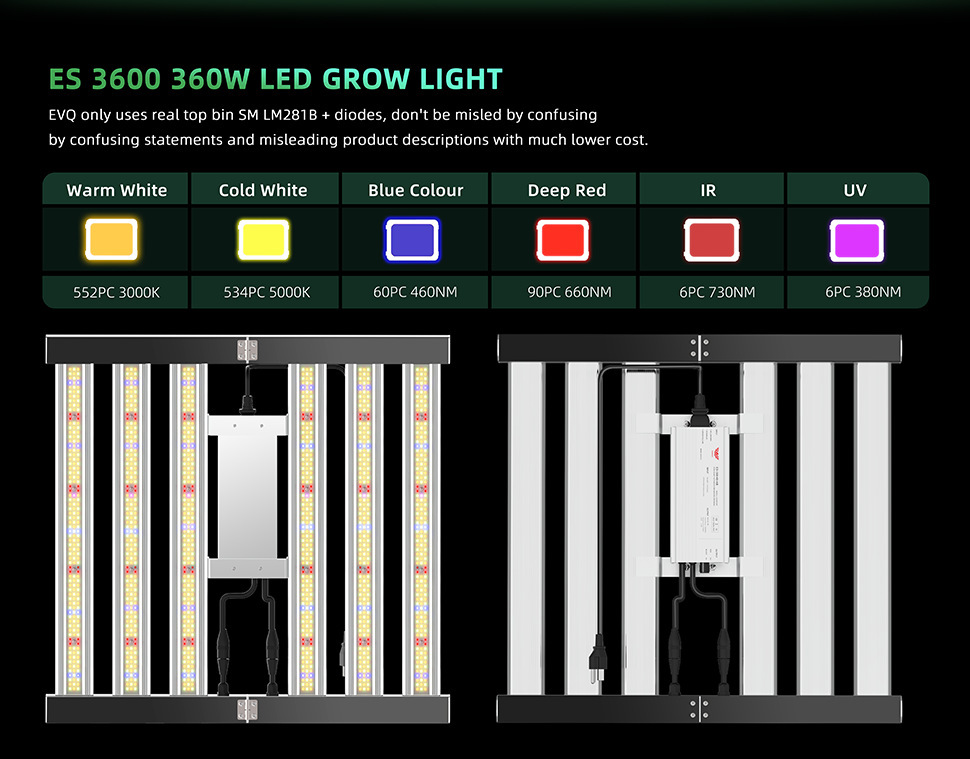

• Samsung LM281B+ LEDs deliver high efficacy up to 2.6 μmol/J with stable output and long-term reliability.

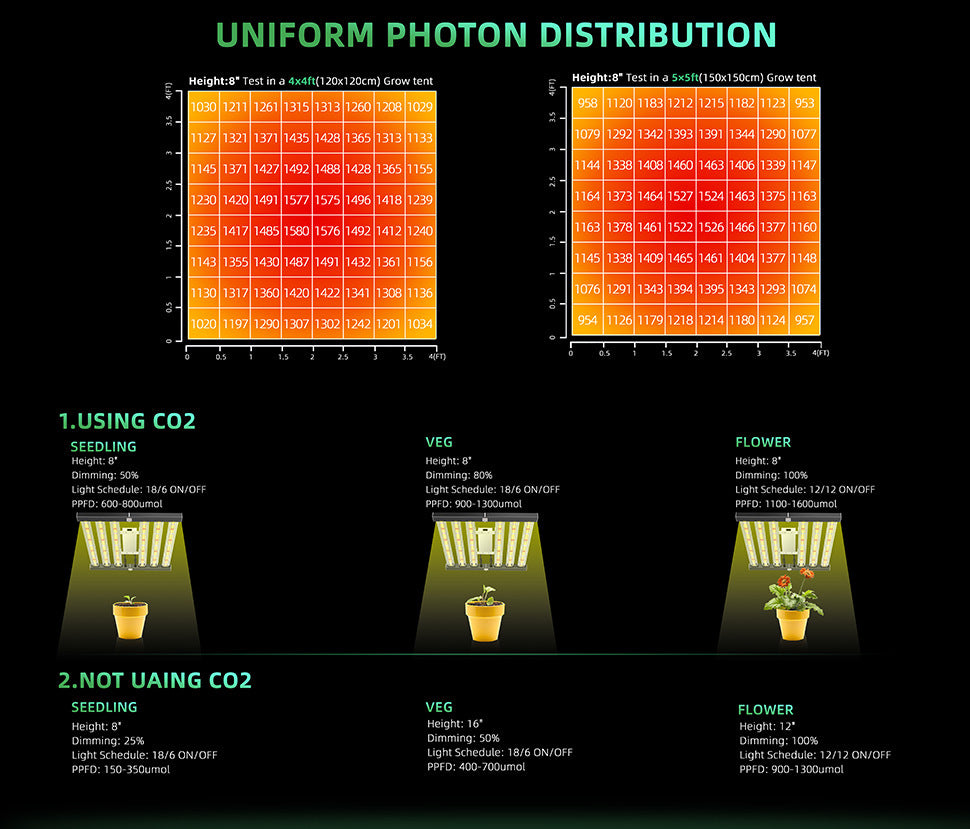

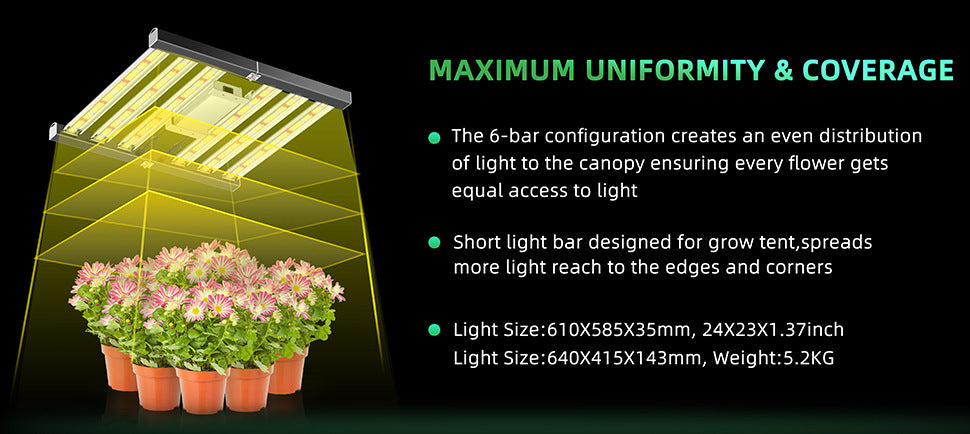

• Uniform light bar layout helps reduce hot spots and dark corners for consistent growth and even yields.

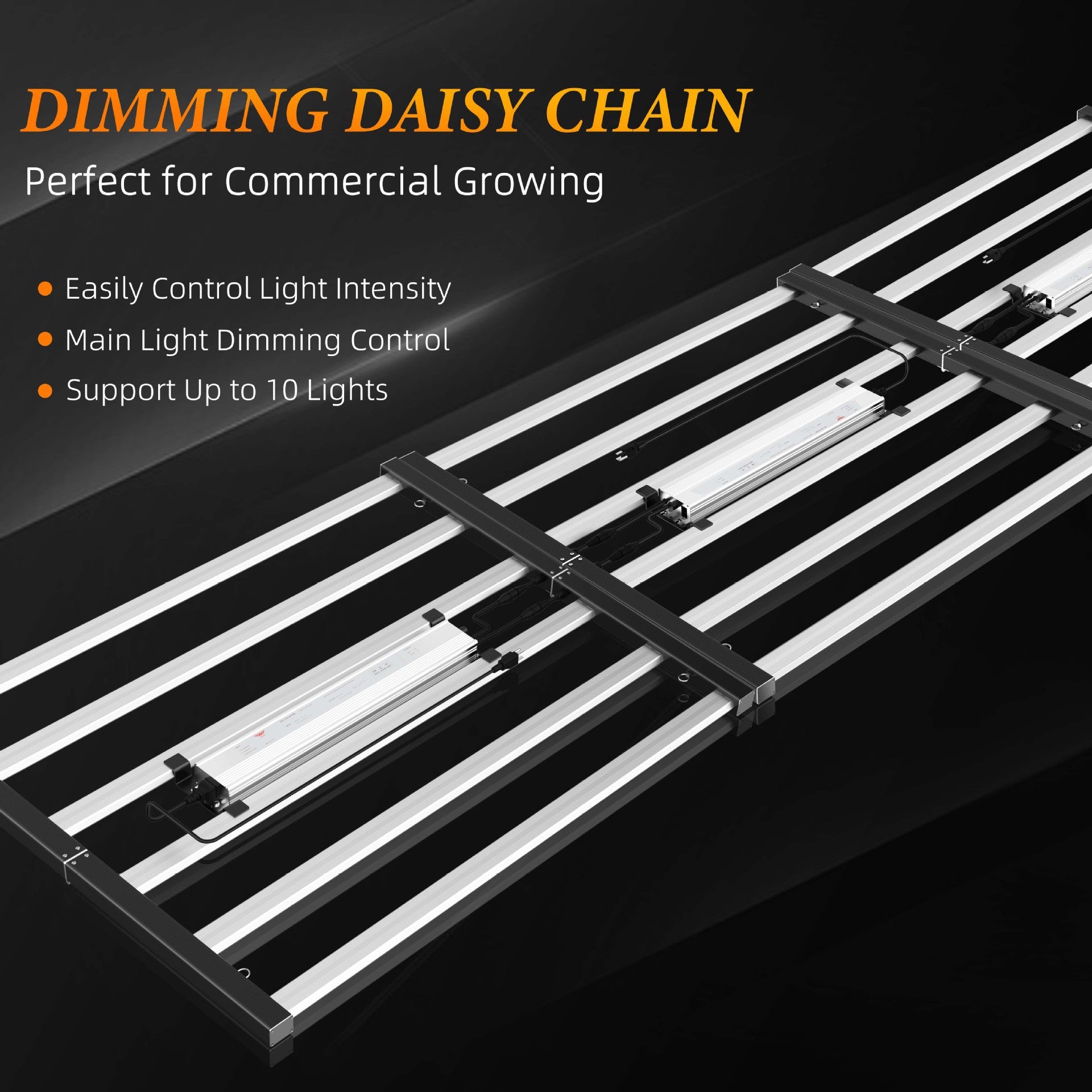

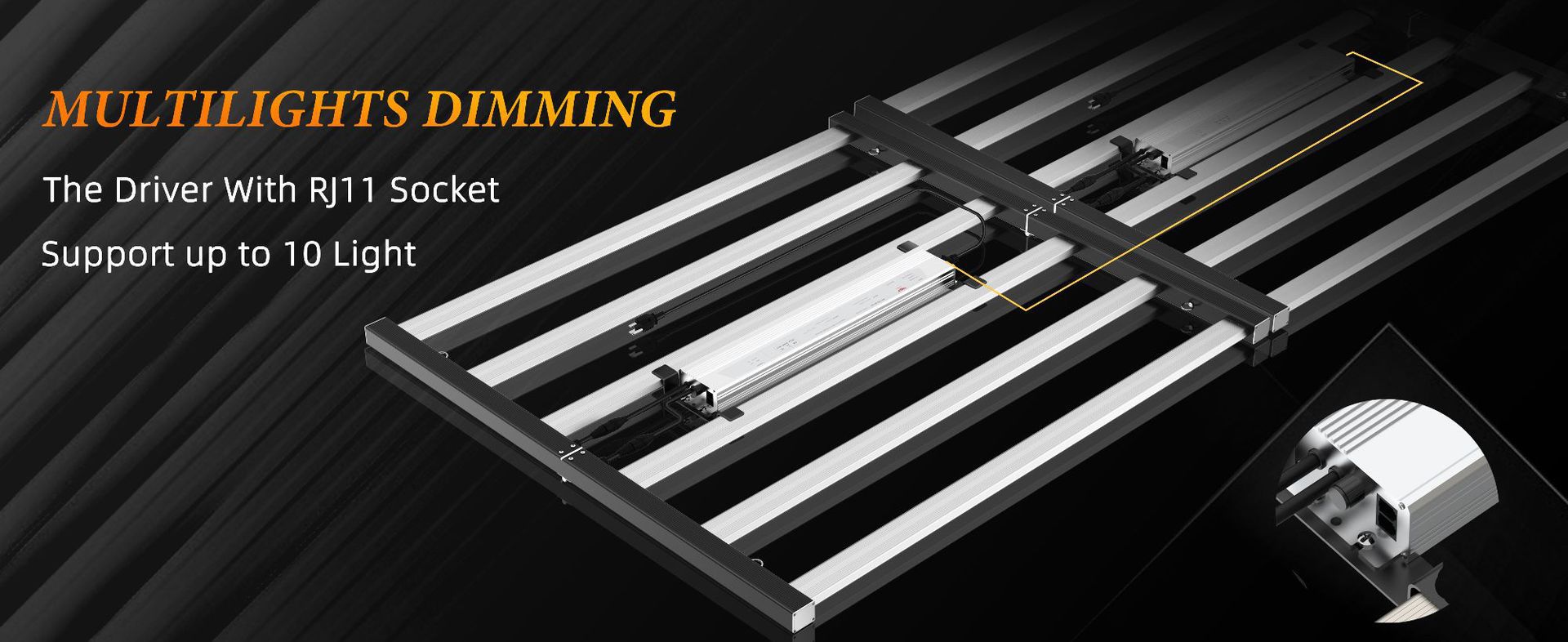

• External isolated driver with RJ11 port supports multi-light dimming control; one driver can control up to 10 lights for synchronized operation.

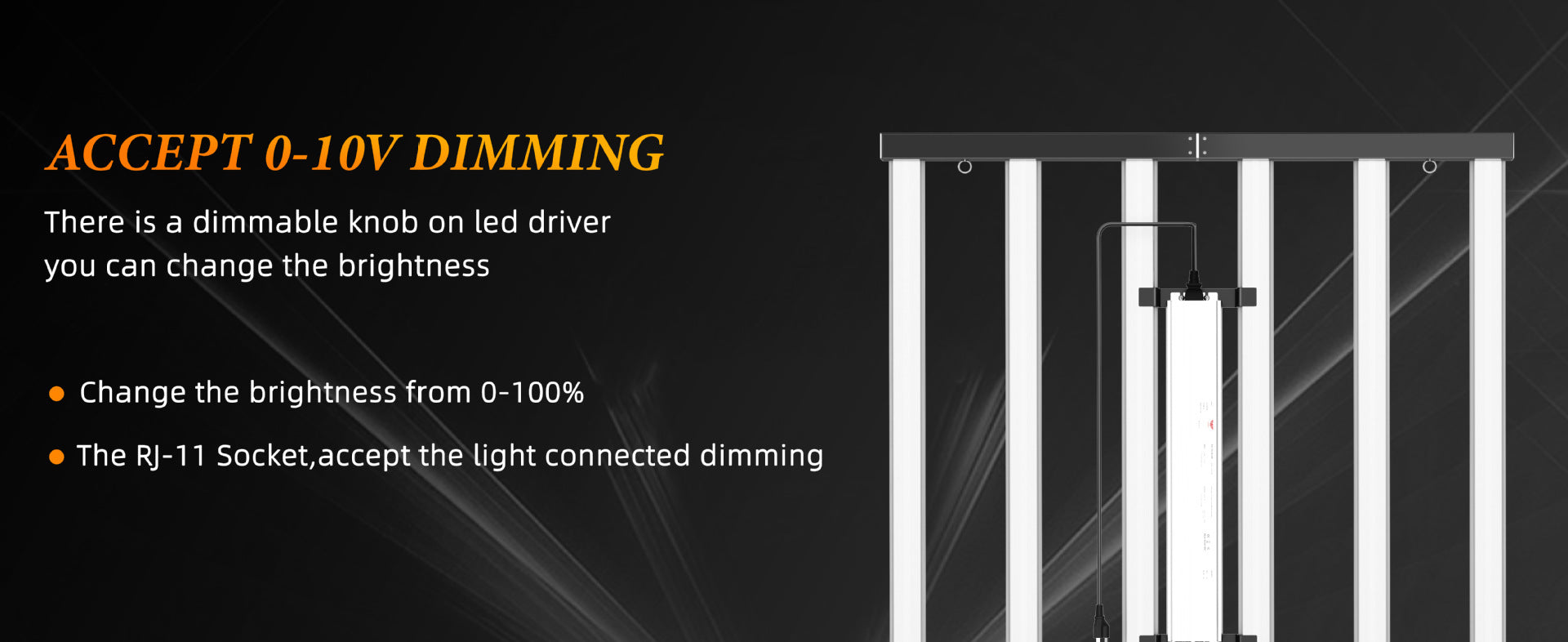

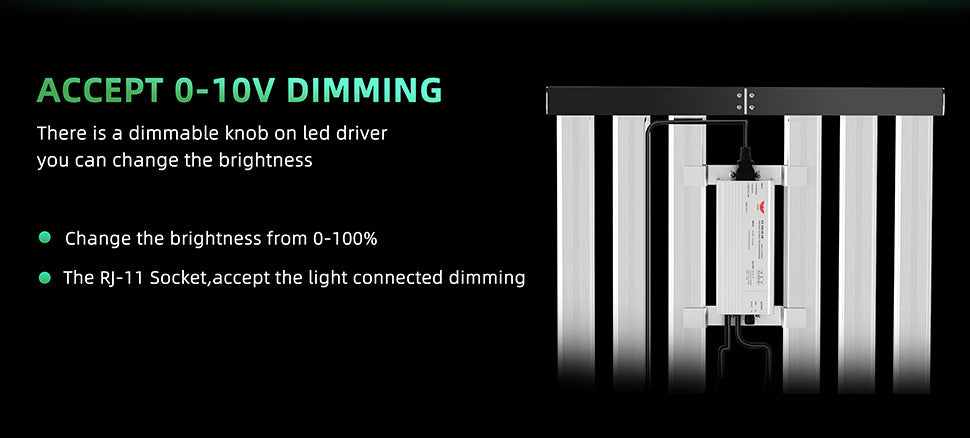

• 0–10V smooth dimming with built-in knob allows brightness adjustment from 0–100% to match different growth stages.

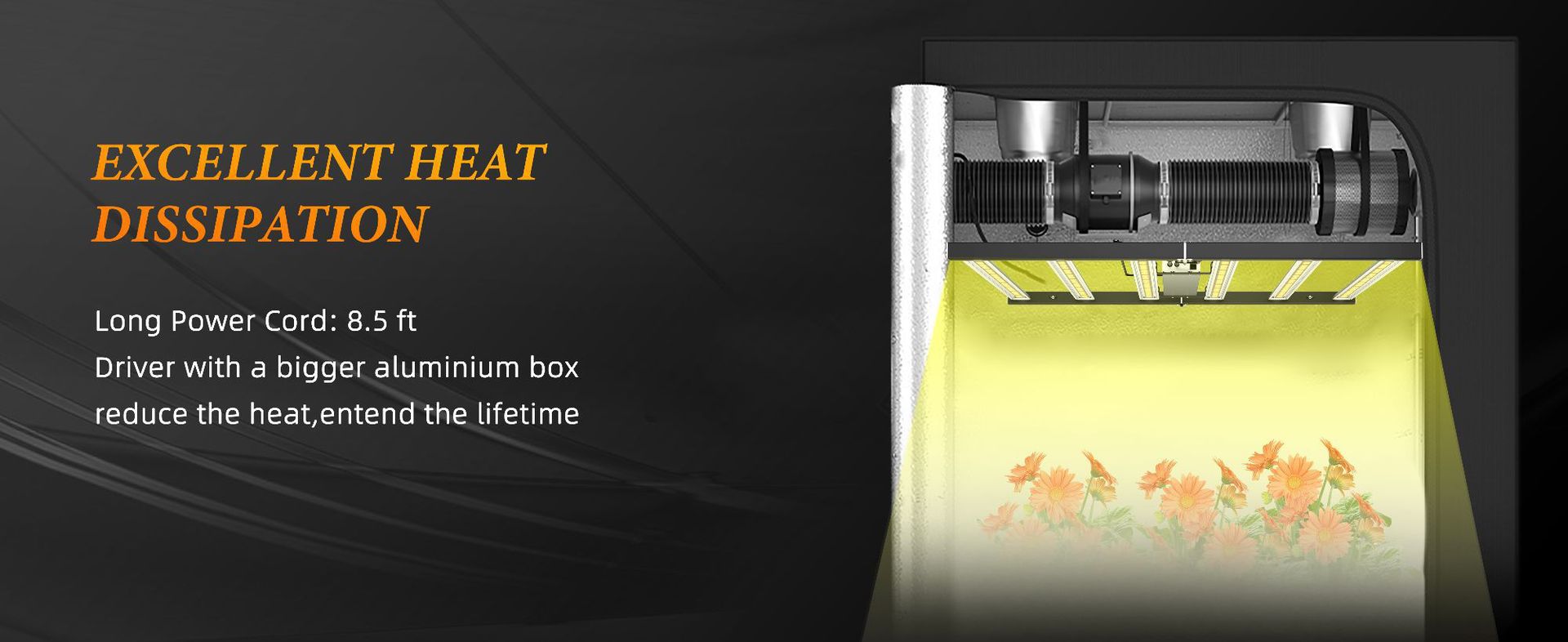

• Passive aluminum heat dissipation design helps lower operating temperature for stable performance and extended lifespan.
• Ideal for grow rooms, grow tents, vertical racks, greenhouses, and professional cultivation facilities.

Order & Logistics

• Lead Time: Typically ships within 3–5 business days.
• Packing: Cardboard box.
• Shipping: Ships from our headquarters (9-18 days standard / 5-9 days express).


Installation Tips

• Hang the fixture securely using the included hanging hardware and adjust height based on canopy size and plant stage.
• Adjust foldable bars (0–180°) to optimize coverage and reduce edge falloff for your grow space.
• Start at lower brightness for seedlings, then increase gradually as plants grow to maintain healthy development.
• Use 0–10V dimming to fine-tune brightness from 0–100% for different crop types and planting density.
• External driver: mount the isolated driver in a ventilated location and keep connectors dry and firmly seated.
• Multi-light control: use the RJ11 port for synchronized dimming when connecting multiple fixtures (up to 10 lights).
• Input Voltage: AC 110–277V; Output Voltage: DC 48V low voltage.
• Indoor use only; ensure adequate airflow for passive heat dissipation.

Warnings and Handling Instructions

• This product is designed for indoor growing only. Do not use in outdoor or wet environments.
• Avoid staring directly at the LEDs for extended periods. Use appropriate eye protection if needed.
• Disconnect power before installing, cleaning, folding, or adjusting light bars.
• Keep the external driver in a ventilated area and ensure all connectors are firmly seated.
• UV and IR LEDs may appear dim to the naked eye, which is normal and not a product defect.
• Keep out of reach of children and pets. Do not use if cables are damaged.

Technical Specifications

Applications

• Commercial grow rooms

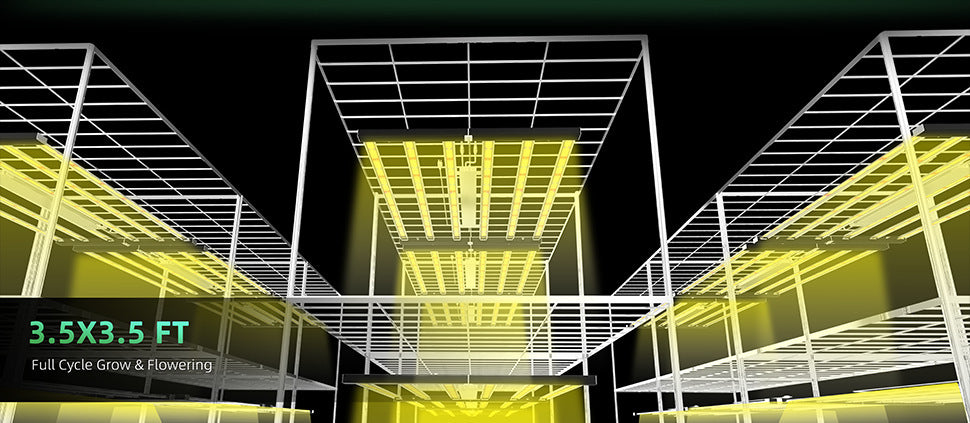

• Vertical farming & rack systems
• Greenhouses
• Professional nurseries
• High-end home growers
• Vegetables, herbs, flowers & medicinal plants

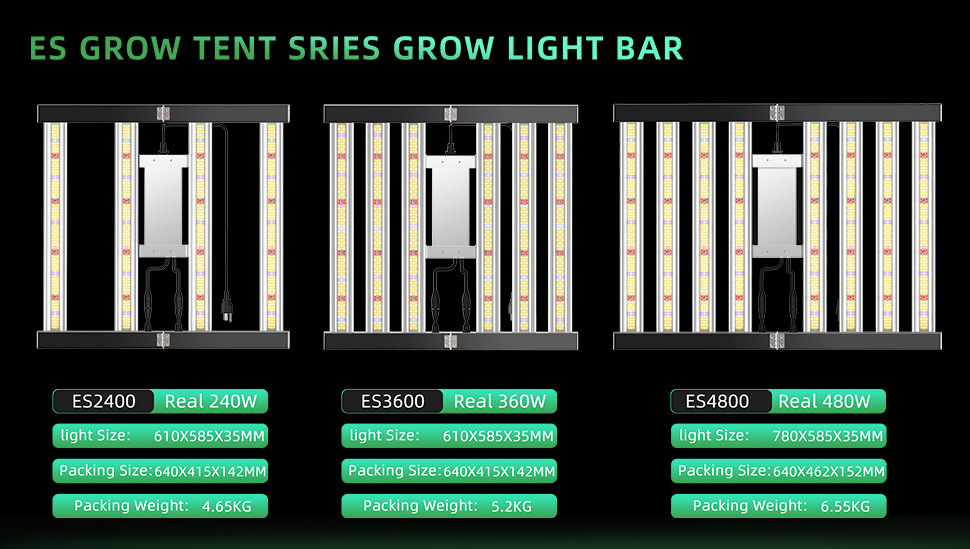

Model Details

🔸 ES2400

• Actual Power: 240W

• Light Size: 610 × 585 × 35 mm

• Packing Size: 640 × 415 × 142 mm

• Gross Weight: 4.65 kgs

🔸 ES3600

• Actual Power: 360W

• Light Size: 610 × 585 × 35 mm

• Packing Size: 640 × 415 × 142 mm

• Gross Weight: 5.2 kgs

🔸 ES4800

• Actual Power: 480W

• Light Size: 780 × 585 × 35 mm

• Packing Size: 640 × 462 × 152 mm

• Gross Weight: 6.55 kgs

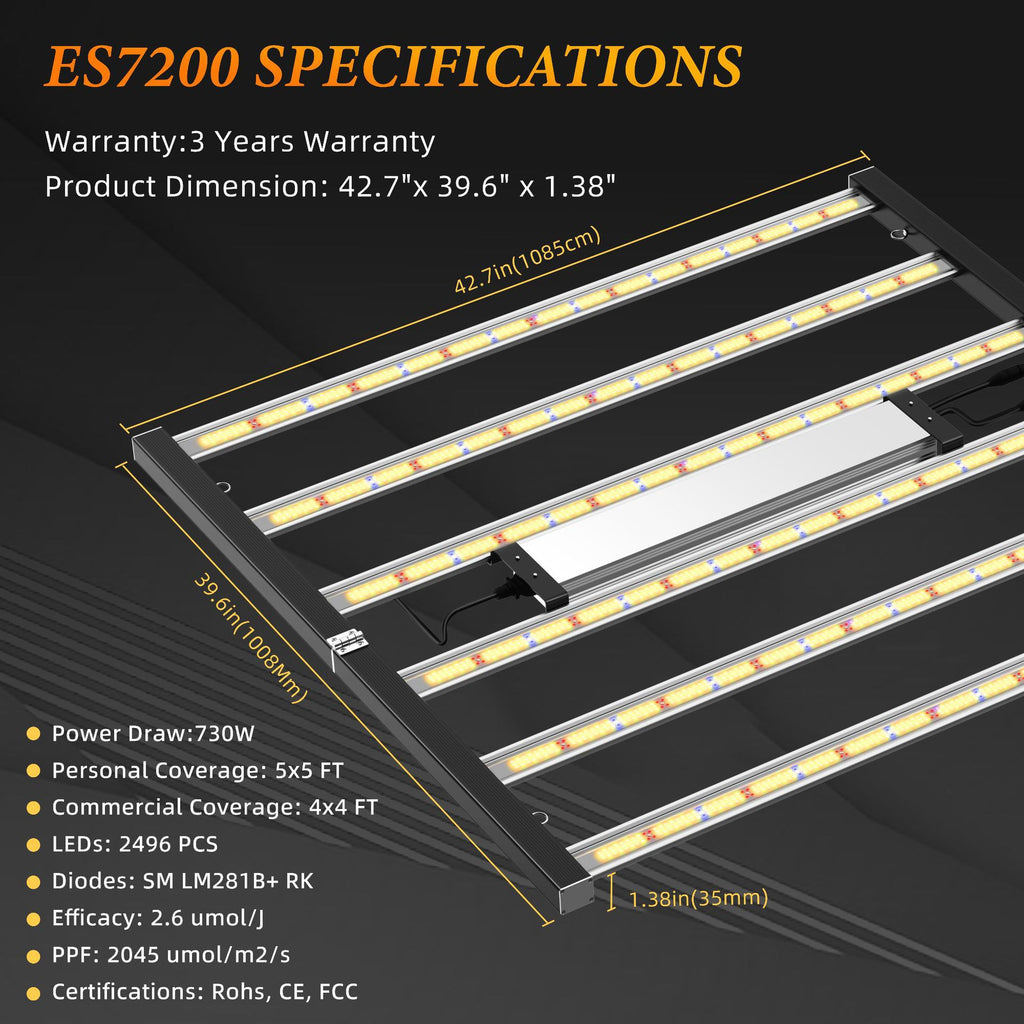

🔸 ES7200

• Actual Power: 730W

• Light Size: 1085 × 1008 × 35 mm
  (42.7 × 39.6 × 1.38 inch)

• Packing Size: 1140 × 590 × 135 mm

• Gross Weight: 12.5 kgs

📦 What’s Included

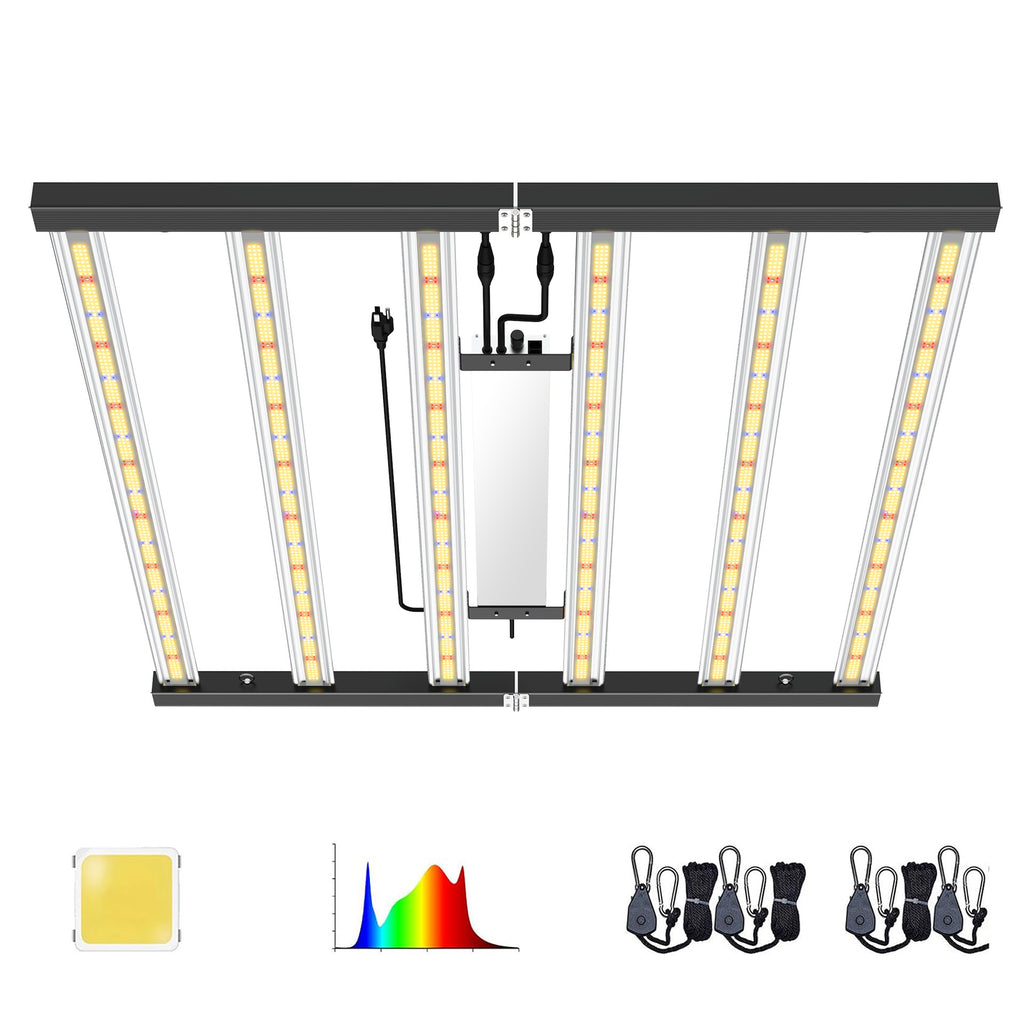

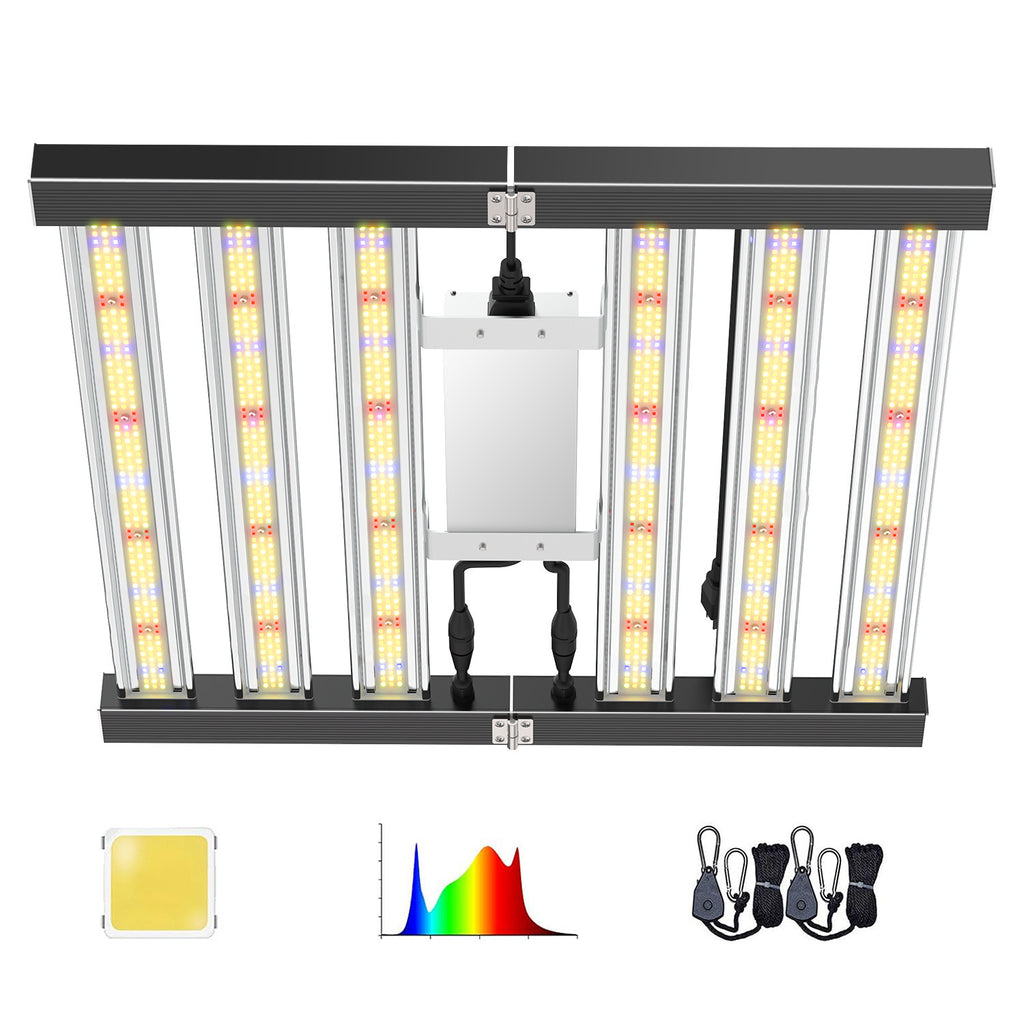

• LED Grow Light Fixture (Foldable Bar Design)

• External Isolated LED Driver

• Power Cord (8.5 ft)

• Hanging Hardware
