Description
PARAMETERS of HK PRO INDOOR LED DISPLAY SCREEN
| HK-Pro Series | ||||
| HK-Pro Series | HKP191 | HKP261 | HKP291 | HKP391 |
| Pixel Pitch | 1.953 mm | 2.604 mm | 2.976 mm | 3.91 mm |
| LED Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Drive IC | FM6356 | FM6356 | FM6356 | FM6356 |
| Module Size（WxH) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module Resolution (dots) | 128×128 | 96 x 96 | 84 x84 | 64 x 64 |
| Module Power Consumption | 30W-35W | 30W-35W | 30W-35W | 30W-35W |
| Module Weight (g) | 594 | 575 | 570 | 563 |
| Pixel Density(dots/㎡) | 262144 | 147456 | 123904 | 65536 |
| Panel Dimension (mm) | 500x500x63 mm | 500x500x63 | 500x500x63 | 500x500x63 |
| Panel Resolution (H x V) | 256 x 256 | 192 x 192 | 168 x 168 | 128 x 128 |
| Max. Brightness | 800nits | 800nits | 800nits | 800nits |
| Weight Per Panel | 6.0 kg | 6.0 kg | 6.0 kg | 6.0 kg |
| Power Consumption (Avg)(W/㎡) | 190 | 190 | 190 | 180 |
| Power Consumption (Max)(W/㎡) | 580 | 580 | 580 | 540 |
| Viewing Angle Vertical | 160° | 160° | 160° | 160° |
| Viewing Angle Horizontal | 160° | 160° | 160° | 160° |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Gray Scale(level) | ≥12 bit | ≥12 bit | ≥12 bit | ≥12 bit |
| Driving Mode(Scan) | 1/32 | 1/32 | 1/28 | 1/32 |
| Frame Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Maintenance Method | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Operational Temp / Humidity | -20°-50°C, 10-90% RH -4°-122°F, 10-90% RH |
-20°-50°C, 10-90% RH -4°-122°F, 10-90% RH |
-20°-50°C, 10-90% RH -4°-122°F, 10-90% RH |
-20°-50°C, 10-90% RH -4°-122°F, 10-90% RH |
| IP Rating | Indoor | Indoor | Indoor | Indoor |
| Receiving Card Model No. | Nova A5s Plus | Nova A5s Plus | Nova A5s Plus | Nova A5s Plus |

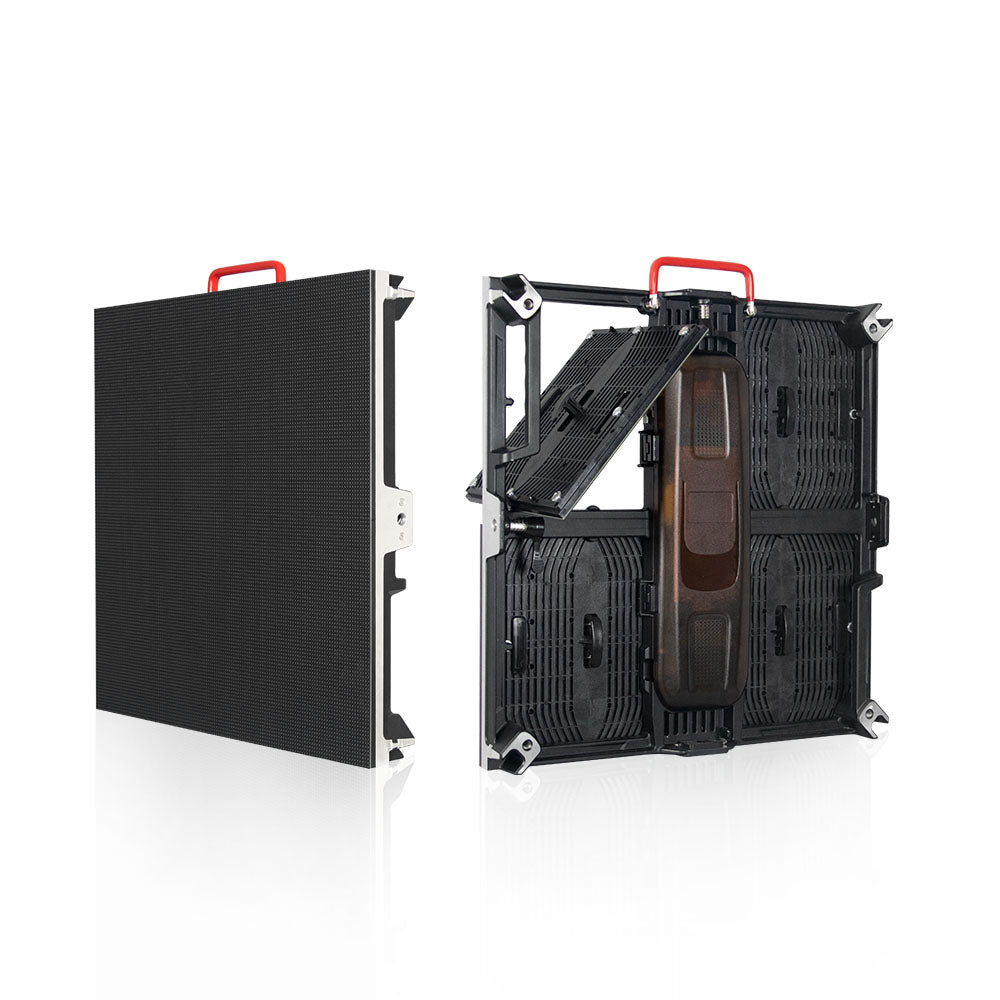

IMPROVED CARRIER DESIGN
This new designed indoor LED screen we named HK Pro series. As a improved design model, the new design carrier is light in weight, only 6.5kgs per carrier.
And again it’s powerful as most of the rental LED display screens.
* Commercial Indoor Fixed Display Solution
* Compatible panel size with multiple pixel pitches
* Fast lock design makes installation faster and easier
* Visualized back cover design, tool-free maintenance
* Module front and back service.
IMPROVED CARRIER DESIGN
Easy Maintenance
* Dual service with front and rear maintenance design makes LED Panels can be assembled and disassembled easily.

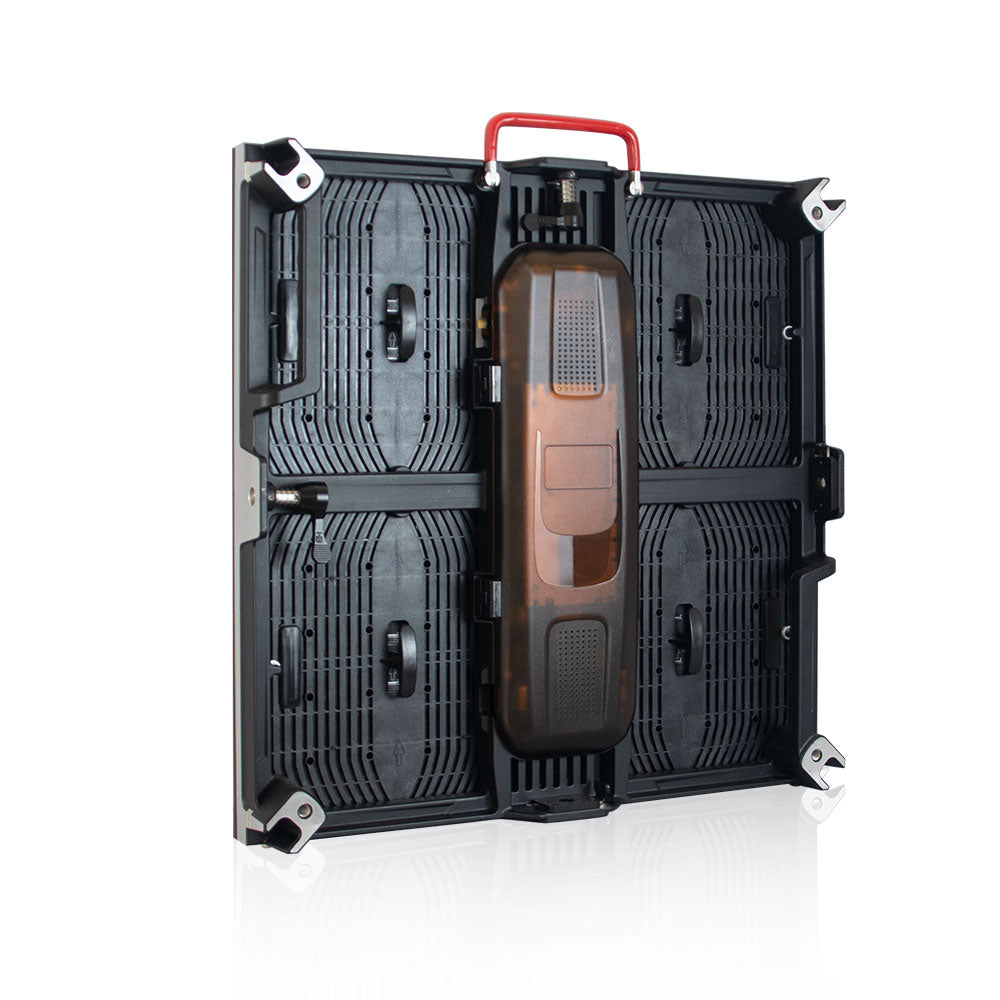

* Visualized back cover design, tools free for power supply, receiving card, and Hub card maintenance and exchange.
Fast Installation
* Front or back service to power system
* Plug in-out design to release power supply box
* Fast lock designed for installing LED panels quickly and easily
DOULE INTELLIGENT DESIGN
* Data input and output redundancy design
* Current sharing back up design
* Electromagnetic compatible and protection
* Dual receiving card design
MODULAR DESIGN
The HK Pro indoor 500×500 (mm) LED display screen, one display unit is made with 4pcs 250×250 (mm) LED modules.
WIDE VIEWING ANGLE
The HK Pro indoor 500×500 (mm) LED display screen having a wide viewing display angle in 160 °, you will miss no information no matter from which direction come close to the LED display screen video wall.
HIGH GREYSCALE
The HK Pro indoor 500×500 (mm) LED display screen having a wide viewing display angle in 160 °, you will miss no information no matter from which direction come close to the LED display screen video wall.
AUTO CALIBRATION
The HK Pro indoor 500×500 (mm) LED display screen having a wide viewing display angle in 160 °, you will miss no information no matter from which direction come close to the LED display screen video wall.
MULTIPLE INSTALLATION METHODS
The HK Pro indoor LED screens are commonly used in stages, sales galleries, meeting rooms, seminar halls, conference halls, hotel ballrooms, and building lobbies. It can be fixed onto wall, or use mounting brackets for stacking installation. And also can be hanging with rod for not very large screen size.
Unit Price Package Include:
- 4pcs 500x500mm LED Screen Unit (total 1 square meter)
IMPORTANT NOTICE !
- 【Lead Time】: The products takes 15-20 days to make if none in stock.
- 【Installation Method】: The scree can be fixed to wall, hanging from ceiling, and floor-standing with bracket. The Wall Fixing Bracket, Hanging rod and Floor-standing bracket are not included, need to purchase separately.
- 【Packing】：The LED Sphere Display will be packed in road rolling Air-flight Case : 10pcs LED panel per case, size around: 112x57x73(cm), G.W.: 115kgs/Case
- 【Free Shipping】：
- For shipping, the price on this page is include free shipping by SEA +Delivery to door by truck. It's by Fast Boat which in regular would take around 30-35days at least in transportation after boat departure;
- DDP TERM (all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
