Wide Recessed LED Aluminum Channel H15050-B – 125mm Inner Width | Silver | Milky White Cover | With Installation Accessories | Flush Mounting Linear Office Lighting | 1m / 2m | 10-Pack / 20-Pack
Package Included
| Version | Package Included |
| 1 Meter × 10-Pack | 10 × 1m H15050-B Extruded Aluminum Channel 10 × 1m H15050-B Milky White Diffuser (cover) 10 × End Cap 20 × Spring Bracket |
| 1 Meter × 20-Pack | 20 × 1m H15050-B Extruded Aluminum Channel 20 × 1m H15050-B Milky White Diffuser (cover) 20 × End Cap 40 × Spring Bracket |
| 2 Meter × 20-Pack | 20 × 2m H15050-B Extruded Aluminum Channel 20 × 2m H15050-B Milky White Diffuser (cover) 20 × End Cap 40 × Spring Bracket |
About this item

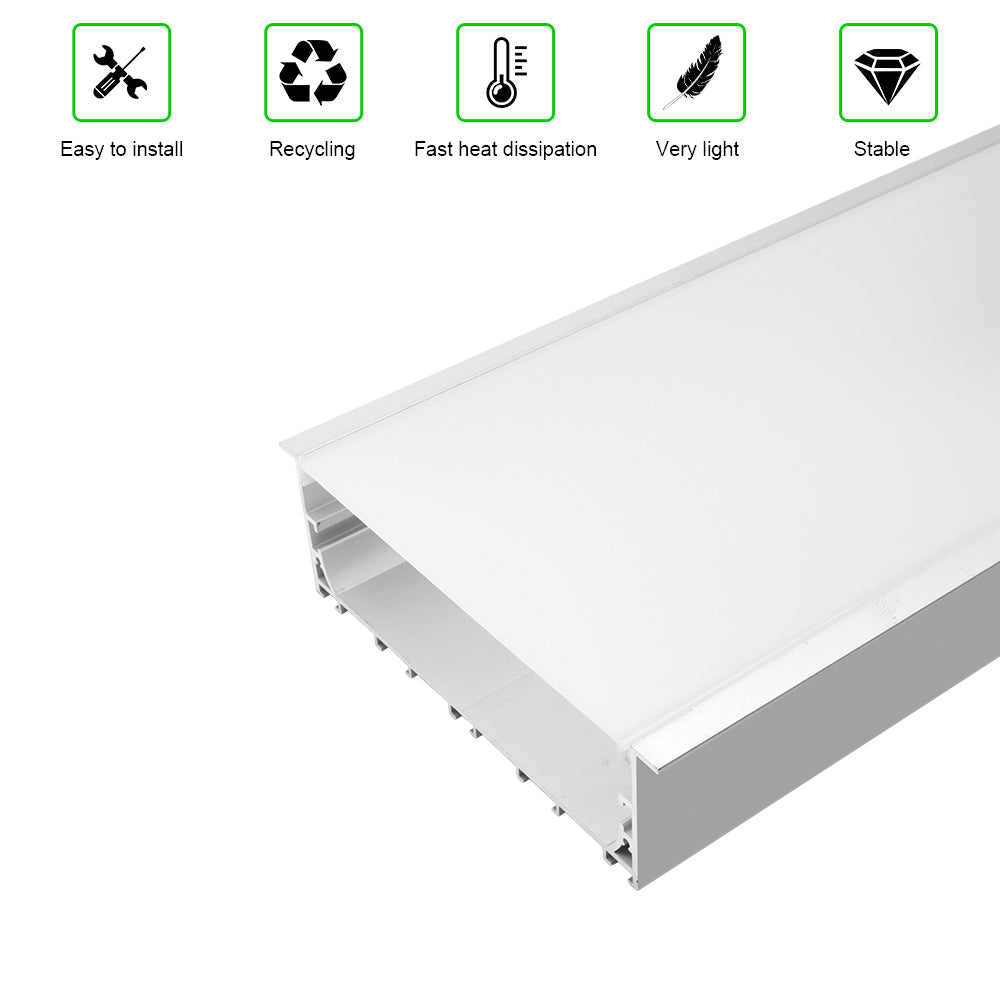

- High-precision extruded aluminum with excellent heat dissipation, corrosion resistance, and wear durability.
- Milky white diffuser cover provides soft, uniform, glare-free light with wide illumination.
- Extra-wide 125 mm (4.92") inner width supports large LED strips or multiple narrow LED strips for custom lighting effects.
- U-shaped recessed aluminum channel with rigid structure for both hanging and flush mounting applications.
- Spring brackets included for safe and easy recessed installation in office or commercial lighting projects.
Order & Logistics
- Lead Time: Ships within 3–8 business days after order confirmation
- Packing: Heavy-duty cardboard box with protective padding
- Shipping Note:
-
LED aluminum profiles are classified as oversized products and require special packaging and logistics handling. Therefore, this product series is not included in our Free Shipping Policy for orders over $399, and shipping fees will be charged based on the actual freight cost. Air Freight (10–20 Days - Air + Ground)
- Terms: All freight shipments are under DDP terms (all duties & taxes included). For countries where this service is unavailable, we will contact the buyer before dispatch.
Key Specifications
| Parameter | Details |
| Item / Model | Aluminum Channel, H15050-B |
| Housing Color | Silver |
| Cover Color | Milky White Diffuser |

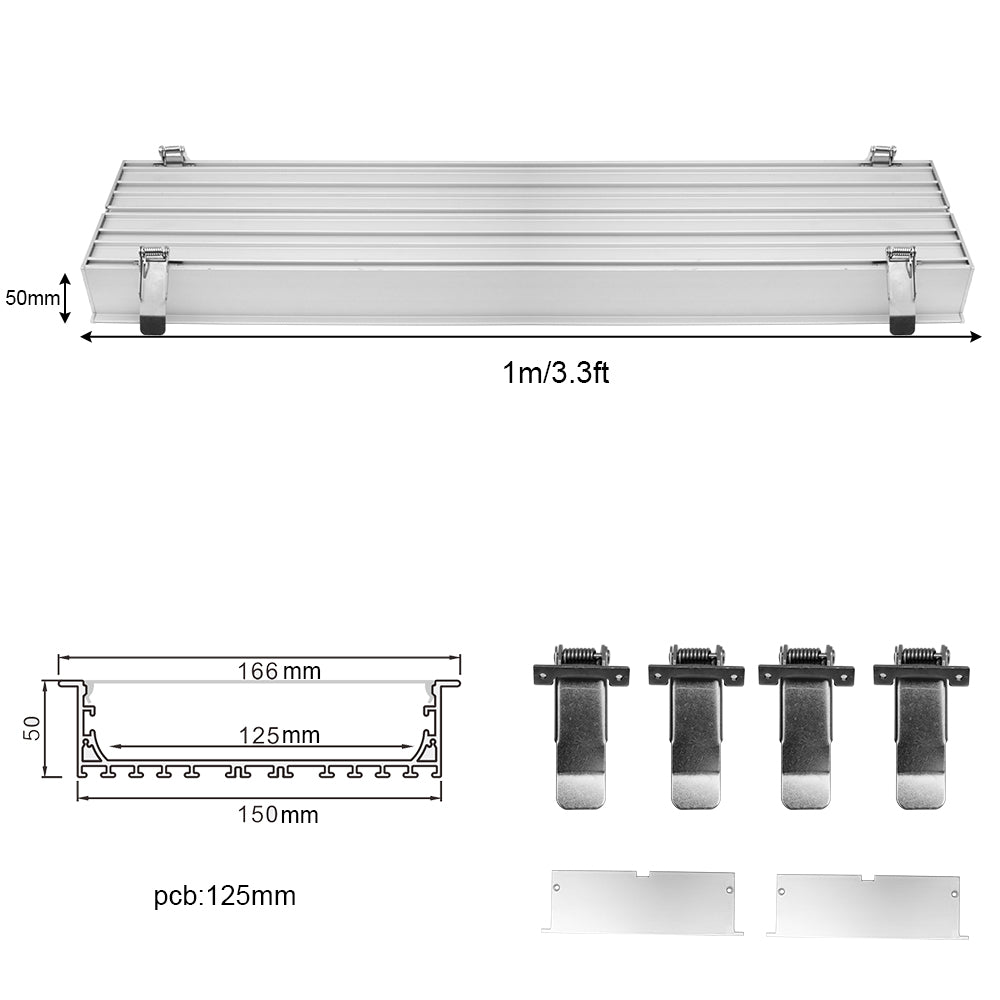

| Length Options | 1m (39.37") / 2m (78.74") |

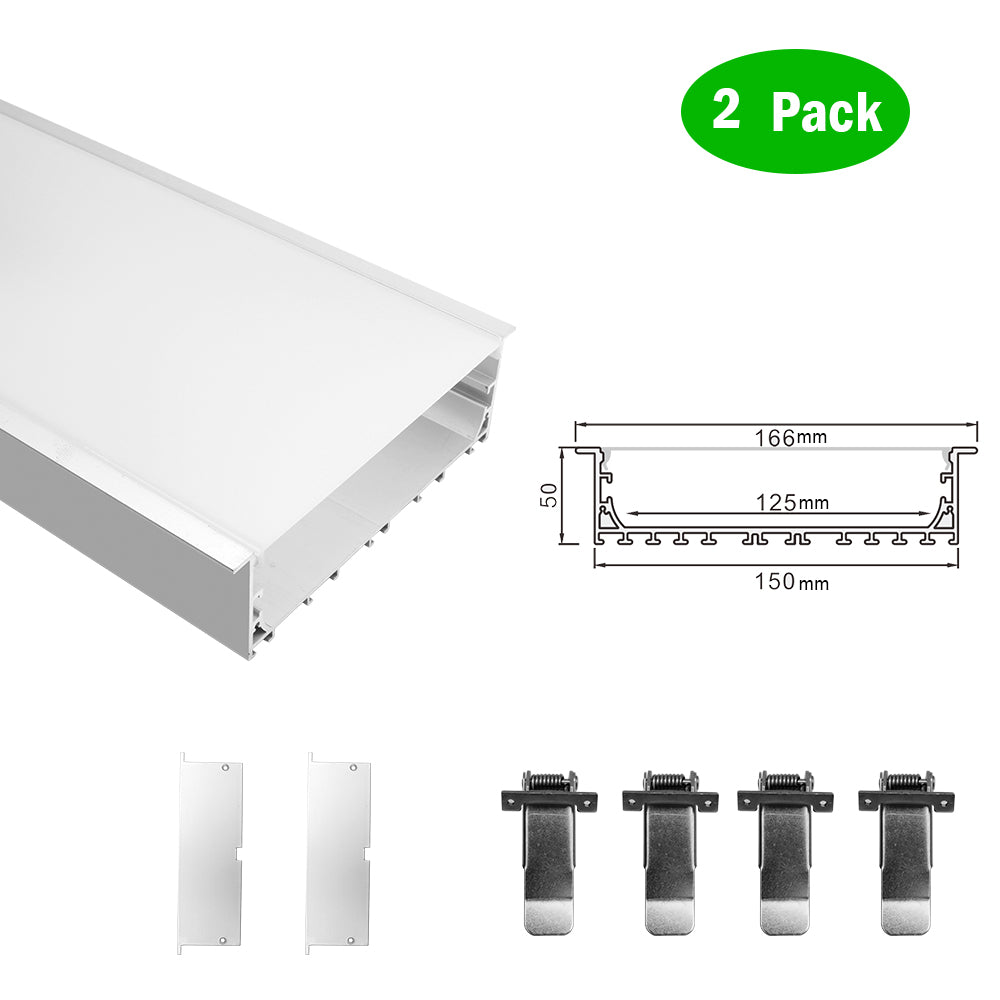

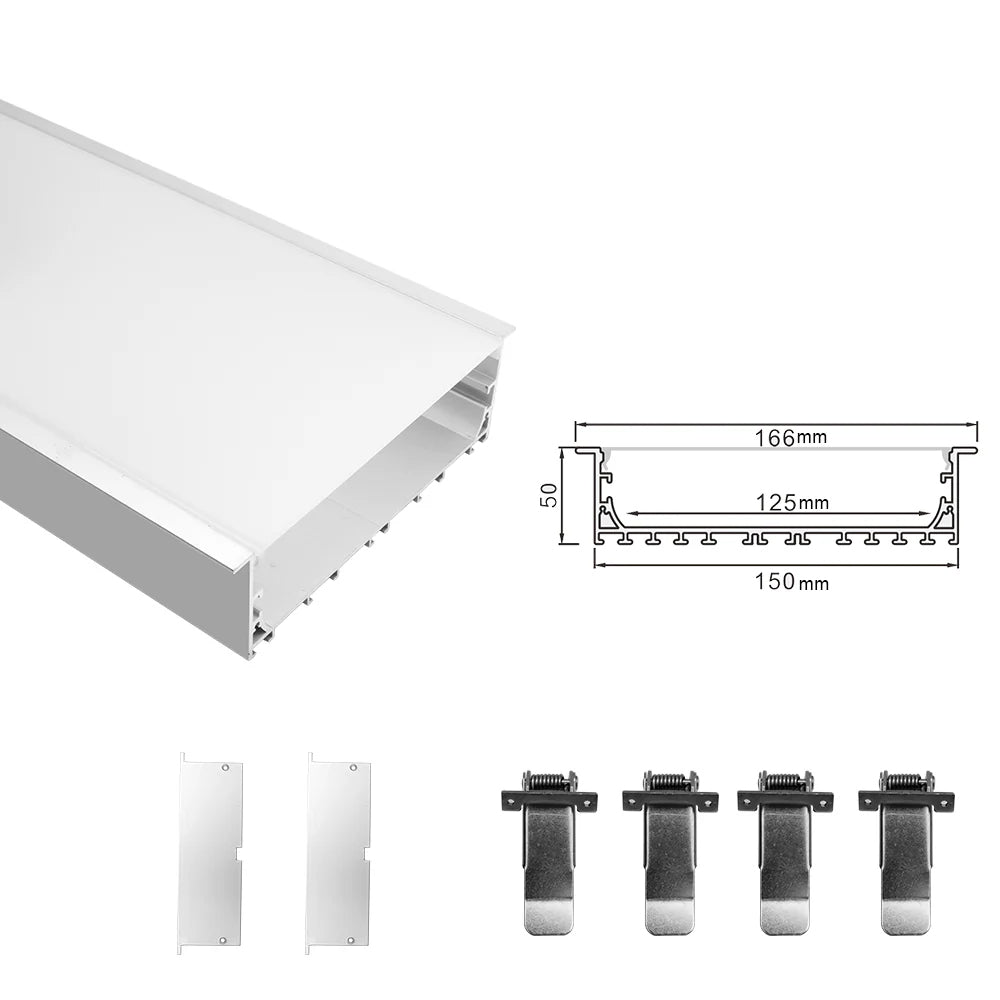

| Top Width / Bottom Width | 166 mm (6.54") / 150 mm (5.9") |
| Inner Width | 125 mm (4.92") |

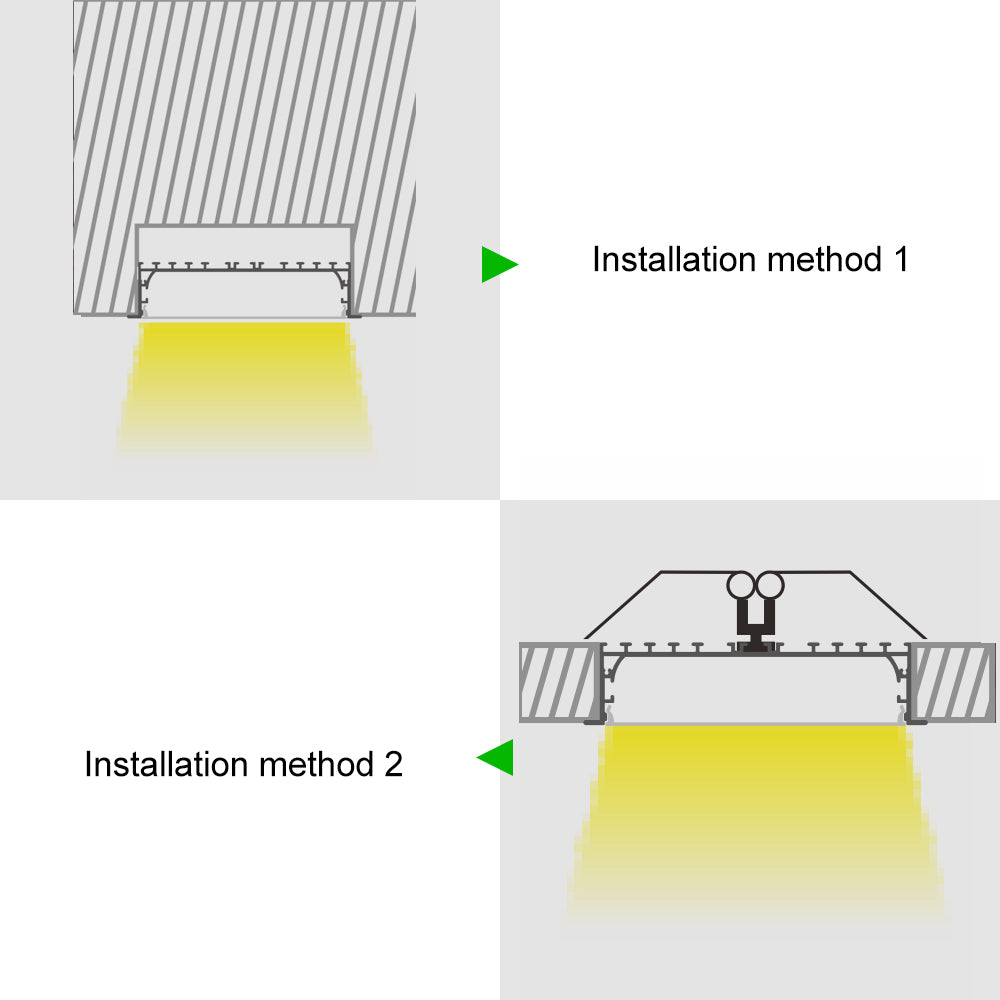

| Mounting | Flush Mounting, Recessed Mounting |
| Material | Extruded, Anodized Aluminum |

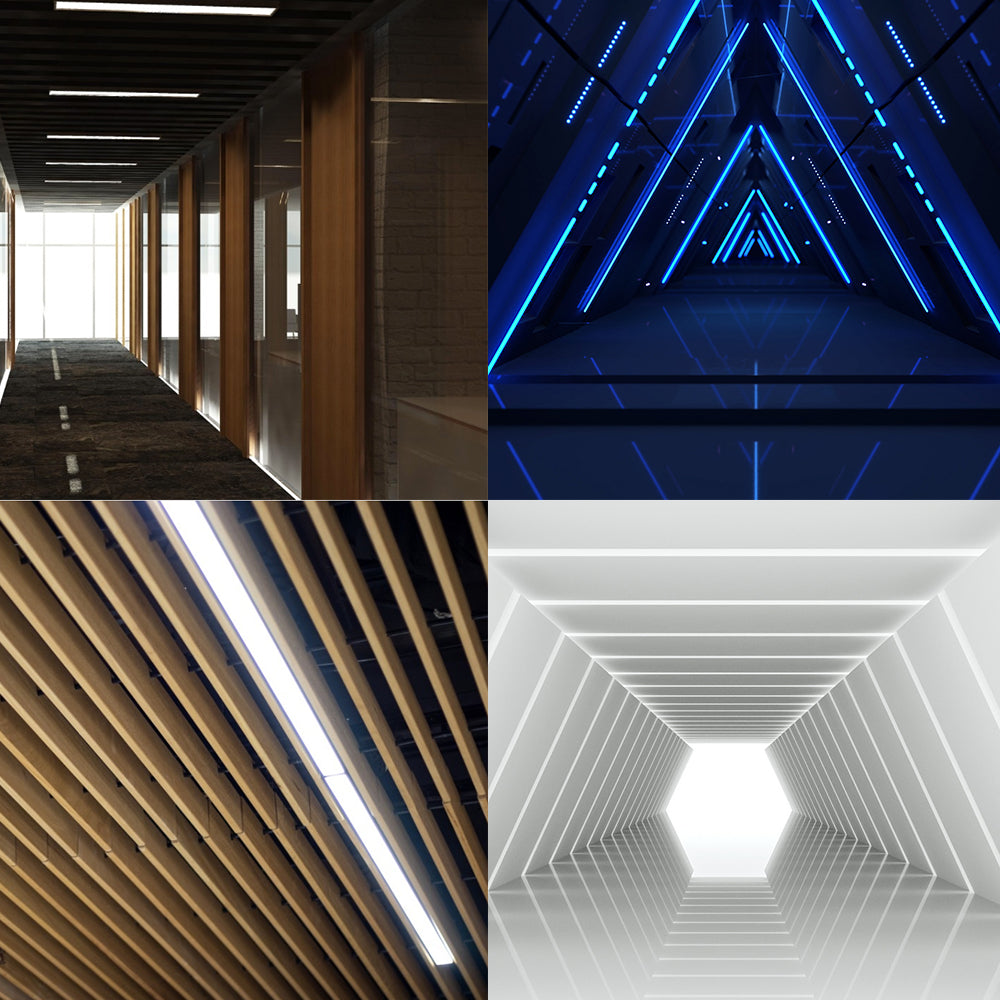

Applications

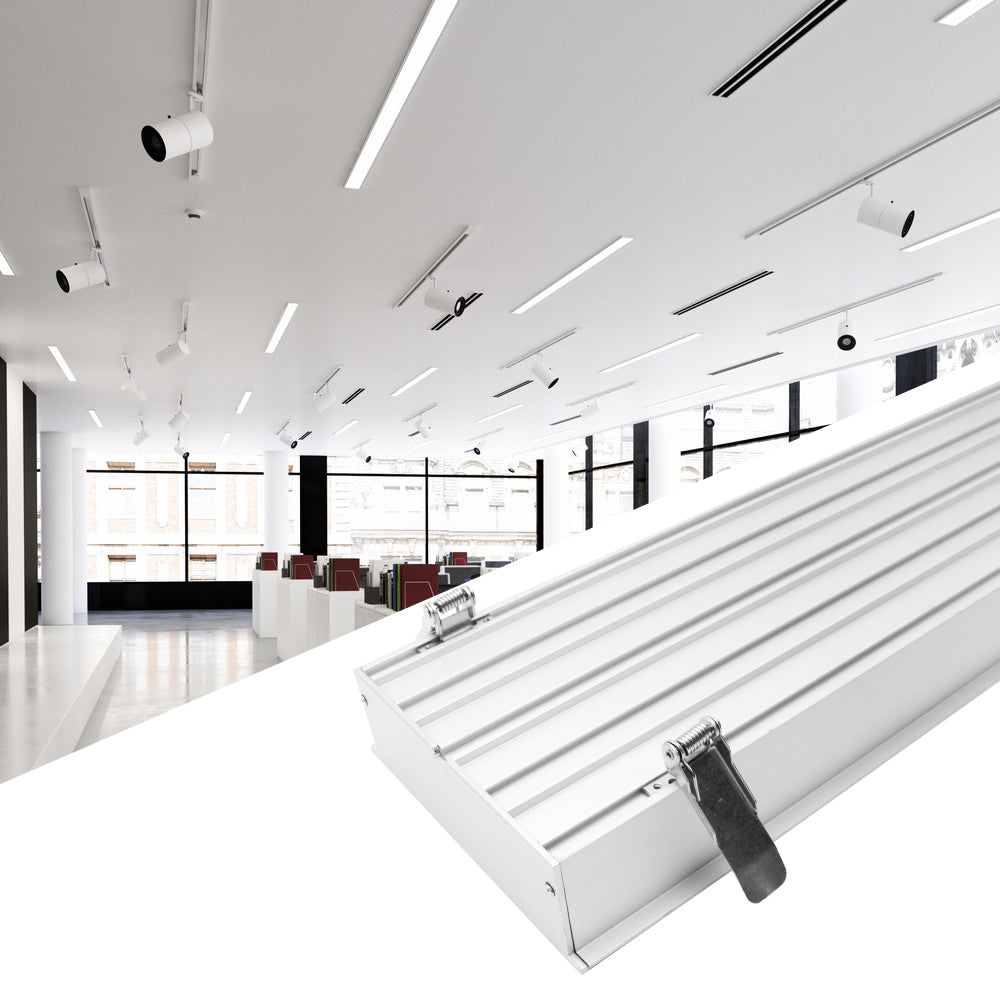

- Recessed office lighting with wide linear illumination
- Conference rooms, commercial halls, and retail lighting projects
- Architectural flush mounting where large LED strips are required
- Custom suspended or surface mounting for modern interiors
