Description

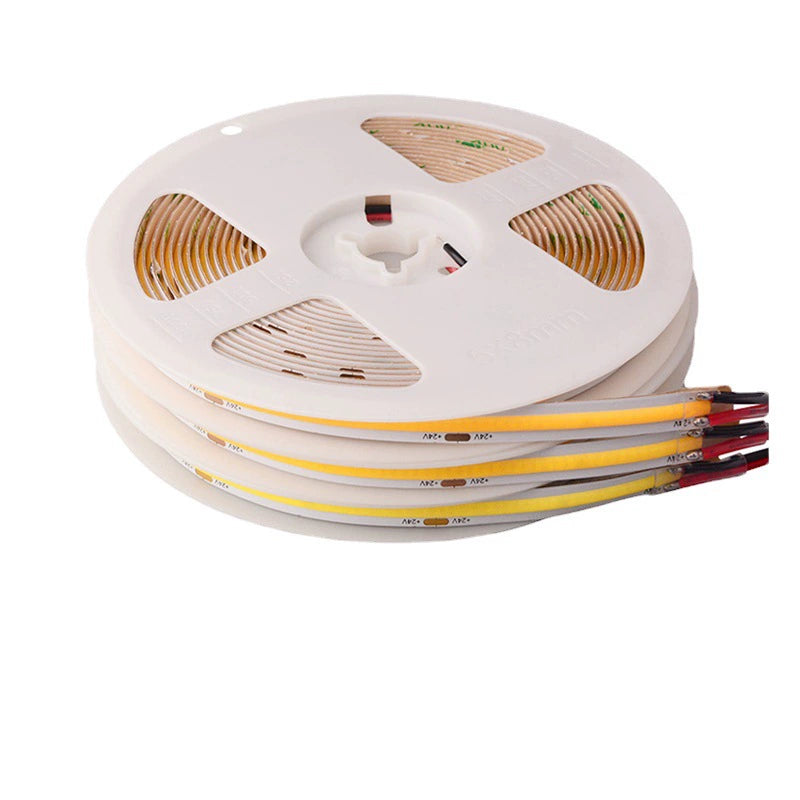

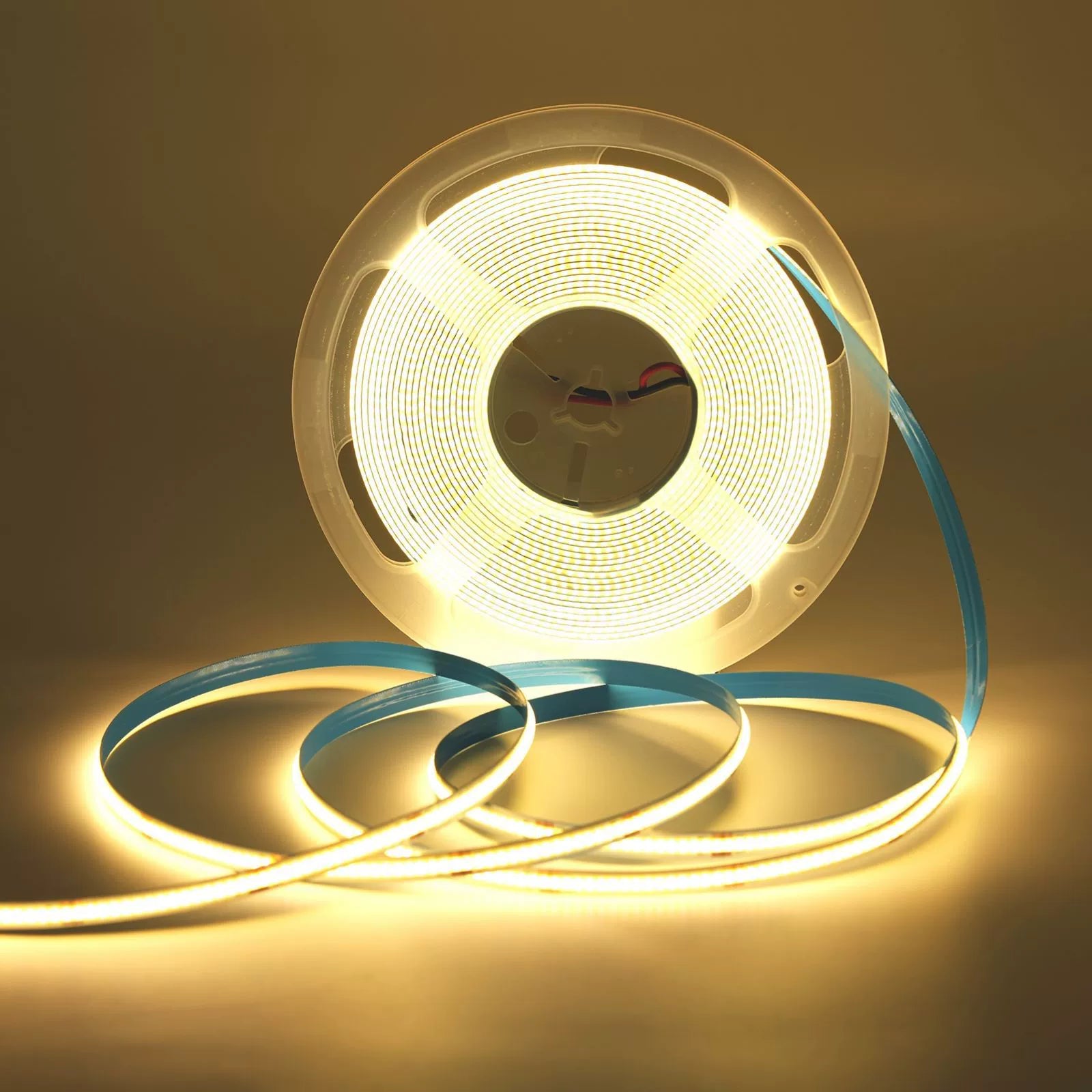

8MM Wide CRI90 COB Flexible LED Strip Light - 12V / 24V | 320 / 480 LEDs/M | 3000K / 4000K / 6500K | 8mm PCB | CRI 90+ | Dot-Free Continuous Lighting | Non-Waterproof | for Cabinets,Kitchen Office Lighting | 5/50M
Package Included
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 10 Rolls × 5 m (164 ft total) (Strip Only) | 10 Rolls × 5 m (164 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
About this item
-
Soft & Uniform Lighting – High-density COB LEDs with multi-point current control deliver smooth, dot-free illumination that is bright yet comfortable and glare-free.
-
High CRI 90+ – Provides accurate, natural color rendering for premium indoor lighting in cabinets, kitchens, and office spaces.
-
Flexible & Bendable – Durable, highly flexible strip bends easily to fit curves, corners, and custom layouts.
-
Connectable Runs – Length can be extended for larger projects; for stable performance and reduced voltage drop, recommended single run length is up to 8 meters.
-
Cuttable Design – Cut along the marked cutting points; remaining sections are still usable when following the minimum cutting unit marks.
-
Easy Installation – Strong double-sided adhesive backing allows quick peel-and-stick mounting on clean, smooth surfaces.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
Key Specifications
- Input Voltage: 12V / 24V
- Type: Single Color
- Protection Rating: Non-Waterproof
- LED Chip Brand: San’an Optoelectronics
- Control Type: Switch Control
- Model: COB LED Strip
- LED Type: COB
- LED Quantity: 480 LEDs/m
- Luminous Flux per LED: 20 lm
- Beam Angle: 180°
- Power Factor: 0.9
- Dimmable: Yes
- Effective Lifetime: 30,000 hours
- Size (Width): 8 mm
- Weight: 100 g
- Special Service: Customization Available

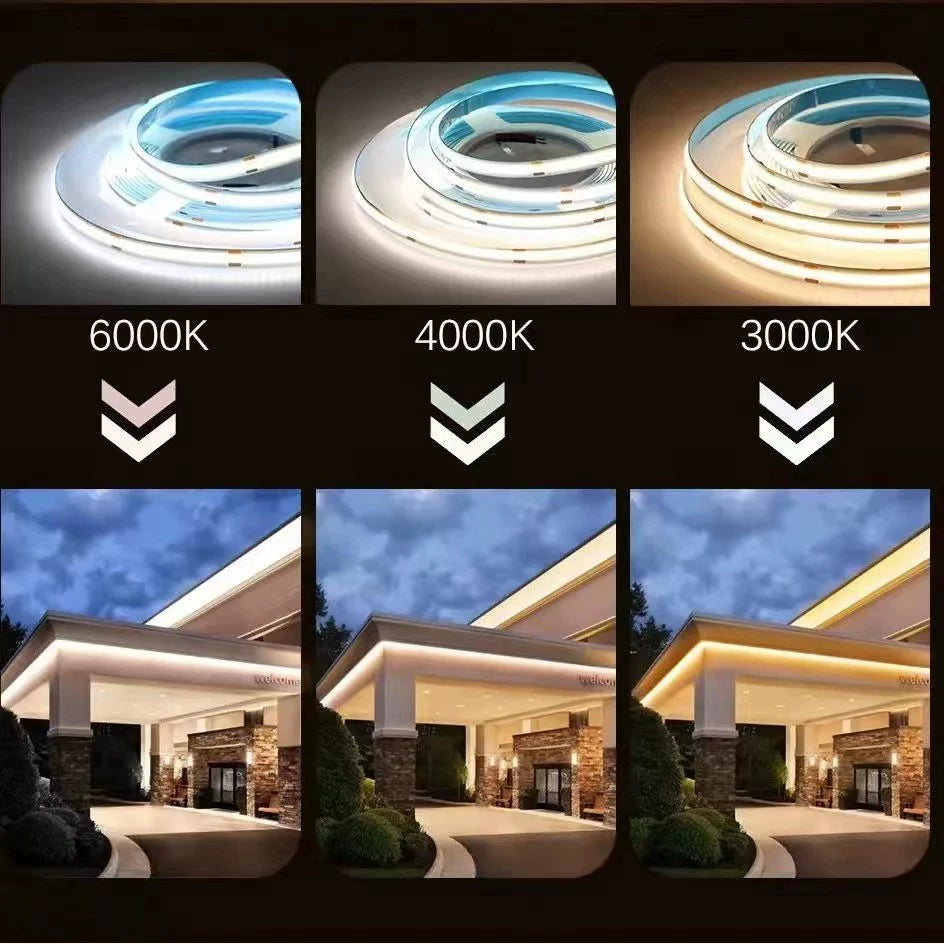

- Color Temperature Options: 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White)
- Color Rendering Index (CRI): 90+
Technical Specifications
| Specification | Details |
| Model | COB LED Strip |
| LED Type | COB |
| Input Voltage | 12V / 24V |
| Type | Single Color |
| Protection Rating | Non-Waterproof |
| LED Chip Brand | San’an Optoelectronics |
| Control Type | Switch Control |
| LED Quantity | 480 LEDs/m |
| Luminous Flux per LED | 20 lm |
| Beam Angle | 180° |
| Power Factor | 0.9 |
| Dimmable | Yes |
| Effective Lifetime | 30,000 hours |
| Size (Width) | 8 mm |
| Special Service | Customization Available |
| Color Temperature Options | 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White) |
| Color Rendering Index (CRI) | 90+ |
| Power Consumption | 10 W |
| Lifespan | 50,000 hours |
| Switch Type | Manual |
Applications
- Cabinets
- Kitchen lighting
- Office lighting
Usage Notes / Installation Tips
- This is a low-voltage LED strip and must be used with a compatible power supply/transformer
- Do NOT connect directly to 220V AC power
- Damage caused by using an incorrect or non-matching power supply is not covered by after-sales service
- Please test the strip before cutting or installation
- After cutting or installing, returns/exchanges are not accepted for non-quality-related issues
Usage Notes / Installation Tips
- Power Wiring Methods:
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power. We suggest using a higher wattage transformer than the strip’s rated power to avoid full load working. A higher power transformer will not harm the strip and improves safety.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value.
