Description
730–735nm SMD5050 DC12V Infrared LED Strip Light – High Power Far Red for Plants, 30/60/120 LEDs/m, 5 Meters, IP00/IP65
LED Density Illustration
About this item
- Uses SMD5050 far red LEDs, available in 730–735nm wavelength.
- Multiple LED densities: 30 LEDs/m (≤ 7.2 W/m), 60 LEDs/m (≤ 14.4 W/m), 120 LEDs/m (≤ 28.8 W/m).
- Operates on DC 12V with a 120° beam angle.
- Cuttable design varies by LED density.
- Available lengths: 5 meters (16.4 ft) per roll.
- 10mm Wide Flexible PCB in white color.
- Waterproof options: Non-waterproof (IP00), IP65.
- Dimmable with compatible dimmers.
- Features self-adhesive backing for easy installation.
- Emits high power far red light, suitable for plant growth and photoperiod control.
Package Included
| Version | Package Included |
|---|---|
| 30 LEDs/m Non-Waterproof | 5M LED strip, self-adhesive backing |
| 30 LEDs/m IP65 Waterproof | 5M LED strip, self-adhesive backing |
| 60 LEDs/m Non-Waterproof | 5M LED strip, self-adhesive backing |
| 60 LEDs/m IP65 Waterproof | 5M LED strip, self-adhesive backing |
| 120 LEDs/m Non-Waterproof | 5M LED strip, self-adhesive backing |
| 120 LEDs/m IP65 Waterproof | 5M LED strip, self-adhesive backing |
Order & Logistics
- Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
- Packing: Cardboard box.
- Shipping: From local warehouse (3–7 days) if available, or from HQ (7–25 days standard / 3–10 days express).
Technical Specification
| Specification | 30 LEDs/m | 60 LEDs/m | 120 LEDs/m (Dual Row) |
|---|---|---|---|
| Wavelength | 730–735nm | 730–735nm | 730–735nm |
| Color | Deep Red | Deep Red | Deep Red |

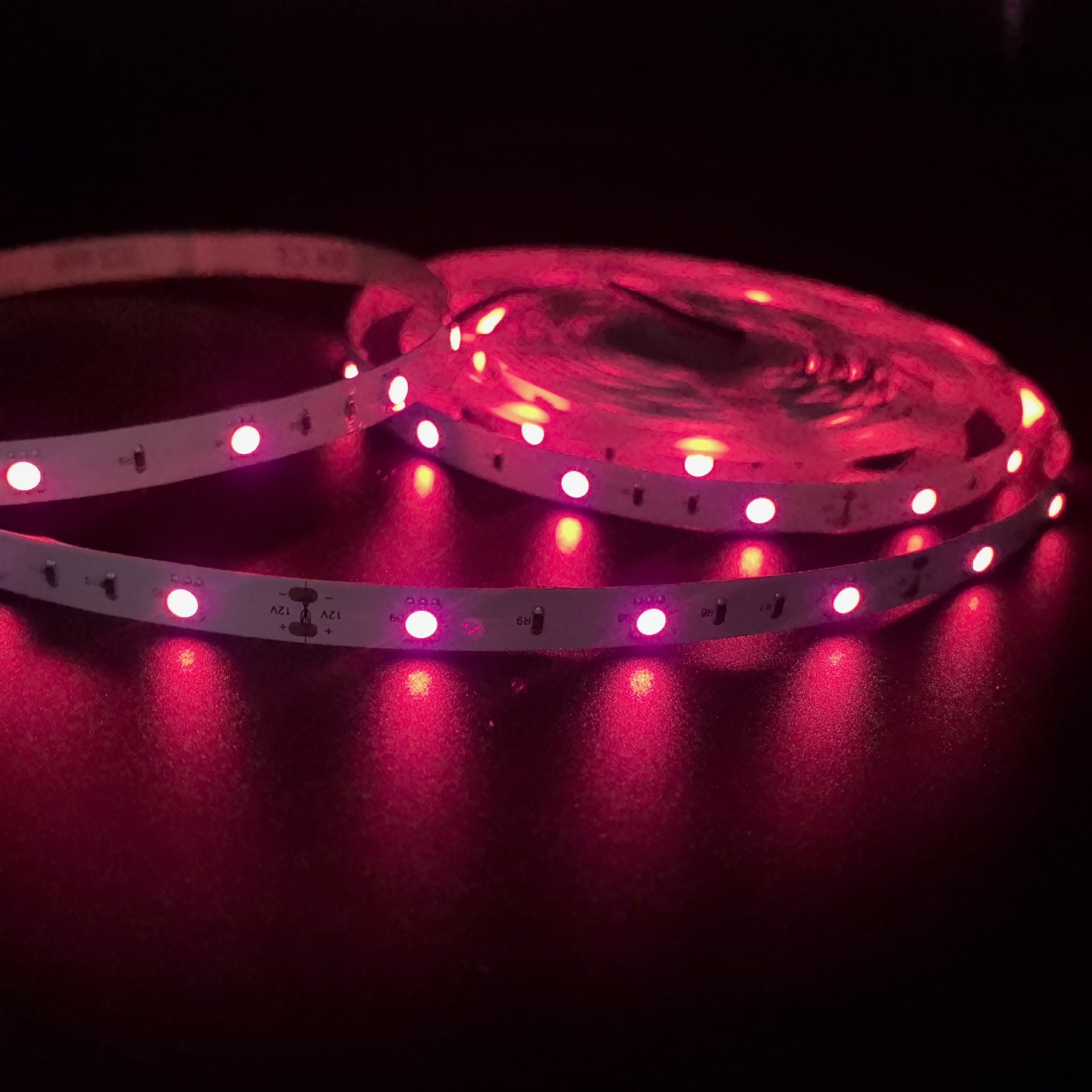

| Strip Model | SDM5050-150 | SDM5050-300 | SDM5050-600 |
| LED Type | SMD5050 tri-chip | SMD5050 tri-chip | SMD5050 tri-chip |

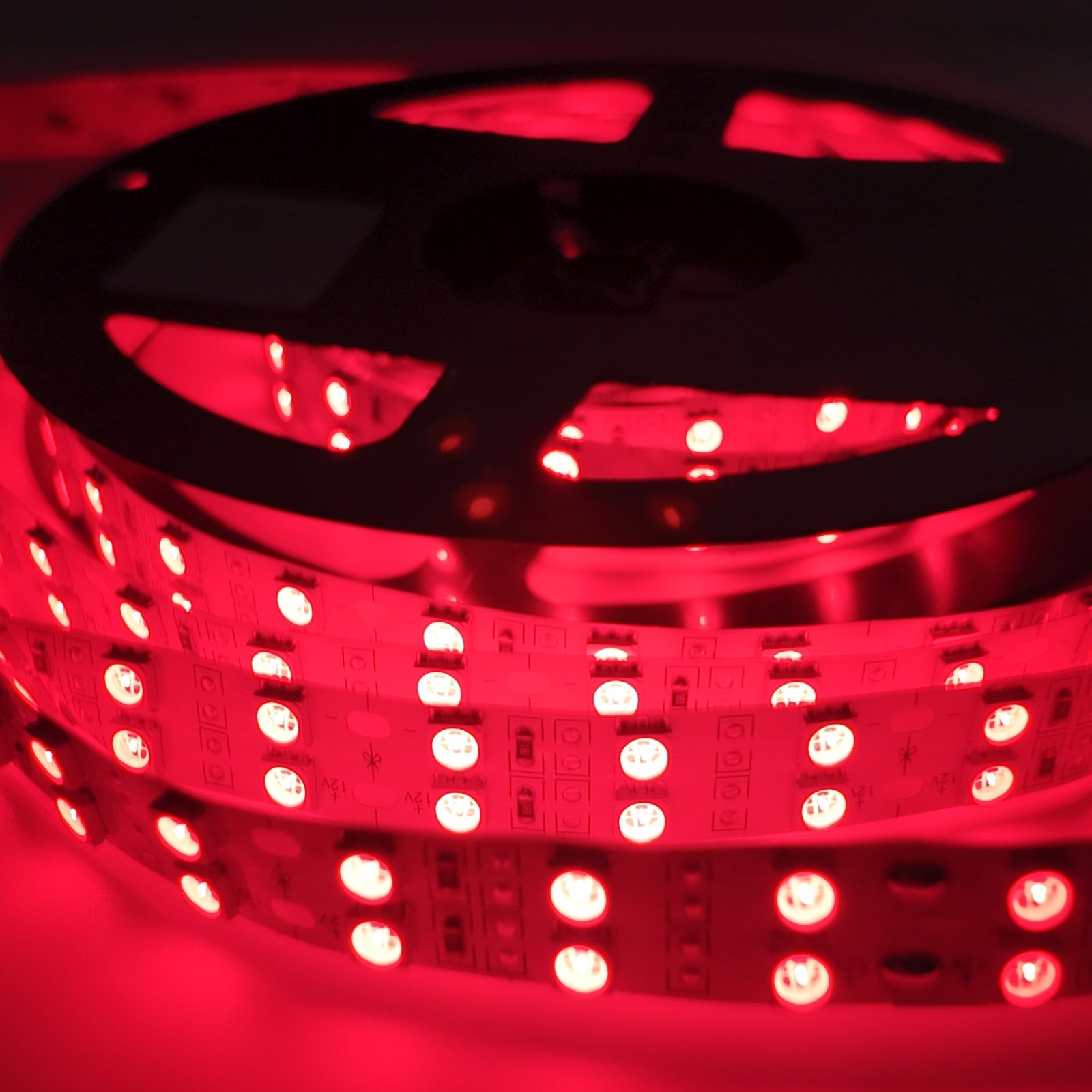

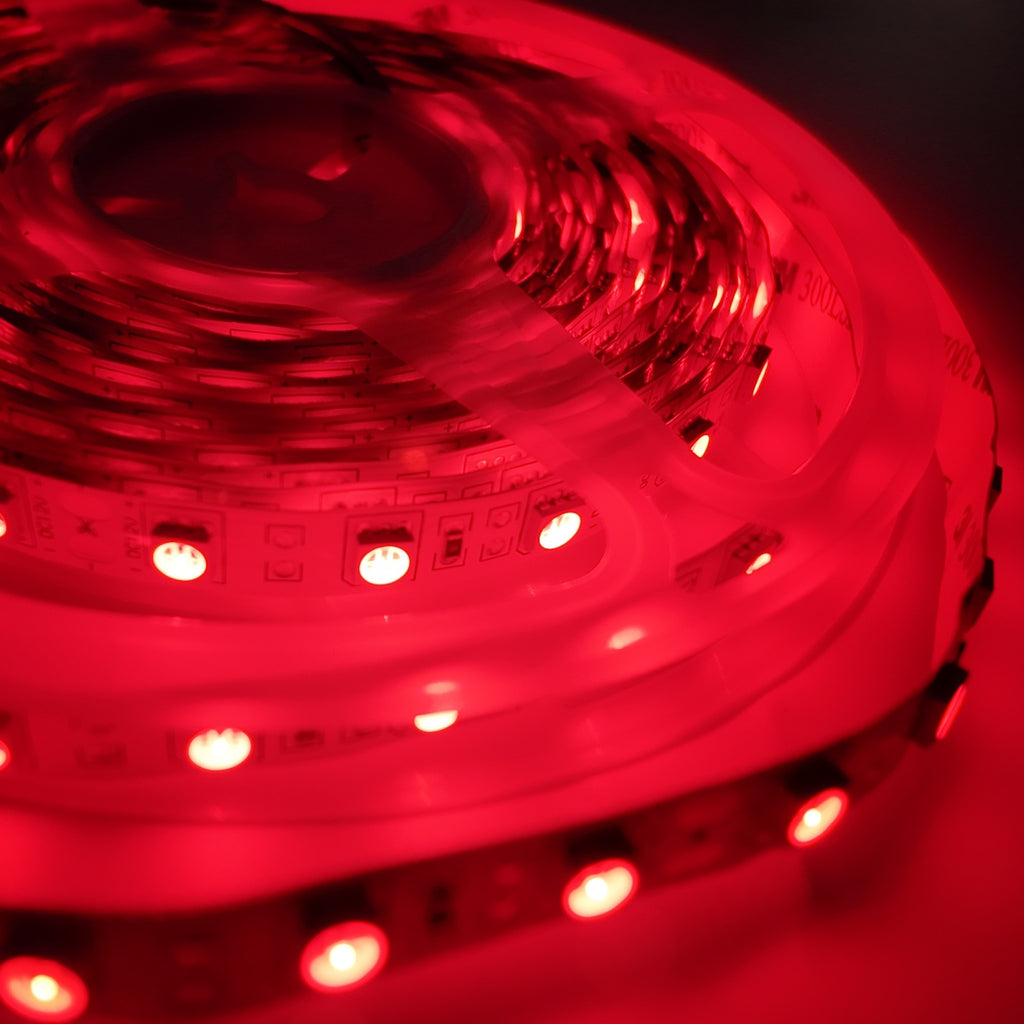

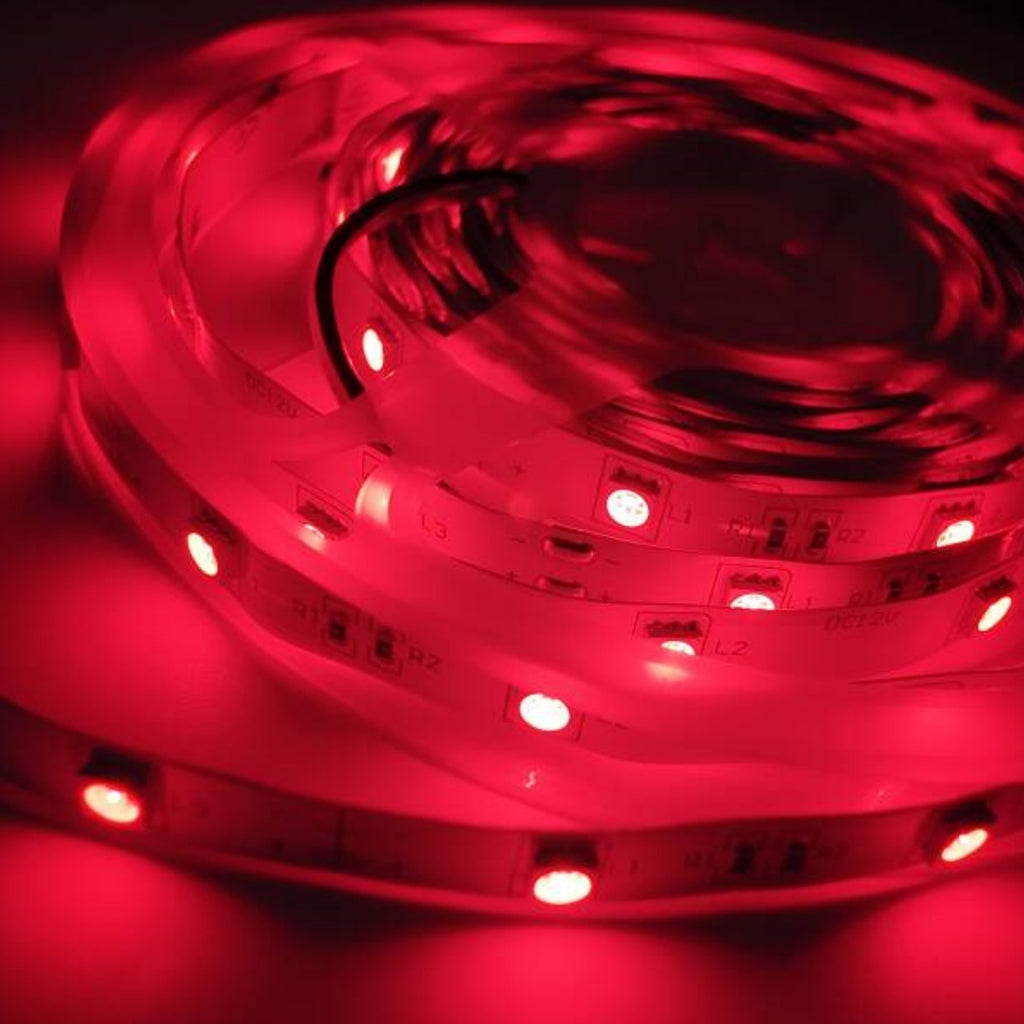

| LED Quantity | 30 LEDs/m | 60 LEDs/m | 120 LEDs/m |
| Voltage | 12V DC | 12V DC | 12V DC |
| Wattage (Max.) | <6W/m | <12W/m | <18W/m |
| Beam Angle | 120° | 120° | 120° |
| Cuttable Section | 3 LEDs / 4" | 3 LEDs / 2" | 6 LEDs / 1" |
| Strip Length | 5 m (16.4 ft) | 5 m (16.4 ft) | 5 m (16.4 ft) |
| Strip WxH | 10×2 mm | 10×2 mm | 15×2 mm |
| PCB Color | White | White | White |
| Protection Grade | Non-waterproof, IP65 | Non-waterproof, IP65 | Non-waterproof, IP65 |
| Dimmable | Yes (requires compatible dimmer) | ||
Type of LED & Different Waterproof IP Grade
- Non-waterproof (IP20): Bare strip, self-adhesive backing, for indoor/dry use.
- Waterproof IP65: Surface covered with gel, self-adhesive backing, protects from sprayed water from all directions.
- Waterproof IP67: Strip enclosed in a hollow silicone tube, sealed at both ends; suitable for short-term immersion in water.
- Waterproof IP68: Strip enclosed in U-shape silicone tube, covered with silicone gel, sealed at both ends; suitable for underwater use.
Installation Tips
- Always disconnect power supply before cutting/connecting LED Light Strips.
- Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm.
- Do not connect LED Light Strips directly to 120V AC power.
- Apply power to test LED Light Strips before mounting.
How to Power / Control the Strip
When selecting a transformer:
- Choose wattage based on how many LED strips you need to power.
- It is recommended to select a transformer with higher wattage than the total rated power of the strips to avoid full-load operation.
- Using a higher wattage transformer does not harm the strips and is safer for longevity.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
Applications
- Flowering stimulation for plants
- Photoperiod control in horticulture
- Industrial and inspection lighting
- Stage lighting and ambient illumination
