Description

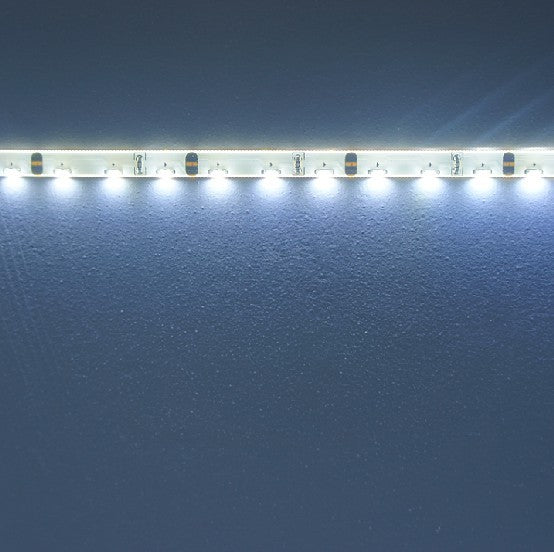

6000K | 3000K Side-Emitting LED Strip Light | SMD335-300 (60 LEDs, 4W/m) & SMD335-600 (120 LEDs, 8W/m) | 12V DC | 8mm PCB | 5M Roll | IP00 / IP67 Waterproof Options
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 100 Rolls × 5 m (1640 ft total) (Strip Only) | 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
Order & Logistics:
- Lead Time: Typically 3–5 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:

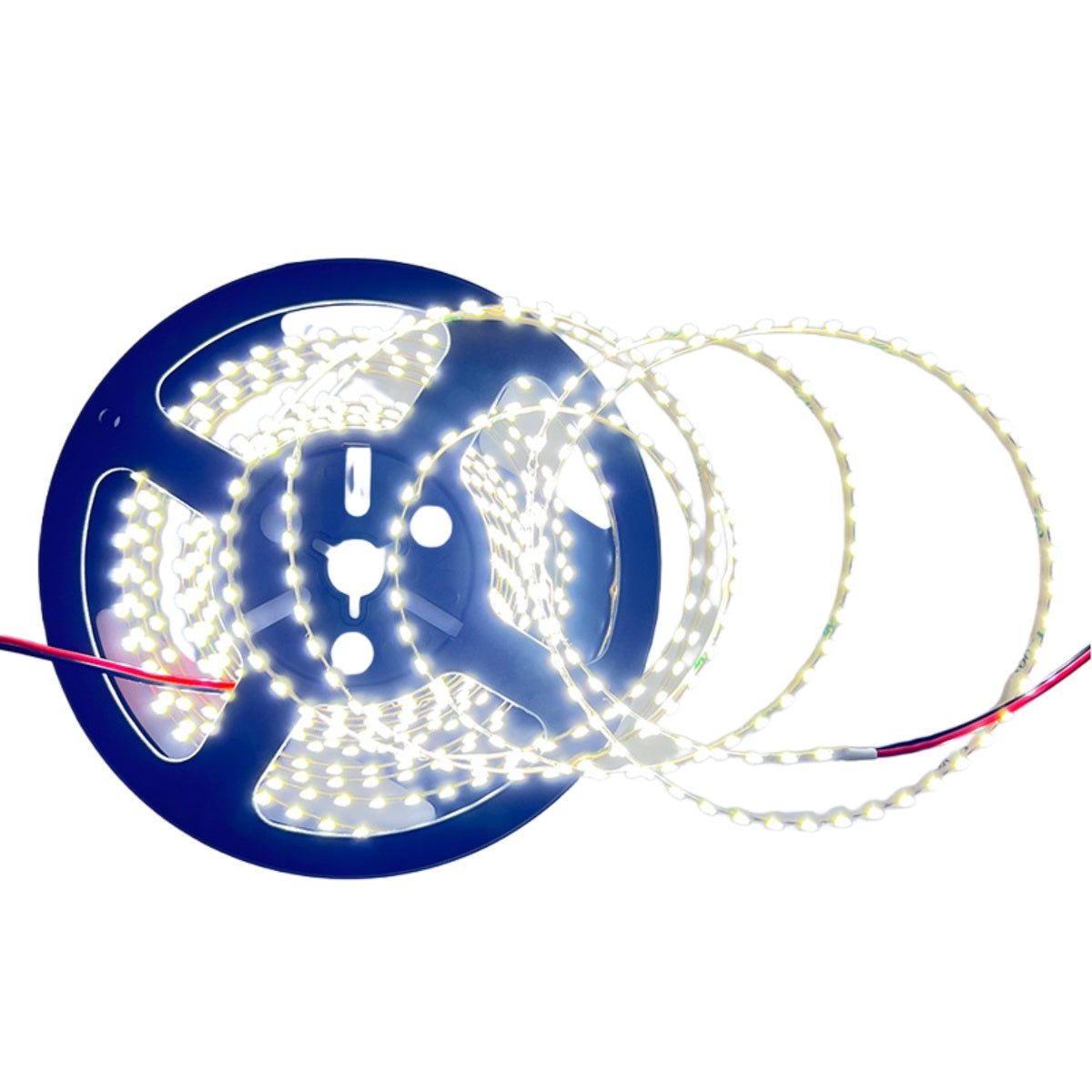

- Side-emitting design – Utilizing SMD335 LEDs, the light emits horizontally, making it suitable for installation in narrow spaces, lighting troughs, signage frames, and display cases, creating a unique linear light effect.
- Dual-size options – Available in two brightness levels: 60 LEDs/m (4W/m) and 120 LEDs/m (8W/m), meeting diverse application needs from decorative to primary lighting.

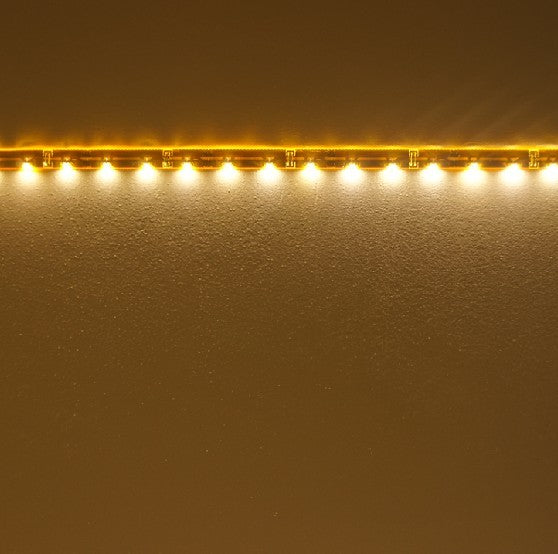

- Dual color temperature options – 3000K (warm white) creates a warm atmosphere, while 6000K (cool white) delivers a refreshing, bright lighting effect.

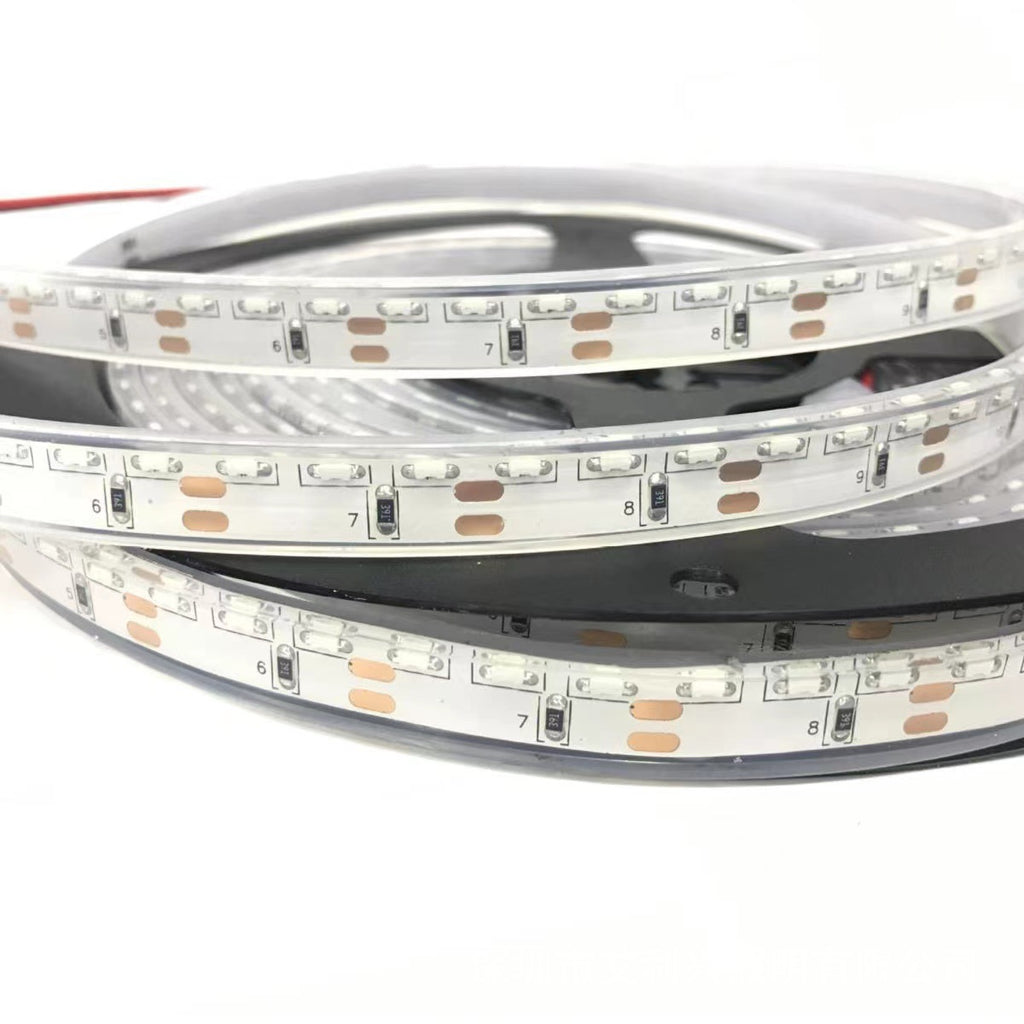

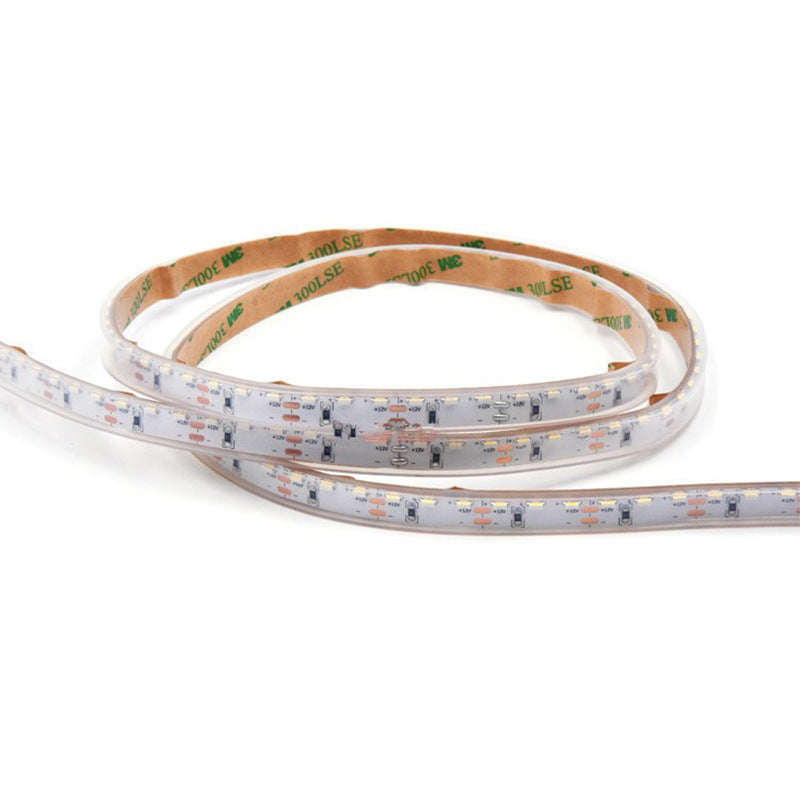

- IP rating – Available in an IP00 non-waterproof model (suitable for indoor applications) and an IP67 waterproof model (suitable for outdoor and humid environments), offering a wide range of applications.

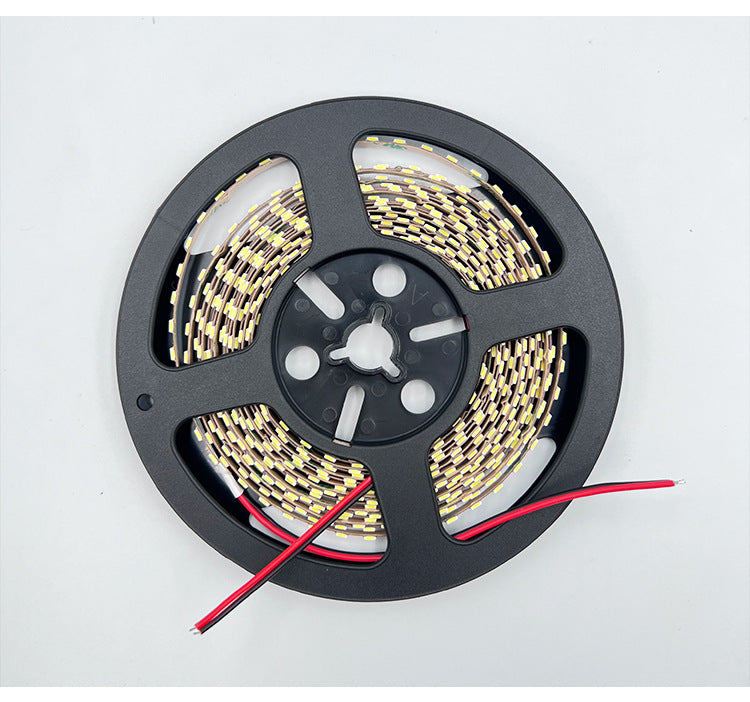

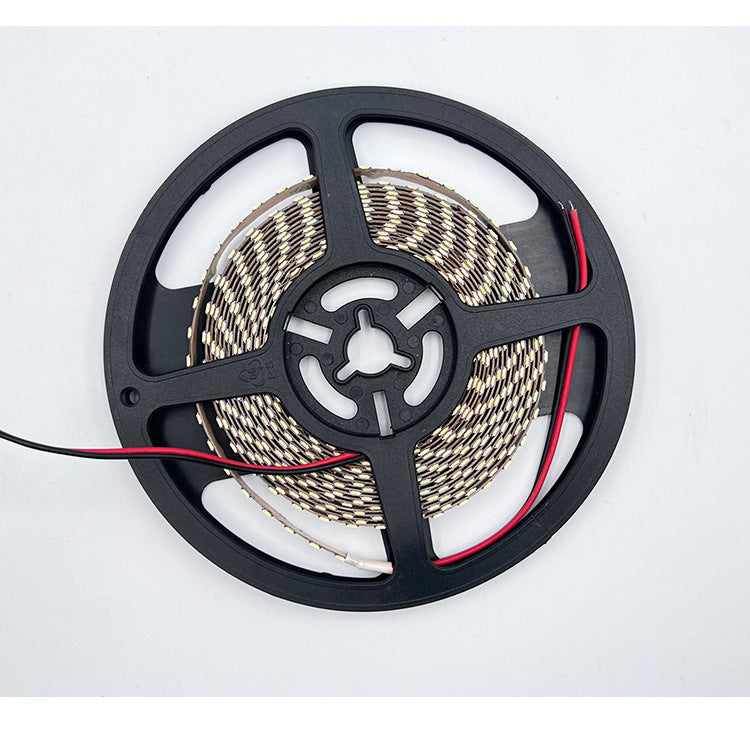

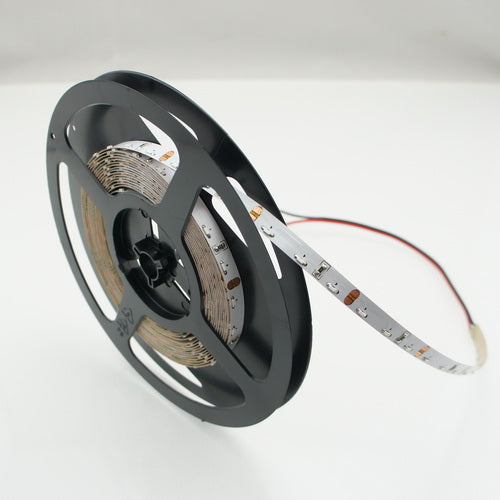

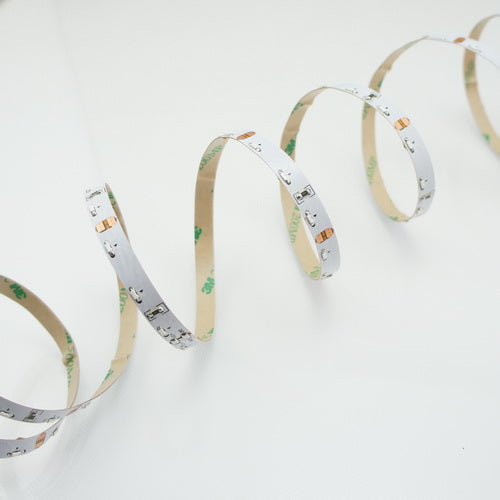

Flexible installation – Available in a standard 5-meter (16.4-foot) roll, with a one-light-one-cut option, the roll can be cut to size, facilitating both DIY and industrial installations.
Technical Specifications Table：
| Specification | SMD335-300 (60 LEDs/m) | SMD335-600 (120 LEDs/m) |
| LED Type | SMD335 | SMD335 |
| LED Quantity | 60 LEDs/m | 120 LEDs/m |
| Cut Section | 3 LEDs/ 5cm(2'') | 3 LEDs/ 2.5cm(2'') |
| Power Consumption | 4W/m | 8W/m |
| Input Voltage | DC 12V | DC 12V |
| Color Options | 3000K / 6000K | 3000K / 6000K |
| PCB Width | 8mm White PCB | 8mm White PCB |
| Light Emitting Way | Side Emitting | Side Emitting |
| IP Grade | IP00 (Non-Waterproof) / IP67 (Silicone Tube Waterproof) | |
| Roll Length | 5m (16.4ft) per roll | |
| Package Options | 1 Roll × 5m / 20 Rolls × 5m / 100 Rolls × 5m | |
| Lifespan | 50,000 hours (typical) | |
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safety.
And a big power transformer do no harm to the strip but good for safety.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
