Description

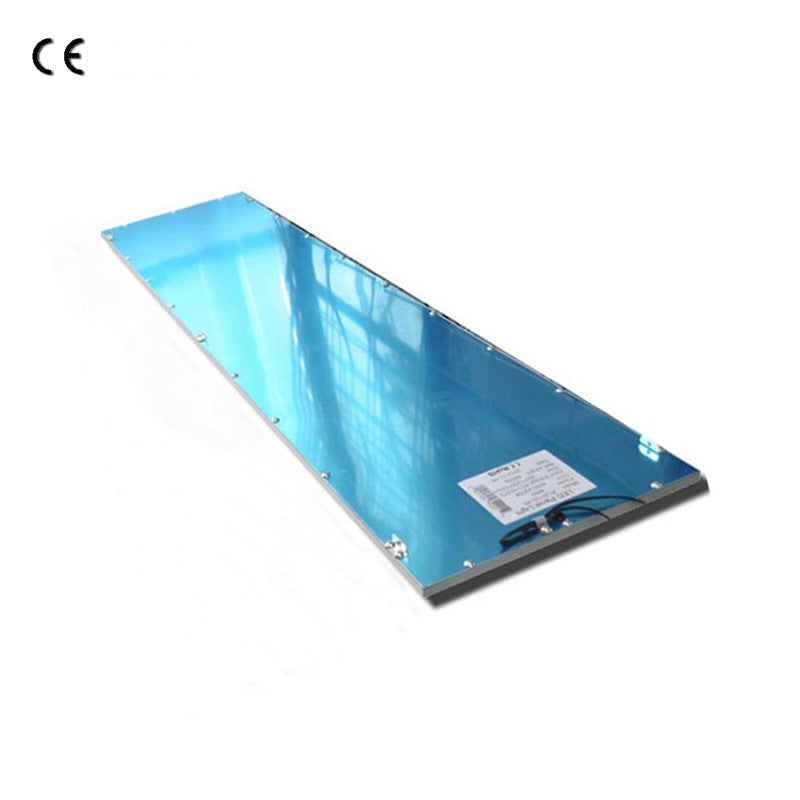

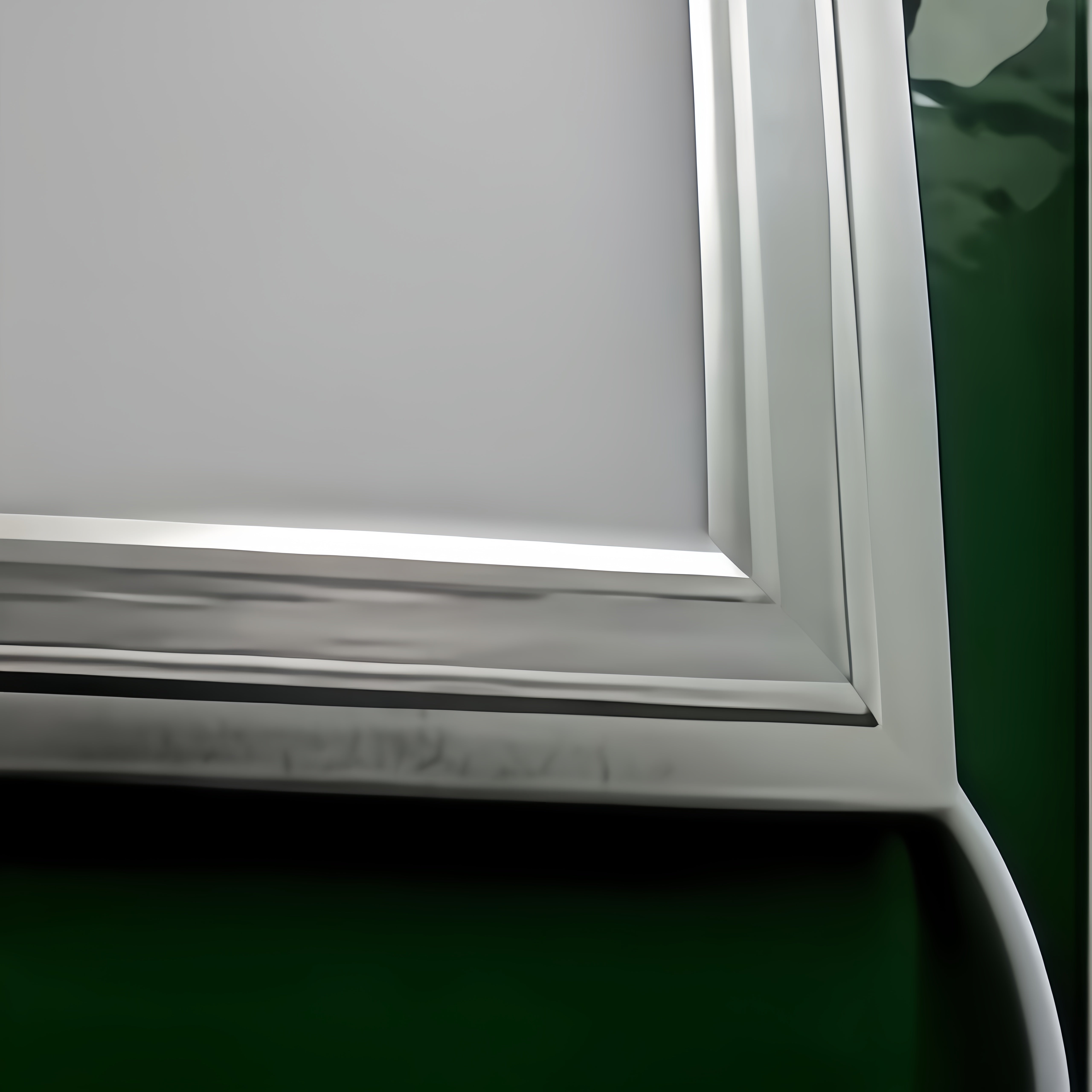

5PACK 1x4 FT - 300*1200 (mm) LED Flat Panel LED Drop Ceiling Lights, 40W 3600 LM, 3000/4000/6500k Dimmable Recessed Troffer Light Fixture for Office/Garage/Basement
Description

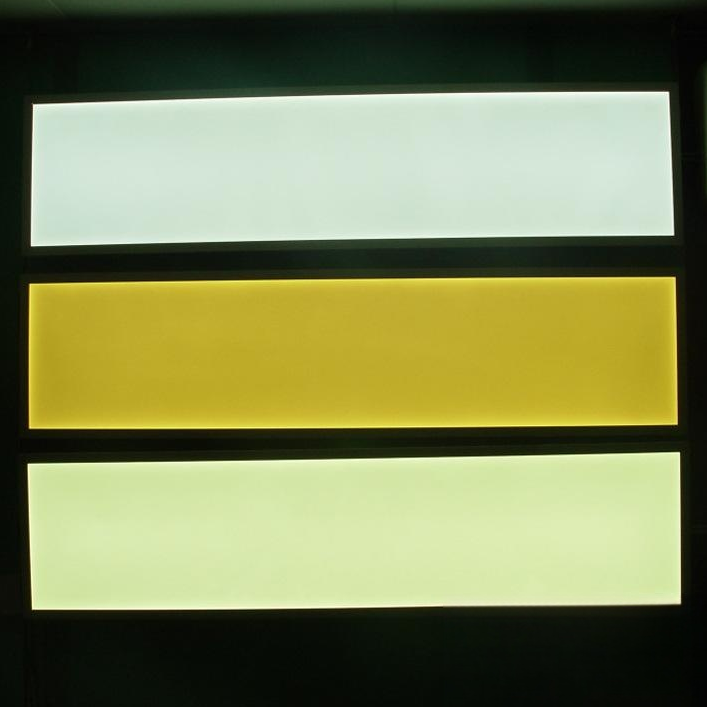

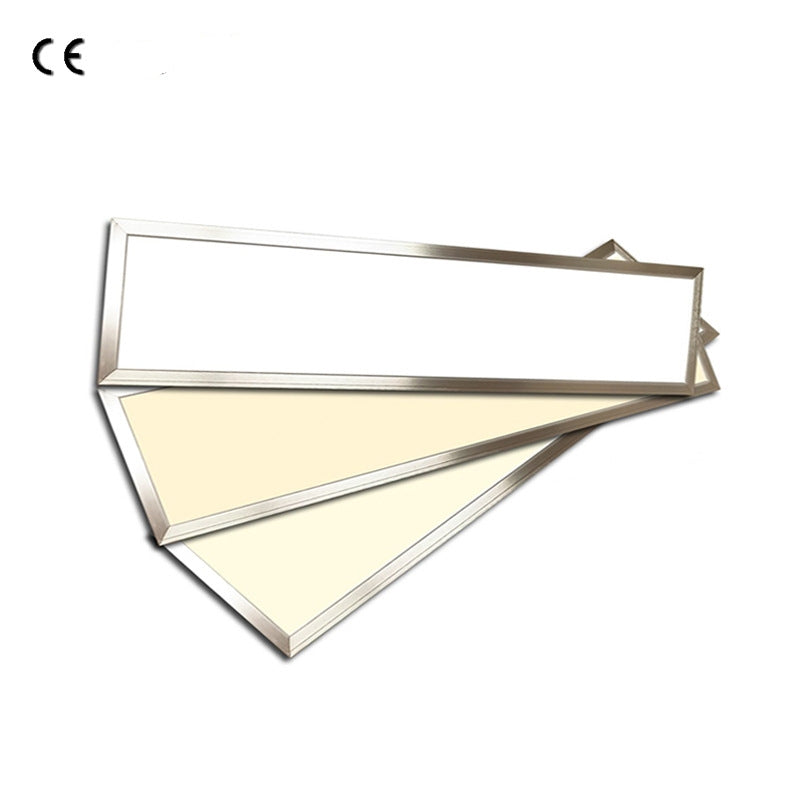

- CCT turnable &Dimmable, LED flat panel lights adopts the fashionable and thin design, featuring smooth dimming from Warm White, Natural White or Pure White, (3000K/4000K/6500K) via the remote controller (Battery not included)
-
High lumen, High quality LED chips, no flicker, Low Light decay, uniform light emission, high brightness, long life, energy saving and environmental protection. Sturdy die-cast aluminum, has excellent heat dissipation and excellent dustproof.
- Quick&Easy Installation, 3 ways of installations-drop ceiling/surface mounted/suspended to meet your different needs. Widely using office, hospital, school, hotel, meeting room, show room, corridor, shop, retail stores etc.
- Default is recessed in dropping ceiling, need no extra mounting accessories. For other mounting conditions, the accessories need to purchase separately.
- 1) Surface Mounted, mounting accessories: 300*1200 Aluminum Frame
- 2)Recessed, mounting accessories: Retaining Clips
- 3)Suspended : Hanging Kit
Product Parameter
|
Part #. |
HK-PL-D-30120 |
|
LED Chips |
SMD2835 480PCS(40W) |
|
Dimension |
295*1195*9 (mm)11.6*47*0.35(inches) |
|
Volt |
AC85-265V 50/60HZ |
|
Beam Angle |
120° |
|
Support Dimmer |
YES |
|
Power Factor |
>0.95 |
|
Lumen |
85lm/w |
|
Net Weight |
2.8KGSKGS/PCS |
|
Material |
Aluminum+PMMA |
|
Working Temperature(℃) |
-20℃-65℃ |
|
CRI |
80 |
|
Frame Color |
Silver/White |
|
Warranty |
1 Year |
Packing included:
5* Dimmable LED Panel Light

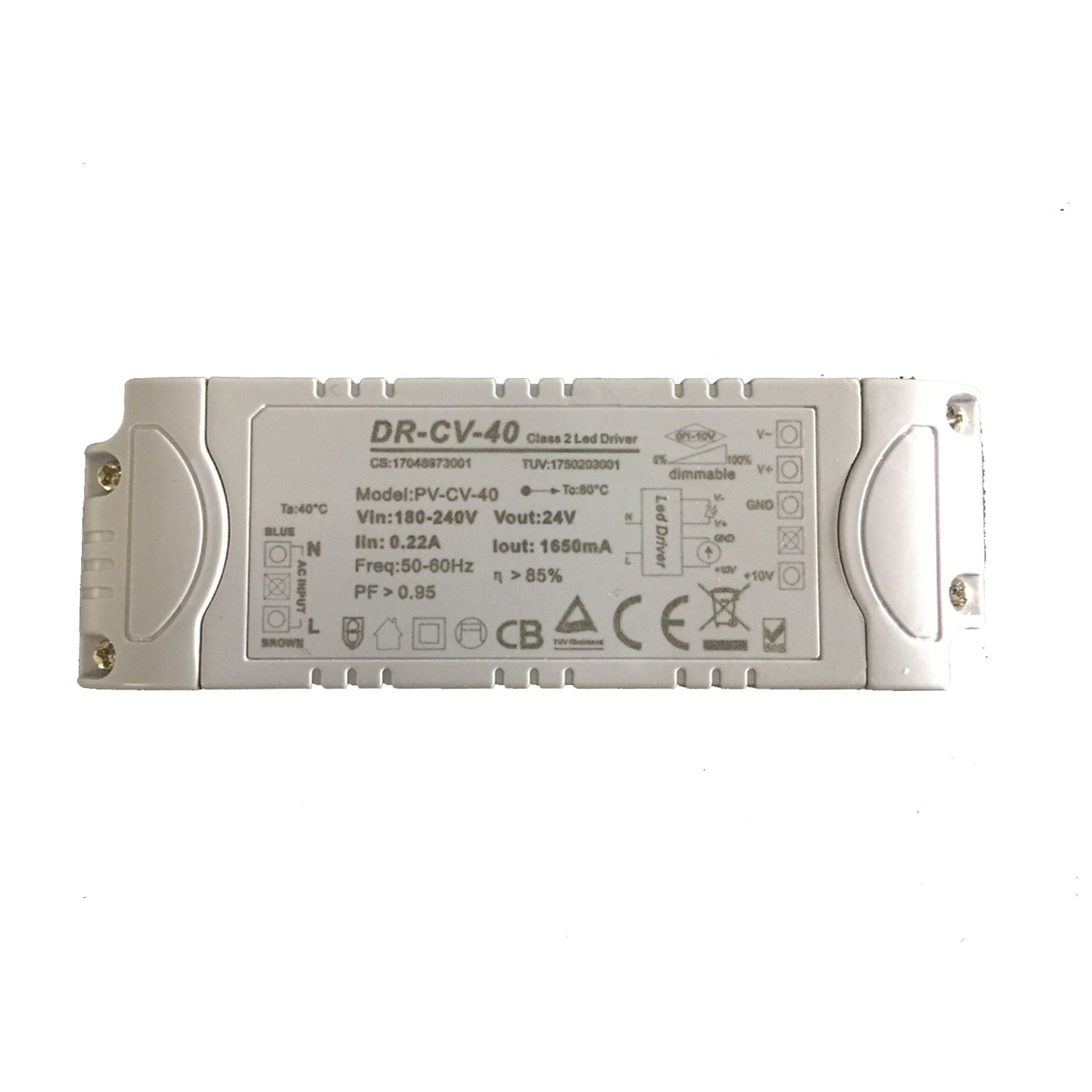

5* Dimmable LED Driver
1* Remote Controller
(2.4GHZ remote distance 20-40meters, within the range one controller can multiple LED panels)
Installation Method : Recessed into Ceiling
When purchasing panel lights, please confirm the installation method.
If it's a recessed installation, please specify the type of ceiling.
See the images below:
a. Recessed in a drywall ceiling
b. Recessed in an aluminum composite panel ceiling
c. The ceiling is a single suspended ceiling panel; additional holes need to be drilled to install panel lights.
If no specific request, usually we will send the LED panel light for "a" condition.
Different Installation Ways

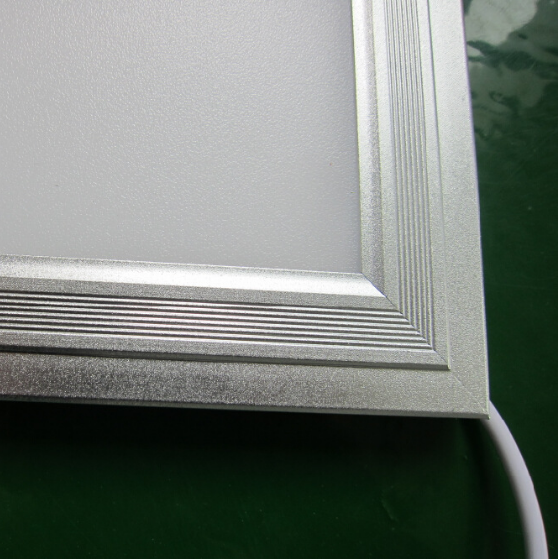

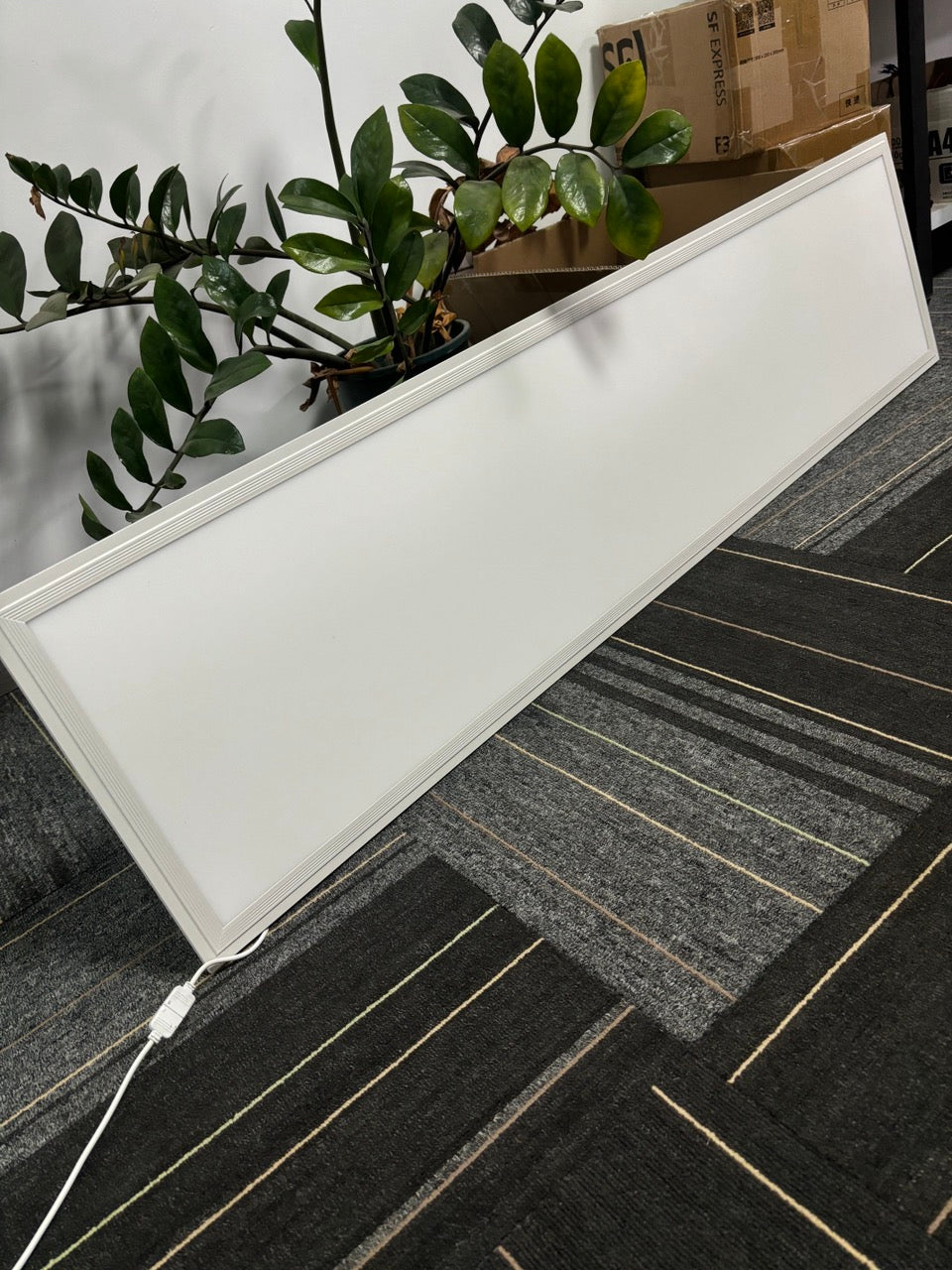

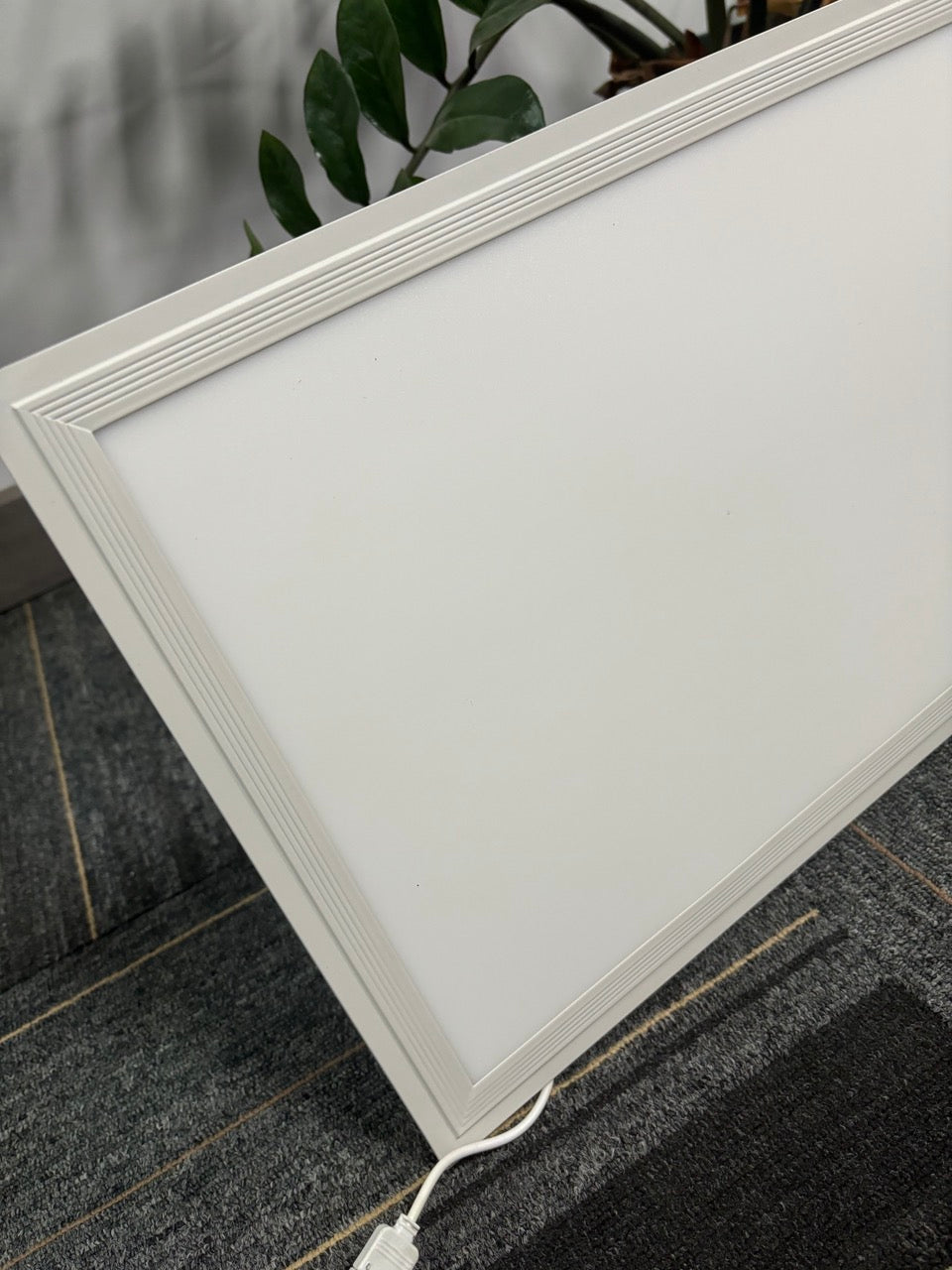

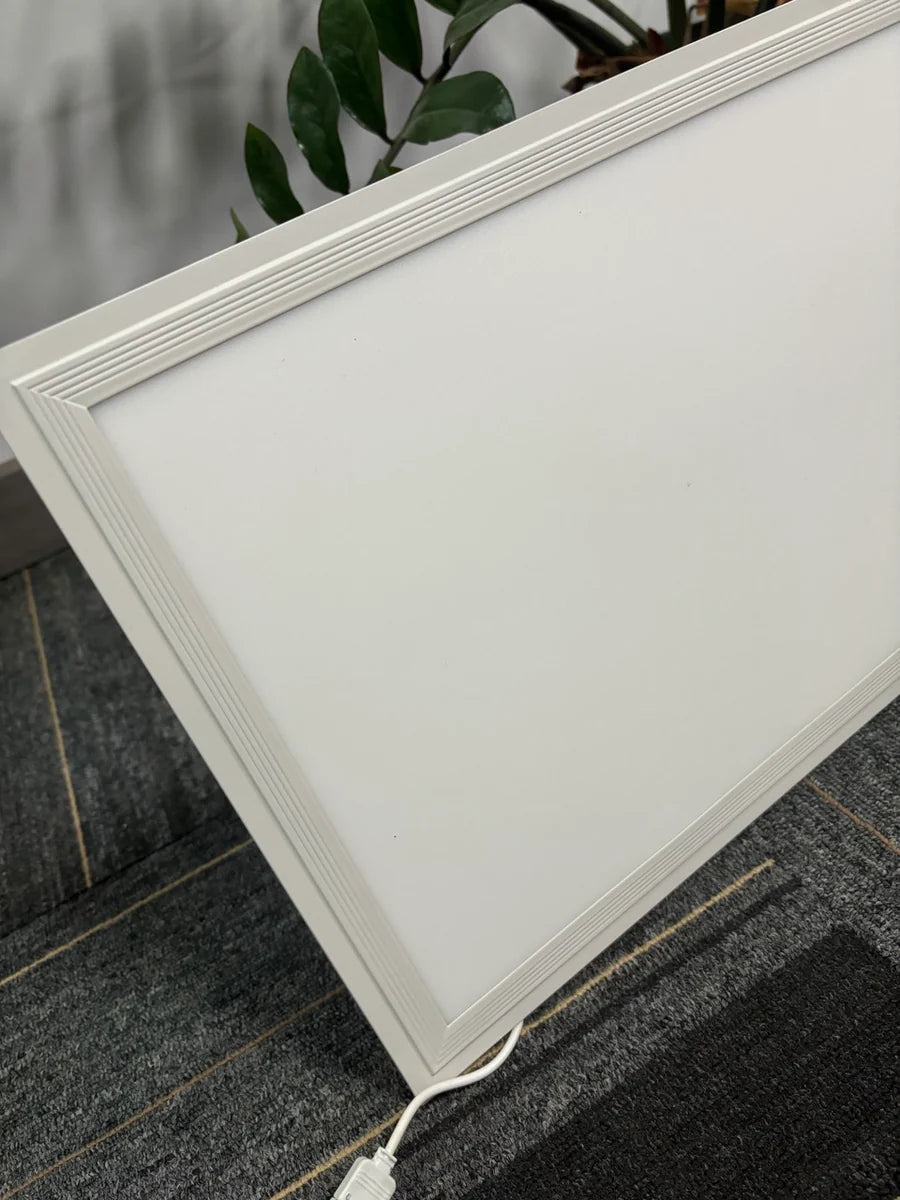

Product Details
