Description
500W / 600W High-Capacity Low Voltage Landscape Transformer, 120V AC to 12V/15V AC Outdoor Lighting Power Supply with LCD Display, Timer & Photocell Sensor for Large-Scale Garden & Yard Lights
Package Included
| Version | Package Included |

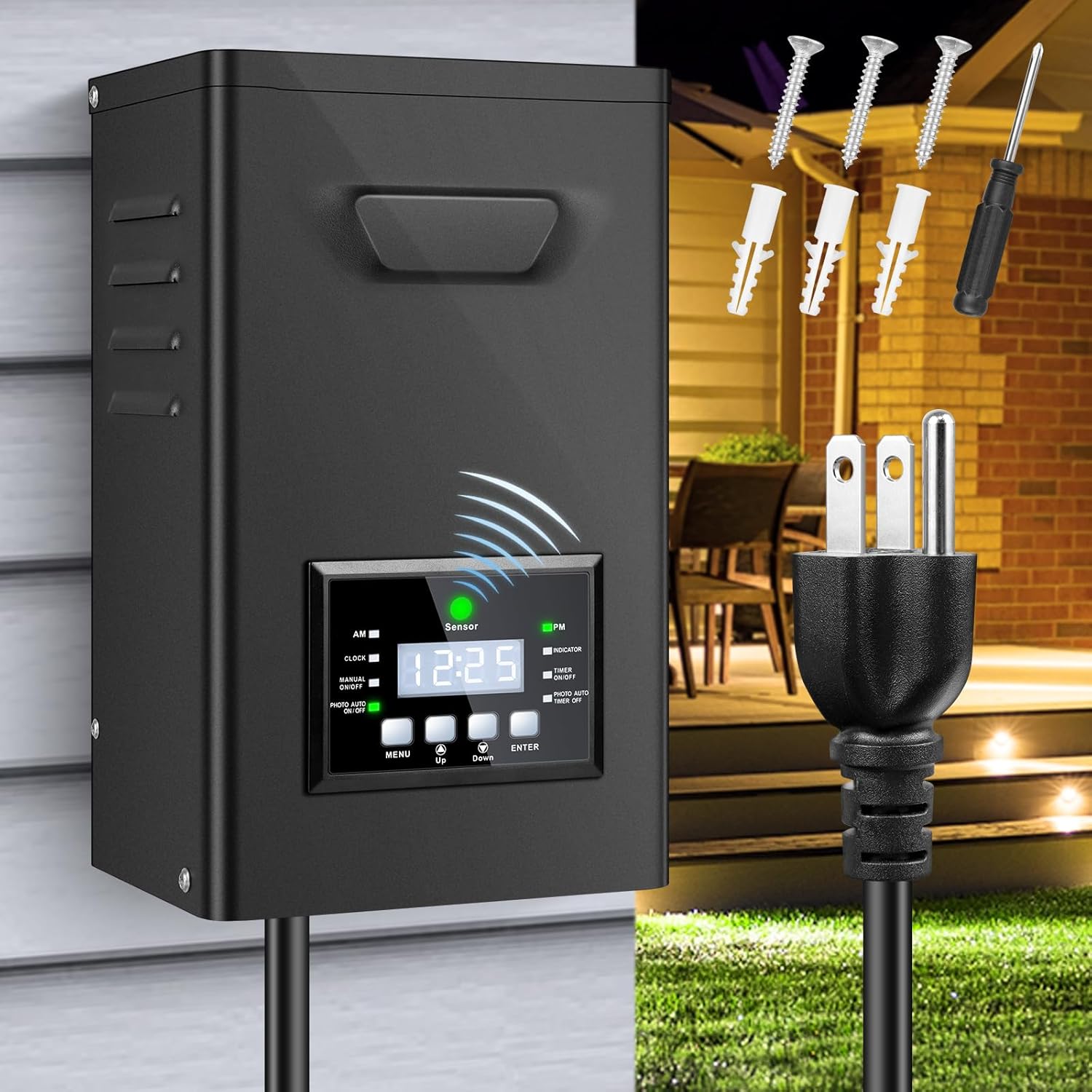

| 500W Transformer | 1 × 500W Low Voltage Landscape Transformer Installation screws User manual |
| 600W Transformer | 1 × 600W Low Voltage Landscape Transformer Installation screws User manual |
About this item
- High-capacity outdoor low-voltage transformer engineered for large landscape and garden lighting systems.
- INPUT: 120V AC 60Hz; OUTPUT: 12V AC / 15V AC stable low voltage.
- 500W version current reference: 12V 41.6A (500W max), 15V 33.3A (500W max). Recommended loading ≤ 90% of full capacity.
- Integrated LCD panel with clock for quick timer and schedule setup.

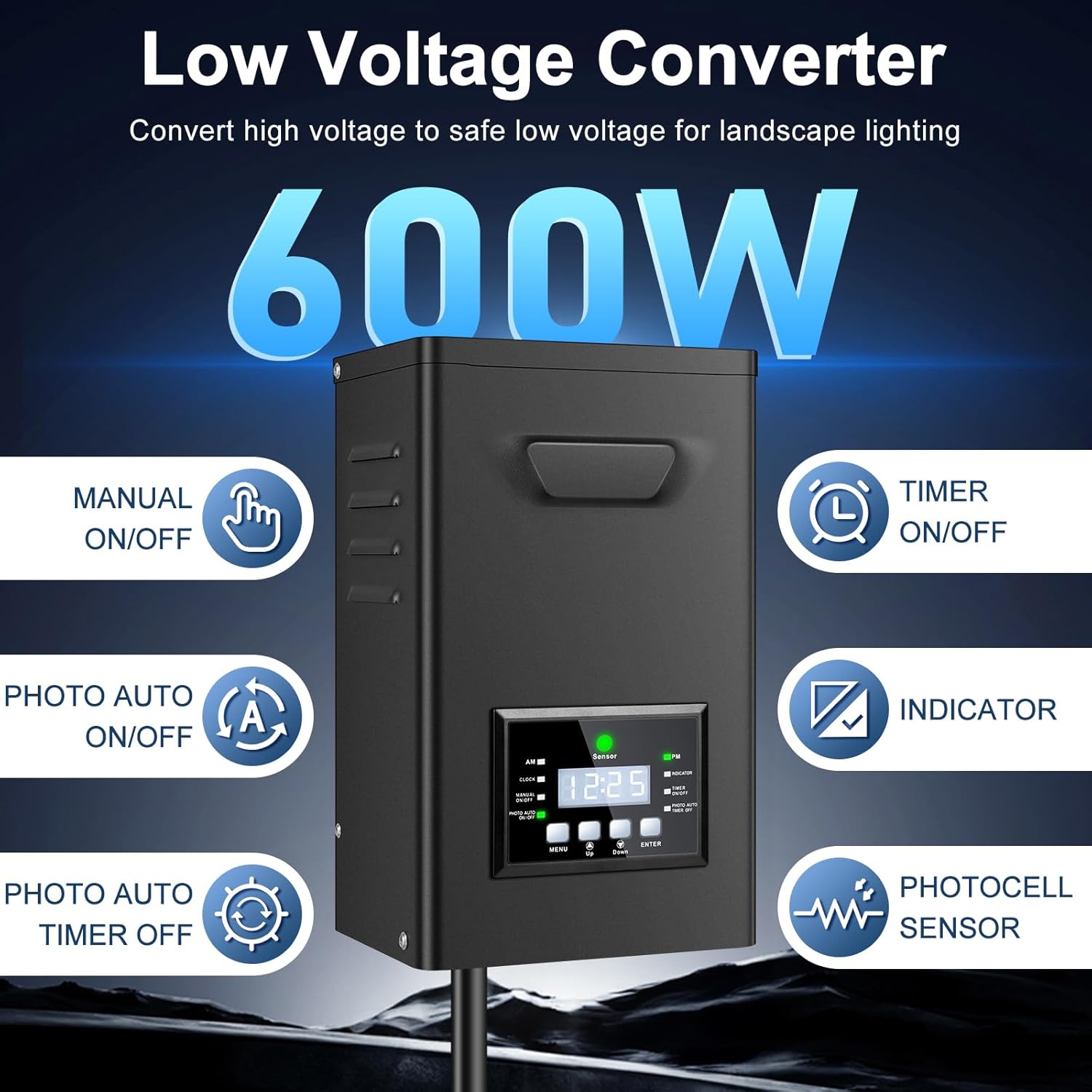

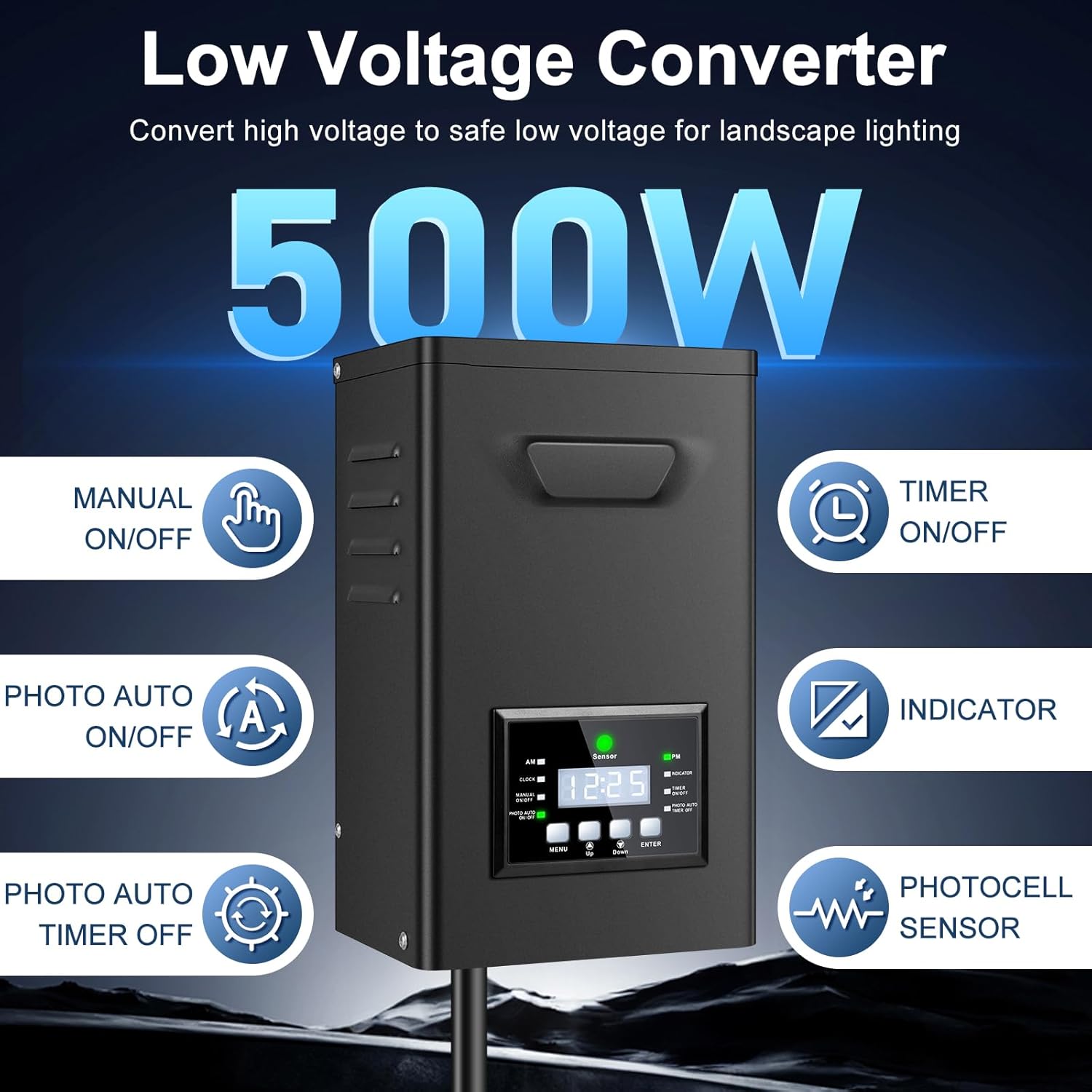

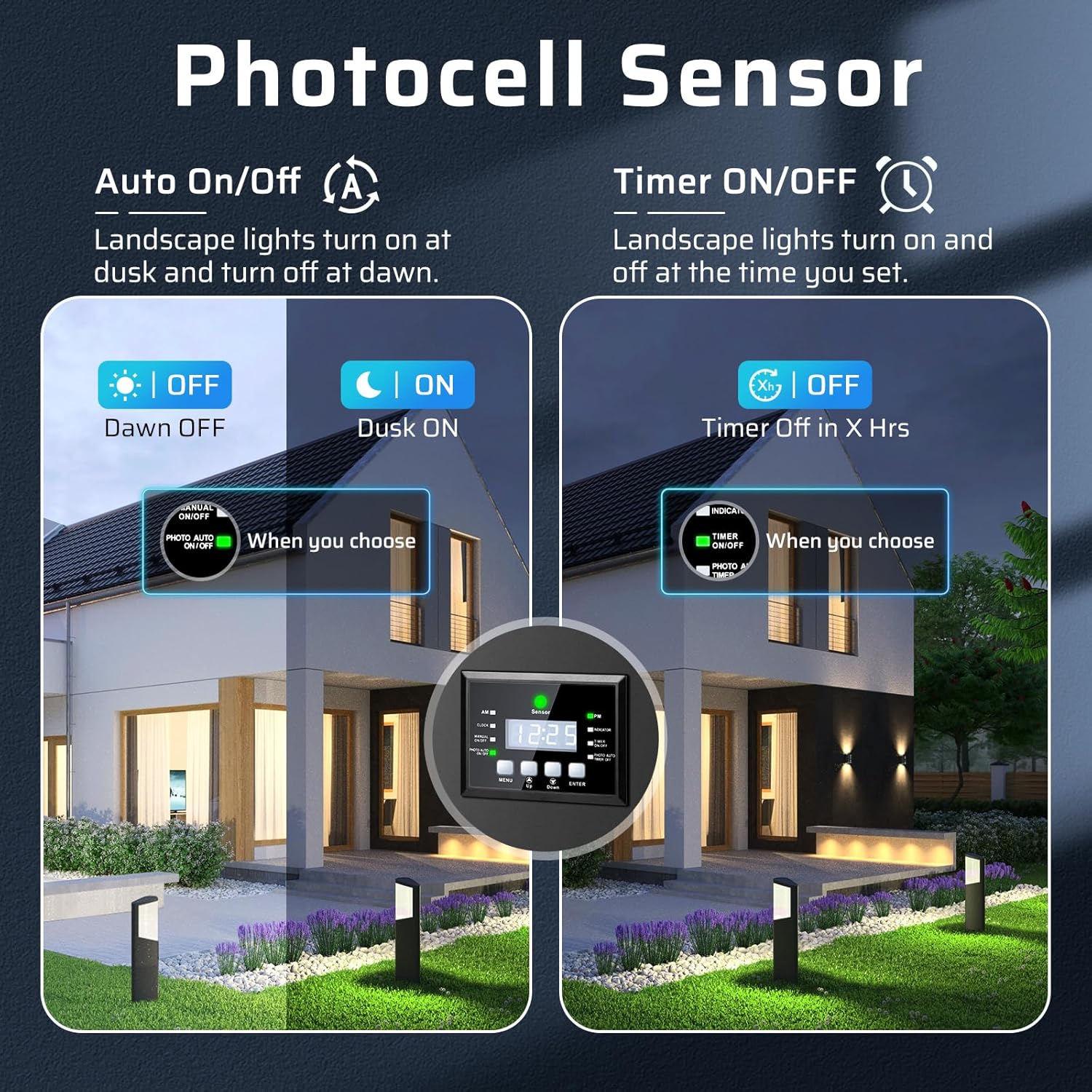

- Comprehensive control modes: Manual ON/OFF, Photocell Auto ON/OFF (dusk-to-dawn), Timer ON/OFF, Photo Auto + Timer OFF, Countdown, Test.
- High-speed photocell automatically turns lights on at dusk and off at sunrise to minimize energy waste.
- Built-in circuit protection and power-off memory—after power restoration, the unit resumes the previous working mode.

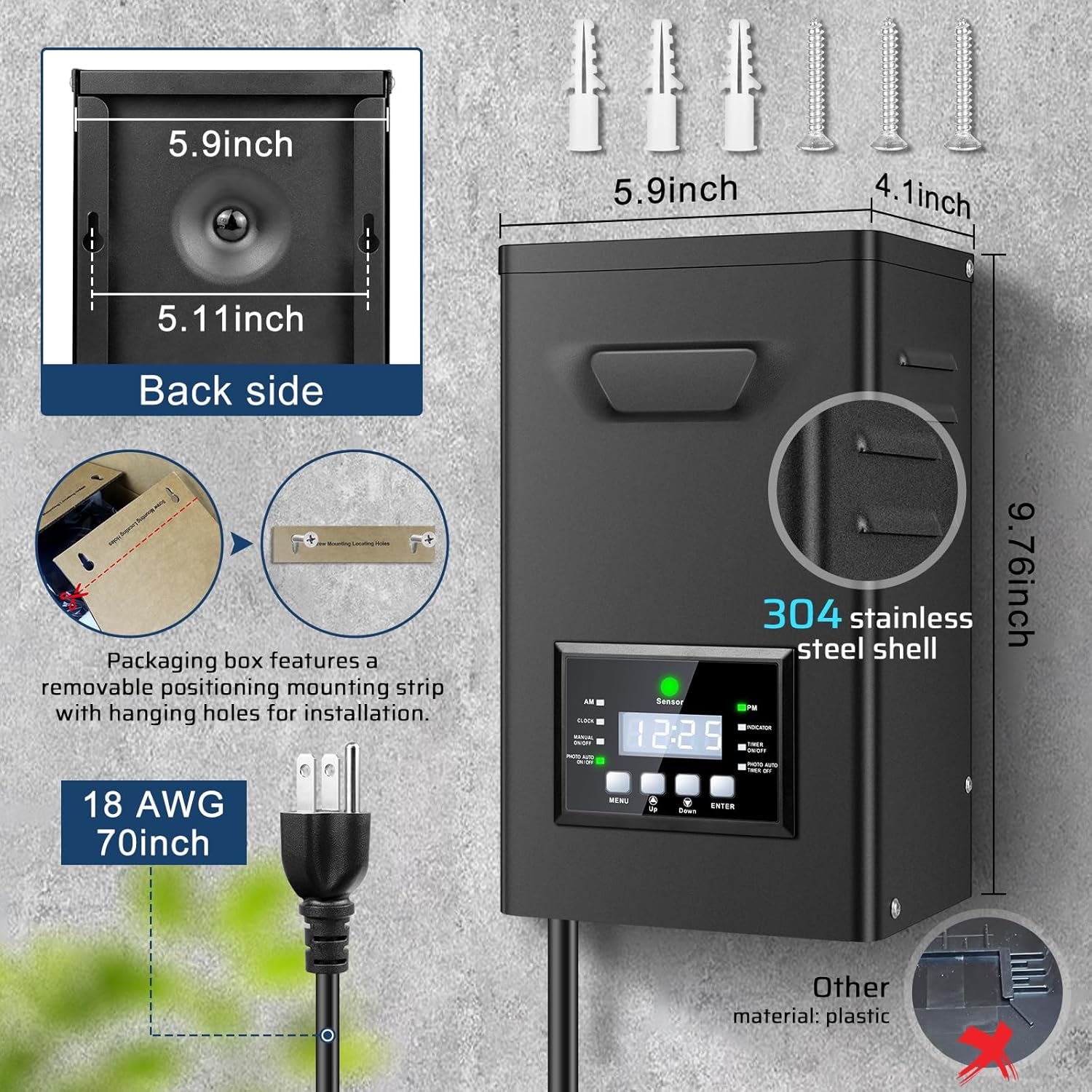

- Heavy-duty 304 stainless steel weatherproof shell for reliable operation in harsh outdoor environments.
- 6.5 ft (≈2 m) 18AWG heavy-duty input cord; compatible with 12V/15V LED landscape fixtures—spotlights, path lights, deck lights, water features, and more.
Order & Logistics
Lead Time
- Ships within 1–3 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
- Packing: Cardboard box, sealed with polybag for small parts
Key Specifications
- Input Voltage: 120V AC, 60Hz (US plug), 6.5 ft / ~2 m 18AWG cord
- Output Voltage: 12V AC / 15V AC
- Max Wattage Options: 500W or 600W (per version)
- Control Modes: Manual, Photocell (dusk-to-dawn), Timer, Countdown, Test
- Display: LCD digital panel with clock and indicators
- Housing: 304 stainless steel, weatherproof
- Protection: Overload & short-circuit; Power-off memory
Usage Notes / Installation Tips

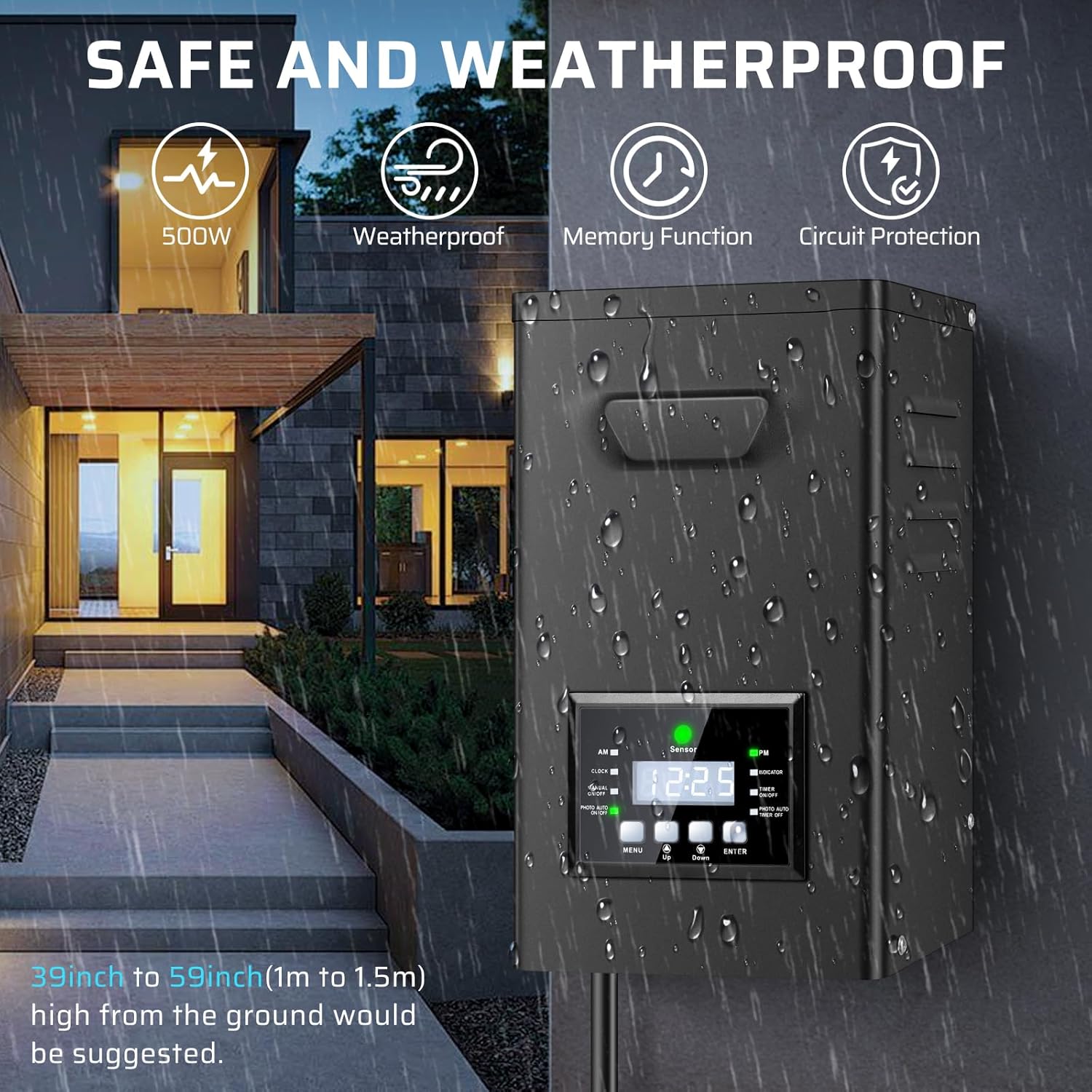

- Install at least 12 inches above ground; keep area ventilated and dry.
- Not compatible with dimmers. Disconnect power before installation or wiring changes.
- For best performance, keep total load ≤ 80–90% of rated wattage; long cable runs increase voltage drop—use appropriate wire gauge.
- Ensure the photocell is not blocked by nearby light sources.
Technical Specifications
| Model | 12V/15V AC 500W | 12V/15V AC 600W |
|---|---|---|
| Input voltage range | 120V AC 60Hz | 120V AC 60Hz |
| Output power | 500W Max (Recommended ≤90%) | 600W Max (Recommended ≤90%) |

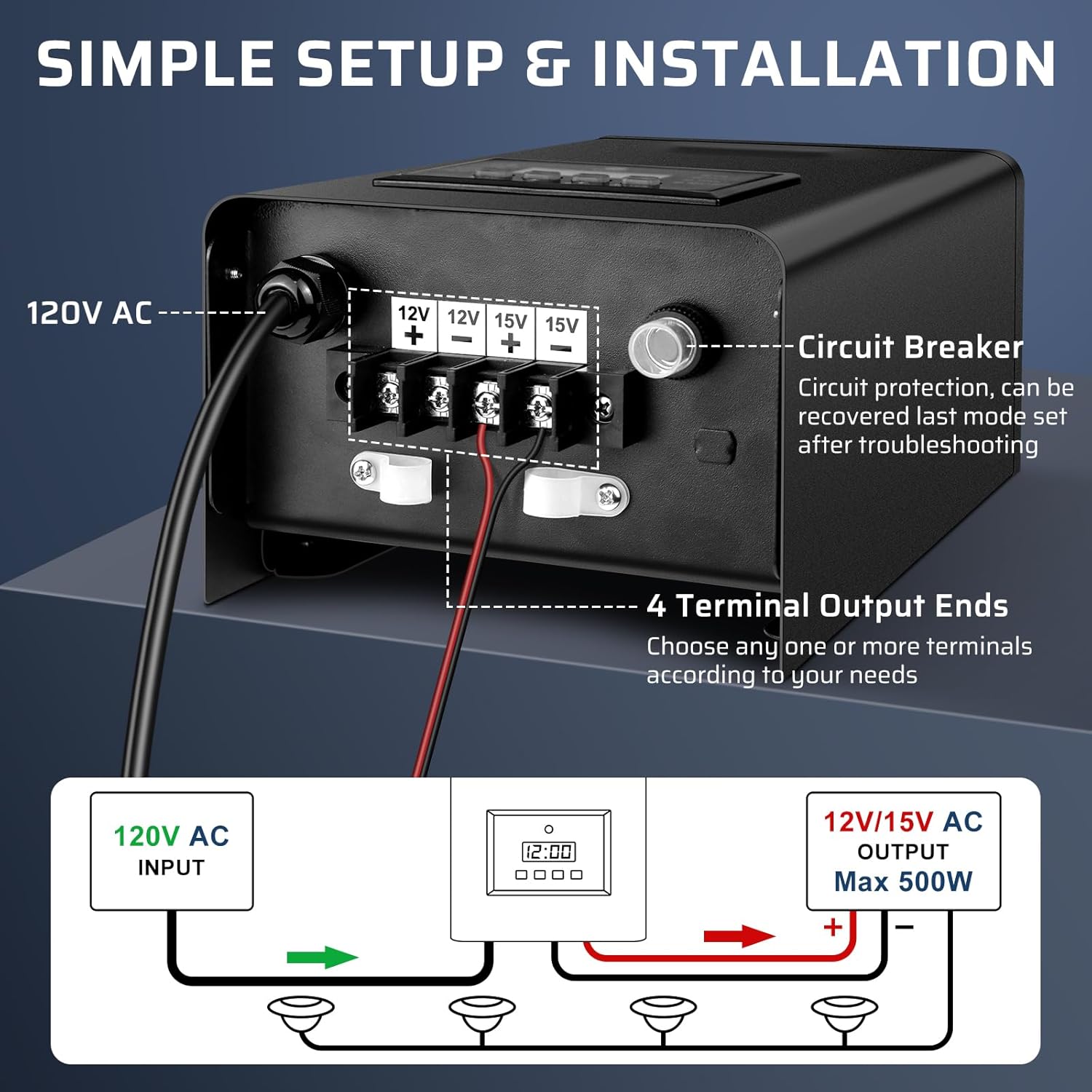

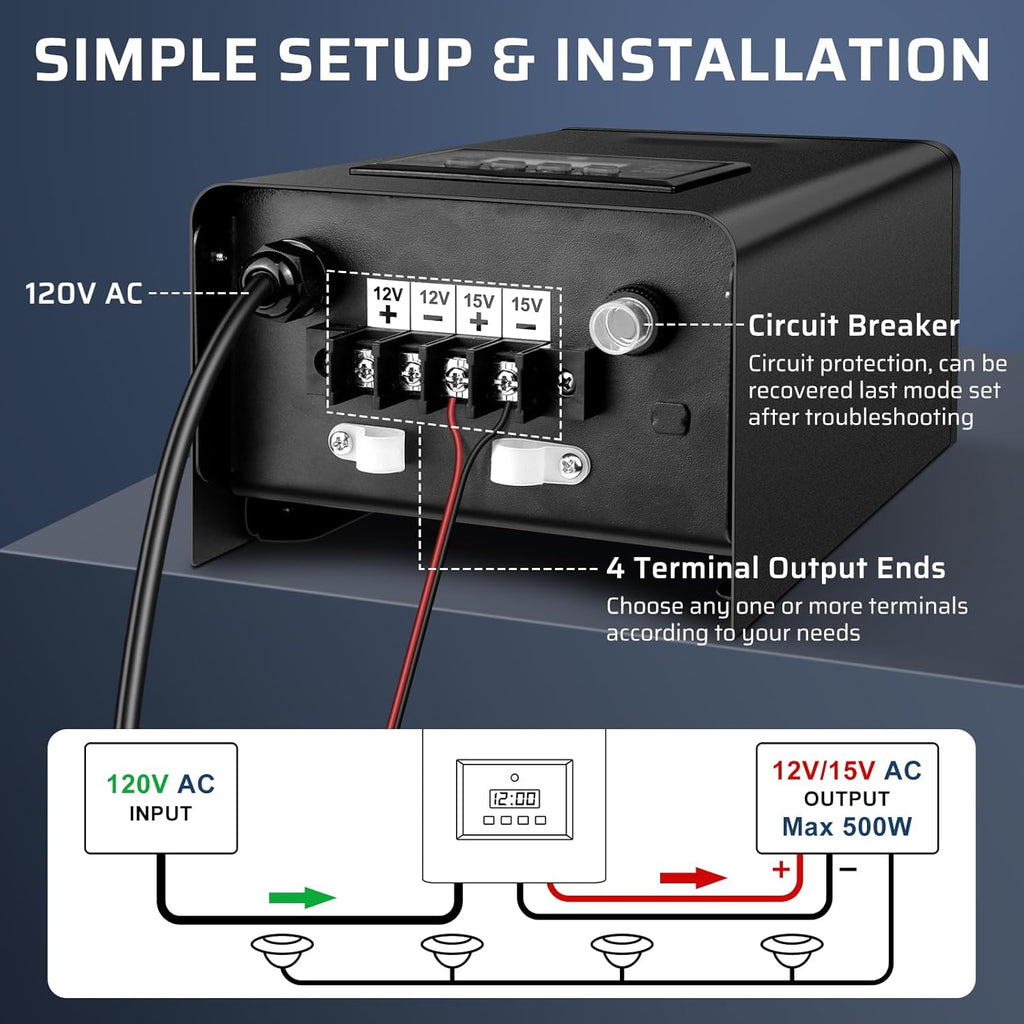

| Rated output voltage | 12V AC / 15V AC | 12V AC / 15V AC |
| Rated output current | 41.6A (12V) / 33.3A (15V) | 50A (12V) / 40A (15V) |
| Output current range | 0~41.6A | 0~50A |
| Material | 304 Stainless Steel Shell | 304 Stainless Steel Shell |
| Weight | 5.6 kg | 5.6 kg |
| Product dimensions | 12.64 x 7.83 x 6.5 in | 12.4 x 8.15 x 6.46 in |
| Waterproof rating | Weatherproof (Outdoor Rated) | Weatherproof (Outdoor Rated) |
| Safety protection | Overload, short-circuit, and overheat protection | |
| Operating temperature | -20°C to +60°C | |
| PCB components | High-quality PCB with circuit protection and memory function | |
| Storage temperature | -20°C to +85°C | |
| Timing & control functions | Manual ON/OFF, Dusk-to-Dawn, Timer ON/OFF, Auto Timer OFF | |
| Photocell sensor | Built-in high-speed dusk-to-dawn sensor | |
| Memory function | Yes – restores previous working mode after power outage | |

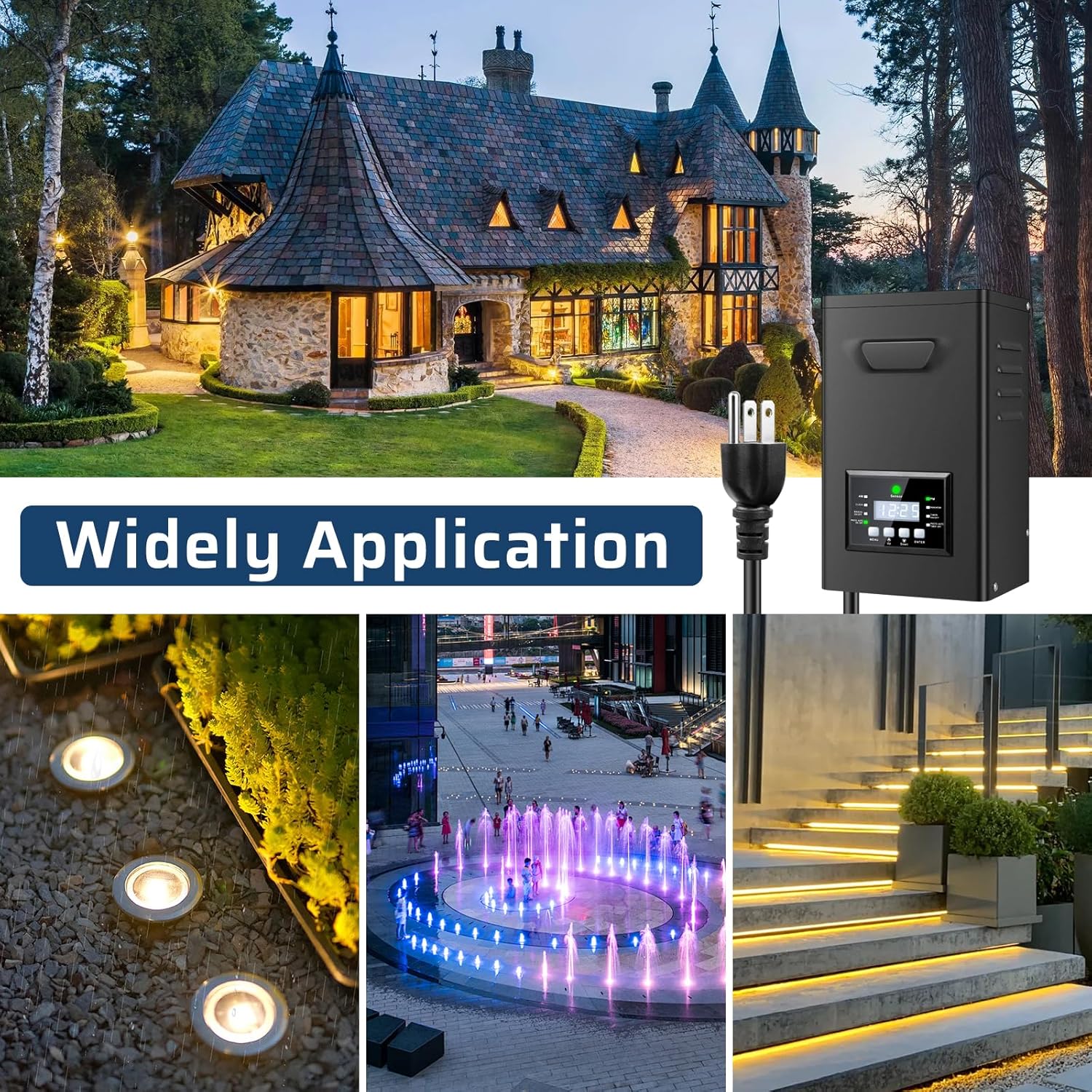

Applications
- Large garden and pathway lighting
- High-power landscape spotlights and wall washers
- Outdoor decorative and holiday lighting
- Residential or commercial low-voltage lighting systems
How to choose the low voltage landscape transformer?
The 200W landscape power supply offers a variety of intelligent operating modes, allowing you to easily select the most suitable setting based on your specific needs and environmental conditions, ensuring an optimal user experience.
A outdoor light transformer offers flexibility for various applications, including garden lighting, pathway illumination, and outdoor décor. Its adaptable design makes it suitable for powering different fixtures in residential, commercial, and public spaces, ensuring it meets diverse lighting needs.
