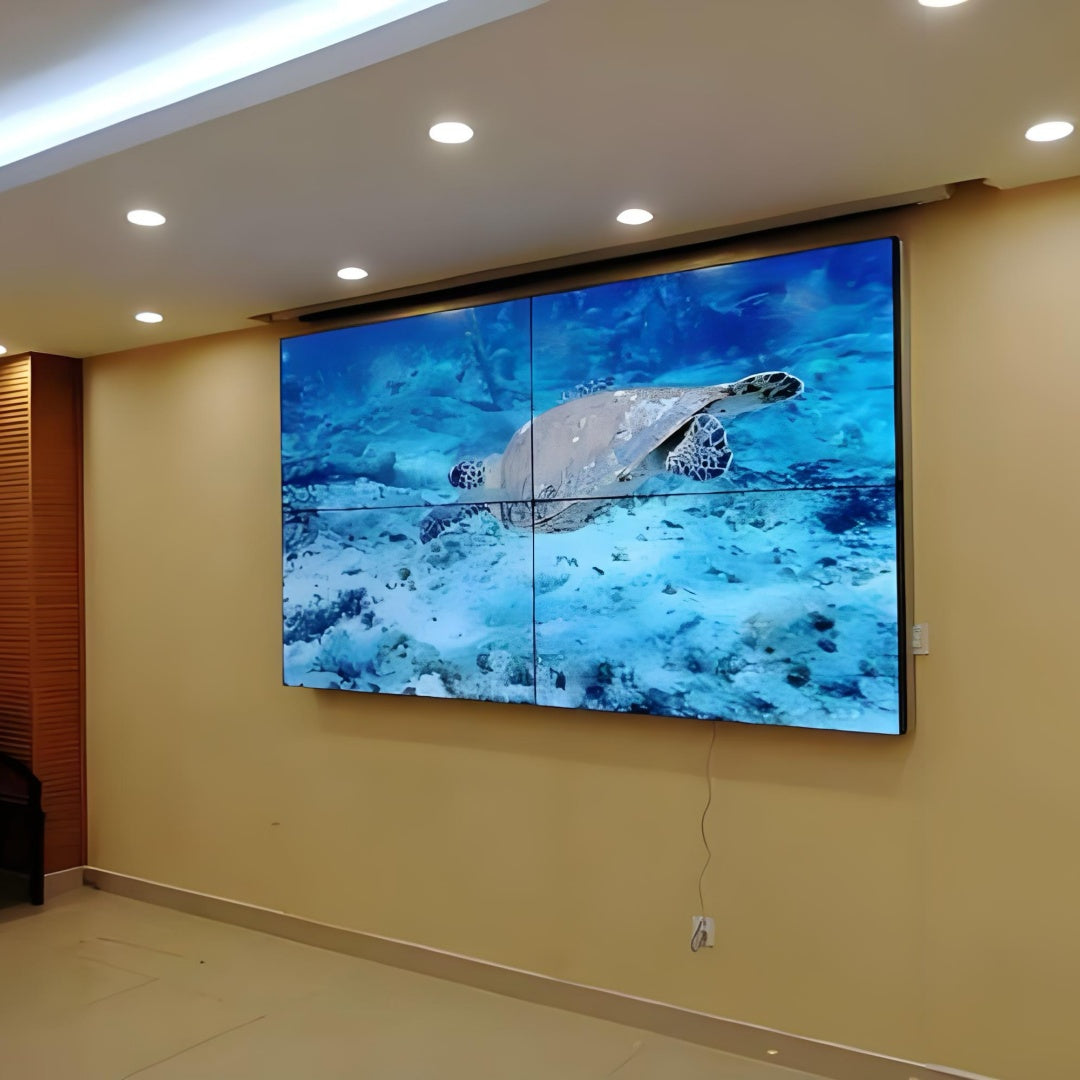

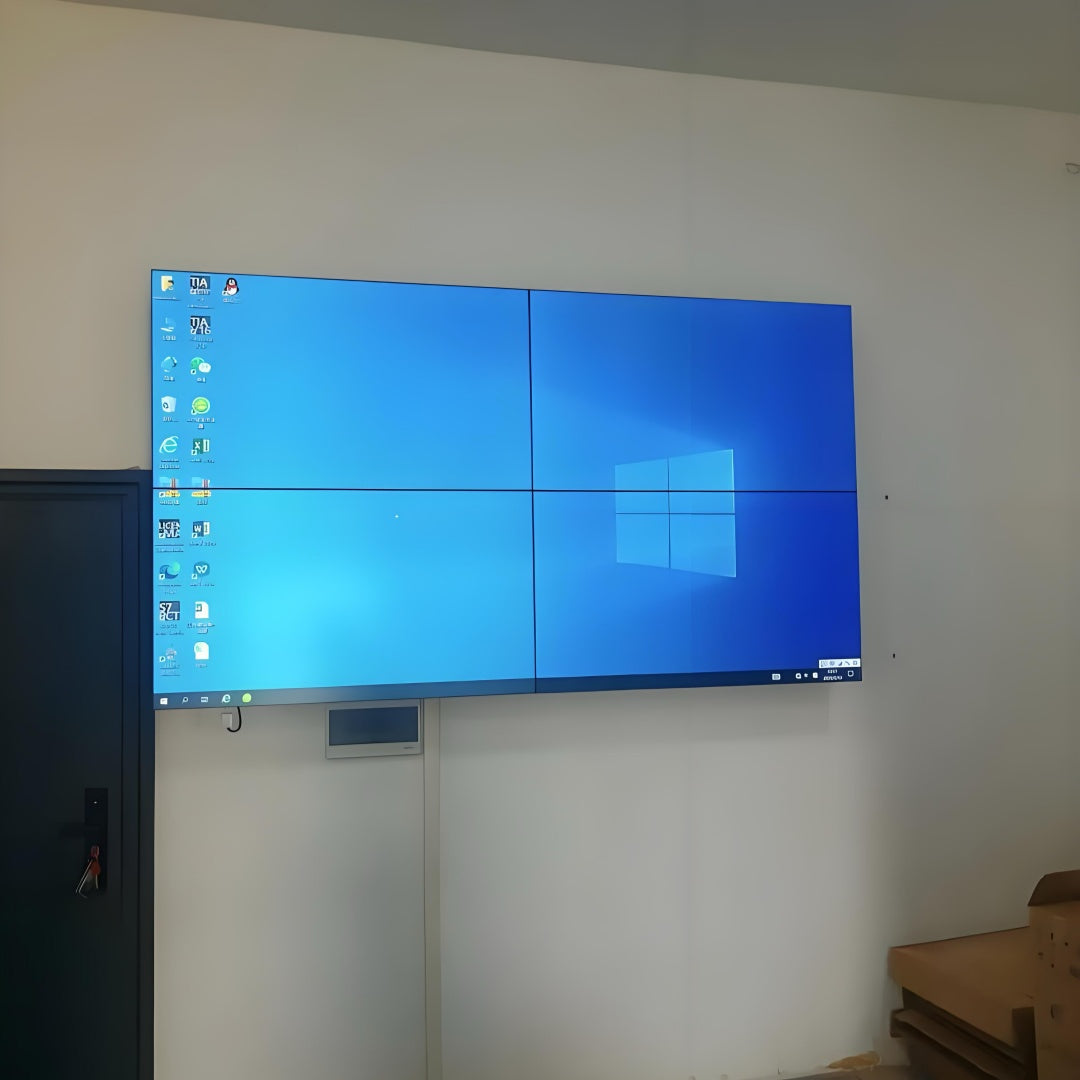

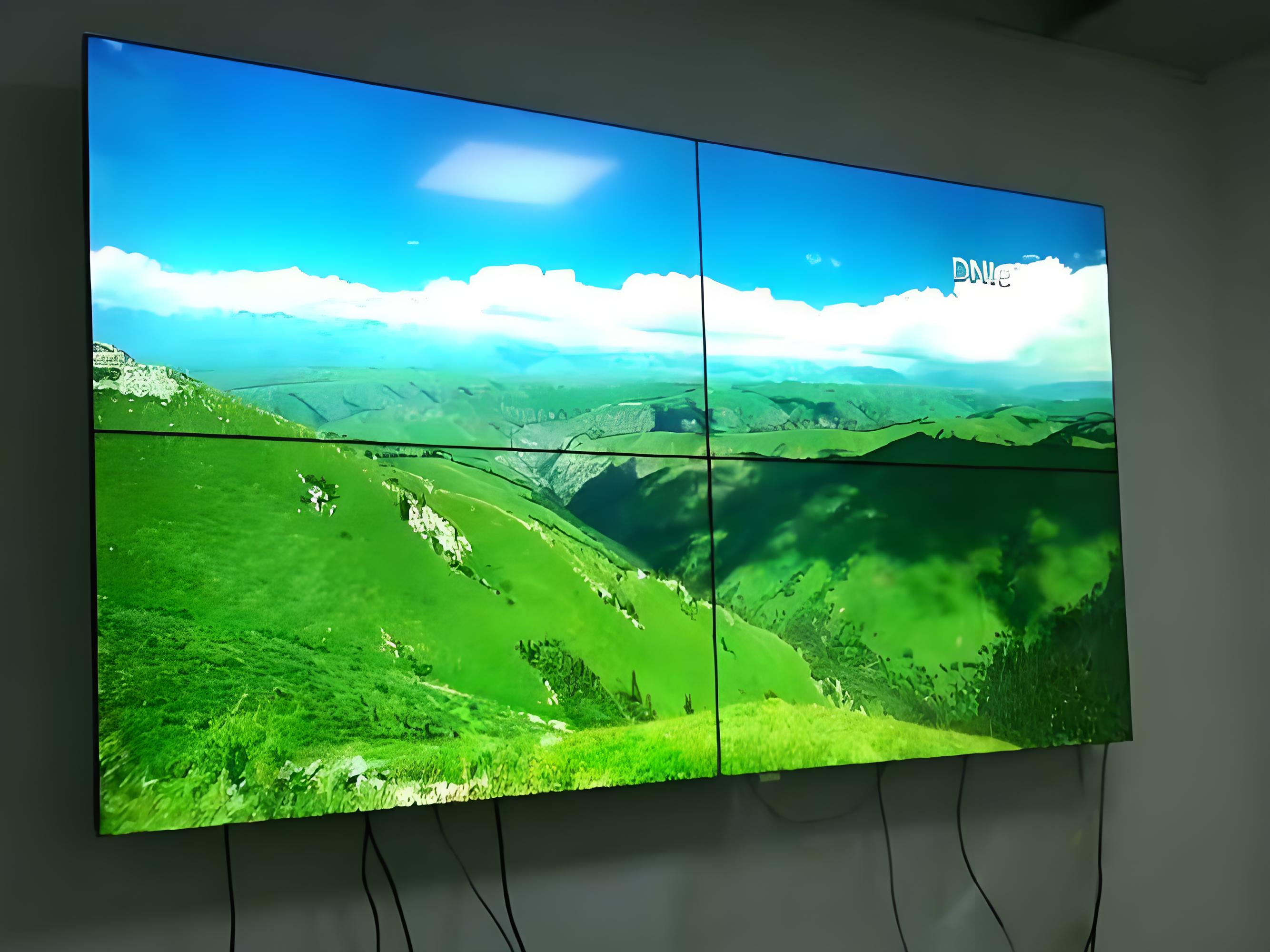

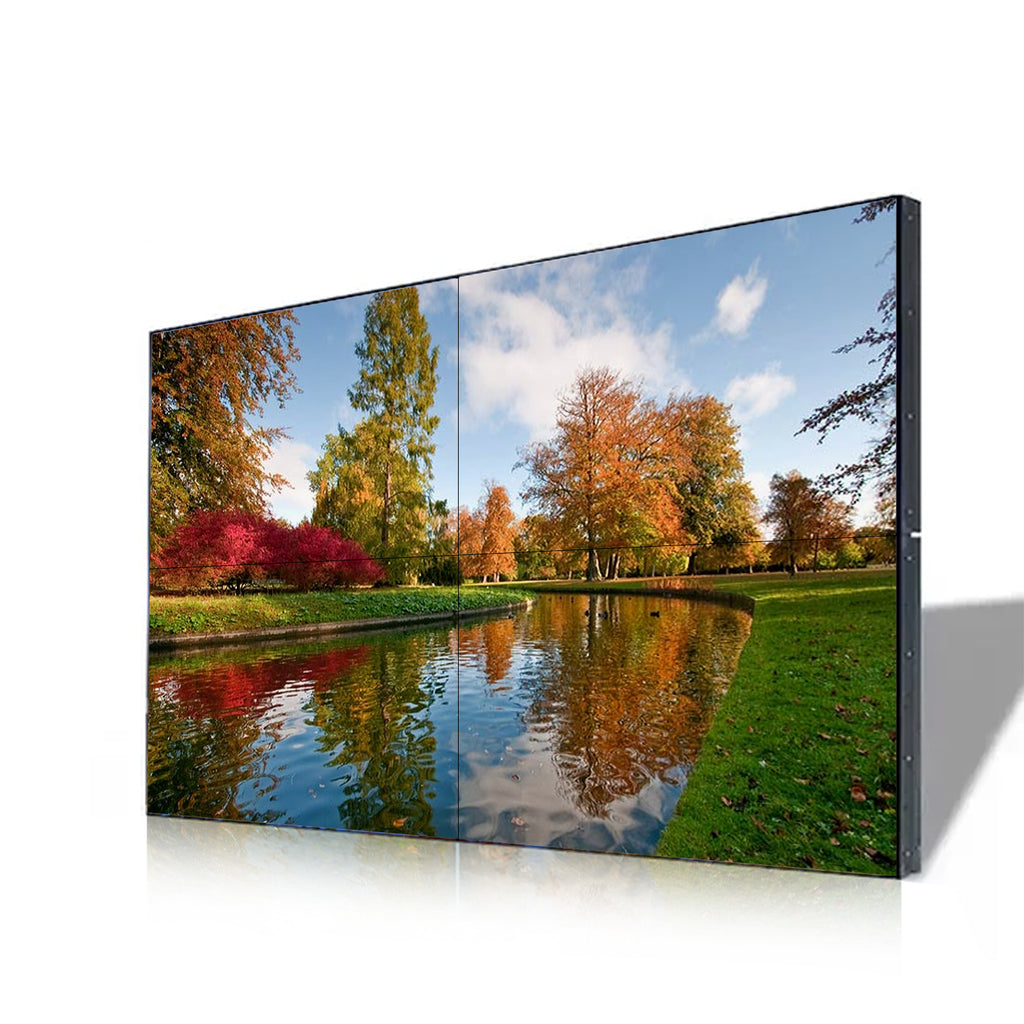

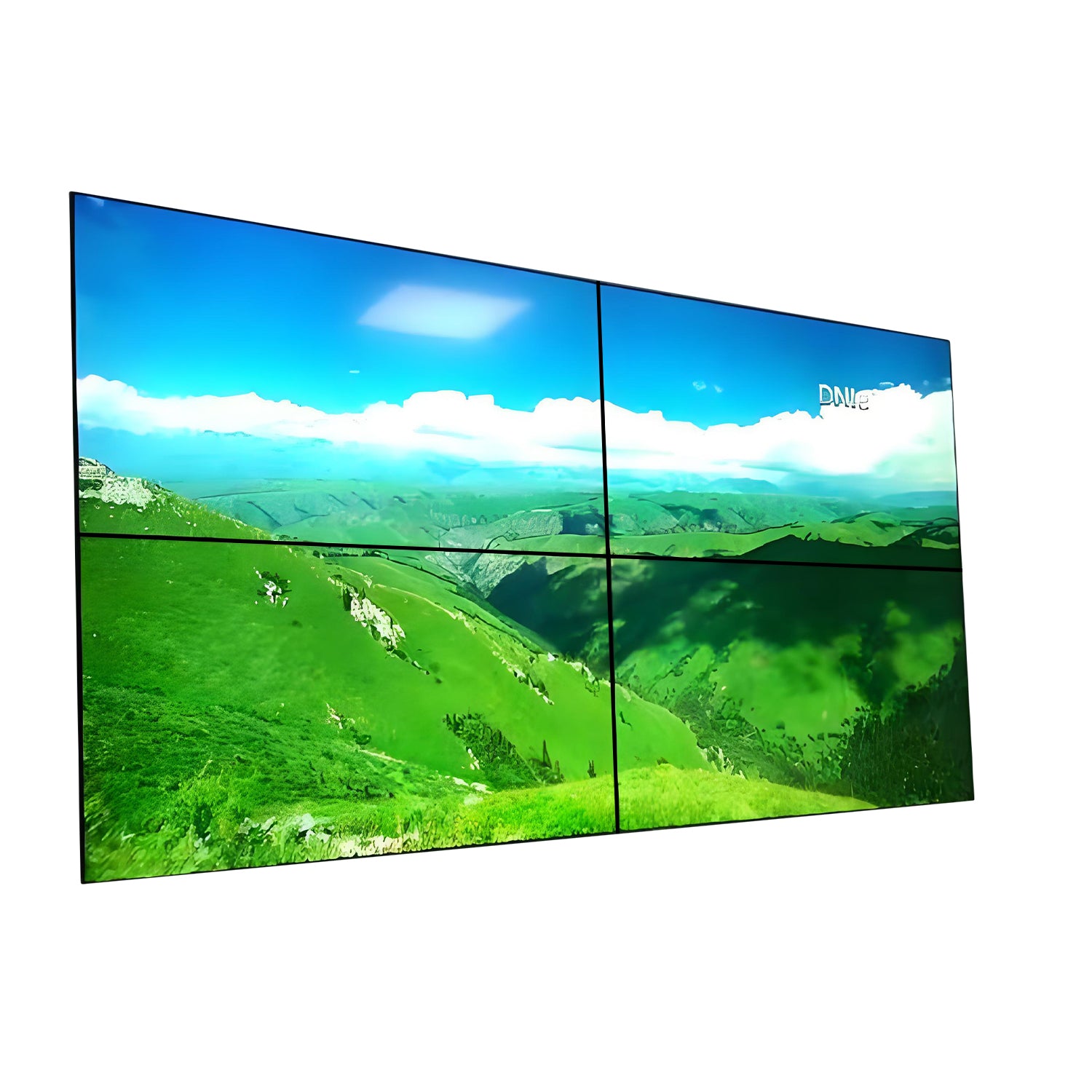

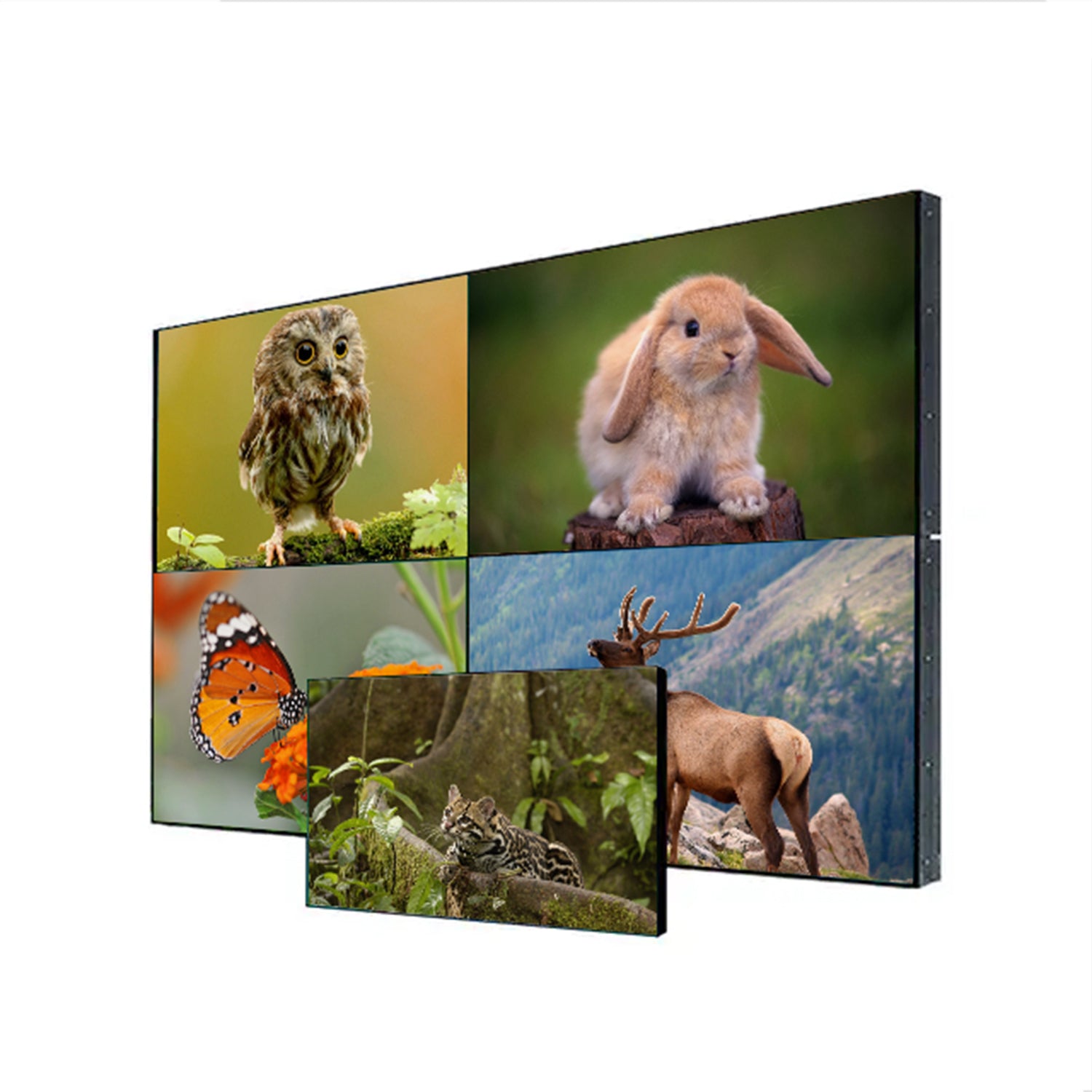

46” BOE LCD Video Wall – 2x2 Kit (4 Panels) | 1920x1080 FHD | 500 nits | Ultra Narrow Bezel 0.88mm / 1.7mm / 3.5mm | HDMI Splicer + Wall Mount Included

46" BOE LCD Video Wall Display | 1920x1080 FHD | 3.5mm / 1.7mm / 0.88mm  Bezel | 500 nits | 2x2 (4 Panels) Kit w/ HDMI Splicer and Front Maintenance Wall Mounting Bracket

Package Included

Order & Logistics

• Lead Time: 4–7 days;
• Packing: Plywood Case and corrugated carton with protective foam
  Shipping
• Method Optional:
  a. By Sea + door-to-door truck. Typical transit:30–35 days after boat departure
  b. By Air +door-to door truck. Typical transit:12–18 days after flight departure.
• DDP TERM: All fees included; if unsupported in destination country, we will confirm alternative solutions with buyer.

Specification

Screen size	46''	49''	55''	65''
Interface gap	3.5mm|1.7mm|0.88mm	3.5mm	3.5mm|1.7mm|0.88mm	3.5mm
Display size	1018*572 mm	1073.8*604 mm	1209.6*680.4 mm	1428*803 mm
Frame size	1023.98*578.7*83.2 mm	1077.58*607.8*63 mm	1211.4*682.2*60.1 mm	1433.88*808.92*78 mm
Resolution	1920x1080	1920x1080	1920x1080	1920x1080
Display color	16.7 M	16.7 M	16.7 M	16.7 M
Color Gamut	72% NTCS	72% NTCS	72% NTCS	72% NTCS
Brightness	500 cd/sqm	500 cd/sqm	500 cd/sqm	500 cd/sqm
Contrast ratio	3500:1	3500:1	3500:1	3500:1
Viewing angle	178/178	178/178	178/178	178/178
Response time	6ms	6ms	6ms	6ms
Display mode	16:9	16:9	16:9	16:9
OSD menu	Yes	Yes	Yes	Yes
Freeze/unfreeze	Yes	Yes	Yes	Yes
Signal buffer	Yes	Yes	Yes	Yes
Menu language	English, Chinese and others
USB input	1-way: USB2.0 supports software upgrade
Vertical frequency	50HZ, 60HZ, 70HZ, 75HZ
Video format	PAL/NTSC
Control interface	RS232 Control : RJ45x3 (1in 2out)

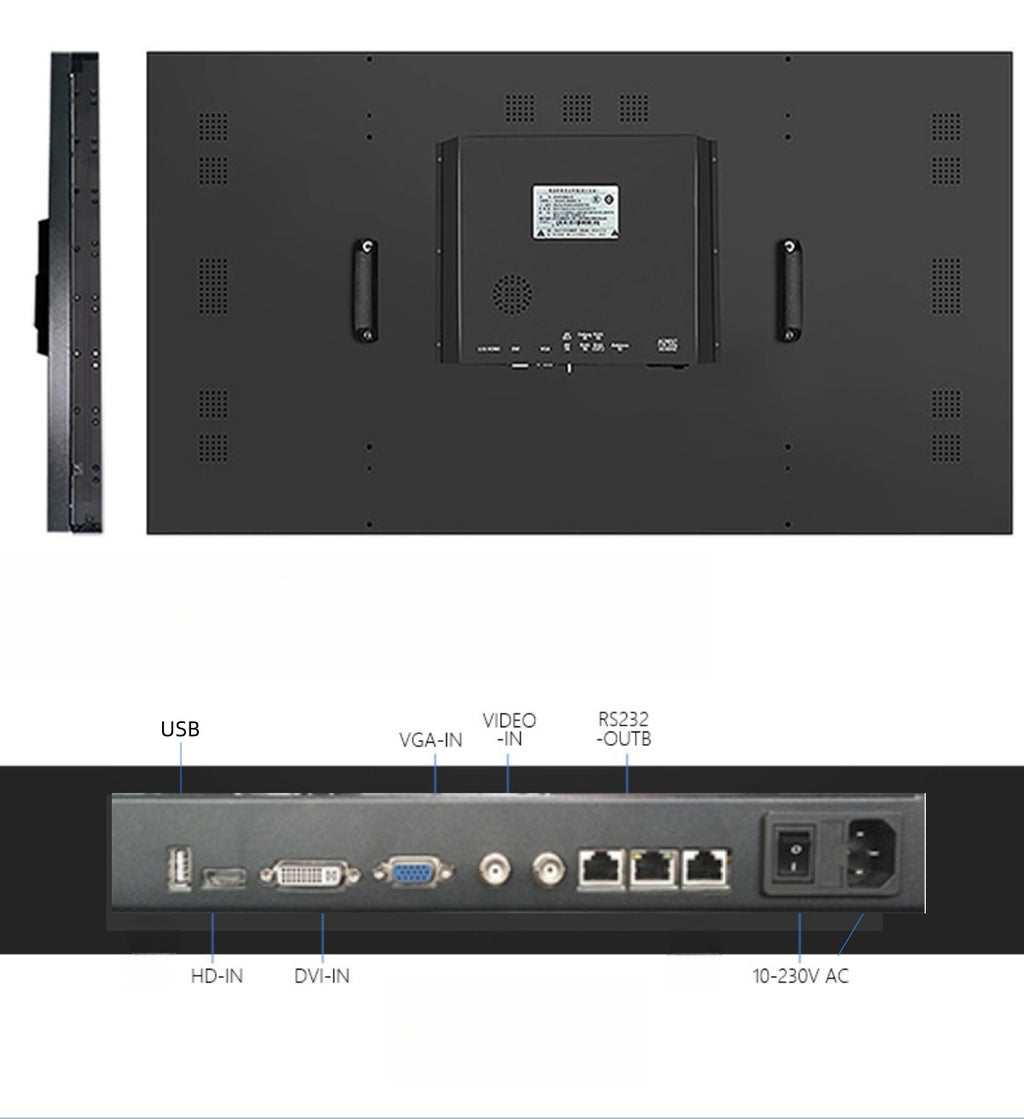

Video interface	VGAx1/DVIx1/HDMIx1/CVBSx2/BNC 1in 1out
Input voltage	AC100-240V (50/60HZ)
Power Consumption	<=200W	<=200W	<=245W	<=260W
Operating temperature	0-50 degree C
Mounting method	Wall-mounted, front-maintenance hydraulic support, vertical support, embedded, cabinet, ceiling-mounted

Features:

1. BOE industrial LCD Panel,

HIGH DEFINITION RESOLUTION: the screen has a resolution of 1920*1080 and a pixel value up to 2.07 million, clearly showing every detail of the picture 16:9 widescreen ratio, so that you can enjoy the great clarity.
178° WIDE VIEWING ANGLE: 178° wide viewing angle technology, higher casting rate, lower power, release arbitrary angle color, more realistic picture and fuller color.
3D NOISE REDUCTION REDUCES IMAGE EDGE NOISE: 3D noise reduction technology, for the image edge noise generated by signal loo, accurate restoration and sharpening, clear and beautiful picture, to achieve the purpose of restoring high-definition picture quality.
ISP HARD SCREEN SHOWS THE BEAUTY OF COLOR: ISP hard screen, tap screen no water ripple. Comparing with ordinary liquid crystal, IPS hard screen liquid crystal molecular horizontal conversion, has faster recovery after tapping, present motion picture quality is more smooth.

2. With the HDMI Splitter,

• It supports three signal inputs: HDMI, DVI, and Type-C;
• Make the LCD video wall screen can be spliced in multiple ways, horizontally or vertically;
• Edge blending technology, seam adjustment docking function, reducing black edge gap;
• Supports 180-degree image flip;
• RS232 serial port control + remote control, supports serial port cable connection to computer host or central console remote control;
• Audio synchronization separation: supports optical fiber audio synchronization separation output

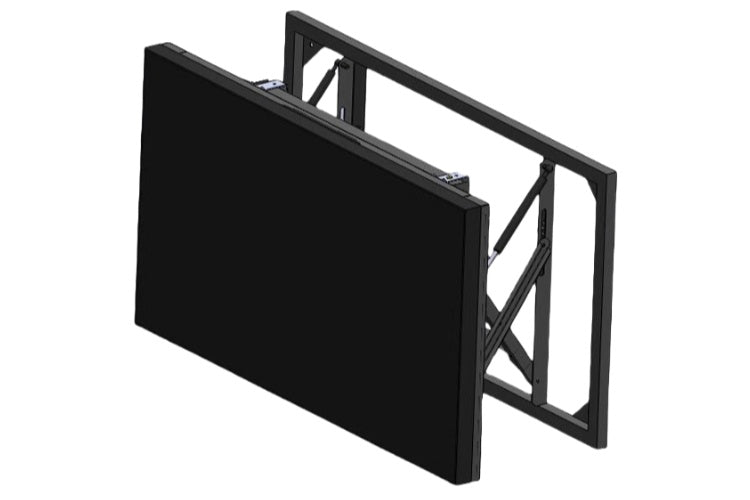

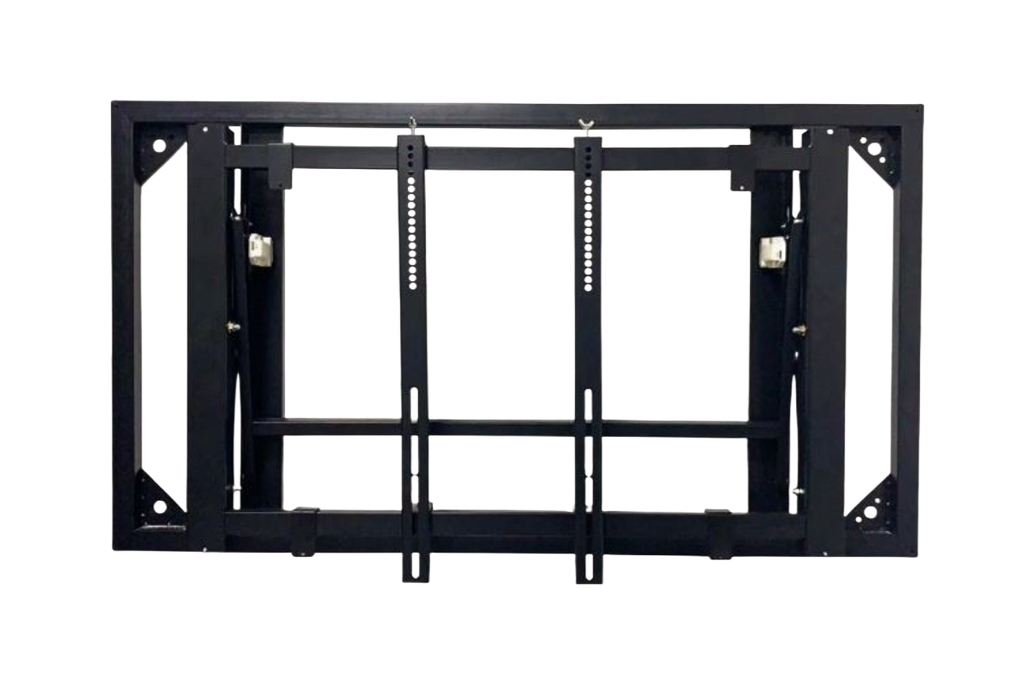

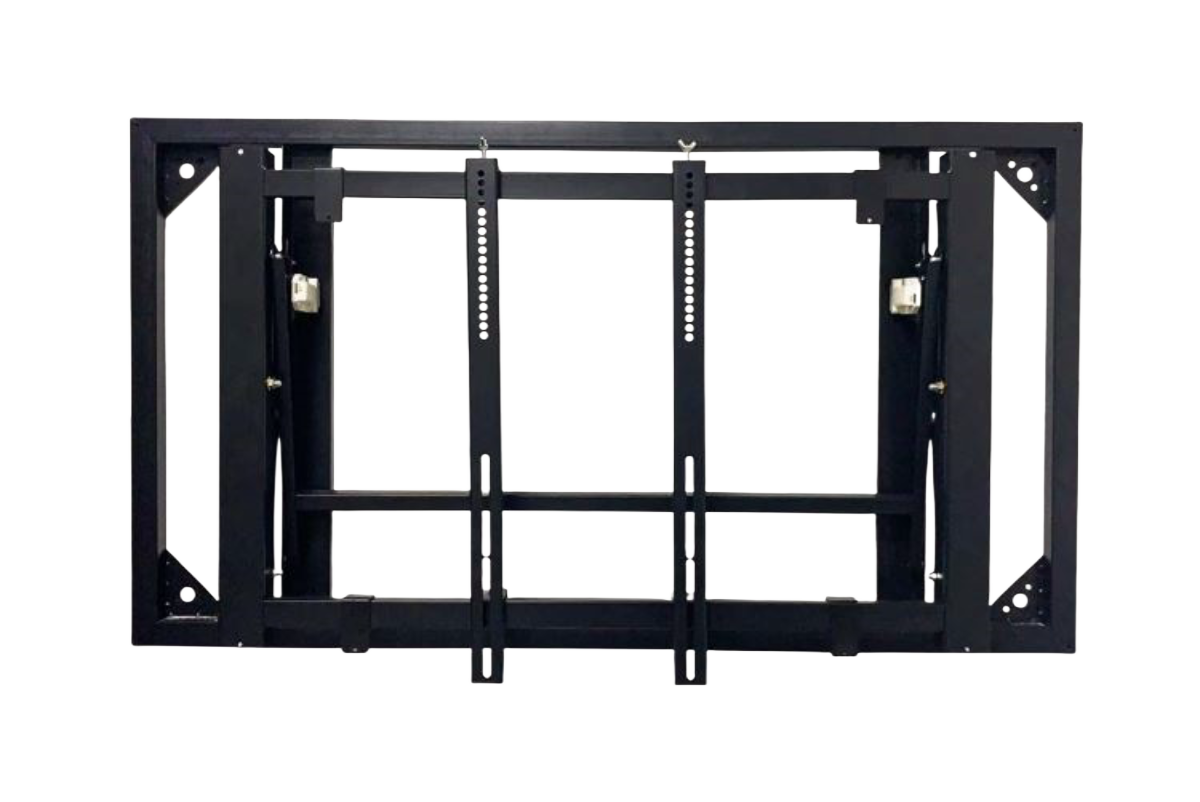

3. With Hydraulic Front Maintenance Bracket

• Easy Front Access – Each LCD splicing panel can be gently pressed to pop out and pushed back in, ensuring effortless handling.

• Uninterrupted Operation – Maintenance can be carried out without affecting the normal use of the video wall.

• Space-Saving Design – Ideal for large-screen display systems where installation space is limited.

• Hydraulic Support – Equipped with a hydraulic front maintenance bracket for smooth and reliable operation.

• Convenient Servicing – Provides full accessibility for inspection, repair, and component replacement.
