Description
300W / 400W Heavy-Duty Low Voltage Landscape Transformer, 120V AC to 12V/14V AC Outdoor Lighting Power Supply with LCD Timer & Photocell Sensor
Package Included
| Version | Package Included |

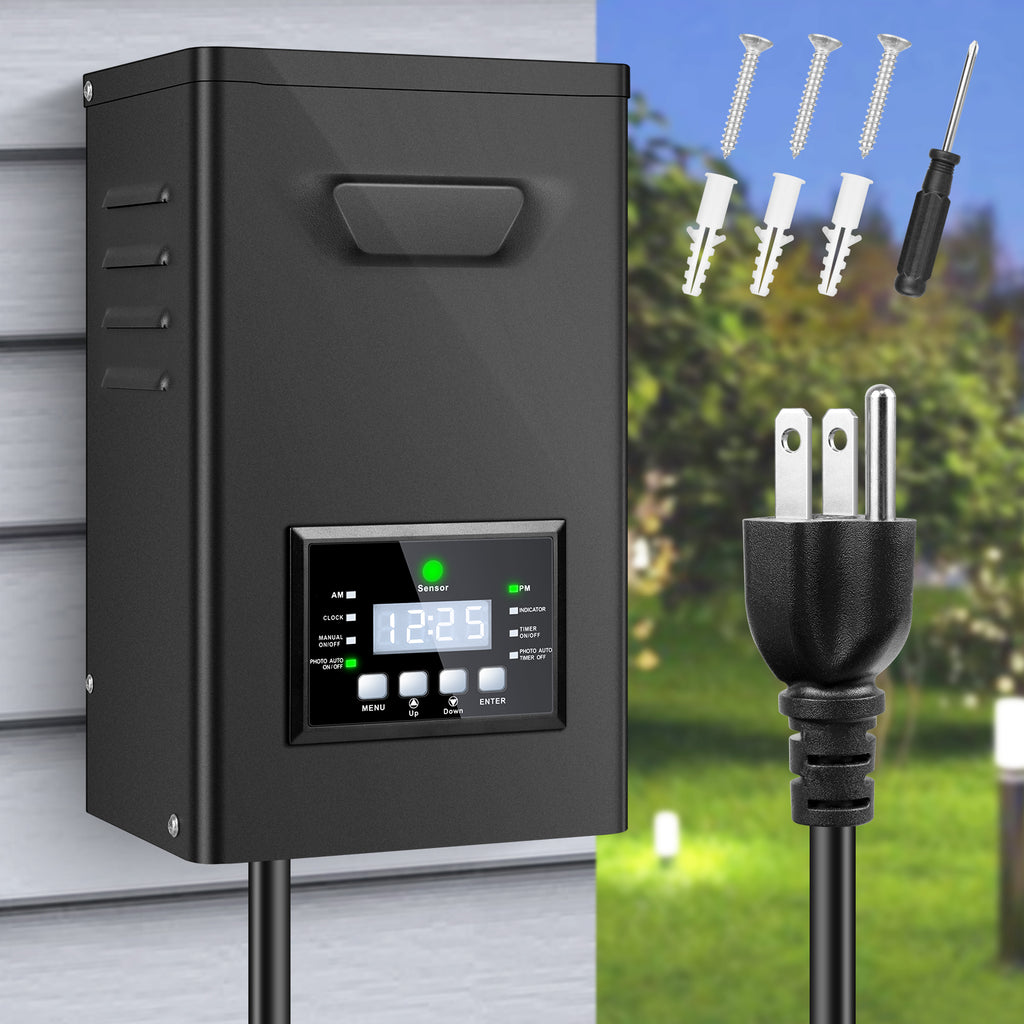

| 300W Transformer | 1 × 300W Low Voltage Landscape Transformer Installation screws User manual |
| 400W Transformer | 1 × 400W Low Voltage Landscape Transformer Installation screws User manual |
About this item
- 300W/400W outdoor-rated low voltage transformer for landscape and garden lighting.
- INPUT: 120V AC 60Hz; OUTPUT: 12V AC / 14V AC low-voltage, stable power.
- 300W version current reference: 12V 25A (300W max), 14V 21.4A (300W max). Recommended use ≤ 90% of full load.
- Integrated LCD panel for clock, timer and schedule settings; 6.5 ft (≈2 m) 18AWG heavy-duty input cord.

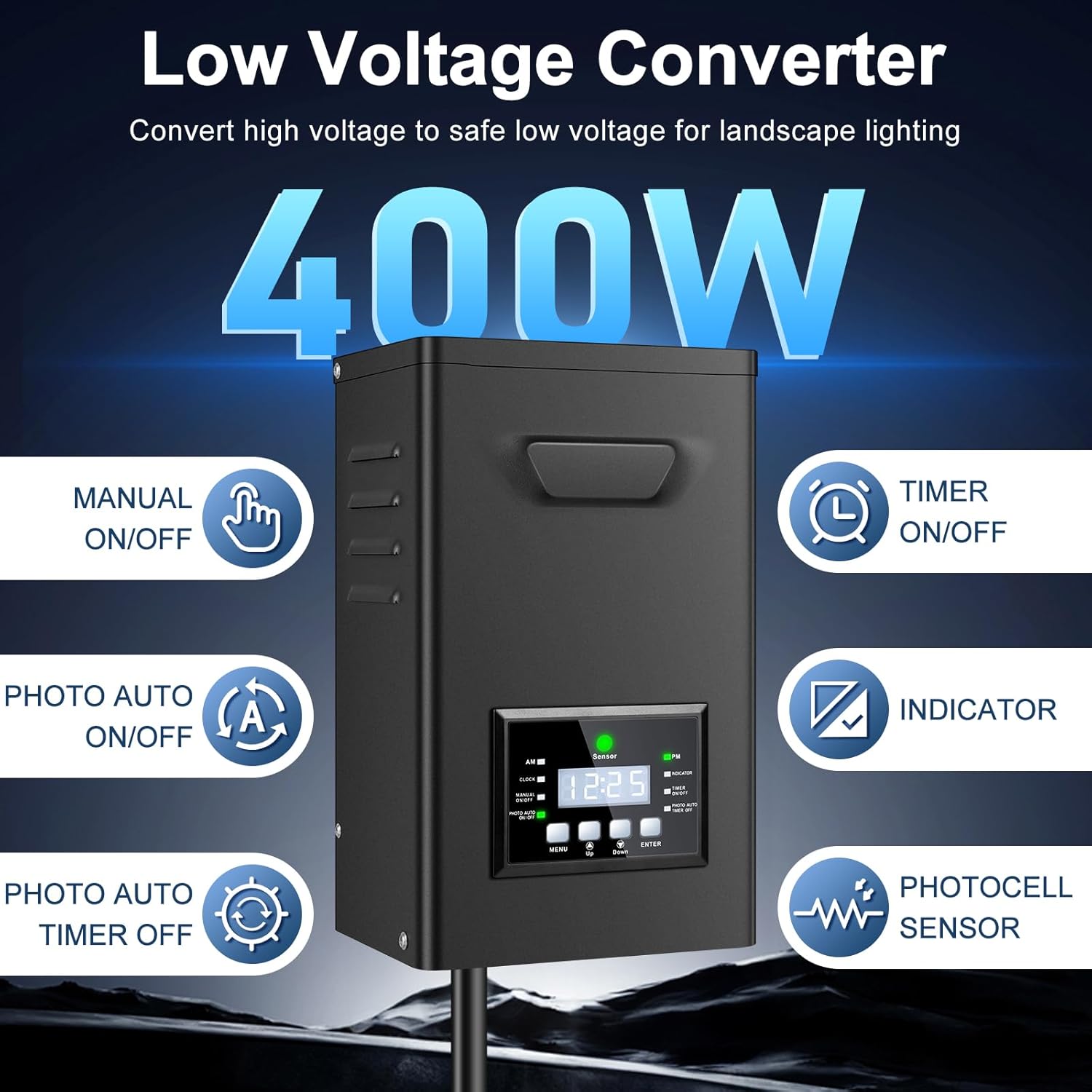

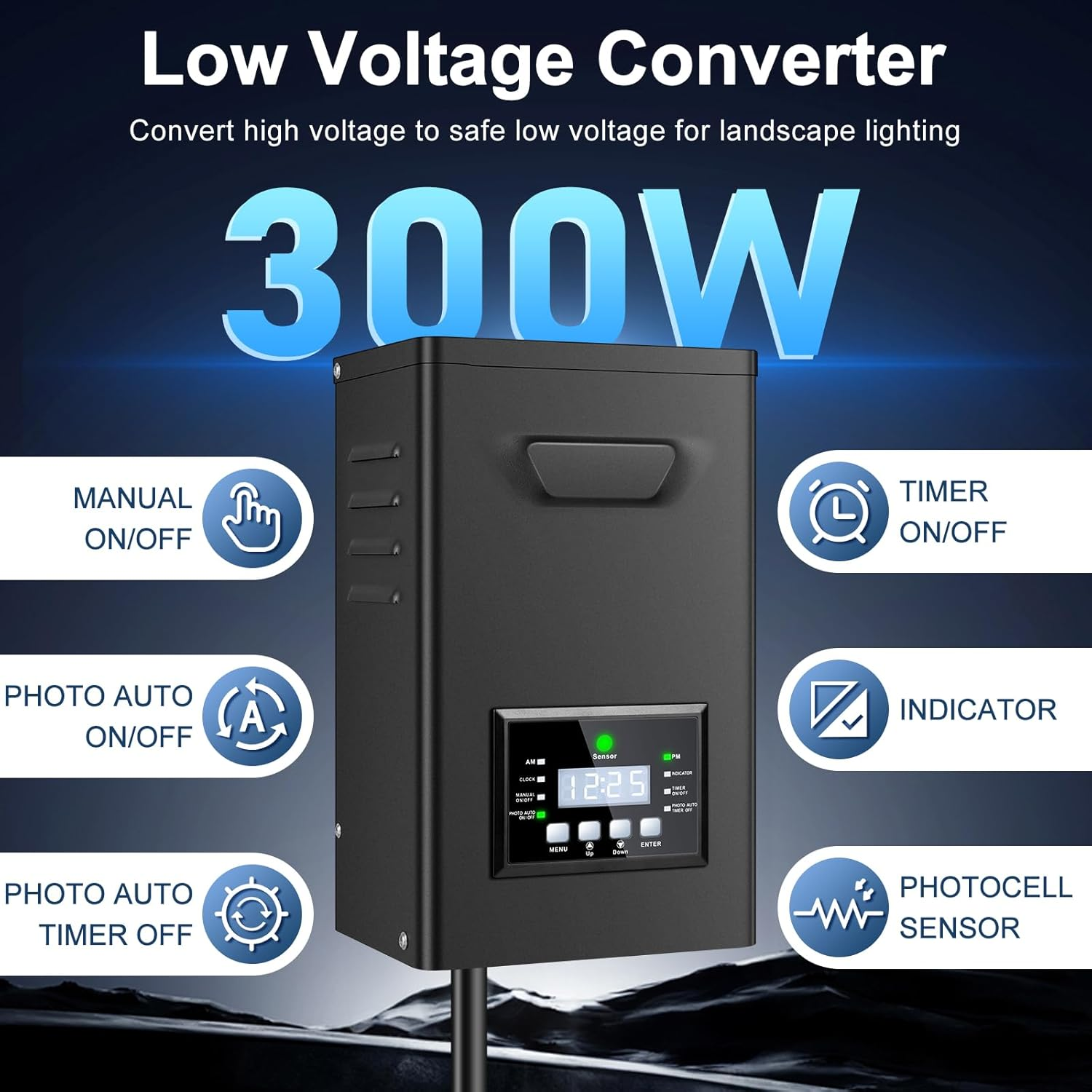

- Comprehensive modes: Manual ON/OFF, Photocell Auto (dusk-to-dawn), Timer ON/OFF, Photo Auto + Timer OFF, Countdown, Test.
- Dusk-to-dawn photocell automatically turns lights on at dusk and off at sunrise, reducing energy waste.
- Built-in circuit protection and power-off memory—after power restoration, resumes the previous working mode.

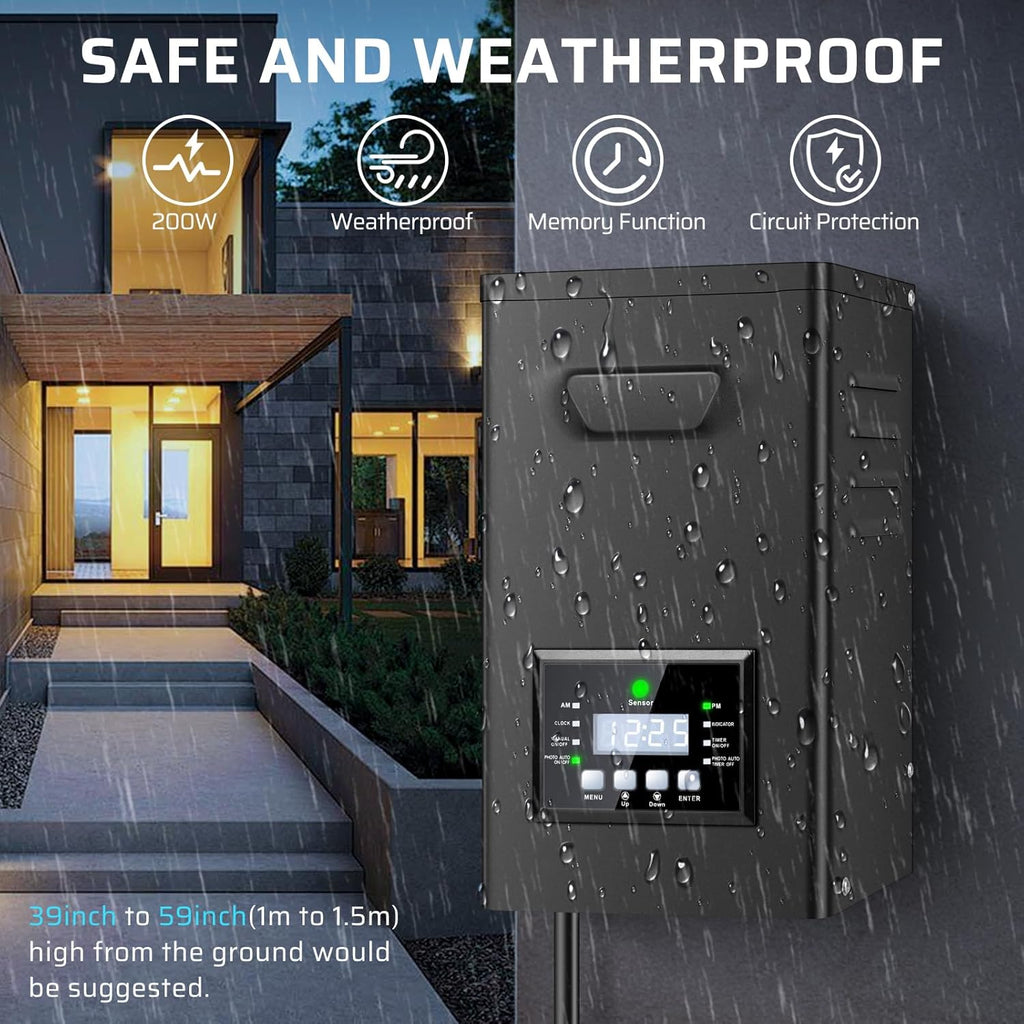

- Heavy-duty 304 stainless steel shell; weatherproof construction for harsh outdoor environments.
- Compatible with 12V/14V LED landscape systems: spotlights, path lights, deck lights, water features, and more.
Order & Logistics
Lead Time
- Ships within 1–3 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
- Packing: Cardboard box, sealed with polybag for small parts
Key Specifications
- Input Voltage: 120V AC, 60Hz (US plug), 6.5 ft / ~2 m 18AWG cord
- Output Voltage: 12V AC / 14V AC
- Max Wattage Options: 300W or 400W (per version)
- Control Modes: Manual, Photocell (dusk-to-dawn), Timer, Countdown, Test
- Display: LCD digital panel with clock and indicators

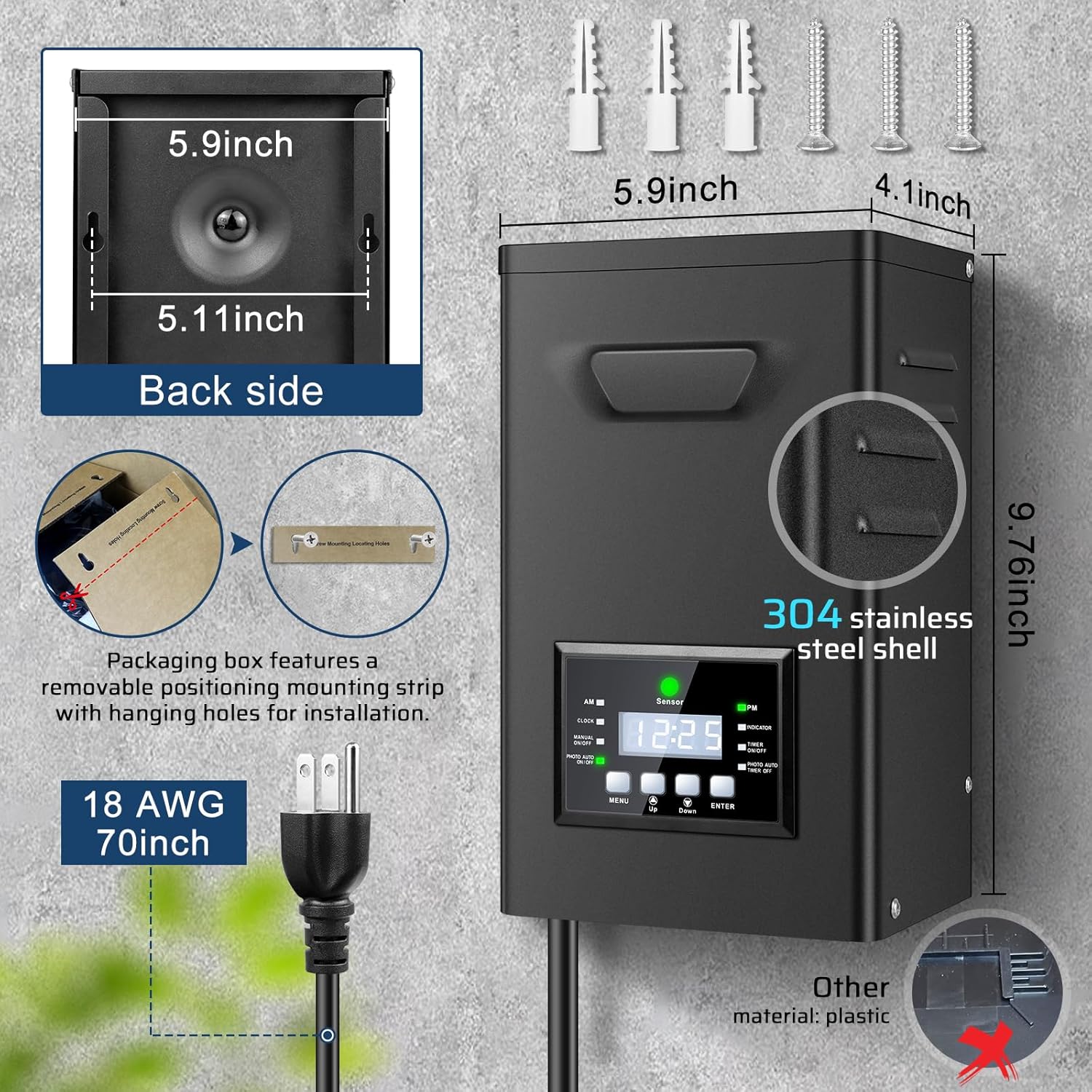

- Material & Housing: 304 stainless steel shell, weatherproof
- Protection: Overload & short-circuit; Power-off memory

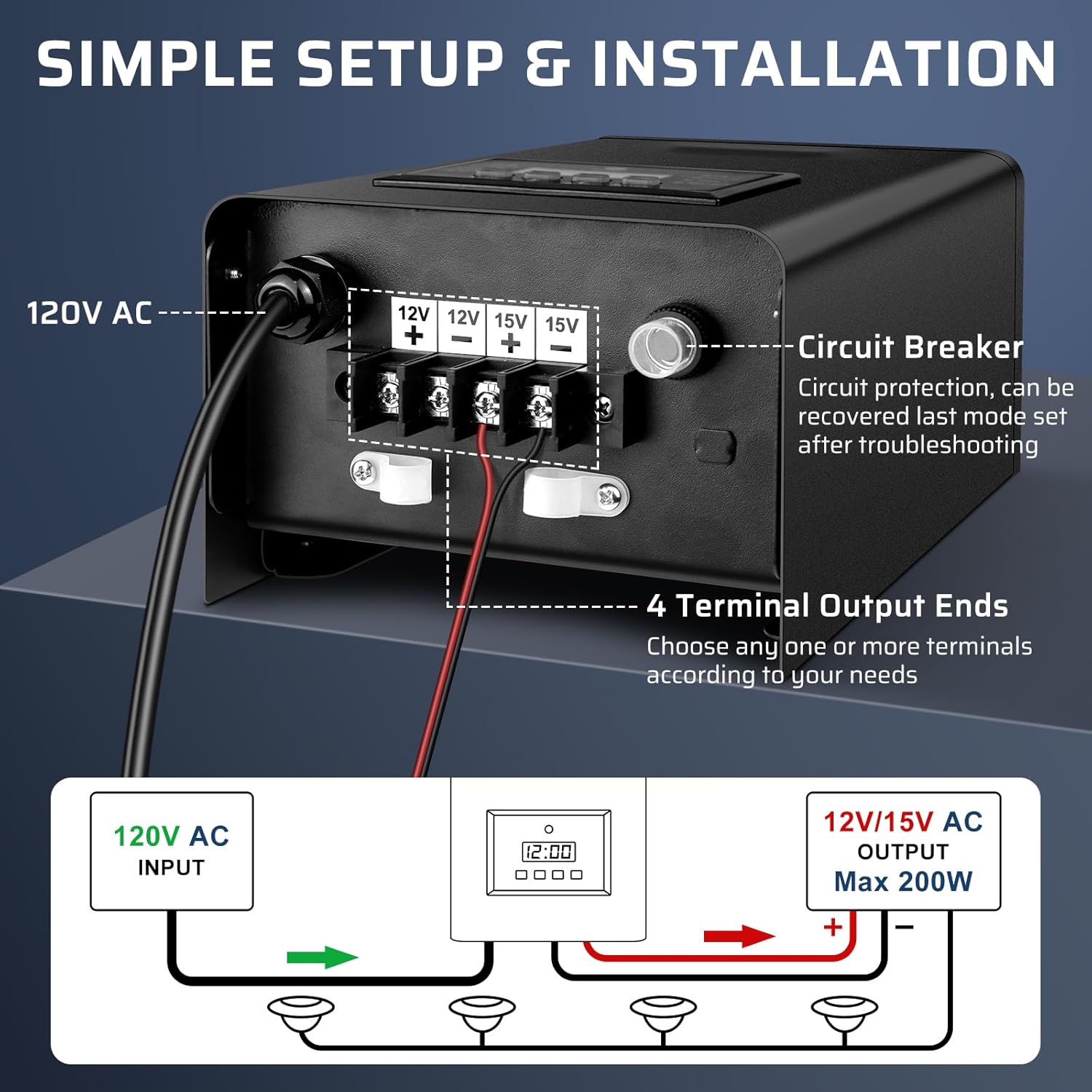

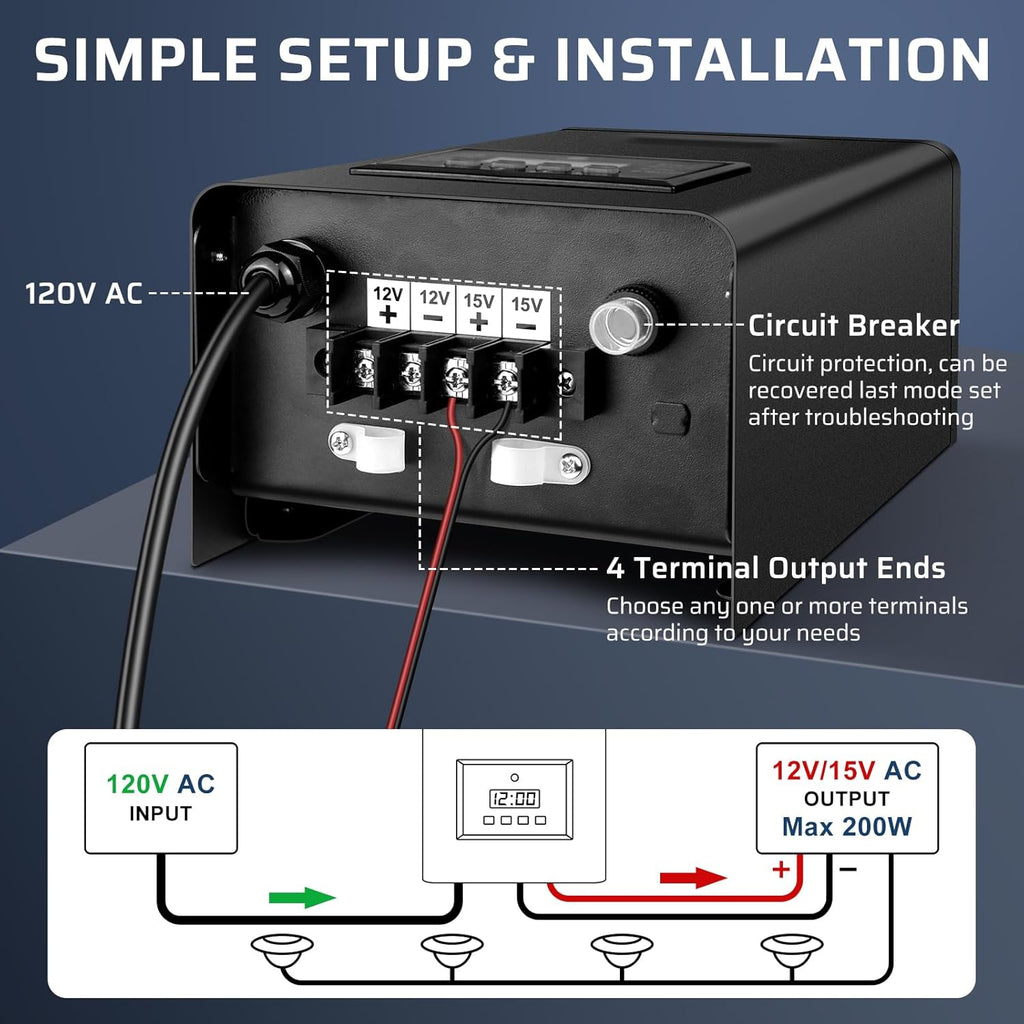

Usage Notes / Installation Tips
- Install the transformer at least 12 inches above ground level; keep well ventilated and dry.
- Do not use with dimmers. Disconnect power before installation or wiring changes.
- For best performance, keep total load ≤ 80–90% of rated wattage; long cable runs increase voltage drop—use appropriate wire gauge.
- Balance load evenly across outputs when possible and ensure the photocell is not blocked by nearby light sources.
Technical Specifications
| Model | 12V/14V AC 300W | 12V/14V AC 400W |
|---|---|---|
| Input voltage range | 120V AC 60Hz | 120V AC 60Hz |
| Output power | 300W Max (Recommended ≤90%) | 400W Max (Recommended ≤90%) |
| Rated output voltage | 12V AC / 14V AC | 12V AC / 14V AC |
| Rated output current | 25A (12V) / 21.4A (14V) | 33A (12V) / 28A (14V) |
| Output current range | 0~25A | 0~33A |
| Power source | Corded Electric | Corded Electric |
| Mounting type | Wall Mount | Wall Mount |
| Material | 304 Stainless Steel Shell | 304 Stainless Steel Shell |
| Weight | 4.5 kg | 5.3 kg |
| Product dimensions | 12.32 x 8.15 x 6.38 in | 6.3 x 7.9 x 6.3 in |
| Waterproof rating | Weatherproof (Outdoor Rated) | Weatherproof (Outdoor Rated) |
| Certifications | FCC, UL | FCC, UL |
| Safety protection | Overload, short-circuit, and overheat protection | |
| Operating temperature | -20°C to +60°C | |
| PCB components | High-quality circuit board with built-in circuit protection and memory function | |
| Storage temperature | -20°C to +85°C | |
| Timing & control functions | Manual ON/OFF, Dusk-to-Dawn, Timer ON/OFF, Auto Timer OFF | |
| Photocell sensor | Built-in high-speed dusk-to-dawn sensor | |
| Memory function | Yes – restores previous working mode after power outage | |
Applications
- Garden and pathway lights
- Landscape spotlights and wall washers
- Outdoor decorative and holiday lighting
- Residential or commercial low-voltage lighting systems
How to choose the low voltage landscape transformer?
The 300W/400W transformer offers multiple smart control modes to match different lighting needs, ensuring efficient and convenient outdoor lighting management.
Ideal for gardens, patios, and walkways, this outdoor transformer provides stable and safe power for your landscape lighting systems.
