Description
Key Features
- RGBW or RGBWW Color Options – Choose RGBW for vibrant RGB colors plus 6000K daylight white, or RGBWW for RGB colors plus a comfortable 3000K warm white. Compatible with PWM RGBW/RGBWW controllers for color selection, dimming, and dynamic lighting effects.
- IP68 Waterproof Outdoor Construction – Designed with a stainless steel light body, tempered-glass lens, waterproof sealing ring, and sealed cable outlet for reliable use in wet outdoor environments.
- Four Power and Size Options – Available in 2W, 3W, 4W, and 6W versions for pathways, decks, driveways, patios, gardens, fountains, and architectural accent lighting. The focused 30° beam creates a clean and controlled lighting effect.

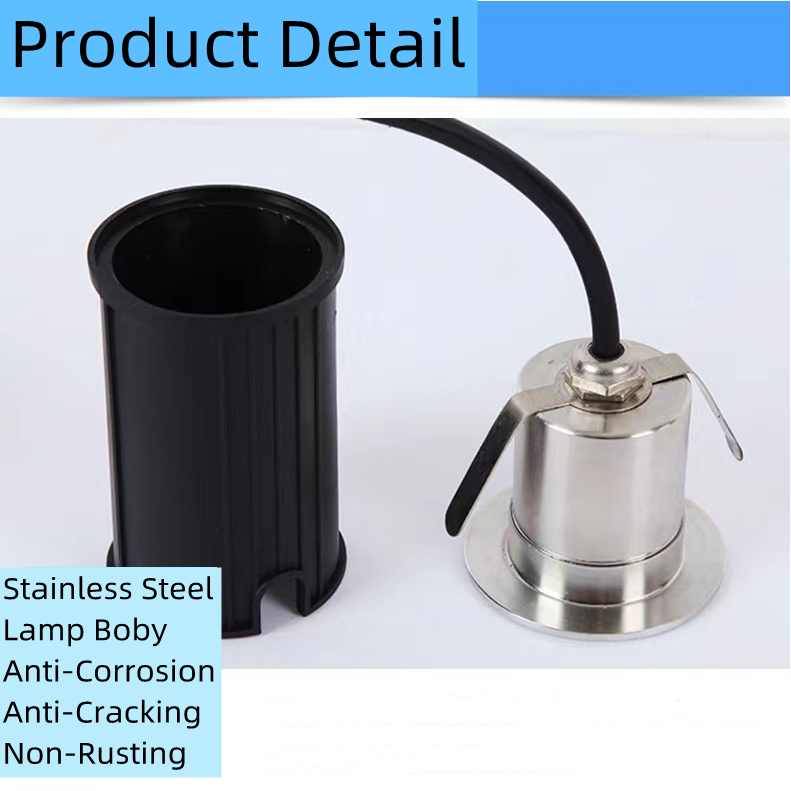

- Durable Recessed Installation Sleeve – Each light includes a thickened plastic installation sleeve that resists pressure and deformation. The barrel-shaped design protects the fixture and simplifies recessed installation and future maintenance.

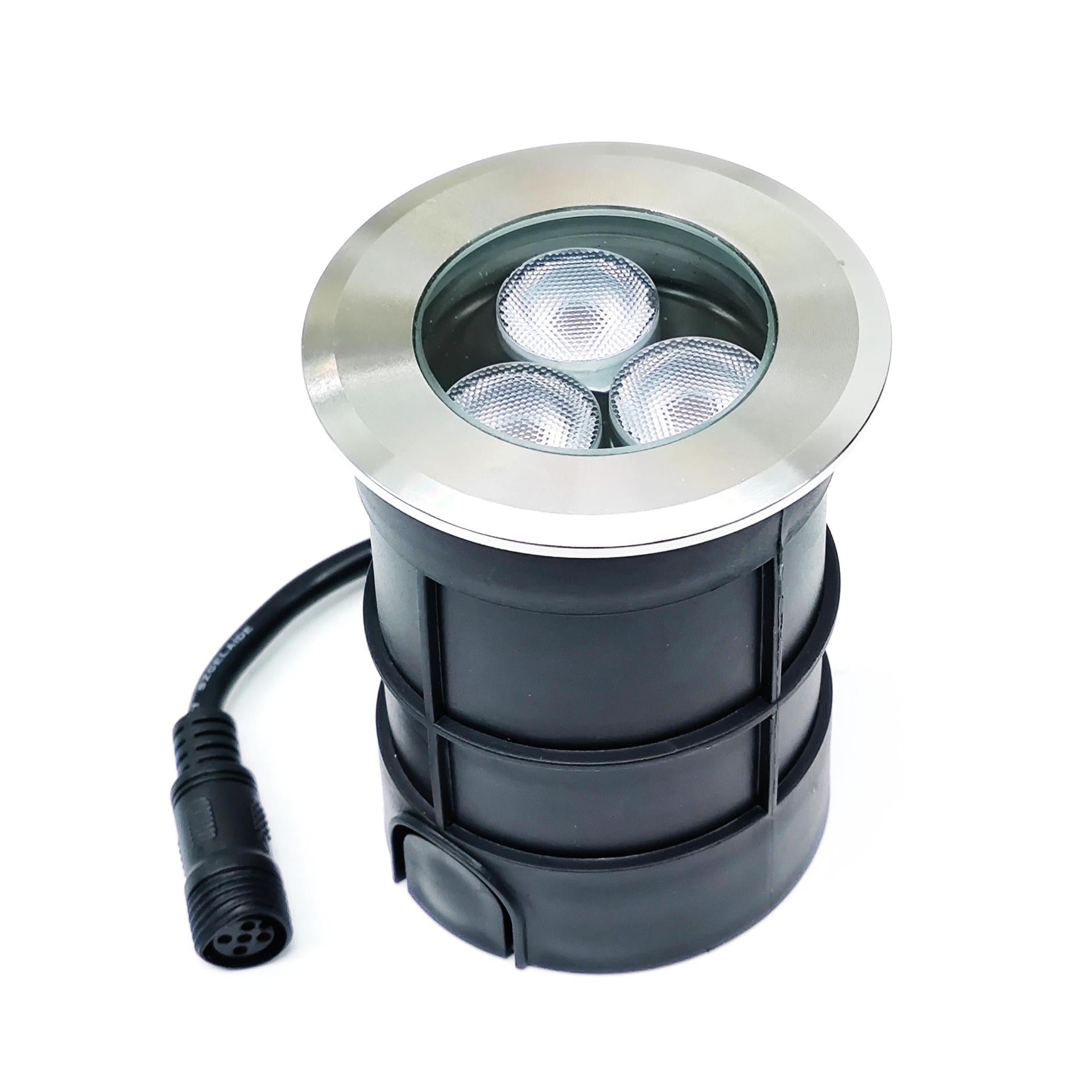

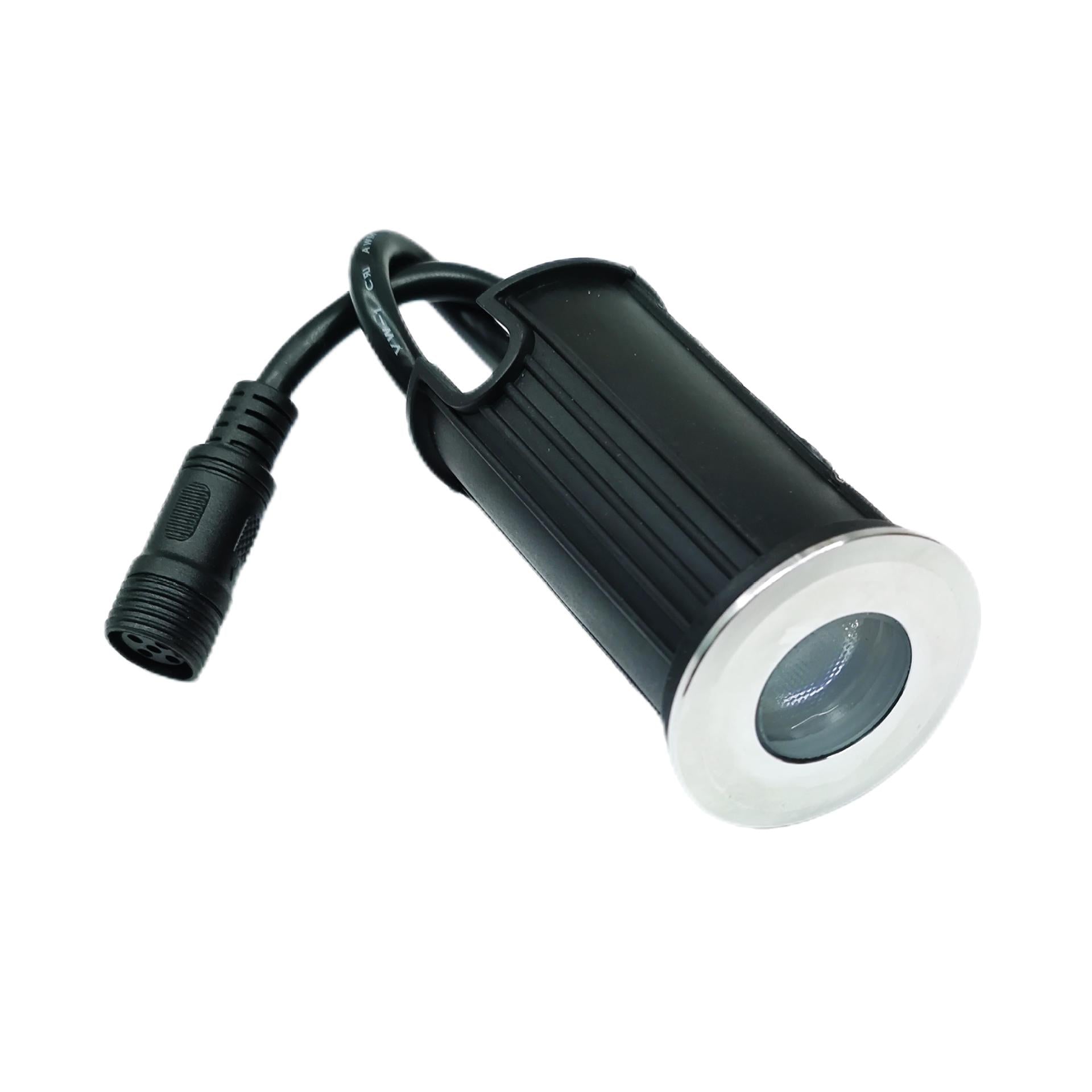

- Prewired Waterproof Connection – Each fixture is supplied with a prewired 5-pin waterproof female connector and a matching male connector. The female plug can also be removed to expose the five wires for direct connection to a compatible RGBW/RGBWW controller.
Product Description
Create colorful, professional outdoor lighting with this 10-pack of 24V RGBW/RGBWW IP68 recessed LED in-ground lights.
The fixtures are available in four power options—2W, 3W, 4W, and 6W—to accommodate different installation spaces and lighting requirements. Select RGBW for red, green, blue, and 6000K daylight white, or RGBWW for red, green, blue, and 3000K warm white.

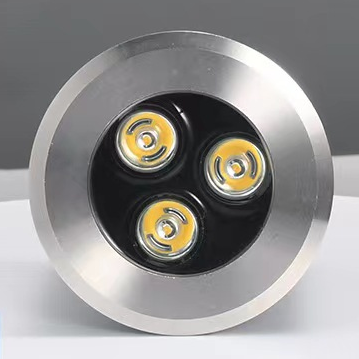

The stainless steel body offers excellent resistance to corrosion and rust, while the tempered-glass lens provides high light transmission and impact resistance. A high-efficiency optical lens produces uniform illumination through a focused 30° beam angle.
Each light is fitted into a durable plastic recessed sleeve, helping protect the fixture from ground pressure and making installation more convenient. The IP68 construction makes these lights suitable for gardens, pathways, patios, decks, driveways, fountains, pool surroundings, and other wet outdoor locations.
A compatible DC 24V constant-voltage power supply and RGBW/RGBWW controller are required and are not included.
Specifications
| Specification | Details |
|---|---|
| Product Type | Recessed LED in-ground/deck light |
| Package Quantity | 10 lights |
| Input Voltage | DC 24V constant voltage |
| Power Options | 2W / 3W / 4W / 6W |
| Color Option 1 | RGBW: RGB + Daylight White 6000K |
| Color Option 2 | RGBWW: RGB + Warm White 3000K |
| Control Method | PWM RGBW/RGBWW controller |
| Dimming | Supported with compatible PWM controller |
| Waterproof Rating | IP68 |
| Beam Angle | 30° |
| Faceplate/Body Material | Stainless steel |
| Lens Material | Tempered glass |
| Installation Sleeve | Thickened plastic |
| Cable Type | Five-core RGBW/RGBWW cable |
| Standard Cable Length | Approximately 20 cm |
| Connector | Prewired 5-pin waterproof female connector |
| Included Connection Part | Matching male waterproof connector |
| Operating Temperature | -20°C to +45°C |
| Rated Lifespan | Up to 50,000 hours |
| Installation Type | Recessed/in-ground |
| Power Supply Included | No |
| Controller Included | No |
Dimensions
| Power | Overall Size | Cutout Diameter | Approx. Weight | Beam Angle |
| 2W | Ø42 × 73 mm | Ø38 mm | 0.15 kg | 30° |
| 3W | Ø52 × 83 mm | Ø46 mm | 0.15 kg | 30° |
| 4W | Ø62 × 90 mm | Ø55 mm | 0.28 kg | 30° |
| 6W | Ø75 × 98 mm | Ø70 mm | 0.48 kg | 30° |
Color Options
RGBW
- Red, green, and blue color mixing
- Dedicated 6000K daylight-white channel
- Suitable for modern architectural, commercial, and high-visibility landscape lighting
RGBWW
- Red, green, and blue color mixing
- Dedicated 3000K warm-white channel
- Suitable for gardens, patios, hospitality areas, and warm ambient lighting
Wiring and Control
The fixture uses five wires:
- Red: Red channel
- Green: Green channel
- Blue: Blue channel
- White: 6000K daylight white or 3000K warm white channel
- Black: Common positive, DC 24V+
Connect the lights to a compatible common-anode RGBW/RGBWW PWM controller and a DC 24V constant-voltage power supply.
The prewired female connector can be connected to the included male waterproof connector. If the connector is not required, the female connector may be removed to expose the five wires for direct wiring.
Important: Disconnect the power before cutting or wiring the cable. All cable joints must be properly waterproofed for outdoor or wet-location installations.
Wiring Diagram
Package Contents
- 10 × RGBW or RGBWW LED in-ground lights
- 10 × Plastic recessed installation sleeves
- Matching male waterproof connector(s)
* The package is include the RGBW inground LED Lamp Light only, the power supply, RGBW controller ( More Controllers) & Amplifier , connector is not include.
* And the extension connector and spliter connector are customize to order, with MOQ request, if need, please contact us.
Male IP68 connector (included one per light bulb)
IP68 extension connector:
Splitter connector:
Installation Notes
- Confirm the required cutout diameter before drilling.
- Install the plastic sleeve first, then insert the light fixture.
- Provide adequate drainage around the installation sleeve.
- Use only a DC 24V constant-voltage power supply.
- Select a controller compatible with common-positive RGBW/RGBWW fixtures.
- Keep all cable connections properly sealed against water and moisture.
- Do not connect the fixture directly to AC mains power.
Recommended Applications
- Garden and landscape lighting
- Pathways and walkways
- Decks, steps, and patios
- Driveways and entrances
- Courtyards and terraces
- Trees, walls, and architectural features
- Hotels, resorts, and restaurants
- Public squares and commercial landscapes
- Fountains and water-feature surroundings
- Swimming-pool surroundings and decorative wet-area lighting
