Description
24V DC 5-in-1 Dimmable LED Power Supply, 60W/100W/200W, UL Listed, AC 120–277V Input, Waterproof Driver for Triac/ELV/0-10V/PWM/Resistive Control
Package Included
| Version | Package Included |
|---|---|
| 60W / 100W / 200W Power Supply | 1 × 24V Dimmable LED Driver, 1 × screwdriver, 3 × screws, 3 × screw nuts |
About this item
- 5-IN-1 dimmable LED driver for 24V LED lights, recessed lights, and smart lighting systems

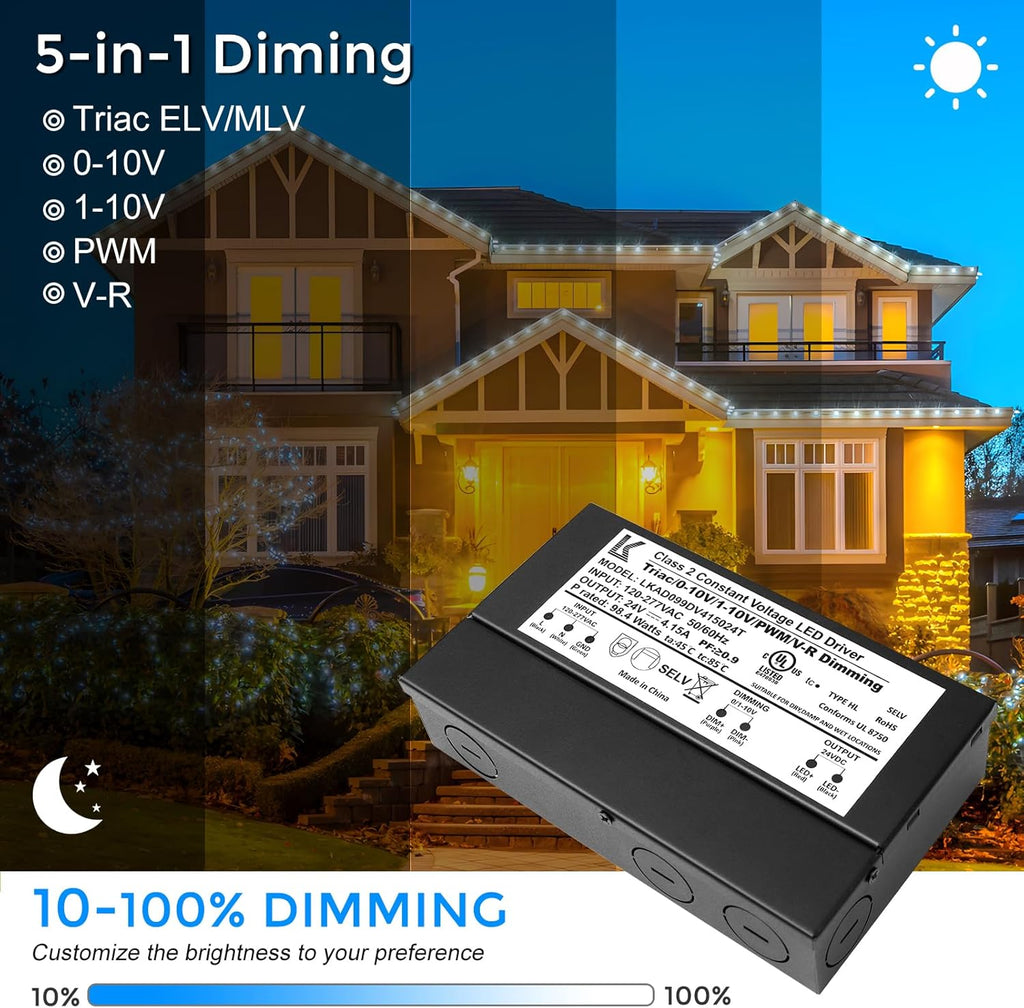

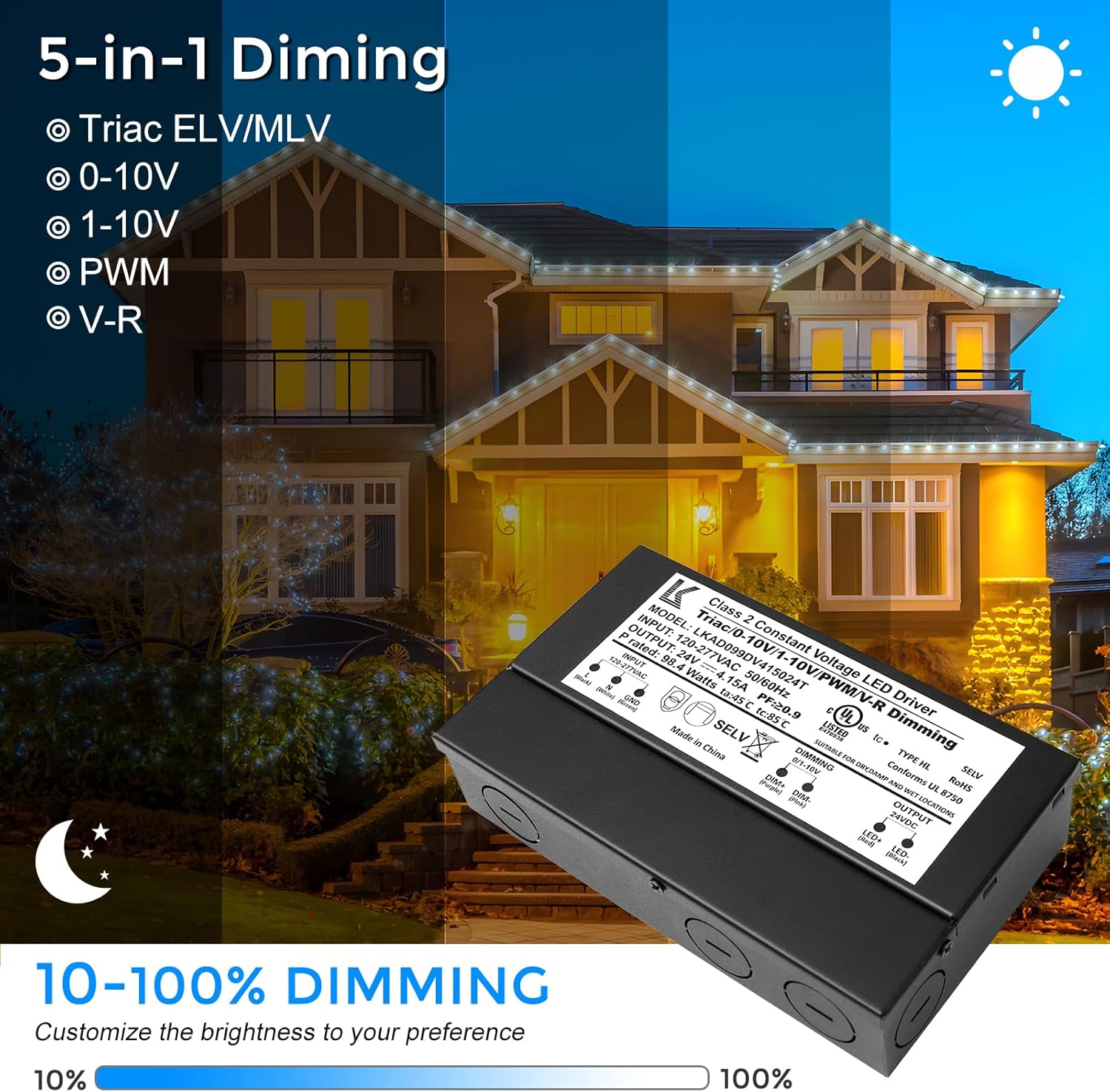

- Works with Triac / ELV / 0-10V / 1-10V / MLV / PWM / V-R dimming
- Smooth, flicker-free dimming from 100% to 0%
- UL Listed, Type HL, SELV, RoHS; rated for damp locations

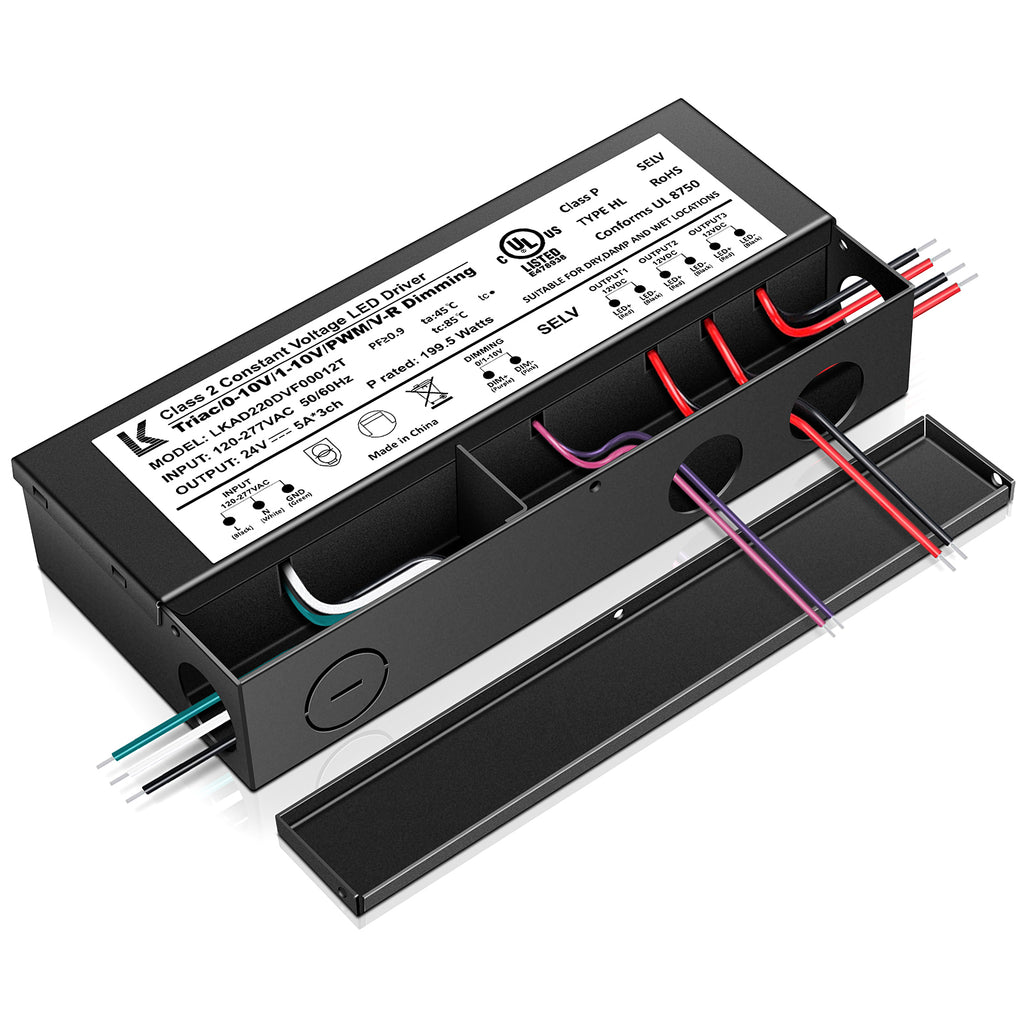

- Easy installation with wiring holes on three sides; includes screwdriver, screws, and nuts

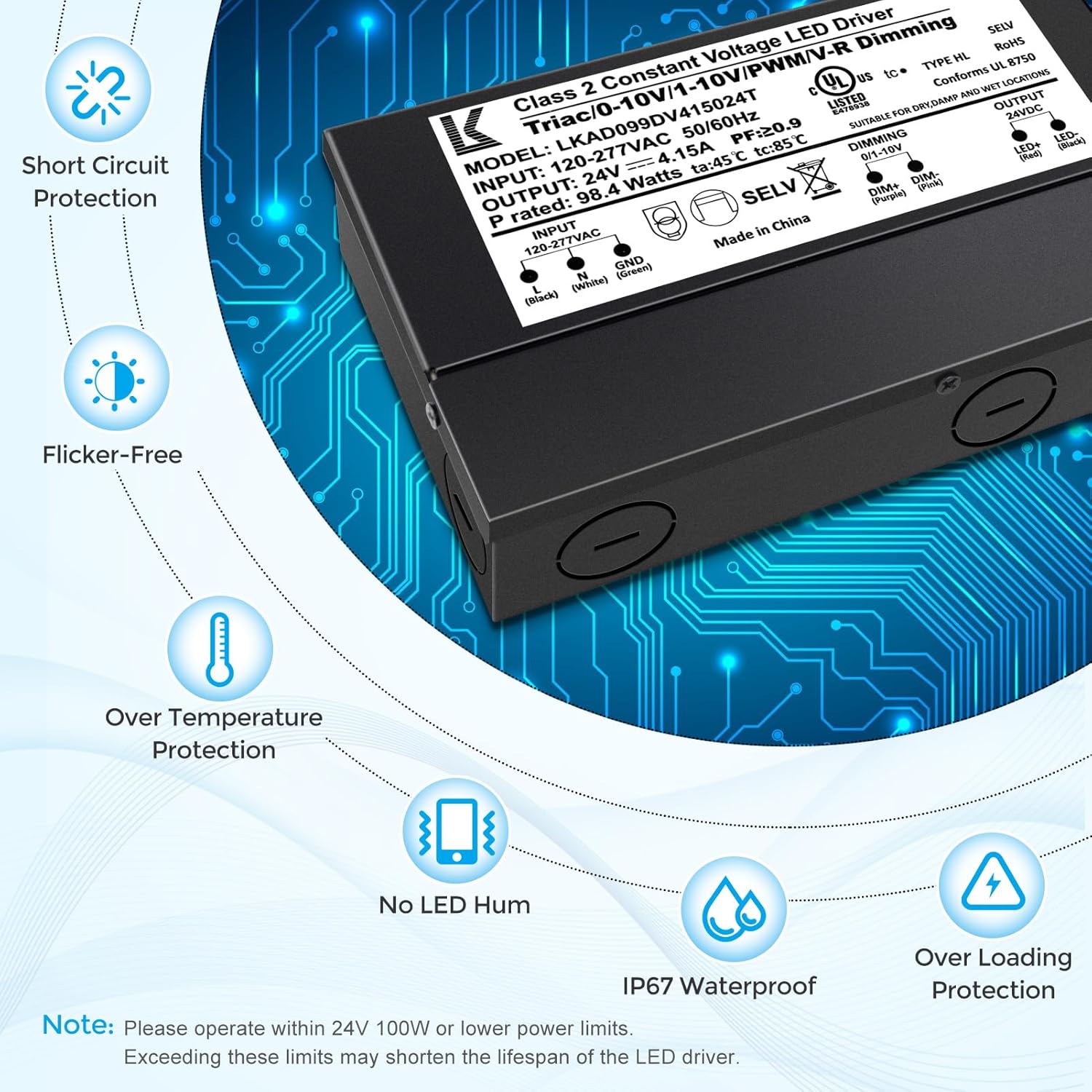

- Built-in short-circuit, overload, and over-temperature protection

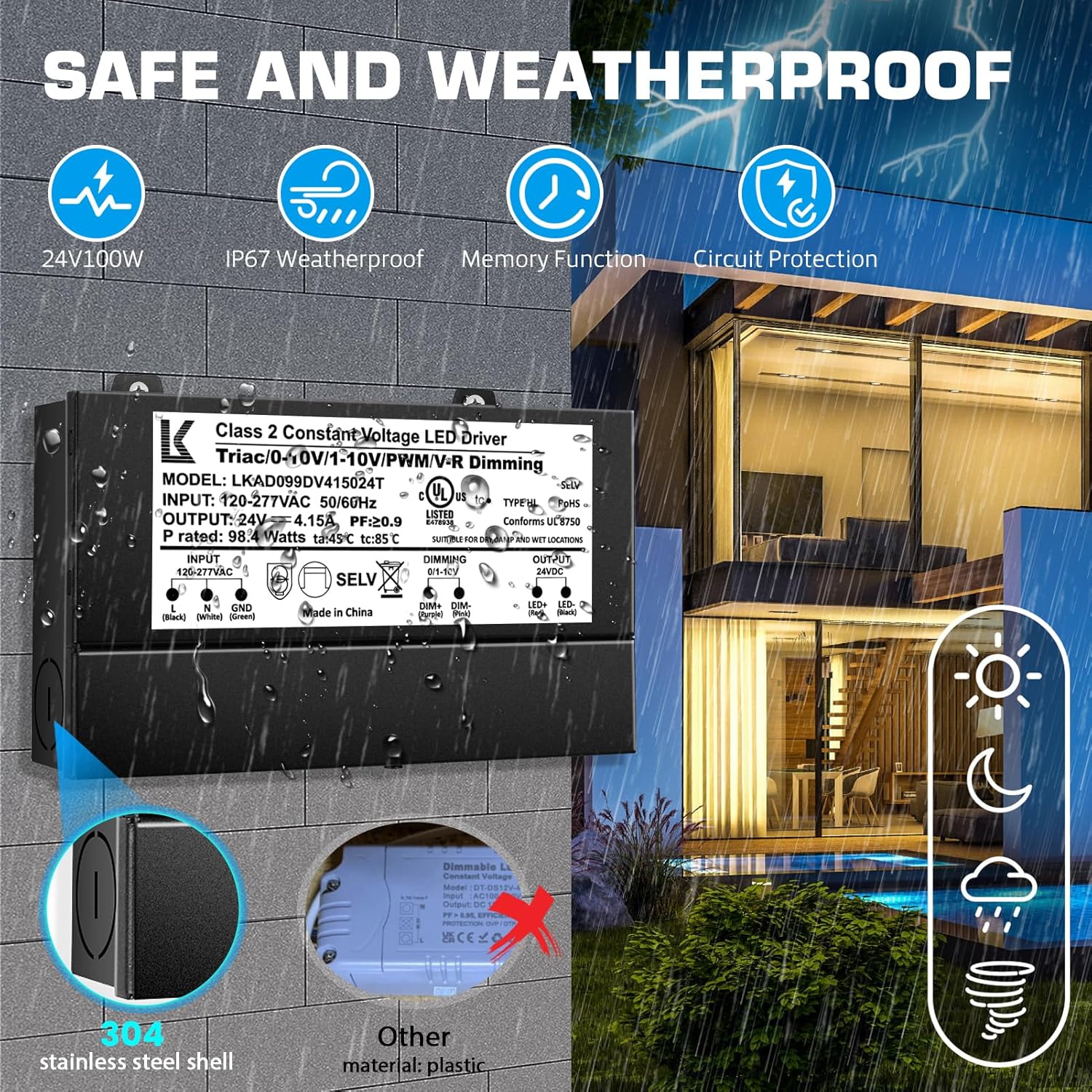

- IP67 waterproof design
Order & Logistics
- Lead Time: Typically ships within 1–3 business days
- Packing: Cardboard box
- Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.

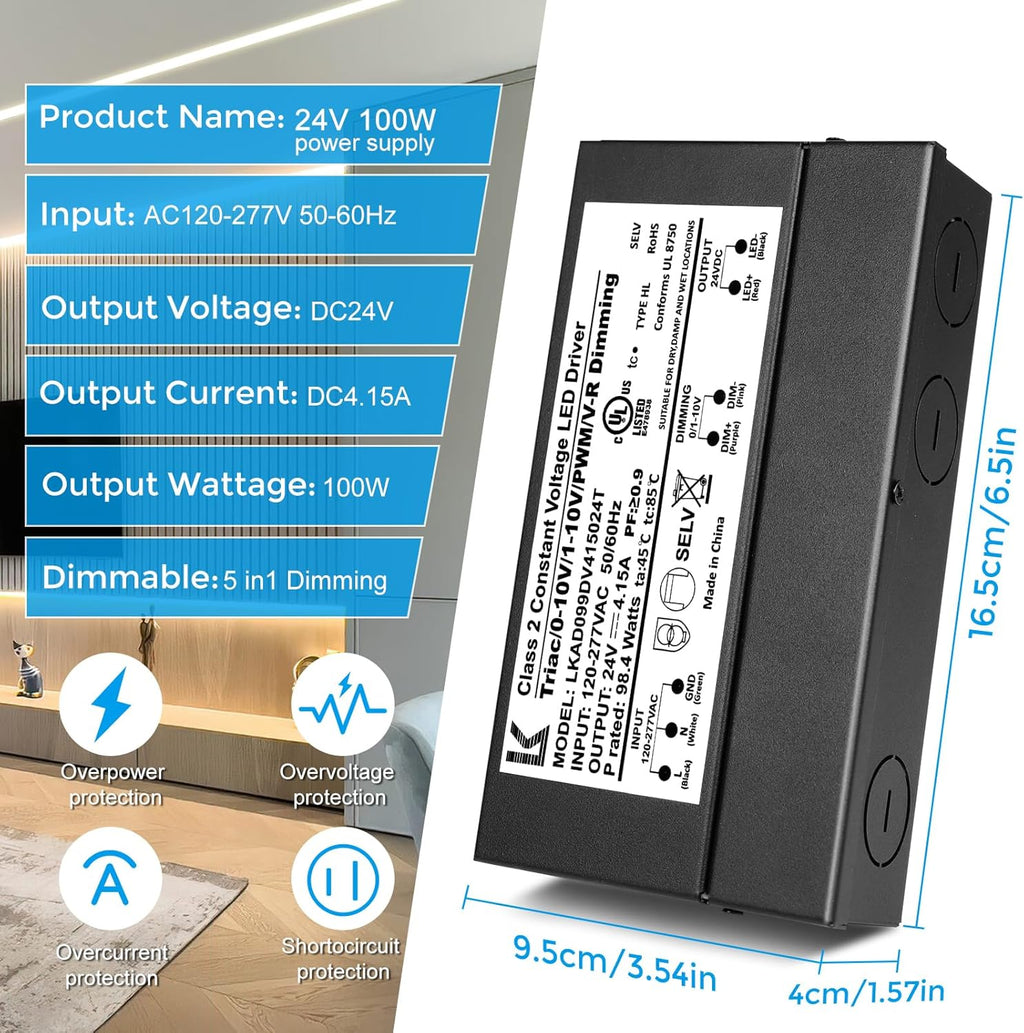

Key Specifications
- Input Voltage: 120–277V AC, 50/60Hz
- Output Voltage / Current: 24V DC, up to 4.15A (depending on wattage)
- Power Options: 60W, 100W, 200W
- Dimming Modes: Triac / ELV / 0-10V / 1-10V / MLV / PWM / V-R
- Safety: UL Listed, SELV, RoHS, short-circuit, overload, over-temperature protection
- Housing: IP67 waterproof, suitable for indoor and damp locations
Usage Notes / Installation Tips

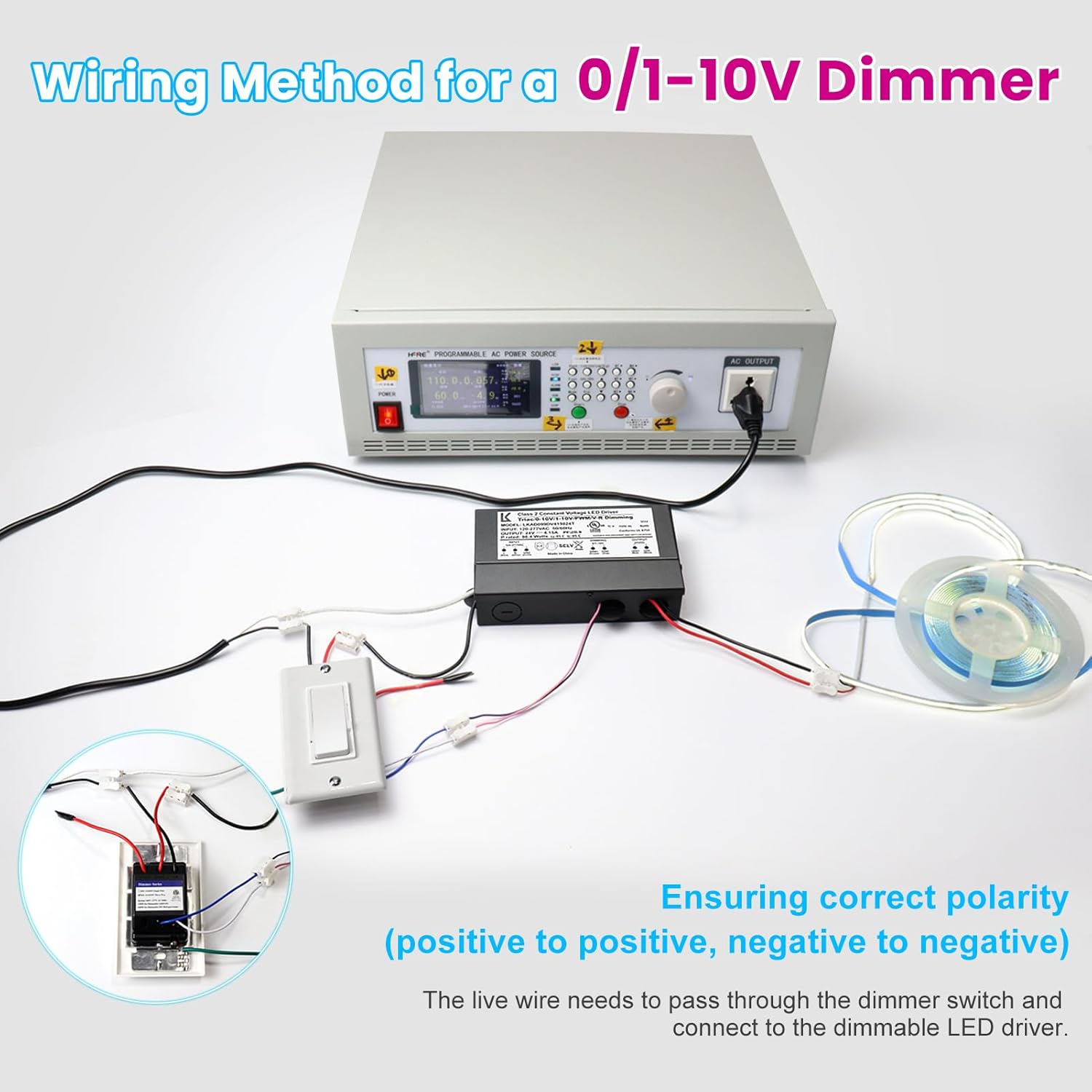

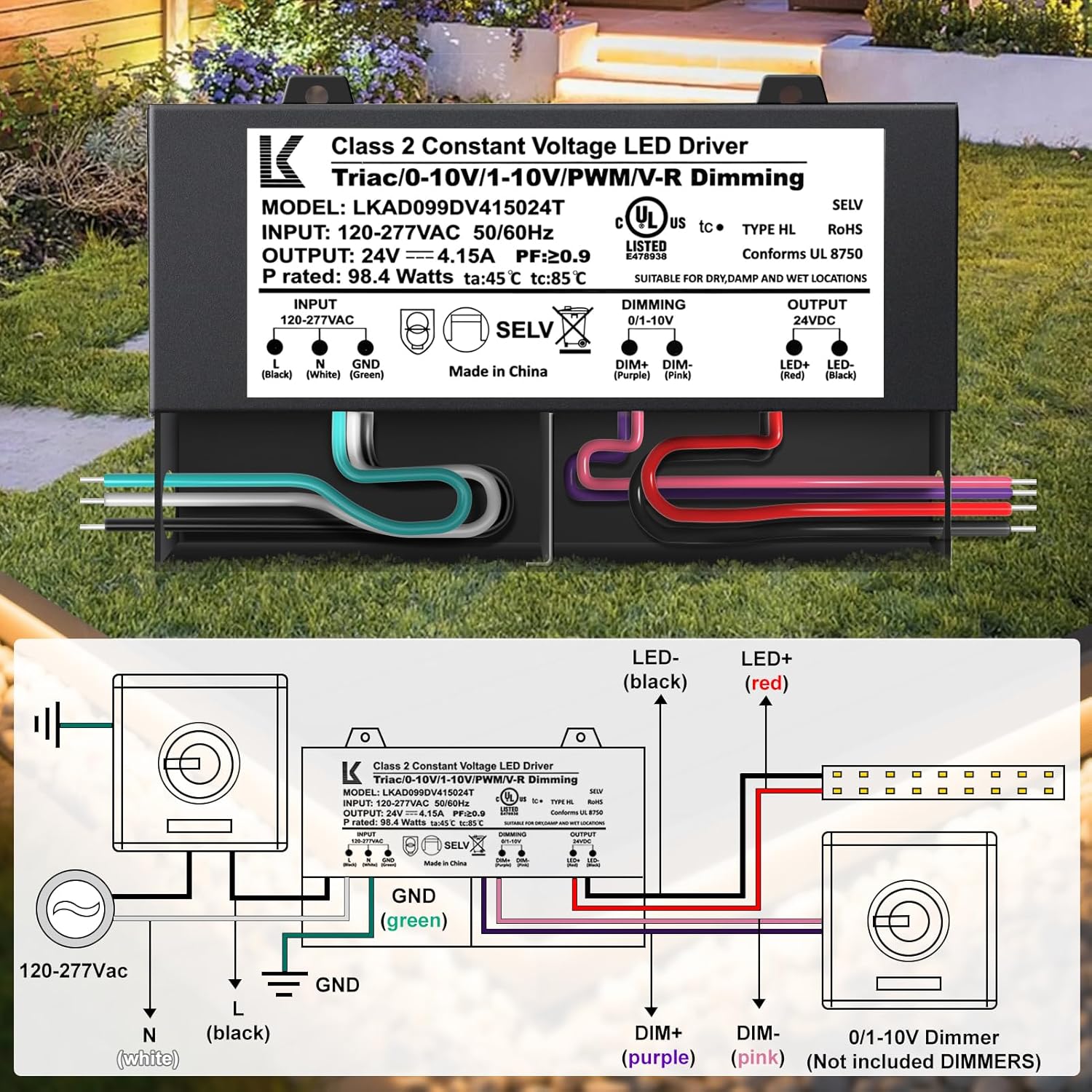

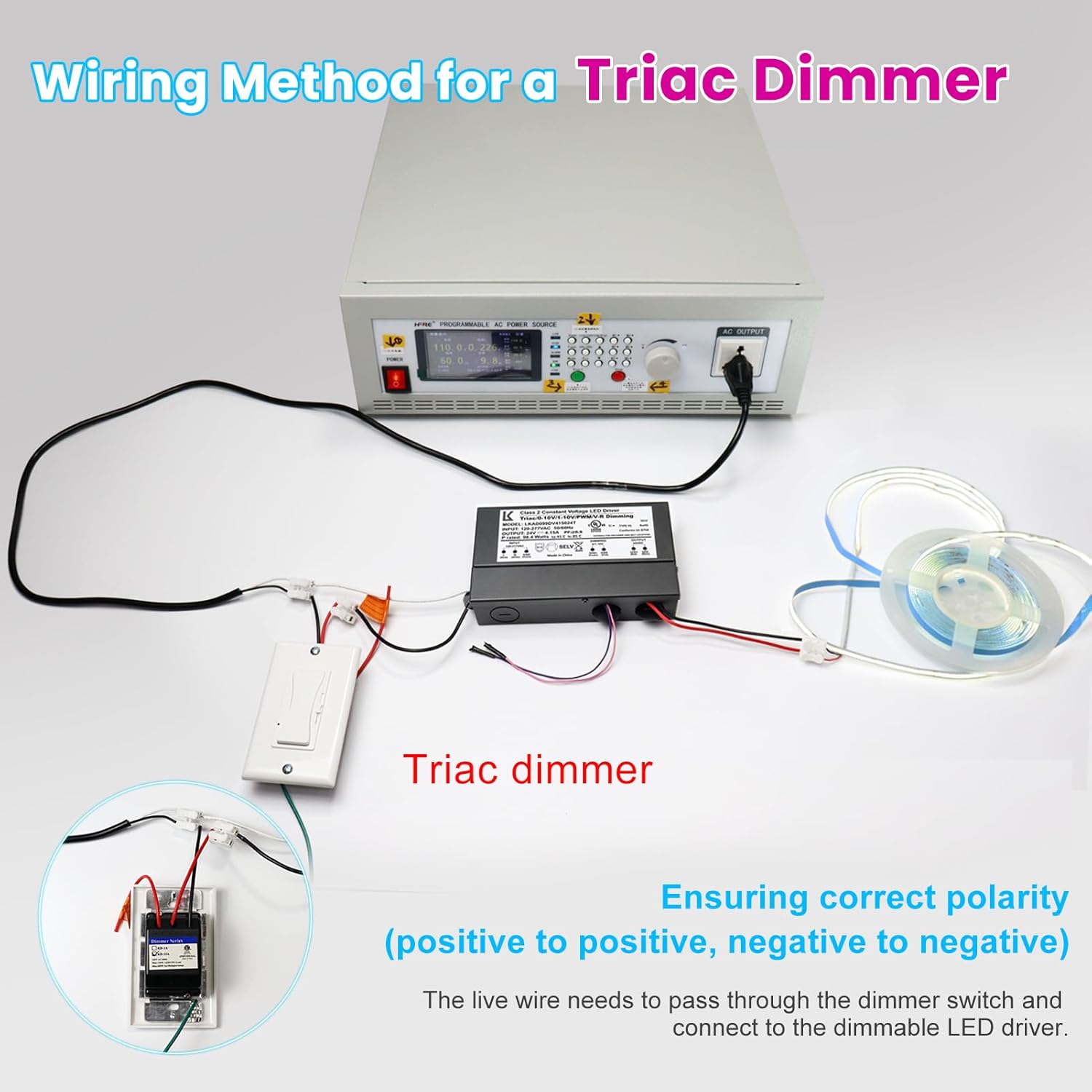

- Open terminal box and connect wires according to wiring diagram
- Ensure load does not exceed rated power
- Balance load if connecting multiple fixtures
- Disconnect power before installation or adjustments
- Suitable for residential and commercial 24V LED lighting systems
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Jiasi |
| Part Number | LS8-5IN1-24V100W-US |
| Item Weight | 2.18 pounds |
| Product Dimensions | 1.57 × 6.5 × 1.57 inches |
| Item Package Quantity | 1 |
| Color | Black |
| Included Components | 1 × 24V100W dimmable LED driver, 1 × screwdriver, 3 × screws, 3 × screw nuts |
| Batteries Required? | No |
| Operating Temperature | ta: 45℃, tc: 85℃ |
Applications
- Residential and commercial 24V LED lighting systems
- Recessed lighting, strip lights, and smart lighting setups
- Indoor or damp location applications requiring dimmable 24V LED drivers
- Compatible with wall dimmers for smooth ambiance control
You may also like
Customer Reviews
Working great as the low voltage source for lighting fixtures we added to our winter house front garden.Installed at a protected location,of course.The low voltage wiring can be run out into the weather,but this product needs a dry place to live.
Dimmable 24 volt power supply we used a Lutron dimmer
100 watts used as suggested about 80 watts total for the under cabinet lights in the kitchen. Being able to dim them allows a soft glow which is perfect. And then brighten for task lighting
It s UL listed, and rated for damp locations.
Nicely designed and engineered, comes with a wiring diagram as well as a screwdriver, screws, etc. Easy to install.
As well, it has built in short circuit, overload and excessive temperature protection.
Worked as expected.Heavy duty metal construction was impressive.Easy access to wiring.We ve not used the dimming feature so I can t speak to that.But otherwise it hooked up super easy to our LED path lights.
I m trying out various LED lights: COB, 5CCT, CRI 90+. RGBW etc.. for indoor and outdoor applications. This one is for 24V, 100W LED s. These can be controlled from a standard wall dimmer and switch rather than needing separate wiring for a low voltage dimmer or a secondary controller after the DC output. So this is what you would use for a dimmable kitchen cabinet accent light system. Or on the Lanai as it is IP67 rated for outdoor use. It has proper strain relief connectors and feels well made. This is for a permanent installation of the quality a licensed electrician would install for you. The box doesn t get warm in the least after days of use. Highly recommended for permanent LED installations.
This dimmable LED driver is well made from quality materials. It appears durable and rugged. The unit is rated for use outdoors. It was easy and quick to install. The unit arrived with easy to understand and follow instructions. A great feature is that it is dimmable. It also provides enough reliable constant power to illuminate a decent amount of lights. Another great feature that should not be overlooked is the UL listing. This provides added peace of mind as to the safety with use of this product. The item is as described by the seller. I am very pleased with this product and believe you will be as well. Therefore, Dr. T. highly recommends this product!!
