Description
20×20mm Quick Install Neon Light Housing – S2020-B With-Edge / Edge-Free Silicone Cover LED Channel System | Max Strip Width ≤16 mm | Double-Chamber Top-Emitting Neon Diffuser | for Architectural Cove Lighting & Storefront Signage Lighting | 164FT/50M
Package Included
| Version | Package Included |

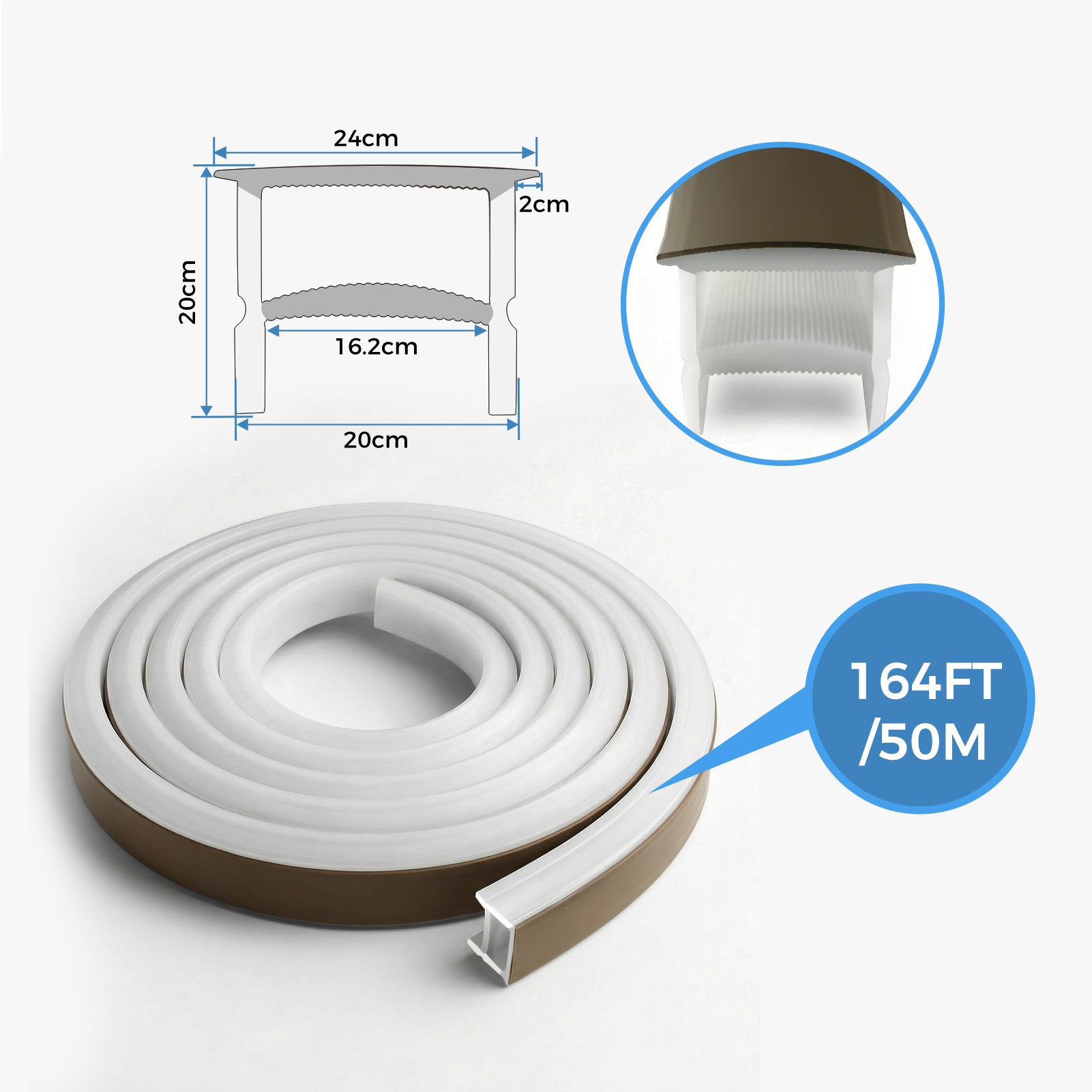

| Option: With-Edge / Compatible LED: ≤16mm Strip / Pack Size: 164FT (50M × 1) |
50m with-edge silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |

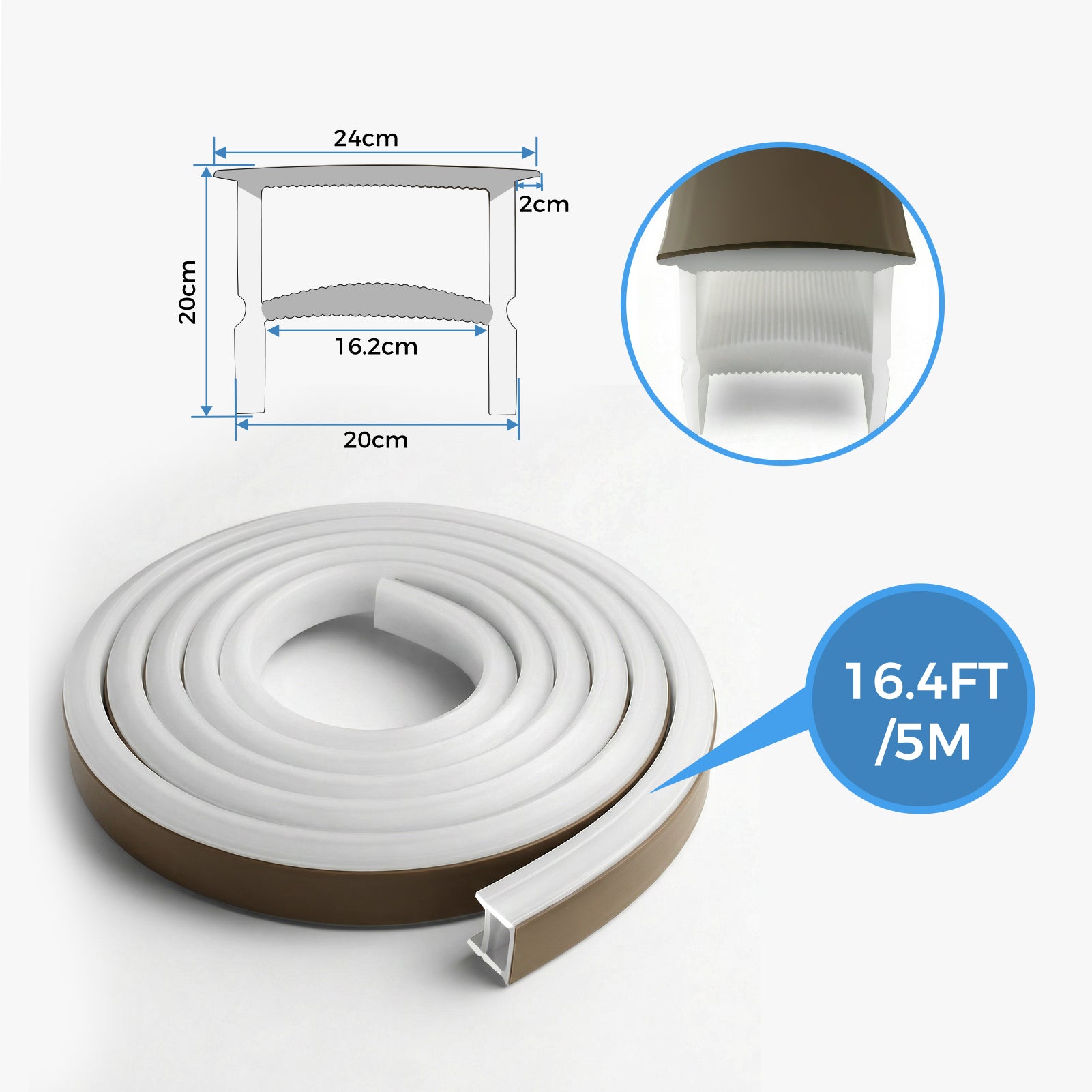

| Option: With-Edge / Compatible LED: ≤16mm Strip / Pack Size: 16.4FT (5M × 10) | 10 × 5m with-edge silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
| Option: Edge-Free / Compatible LED: ≤16mm Strip / Pack Size: 164FT (50M × 1) |
50m edge-free silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
| Option: Edge-Free / Compatible LED: ≤16mm Strip / Pack Size: 16.4FT (5M × 10) | 10 × 5m edge-free silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
About this item
- Designed for ≤16mm LED Strip – S2020-B silicone housing supports LED strips up to 16mm wide, suitable for stable installation in wide linear lighting systems.
- Two Structure Options – Available in With-Edge and Edge-Free versions to suit different mounting and appearance requirements.
- Double-Chamber Structure – Dual internal chamber design provides stable strip placement and defined top-emitting lighting output.
- Top-Emitting Design – Direct top light output supports smooth and uniform illumination for architectural cove lighting and storefront signage lighting.
- Wide Diffuser Surface – Broad emitting area helps create a continuous neon-style lighting effect for decorative and commercial applications.

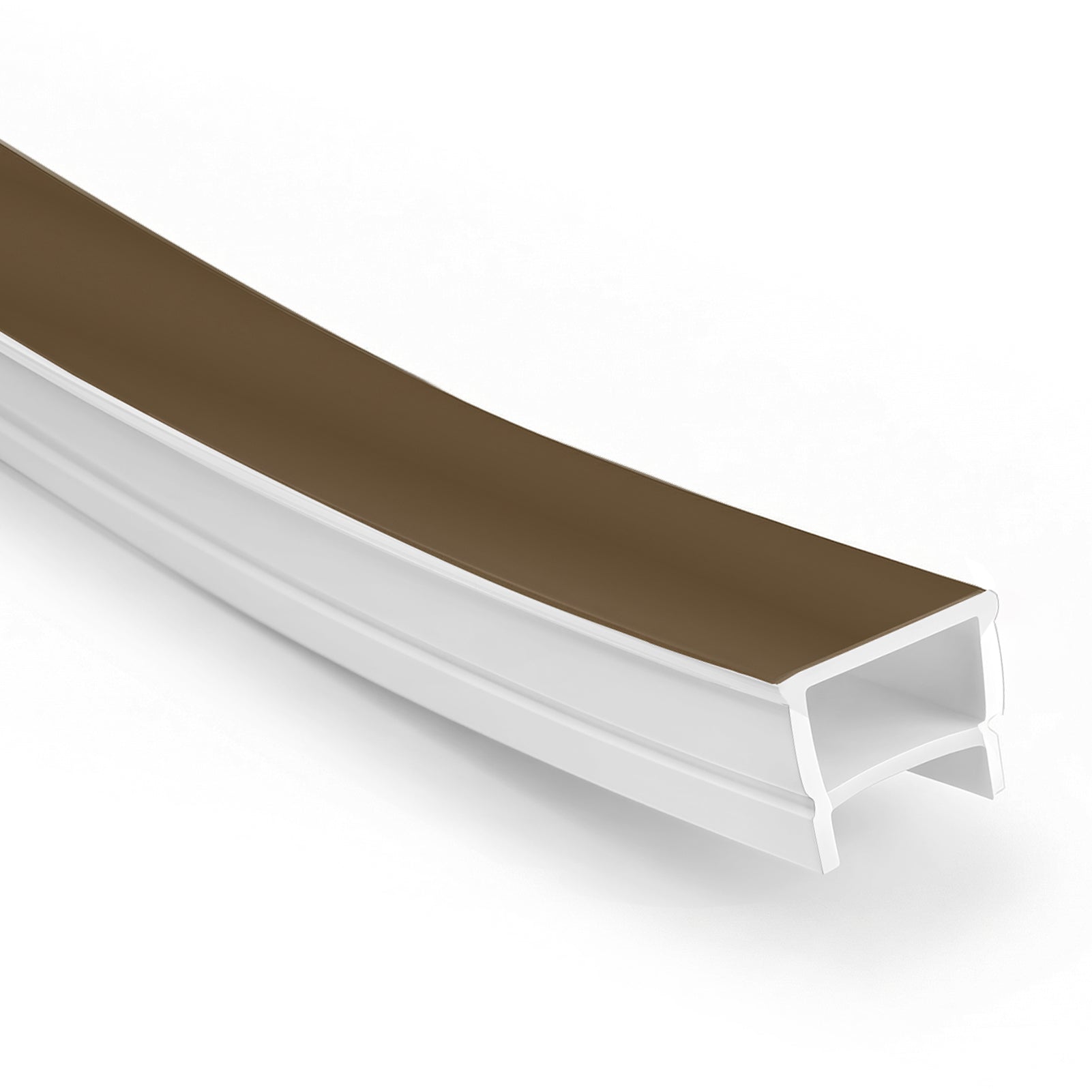

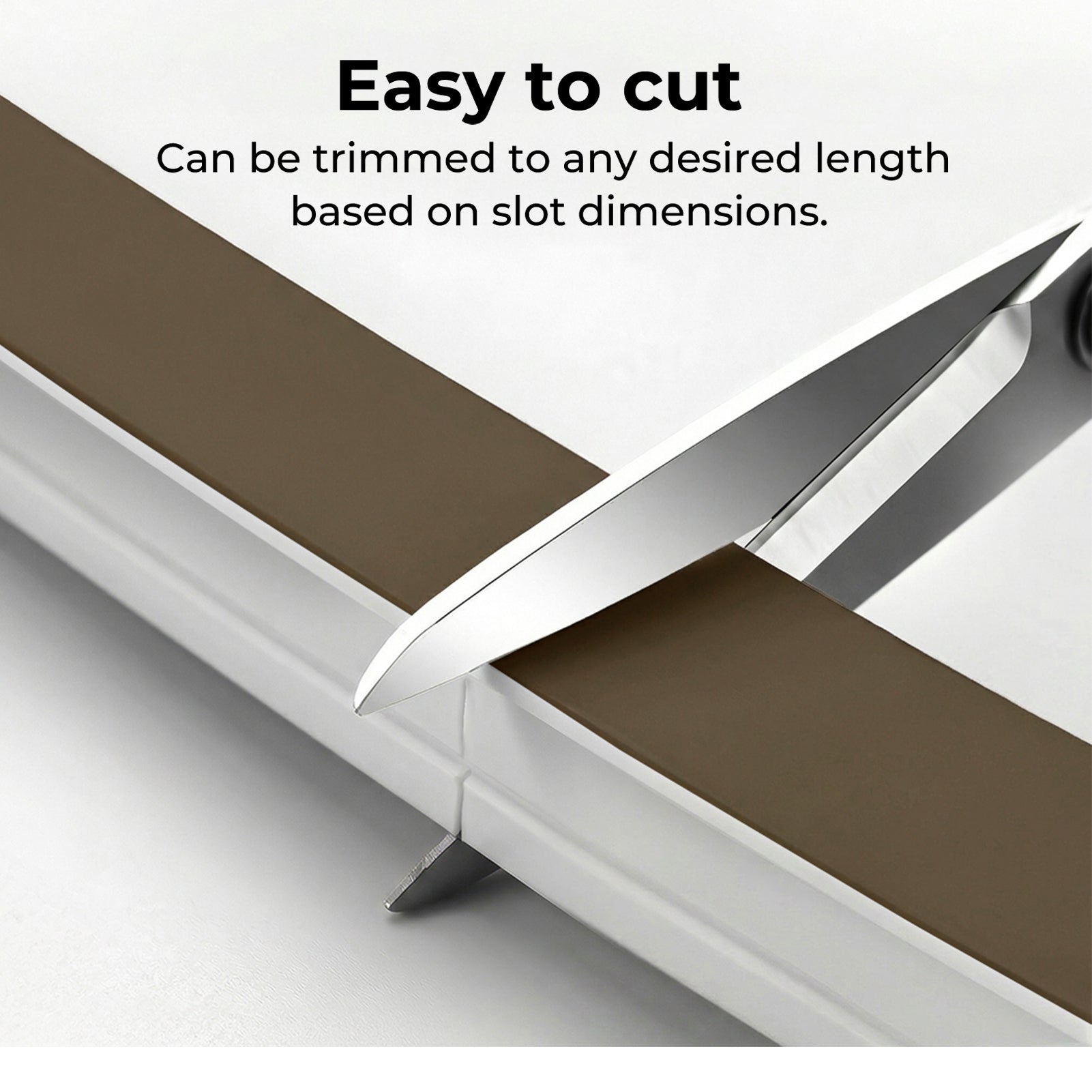

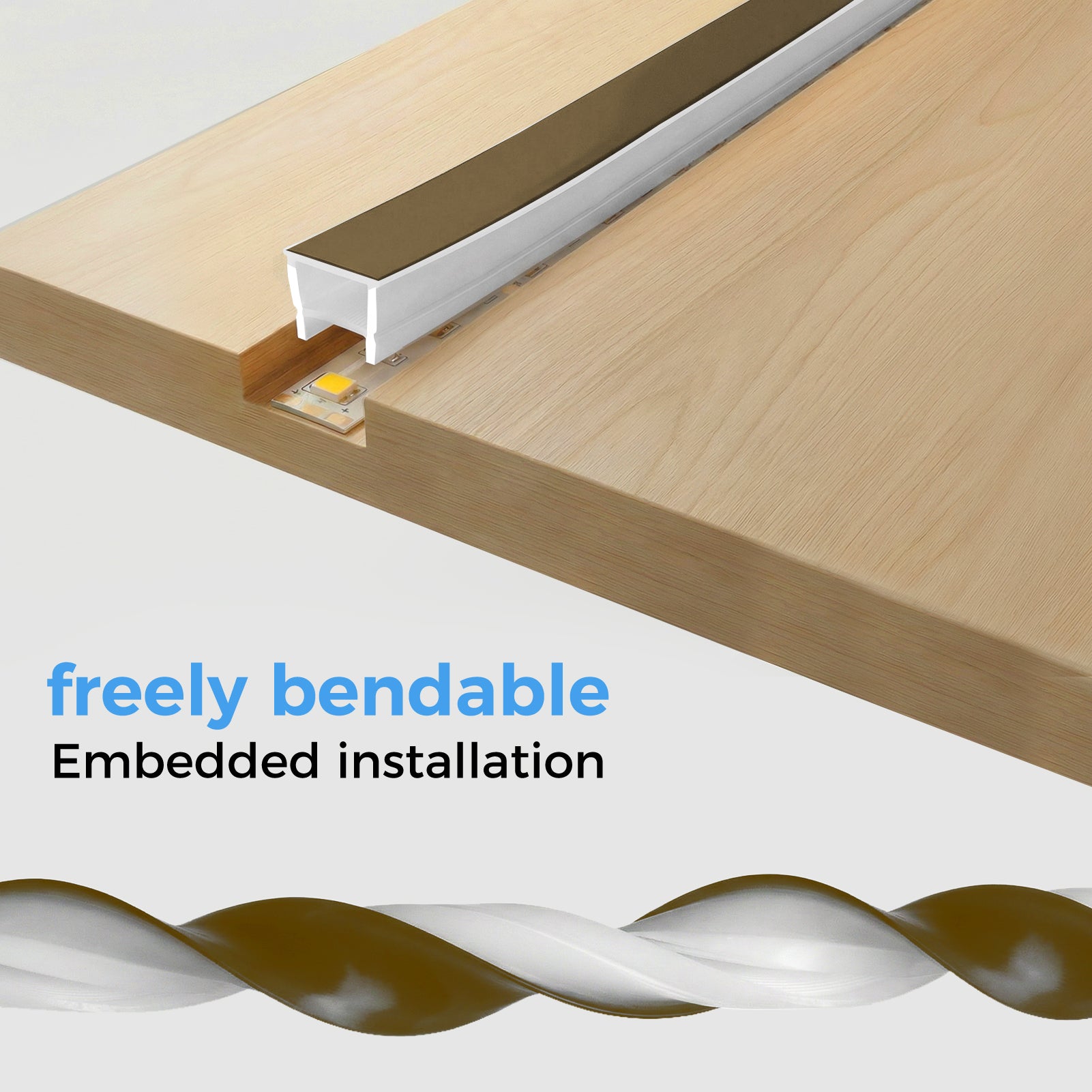

- Flexible Silicone Material – Soft, bendable, and cuttable construction adapts to both straight and curved installations.
- Wide Lighting Applications – Suitable for architectural cove lighting, storefront signage lighting, decorative linear lighting, and commercial ambient lighting.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Cardboard box
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
Key Specifications
- Series: S2020-B
- Available Options: With-Edge / Edge-Free
- Outer Dimensions: 20 × 20 mm (W × H)
- Inner Width: 16.2 mm
- Compatible LED Strip Width: ≤ 16 mm
- Lighting Direction: Top Emitting
- Structure: Double-Chamber Silicone Design
- Material: 100% Silicone
Usage Notes / Installation Tips
- Confirm LED strip width does not exceed 16mm before installation.
- Select With-Edge or Edge-Free version based on mounting requirements.
- Use the pull cord to guide the LED strip through the housing smoothly.
- For long installations, two-person operation is recommended for better efficiency.
- Seal both ends with end caps if needed to improve durability.
- LED strip and power supply are not included.
Technical Specifications

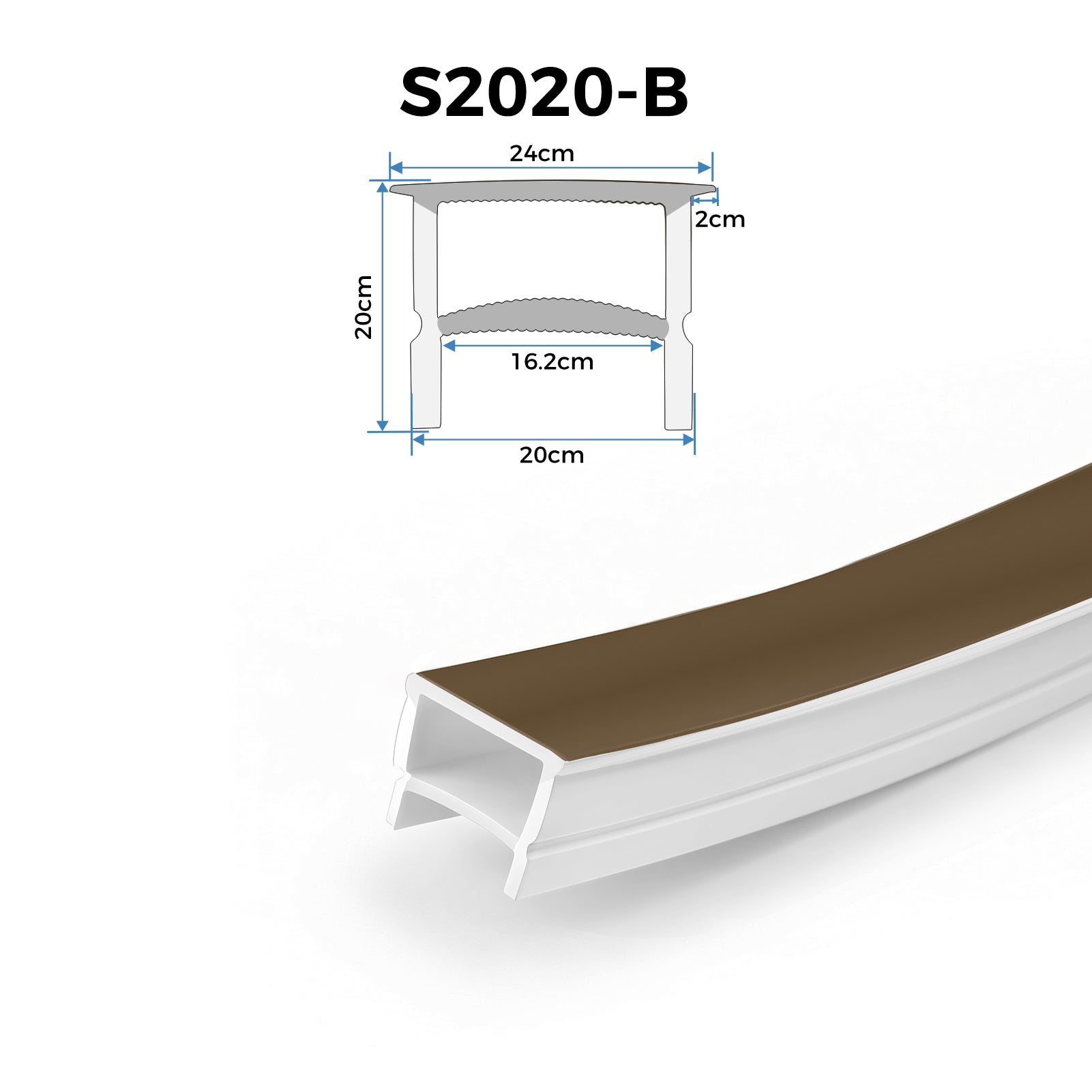

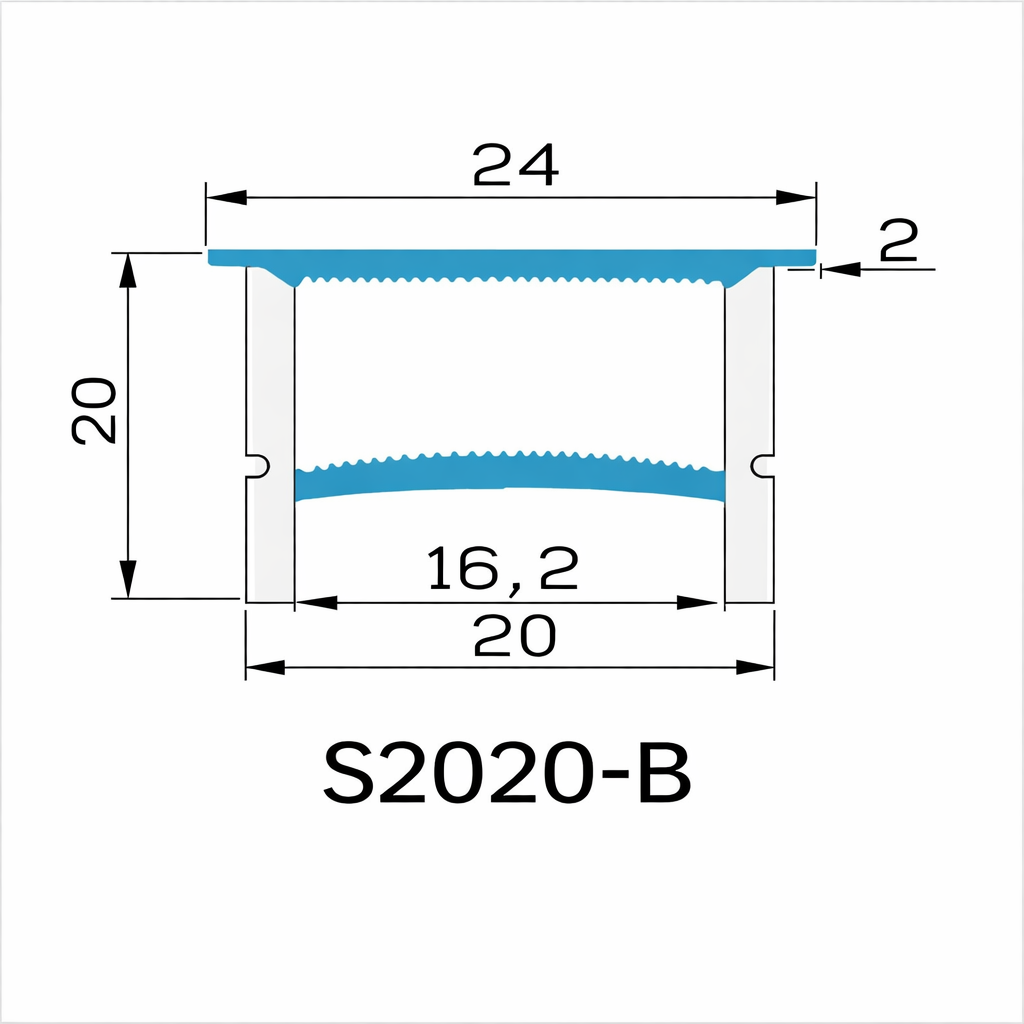

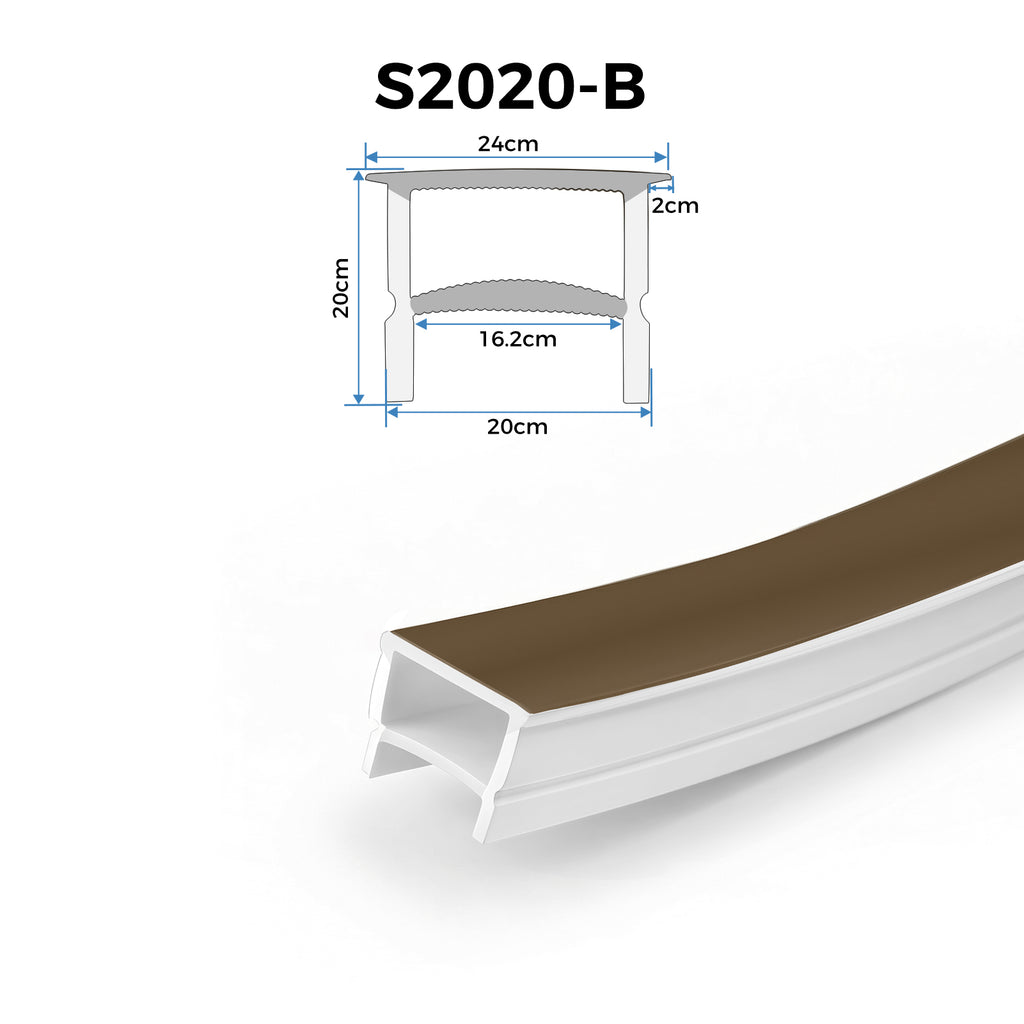

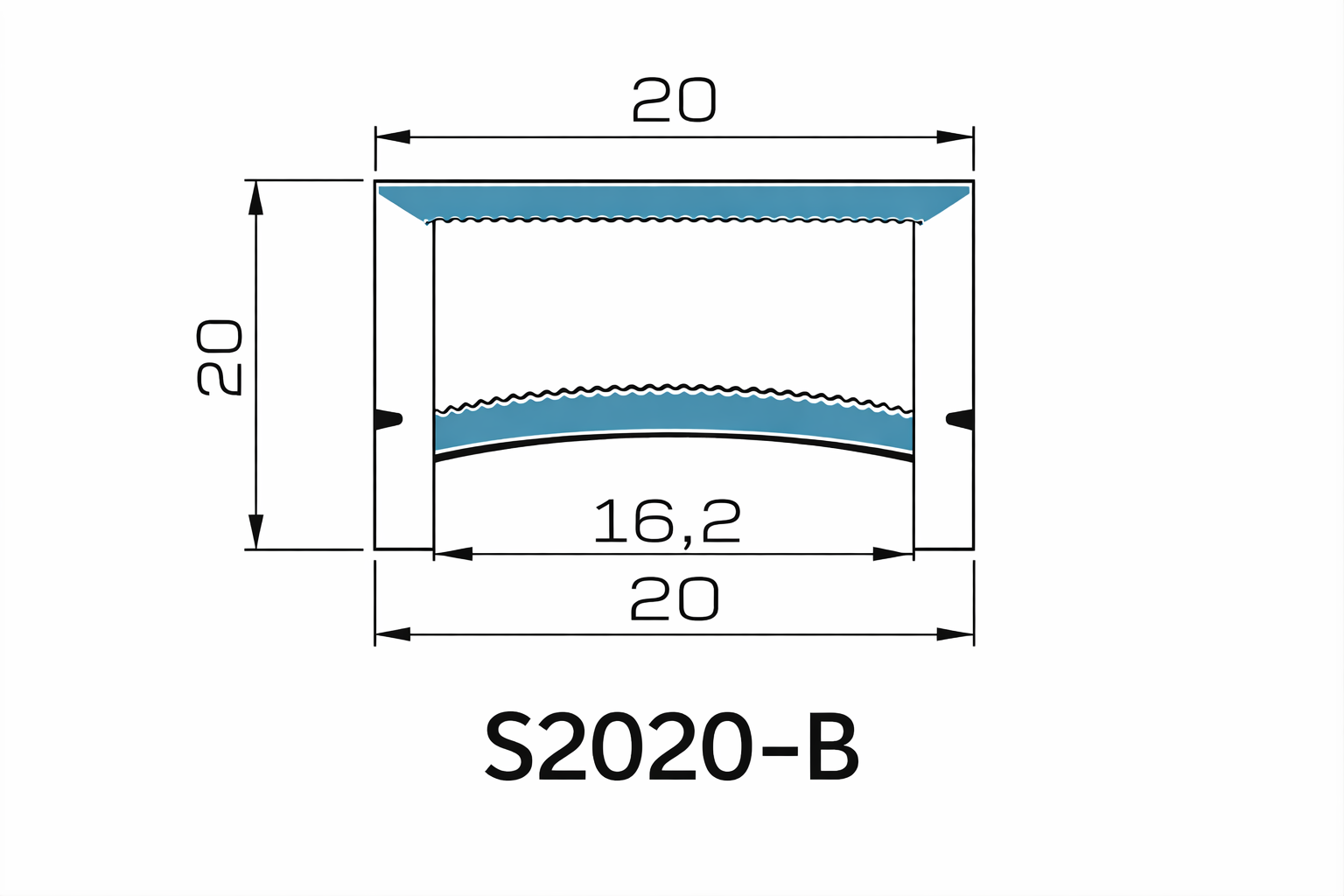

| Specification | S2020-B With-Edge | S2020-B Edge-Free |
| Model | S2020-B With-Edge | S2020-B Edge-Free |
| Outer Width | 20 mm | 20 mm |
| Outer Height | 20 mm | 20 mm |
| Top Width | 24 mm | 20 mm |
| Bottom Width | 20 mm | 20 mm |
| Inner Width | 16.2 mm | 16.2 mm |
| Edge Thickness | 2 mm | — |
| Compatible LED Strip Width | ≤ 16 mm | ≤ 16 mm |
| Structure | Double-Chamber | Double-Chamber |
| Material | 100% Silicone | 100% Silicone |

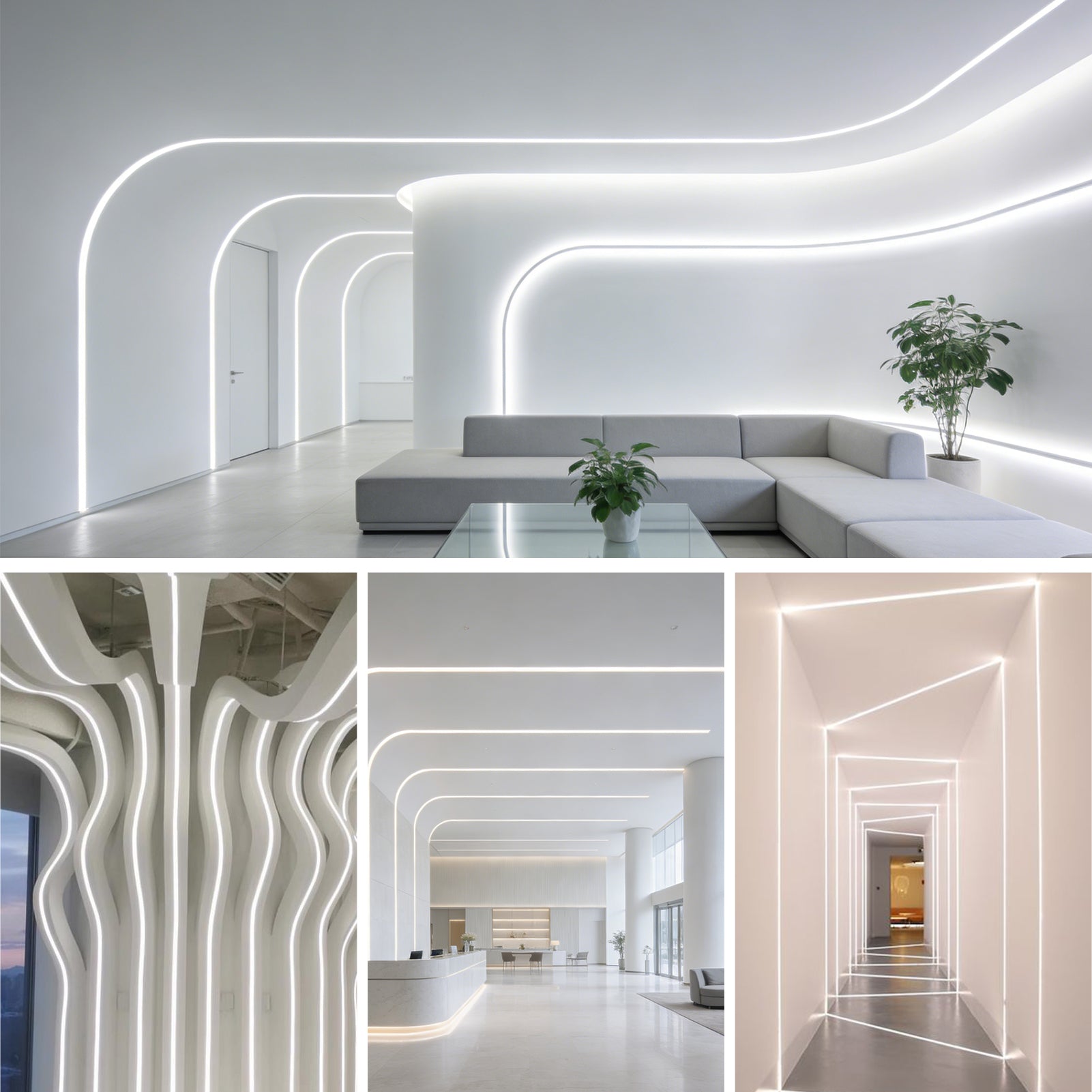

Applications
- Architectural cove lighting
- Storefront signage lighting
- Decorative linear lighting
- Commercial ambient lighting
- Interior accent lighting
