Description
16×16mm Quick Install Neon Light Housing – S1616 Mounting Edge | Silicone LED Channel System | Max Strip Width ≤12 mm | Flat-Top Silicone Diffuser | for Architectural Cove Lighting & Retail Display Lighting | 164FT/50M
Package Included
| Version | Package Included |

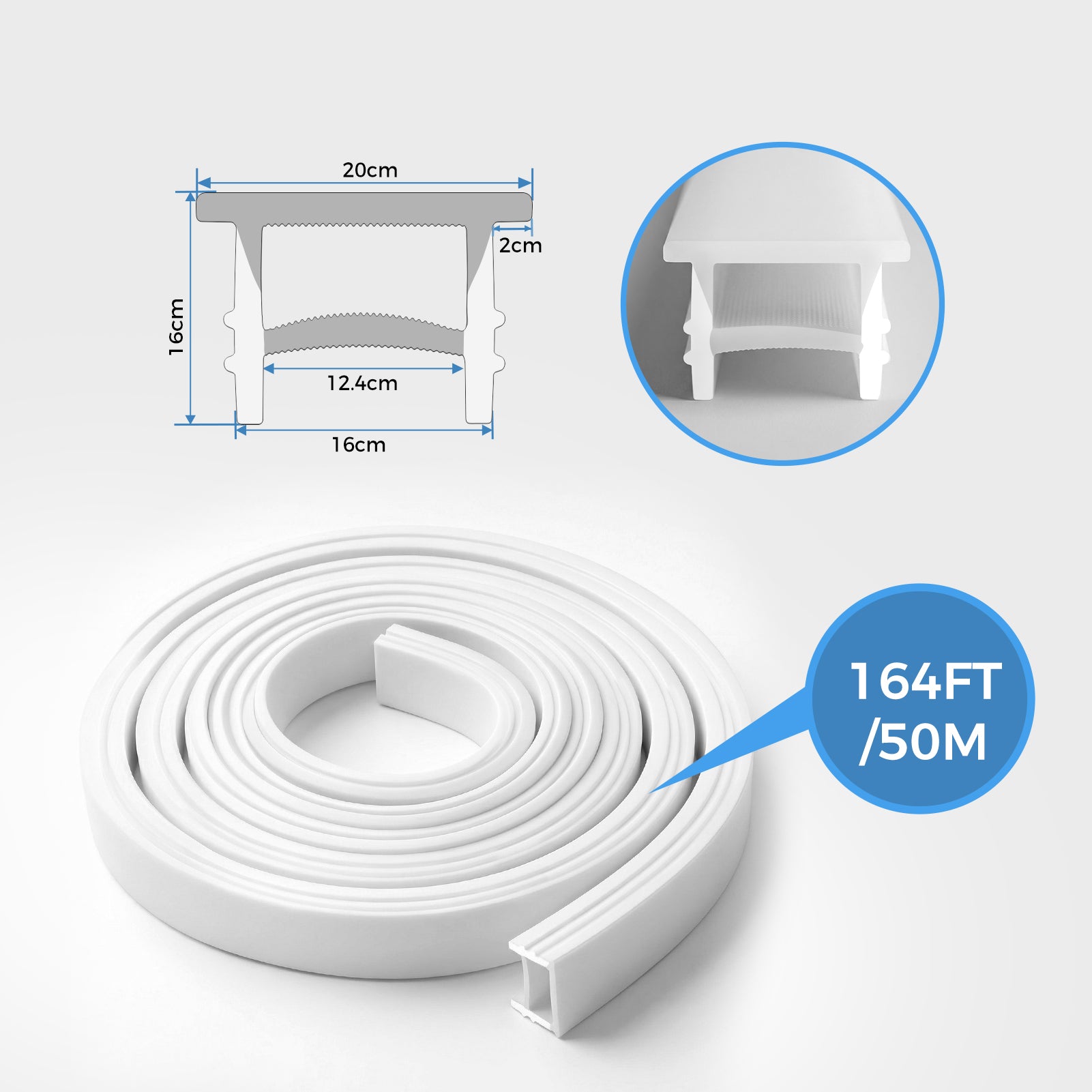

| Compatible LED: ≤12mm Strip / Pack Size: 164FT (50M × 1) |
50m mounting edge silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |

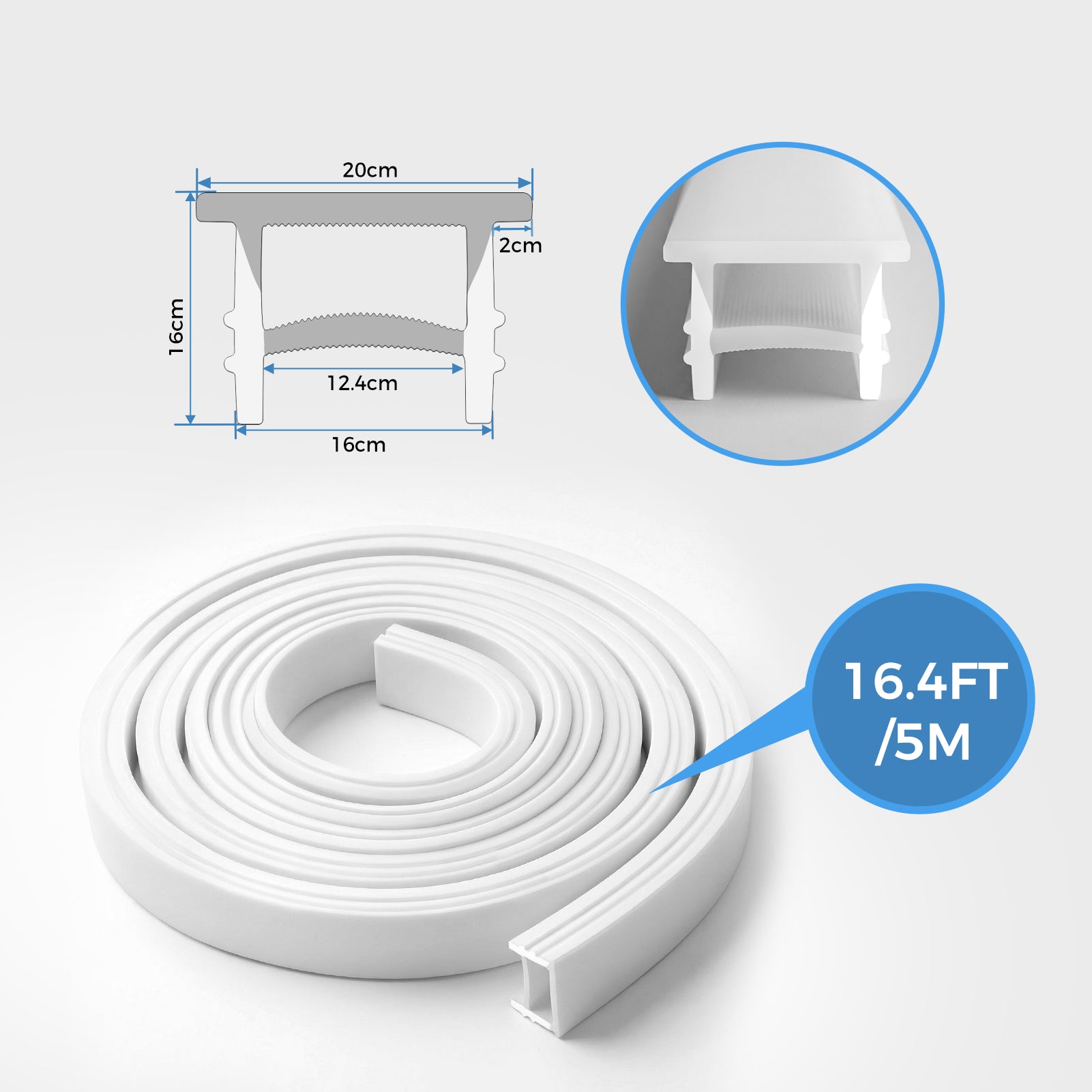

| Compatible LED: ≤12mm Strip / Pack Size: 16.4FT (5M × 10) | 10 × 5m mounting edge silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
About this item
- Designed for ≤12mm LED Strip – S1616 mounting edge housing with 16×16mm profile, compatible with LED strips up to 12mm wide for stable installation and reliable lighting performance.
- Mounting Edge Design – Integrated mounting edge structure supports cleaner fixing and positioning, suitable for architectural cove lighting and retail display lighting projects.
- Flat-Top Diffuser Structure – Flat top emitting surface helps create a smooth linear lighting effect for decorative and commercial lighting applications.
- Quick Install Design – Built-in pull cord supports faster LED strip installation, improving efficiency during long-run projects.

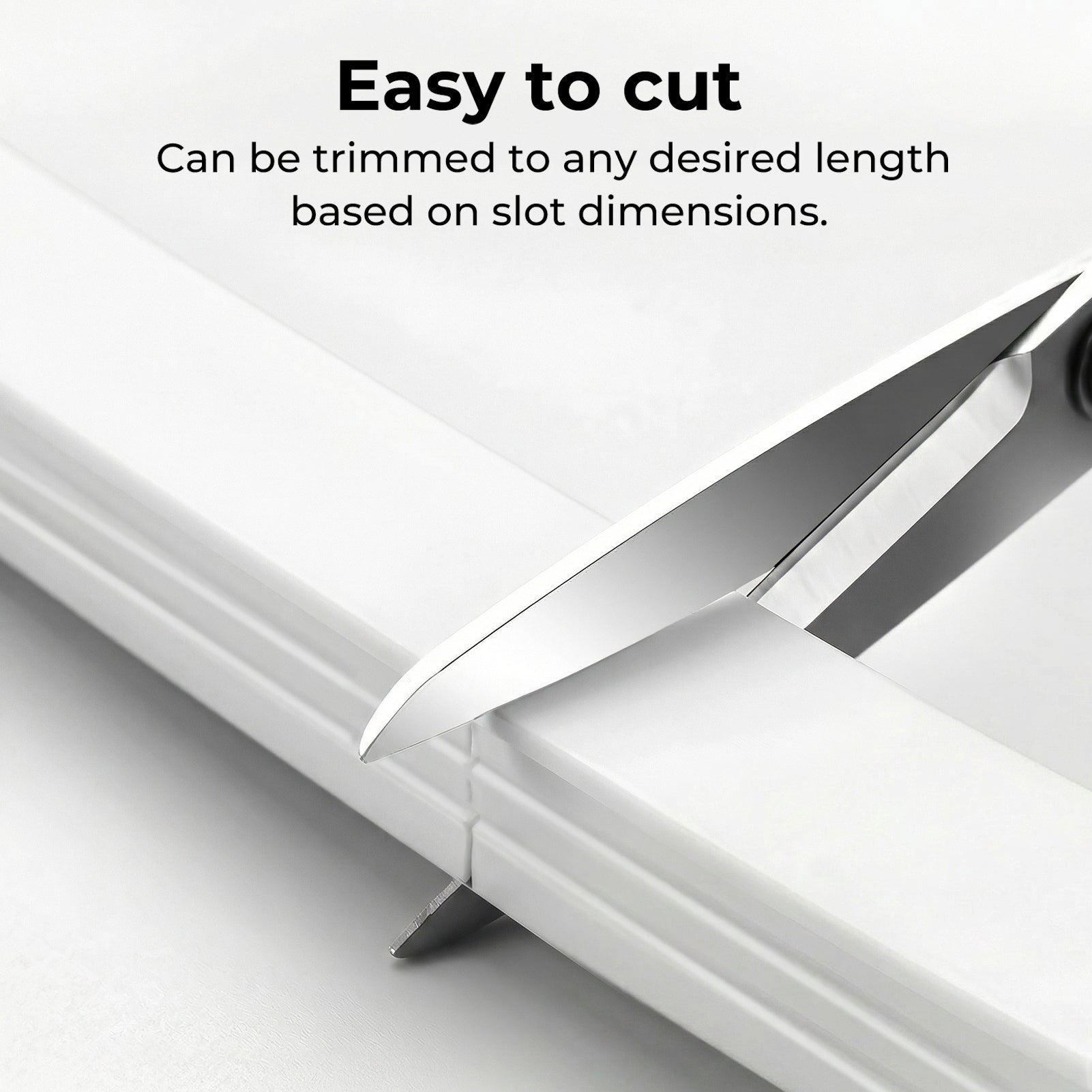

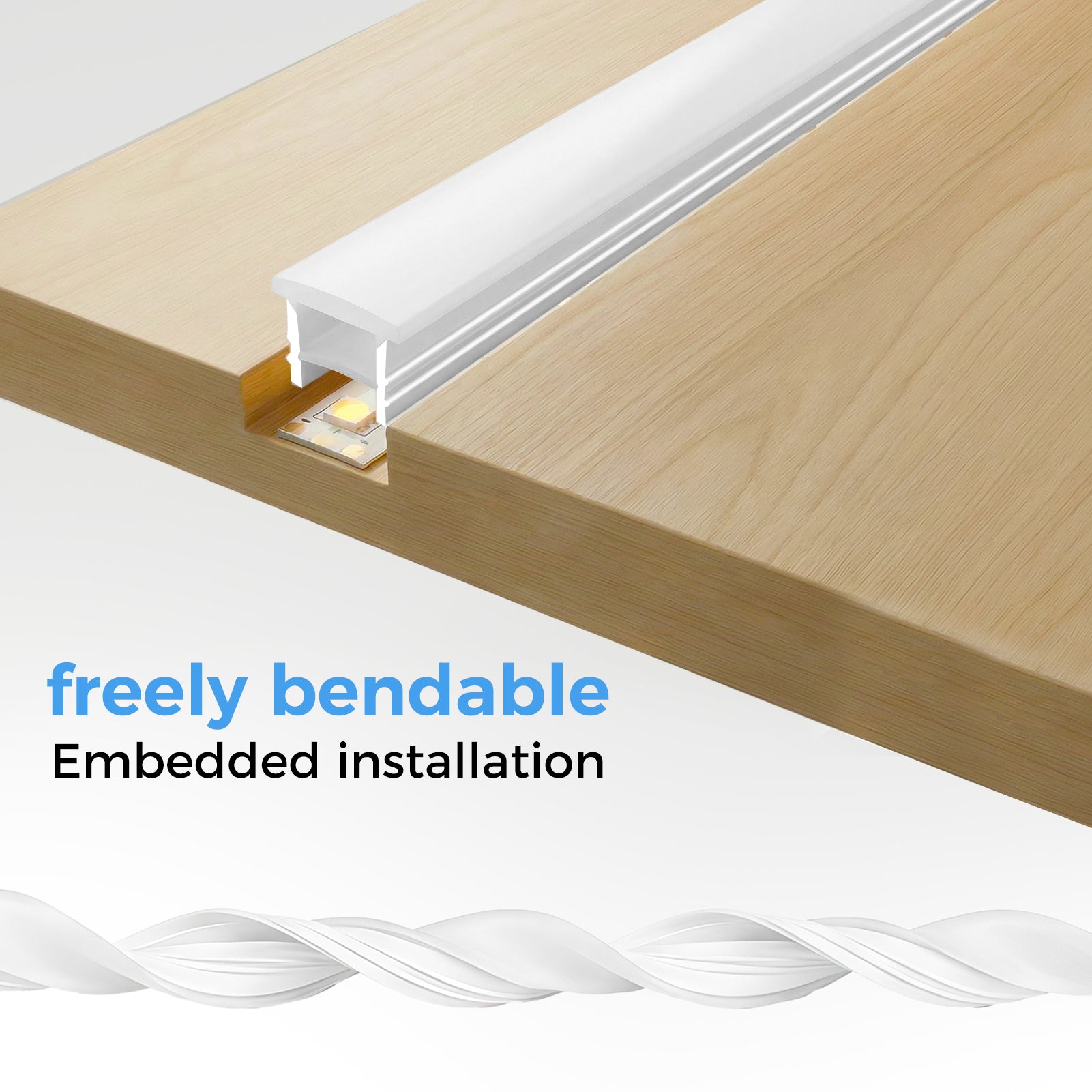

- Flexible Silicone Material – Soft, bendable, and cuttable structure adapts to straight or curved layouts with ease.
- Durable & Stable – Silicone housing offers long-term flexibility and structural stability for indoor linear lighting applications.
- Wide Lighting Applications – Suitable for architectural cove lighting, retail display lighting, decorative linear lighting, and commercial ambient lighting projects.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Cardboard box
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.

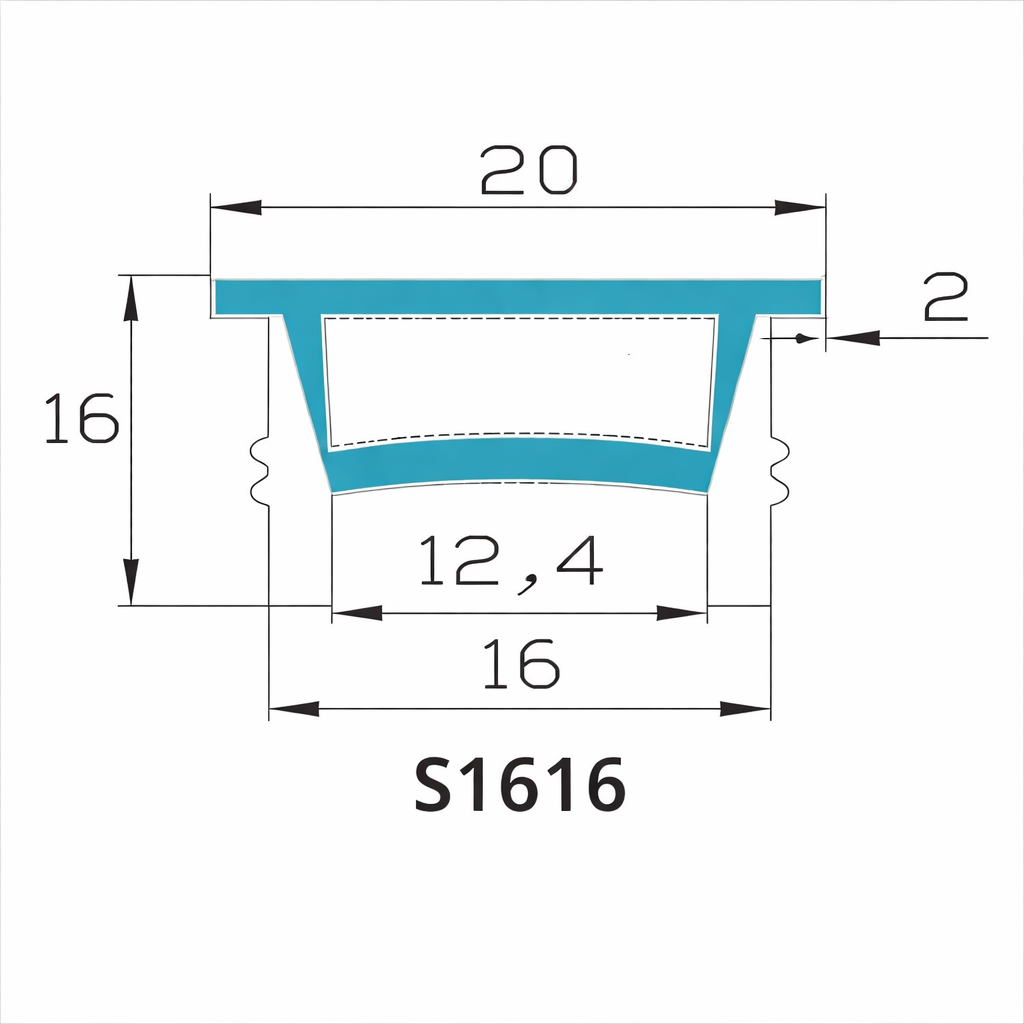

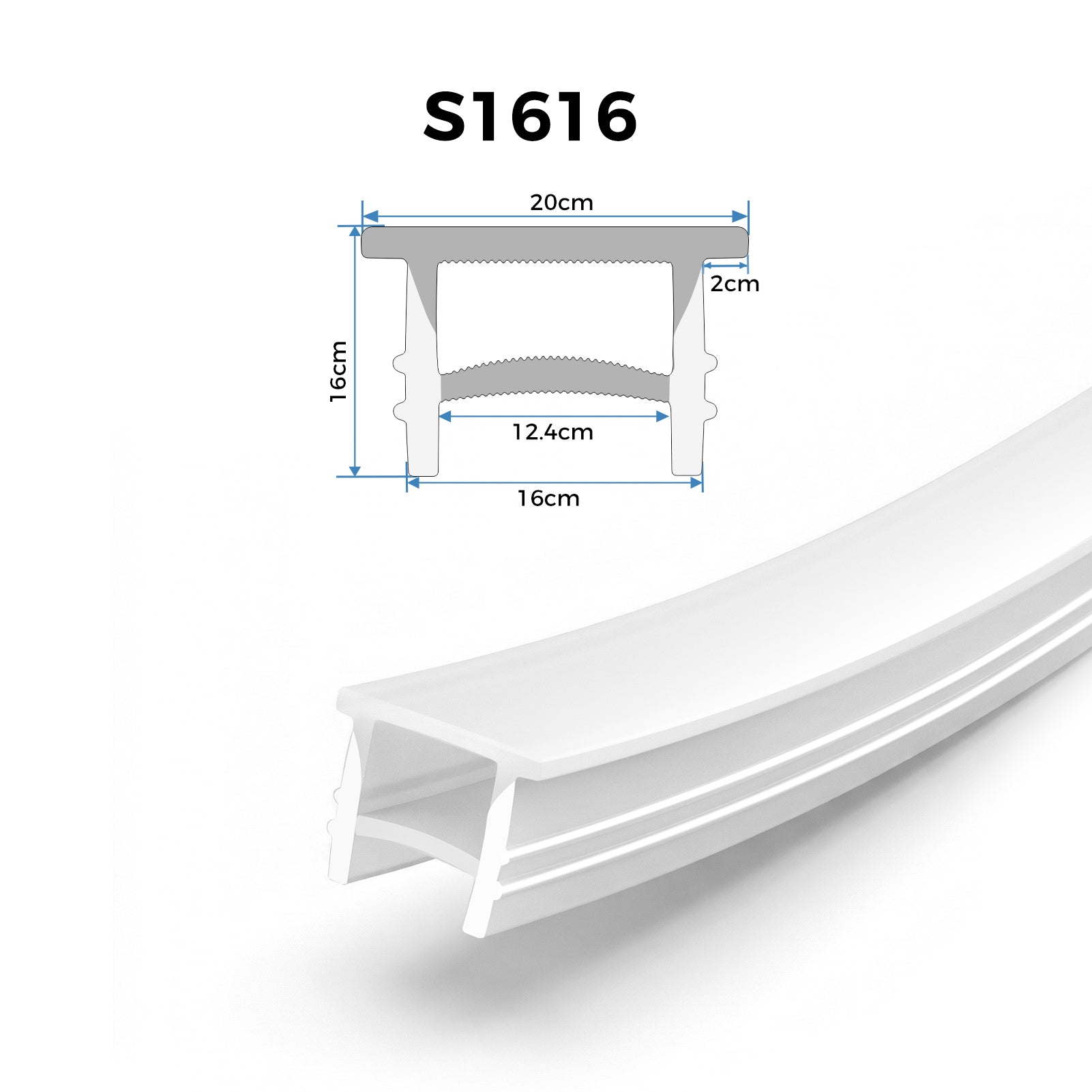

Key Specifications
- Model: S1616 Mounting Edge
- Outer Dimensions: 16 × 16 mm (W × H)
- Top Width: 20 mm
- Bottom Width: 16 mm
- Inner Width: 12.4 mm
- Mounting Edge Width: 2 mm
- Compatible LED Strip Width: ≤ 12 mm
- Lighting Direction: Top Emitting
- Material: 100% Silicone
- Color: White Silicone Housing
Usage Notes / Installation Tips
- Confirm LED strip width does not exceed 12mm before installation.
- Use the pull cord to guide the LED strip through the housing smoothly.
- For long installations, two-person operation is recommended for better efficiency.
- Seal both ends with end caps if needed to improve durability.
- LED strip and power supply are not included.

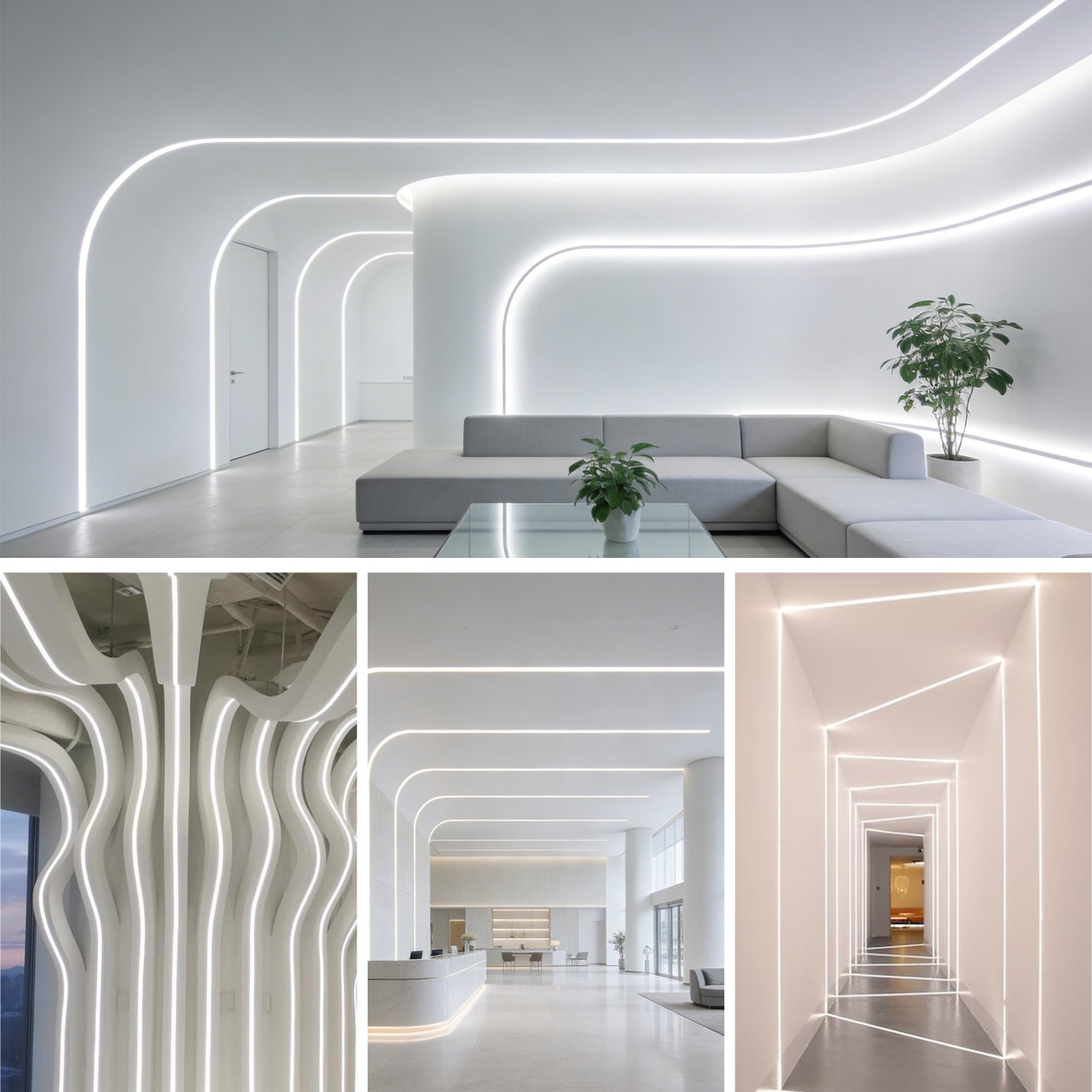

Applications
- Architectural cove lighting
- Retail display lighting
- Decorative linear lighting
- Commercial ambient lighting
- Interior accent lighting
