Description

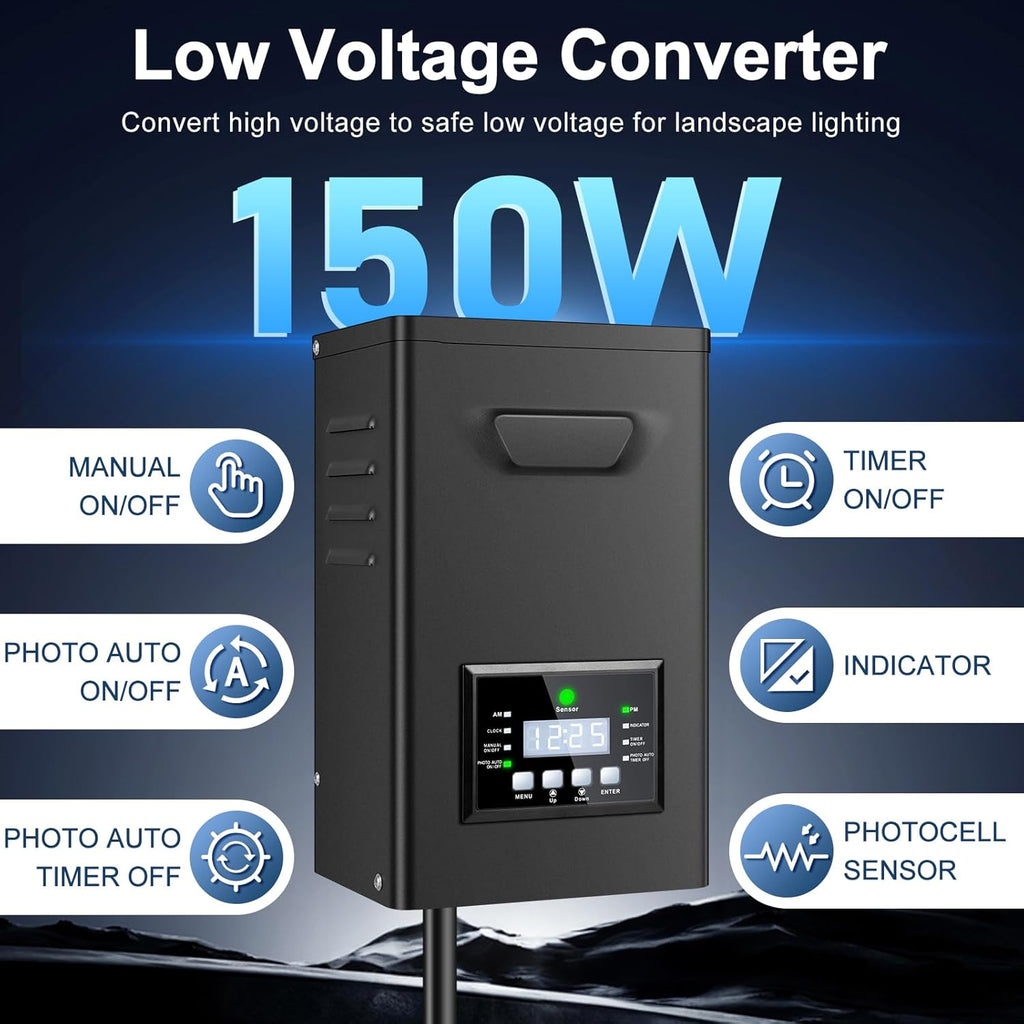

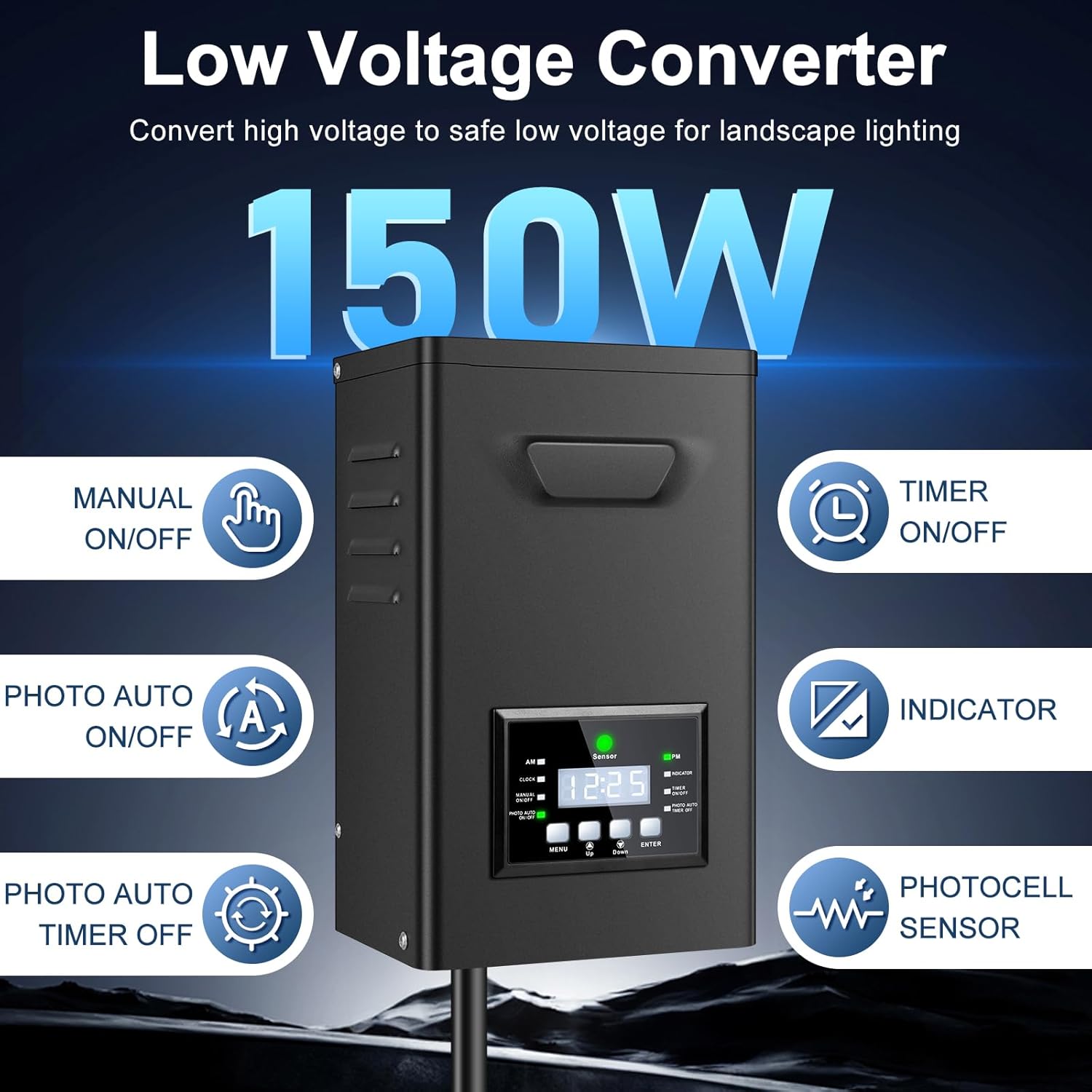

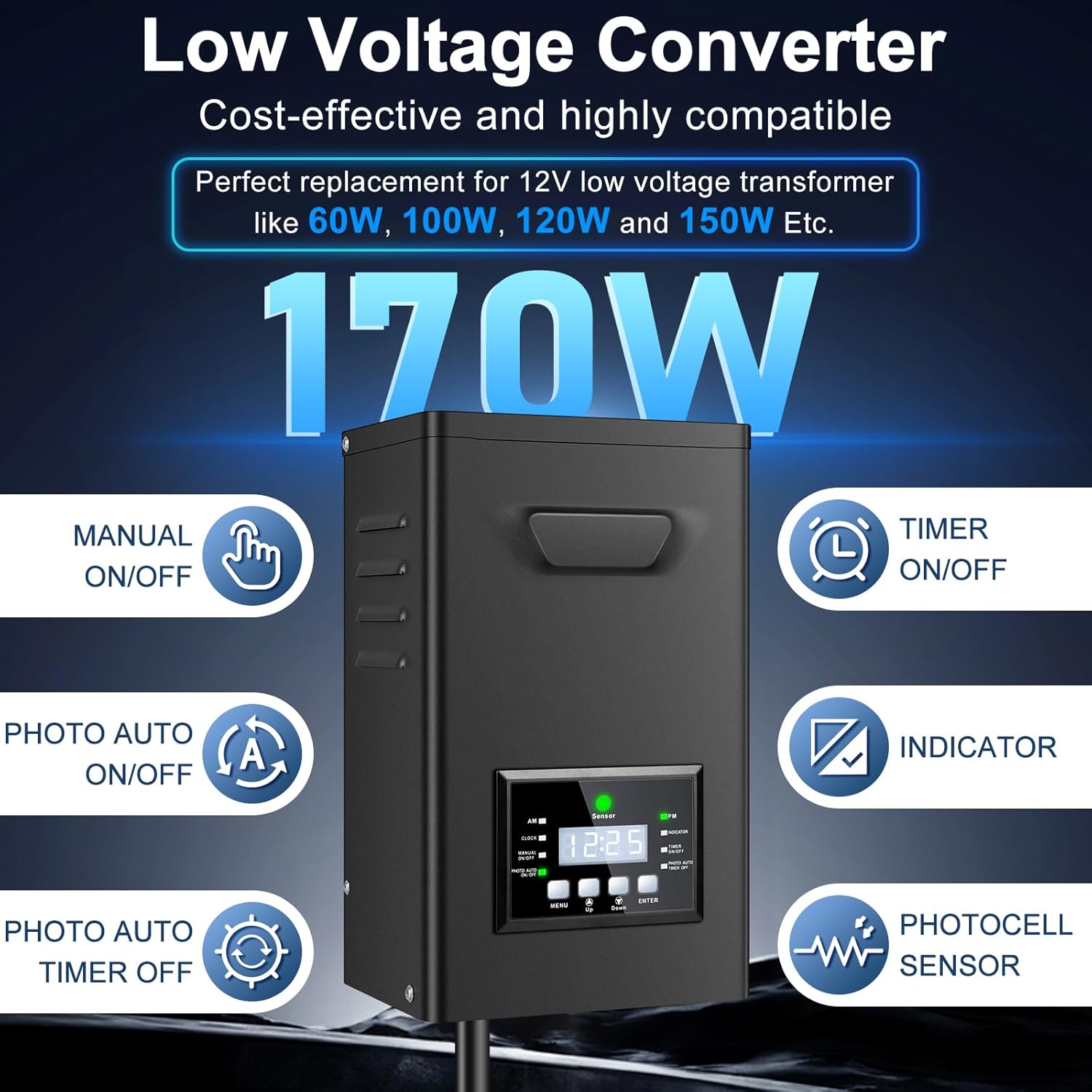

150W / 170W Low Voltage Landscape Transformer, Outdoor Lighting Power Supply with Timer, Photocell Sensor & LCD Display, 120V AC to 12V/15V AC Weatherproof Transformer
Package Included
| Version | Package Included |

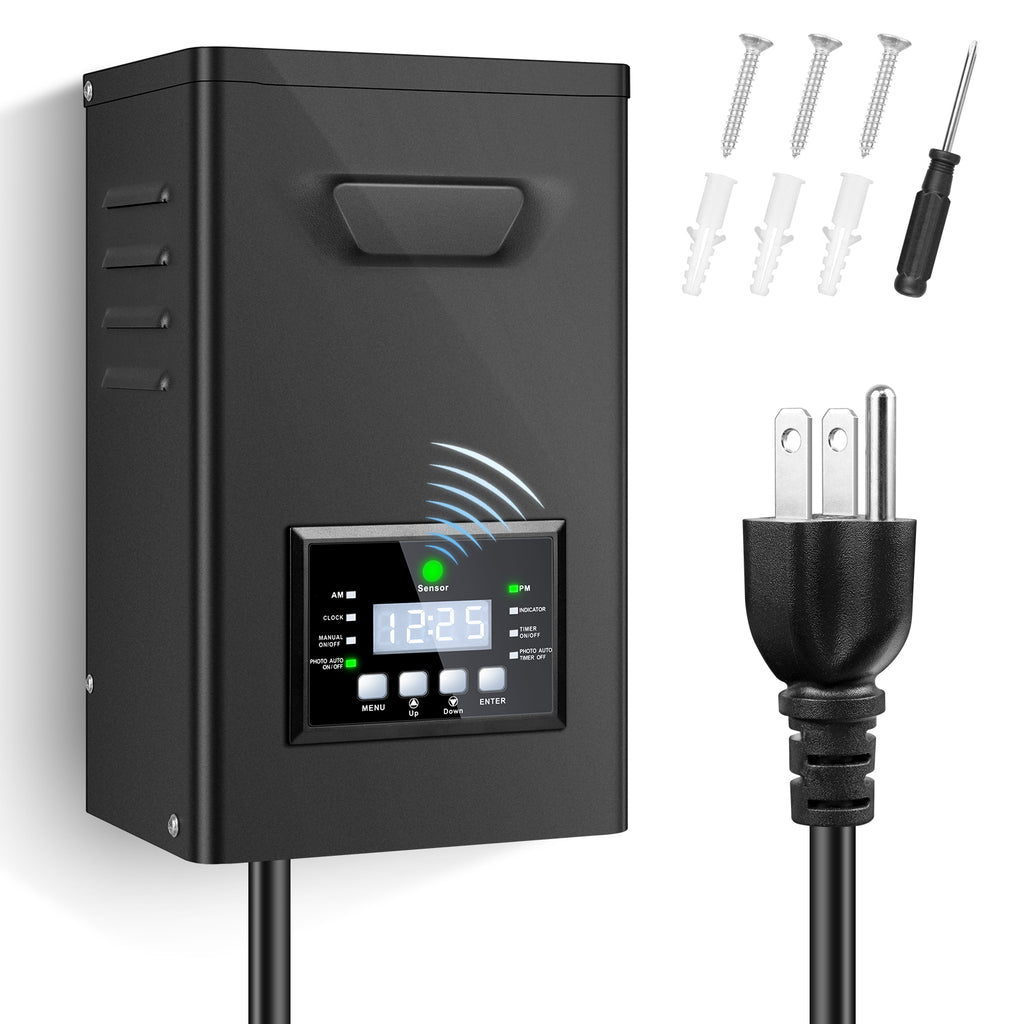

| 150W Transformer | 1 × 150W Low Voltage Landscape Transformer Installation screws User manual |
| 170W Transformer | 1 × 170W Low Voltage Landscape Transformer Installation screws User manual |
About this item
- Outdoor-rated low voltage transformer for landscape and garden lighting.
- Converts 120V AC input to 12V / 15V AC stable output.
- Integrated LCD display panel for timer and schedule settings.
- Multiple control modes: manual ON/OFF, photocell auto ON/OFF, programmable timer, countdown.

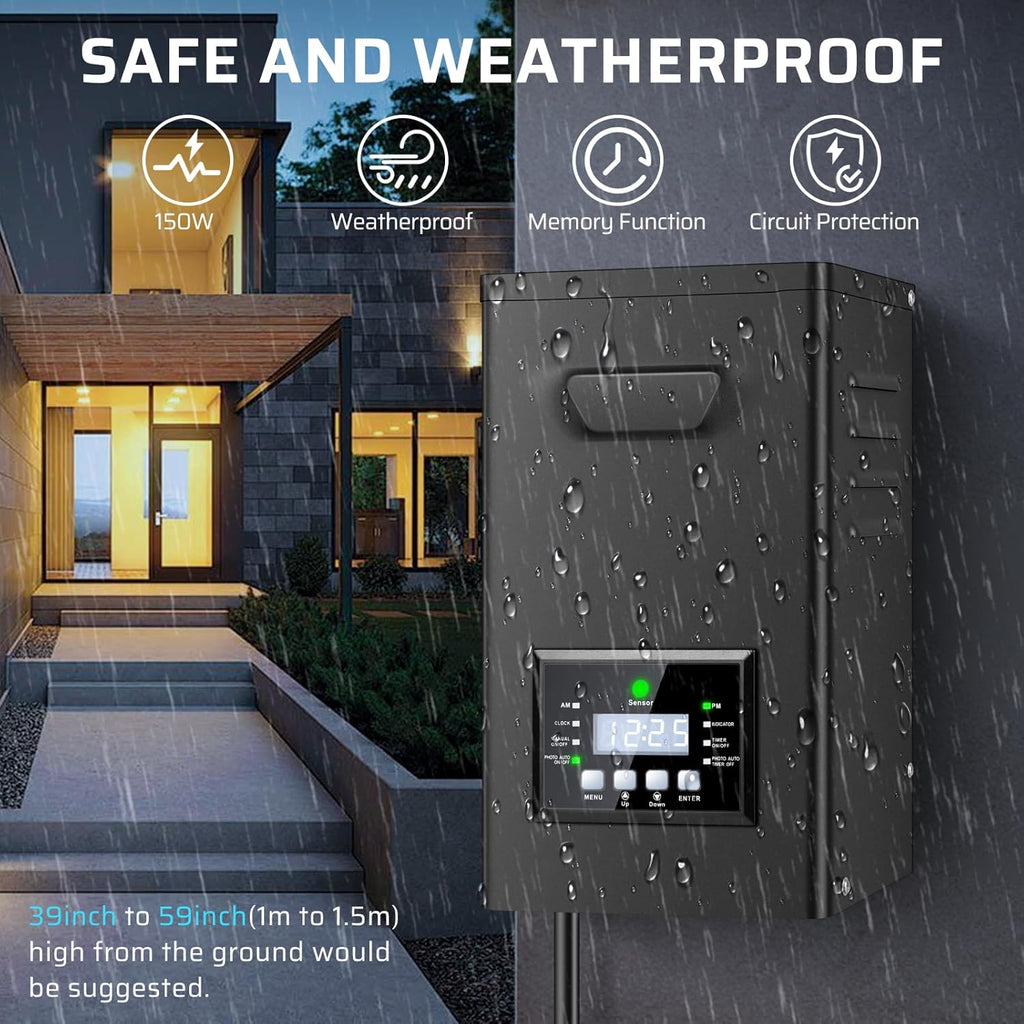

- Weatherproof housing with rugged design for long-term outdoor use.

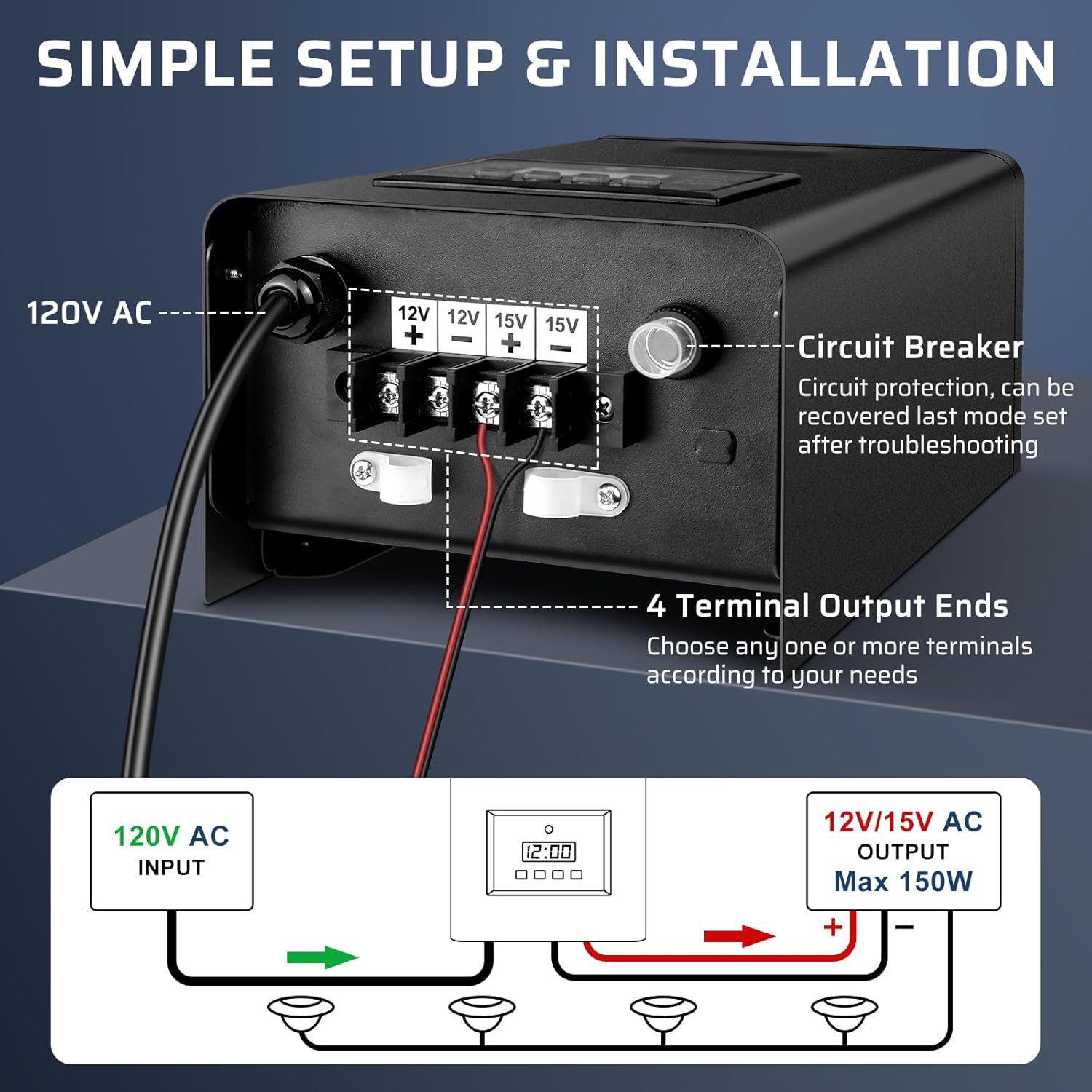

- Dual output ports for connecting multiple fixtures.
- Safe and reliable with overload and short-circuit protection.
Order & Logistics
Lead Time
- Ships within 1–3 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
- Packing: Cardboard box, sealed with polybag for small parts
Key Specifications
- Input Voltage: 120V AC (US plug, 2m input cable)
- Output Voltage: 12V AC / 15V AC
- Output Ports: 2
- Power Options: 150W or 170W
- Control Modes: Manual switch, Photocell auto ON/OFF, Timer, Countdown, Test mode
- Display: LCD digital panel with clock and indicators
- Safety: Short-circuit and overload protection
- Housing: Weatherproof outdoor design
Technical Specifications
| Model | 12V/15V AC 150W | 12V/15V AC 170W |
|---|---|---|
| Input voltage range | 120V AC 60Hz | 120V AC 60Hz |
| Output power | 150W Max (Recommended ≤90%) | 170W Max (Recommended ≤90%) |
| Rated output voltage | 12V AC / 15V AC | 12V AC / 15V AC |
| Rated output current | 12.5A(12V) / 10A(15V) | 14.2A(12V) / 11.3(15V) |
| Output current range | 0~12.5A | 0~14.2A |
| Power source | Corded Electric | Corded Electric |
| Mounting type | Wall Mount | Wall Mount |
| Material | 304 Stainless Steel Shell | 304 Stainless Steel Shell |
| Weight | 3.15 kg | 3.15 kg |

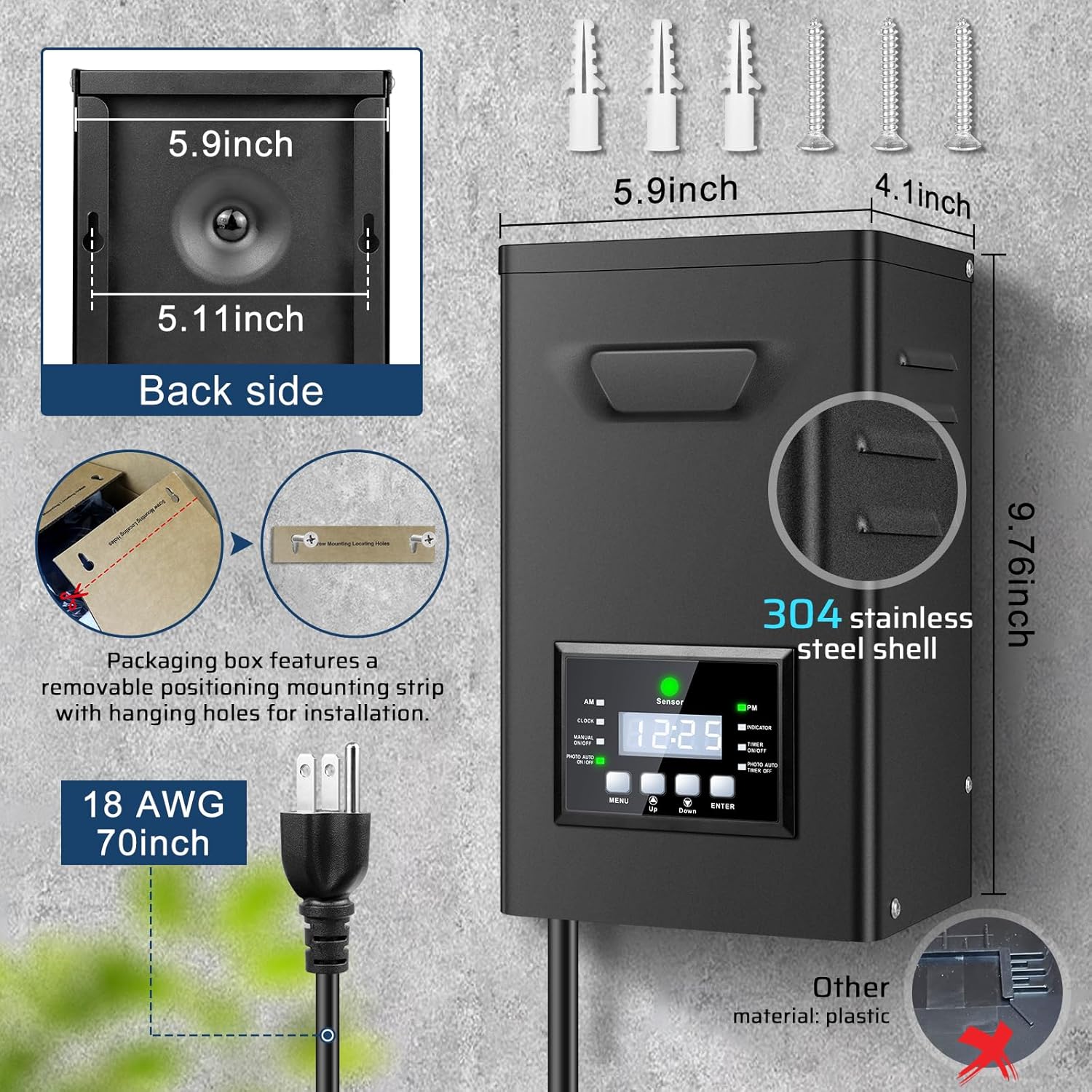

| Product dimensions | 3.6 x 5.5 x 8.5 in | 3.5 × 8.6 × 3.5 in |
| Waterproof rating | Weatherproof (Outdoor Rated) | Weatherproof (Outdoor Rated) |
| Certifications | FCC, UL | FCC, UL |
| Safety protection | Overload, short-circuit, and overheat protection | |
| Operating temperature | -20°C to +60°C | |
| PCB components | High-quality circuit board with built-in circuit protection and memory function | |
| Storage temperature | -20°C to +85°C | |
| Timing & control functions | Manual ON/OFF, Dusk-to-Dawn, Timer ON/OFF, Auto Timer OFF | |
| Photocell sensor | Built-in high-speed dusk-to-dawn sensor | |
| Memory function | Yes – restores last setting after power outage | |
Applications
- Garden and pathway lights
- Landscape spotlights and wall washers
- Outdoor decorative and holiday lighting
- Residential or commercial low-voltage lighting systems
How to choose the low voltage landscape transformer?
The 200W landscape power supply offers a variety of intelligent operating modes, allowing you to easily select the most suitable setting based on your specific needs and environmental conditions, ensuring an optimal user experience.
A outdoor light transformer offers flexibility for various applications, including garden lighting, pathway illumination, and outdoor décor. Its adaptable design makes it suitable for powering different fixtures in residential, commercial, and public spaces, ensuring it meets diverse lighting needs.
