Description

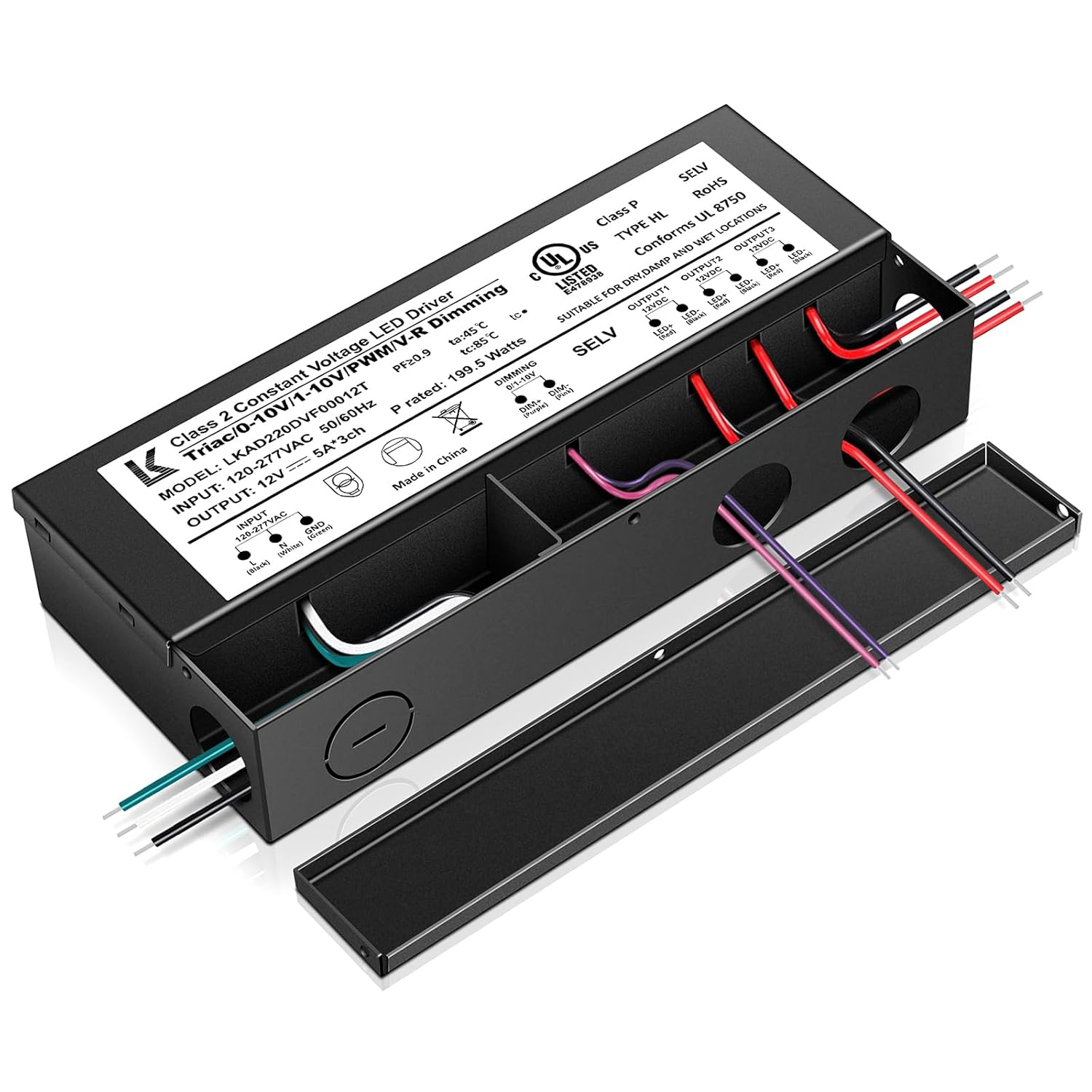

12V DC 5-in-1 Dimmable LED Power Supply, 60W/100W/200W, UL Listed, AC 120–277V Input, Waterproof Driver for Traic/ELV/0-10V/PWM/Resistive Control
Package Included
| Version | Package Included |
|---|---|

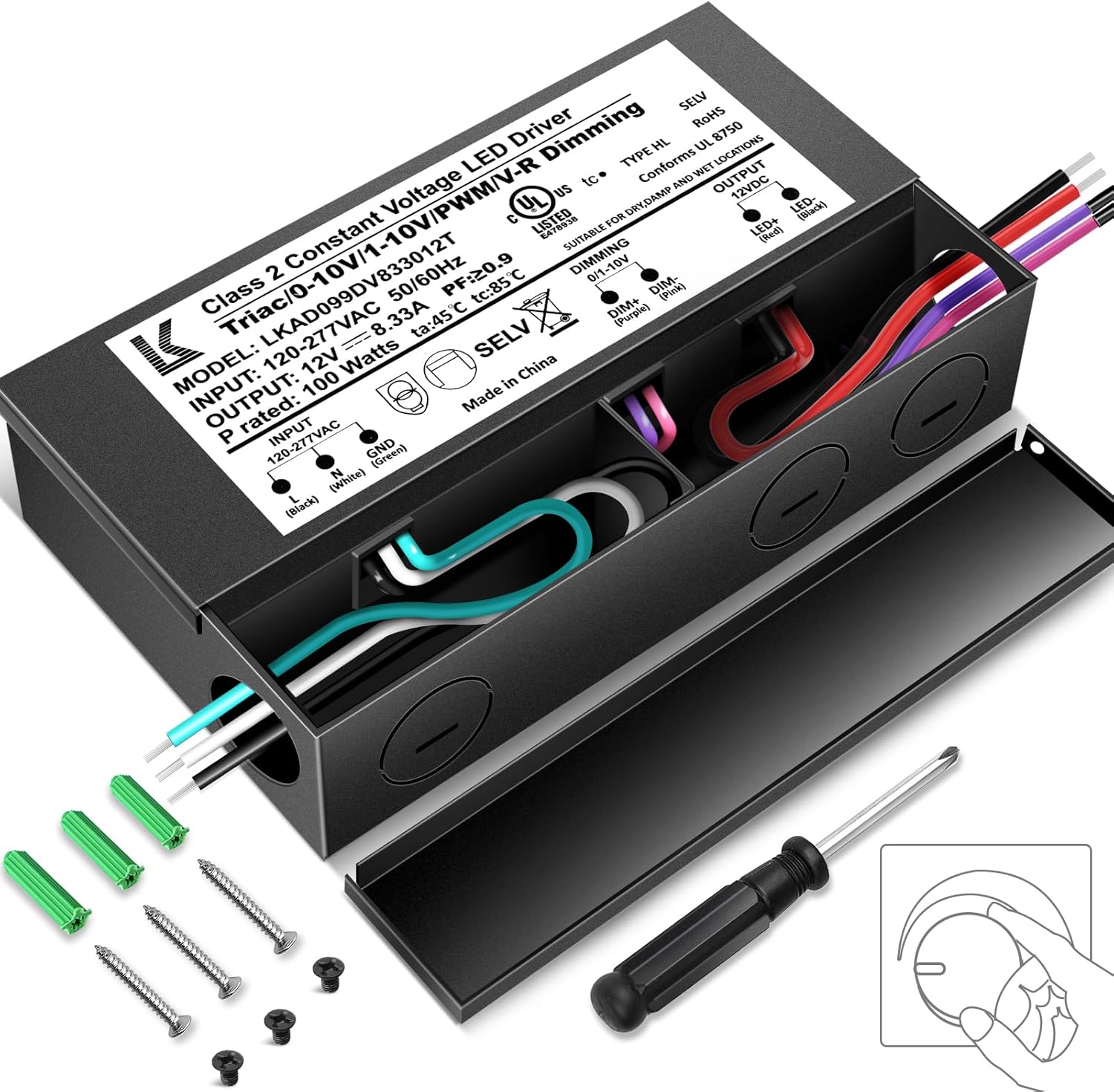

| 60W Driver | 1 × 60W 12V dimmable LED driver, screwdriver, 3 × screws, 3 × screw nuts, user manual |
| 100W Driver | 1 × 100W 12V dimmable LED driver, screwdriver, 3 × screws, 3 × screw nuts, user manual |
| 200W Driver | 1 × 200W 12V dimmable LED driver, screwdriver, 3 × screws, 3 × screw nuts, user manual |
About this item
- 5-IN-1 Dimmable LED Driver: Input: AC 120–277V, 50/60Hz. Output: 12V DC, 60W / 100W / 200W. Ideal for 12V LED lights, recessed lights, and smart lighting systems.

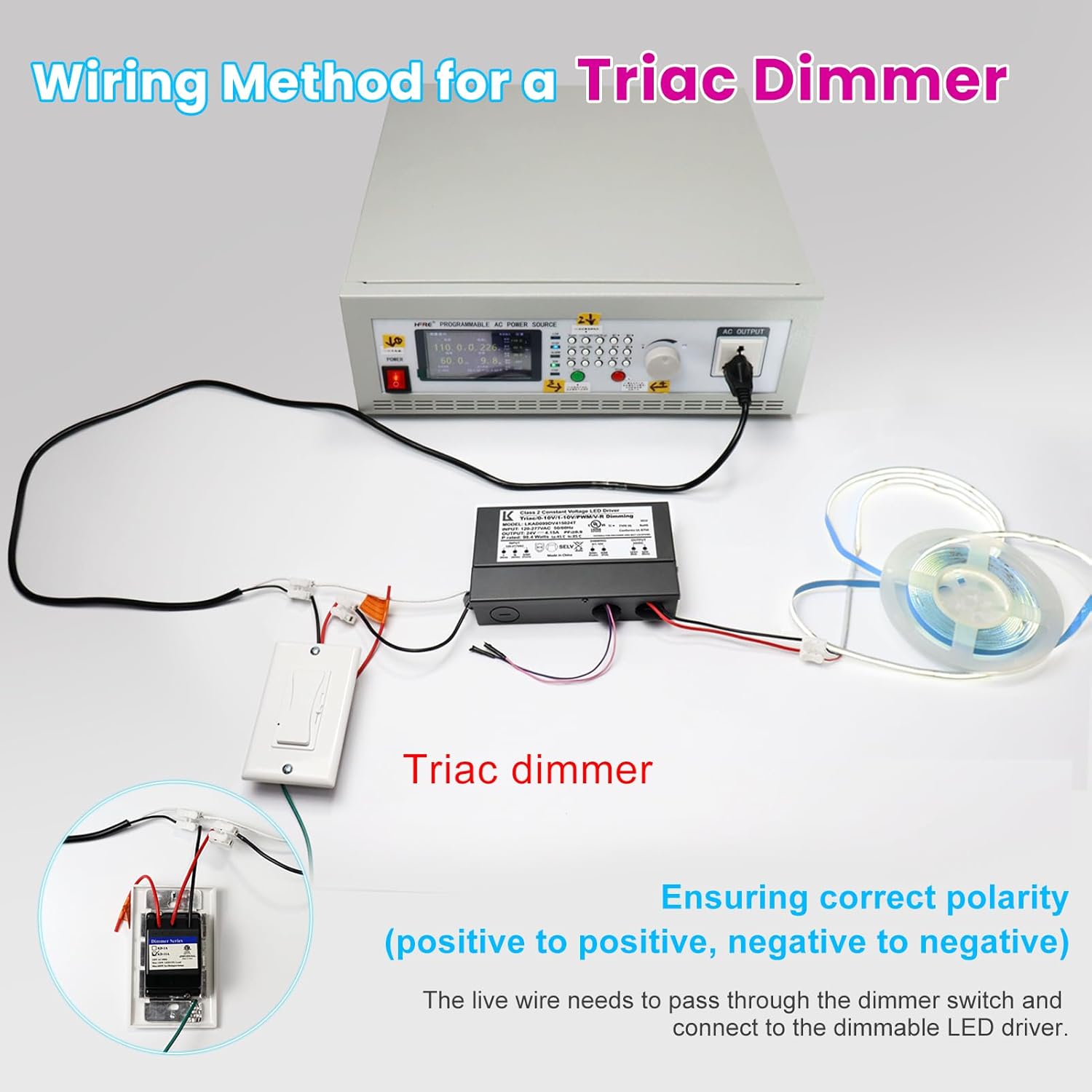

- Universal Compatibility: Works with Triac / ELV / 0-10V / PWM / Resistive dimming and most AC wall dimmers. Smooth, flicker-free dimming from 100% to 0%.
- Certified & Safe: UL Listed, Type HL, SELV, RoHS compliant. Rated for damp locations.
- Easy Installation: Junction box with wiring holes on three sides. Includes screwdriver, screws, and nuts.

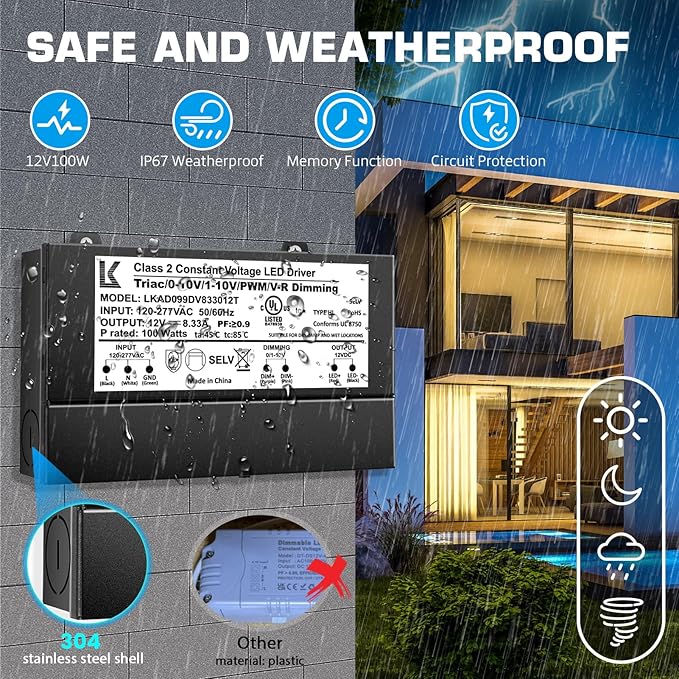

- Built-in Protection: Short-circuit, overload, and over-temperature protection. IP67 waterproof design.
Order & Logistics
- Lead Time: Typically ships within 1–3 business days
- Packing: Cardboard box
-
Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
Key Specifications
- Input Voltage: AC 120–277V, 50/60Hz
- Output Voltage: 12V DC
- Power Options: 60W / 100W / 200W

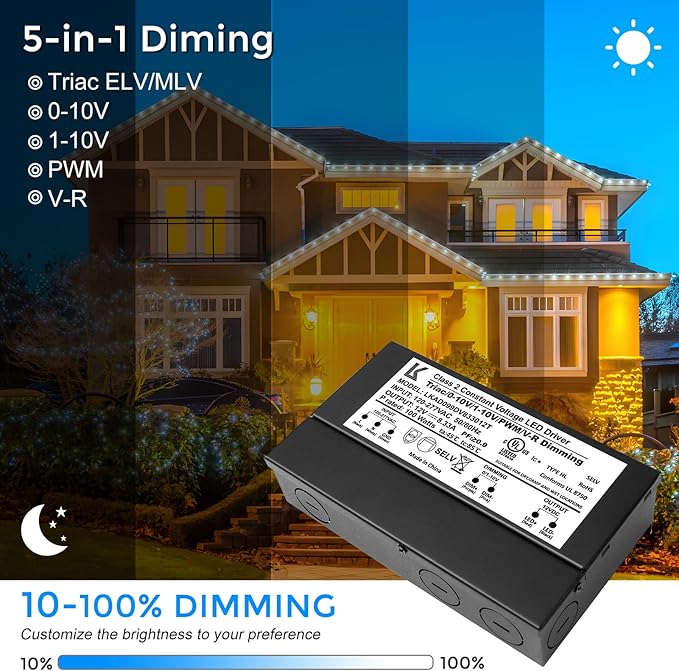

- Dimming Modes: Triac / ELV / 0-10V / PWM / Resistive
- Certifications: UL Listed, Type HL, SELV, RoHS
- Housing: IP67 waterproof metal enclosure, black

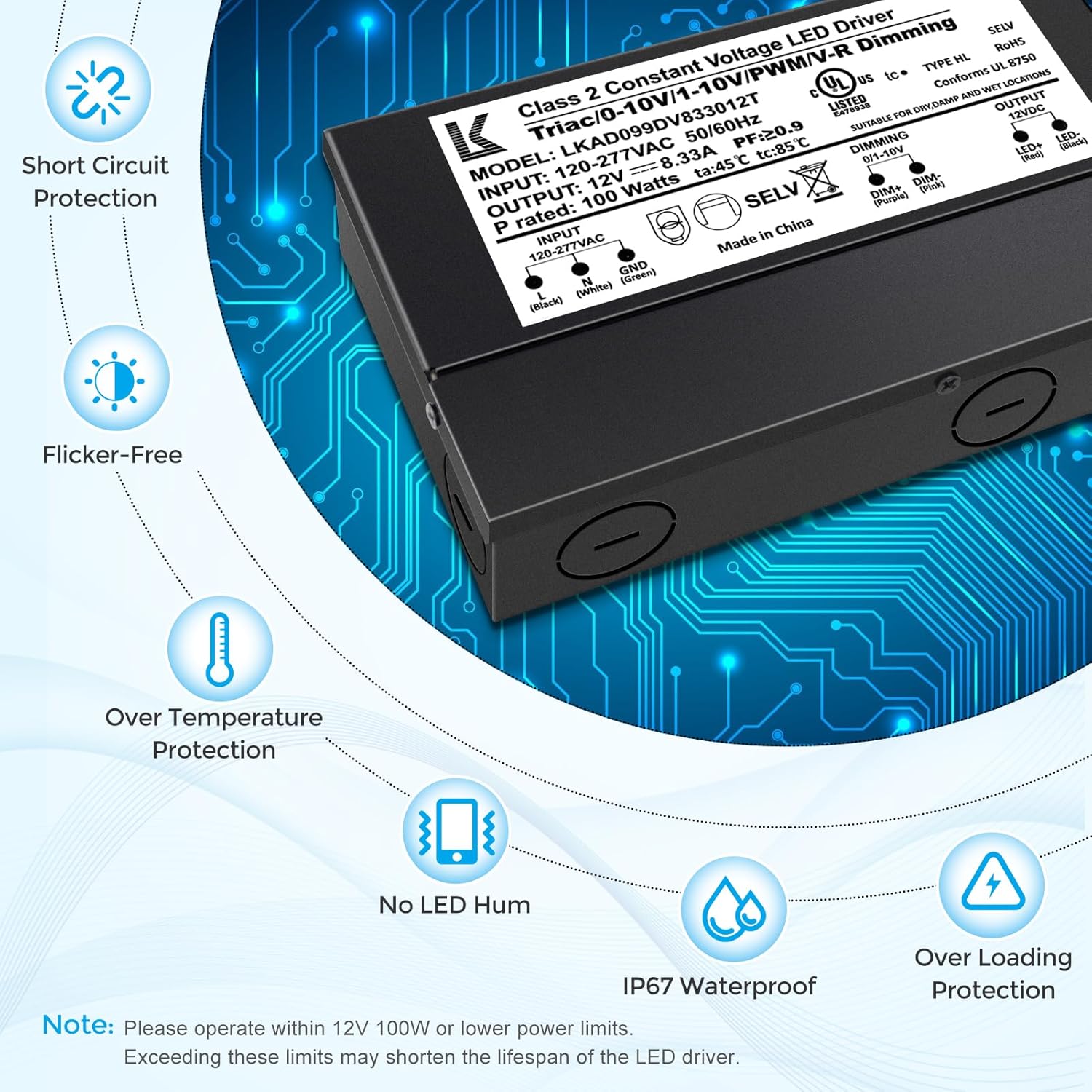

- Safety: Short-circuit, overload, over-temperature protection
- Operating Temperature: ta:45℃, tc:85℃
Usage Notes / Installation Tips
- Do not overload beyond rated wattage capacity
- Place driver in ventilated space for heat dissipation
- Suitable for both indoor and outdoor damp locations
- Disconnect power before installation or wiring adjustments

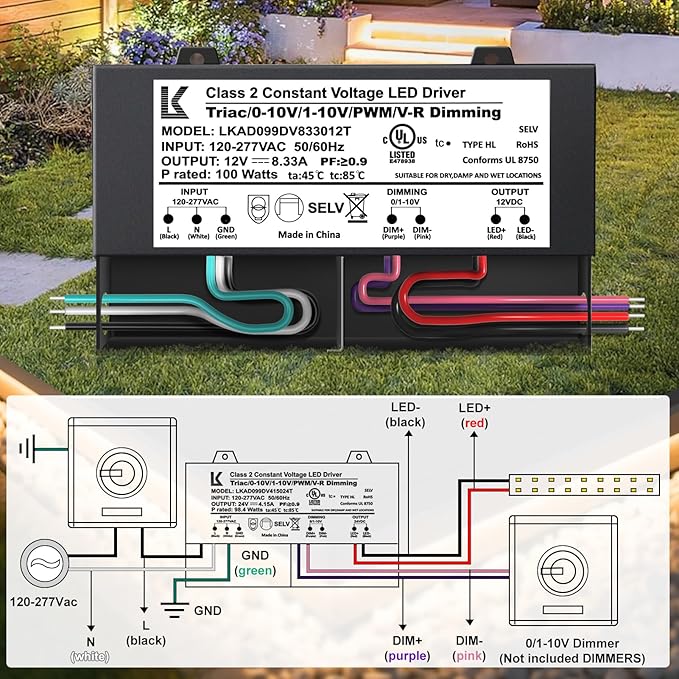

- Refer to included wiring diagram for correct connections
Technical Specifications
| Parameter | Details |
|---|---|
| Input Voltage | AC 120–277V, 50/60Hz |
| Output Voltage | 12V DC |
| Max Wattage | 60W / 100W / 200W |
| Dimming Modes | Triac / ELV / 0-10V / PWM / Resistive |
| Certifications | UL Listed, Type HL, SELV, RoHS |
| Housing | IP67 waterproof, black metal |
| Protection | Short-circuit, overload, over-temperature |
| Operating Temperature | ta:45℃, tc:85℃ |

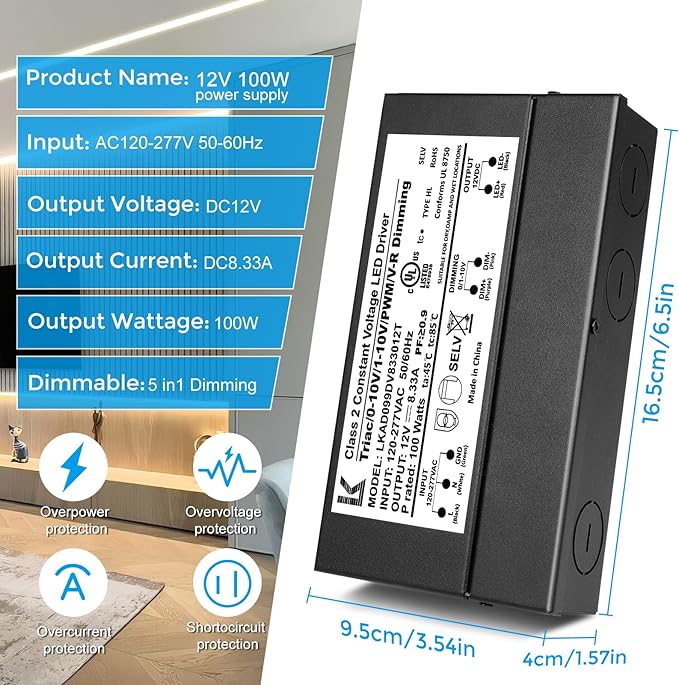

| Dimensions (100W) | 1.57 × 6.5 × 1.57 in |
| Weight (100W) | 2.33 lbs |
Applications
- LED recessed lighting
- LED strip lights and under-cabinet lighting
- Landscape and garden LED projects
- Smart home lighting systems
- Indoor and outdoor commercial LED setups
You may also like
Customer Reviews
Worked perfect.Had no issues so far
I ve used this transformer to power an outdoor 50 bulbs string; the original one had multiple functions and a remote,but didn t last long.This transformer is more powerful and theoretically would allow to add more lights if needed.My connection is rather simple and without a dimmer,so can t comment on that functionality & compatibility.The junction box has knockouts which appear to be slightly larger than standard,at least the inserts I had fit quite loose,so had to use al electrical tape to further secure them.Time will tell if it s truly waterproof and how reliable it is.
Held up well under the stresses.
Standard normal light dimmer switch works perfect. Using this with landscape lights 12V LED and a light switch by the back door. Lets me dim the lights to barely on, just enough to walk around. But I can throttle up to the full 12V.

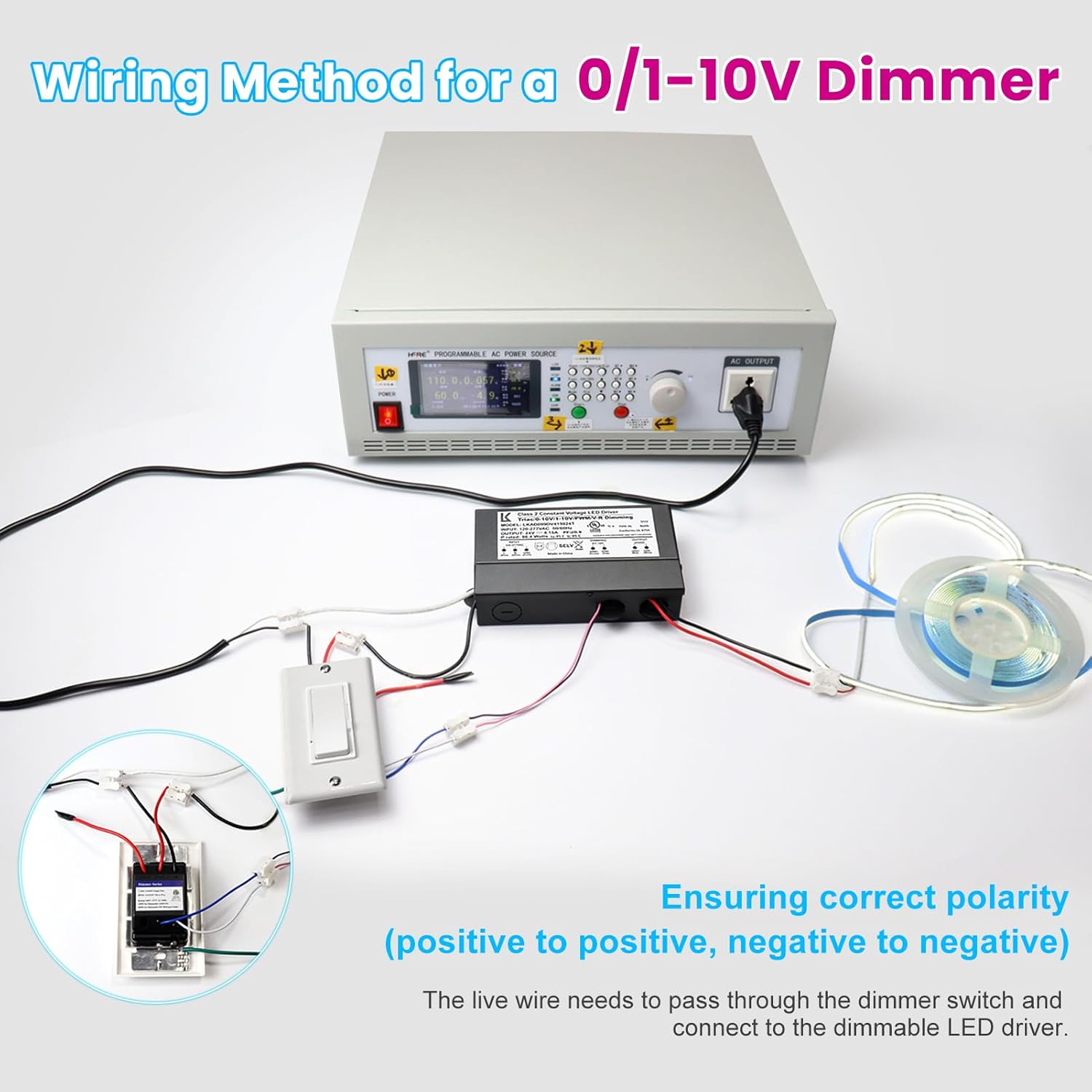

The 0-10V is more of a commercial control on the dimming. Don't need to use it. Cap the wire and forget about it. For use with a dimmer, just treat this as a regular light bulb and it works perfect. Don't over think it, it really is that simple.
I was powering two 2815 strips with a 5 amp power supply. I thought this would be sufficient as they pulled 3.6 amps, however I was getting odd flickering on the lights on occasion.
This 100W Dimmable LED Driver solved my issue. I tested it out before mounting and found it provides a fairly steady 11.9 volts. The dimmable leads have little rubber protectors on them in case they are not used. They are supposedly compatible with several types of dimmers, but not the style I had on hand. However I used it for a project that had dimming built into the controller. I may get a new dimmer before the next project.
The case is well built and the electronics inside are sealed, however mine did have a slight gap in this waterproofing. See picture with the additional plastic wrap and box this should not be an issue. Overall the supply was easy to install and performed well.
