Description
12V-24V DC 5in1 WiFi LED Controller – Compatible with Alexa / Google Home / Magic Home APP | Supports Monochrome, RGB, RGBW, WW+CW, RGBCCT LED Strips | Smart Wireless Control for LED Lights
Package Included
| Version | Package Included |
| 1-Pack | 1 × 5in1 WiFi LED Controller, 1 × User Manual |
About this item
- 5-in-1 LED controller supporting monochrome, RGB, RGBW, WW+CW, and RGBCCT LED strips
- WiFi smart control via Magic Home APP (iOS & Android compatible)
- Works with Amazon Alexa and Google Home for voice control
- Features music sync and microphone mode to adjust lights with rhythm
- Grouping and naming functions allow multiple controllers to be managed together
- Timing function supports weekly schedules with automatic reactivation after power cycle
- Compact, lightweight design with CE, RoHS, and FCC certifications
Order & Logistics
- Lead Time: Ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Dispatched from headquarters warehouse
- Express Shipping (DHL/UPS/FedEx): 3–10 days
- Free Shipping: Orders over $399 qualify for free standard shipping
Key Specifications
- Pack Size: 1-Pack
- Input Voltage: DC 12–24V
- Max Power: 240W
- Output Channels: 1 / 2 / 3 / 4 / 5 Channels
- Control Method: Magic Home APP (iOS & Android), Alexa, Google Home
- Connection Mode: Common Anode
- Drive Type: Constant Voltage MOS Tube
- Certifications: CE, RoHS, FCC
- Warranty: 1 Year
Usage Notes / Installation Tips
- Download Magic Home APP from App Store or Google Play; supports iOS 9.0+ and Android 4.0+

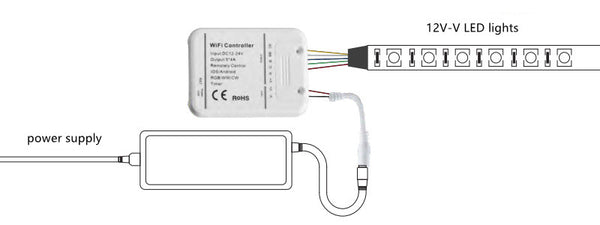

- Ensure correct wiring before powering on to avoid short circuits
- For music and microphone functions, enable phone permissions in the APP
- Group controllers for synchronized operation across multiple rooms
- Restart APP after power-on for timing function synchronization
- Use only with constant voltage LED strips and compatible lighting products
Technical Specifications
- APP Software: Magic Home Pro
- Version Requirements: iOS 9.0+ / Android 4.0+
- Working Temperature: -20°C ~ 55°C
- Input Voltage: DC 12–24V
- Maximum Power: 240W
- Output Channels: 1 / 2 / 3 / 4 / 5 Channels
- Drive Type: Constant Voltage MOS Tube
- Connection Mode: Common Anode
- Product Size: 80 × 60 × 16 mm
- Packing Size: 95 × 95 × 30 mm
- Net Weight: 40 g
- Certifications: CE, RoHS, FCC
- Warranty: 1 Year
Applications
- Monochrome, RGB, RGBW, WW+CW, and RGBCCT LED strip control
- Smart home lighting integrated with Alexa and Google Home
- Music-synced decorative lighting for parties and entertainment
- Residential and commercial ambient lighting with timer and group functions
