Our Stretched LCD Bar Displays feature ultra-wide aspect ratios, Android OS, and optional capacitive touch—ideal for retail shelves, advertising signage, and creative installations. Each display supports cloud platform, mobile app, and USB content management, with custom cutting from premium panels supplied by LG, Samsung, or BOE for clarity and reliability.
Lead Time
If stock is available, products will ship within 5 business days. For models requiring production, the typical lead time is 10–15 business days. Only a limited number of models are kept in stock—if you have urgent requirements, please contact us to confirm availability and delivery schedule.
Shipping & Terms
This product line follows our Free Shipping Policy for orders over $399 (freight cost already included in pricing).
- Free Freight: 10–20 days (Air + Ground) — economy air shipping, no additional charge.
- Priority Freight: 7–15 days (Air + Ground) — faster air delivery option at checkout.
All shipments are dispatched directly from our China headquarters.
DDP Terms
Listed shipping methods are offered under DDP (Delivered Duty Paid), meaning customs clearance, duties, and taxes are included. If DDP is not supported in the destination country, we will coordinate alternative terms (e.g., EXW / FOB) to ensure smooth delivery.
To Customize a Stretched LCD Bar Display
We recommend selecting from our standardized bar models, which have been developed and tested by our factory team for the best balance of performance, cost, and delivery time.
- Bar-type displays are made by cutting full-size LCD panels and integrating dedicated control boards and housings. Because of this process, bar screens can cost more than conventional panels, and the final dimensions must follow the source panel & controller constraints.
- The sizes listed on this page are our pre-defined versions. We also support custom dimensions, but exact width/height may vary slightly based on feasibility. For example, a requested 1200 × 500 mm might be produced as 1200 × 450 mm or 1200 × 550 mm.
- Logistics is a significant cost component (even with our Free Shipping over $399 on standard orders). For special sizes or bulk purchases, please contact us for a FOB quotation and a tailored shipping estimate.
We’re happy to review your customization request and provide a clear feasibility assessment and quotation.
Product Overview
| Model / Size | Viewable Area (mm) | Product Size (mm) | Resolution | Control | Options |
|---|---|---|---|---|---|
| 24.5″ LCD Bar | 597.9 × 168.2 | 618.8 × 196.7 × 30 | 1920 × 540 | Android OS; Cloud / Mobile App / USB | Non-Touch |
| 28.1″ LCD Bar | 698.5 × 140 | 724.1 × 169 × 59 | 1920 × 385 | Android OS; Cloud / Mobile App / USB | Non-Touch |

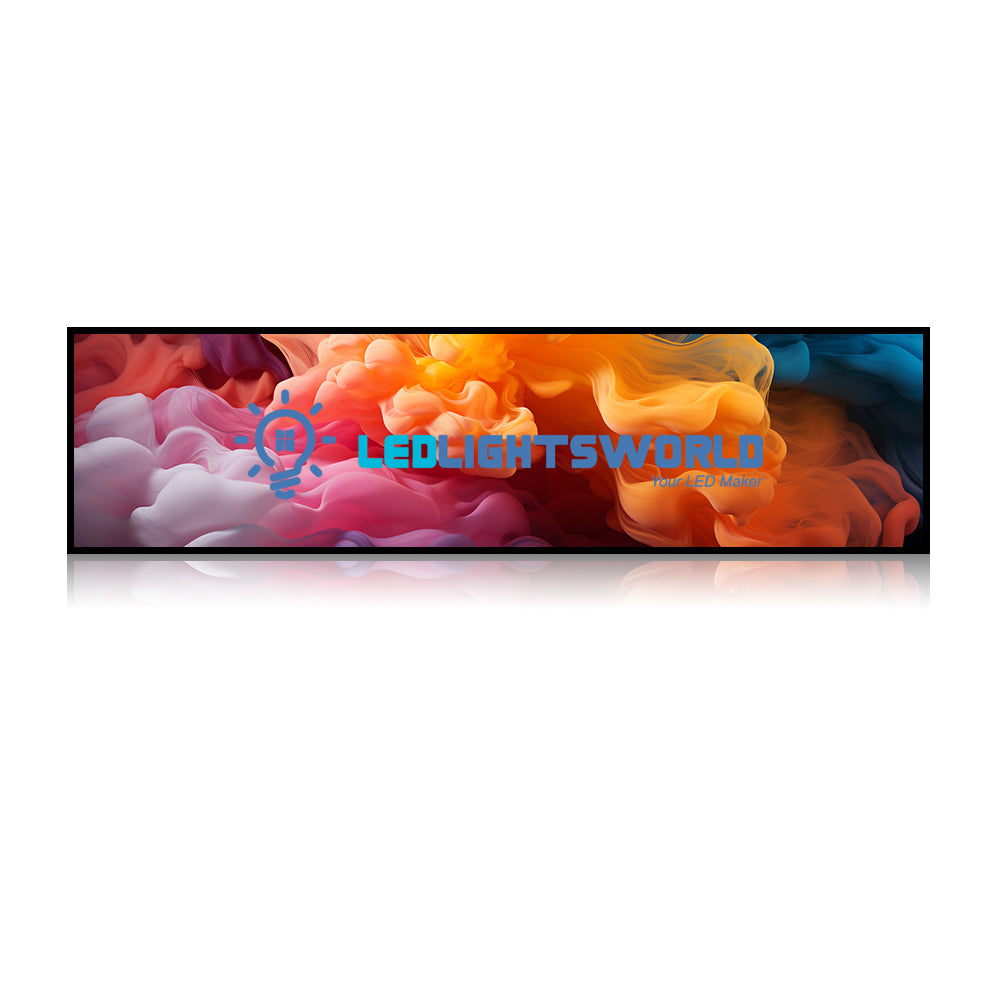

| 28.6″ LCD Bar | 698.4 × 203.7 | 727 × 232 × 77 | 1920 × 540 | Android OS; Cloud / Mobile App / USB | Non-Touch / Capacitive Touch |
| 32.1″ LCD Bar | 819 × 55 | 847.8 × 76.3 × 24.6 | 3440 × 247 | Android OS; Cloud / Mobile App / USB | Non-Touch |

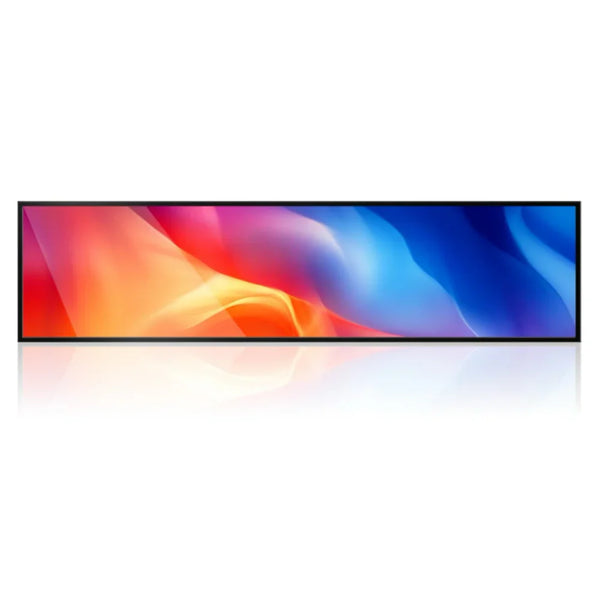

| 37.6″ LCD Bar | 920 × 258 | 951 × 290 × 58 | 1920 × 540 | Android OS; Cloud / Mobile App / USB | Non-Touch |
| 47.1″ LCD Bar | 1209.6 × 50 | 1235.4 × 80 × 27 | 3840 × 120 | Android OS; Cloud / Mobile App / USB | Non-Touch |
| 49.5″ LCD Bar | 1209.6 × 340.2 | 1241 × 373 × 56 | 3840 × 1080 | Android OS; Cloud / Mobile App / USB | Non-Touch |
| 56.6″ LCD Bar | 1428.5 × 160 | 1451 × 183 × 58 | 3840 × 1080 | Android OS; Cloud / Mobile App / USB | Non-Touch |
| 65.7″ LCD Bar | 1650 × 255.2 | 1678.8 × 289.2 × 58 | 3840 × 600 | Android OS; Cloud / Mobile App / USB | Non-Touch |
| 88″ LCD Bar | 2158.85 × 607.2 | 2189 × 632 × 83.2 | 3840 × 1080 | Android OS; Cloud / Mobile App / USB | Non-Touch |
Catalog of LCD Digital Signage Produts.
Catalog of Shelf Screen LCD Display.
About Stretched Display
Stretched bar LCD display is a commercial display product with an ultra-wide LCD screen. In order to meet different needs, it has various display ratios of length and width.
HUAKE Bar Type LCD display monitor commercial screens are designed especially for shelf edge integration in the retail environment.
Built-in powerful signage player and ready-to-use digital signage publishing system "BroadVisual", the ultra stretched digital shelf edge display is designed to work with the real-life requirements of the retail environment.
The HUAKE Supermarket shelf advertising LCD digital display screen is using LCD Panel from LG, BOE, also with the resized/cut stretched displays as a way to offer cost-effective overall solutions while remaining open to more possibilities. Shelf Edge Digital Signage Solution for Retail Environments have many sizes, configurations, and features, making them adaptable to all sorts of digital signage projects.
Features:
- Slim design – Digital Edge Displays Slim design can complement any interior as it is light and visually appealing
- Customized bracket designed for shelf environment makes it fit neatly onto the front of a shelf
- Landscape and portrait orientation compatible
- Auto copy playing-It can be auto-copy playing via USB sticker without WIFI.
- Sync play or interactive play between different displays
- Intelligent Split Screen: multiple pieces can be split together to show one single picture/video
- High contrast, high brightness, greatly improving the layering of the picture, and better performance of details; Wide color range.
- Shelf edge LCD display with slim and narrow bezel, advertisements are displayed without blocking the sight of consumers, thus creating a perfect shopping experience
Notes:
One complete shelf display screen solution system should include below items
1. Bar type LCD display screen
2. Control Server (need to purchase separately, one server can load up with multi-units of bar screen)
3. Router (not provided, client should prepared at local)
4. Mobile Phone / PC (not provided, client should prepared at local)
About the CMS (content management system)
For different control board used for the LCD stretched display screen, the CMS would be different. For our Stretched LCD bar screen, the defaulted system we use is HUIDU.
The buyer can choose to use their own CMS or ask us to provide.
Applications:
The retail digital shelf display is an attractive Shelf Edge LCD Display well suited for a variety of in-store, on-shelf digital signage applications such as retail shelf edge pricing, retail shelf edge advertising, and multi-shelf digital signage in supermarkets, grocery stores, liquor stores, clothing stores, and other retail applications. Such a smart shelf system is end to end digital retail TFT shelf edge display solution perfect for retail POS applications, and it can turn your shop into a modern retail business to enhance customers’ shopping experience.
Retail Shelf Edge Pricing
Retail Shelf Edge Advertising
Multi-Shelf Digital Signage
