Tips for Installing Multi-Core Control Wires Neatly and Safely

Introduction

In LED lighting and control systems, wiring layout is often regarded as a supporting step, but it directly determines the stability and aesthetics of the system. Improper cable installation not only creates a messy appearance but can also bring potential safety hazards. Choosing the right PVC insulated multi-core electronic wire and mastering proper installation methods can make the entire wiring process more efficient, tidy, and safe.

Why Focus on the Installation of Multi-Core Control Wires?

In practical lighting or control systems, multi-core control wires often carry the combined functions of signal transmission, power supply, and multi-channel control. If installed incorrectly, they may cause signal interference, unstable voltage, or even safety risks during long-term use. For example, excessive bending of the wire may cause internal copper strands to break, while loose terminal connections may create sparks, affecting the stability of the entire system. Therefore, properly planning cable routes, ensuring secure connections, and avoiding tangled layouts are key to ensuring system reliability.

Moreover, good installation practices significantly improve maintenance efficiency later on. Imagine if the wiring is messy and disorganized, you would spend much more time tracing the correct cable when replacing equipment or troubleshooting issues. On the other hand, if the wiring is installed neatly and securely from the start, future maintenance becomes faster and the risk of errors is reduced.

Practical Installation Tips

• Plan the wiring route in advance
  Before installation, draw a wiring diagram according to the positions of lamps, controllers, and power supplies. Arrange the wiring logically to avoid crossovers and redundancy.



• Maintain an appropriate bending radius
  PVC insulated multi-core wires have good flexibility, but excessive bending may damage conductors. It is recommended to keep a bending radius at least 4–6 times the wire diameter, which ensures safety and facilitates later adjustments.



• Use fixing accessories to keep wiring neat
  Use clips, conduits, or cable ties to secure wire bundles, effectively preventing cables from loosening or crossing. This is especially important behind ceilings, cabinets, or inside control boxes, where a clean appearance is required.



• Label groups for easy maintenance
  Multi-core wires usually contain different colored conductors. During installation, group and label them clearly—for example, numbering or tagging wires for lighting, control, and signal. This makes future maintenance and expansion easier.



• Choose the right gauge and number of cores
  Different projects require different current loads and numbers of signals. For example, household lighting may only need 18–22 AWG wires, while high-power control or engineering projects are more suitable for 14–16 AWG multi-core wires.



Common Applications

Thanks to their flexible structure and multi-functional design, multi-core control wires are widely used in many fields:

Recommended Wire Options

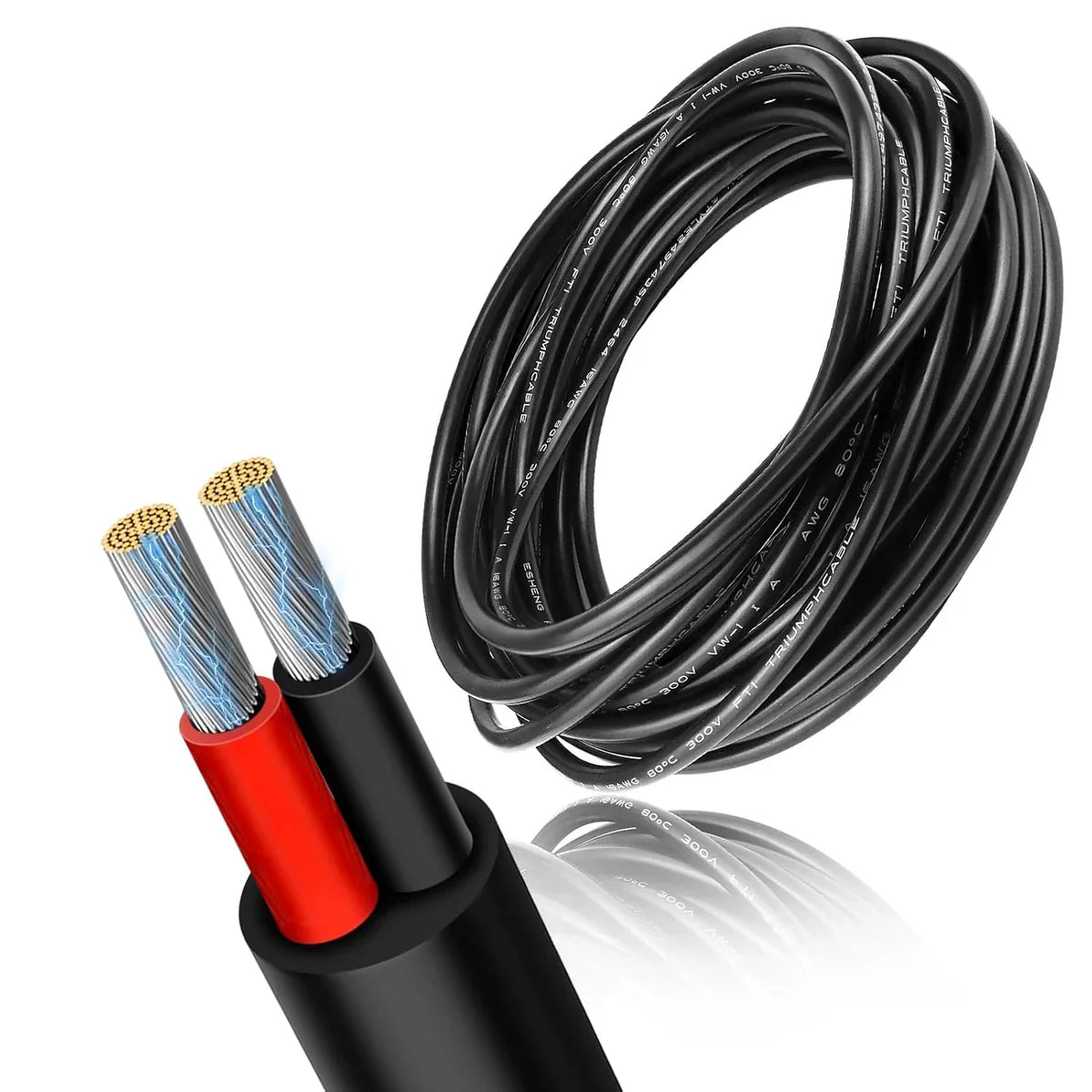

Depending on installation needs, different gauges and core counts of PVC insulated tinned copper multi-core wires can be selected. Here are some common options suitable for neat and safe wiring:

Conclusion

Neat and secure wiring not only improves the overall appearance of a project but also significantly reduces maintenance costs in the long run. Through proper planning and installation—combined with choosing the right PVC insulated multi-core electronic wires—your lighting or control system will operate more efficiently, reliably, and safely.
