SMD3030 High Brightness Rigid LED Strip Light – 12V DC, 18 LEDs/M, 20W, for Side-Emitting Light Box, Available in Bare PCB (IP20) & Aluminum Channel (IP65), Warm White / Pure White
Package Included:
| Version | Package Included |
| 10pcs Pack | 10pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
| 50pcs Pack | 50pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
| 100pcs Pack |
100pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
Order & Logistics:
- Lead Time: Typically 5–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Features
-
High Brightness SMD3030 LED Chips – Equipped with premium 3030 SMD LEDs delivering superior luminous intensity, perfect for light boxes, signage, and commercial lighting applications.
-
Two Construction Options – Choose between Bare PCB (IP20) for indoor dry areas or Aluminum Channel with Gel Cover (IP65) for waterproof performance and better heat dissipation.
-
Side-Emitting Optical Design – Special lens structure provides uniform edge lighting for ultra-slim light boxes and advertising displays with excellent brightness balance.
-
Energy Efficient 12V DC Operation – Consumes 20W per meter while maintaining high luminous efficacy, ensuring long-lasting, stable, and safe performance.
-
Versatile Applications – Suitable for indoor and semi-outdoor use, ideal for commercial signboards, display boxes, architectural outlines, and decorative backlighting projects.
Specification
| Specification | Details |
| Product Type | Rigid LED Strip Light |
| LED Type | SMD3030 |
| LED Density | 18 LEDs per meter |
| Voltage | DC 12V |
| Power Consumption | 20W per meter |

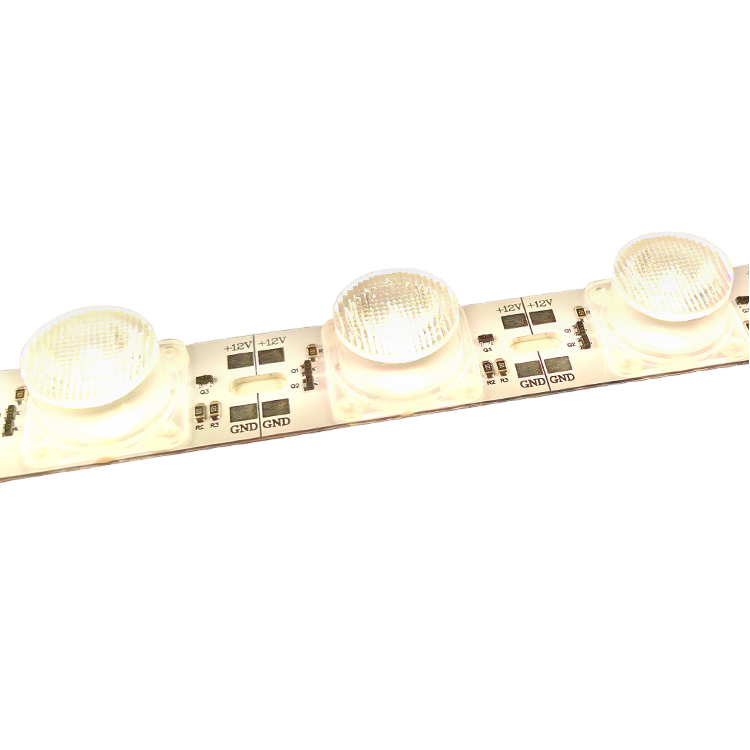

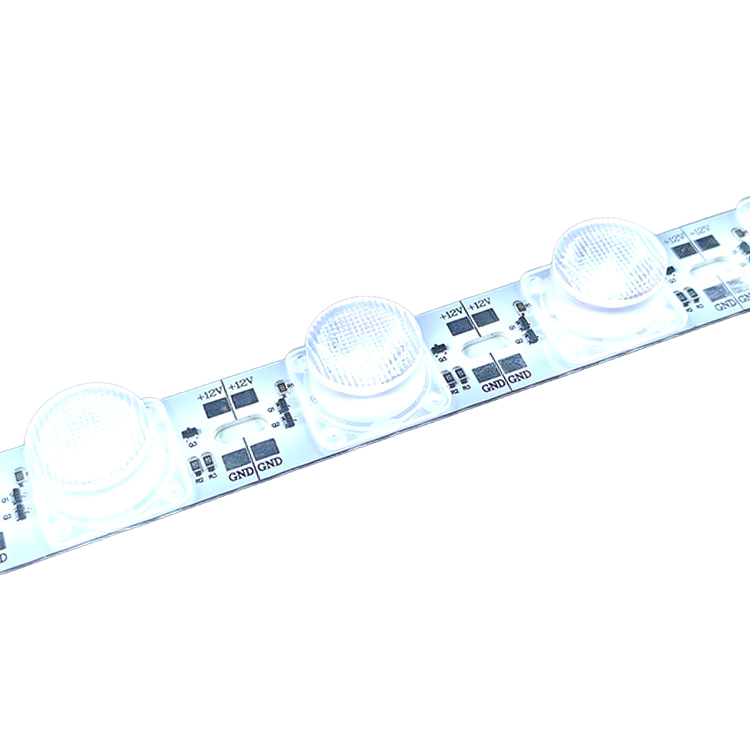

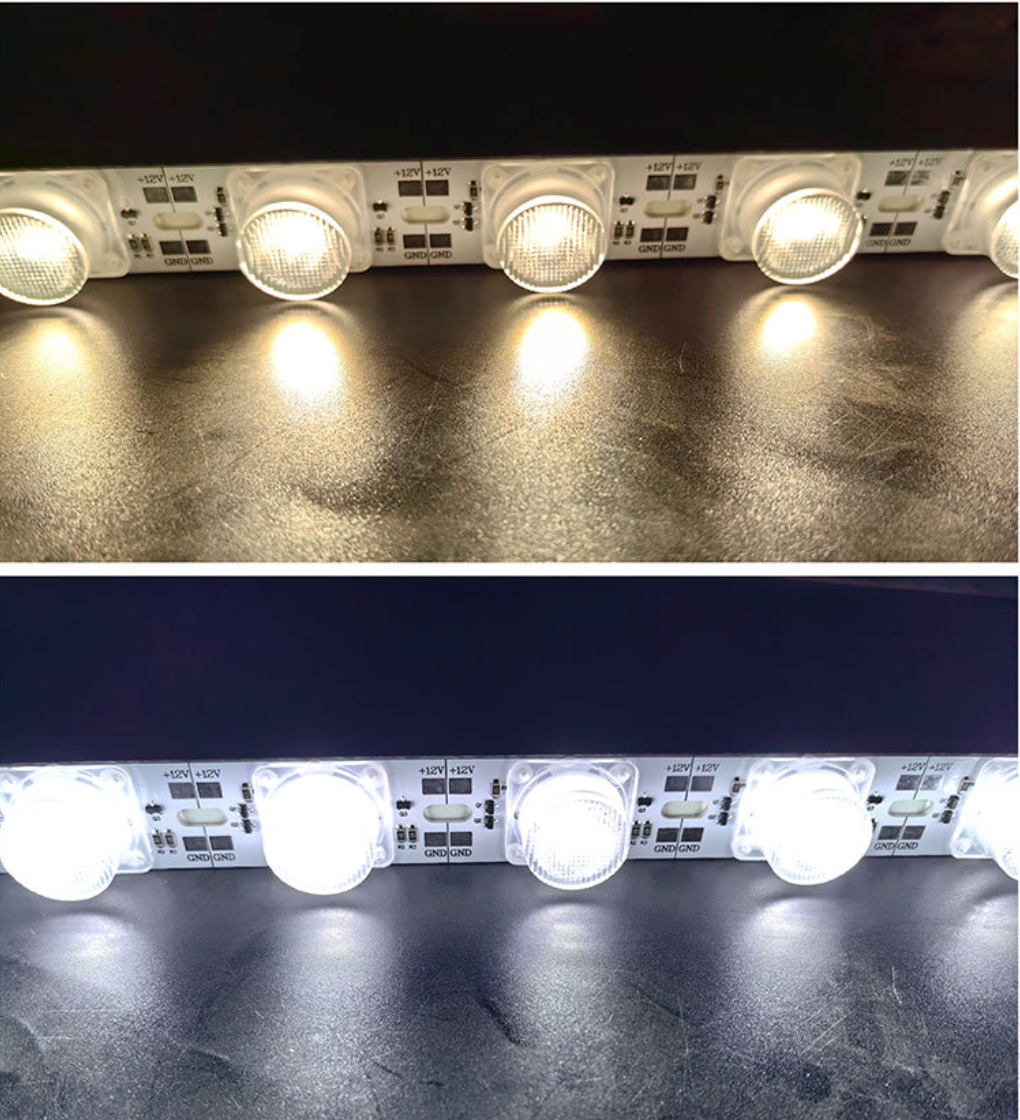

| Color Options | Warm White (3000K) / Pure White (6000K) |
| Beam Direction | Side Emitting |

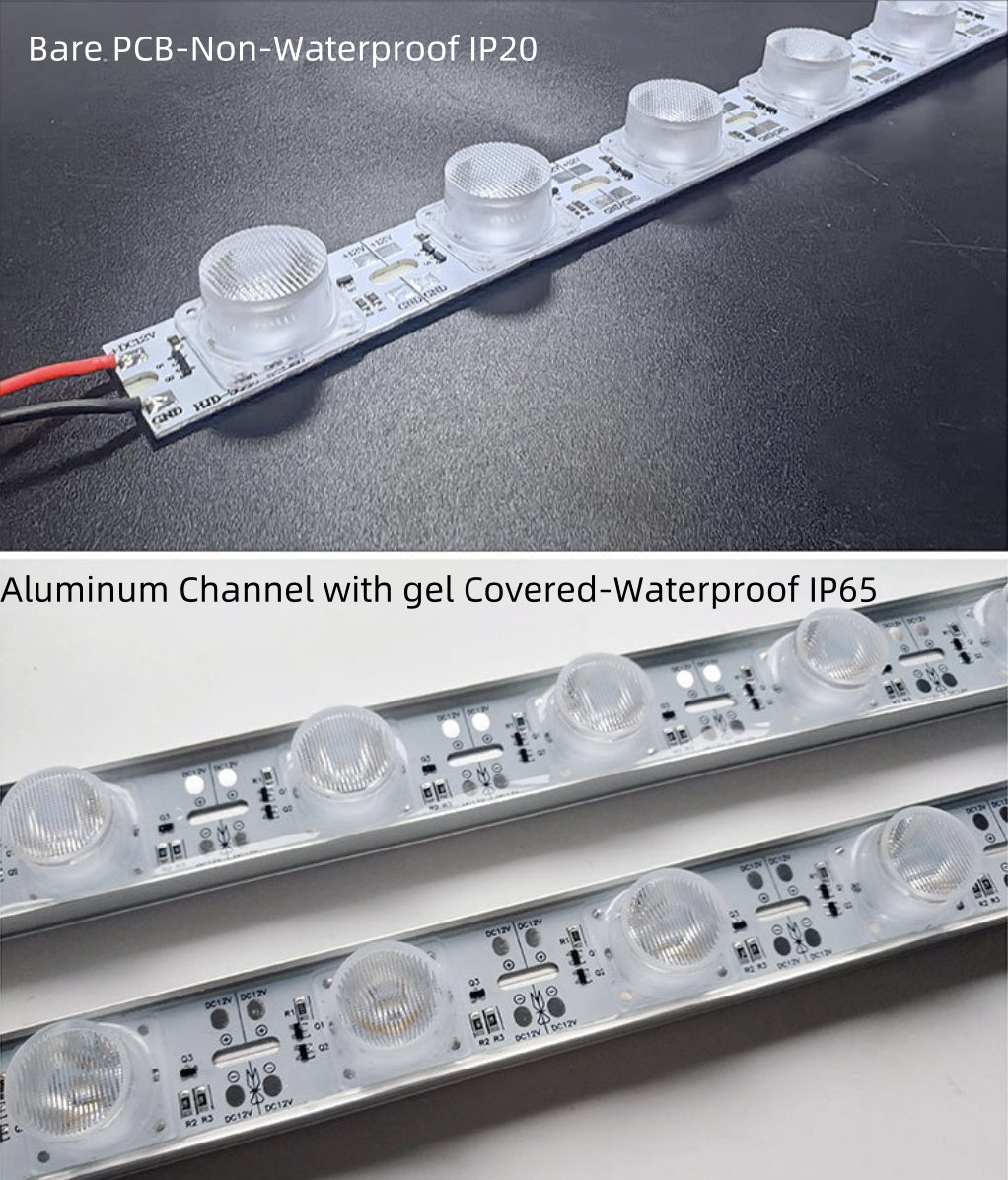

| Waterproof Options | Bare PCB – IP20 (Non-Waterproof) / Aluminum Channel – IP65 (Waterproof) |

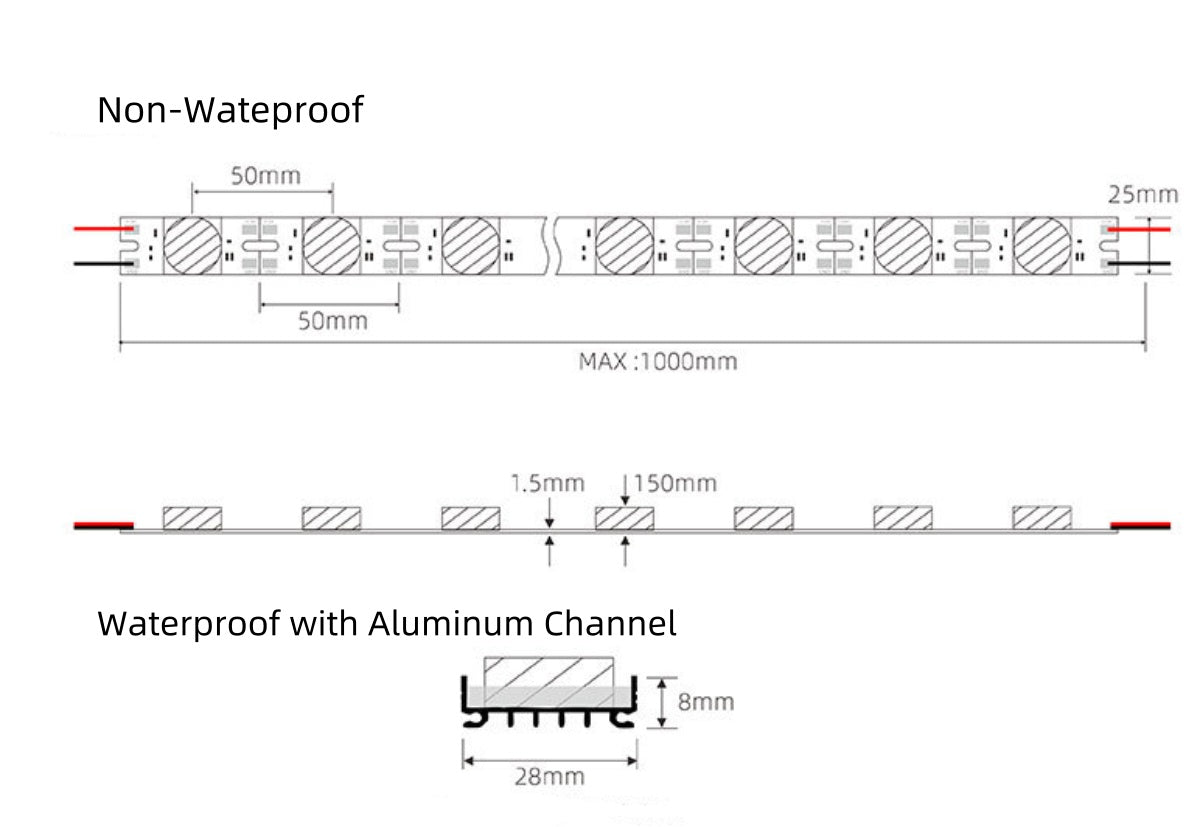

| Bare PCB Size | 1000 × 25 × 15 mm |

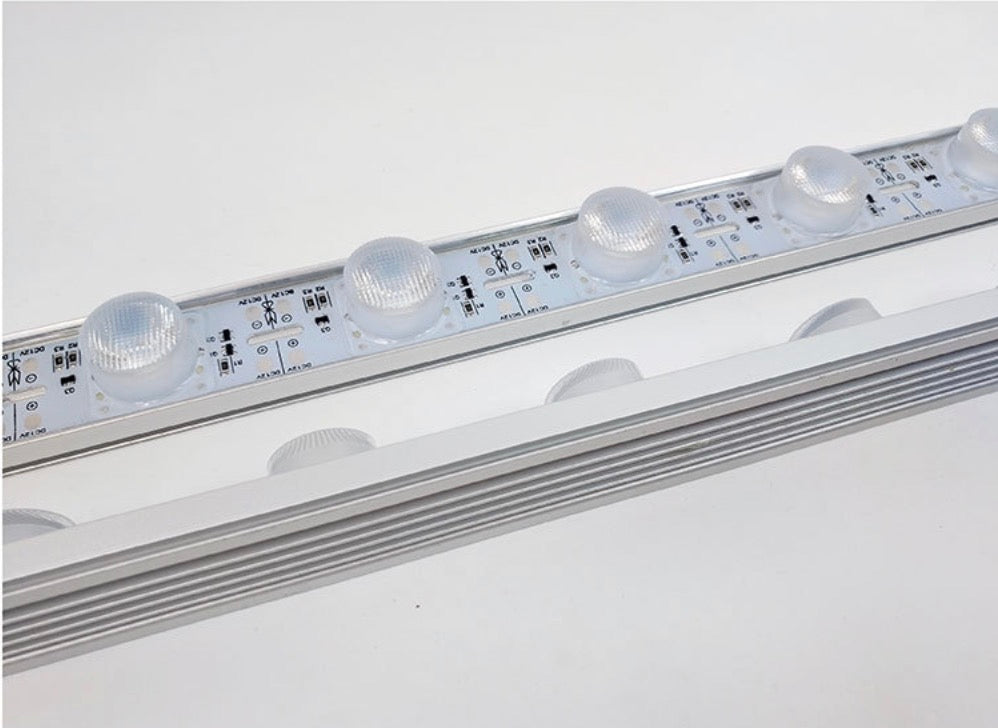

| Aluminum Channel Size | 1000 × 28 × 15 mm |
| Beam Angle | 120° |
| Operating Temperature | -20°C ~ +50°C |
| Material | PCB Board / Aluminum Channel + Gel Cover |
| Package Quantity | 10 pcs / 50 pcs / 100 pcs per pack |
| Certifications | CE, RoHS |
| Applications | Side light box, signage, shop display, architectural edge lighting, advertising frame illumination |
Safety Tips
*Always disconnect power supply before cutting/connecting LED Light Rigid Strips.
*Do not crimp or bend the Rigid Strips.
*Do not connect LED Rigid Strips directly to 120V AC power.
*Apply power to test LED Rigid Strips before mounting.
NOTEs:
1. The LED light bar in Waterproof IP65 rated, the strip both ends are prewired with waterproof DC5521 female and male plug.
2. Non-Waterproof Model with Bare Wire
Wiring Tips
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
