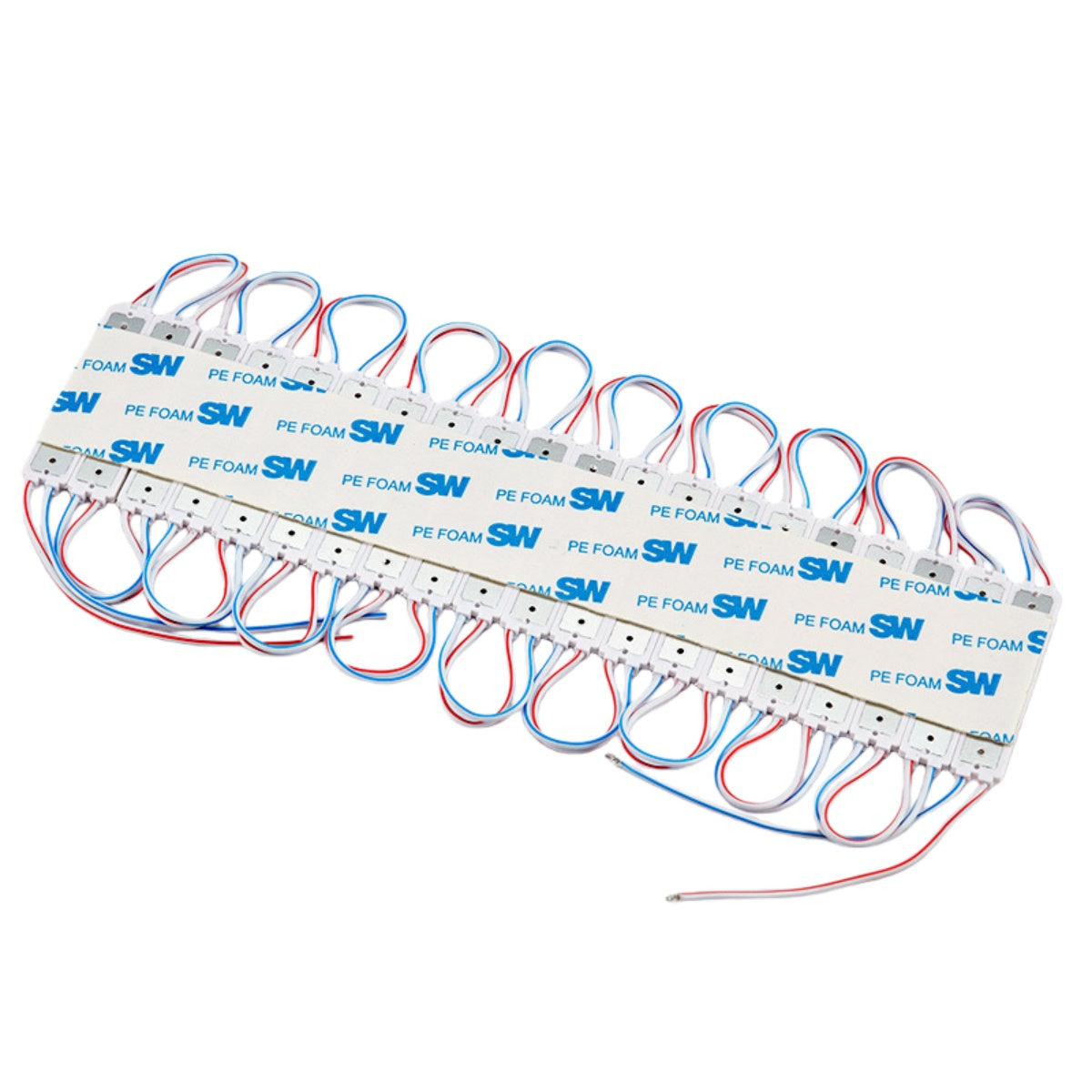

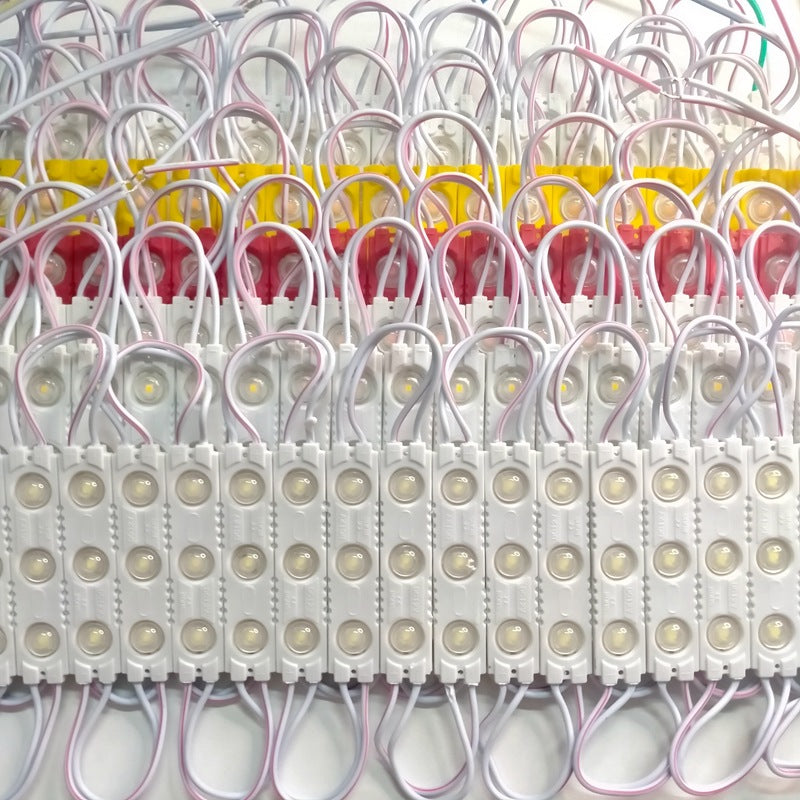

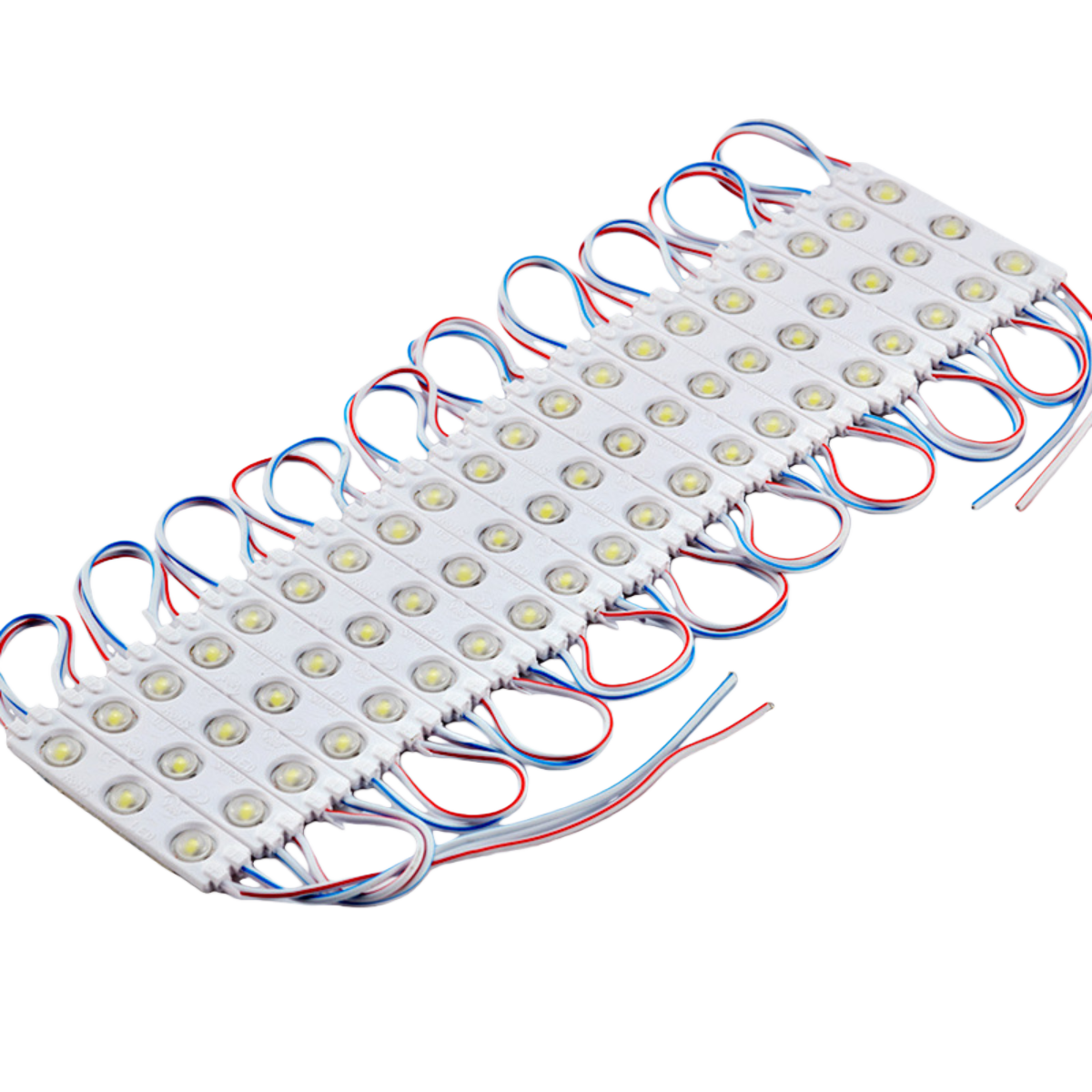

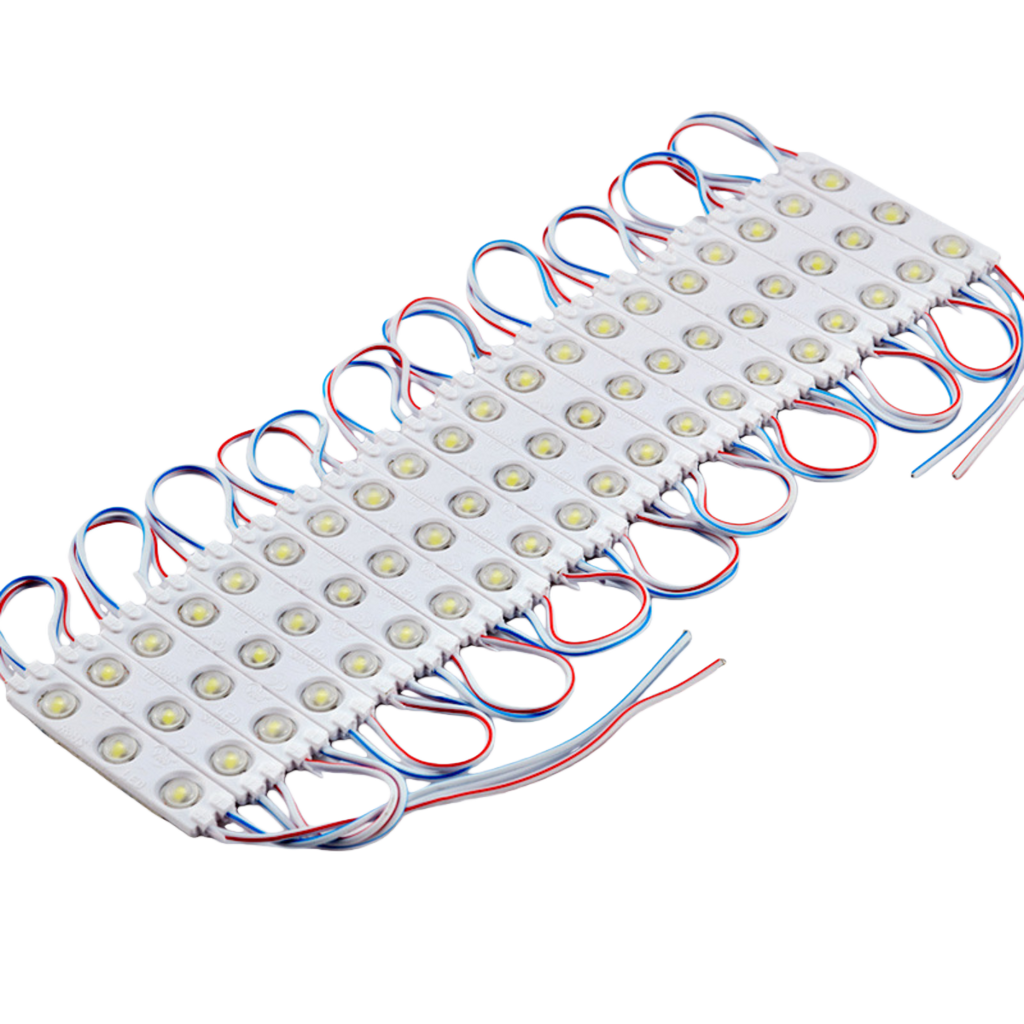

SMD2835 LED Module String – 3 LEDs/Module | 1.5 W 130 lm | 60×13 mm | DC 12 V | IP65 Waterproof with Adhesive Tape | for Light Box & Channel Letter Signage (20-pcs/String)– 11000K / 6500K / 4000K / 3000K / Red / Green / Blue / Yellow / Pink
Package Included:
| Version | Package Included |
| 5 String Pack | 5 String (20pcs/String) Total 100pcs LED Modules |
| 50 String Pack | 50 Strings (20pcs/String) Total 1000pcs LED Modules |
| 100 String Pack | 100 Strings (20pcs/String) Total 1000pcs LED Modules |
Order & Logistics:
Lead Time
- Ships directly from headquarters. Handling time 3–5 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
- Packing: Cardboard box, sealed with anti-static bag
Product Features
-
High-Brightness SMD2835 LED Modules
Each module integrates 3 high-efficiency SMD2835 LEDs, delivering 130 lumens at only 1.5 W, ensuring bright and uniform illumination with minimal power consumption. -
Compact & Easy Installation
With a slim 60×13 mm design and built-in adhesive tape, the modules can be quickly mounted onto various surfaces — ideal for channel letters, light boxes, and signage projects. -
Wide Color Range for Creative Designs

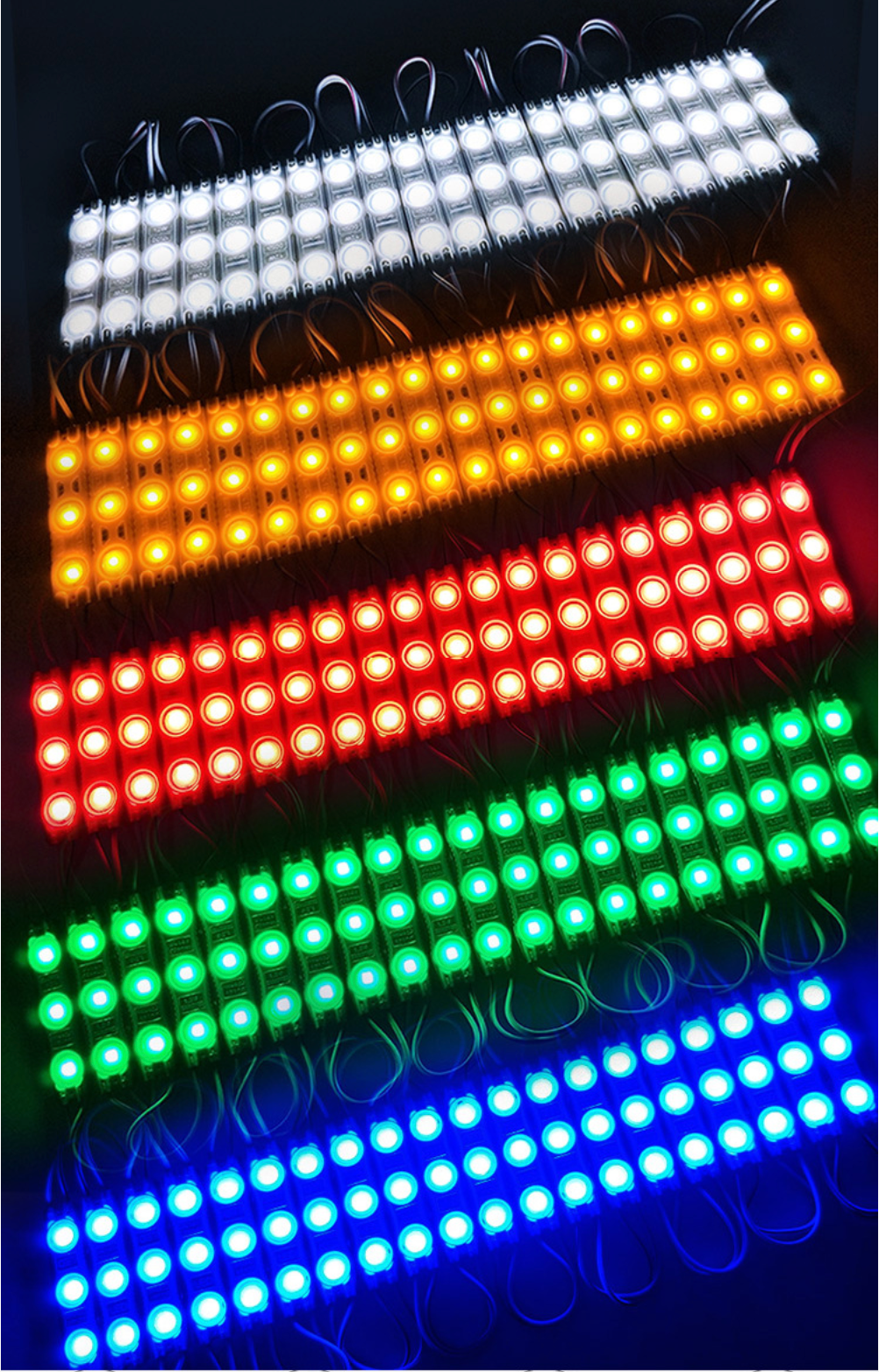

Available in multiple color options — 11000 K / 6500 K / 4000 K / 3000 K / Red / Green / Blue / Yellow / Pink — perfect for brand customization, retail displays, or decorative lighting. -
Waterproof & Durable Design
Built with IP65 waterproof protection and high-quality ABS/PVC housing, the LED modules withstand outdoor environments, resisting rain, dust, and UV exposure for long-lasting performance. -
Flexible Packaging Options for Any Project Size
Choose from 5-string (100pcs), 50-string (1000pcs), or 100-string (2000pcs) packs — easily scalable for small retail signs or large commercial lighting installations.
Product Specification
| Item | Specification |
| Product Name | SMD2835 LED Module String (20pcs per string) |
| LED Type | SMD2835 × 3 per module |
| Power per Module | 1.5 W |
| Luminous Flux per Module | Approx. 130 lm |

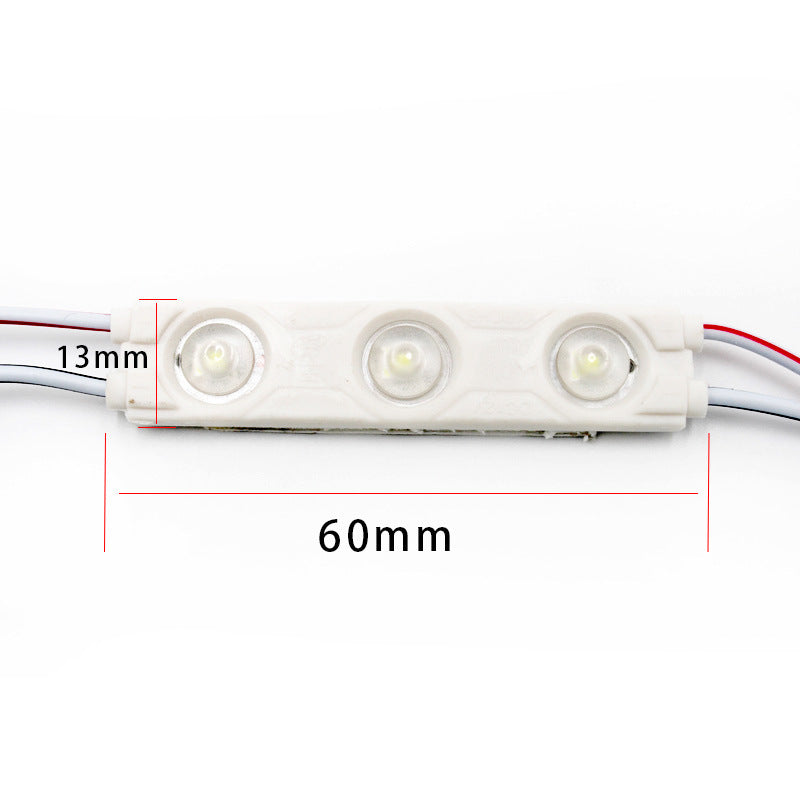

| Module Size | 60 mm × 13 mm |
| Working Voltage | DC 12 V |
| Beam Angle | 160° |
| Waterproof Rating | IP65 |
| Material | PVC / ABS with clear lens |
| Mounting Method | 3M self-adhesive backing |
| Color Options | 10000 K / 6500 K / 4000 K / 3000 K / Red / Green / Blue / Yellow / Pink |
| Working Temperature | -20 °C ~ +60 °C |
| Package Quantity Options | 5 Strings (100 modules), 50 Strings (1000 modules), 100 Strings (2000 modules) |
| Typical Applications | Channel letters, light boxes, illuminated signage, retail display lighting, architectural accent lighting |
| Lifespan | > 30,000 hours |
| Warranty | 2 years |
| 10000K Cold White | 6500K Pure White | 3000K Warm White |
 |
 |
 |
