Description
SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm
LED Density Illustration
About this item

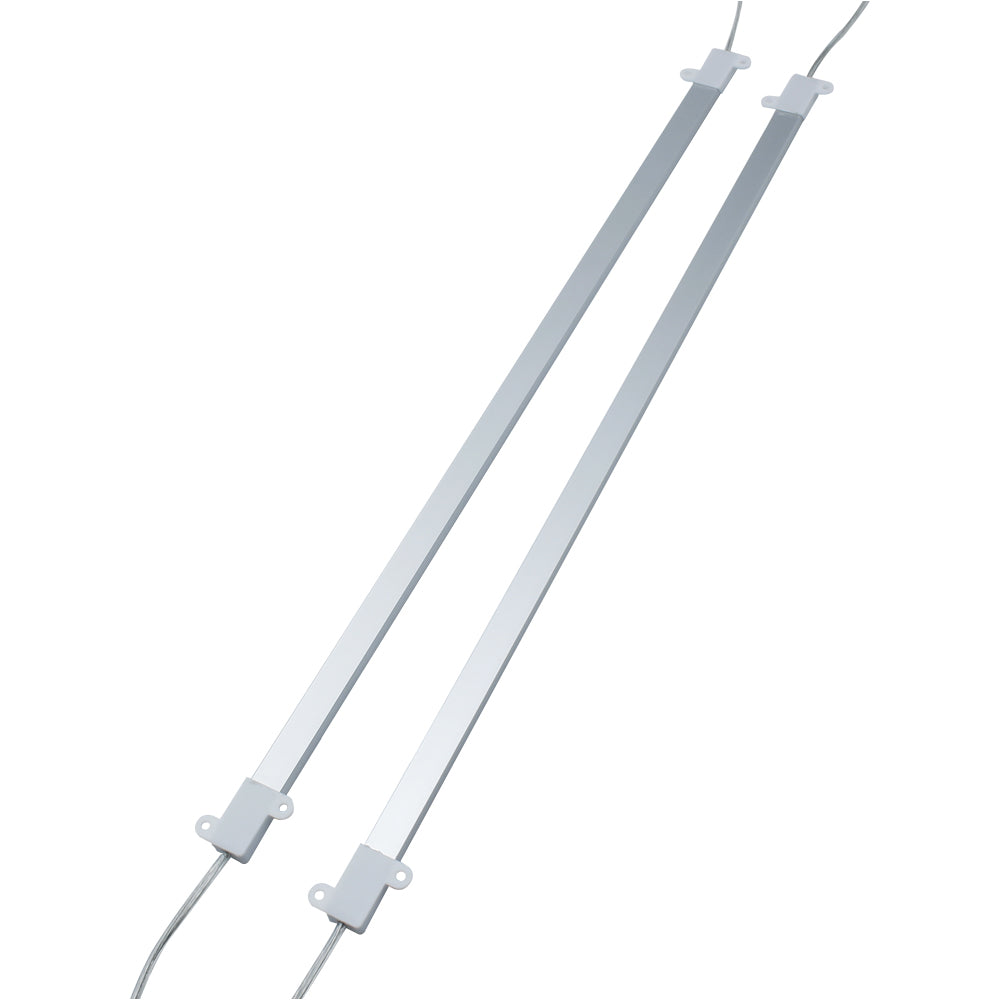

- Rigid LED strip with SMD2835 LEDs, 36 LEDs per 50cm length.
- Available wavelengths: 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm.
- Operates on DC 12V with a 120° beam angle.
- Waterproof rating: IP65, suitable for indoor and protected outdoor applications.
- Aluminum PCB for rigidity and better heat dissipation.
- Emits visible red or infrared light, suitable for a variety of specialized applications.
Technical Specification
| Specification | Value |
|---|---|
| Wattage | 4 W/pc |
| Voltage | 12V DC |
| Beam Angle | 120° |
| Dimming | Yes |
| LED Type | SMD2835 |
| Strip Section | 3 LEDs per 1.93 inch |
| WxH | 14×7 mm (excluding end cap) |
| LED Quantity | 36 LEDs/pc |
| Length Available | 500 mm (customized length available) |
| Available Color | 635 nm, 660–670 nm, 730–735 nm, 810 nm, 850 nm, 940 nm |
| Protection Grade | Waterproof IP65 |
| Finish Color | Silver |
Package Included
| Version | Package Included |
|---|---|
| 635nm | 50cm rigid LED strip |
| 660–670nm | 50cm rigid LED strip |
| 730–735nm | 50cm rigid LED strip |
| 810nm | 50cm rigid LED strip |
| 850nm | 50cm rigid LED strip |
| 940nm | 50cm rigid LED strip |
Order & Logistics
- Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
- Packing: Cardboard box.
- Shipping: From local warehouse (3–7 days) if available, or from HQ (7–25 days standard / 3–10 days express).
Other Features
| Feature | Details |
|---|---|
| Weight | 150 g/pc |
| Mounting | End cap with mounting hole; can be fixed using included screws |

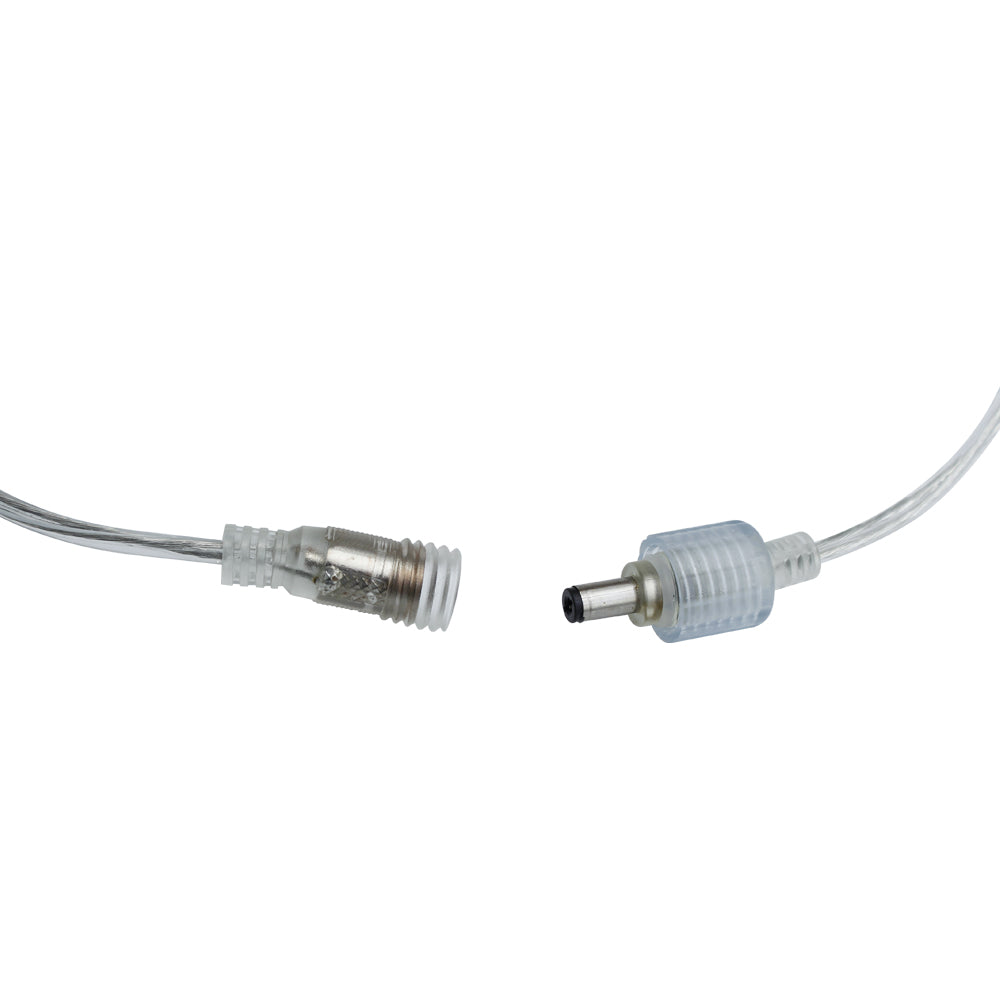

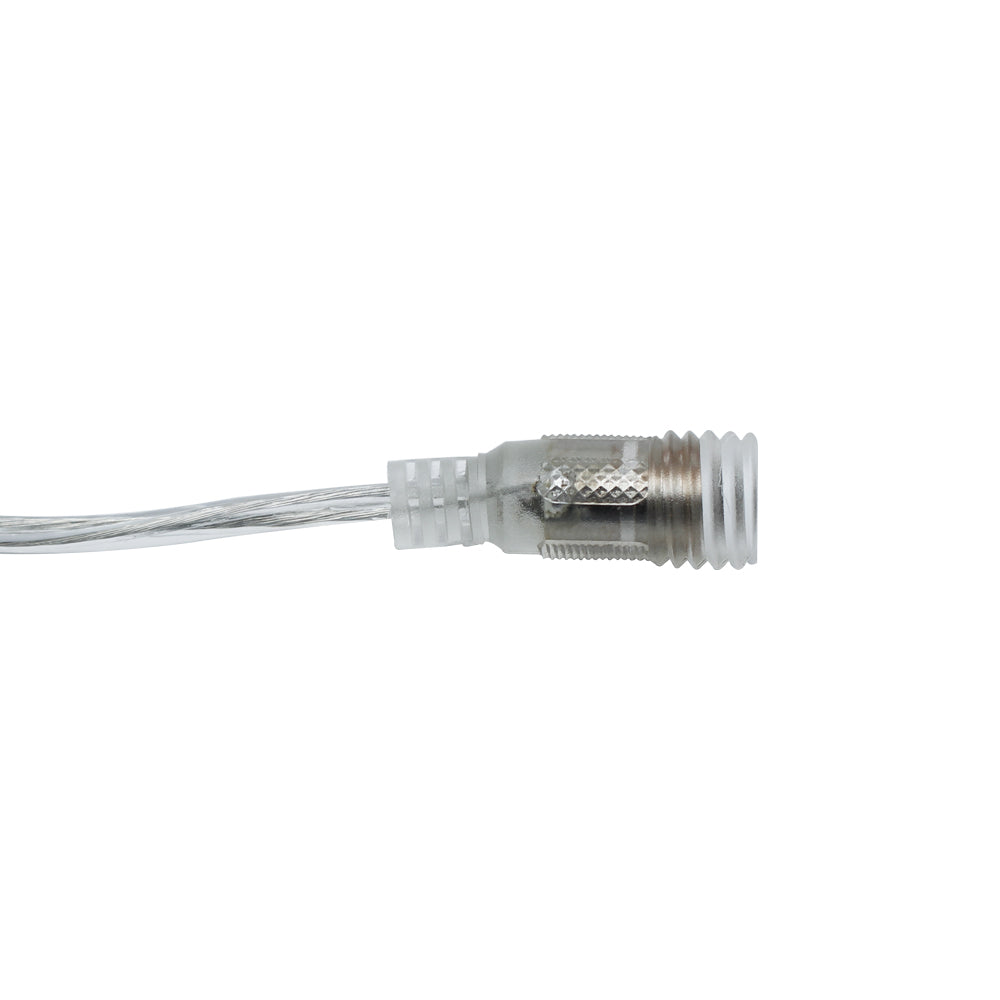

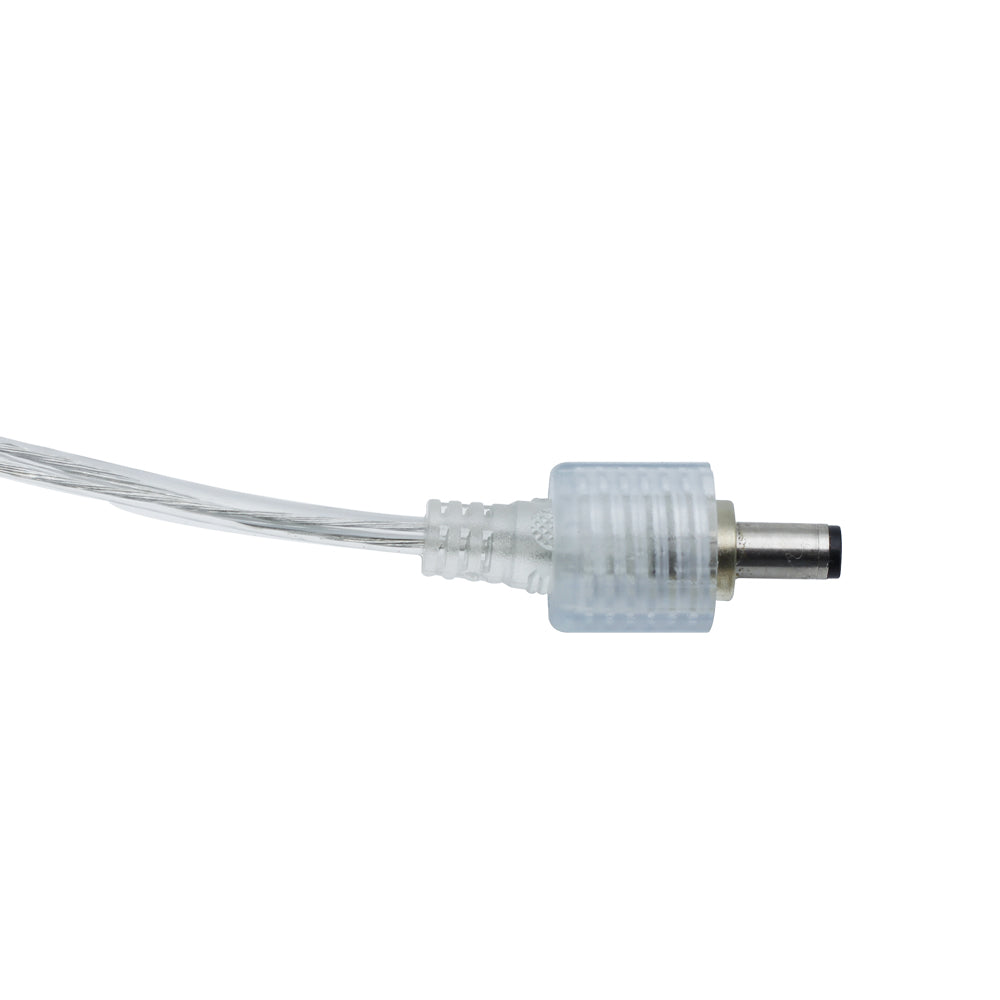

| Accessories | DC5.5×2.1 mm plug connector soldered at both ends (one female, one male) |
| Lead | V+ and V- (polarity sensitive) |
Type of LED & Waterproof IP Grade
- Waterproof IP65: Surface covered with clear silicone, protects from sprayed water from all directions.
Installation Tips
- Always disconnect power supply before connecting LED strips.
- Do not bend rigid strips to avoid damaging the PCB.
- Do not connect LED strips directly to 120V AC power.
- Apply power to test LED strips before mounting.
Applications
- Indicator lighting
- Therapy and wellness lighting
- Plant growth supplemental lighting
- Industrial and inspection lighting
