Description

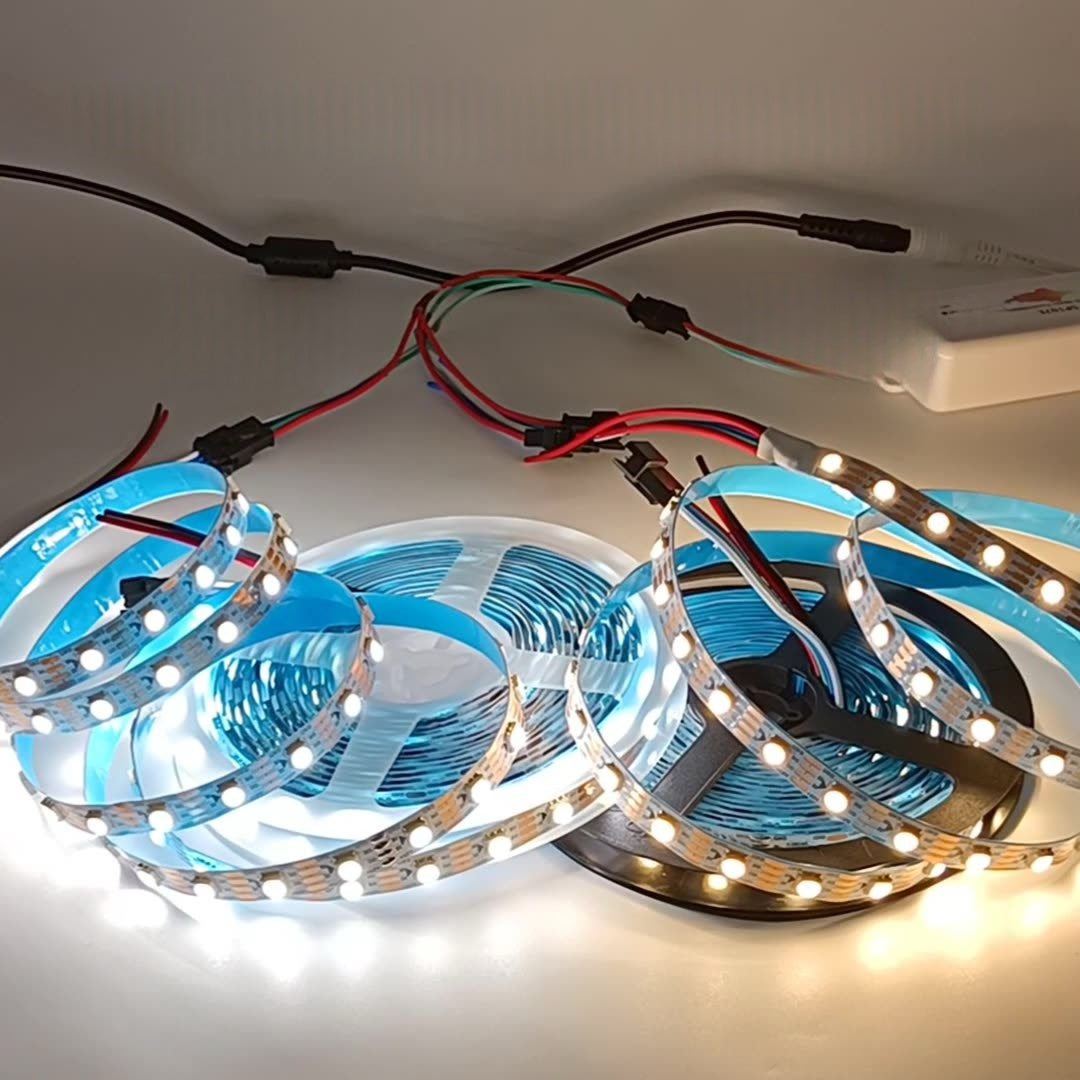

Single White IC LED Strip Light | WS2815 Individually Addressable | Breakpoint Resume | SMD5050 White | 60 LEDs/M | 5M (16.4FT) Roll | 12V DC | White/Black PCB | IP00/IP65/IP67 Options | Strip & Kit Packages
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 50 Rolls × 5 m (820 ft total) (Strip Only) | LED Strip Light Only, Do not include Power Supply and Controller |
| 1x5m Strip+ 1xController + 1xPower Supply (Complete Kit) | 1 Roll x 5m Strip + 1 x Controller + 1 x Power Supply (Complete Kit) |
Complete Kit Included:
Order & Logistics:
- Lead Time: Ships within 3–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
About this item:
- 【Important】Please ensure an SPI dimmer and a compatible power supply are available for setup. (Note: These components are not included.) Each 5m/16.4ft LED strip requires a 12V ≥60W power supply. Please connect both BI (Backup Input) and BO (Backup Output) wires ONLY to the dimmer’s signal terminals. Never attach to the negative pole. Supports 2-strip daisy chain with minimal voltage drop (dual-side power injection).
- 【WS2815 + White SMD5050 LED】This WS2815 LED Strip integrates All Chip be White color LED, White Options: 3000K Warm White, and 6000K Pure White, offering independent dual-channel operation for seamless transitions between vibrant color displays and high-precision white task lighting.
- 【Redundant Signals, Breakpoint Resume】Equipped with redundant signal lines (BI/BO) , this WS2815 pixel LED strip can automatically bypass damaged LEDs to maintain uninterrupted data flow. Even if individual pixels fail, downstream LEDs continue operating at full functionality—ideal for large-scale installations requiring zero downtime.
- 【12V DC Operation, Individual Addressable】Our WS2815 addressable RGB+W strip works at DC12V, has 60LEDs/m density. Dual-end JST connectors with independent power cables simplify wiring. Each WS2815 IC integrates into 5050 SMD for point-to-point control, totally 300LEDs, 300 pixels. (5m/16.4ft per roll)

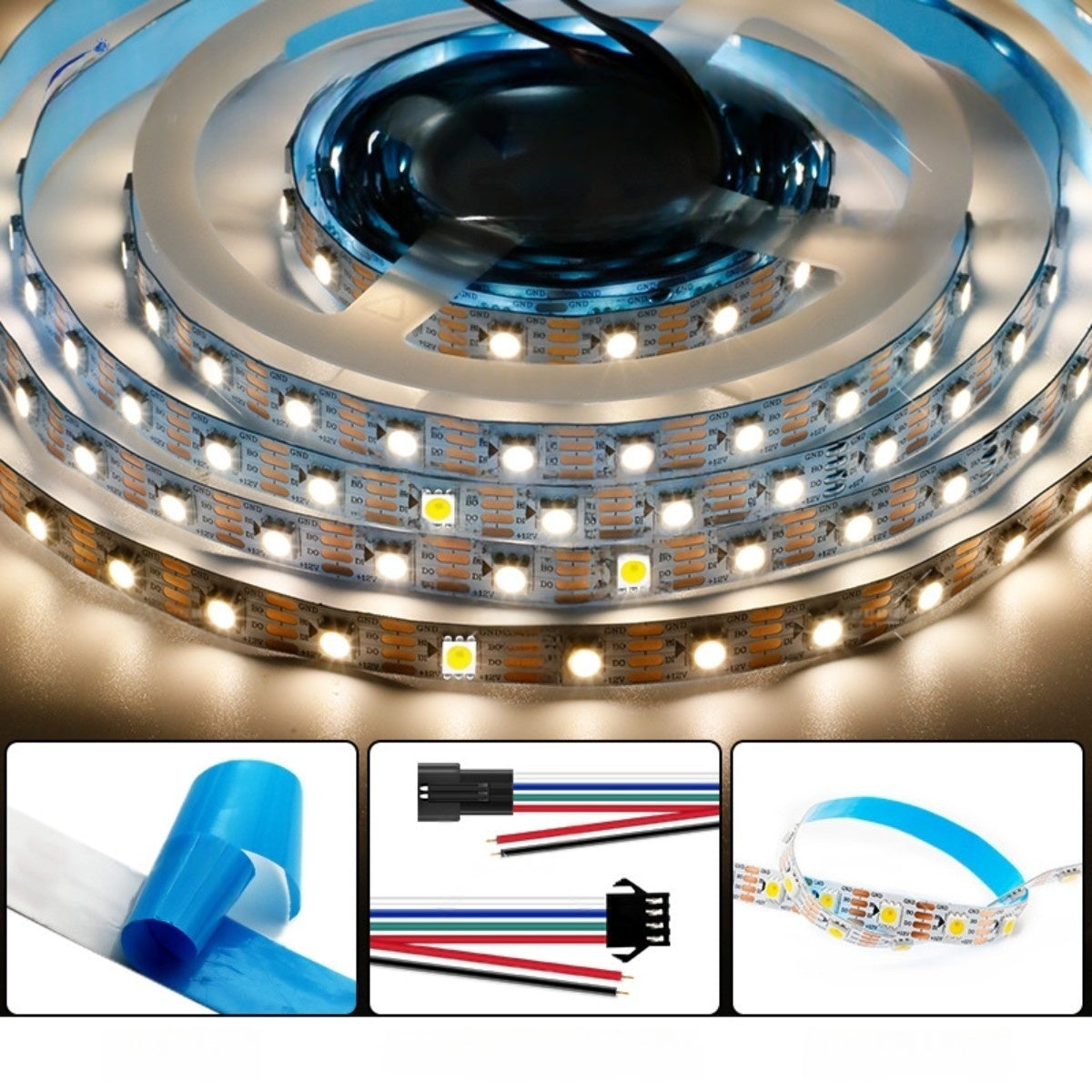

- 【Adhesive Back, Wide Applications】Pre-installed with strong adhesive, this strip sticks securely on curved or uneven surfaces. Cut every 16.6mm/0.65in at marked points for length adjustment. Ideal for vibrant party lighting, retail displays, and task lighting.
Specification for the LED Strip:
| Indoor/Outdoor Usage | Indoor/outdoor |
|---|---|
| Special Feature | Dimmable, Linkable, Adjustable |
| Light Source Type | White Color SMD5050 LED with built-in WS2815 IC |
| Power Source | DC12V |

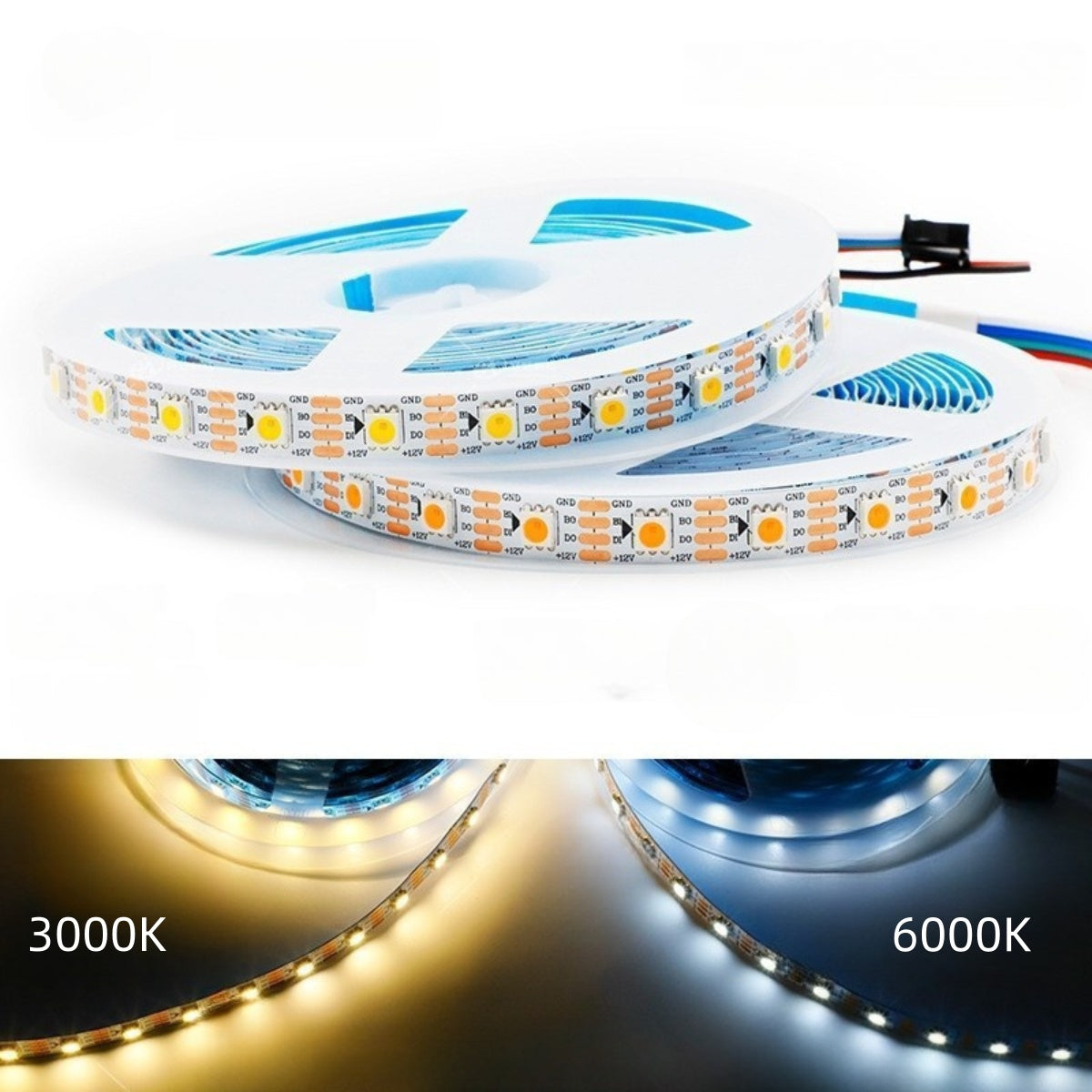

| Light Color | 6000K, 3000K |
| Theme | Engineering, Christmas, Car, Halloween, Boat |
| Occasion | New Year, Signboards and eaves, Anniversary, Birthday, Congratulations |
| Style | Flexible |
| Material | FPCB White or Black |
| FPCB Width | 10mm |
| Number of Light Sources | 300pcs |
| Voltage | 12 Volts |
| Wattage | 60 watts |
| Included Components | Connector |
| Item Weight | 150g for Non-waterproof, 250g for waterproof |
| Number of Items | 1 |
| White Brightness | 5000 Lumens |

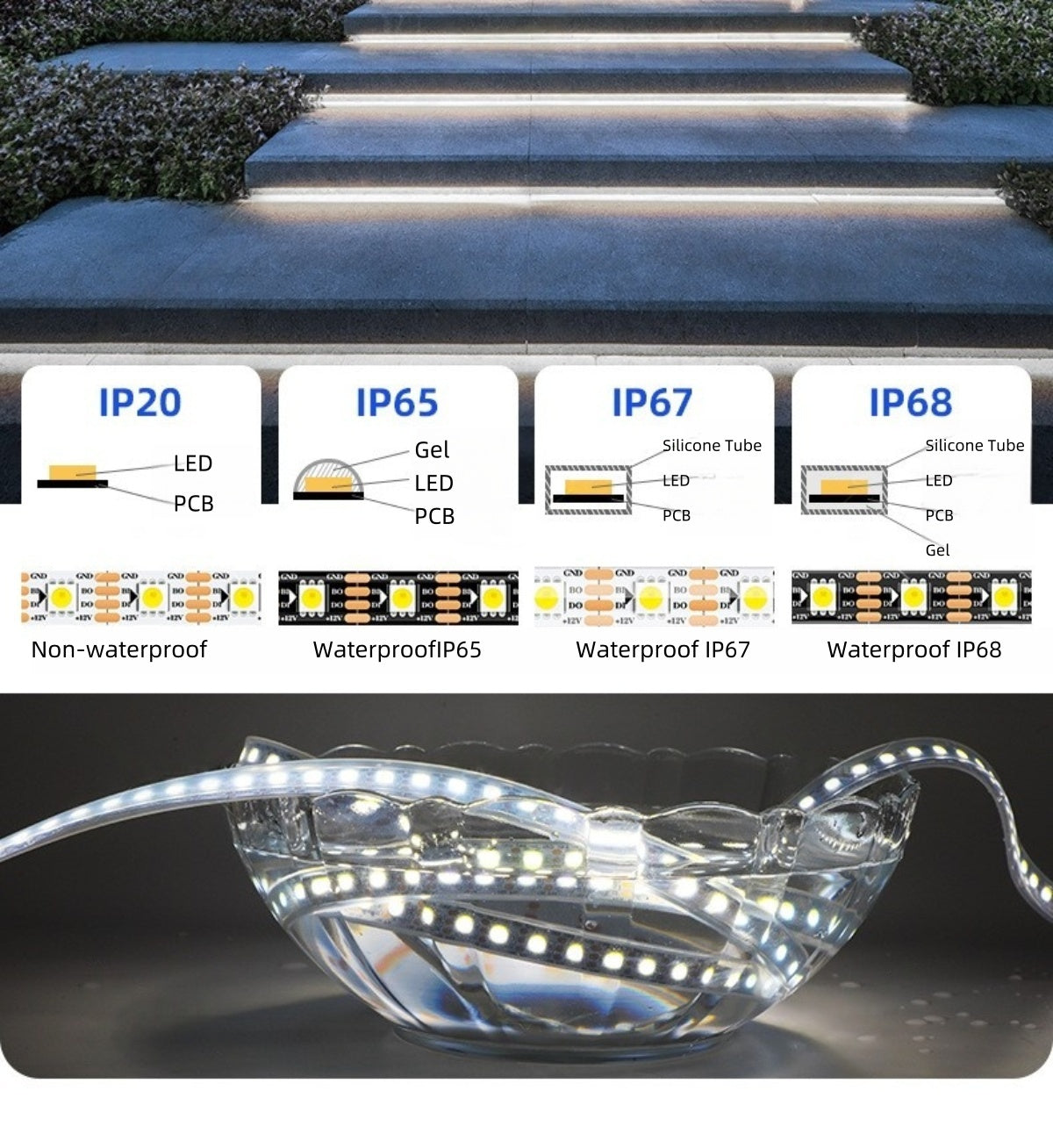

| Water Resistance Level | Not Water Resistant IP00, Waterproof IP65 and Waterproof IP67 |
The Controller
Features:
1.Supports control by the "BanlanX"and"Mi Home"App;
2.Supports voice control with“Xiao Ai”;
3.Supports 2.4G touch remote control and 2.4G touch 86-type control panel;
4.Support 600 single-wire RZ LED driver ICs;
5.Built-in a variety of pure white light dynamic effects and music effects, with multiple adjustable parameters;
6.Supports various ON/OFF animation effects;
7. With ON/OFF timer function;
8.Supports OTA firmware upgrade.
Note:Please connect to the"BanlanX"App to access more features.
Strip Details
Wiring Diagram
General Information:
