Description
RGBIC WS2811 Addressable FCOB LED Strip Light | 5m (16.4ft) Roll | Dream Color SPI | 576 / 720 LEDs per Meter | 10W / 12W | 12V / 24V | 10mm Wide | Dimmable Indoor IP20 Ribbon (Strip / Complete Kit)
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 100 Rolls × 5 m (1640 ft total) (Strip Only) | LED Strip Light Only, Do not include Power Supply and Controller |
| 1x5m Strip+ 1xController + 1xPower Supply (Complete Kit) | 1 Roll x 5m Strip + 1 x Controller + 1 x Power Supply (Complete Kit) |
Order & Logistics:
- Lead Time: Typically 1–3 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Features:
-
Individually Addressable RGBIC LEDs – WS2811 SPI technology enables stunning dream color effects, flowing animations, and dynamic patterns.
-
High-Density FCOB Lighting – Choose 576 LEDs/m (10W/m) for balanced brightness or 720 LEDs/m (12W/m) for ultra-bright, dot-free illumination.
-
12V / 24V Options – Compatible with both low-voltage systems, providing installation flexibility for different setups.
-
Dimmable & Controller Ready – Works with SPI controllers for full-color customization, dimming, and music sync effects.
-
Flexible Packaging – Available as strip-only (1 / 20 / 50 rolls) or a complete kit including strip, controller, and power supply.
Complete Kit Included:
About the Controller in the Complete Kit
SPI three-channel addressable RGB LED controller, with unique dynamic, music
and DIY effects to meet your lighting and ambiance needs.
1. Support App control and2.4G remote control;
2. Support up to 600 single-wire RZ RGB LED driver ICs;
3. Built-in a variety of music and dynamic effects, support effects pause,
multi-parameter adjustable;
4. Capture music through the phone microphone, player streamer and on-board
microphone;
5. Support effect collection;
6. support DIY effects;
7. With a variety of ON/OFF animation effects;
8. With sequential channel calibration and ON/OFF timer functions;
9. Support OTA firmware upgrade.

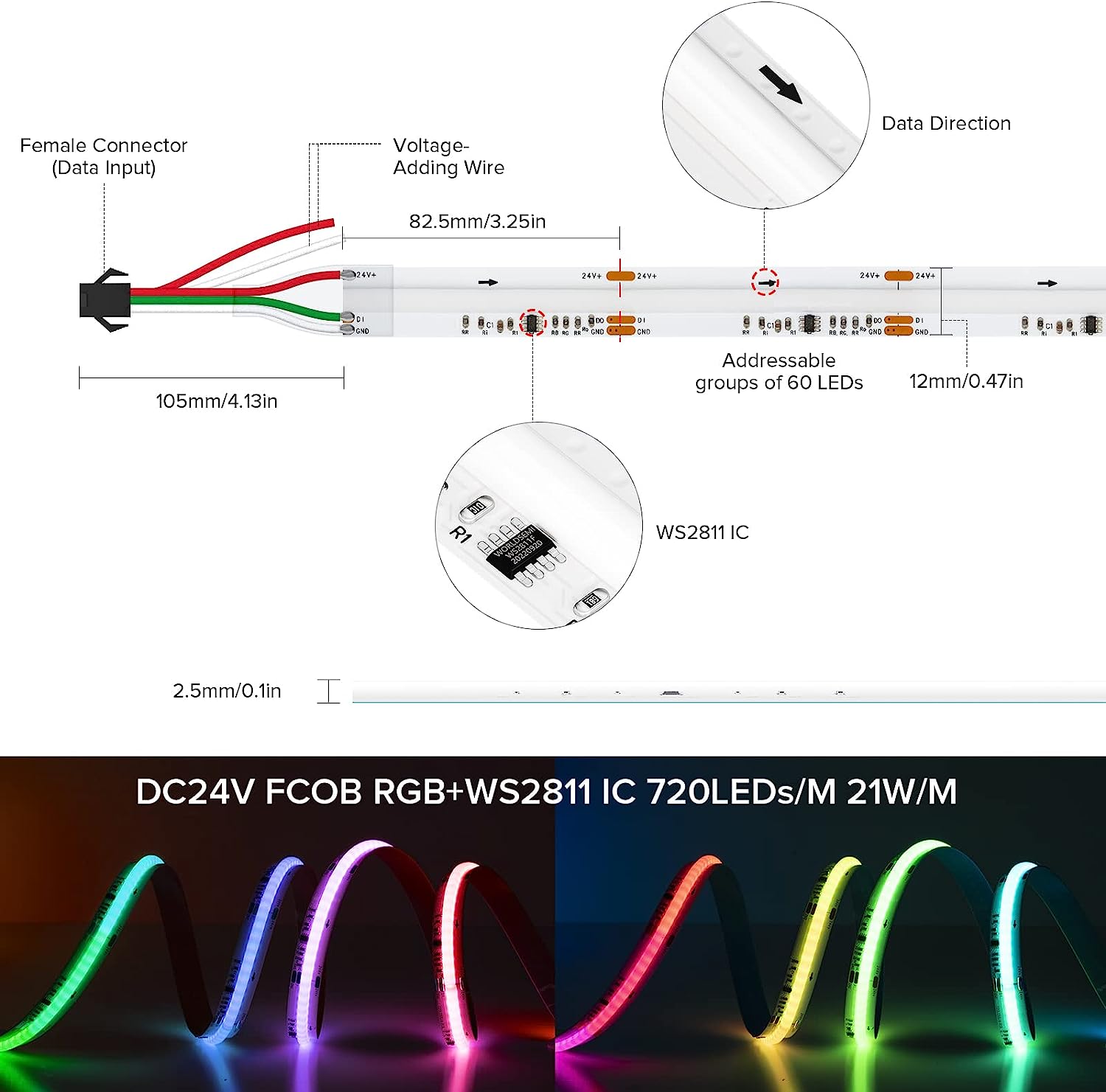

COB Strip Light Specification
| Specification | Details |
| Product Name | RGBIC WS2811 SPI Addressable Dream Color FCOB Flexible LED Strip Light |
| Length per Roll | 5m (16.4 ft) |
| LED Type | FCOB (Flip Chip-on-Board), WS2811 IC Addressable |
| LED Density | 576 LEDs/m (10W/m) / 720 LEDs/m (12W/m) |
| Power Consumption | 10W/m or 12W/m depending on density |
| Input Voltage | 12V DC / 24V DC |
| PCB Width | 10mm |
| Dimmable | Yes (via SPI controller) |
| Waterproof Rating | IP20 (Non-Waterproof, indoor use only) |
| Package Options | 1 Roll × 5m / 20 Rolls × 5m / 50 Rolls × 5m / Complete Kit (Strip + Controller + Power Supply) |
| Applications | Indoor decorative lighting, gaming rooms, signage, DIY projects, ambient mood lighting, smart home decor |
Wiring Diagram:
General Information:
Power Wiring Methods:
