Description
RGBIC LED Strip Light | WS2815 Individually Addressable | Breakpoint Resume | SMD5050 RGB | 60 LEDs/M | 5M (16.4FT) Roll | 12V DC | White/Black PCB | IP00/IP65/IP67 Options | Strip & Kit Packages
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
|
20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 50 Rolls × 5 m (820 ft total) (Strip Only) | LED Strip Light Only, Do not include Power Supply and Controller |
| 1x5m Strip+ 1xController + 1xPower Supply (Complete Kit) | 1 Roll x 5m Strip + 1 x Controller + 1 x Power Supply (Complete Kit) |
Complete Kit Included:
Order & Logistics:
- Lead Time: Ships within 3–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
-
Individually Addressable WS2815 RGBIC – Each LED is controlled independently, allowing stunning chasing, flowing, rainbow, and custom lighting effects that are impossible with regular RGB strips. WS2815 is upgraded version compare to WS2812, it has Breakpoint Continuous Transmission function.
-
Multiple Options Available – 12V DC White PCB, and select from IP00 (non-waterproof), IP65 (silicone coated), or IP67 (silicone tube waterproof) to fit indoor or outdoor installations.
-
Flexible Package Types – Available as Strip Only (1 Roll × 5M, 20 Rolls × 5M, or 50 Rolls × 5M bulk packs) or as a Complete Kit (1×5M strip with controller + power supply) for easy plug-and-play use.
-
Premium SMD5050 LEDs – High brightness and uniform color with 60 LEDs per meter (300 LEDs per 5M roll) on a durable 10mm PCB, engineered for long lifespan and consistent performance.
-
Wide Applications – Perfect for DIY projects, gaming setups, ambient room lighting, retail displays, bars, stage effects, and commercial signage, giving you professional-grade colorful lighting at home or business.
Product Specification:
1.The LED Strip
Lighting source: SMD 5050 RGB chip
Lamp power: 14.4W/M(Max)
Inout voltage: DC 12V
Emitting color: RGB Changeable.
Waterproof grade: Non-waterproof IP20, Waterproof IP65, Waterproof IP67
PCB color: White
Beam angle:120 degrees
Working temperature:-20℃- 60℃
Storage temperature: -30℃-80℃
Package information：1 roll up in a reel then put into one PC bag, finally put into the paper box.
IC driver: WS2815 （Breakpoint Continuous Transmission)
Pixel Pitch (mm):60Points per meter
Dimension:5M(L)*10MM(W)*2MM(H)
Grey Grade: 256
2. The Controller
Features:
SPI three-channel addressable RGB LED controller, with unique dynamic, music
and DIY effects to meet your lighting and ambiance needs.
1. Support App control and2.4G remote control;
2. Support up to 600 single-wire RZ RGB LED driver ICs;
3. Built-in a variety of music and dynamic effects, support effects pause,
multi-parameter adjustable;
4. Capture music through the phone microphone, player streamer and on-board
microphone;
5. Support effect collection;
6. support DIY effects;
7. With a variety of ON/OFF animation effects;
8. With sequential channel calibration and ON/OFF timer functions;
9. Support OTA firmware upgrade.

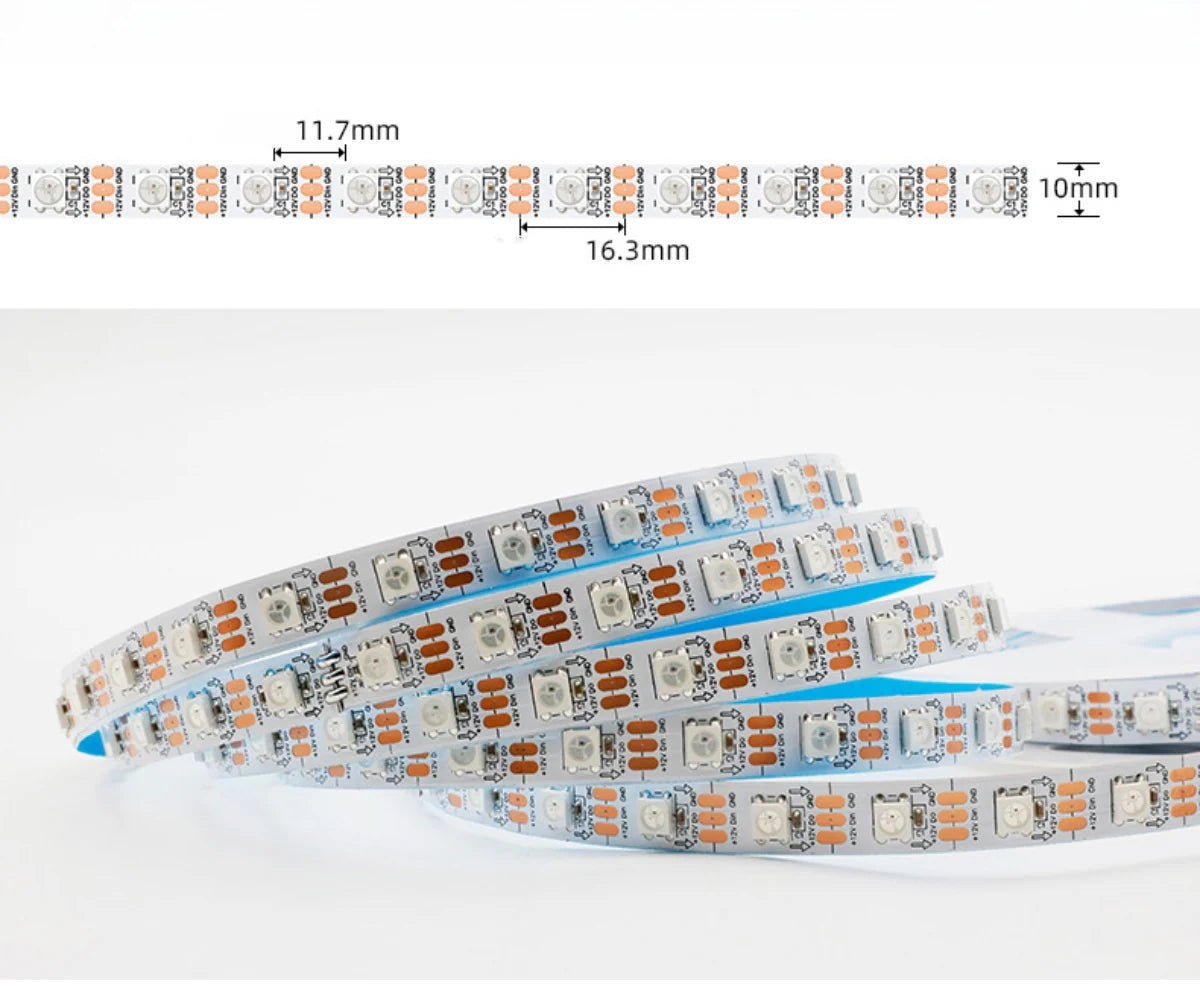

Strip Details
Wiring Diagram:
General Information:
