Description

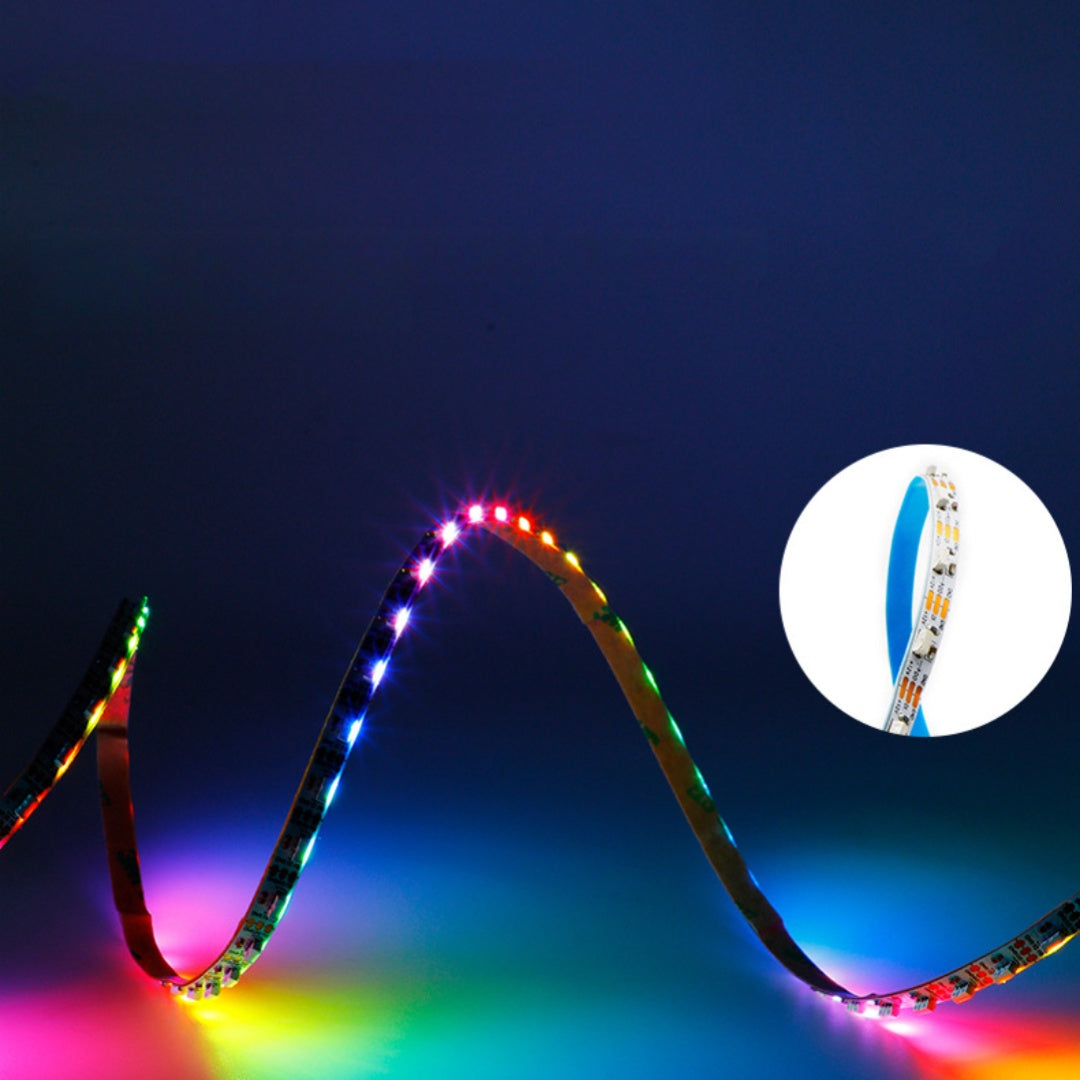

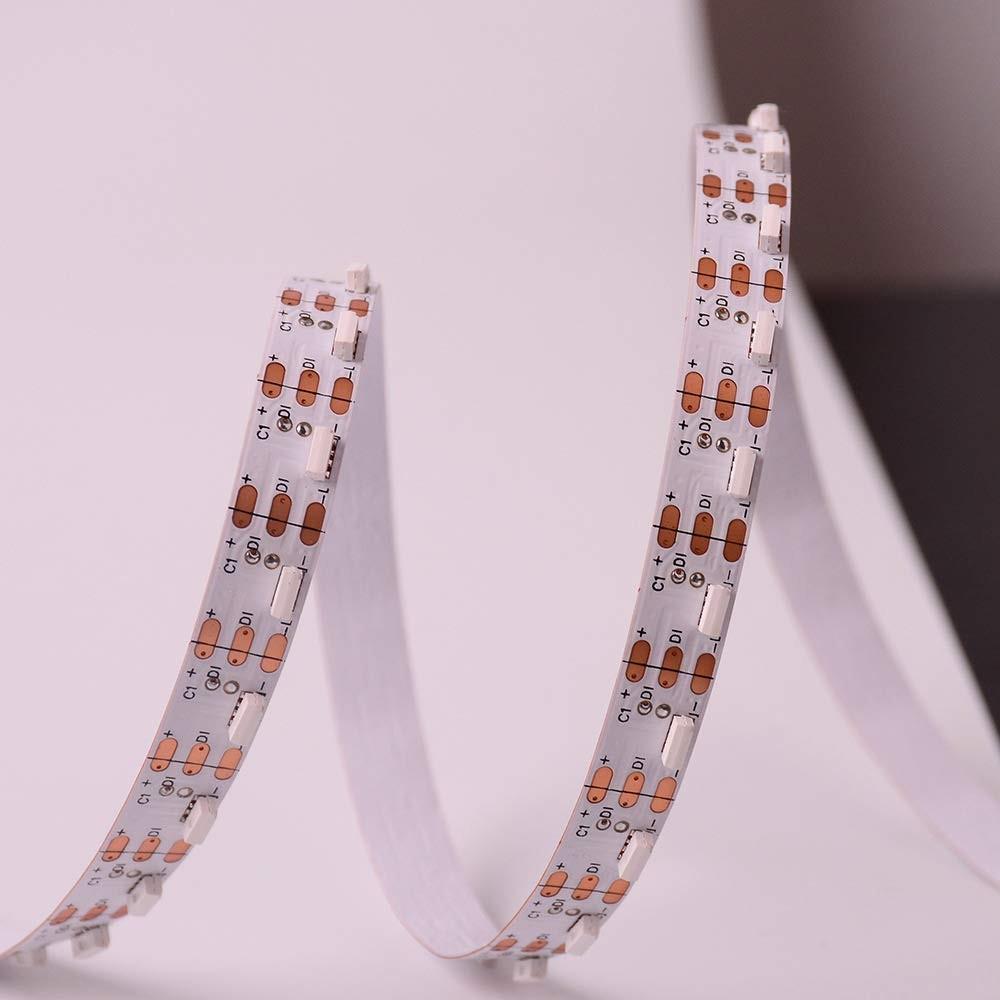

RGBIC LED Strip Light | WS2812 Individually Addressable | RGB Color | Side Emitting | SMD4020 RGB | 60 LEDs/M | 5M (16.4FT) Roll | 5V/12V DC | 5mm White PCB | Strip & Kit Packages
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 50 Rolls × 5 m (820 ft total) (Strip Only) | LED Strip Light Only, Do not include Power Supply and Controller |
| 1x5m Strip+ 1xController + 1xPower Supply (Complete Kit) | 1 Roll x 5m Strip + 1 x Controller + 1 x Power Supply (Complete Kit) |
Complete Kit Included:
Order & Logistics:
- Lead Time: Ships within 3–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
-
Individually Addressable WS2812 RGBIC – Each LED is controlled independently, allowing stunning chasing, flowing, rainbow, and custom lighting effects that are impossible with regular RGB strips.
-
Side-Emitting SMD4020 LEDs – With 60 LEDs per meter (300 LEDs per 5M roll) on a 5mm PCB, engineered for long lifespan and consistent performance.
-
Multiple Options Available – 5V / 12V DC 5mm White PCB,
-
Flexible Package Types – Available as Strip Only (1 Roll × 5M, 20 Rolls × 5M, or 50 Rolls × 5M bulk packs) or as a Complete Kit (1×5M strip with controller + power supply) for easy plug-and-play use.
-
Wide Applications – Perfect for DIY projects, gaming setups, ambient room lighting, retail displays, bars, stage effects, and commercial signage, giving you professional-grade colorful lighting at home or business.
Product Specification:
1.The LED Strip
Lighting source: SMD 4020 RGB chip
Lamp power: 12W/M(Max)
Inout voltage: DC 12V
Emitting color: RGB Changeable.
Waterproof grade: Non-waterproof IP20, Waterproof IP65, Waterproof IP67
PCB color and width: White 5mm
Beam angle:120 degrees
Working temperature:-20℃- 60℃
Storage temperature: -30℃-80℃
Package information：1 roll up in a reel then put into one PC bag, finally put into the paper box.
IC driver: WS2812
Pixel Pitch (mm): 60 Points per meter
Dimension:5M(L)*5MM(W)*2MM(H)
2. The Controller
Features:
SPI three-channel addressable RGB LED controller, with unique dynamic, music
and DIY effects to meet your lighting and ambiance needs.
1. Support App control and2.4G remote control;
2. Support up to 600 single-wire RZ RGB LED driver ICs;
3. Built-in a variety of music and dynamic effects, support effects pause,
multi-parameter adjustable;
4. Capture music through the phone microphone, player streamer and on-board
microphone;
5. Support effect collection;
6. support DIY effects;
7. With a variety of ON/OFF animation effects;
8. With sequential channel calibration and ON/OFF timer functions;
9. Support OTA firmware upgrade.

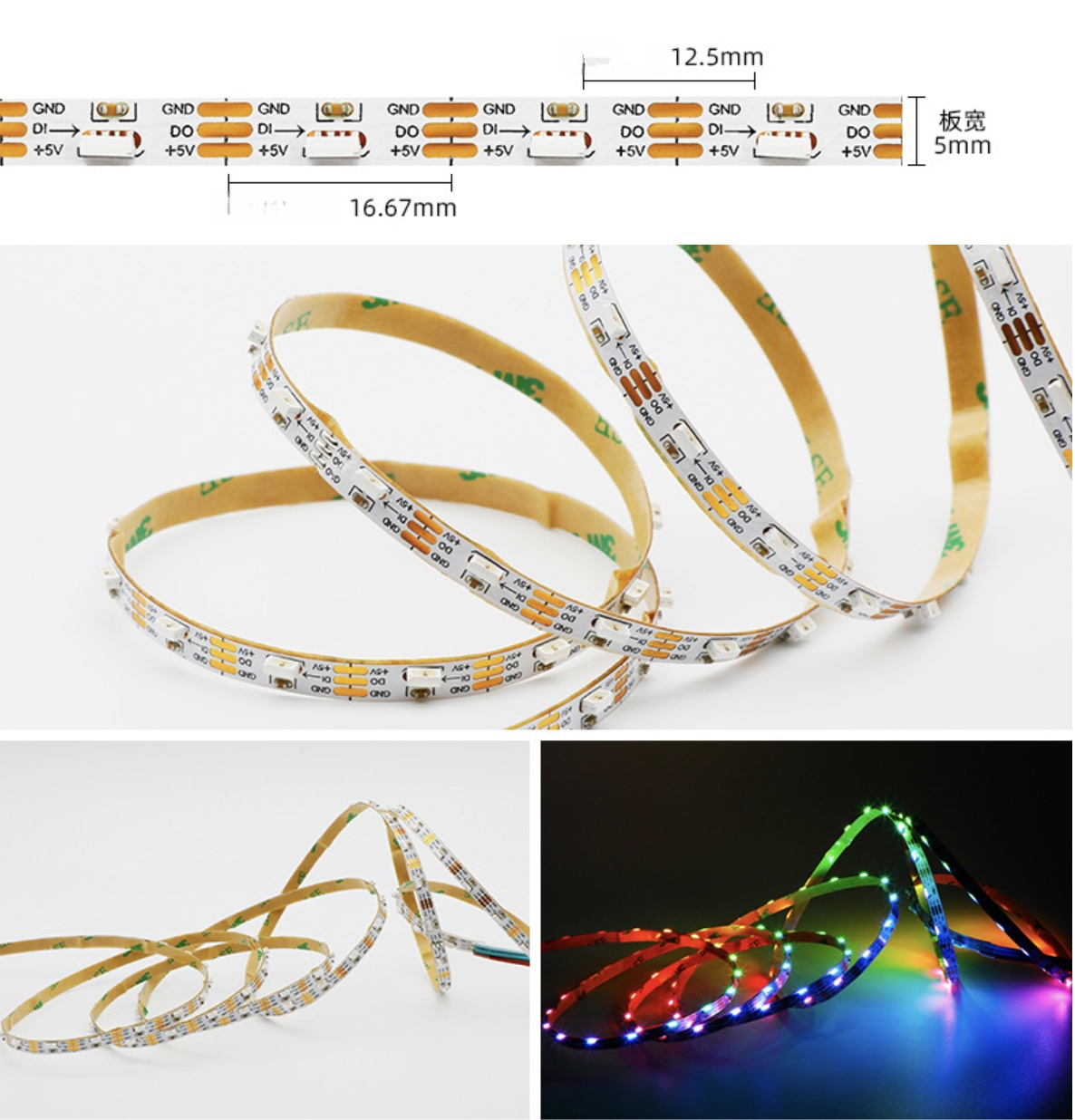

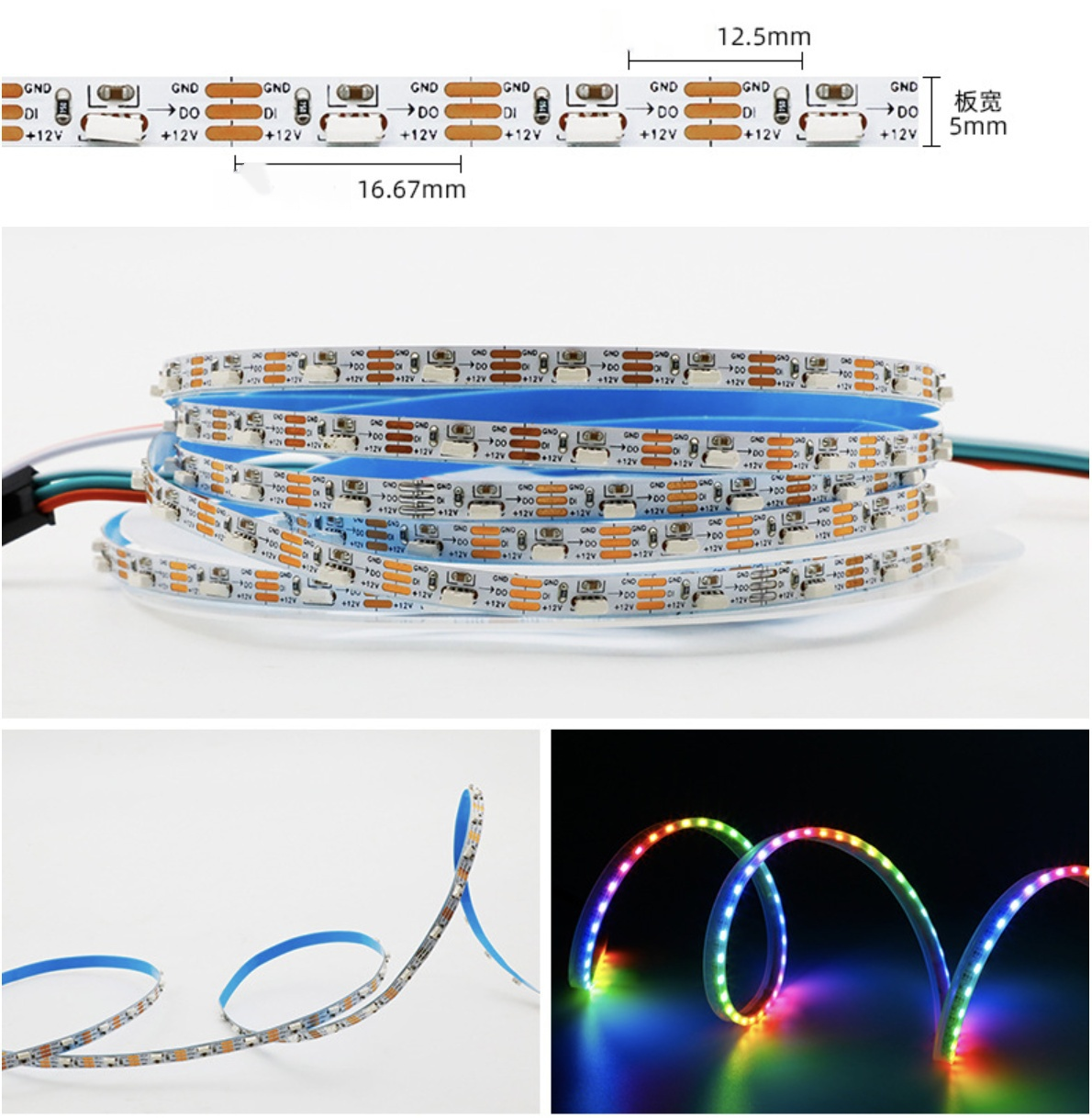

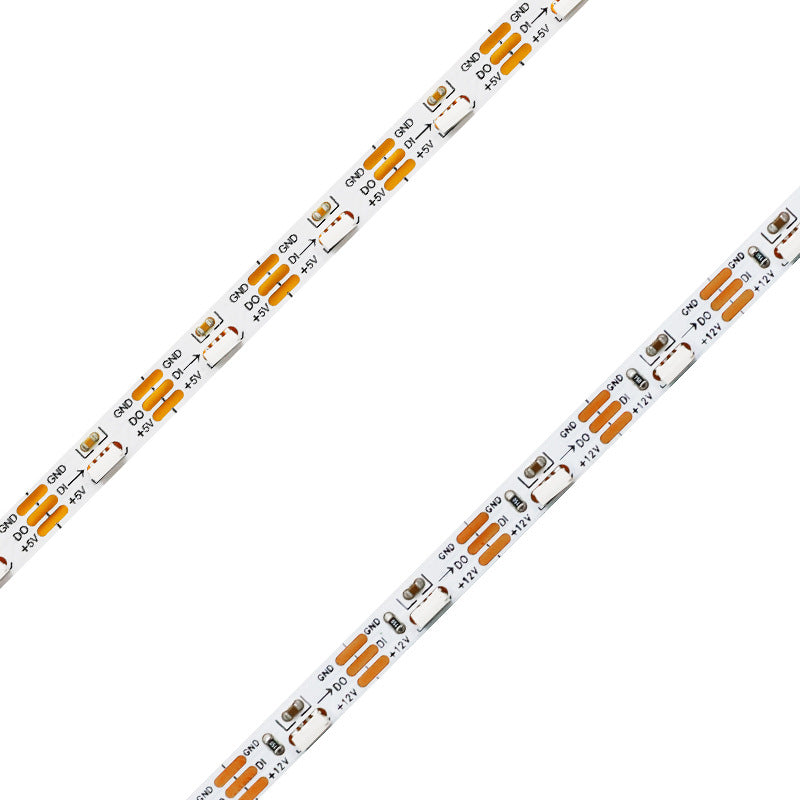

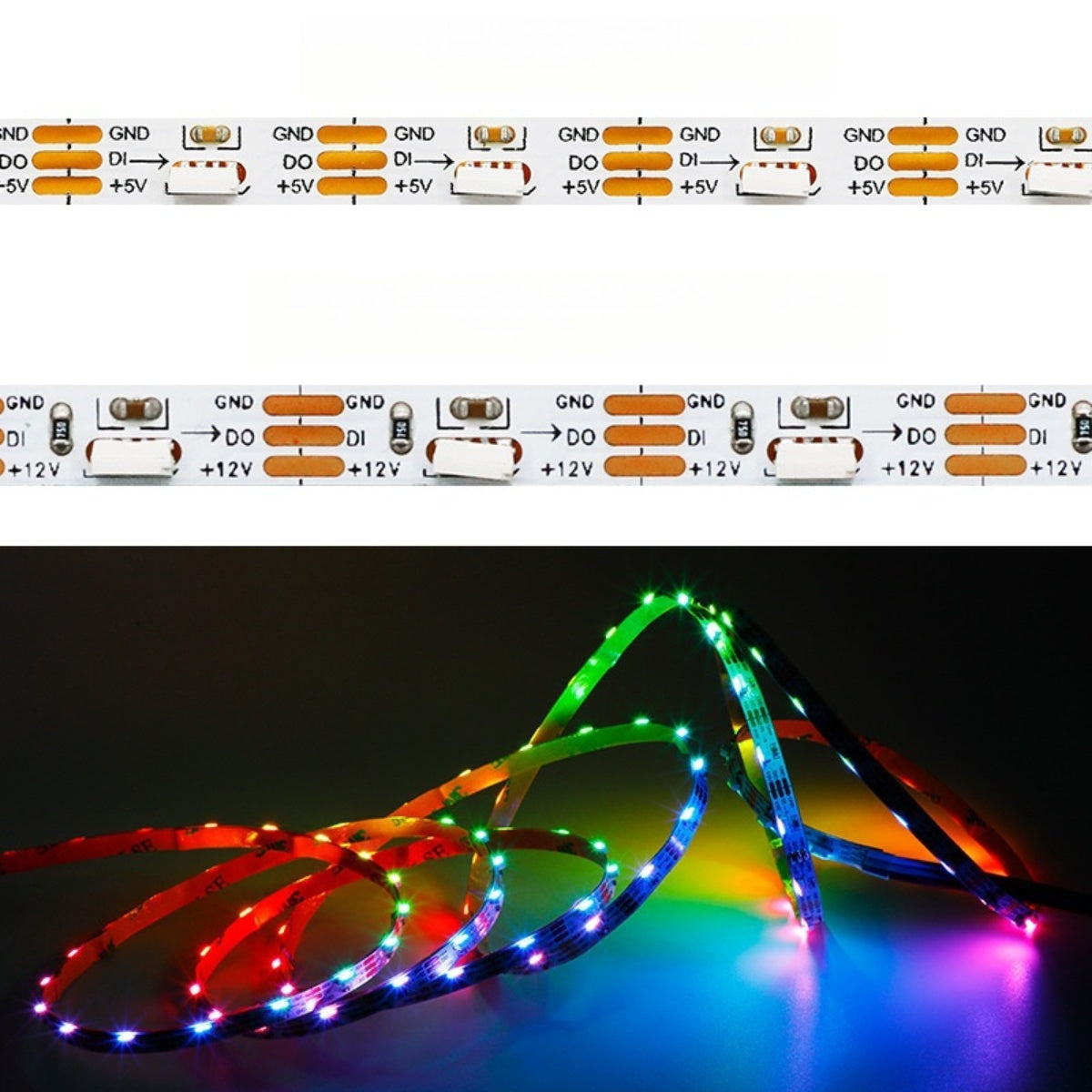

Strip Details
Wiring Diagram:
General Information:
