Description
RD Series 15.7 Inch ( Dia. 400 mm Viewable) Round LCD Display Screen, Cloud / APP / USB Disk
Package Included
| Version | Package Included |
| 15.7" Model | Round LCD Display ×1, Power Cord ×1, Remote Controller ×1 (Battery not included), Mounting Kit ×1, Honeycomb Cardboard Box ×1 |
Order & Logistics
- Lead Time: Standard 15–20 business days; if in stock, ships within 5 business days
- Packing: Hard carton box with protective honeycomb inside
- Free Shipping: Air + UPS delivery to door; typical transportation time 12–15 days after flight
- DDP TERM: All fees included; if unavailable in destination country, we will contact the buyer
Features:
- HD: HD full-view LCD display, ultra-HD resolution
- Ultra-thin: Industrial-grade appearance, reasonable design, stable and strong
- Performance: Internal heat dissipation adopts convection method, long-term load work without worry
- System: Powerful 3568 motherboard solution, equipped with Android 11 operating system
- Appearance: Unique round eye-catching shape
- Applicable: Various sizes, various shapes, suitable for various scenarios
- Customization: Various lengths and widths, various parameters, source factory, fully equipped, support OEM/ODM
Parameters (Download Datasheet) |
||
| The Screen | Model | YXLCD-15.7‘’ |
| LCD screen specifications | Brand new original LCD panel | |
| Viewing angle | 89/89/89/89 | |
| Color | 16.7M, 72% NTSC | |
| Refresh rate | 60HZ | |
| Display area | 400*400 mm | |
| Screen size | 15.7‘’ | |
| Brightness | 700cd/m2 | |
| Contrast ratio | 1000:1(TYPIC, different OC contrast ratios vary, subject to actual conditions) | |
| Lifespan | 50000H | |
| Resolution | 960*960 | |
| Control Board | Chip | RK3568 |
| CPU | Quad-core ARM Cortex-A55, 2.0G | |
| RAM | 2G | |
| System | Android 11 | |
| GPU | Mali-G52 Quad-core | |
| ROM | 16G (customizable) | |
| Interface | Headphones, HDMI out, RJ45, HDMI IN, USB 3.0*2, DC-IN | |
| Network | Gigabit wired network port; support 2.4G wireless network access (2.4G/5G dual-band optional); Bluetooth; support 3G/4G wireless module | |
| Physical Features | Frame material | Sheet metal/profile |
| Body color | Black | |
| Frame color | Black and other options available | |
| Tempered glass | Default: None, optional 3mm explosion-proof tempered glass | |
| Dimensions | Φ453 * 61.2mm | |
| Touch Function (Optional) | Touch type | Capacitive touch |
| Minimum recognition | 6mm | |
| Writing surface screen hardness | 7H | |
| Response time | ＜25ms | |
| Number of touch points | 20 points | |
| Input method | Finger, capacitive pen | |
| Communication method | Full-speed USB | |
| Touch accuracy | ±1.5mm (more than 90% touch area) | |
| Power Consumption | Power input voltage | DC 12V |
| Device power | ≤50W | |
| Standby power | <1W | |
| Working Environment | Input voltage | AC110-220V/DC12-24V |
| Usage environment | Temperature ‐0℃~55℃/Humidity 10%RH~90%RH | |
| Standby power consumption | ≤1W | |
| Storage environment | Temperature ‐5℃~60℃/Humidity 10%RH~90%RH | |
| Language | OSD | English / Chinese |
| Accessories | Power cord*1, Wall Hanging Hardware *1 | |

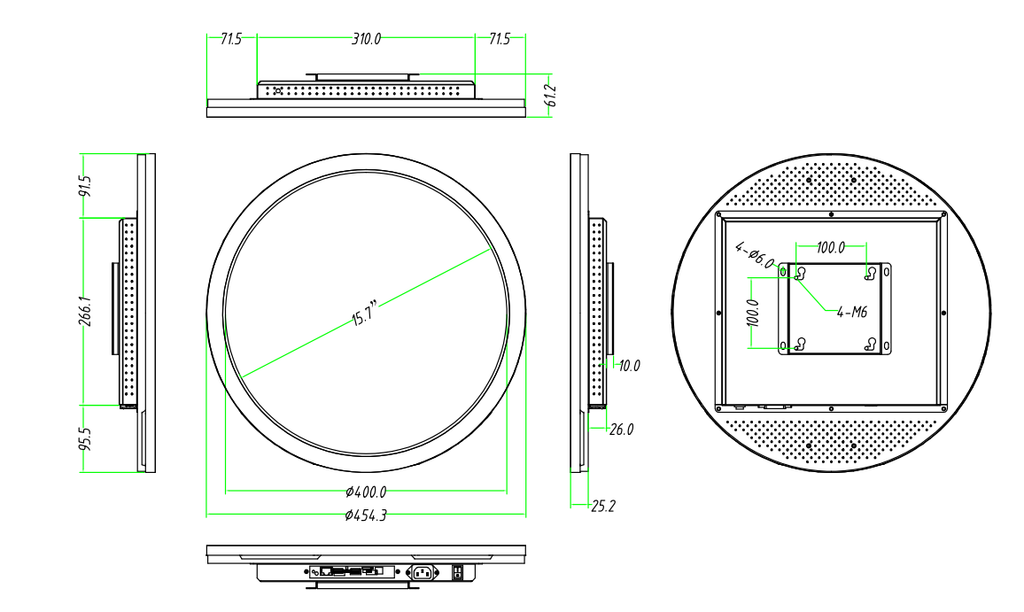

Dimension (unit: mm)
Usage Notes / Installation Tips
|
Send Program via Cloud Platform |
Send Program via LEDArt | Play Program via U-disk/SD card |
|---|---|---|
| Login cloud platform Create and edit programs Send programs to the device NOTE: The device mode needs to be adjusted to networking mode and associated with the cloud platform account. Cloud server address: http://www.led-cloud.cn / http://www.led-cloud.com
|
Run mobile APP LEDArt Create and edit programs Send program to the device NOTE: The device mode needs to be adjusted to stand-alone mode, and the mobile phone is in the same local area network
|
Save programs into U-disk or SD Card Insert U-Disk or SD Card Playback program automatically NOTE: The device mode needs to be adjusted to stand-alone mode, and the system format of the U-disk/SD Card needs to be FAT32
|
