P6.25 Flexible Transparent Holographic LED Film Screen, Brightness >3000NITS -One Square Meter Price

1 Square Meter P6.25 Flexible Holographic LED Screen Price

Features

* High transparency and structure-less design make the direct viewing transparency rate as high as over 80%, allowing people to barely feel the existence of the screen while appreciating the displayed content.
* The holographic invisible screen is light and beautiful, and the screen body is as light as 6KGS/㎡.

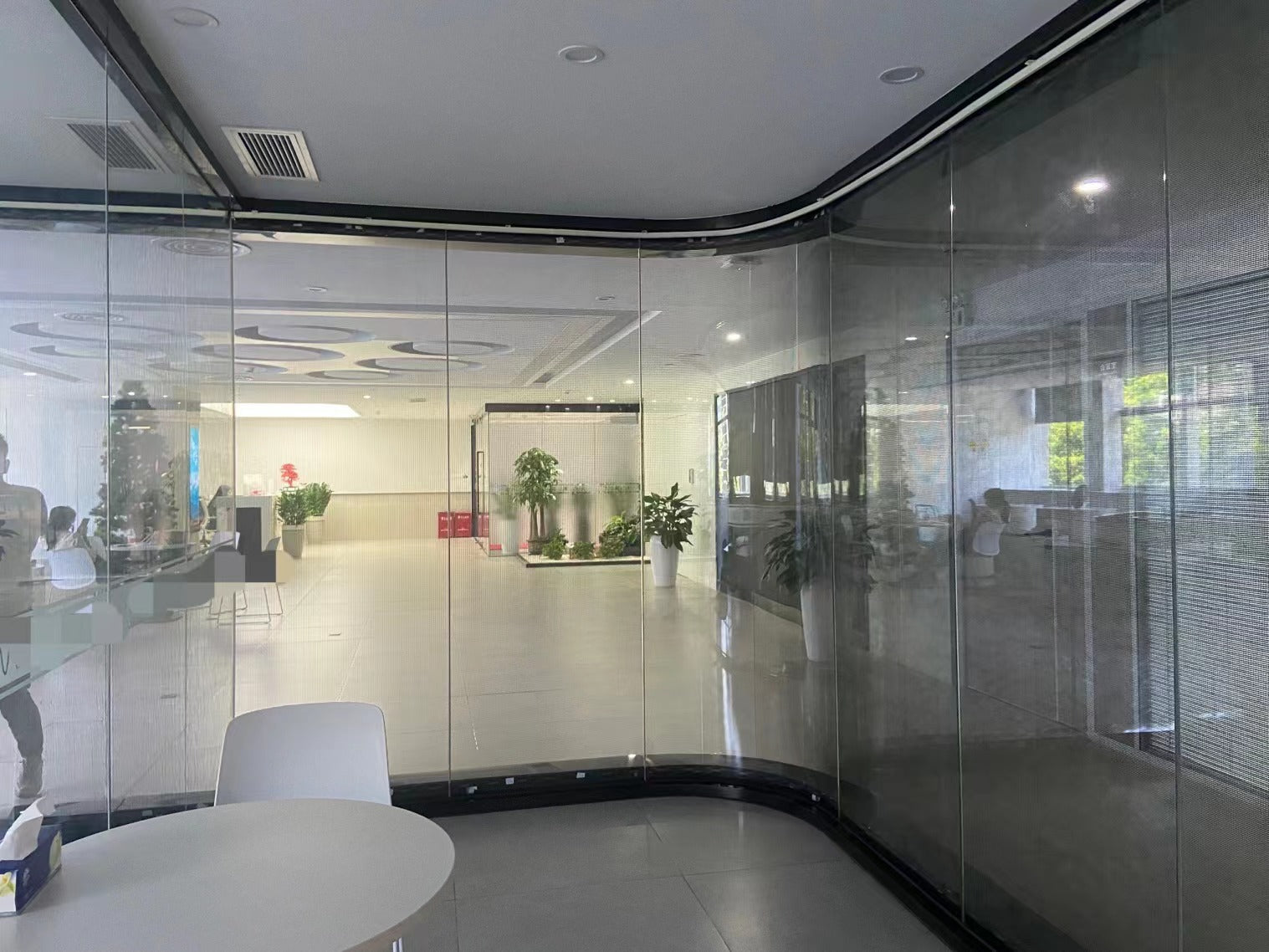

* The thickness is as thin as less than 2mm, which fits perfectly on the transparent glass and integrates with the building structure without destroying the beauty of the original building.
* Its module is cleverly designed, bendable, cuttable, and flexible, and can adapt to display needs of various shapes and sizes.

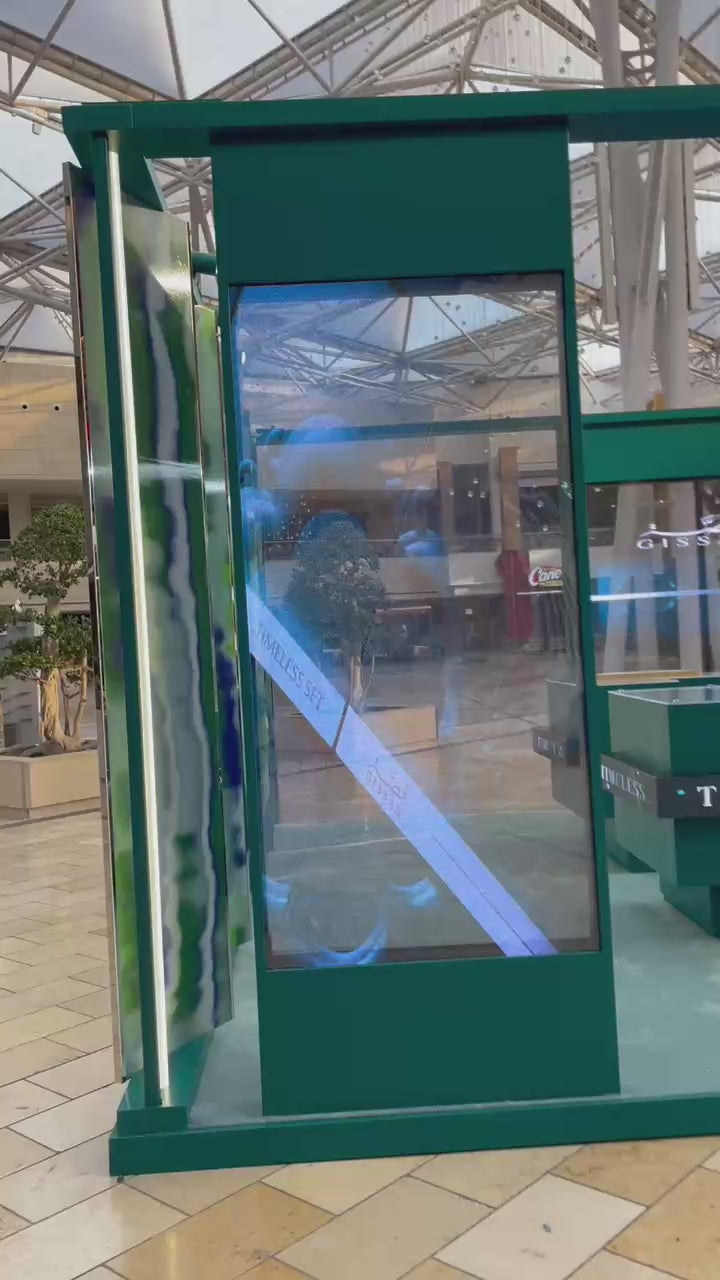

Application:

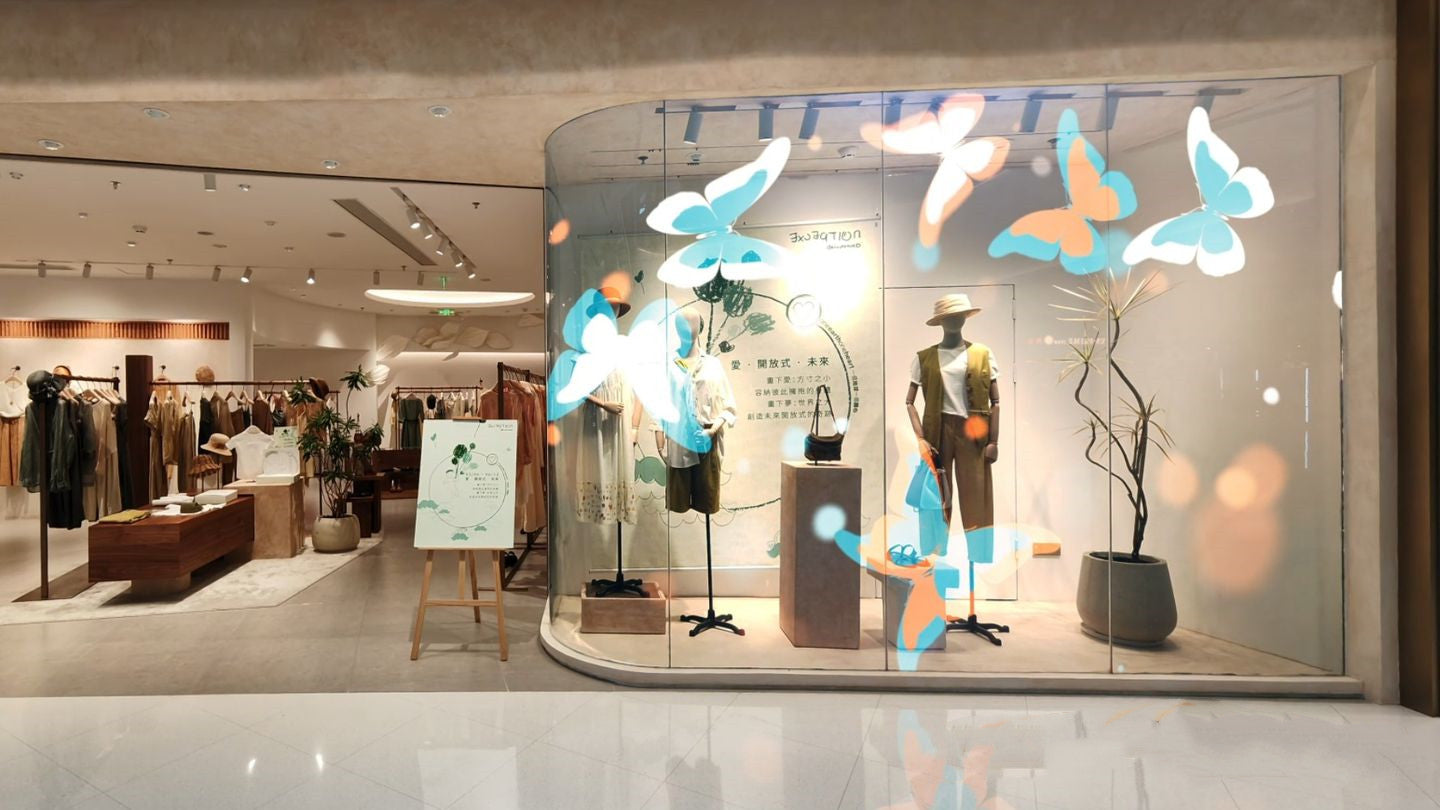

The application fields of holographic invisible screens are very wide. Whether in commercial displays, advertising, entertainment performances or glass curtain walls, holographic invisible screens can bring people a shocking visual experience. Its emergence not only brings new possibilities to display technology, but also injects new vitality into the development of all walks of life.

Specification

#	Name	Parameter
1	Pixel  Pitch  (H/V)	W:6.25;H:6.25mm
2	LED  Configuration	SMD1415   1R1PG1PB      UV
3	Pixel  Density	25600dot/㎡
4	Transparency	>80%
5	Drive  Scheme	18  aisle
6	Scan  method	0  Scan(4  layer  PCB)
7	Refresh  Rate	3840Hz

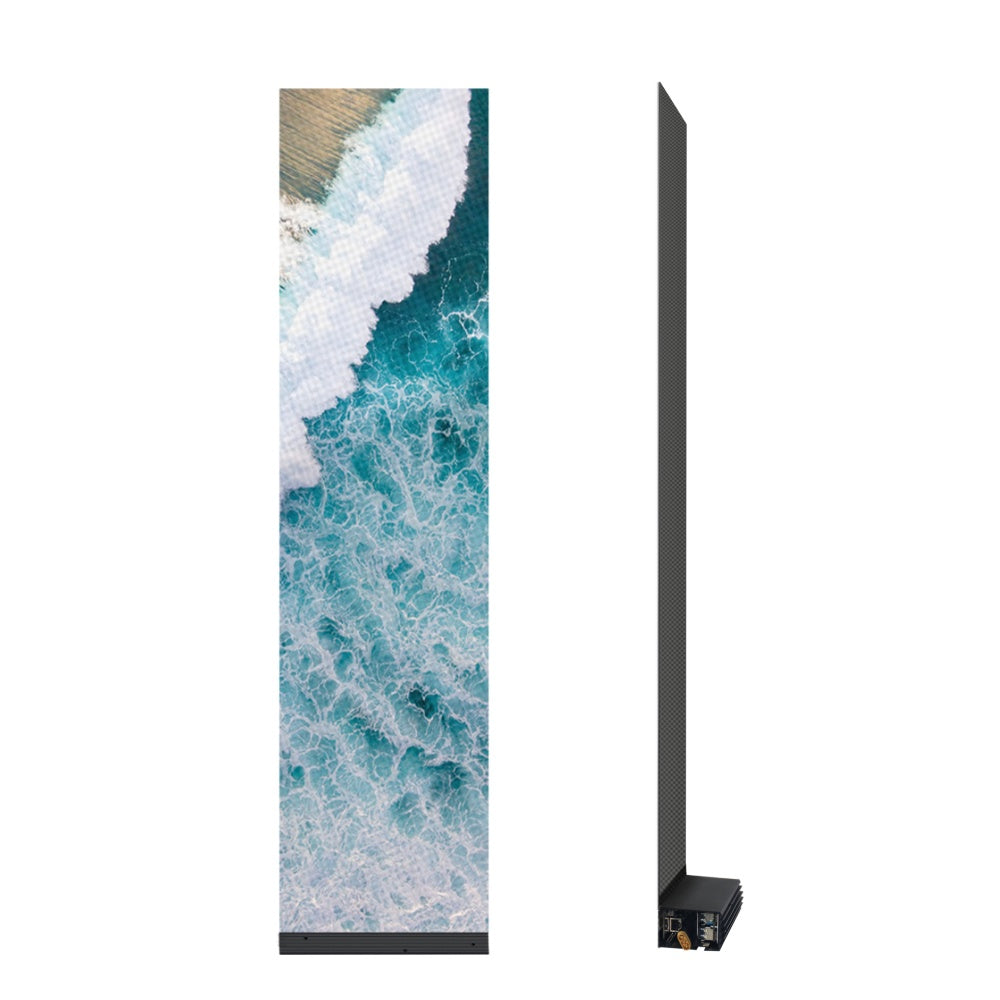

8	Module  Size	1025X250mm （L/R）
9	Module  Resolution	164X40dot
10	Cabinet  Weight	6kg/㎡
11	IP  Rating   (  front/back)	IP42
12	Brightness	>3000nits/㎡ (can adjust to 5000nits max)
13	Viewing  Angle   (H/V)	160 °/140 °
14	Viewing  Distance	6m
15	Gray  Scale	16bit
16	Max.Power  Consumption	1200W/m²
17	Ave.Power  Consumption	450W/m²
18	Environment	indoor
19	Control  Mode	Universal, Control System Brand: Novastar
20	Support  Input	Universal
21	Operation  Power	AC100_240V,50/60Hz
22	Operating  Temperature	﹣10℃~40℃(work)
23	Operating  Humidity	35%～85%   (work), 10%～90%
24	Operating  Life	100,000hours

Products Details

Customized Sizes Get creative with unique shapes and aspect ratios. Leverage custom sizes to maximize visual impact and seamlessly integrate displays.

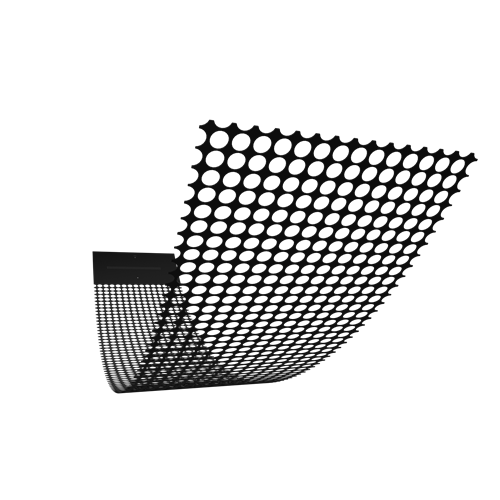

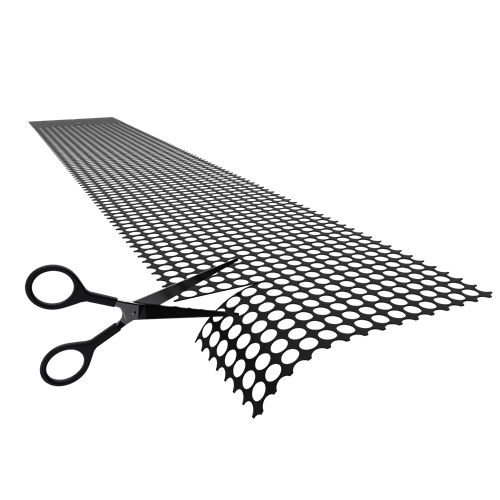

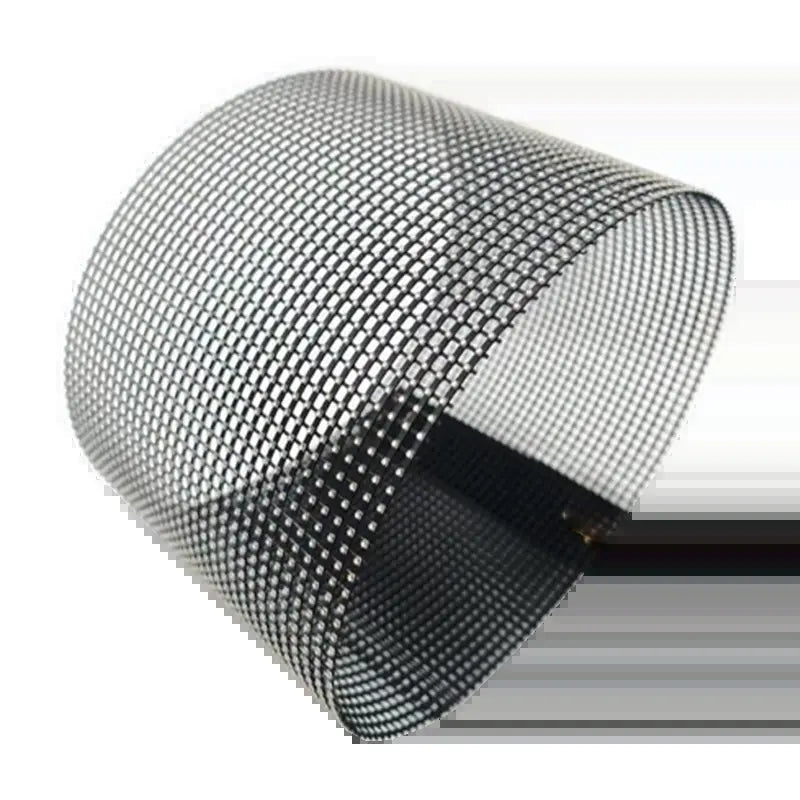

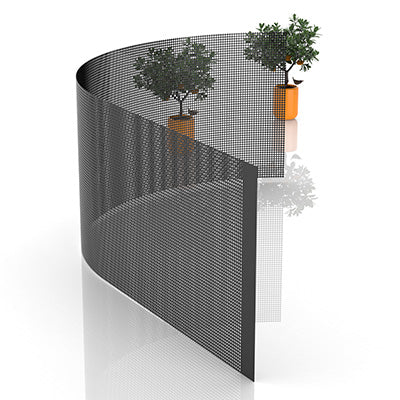

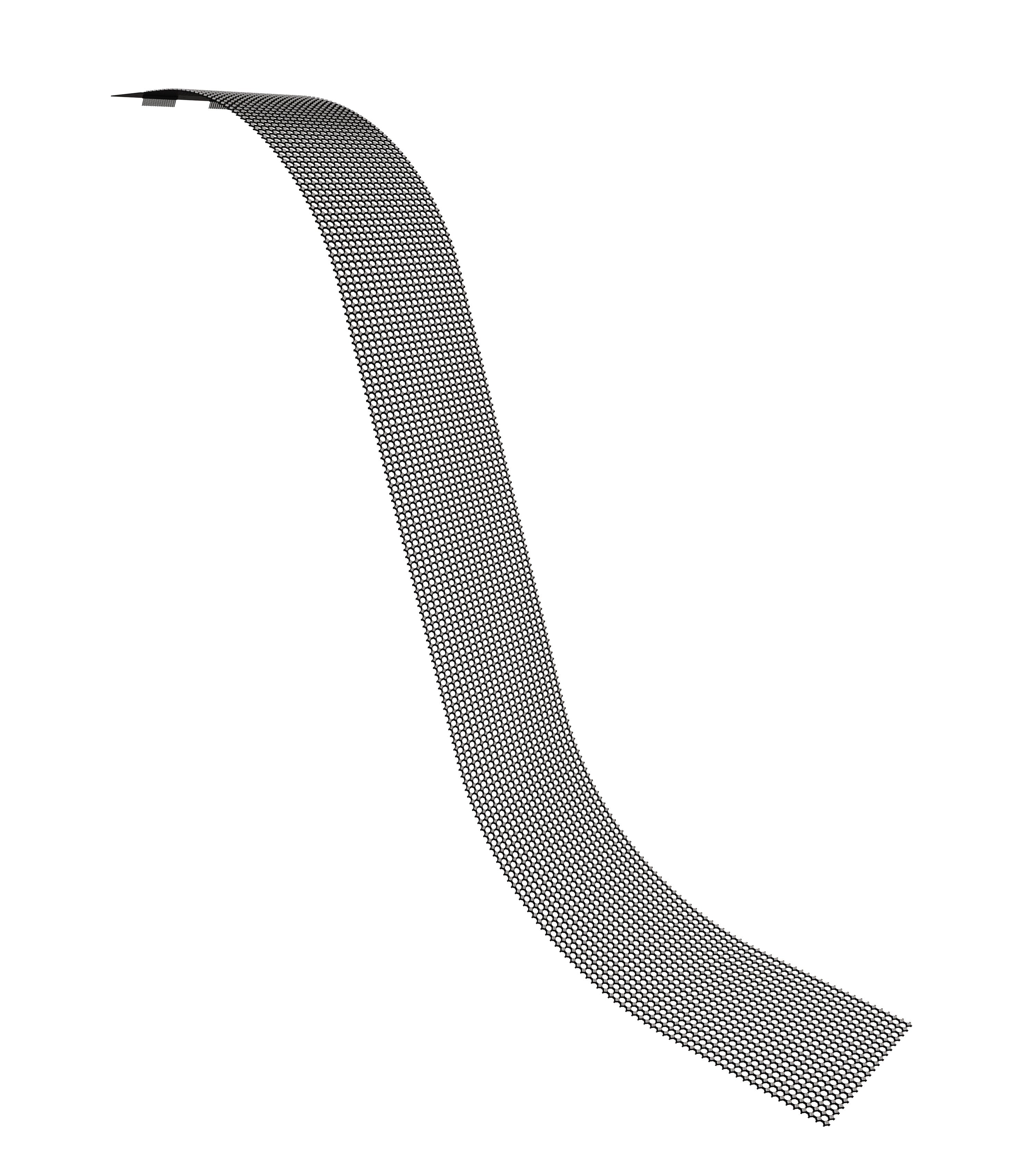

Flexible LED Module can be bent or cut to meet the actual requirement. Ideally for curved glass panels or tailor-made screens.
Spicing 1pcs Single LED Film can be made into 1500mm the max, so be bale to splicing up to 3 meters without obstruction
