Description

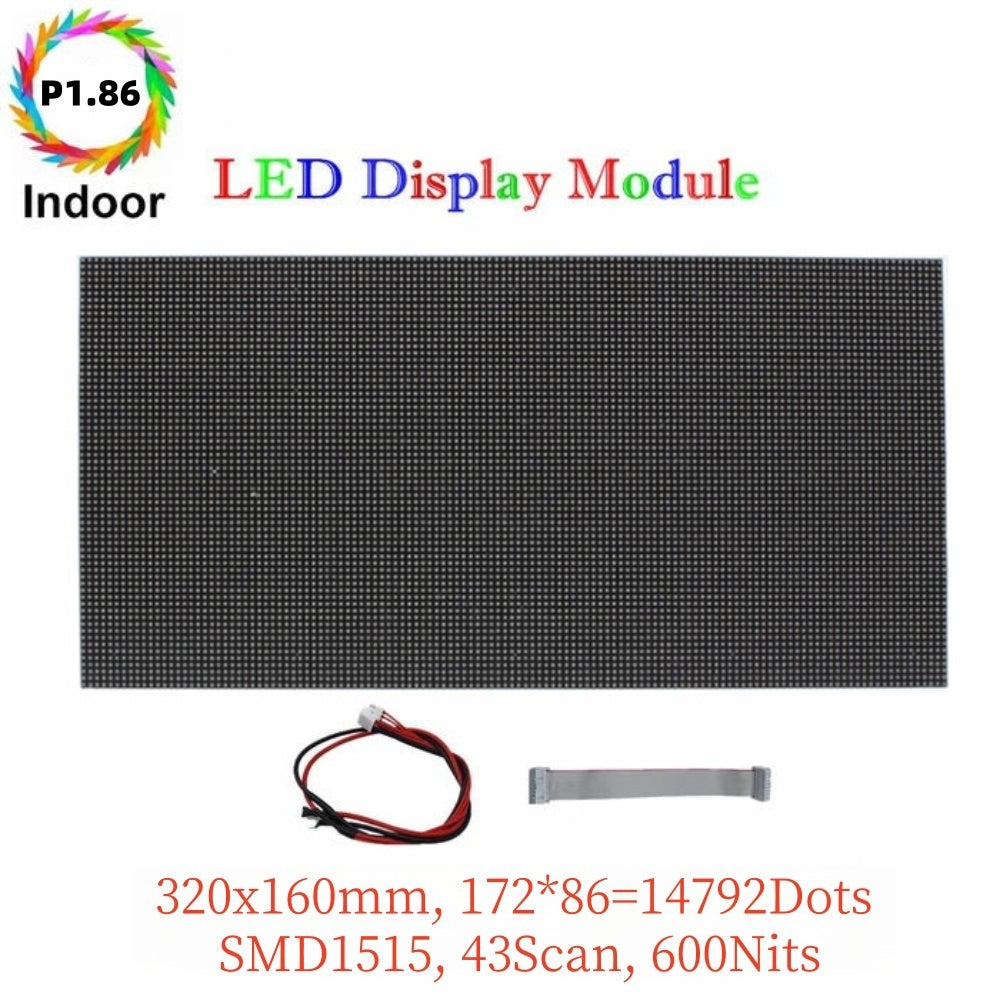

ID-S Series – P1.86 Indoor LED Display Panel | 320×160mm | 14,792 Pixels RGB Tile | Full Color High-Resolution Unit
About this item
- Durable & Reliable – Indoor module with stable performance in controlled environments, protecting LEDs from dust and minor impacts.
- High Precision Visuals – Pixel pitch 1.86 mm, 1/43 scan, vivid and smooth display with accurate color reproduction.
- Bright & Long-lasting – ≥600 nits with auto-brightness adjustment, low lumen depreciation for consistent performance over time.
- Wide Viewing Angle – H:160°, V:160° for uniform color and brightness across the screen.
- Flexible Installation – Seamless splicing, supports creative shapes (curved, cylindrical, custom sizes). Requires receiving card, sending card, software, and DC 5V power supply.

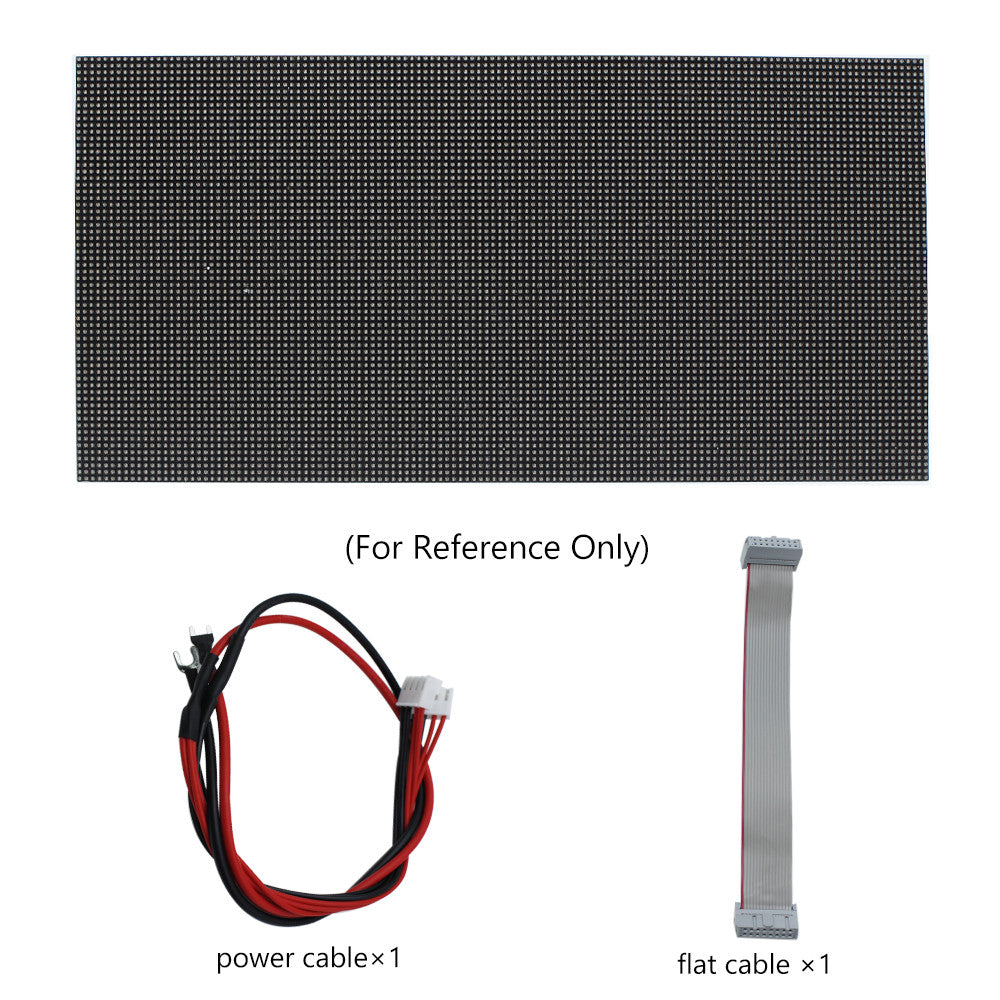

Package Included
| Version | Package Included |
| 1pc Pack | 1× P1.86 LED Module 1× 5V Power Cable 1-to-2 Split 1× Flat Data Cable |
| 40pcs Pack | 40× P1.86 LED Matrix Module 20× 5V Power Cable 1-to-2 Split 40× Flat Data Cable |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Ships from local warehouses (3–7 days) if available, or from our headquarters (7–25 days standard / 3–10 days express).
Protection & Design Features
- Indoor Series: GOB Technology – surface is waterproof, shock-proof, dust-proof, protects LEDs from damage.
- Flexible module options for creative curved or cylindrical displays.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity for power/data connections.
- Avoid bending or twisting the PCB beyond rated tolerance (for flexible models).
- Use compatible receiving card, sending card, software, and DC 5V power supply.
Technical Specifications
| Specification | Details |
| Module Size | 320×160 mm |
| Pixel Pitch | 1.86 mm |

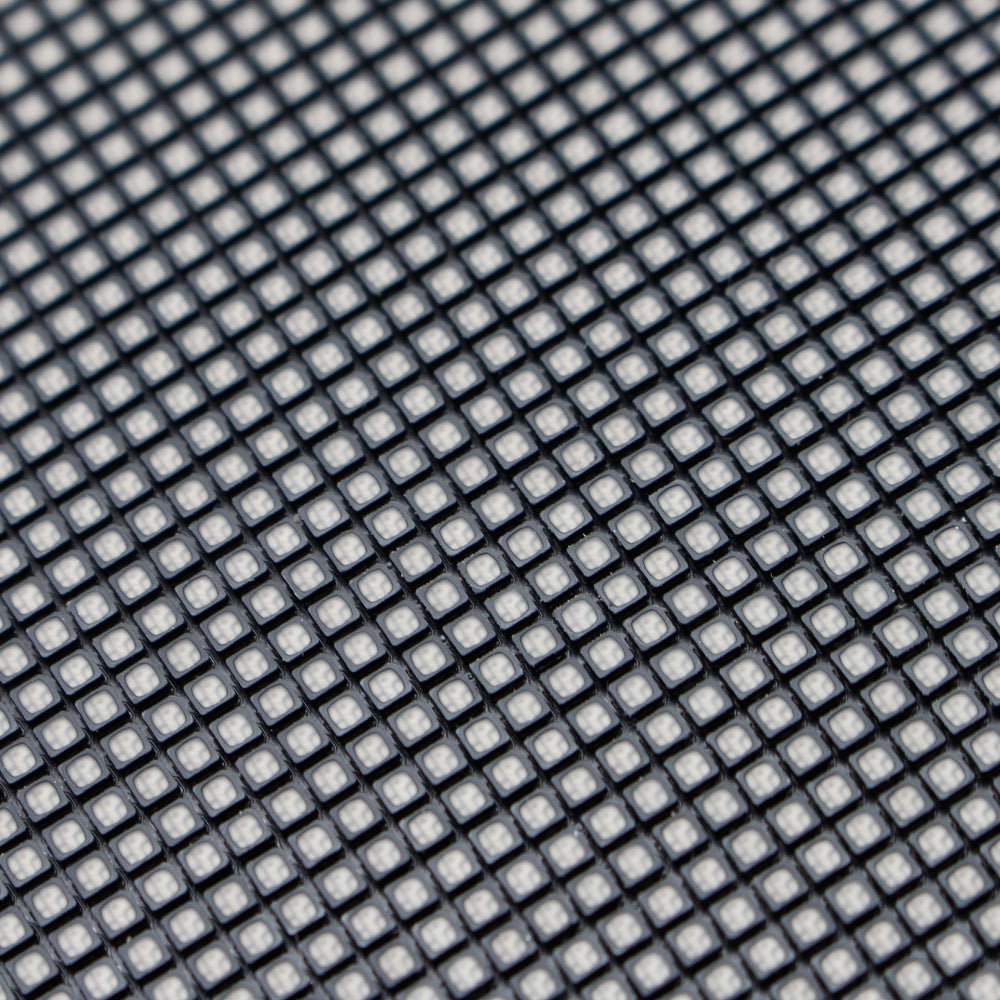

| LED Type | SMD1515 |
| Module Resolution | 172×86 |
| Module Pixels | 14,792 dots |
| Scan Rate | 1/43 |
| Pixel Density | 284,444 dots/㎡ |
| Brightness | ≥600 nits |
| Contrast Rate | 3000:1 |
| Color Depth | 16 bit |
| Grey Level | 16,384 |
| Refresh Frequency | >3840 Hz |
| Driving IC | MBI/ICN |
| Color Uniformity | ≥97% |
| Protection Rating | IP30 |
| Life Span | ≥100,000 hours |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% |
| Voltage | DC 5V |
| Viewing Angle | H:160°, V:160° |
| Power Consumption | Max. 20 W |
| Blind Spot Rate | ≤0.0003 |
Applications
- Indoor: Retail shops, conference rooms, exhibitions, broadcast studios.
- Creative: Curved displays, cylindrical screens, artistic installations.
