OF-3S Series Outdoor Flexible LED Module – P3.076 | 320×160mm Panel | IP65 Front Maintenance | 4500nits
About this item
- Durable & Reliable – IP65 waterproof front & back via full silicone encapsulation; power/data ports are silicone-sealed to withstand rain, dust, and temperature swings.

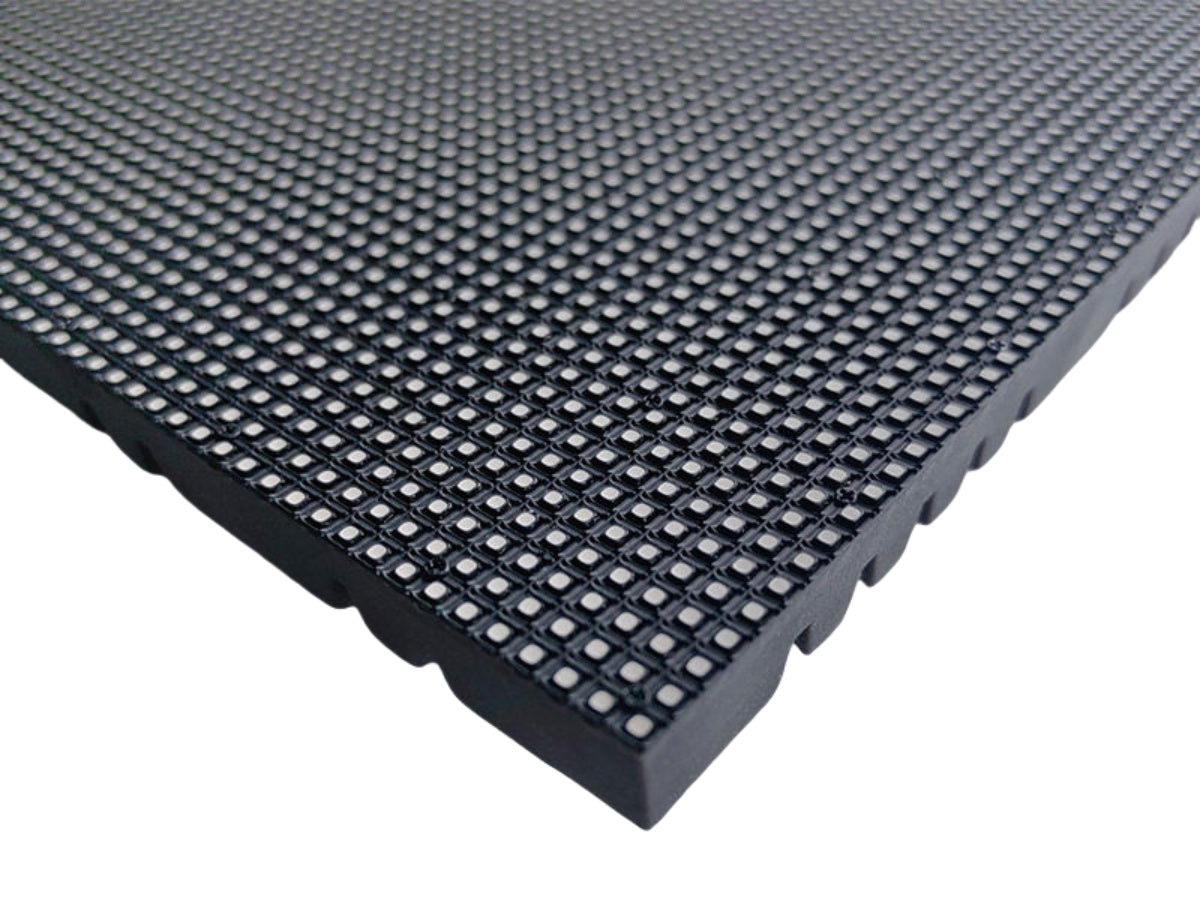

- High Precision Visuals – 3.076 mm pixel pitch with 1/13 scan delivers smooth motion and accurate color reproduction on curved or flat surfaces.
- Bright & Long-lasting – Up to 5000 nits white-balance brightness with low lumen depreciation for consistent output over a 100,000-hour lifespan.
- Wide Viewing Angle – 140° horizontal / 120° vertical viewing for uniform color and brightness across the screen.
- Flexible Installation – Seamless splicing supports creative shapes (curved, cylindrical). Requires receiving card, sending card, control software, and DC 5V power supply.
Package Included
| Version | Package Included |
| 1pcs Sample Pack | 1 × 5V Power Cable 1-to-2 Split 1 × 16 PIN Flat Cable 1 × P3.076 320×160mm RGB Full Color LED Display Module |
| 30pcs Standard Pack | 15 × 5V Power Cable 1-to-2 Split 30 × 16 PIN Flat Cable 30 × P3.076 320×160mm RGB Full Color LED Display Module |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express).
Structure & Design Features

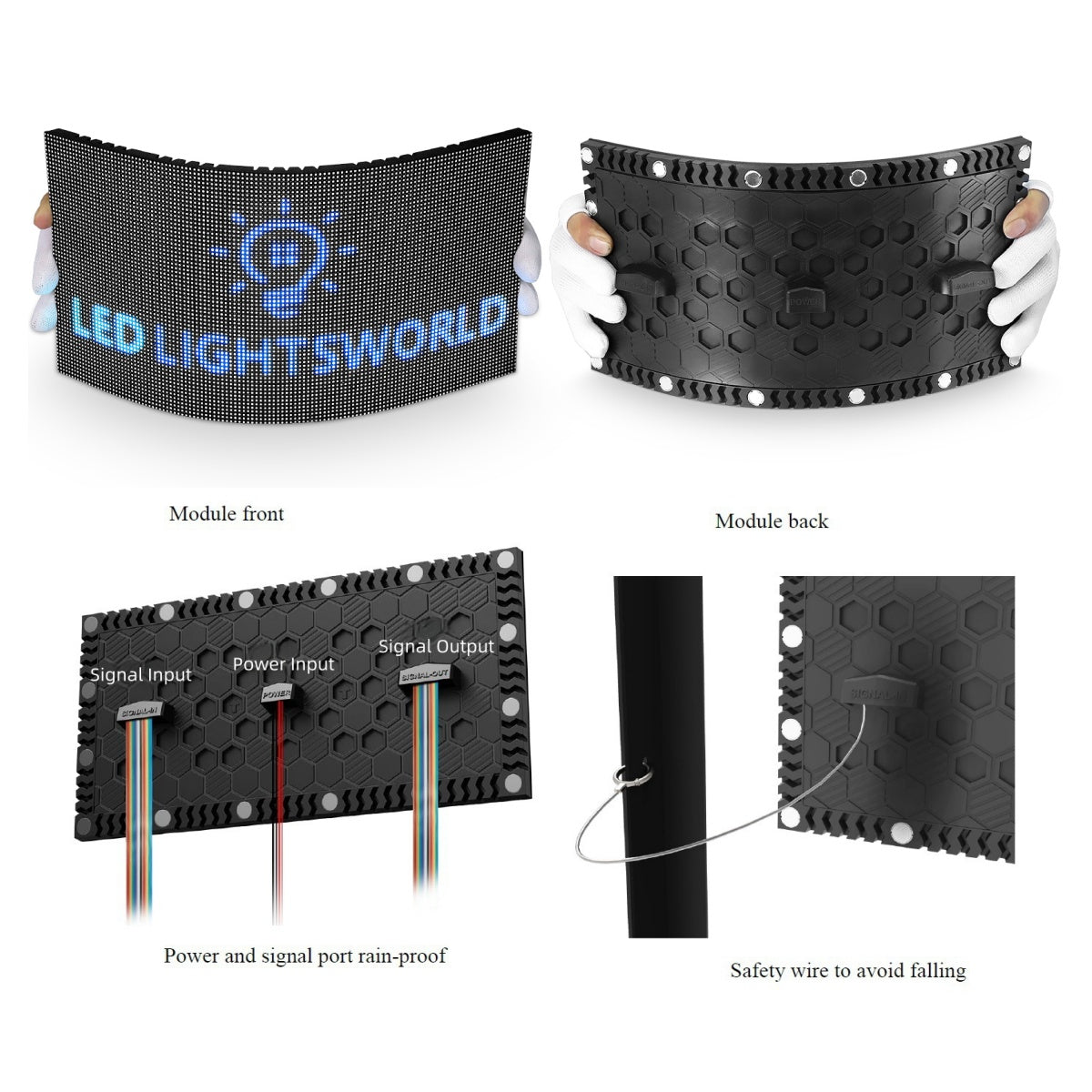

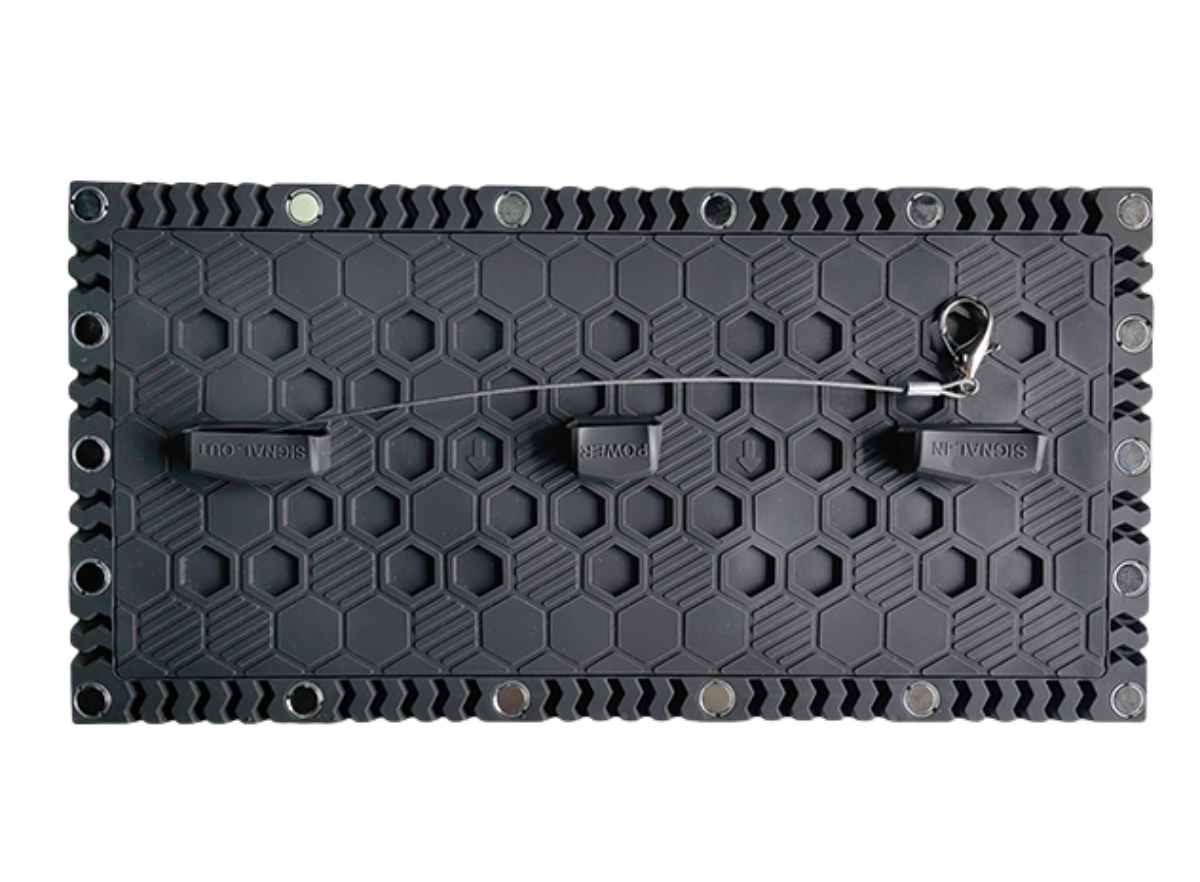

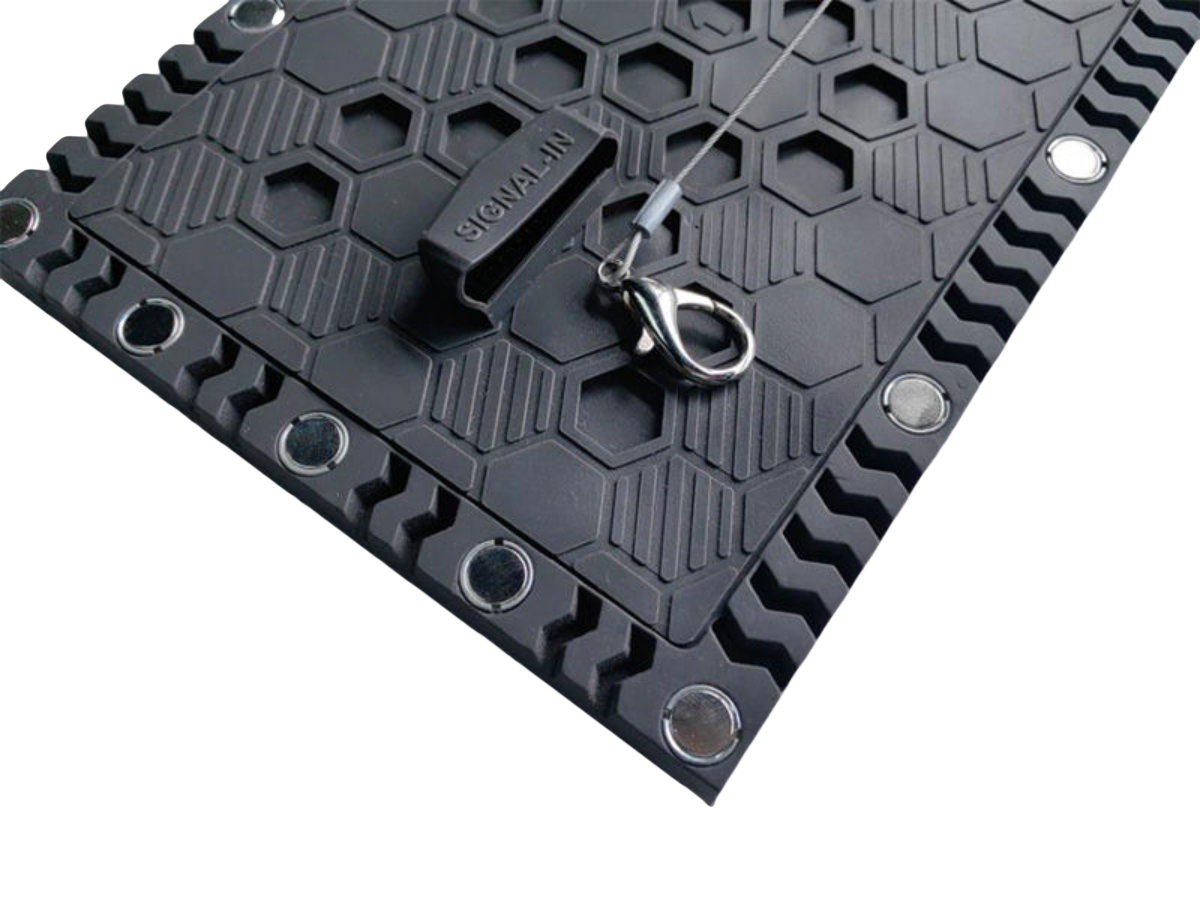

- IP65 Waterproof Construction – Full silicone encapsulation on front and back; sealed power/data ports enhance weather resistance and durability.

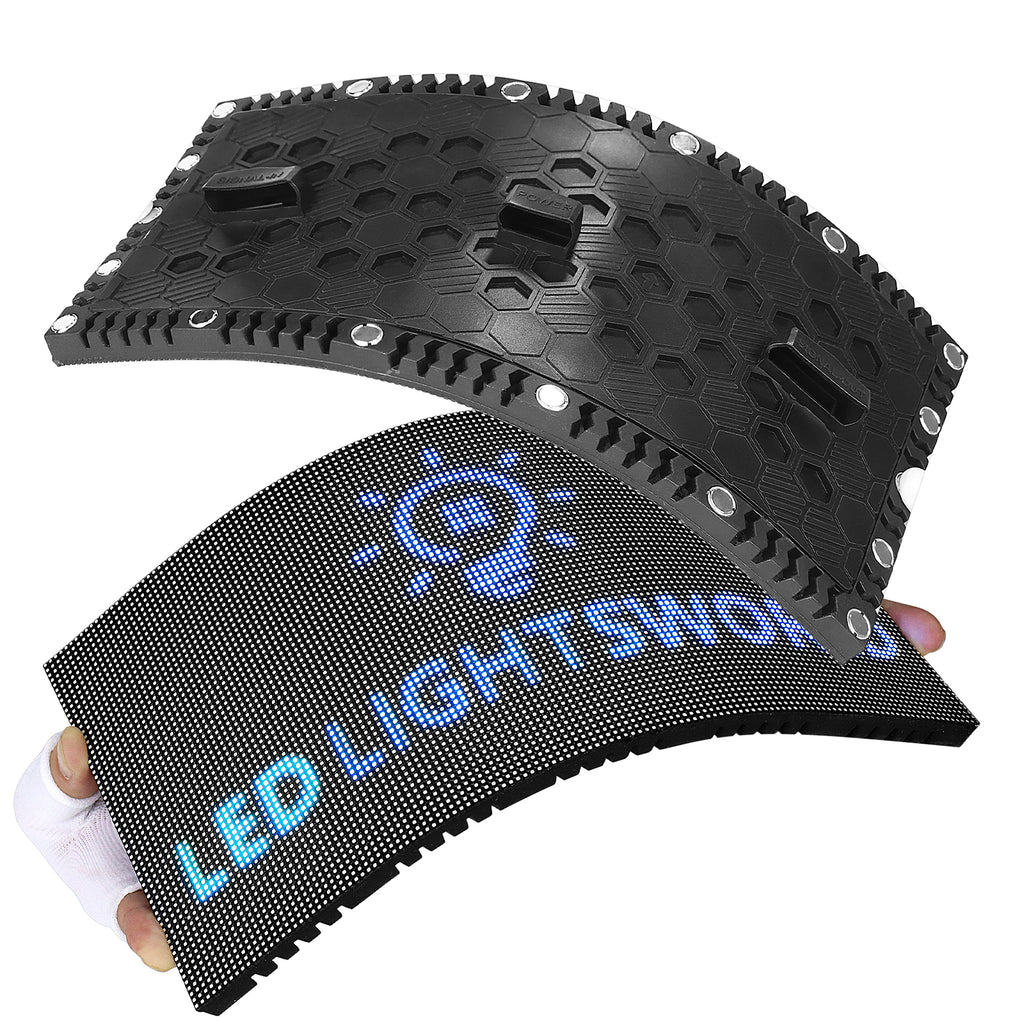

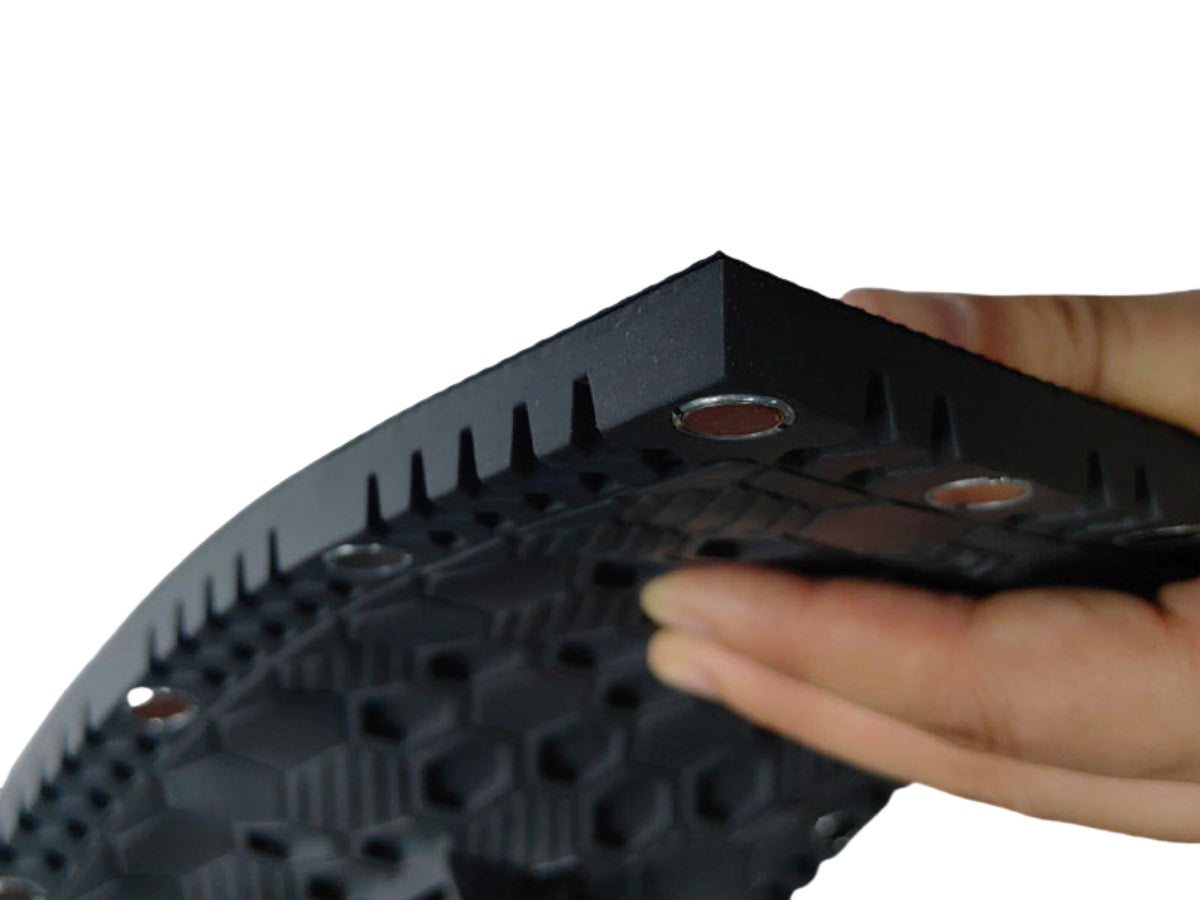

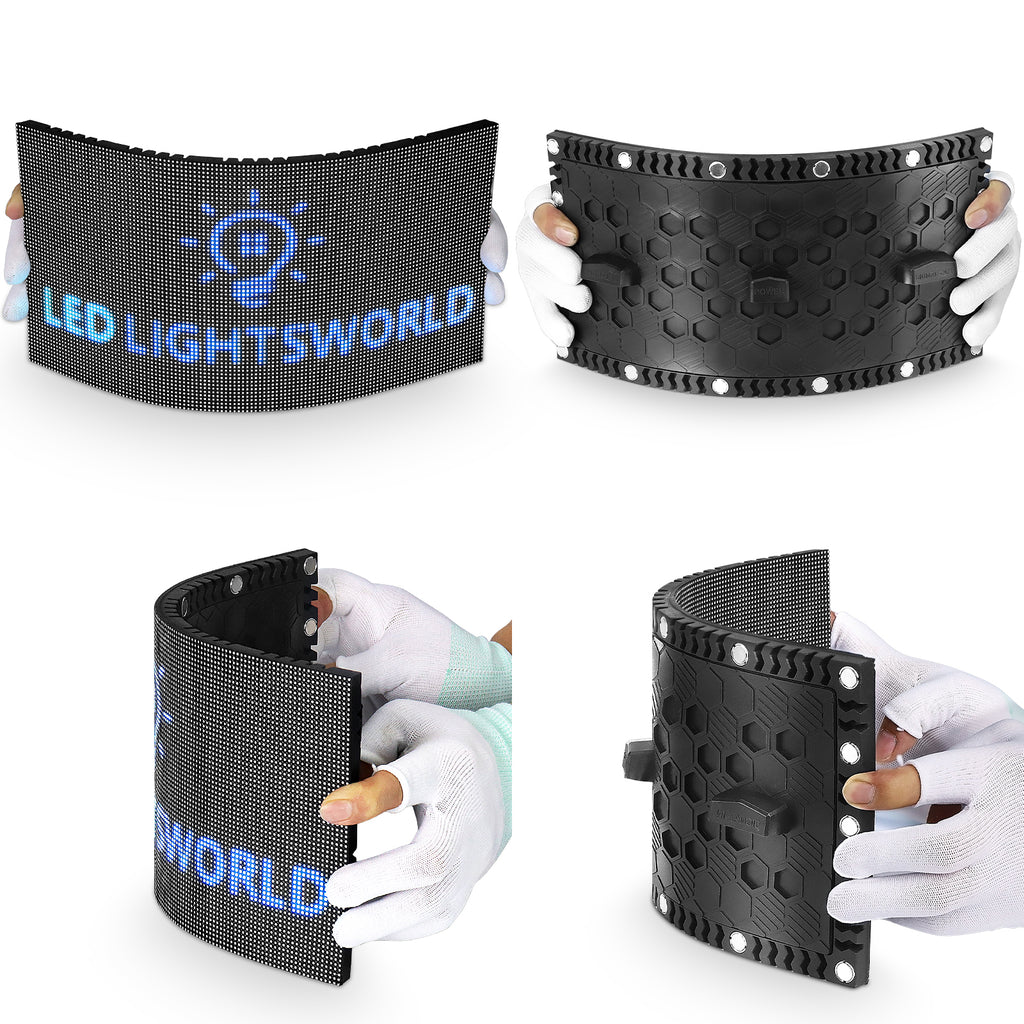

- Flexible Engineering – Supports ≥165° curvature; standard 320×160 mm modules can form circular displays (e.g., ~1.1 m diameter ring with 10 modules).

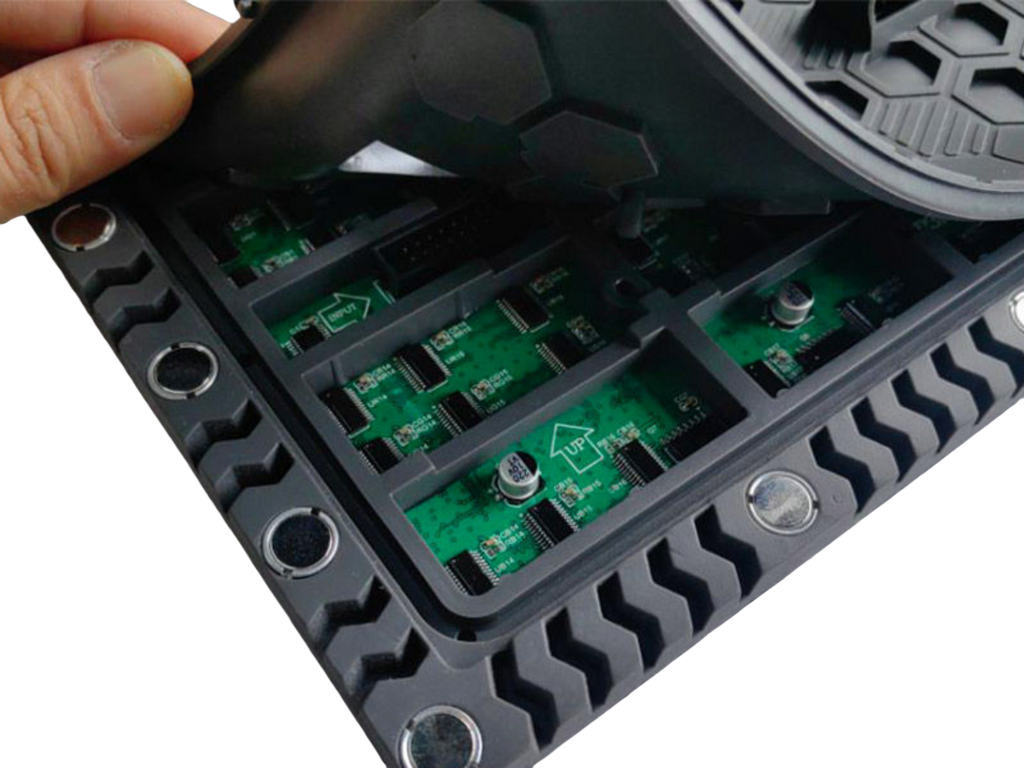

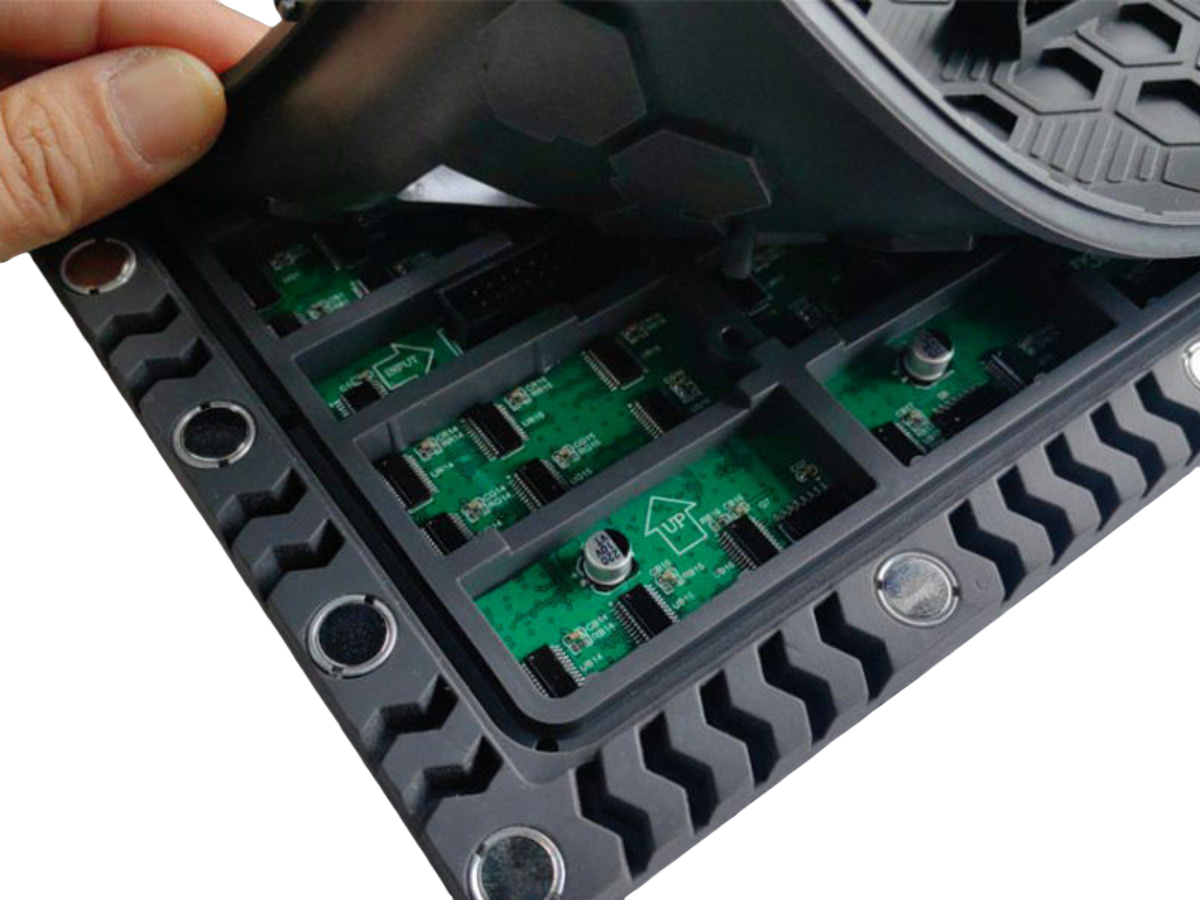

- Precision Build – Optimized PCB layout and reinforced molding maintain structural stability and seamless visuals on curved assemblies.
Installation Tips
- Disconnect power before installation or maintenance.
- Ensure correct polarity for power and data connections.
- Avoid bending or twisting the PCB beyond the rated tolerance (≥165° curvature supported).
- Place controllers in dry locations or waterproof enclosures; upgrade non-waterproof PSUs to waterproof models.
- Use compatible receiving card, sending card, control software, and DC 5V power supply.
Technical Specifications
| Specification | Value |
| Module size | 320 × 160 × 12 mm |
| Pixel pitch | 3.076 mm |
| LED type | SMD1415 |
| Module resolution | 104 × 52 dots |
| Pixel density | 105,625 dots/m² |
| Brightness (white balance) | 5000 cd/m² (nits) |
| Scan rate | 1/13 |
| Viewing angle | 140° (H) / 120° (V) |
| Refresh rate | 3840 Hz |
| Input voltage | DC 5 V |
| Max power / module | 32.5 W |
| Max power / m² | 650 W/m² |
| Average power / m² | 185 W/m² |
| Curved arc | ≥165° |
| Assembly diameter (ref.) | 1222.9 mm |
| Operating temperature | −20°C ~ +40°C |
| Relative humidity | 10% ~ 60% |
| Lifespan | 100,000 hours |
| MTBF | >10,000 hours |
| IP rating | IP65 (front & back) |
| Interface | HUB75 |
Applications
- Outdoor: Billboards, stadiums, event stages, transportation hubs.
- Creative: Curved/cylindrical screens, custom shapes, artistic installations.
