Description

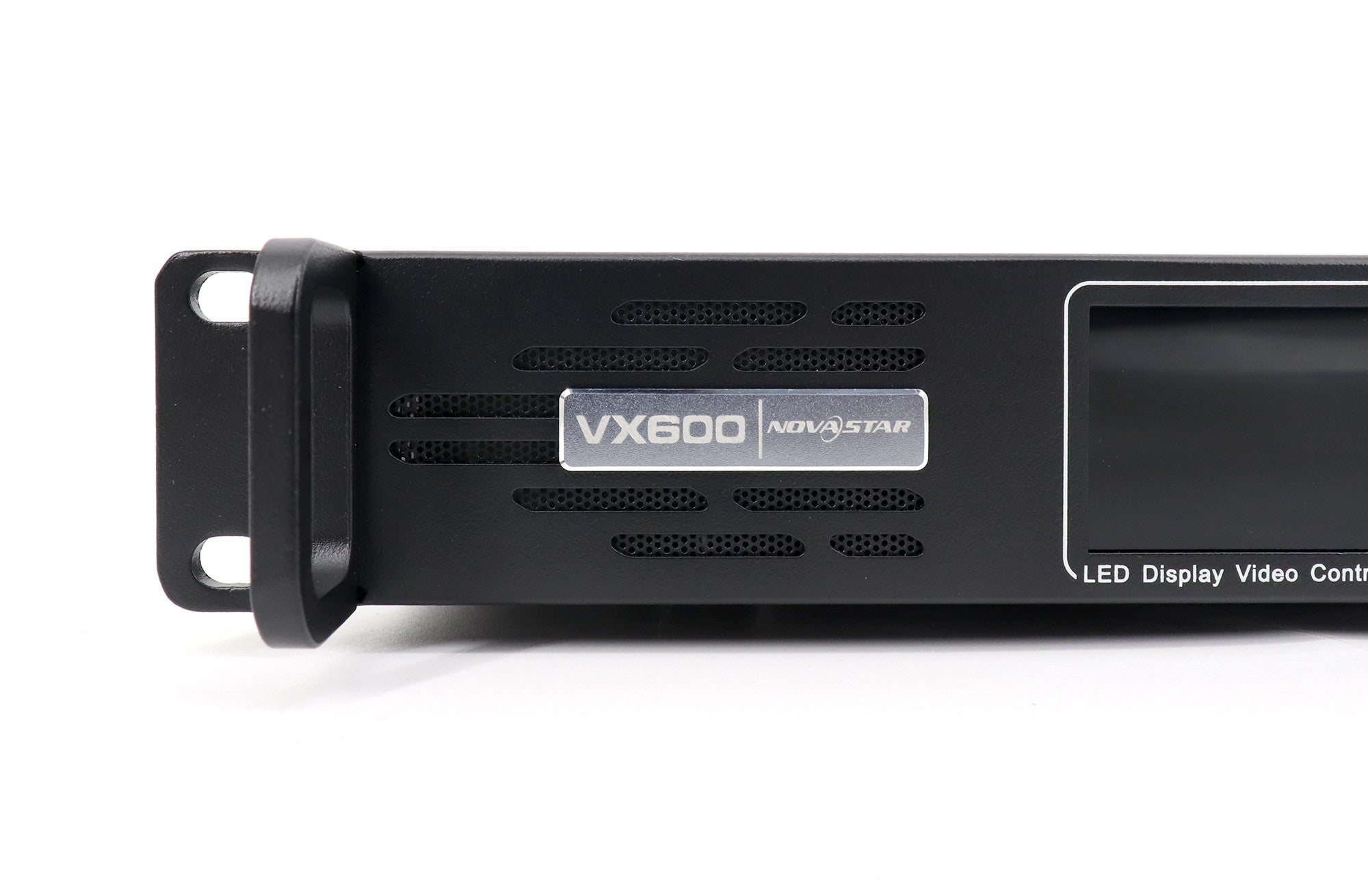

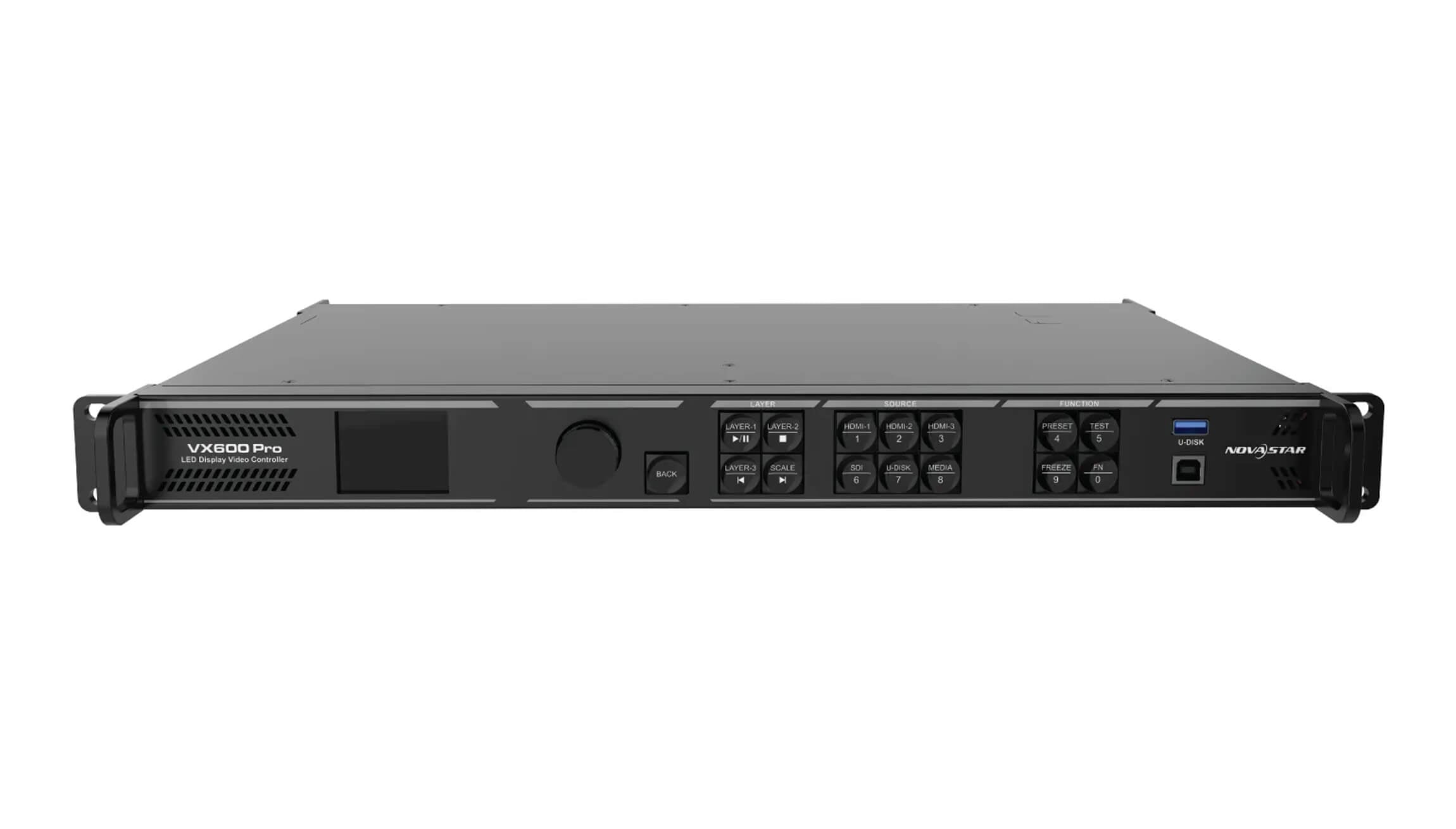

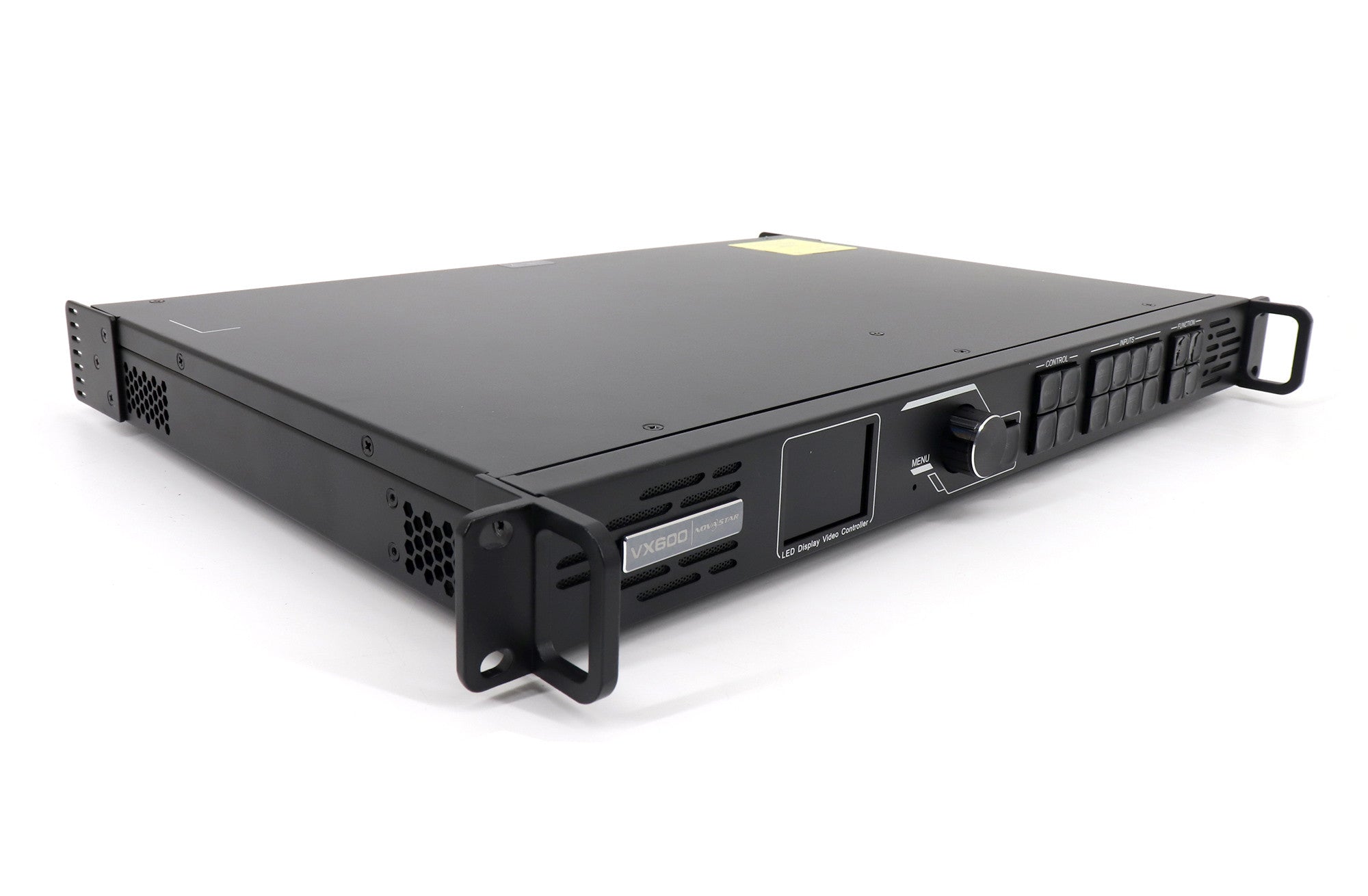

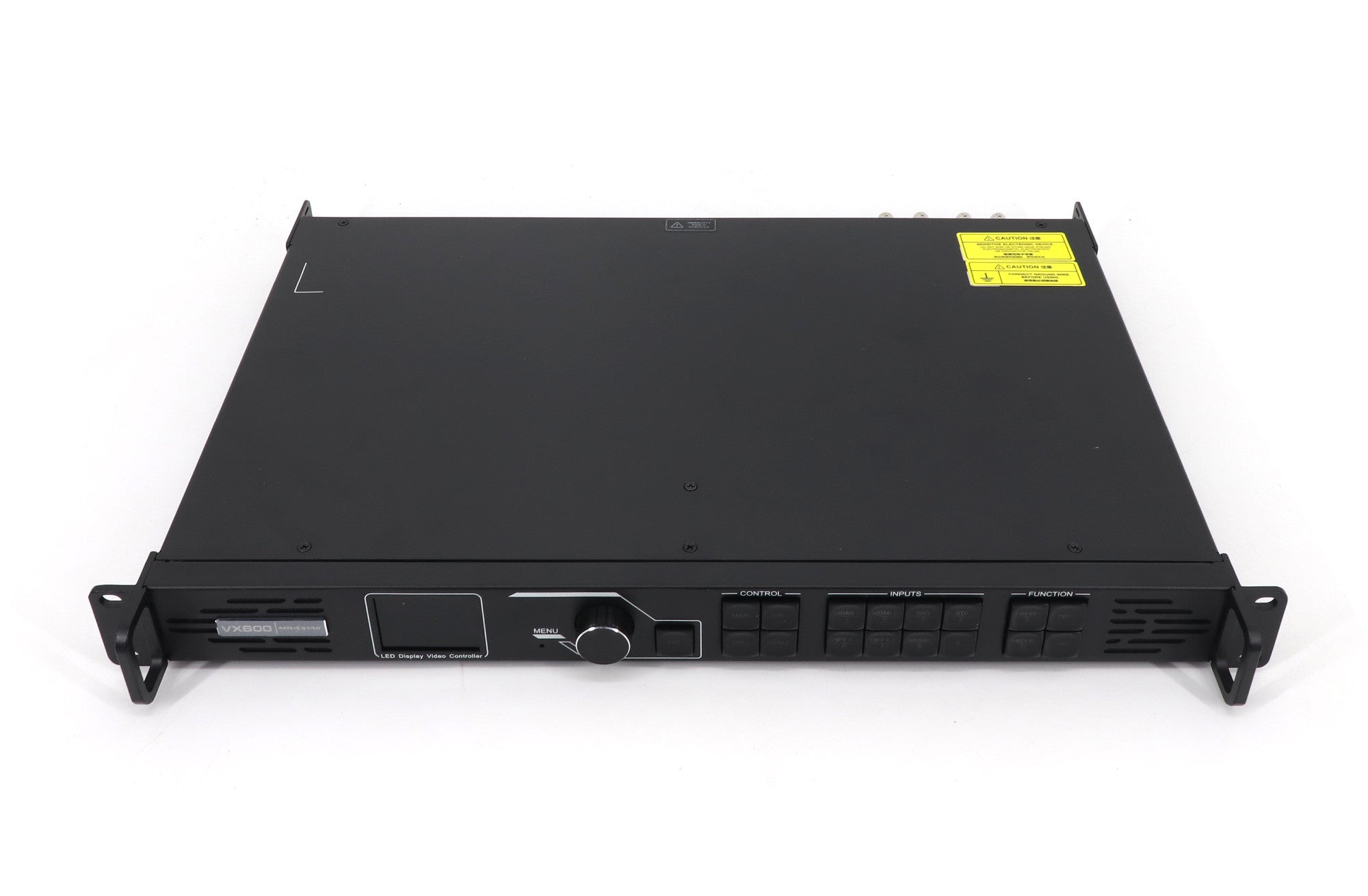

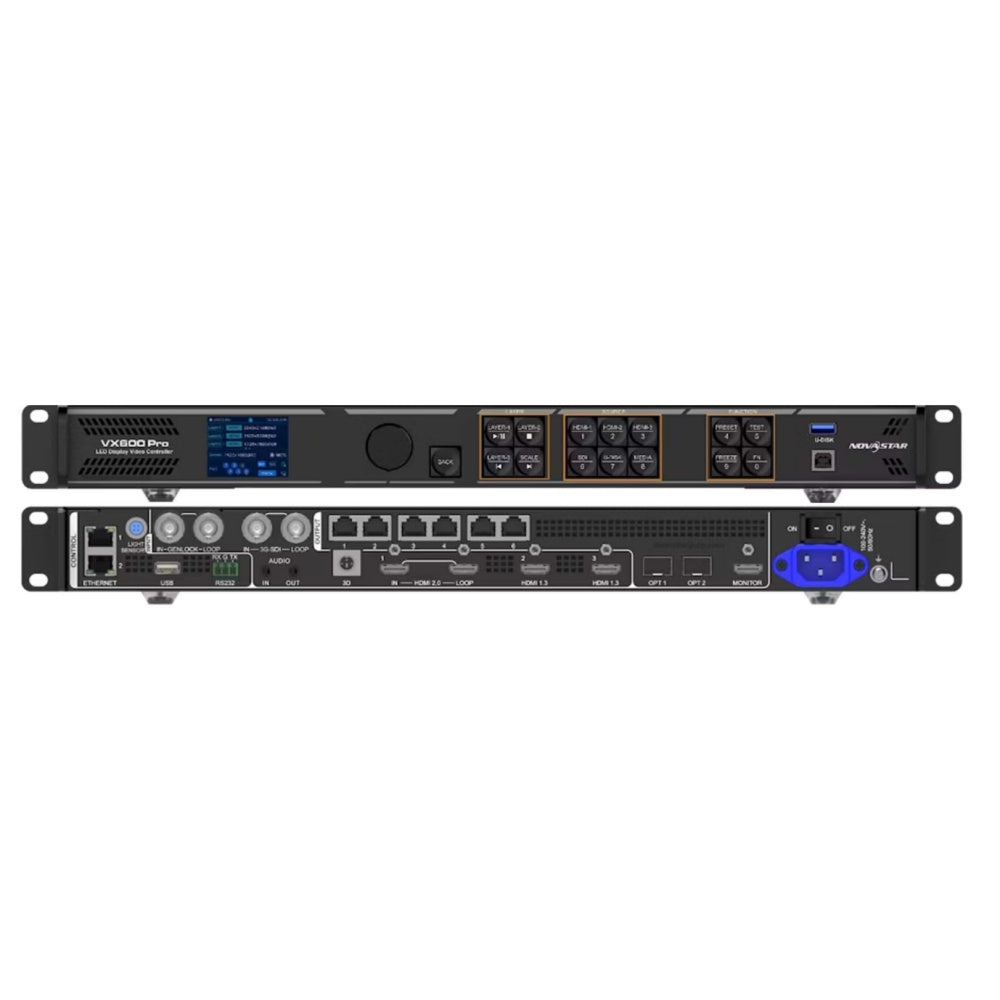

Novastar VX600 Pro All-in-One LED Screen Controller w/ 3.9 Million Pixels Loading Capacity

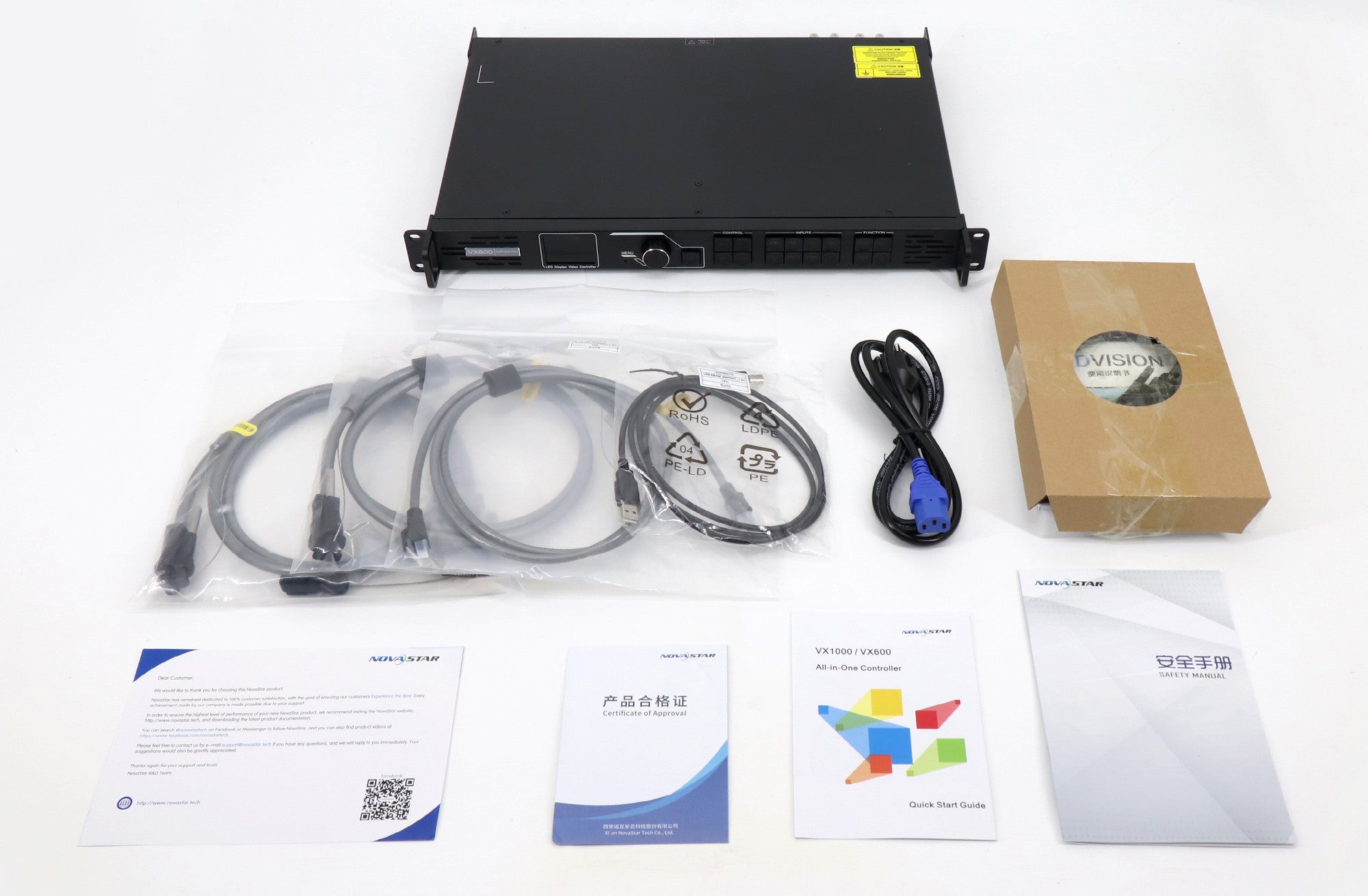

Package Included
| Version | Package Included |
|---|---|
| VX600 Pro |
|
About this item:
- High-performance LED controller with 6× Ethernet outputs, supporting up to 3.9 million pixels.
- Supports multiple LED module pixel pitches, max resolution 10240×8192.
- 3 working modes (Video Controller, ByPass, Fiber Converter) with redundant system support for maximum stability.

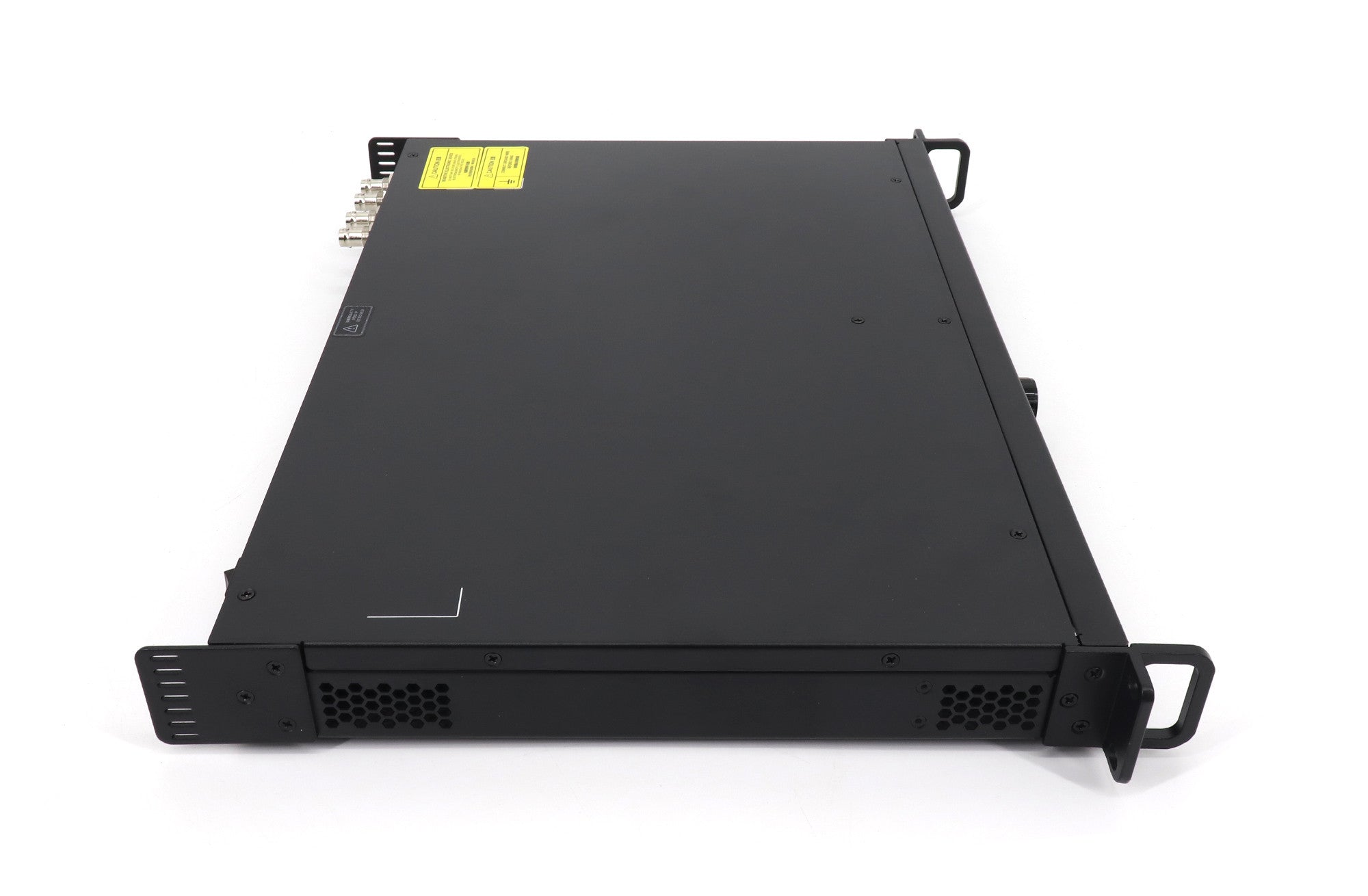

- Compact design with efficient cooling for long-term reliable operation.
- Ideal for indoor/outdoor installations, rental displays, and creative LED setups.
Order & Logistics:
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications:

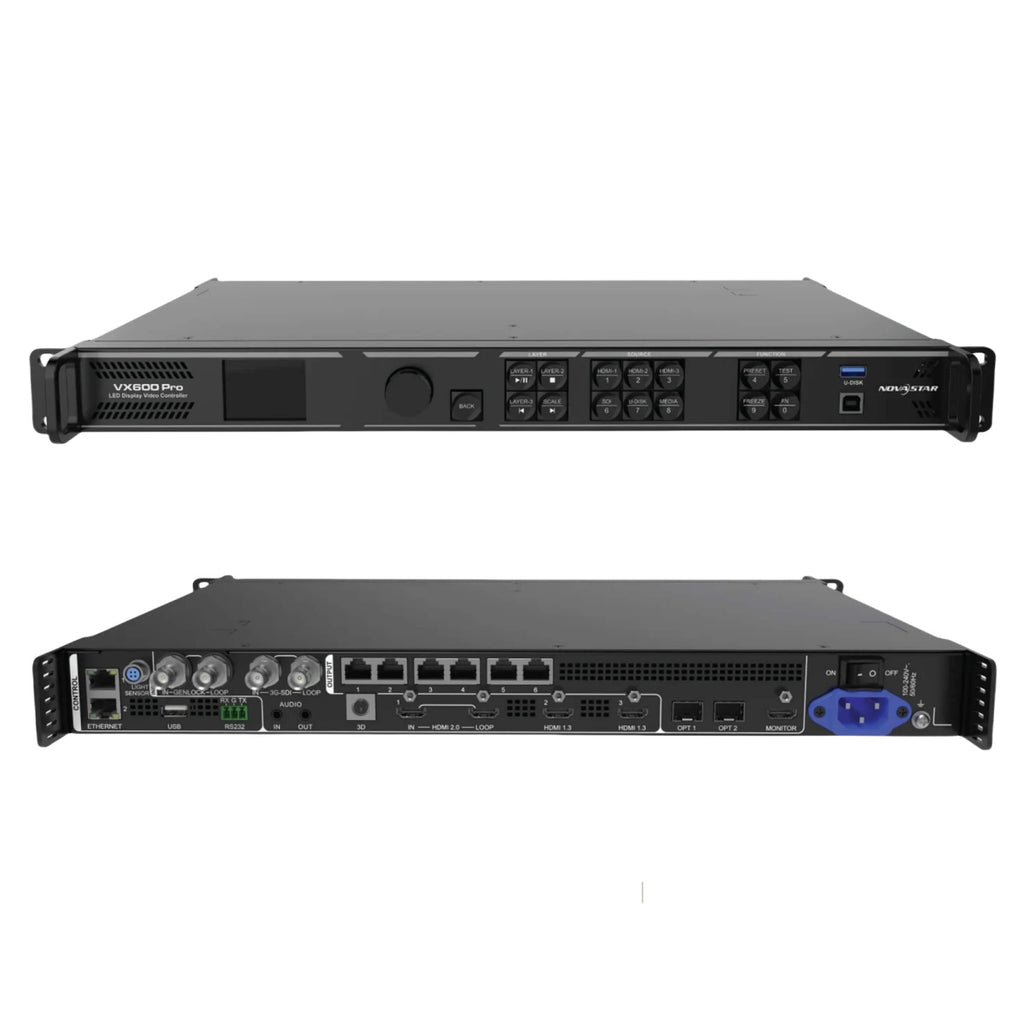

- Input Ports: 1× HDMI 2.0 (IN & LOOP), 2× HDMI 1.3, 1× 3G-SDI (IN & LOOP), 1× 10G OPT Port (OPT1), 1× USB3.0

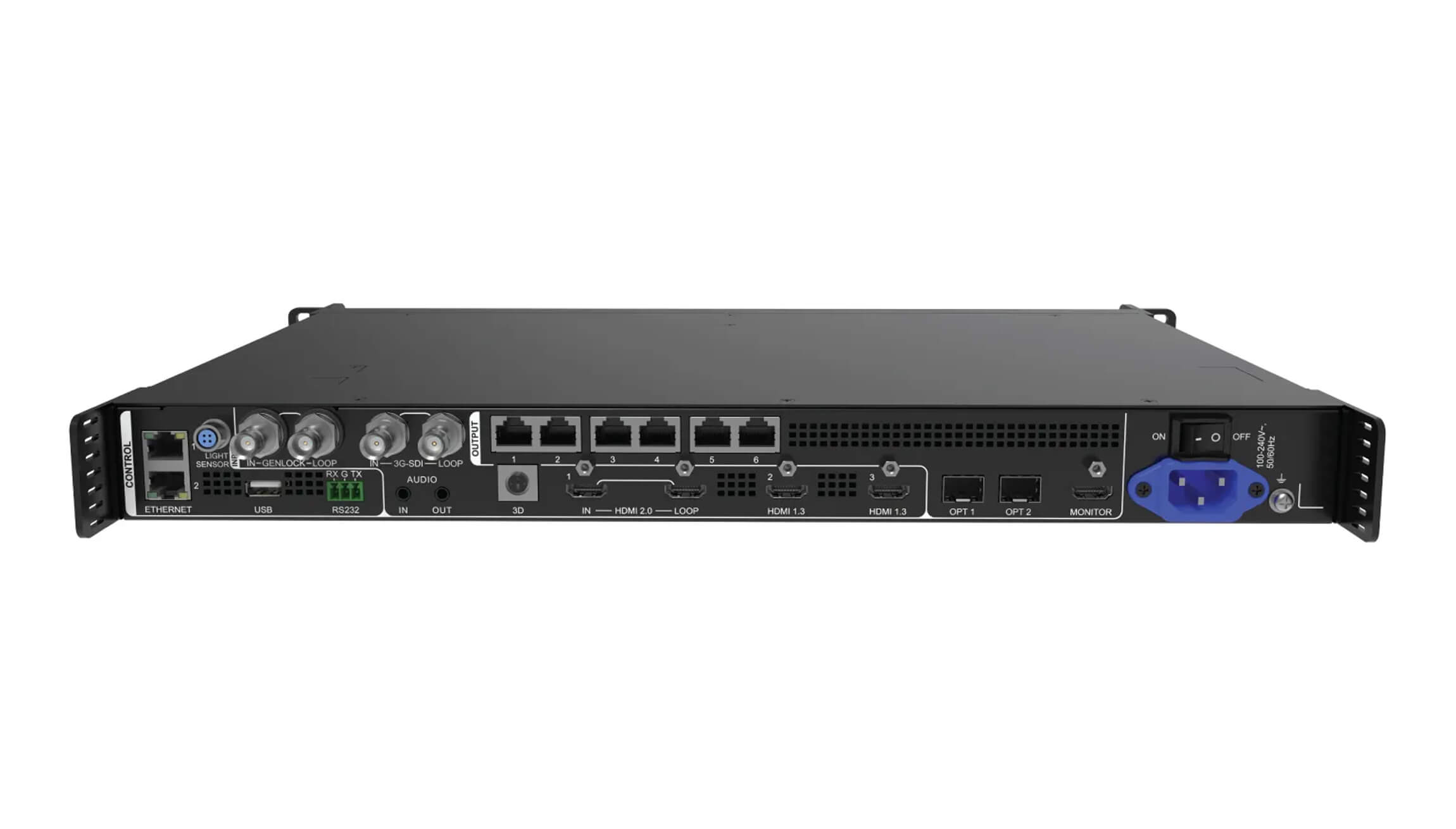

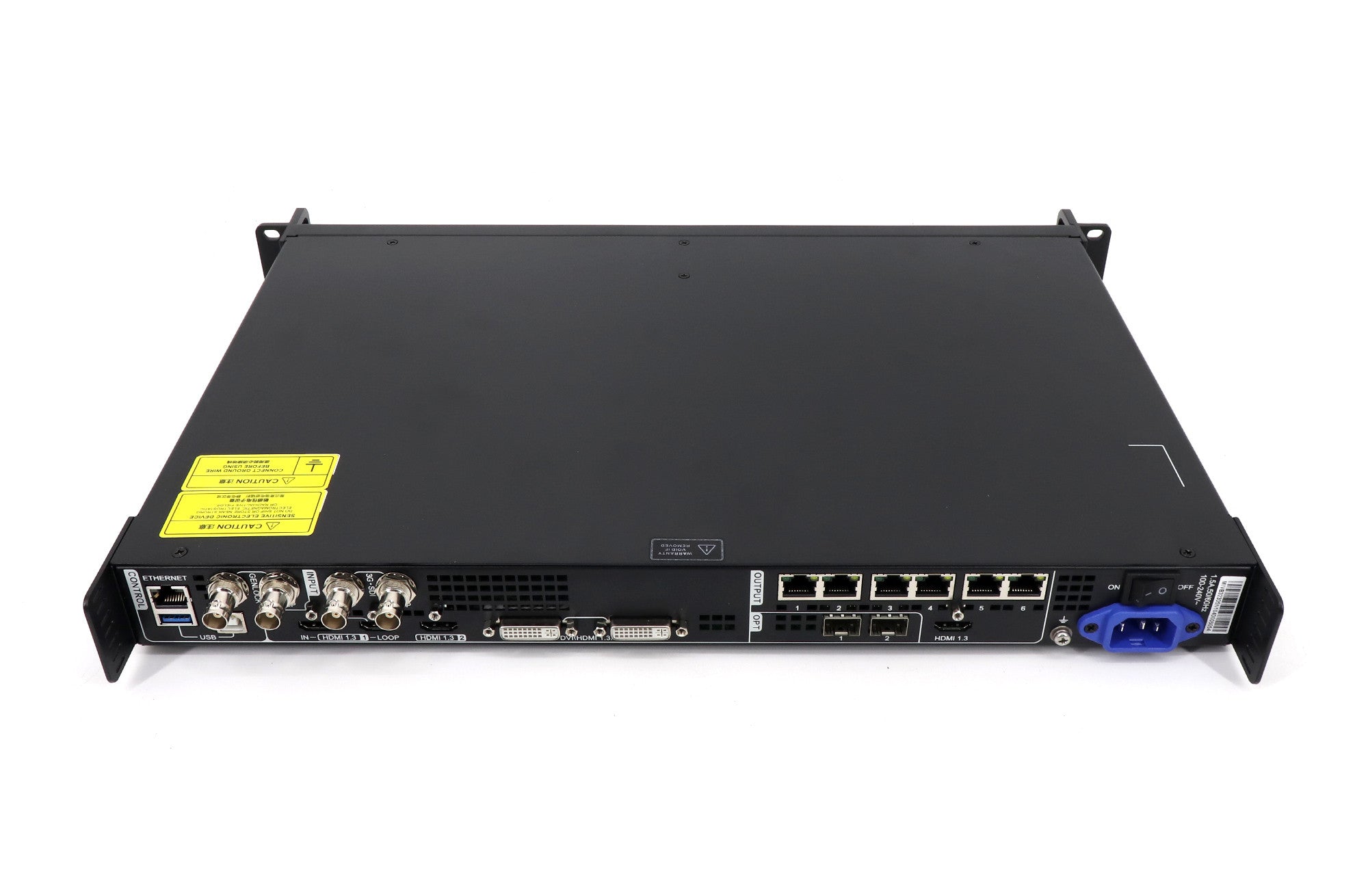

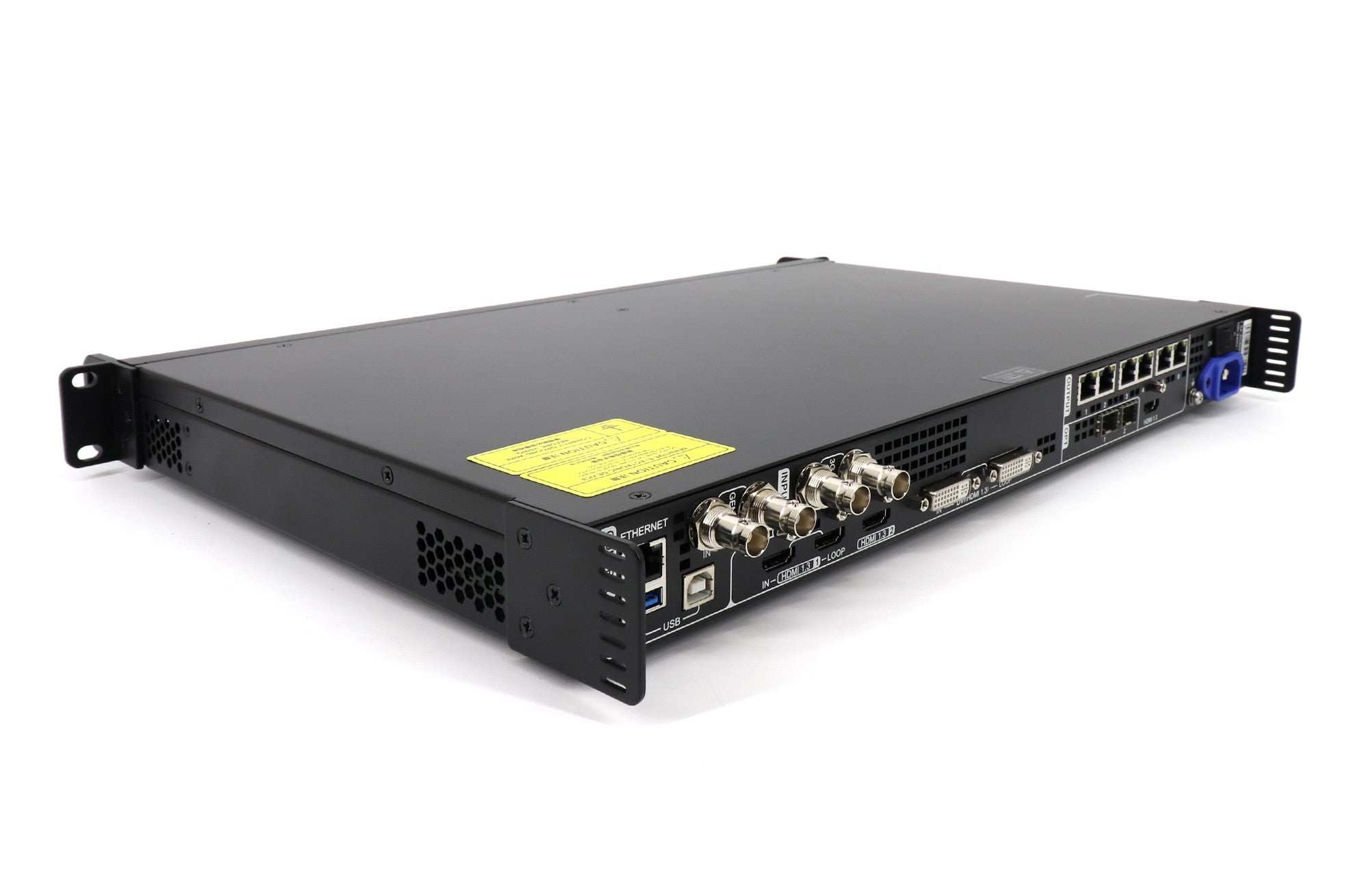

- Output Ports: 6× Ethernet Ports, 1× HDMI1.3, 1× HDMI 2.0 LOOP, 1× 3G-SDI LOOP, 2× OPT
- Supported Resolutions: Up to 10240×8192
- Control Method: USB / Network
- Power Supply: AC 100–240V
- Operating Temperature: -20°C to 60°C
Usage Notes / Installation Tips:
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Downloads:
Technical Specifications:
| Device Model | VX400 Pro | VX600 Pro | VX1000 Pro | VX2000 Pro |
|---|---|---|---|---|
| Loading Capacity | 2.6 million pixels | 3.9 million pixels | 6.5 million pixels | 13 million pixels |
| Max Width (pixels) | 10240 | 10240 | 10240 | 16384 |
| Max Height (pixels) | 8192 | 8192 | 8192 | 8192 |
| Layers | 6 *2K×1K | 6 *2K×1K | 6 *2K×1K | 12 *2K×1K |
| Input Connectors | 1× HDMI 2.0 (IN & LOOP) 2× HDMI 1.3 1× 3G-SDI (IN & LOOP) 1× 10G OPT Port (OPT1) 1× USB3.0 |
1× HDMI 2.0 (IN & LOOP) 2× HDMI 1.3 1× 3G-SDI (IN & LOOP) 1× 10G OPT Port (OPT1) 1× USB3.0 |
1× HDMI 2.0 (IN & LOOP) 2× HDMI 1.3 1× 3G-SDI (IN & LOOP) 1× 10G OPT Port (OPT1) 1× USB3.0 |
1× 12G-SDI (IN & LOOP) 1× DP 1.2 2× HDM 2.0 4× HDMI 1.3 2× OPT 1× USB3.0 |
| Output Connectors | 4× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT |
6× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT |
10× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT |
20× Ethernet Ports 1× HDMI1.3 4× OPT 1× 2G-SDI LOOP 4× OPT |
| Presets | 256 | 256 | 256 | 256 |
| Control Connectors | 2× Ethernet Port 1× USB |
2× Ethernet Port 1× USB |
2× Ethernet Port 1× USB |
2× Ethernet Port 1× USB |
Applications:
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
