Description
Novastar VX2000 Pro All-in-One LED Screen Controller w/ 13 Million Pixels Loading Capacity
Package Included
| Version | Package Included |
|---|---|
| V1.0.2 | VX2000 Pro Controller, User Manual, Quick Start Guide, Firmware, Release Notes |
About this item
High-performance LED screen controller supporting up to 13 million pixels with maximum output 16,384×8,192 pixels.
Features 12 layers, low latency, output scaling, and pixel-level brightness/chroma calibration for stable, high-quality visuals.
Compact industrial-grade design with efficient cooling ensures reliability in demanding environments.
Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups.
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications
- Input Ports: 1× 12G-SDI (IN&LOOP), 1× DP 1.2, 2× HDMI 2.0, 4× HDMI 1.3, 2× OPT, 1× USB3.0
- Output Ports: 20× Ethernet Ports, 1× HDMI1.3, 4× OPT, 1× 2G-SDI LOOP
- Supported Resolutions: Up to 4K×2K@60Hz input
- Control Method: Front panel knob, NovaLCT, Unico web page, VICP app
- Power Supply: AC 100–240V
- Operating Temperature: -20℃ to 60℃
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Downloads
- Product Specification Sheet (PDF)
- User Manual (PDF)
- Quick Start Guide (PDF)
- Firmware (ZIP)
- Release Notes (TXT)
Technical Specifications
| Device Model | VX400 Pro | VX600 Pro | VX1000 Pro | VX2000 Pro |
|---|---|---|---|---|
| Loading Capacity | 2.6 million pixels | 3.9 million pixels | 6.5 million pixels | 13 million pixels |
| Max Width (pixels) | 10240 | 10240 | 10240 | 16384 |
| Max Height (pixels) | 8192 | 8192 | 8192 | 8192 |
| Layers | 6 *2K×1K | 6 *2K×1K | 6 *2K×1K | 12 *2K×1K |
| Input Connectors | 1× HDMI 2.0 (IN&LOOP), 2× HDMI 1.3, 1× 3G-SDI (IN&LOOP), 1× 10G OPT Port, 1× USB3.0 | 1× HDMI 2.0 (IN&LOOP), 2× HDMI 1.3, 1× 3G-SDI (IN&LOOP), 1× 10G OPT Port, 1× USB3.0 | 1× HDMI 2.0 (IN&LOOP), 2× HDMI 1.3, 1× 3G-SDI (IN&LOOP), 1× 10G OPT Port, 1× USB3.0 | 1× 12G-SDI (IN&LOOP), 1× DP 1.2, 2× HDMI 2.0, 4× HDMI 1.3, 2× OPT, 1× USB3.0 |
| Output Connectors | 4× Ethernet, 1× HDMI1.3, 1× HDMI 2.0 LOOP, 1× 3G-SDI LOOP, 2× OPT | 6× Ethernet, 1× HDMI1.3, 1× HDMI 2.0 LOOP, 1× 3G-SDI LOOP, 2× OPT | 10× Ethernet, 1× HDMI1.3, 1× HDMI 2.0 LOOP, 1× 3G-SDI LOOP, 2× OPT | 20× Ethernet, 1× HDMI1.3, 4× OPT, 1× 2G-SDI LOOP |
| Presets | 256 | 256 | 256 | 256 |
| Control Connectors | 2× Ethernet, 1× USB | 2× Ethernet, 1× USB | 2× Ethernet, 1× USB | 2× Ethernet, 1× USB |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays

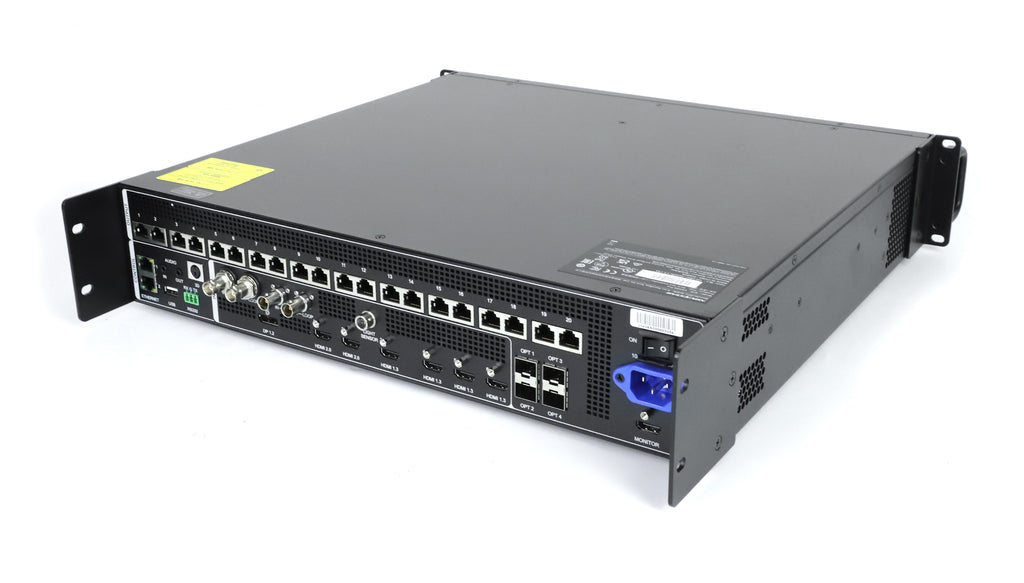

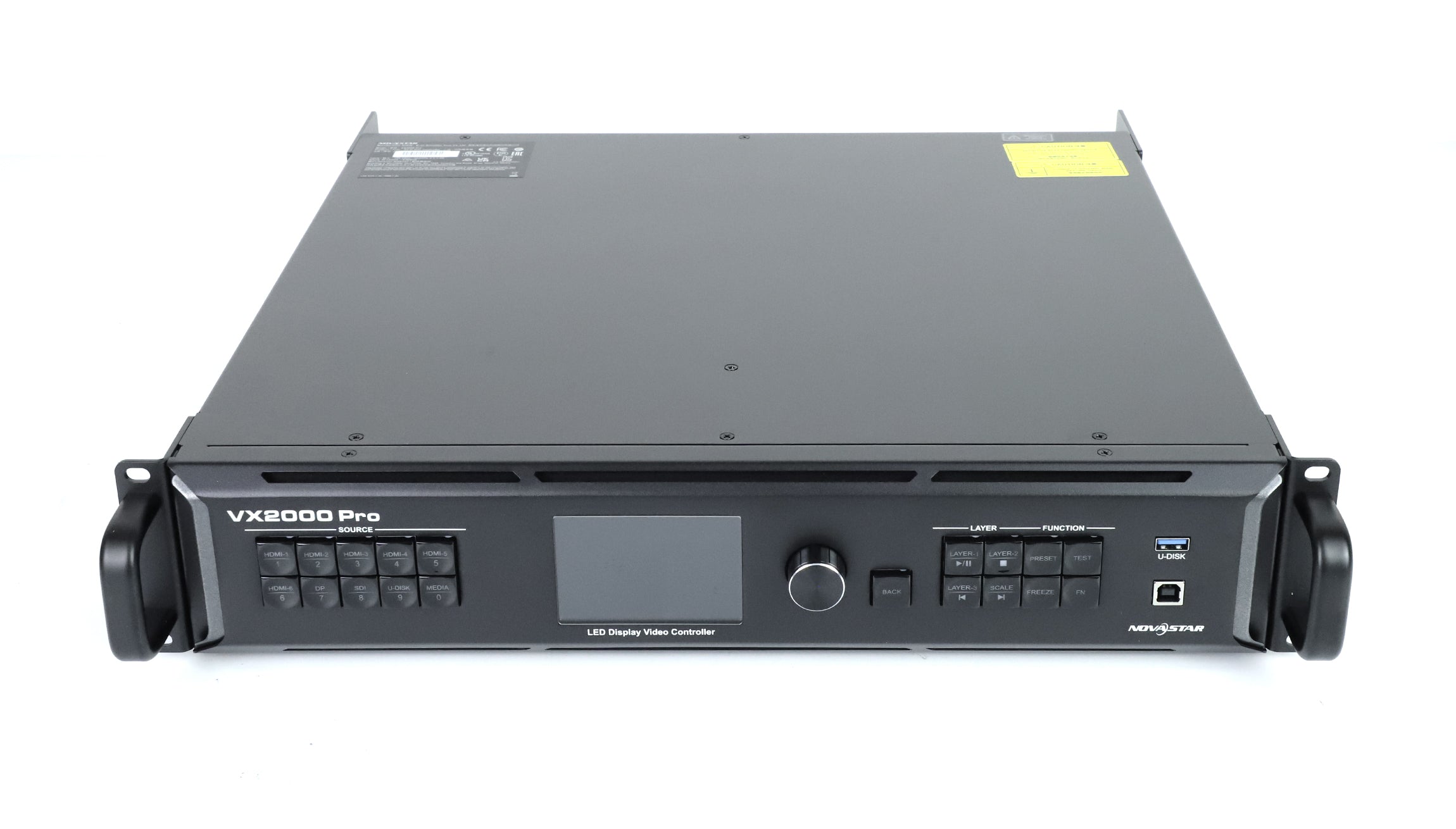

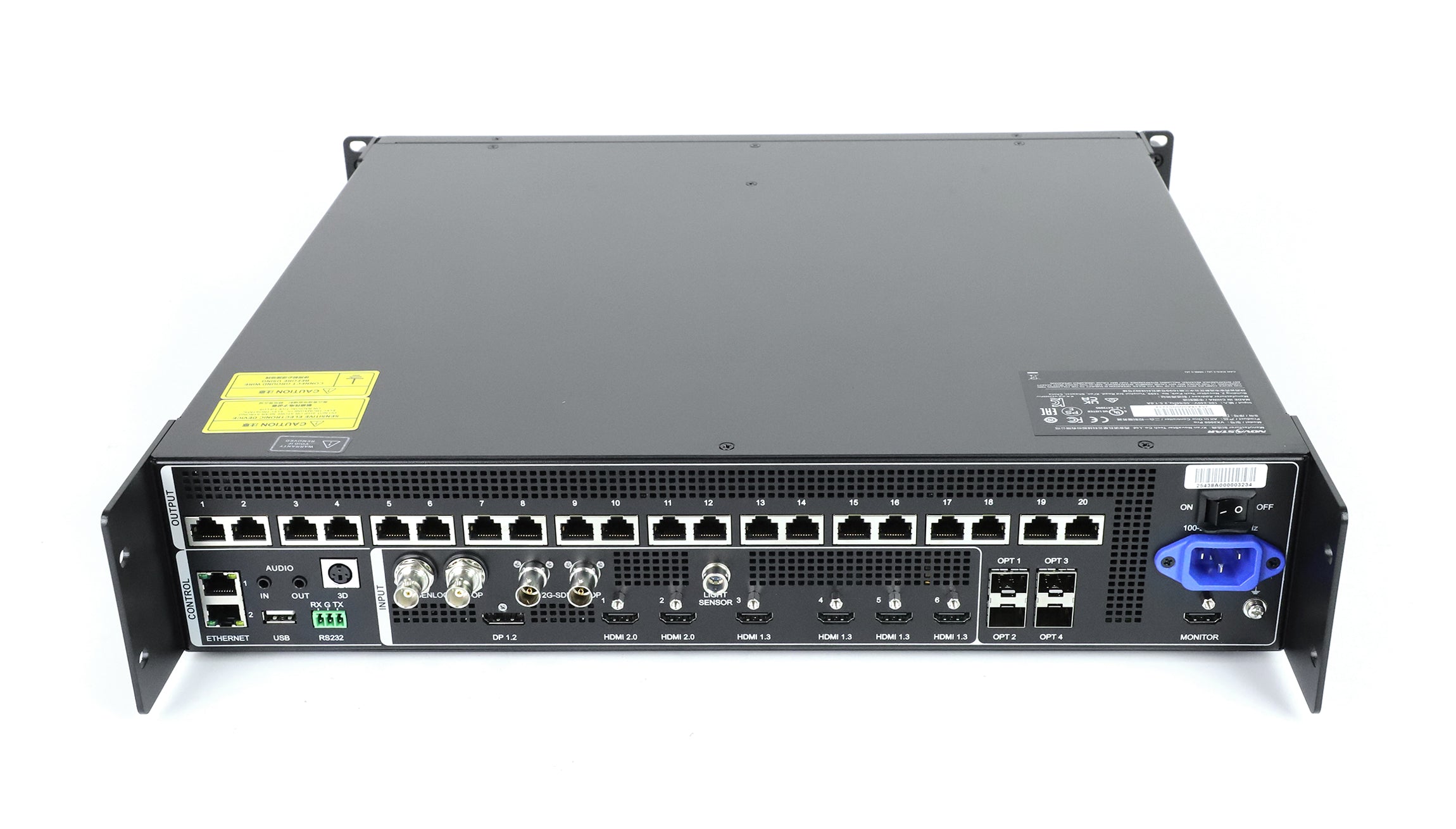

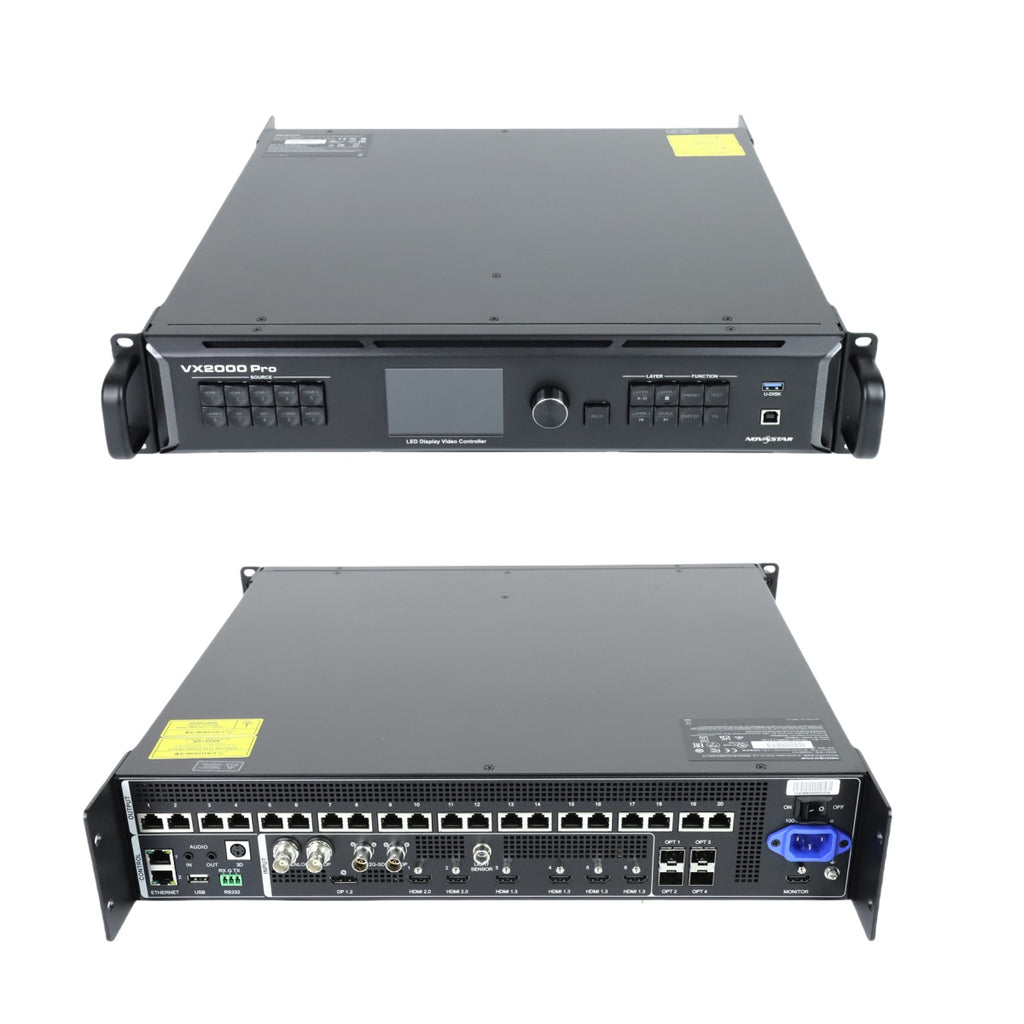

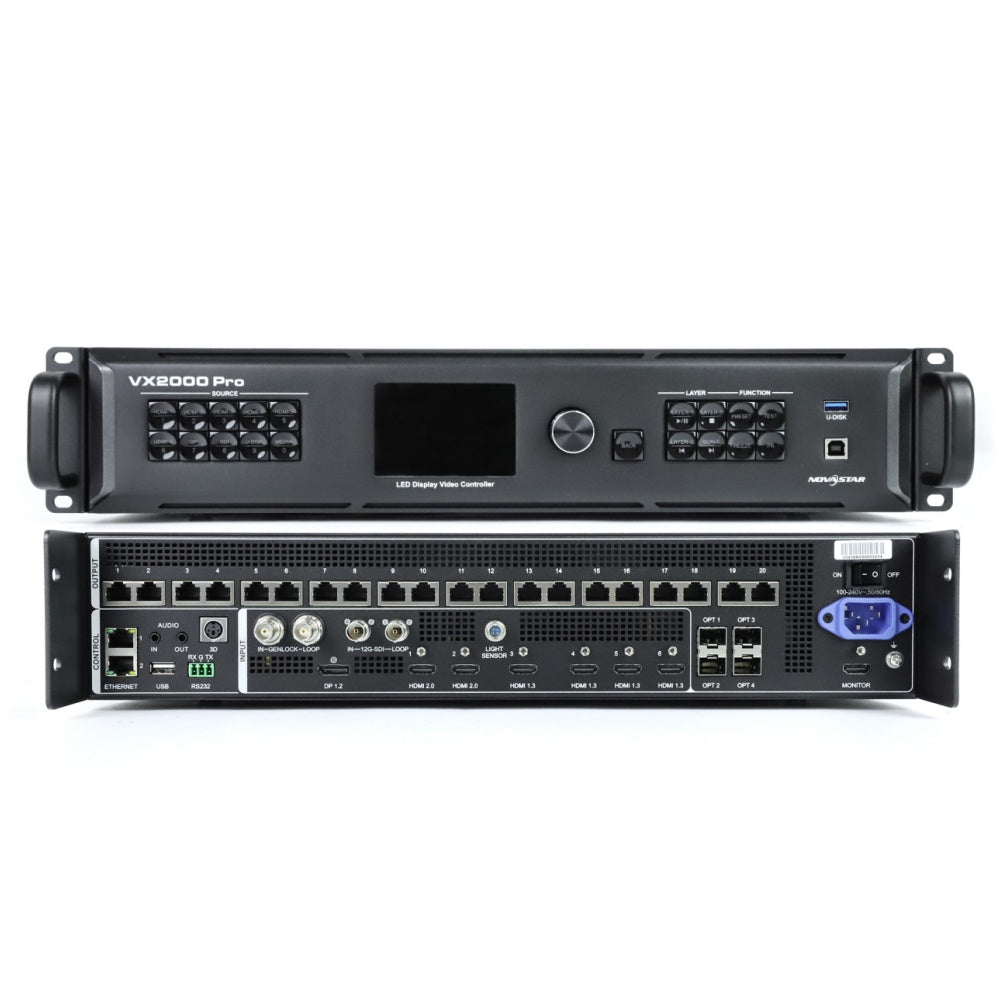

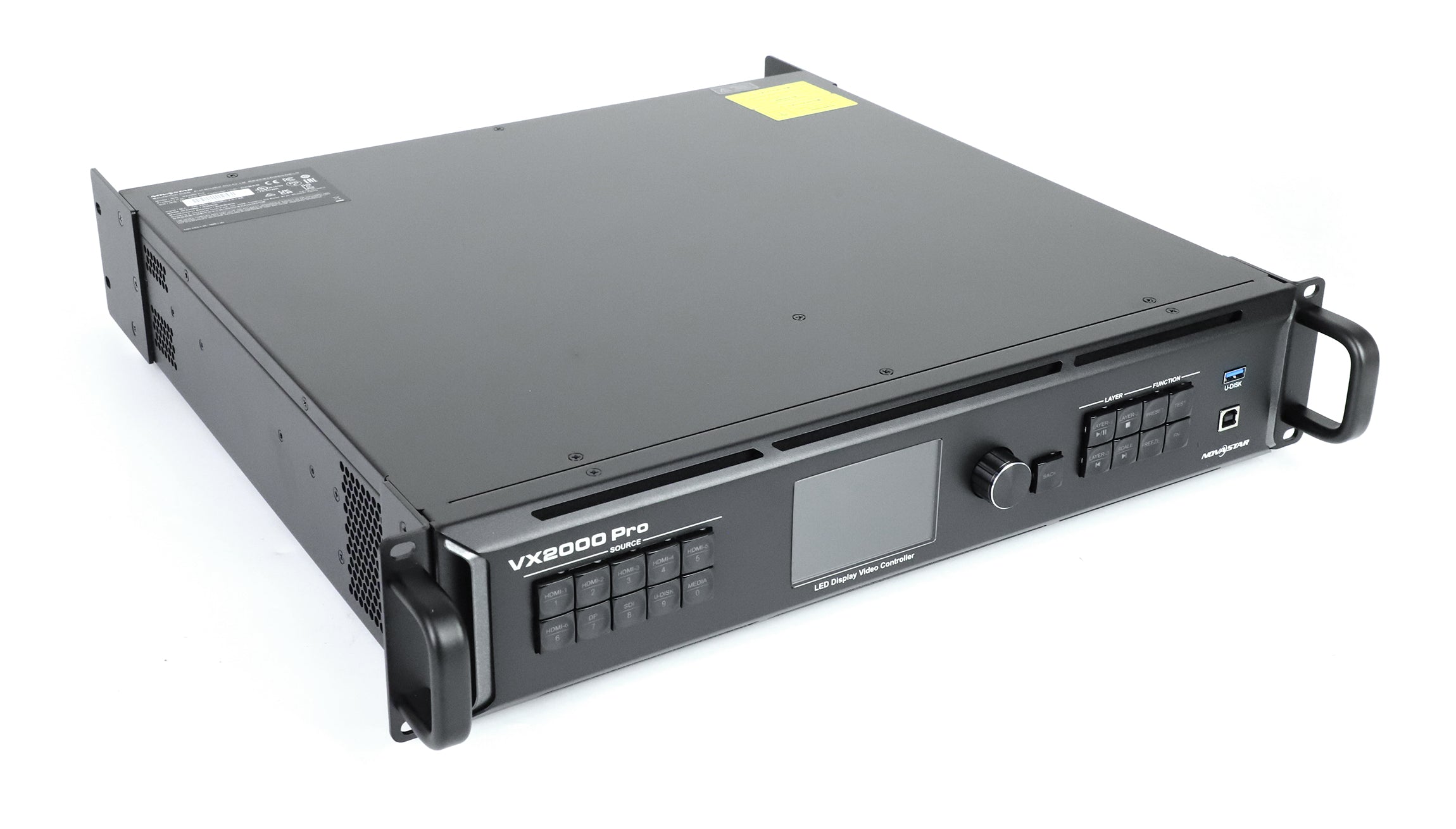

Additional Images
Additional Description:
The VX2000 Pro delivers industry-leading image quality, low-latency performance, and flexible control options, making it perfect for high-end rental shows, large-scale stage events, and demanding indoor/outdoor LED installations. Its redundant system and robust design ensure uninterrupted operation even in challenging environments.
