Description

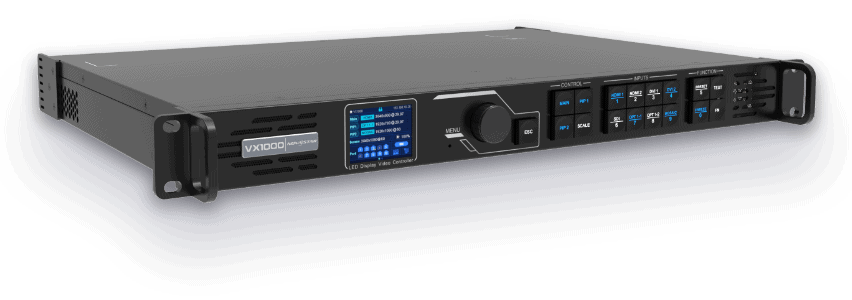

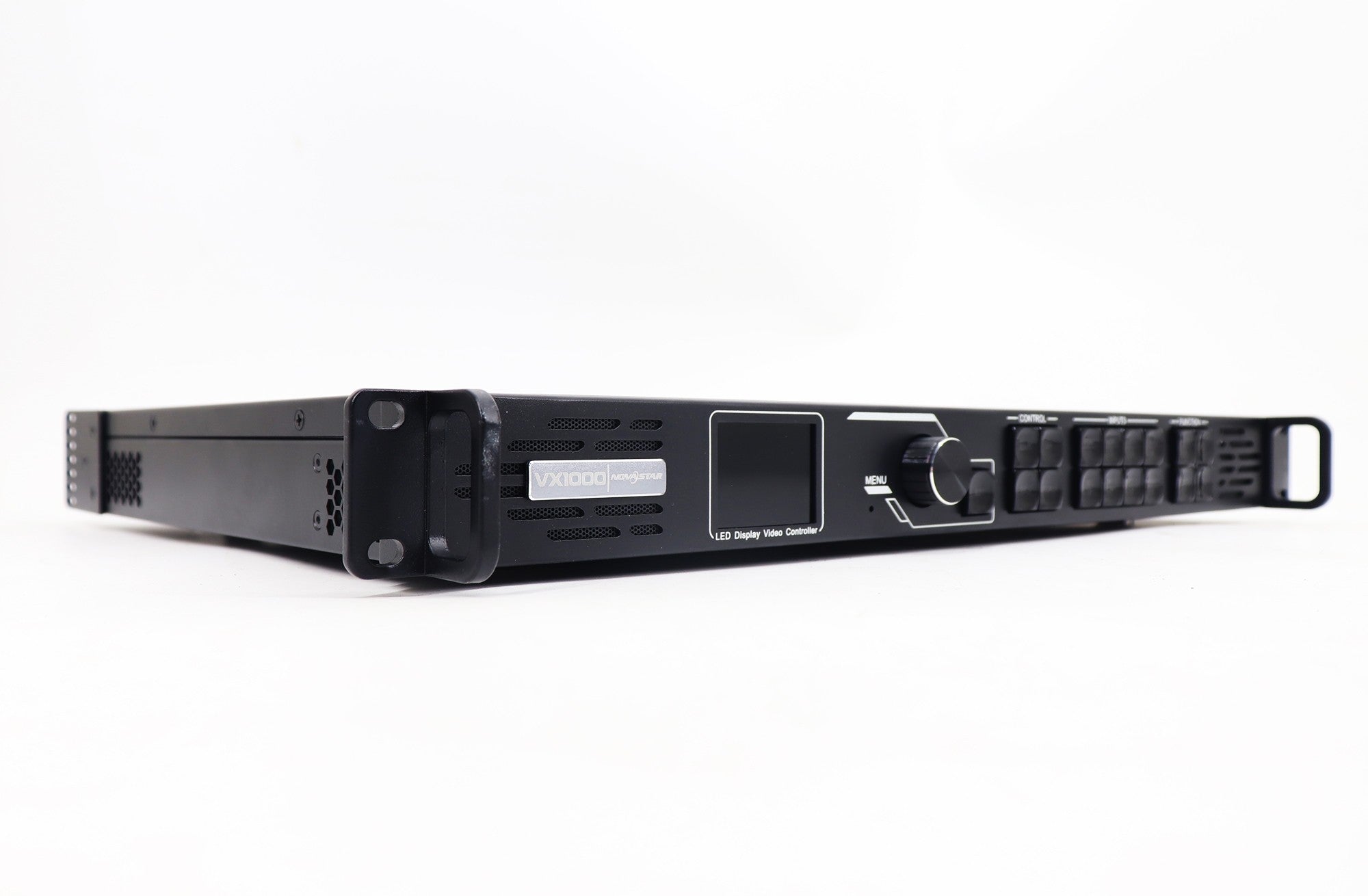

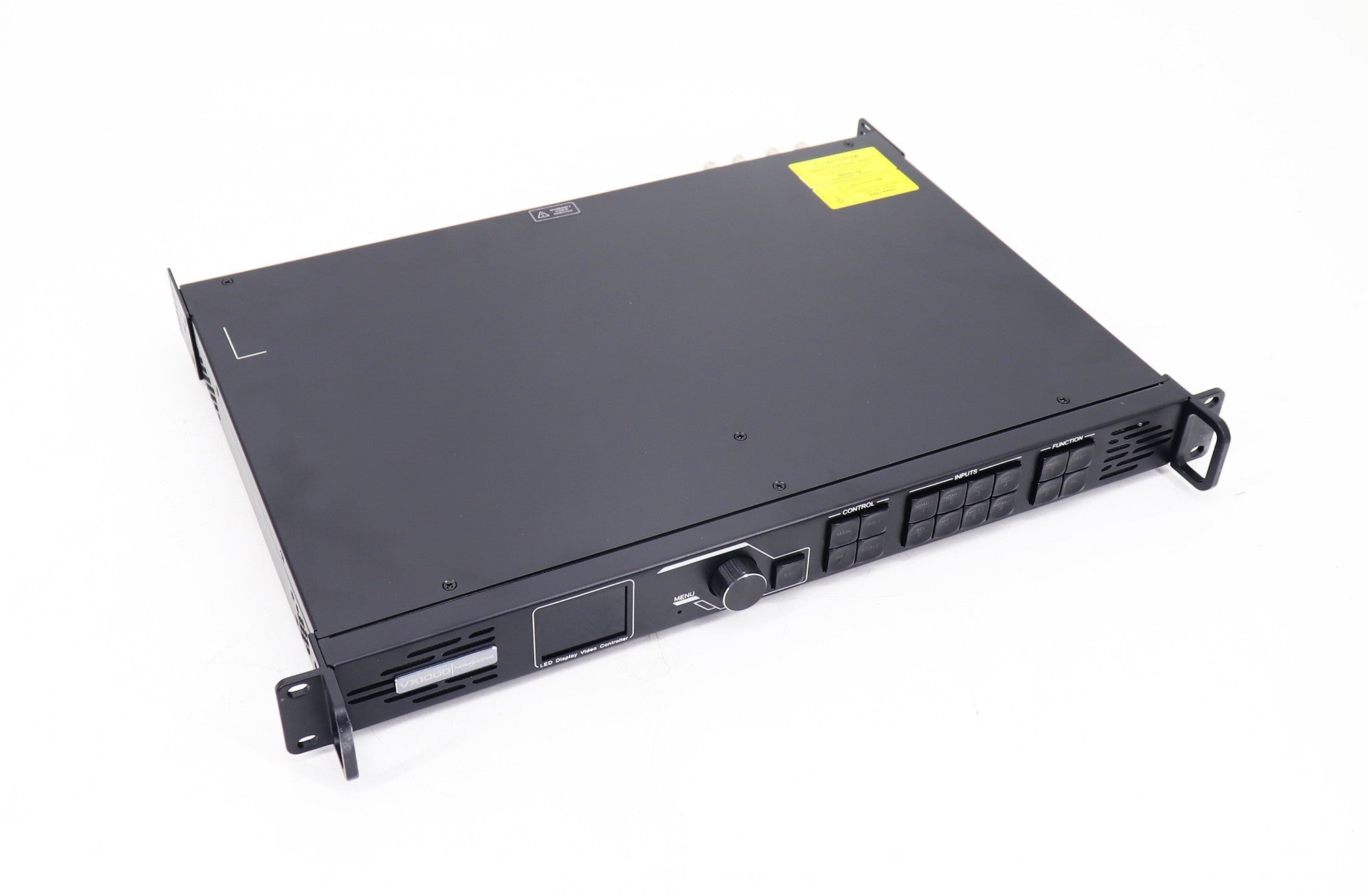

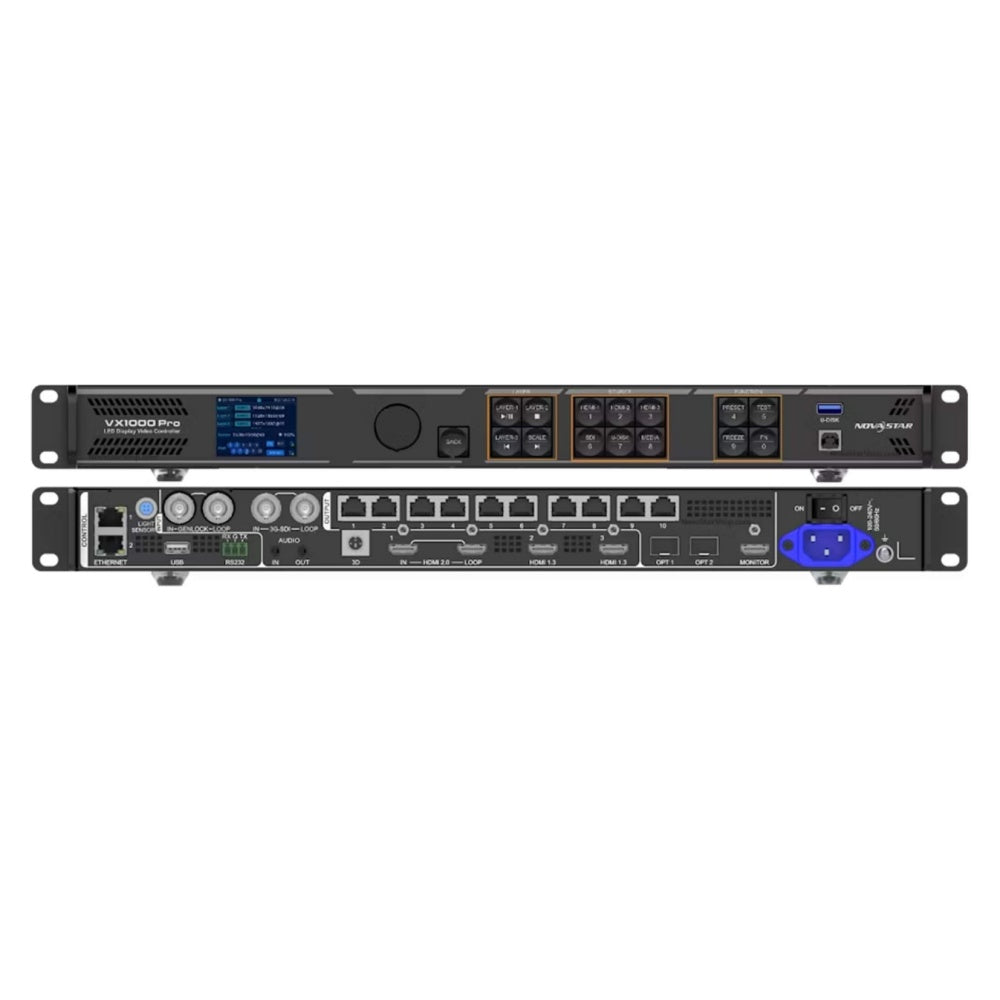

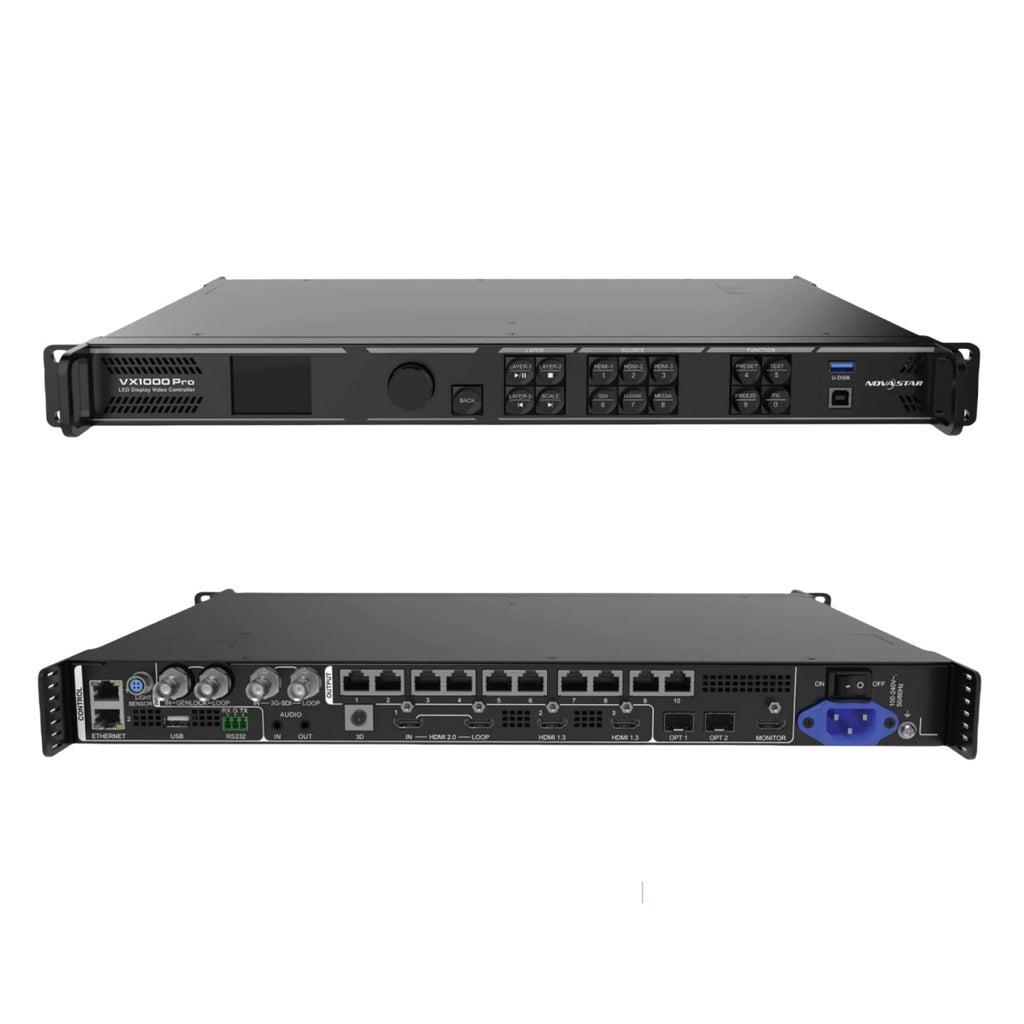

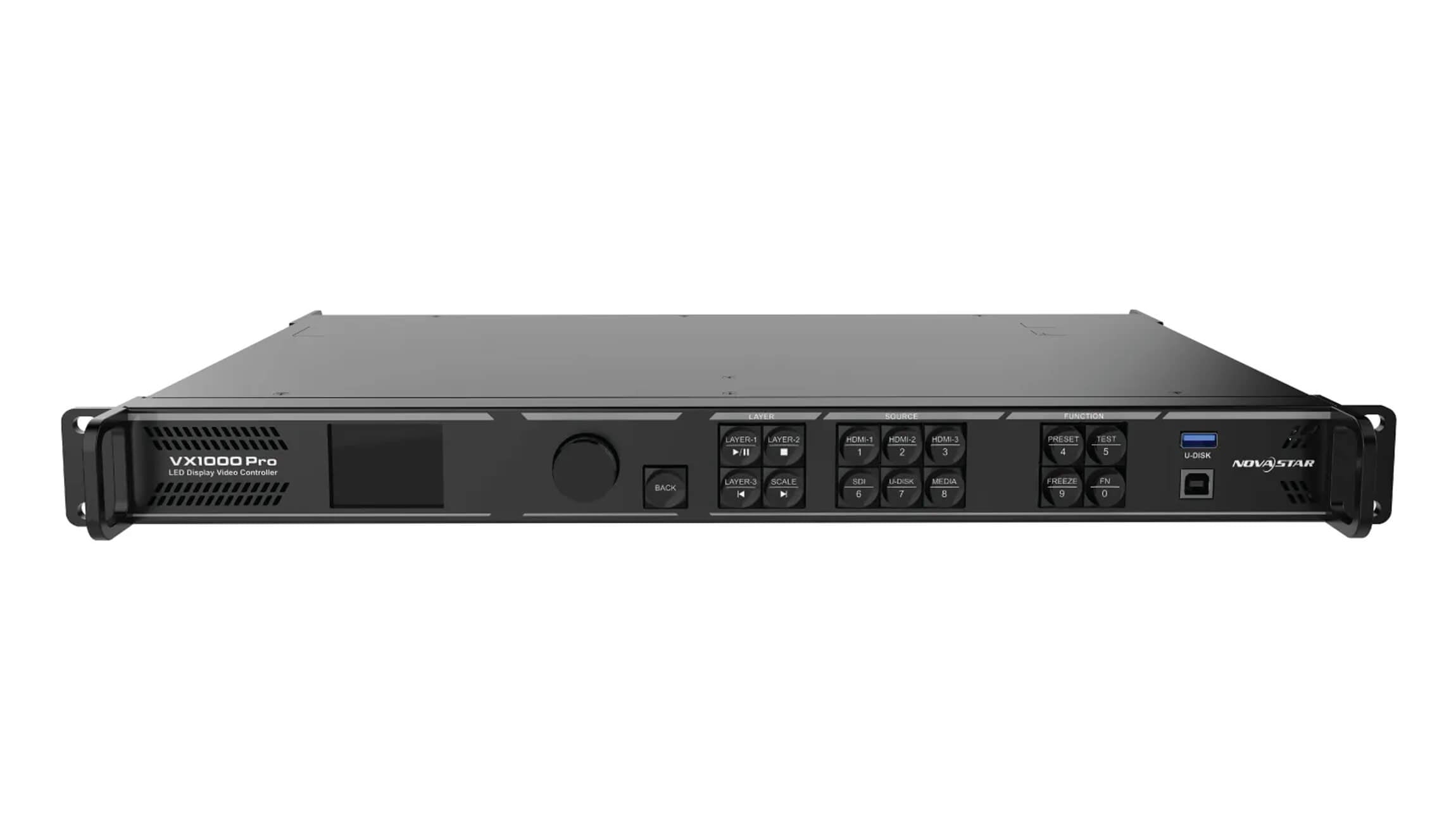

Novastar VX1000 Pro All-in-One LED Screen Controller w/ 6.5 Million Pixels Loading Capacity

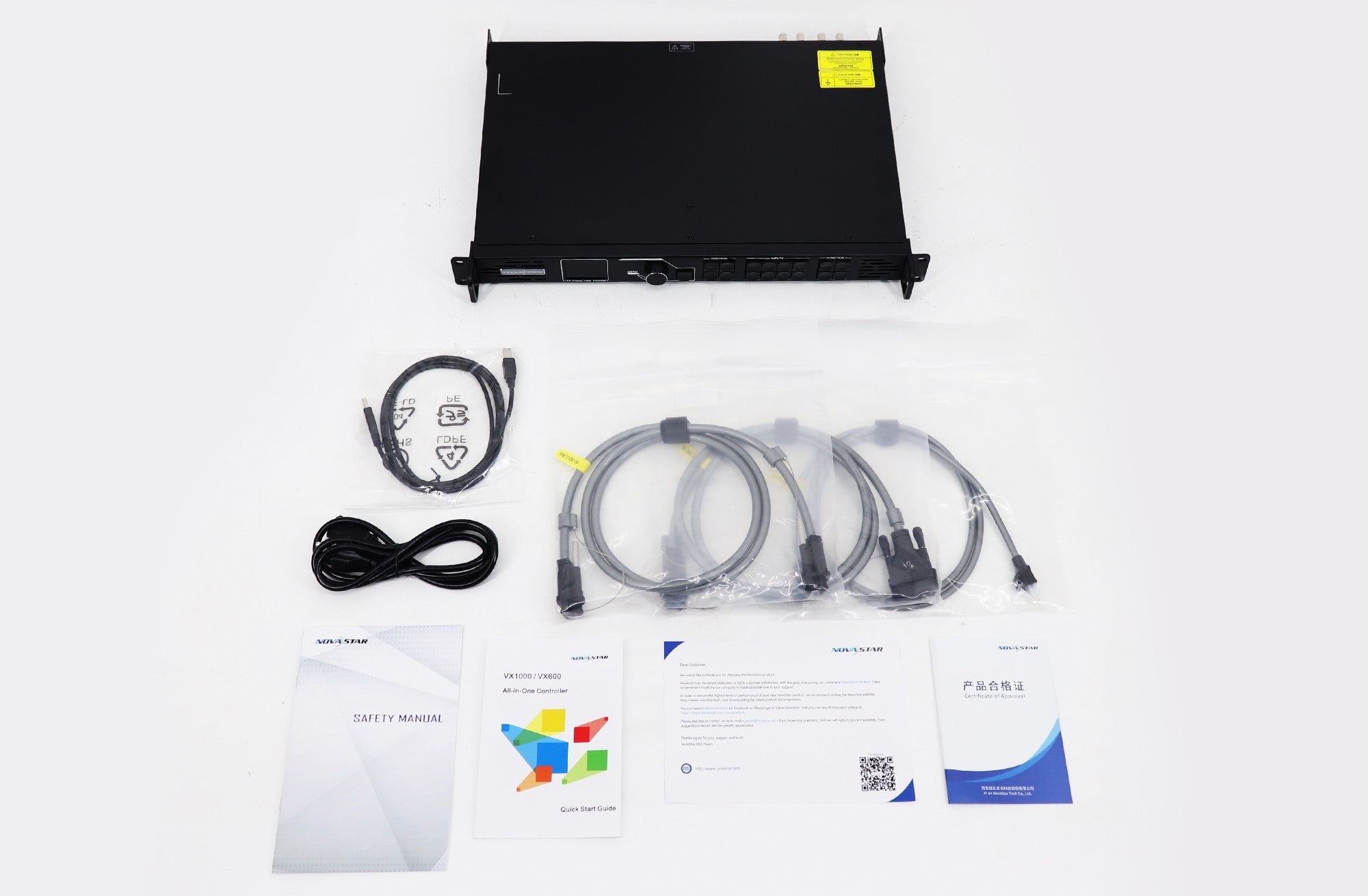

Package Included
| Version | Package Included |
|---|---|
| VX1000 Pro V1.0.1 | 1× VX1000 Pro Controller 1× Power Cable 1× User Manual 1× Quick Start Guide |
| VX1000 Pro V2.0.0 | 1× VX1000 Pro Controller 1× Power Cable 1× User Manual 1× Quick Start Guide 1× Firmware Upgrade Package |
About this item
- High-performance LED screen controller supporting 10 Ethernet output ports and 6.5 million pixels loading capacity.
- Compatible with multiple LED module pixel pitches, up to 10240×8192 resolution.
- Features 3 working modes (Video Controller, ByPass, Fiber Converter) and complete redundant system for enhanced stability.
- Compact design with efficient cooling to ensure long-term reliability.
- Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups.
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications

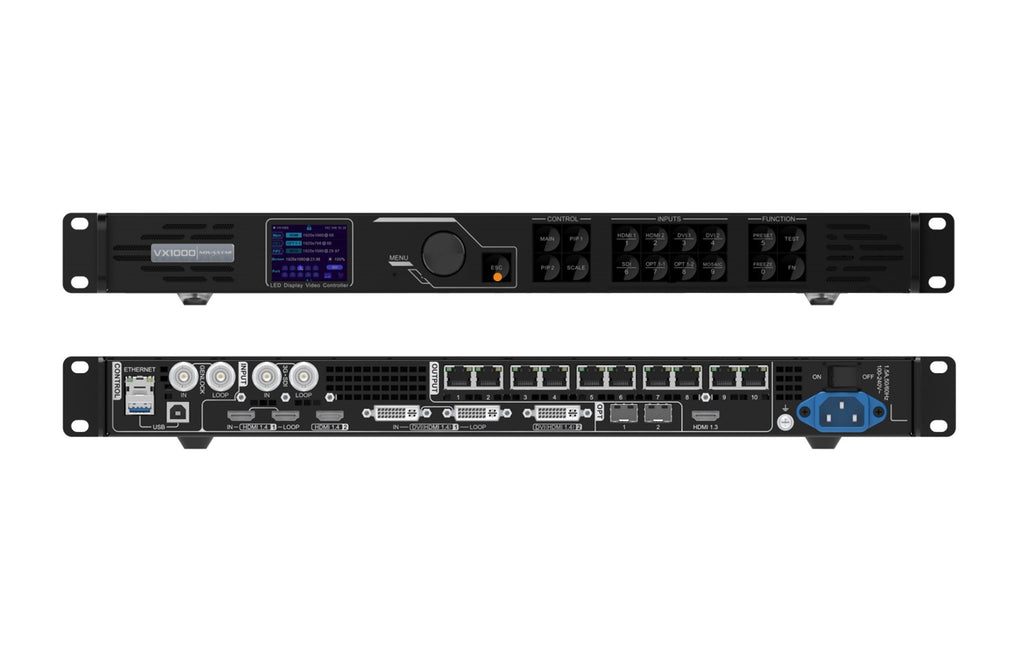

- Input Ports: 1× HDMI 2.0 (IN & LOOP), 2× HDMI 1.3, 1× 3G-SDI (IN & LOOP), 1× 10G OPT Port (OPT1), 1× USB3.0

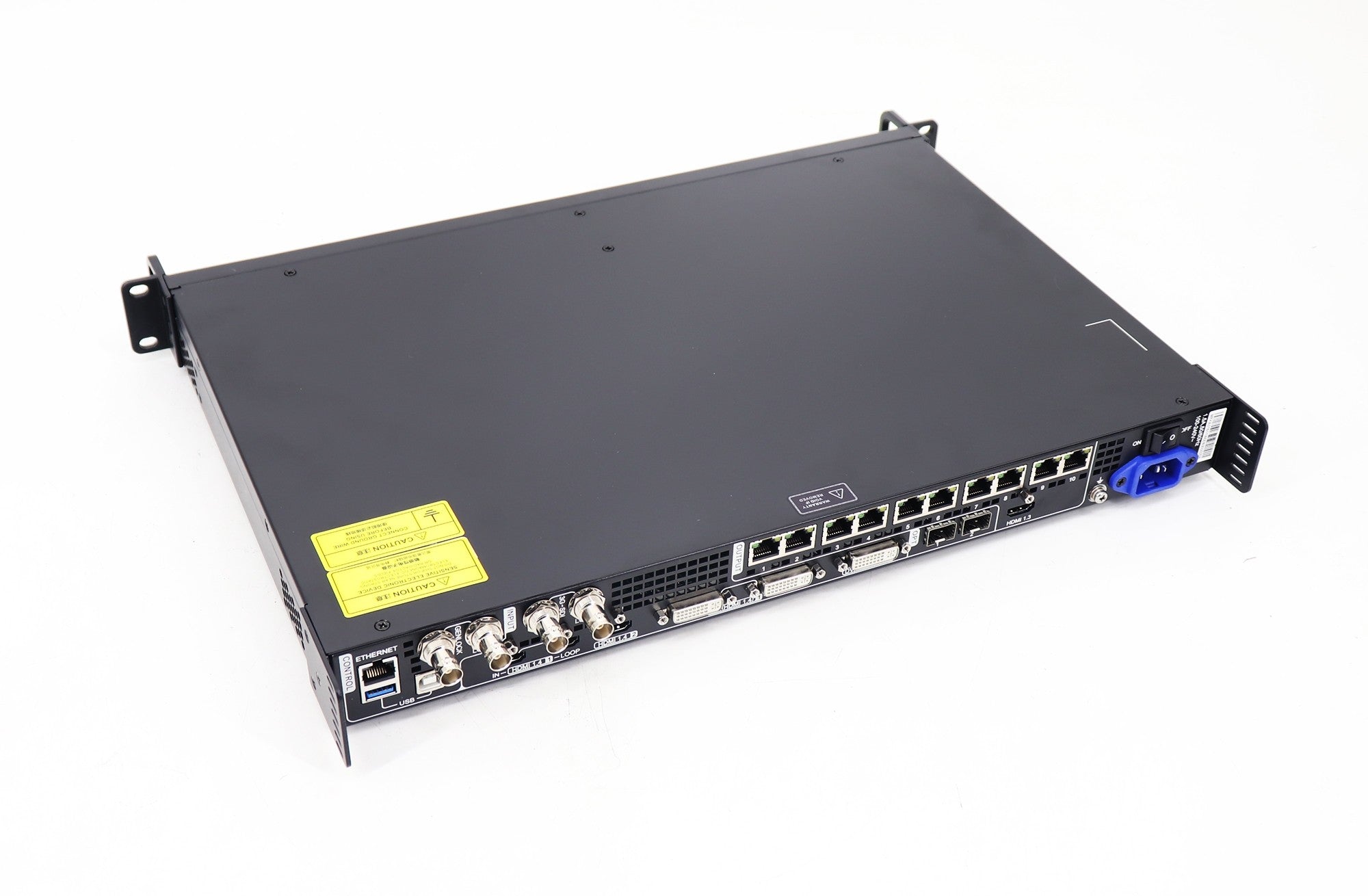

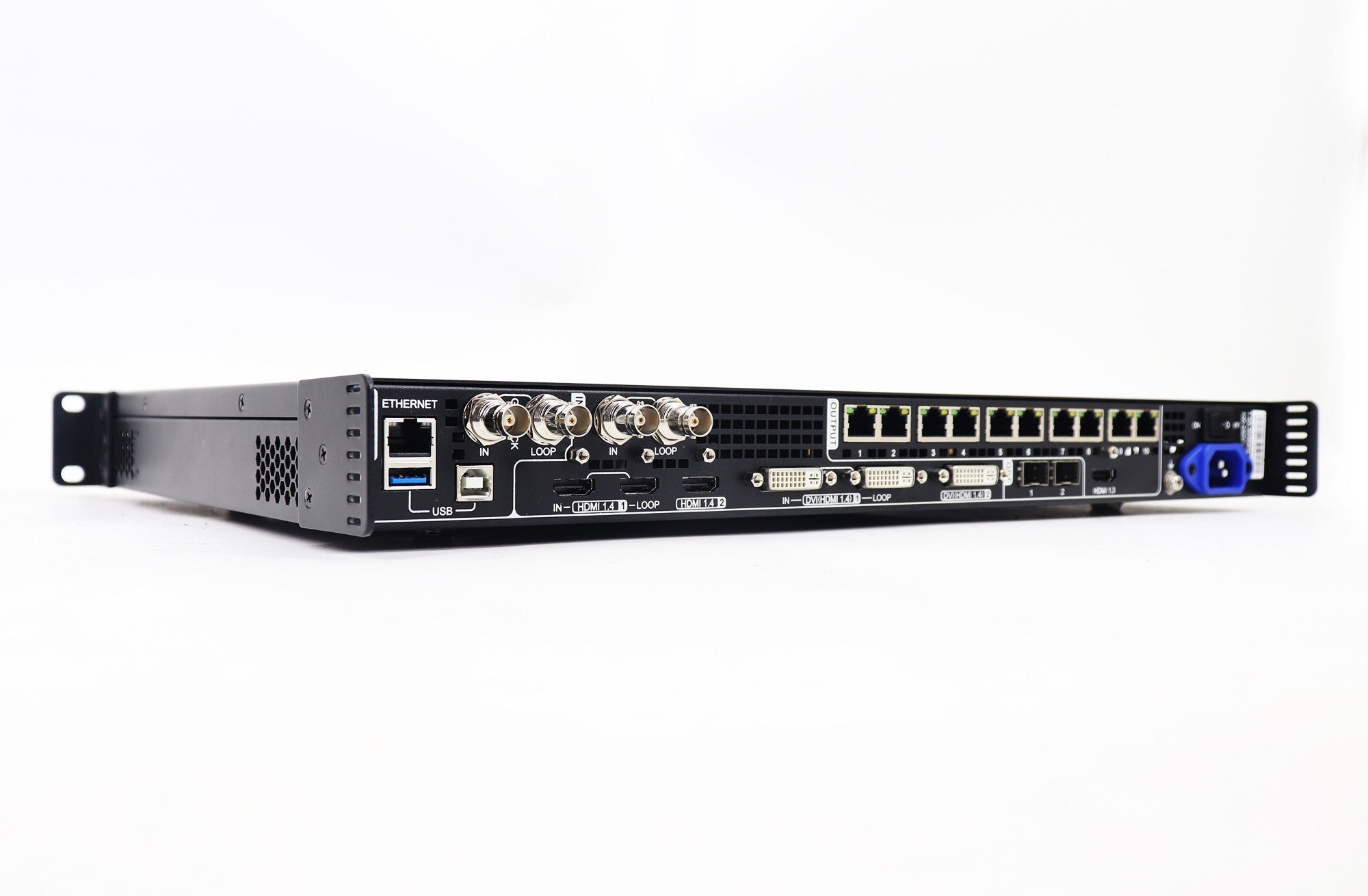

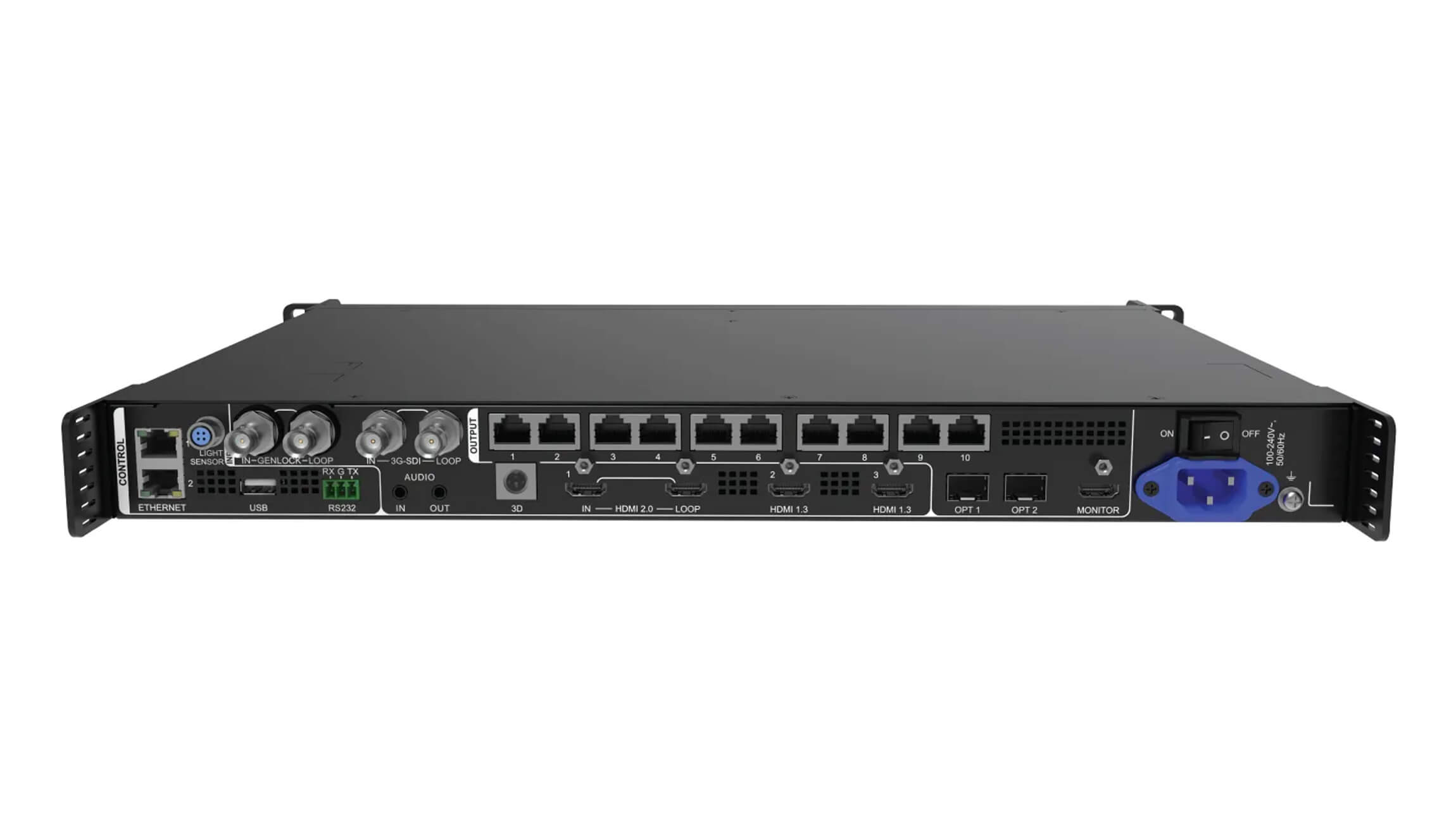

- Output Ports: 10× Ethernet Ports, 1× HDMI1.3, 1× HDMI 2.0 LOOP, 1× 3G-SDI LOOP, 2× OPT
- Supported Resolutions: Up to 10240×8192
- Control Method: USB / Network
- Power Supply: AC 100–240V
- Operating Temperature: -20°C to 60°C
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Downloads
- Product Specification Sheet (PDF)
- Software / Control Tools – Firmware
- User Manual
- Quick Start Guide
- Release Notes
Technical Specifications
| Device Model | VX400 Pro | VX600 Pro | VX1000 Pro | VX2000 Pro |
|---|---|---|---|---|
| Loading Capacity | 2.6 million pixels | 3.9 million pixels | 6.5 million pixels | 13 million pixels |
| Max Width (pixels) | 10240 | 10240 | 10240 | 16384 |
| Max Height (pixels) | 8192 | 8192 | 8192 | 8192 |
| Layers | 6 *2K×1K | 6 *2K×1K | 6 *2K ×1K | 12 *2K×1K |
| Input Connectors | 1× HDMI 2.0（IN&LOOP） 2× HDMI 1.3 1× 3G-SDI（IN&LOOP） 1× 10G OPT Port（OPT1） 1× USB3.0 |
1× HDMI 2.0（IN&LOOP） 2× HDMI 1.3 1× 3G-SDI（IN&LOOP） 1× 10G OPT Port（OPT1） 1× USB3.0 |
1× HDMI 2.0（IN&LOOP） 2× HDMI 1.3 1× 3G-SDI（IN&LOOP） 1× 10G OPT Port（OPT1） 1× USB3.0 |
1× 12G-SDI(IN&LOOP) 1× DP 1.2 2× HDM 2.0 4× HDMI 1.3 2× OPT 1× USB3.0 |
| Output Connectors | 4× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT |
6× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT |
10× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT |
20× Ethernet Ports 1× HDMI1.3 4× OPT 1× 2G-SDI LOOP 4× OPT |
| Presets | 256 | 256 | 256 | 256 |
| Control Connectors | 2× Ethernet Port 1× USB |
2× Ethernet Port 1× USB |
2× Ethernet Port 1× USB |
2× Ethernet Port 1× USB |
Applications
- Medium and high-end rental
- Stage control systems
- Fine-pitch LED displays
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
Highlight Images with Description
-
— 10 Ethernet outputs for 6.5 million pixels loading capacity -
— 4K×1K@60Hz input, 3 layers with free scaling -
— Video Controller, ByPass, Fiber Converter, switch freely -
— Redundant input source and system configuration ensures total security -
— Easy and reliable operation interface
