Description

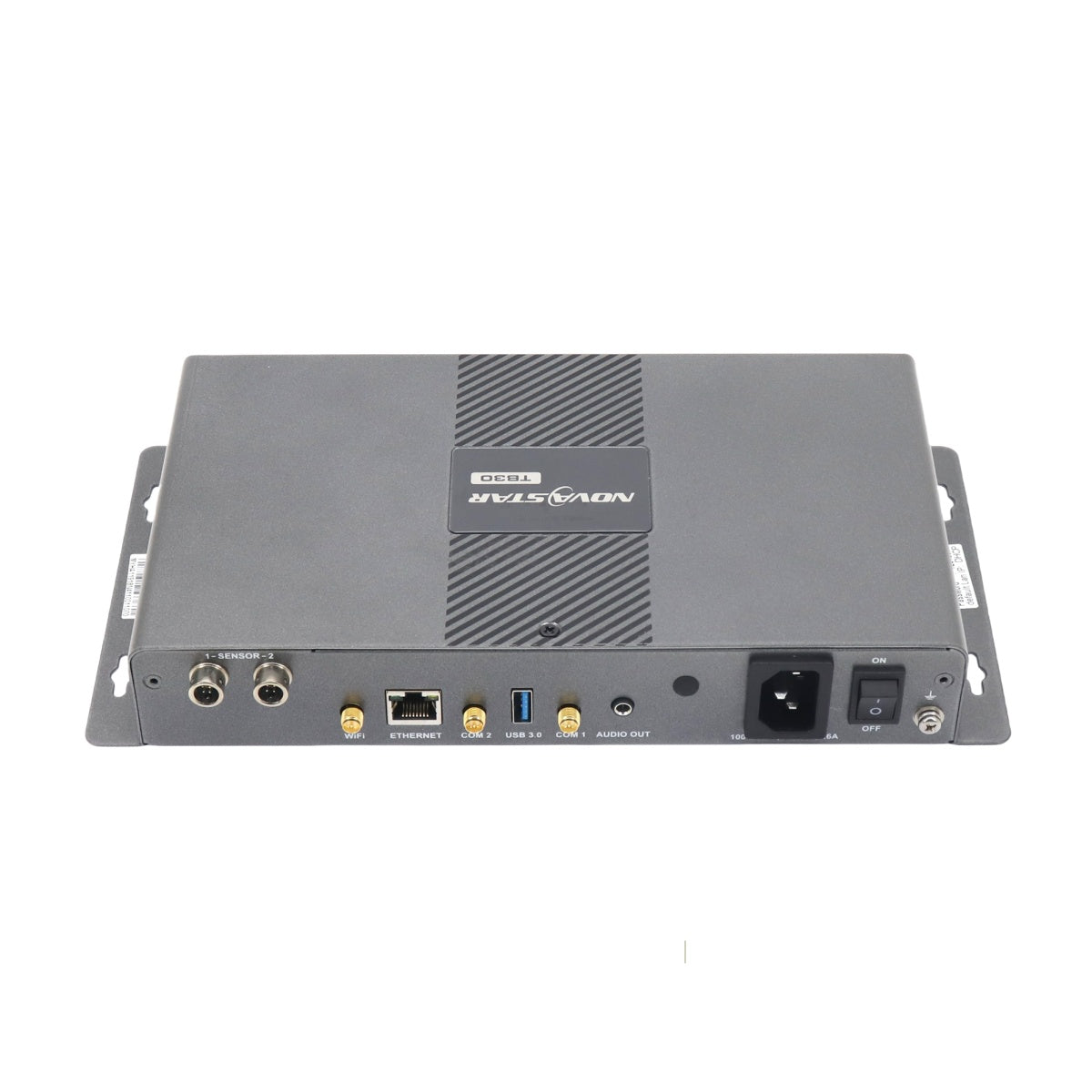

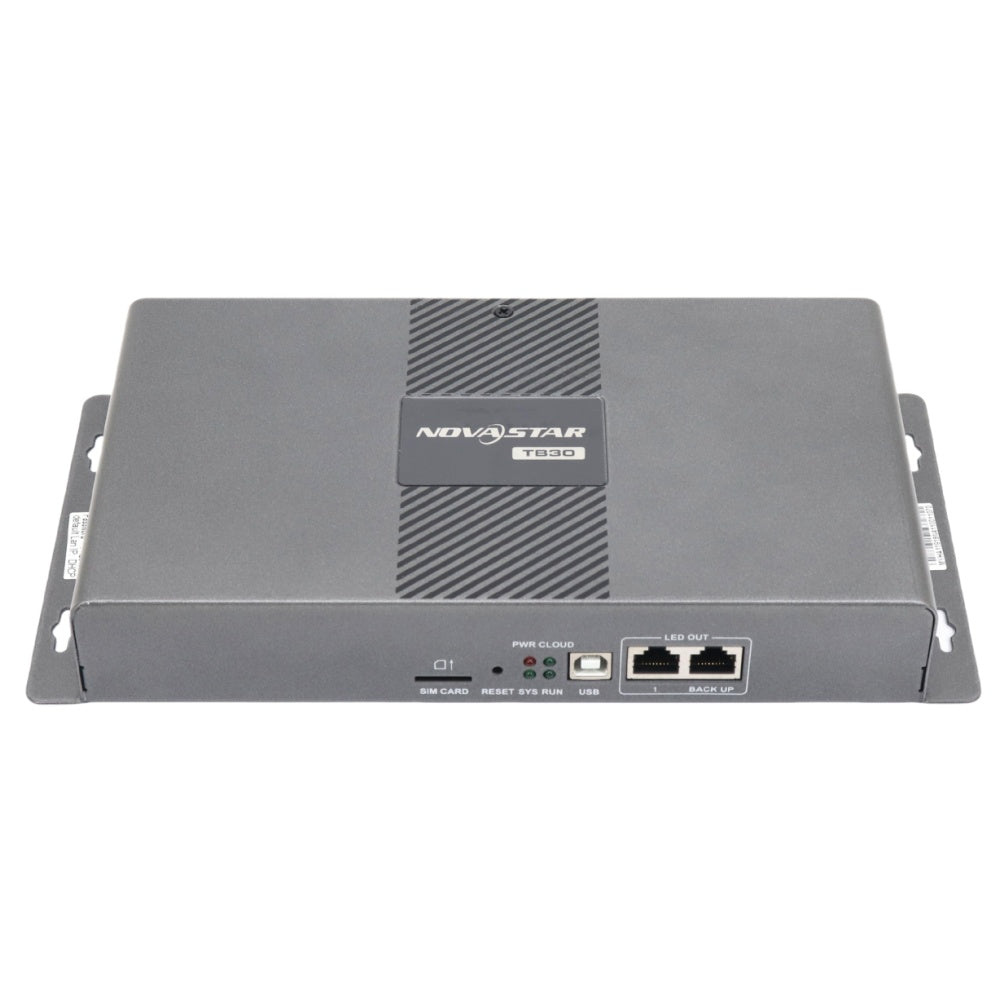

Novastar TB30 Taurus Multimedia Player – 0.65 Million Pixels | High-Performance LED Multimedia Controller for Indoor/Outdoor LED Displays

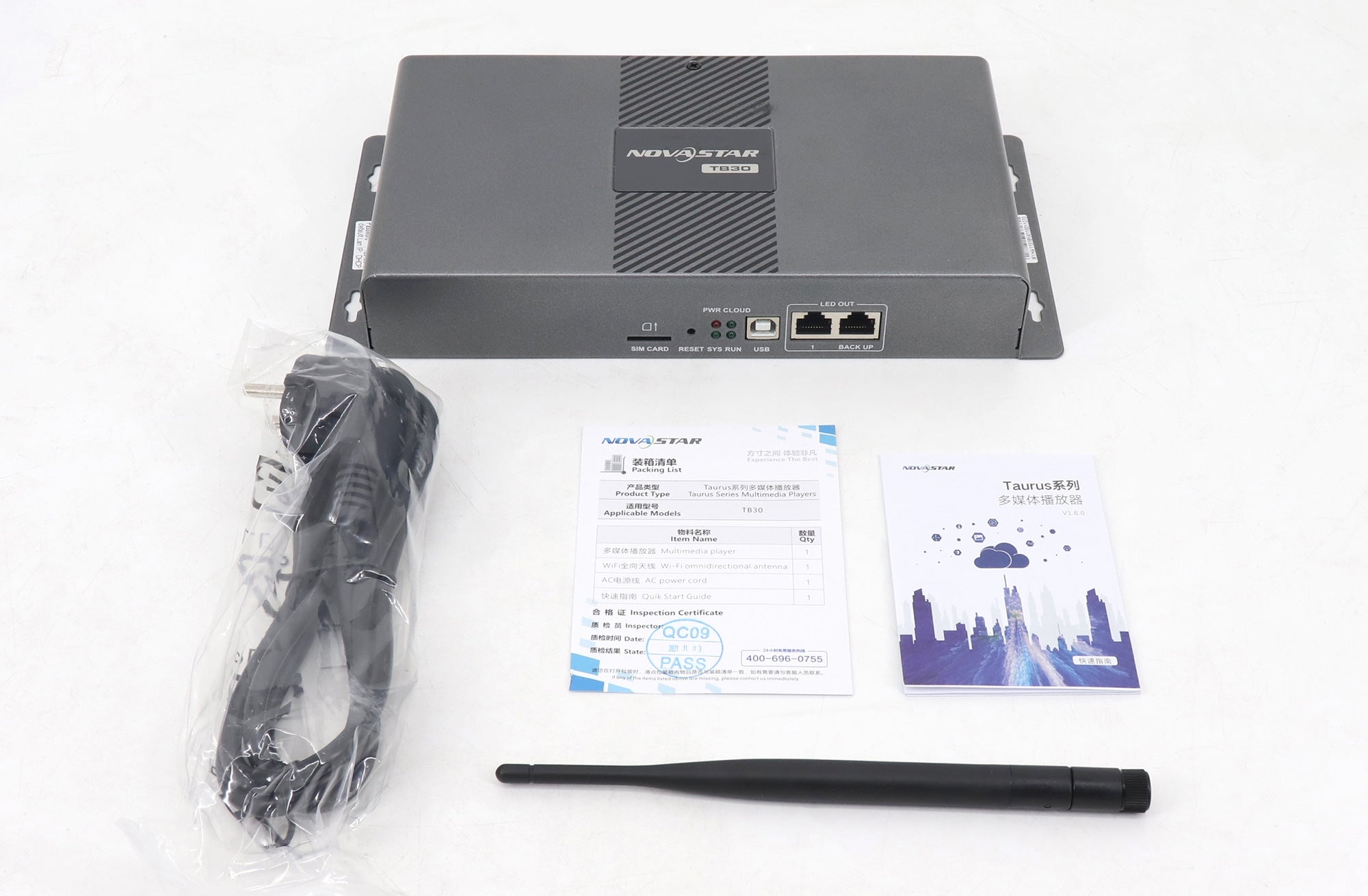

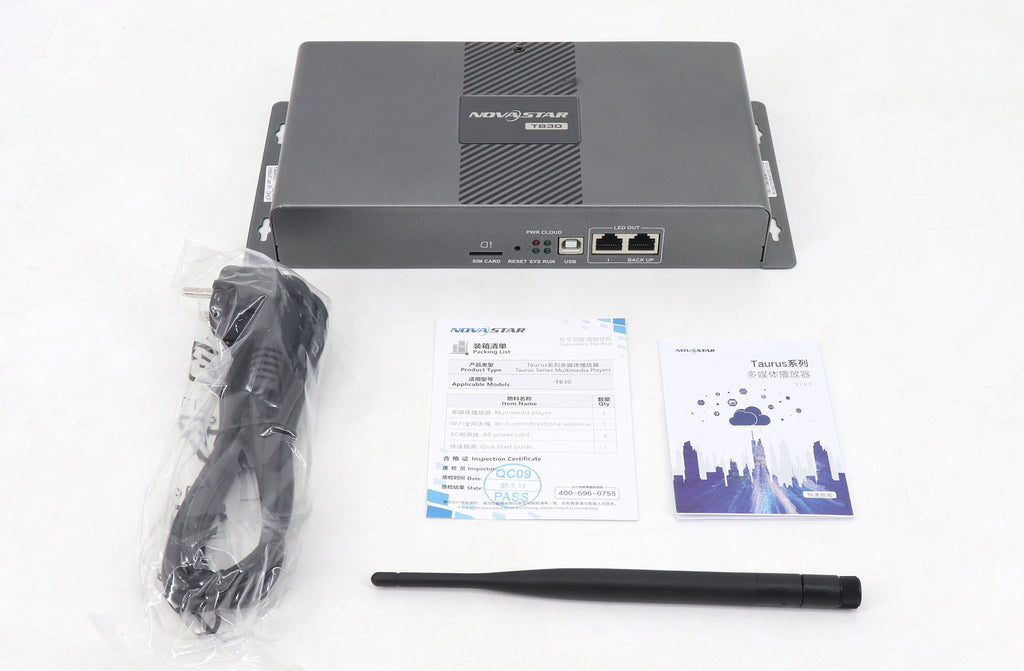

Package Included
| Version | Package Included |
|---|---|
| Specifications V1.5.0 | TB30 Multimedia Player, User Manual, Power Cable |
| Firmware V1.8.3 | Firmware File, Upgrade Instructions |
| Release Notes V1.8.3 | Release Notes Document |
About this item
- High-performance LED screen controller supporting up to 0.65 million pixels loading capacity and multiple video window outputs
- Compatible with multiple LED module pixel pitches, up to 4096×4096 max resolution
- Novastar features such as dual WiFi mode, 4G module support, and redundant backup for enhanced stability
- Compact metal case design with built-in cooling to ensure long-term reliability
- Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications

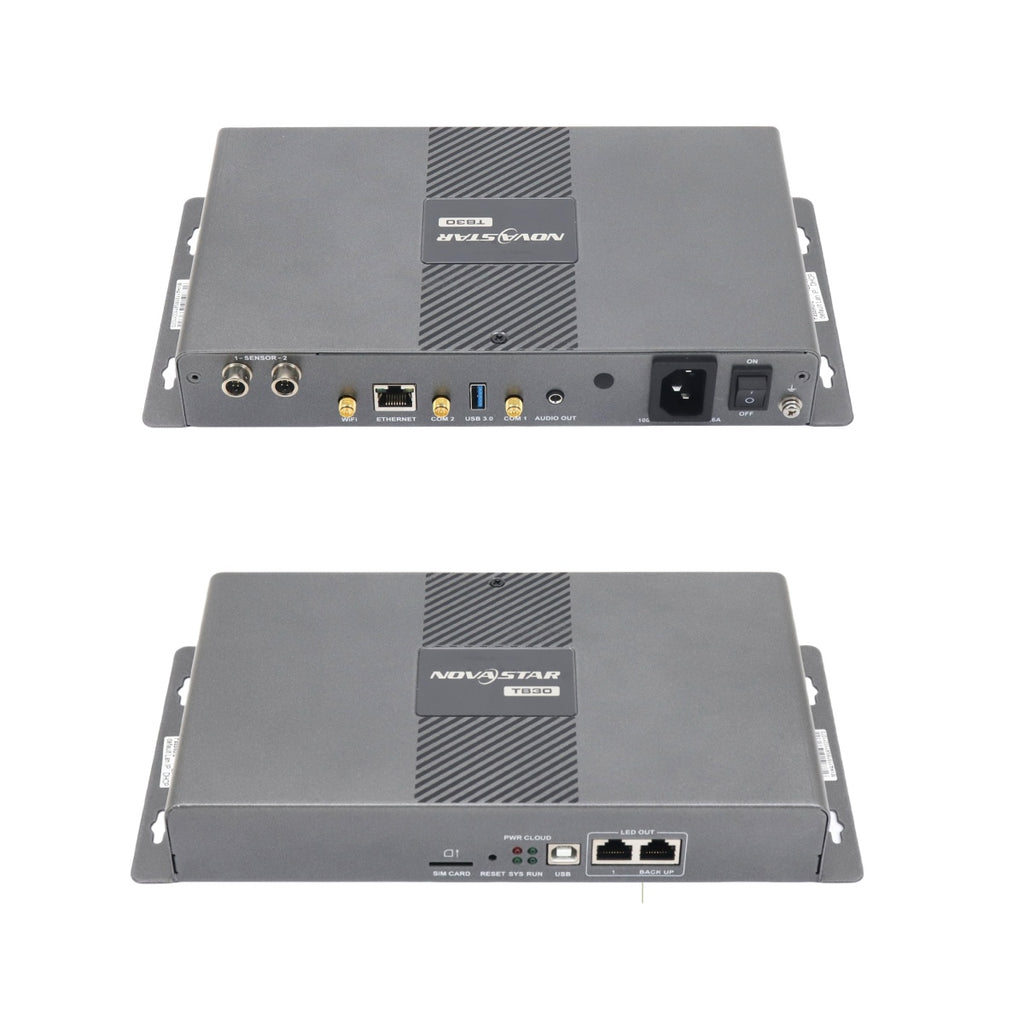

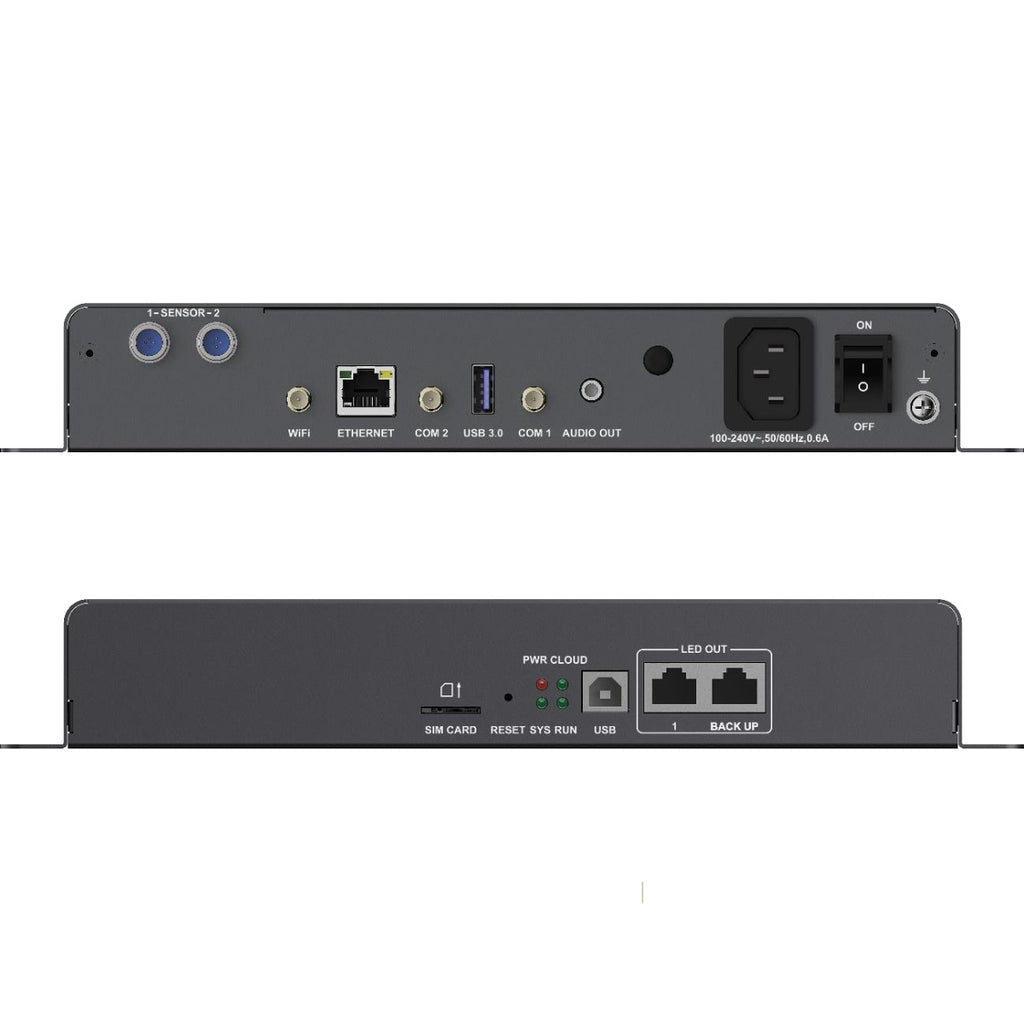

- Input Ports: HDMI, USB
- Output Ports: 1 Main + 1 Backup RJ45 Ethernet port
- Supported Resolutions: Up to 4096×4096 (stretched screens up to 8192×2084)
- Control Method: USB, Network, WiFi, 4G optional
- Power Supply: AC 100–240V
- Operating Temperature: Standard LED multimedia operation range
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
- For high synchronization requirements, use the synchronization timing module
- When using 4G network, purchase and install the appropriate 4G module according to local service regulations
Technical Specifications
| Model | TB10 Plus | TB20 Plus | TB30 | TB40 | TB50 | TB60 |
|---|---|---|---|---|---|---|
| CPU | 4 Core A35 / 1.4GHz | 4 Core A35 / 1.4GHz | 4 Core A55 / 1.8GHz | 4 Core A55 / 1.8GHz | 4 Core A55 / 1.8GHz | 4 Core A55 / 1.8GHz |
| Storage | 2GB + 32GB | 2GB + 32GB | 1GB + 32GB | 1GB + 32GB | 1GB + 32GB | 1GB + 32GB |
| Decode Ability | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps |
| Operation System | Android 10 | Android 10 | Android 11 | Android 11 | Android 11 | Android 11 |
| Max Capacity | 0.65M pixels | 0.65M pixels | 0.65M pixels | 1.3M pixels | 1.3M pixels | 2.3M pixels |
| Max Width / Max Height | 2048×2048; Stretched 8192×2084 | 2048×2048; Stretched 8192×2084 | 4096×4096 | 4096×4096 | 4096×4096 | 4096×4096 |
| Number of Video Windows | 1x4K/3x1080P/8x720P/16x480P/20x360P | 1x4K/3x1080P/8x720P/16x480P/20x360P | 1x4K/2x1080P/4x720P/4x480P/6x360P | 1x4K/2x1080P/4x720P/4x480P/6x360P | 1x4K/2x1080P/4x720P/4x480P/6x360P | 1x4K/2x1080P/4x720P/4x480P/6x360P |
| LED Output Port | 1 Main + 1 Backup | 1 Main + 1 Backup | 1 Main + 1 Backup | 2 Main | 2 Main | 4 Main |
| Sync Mode | NTP, GPS | NTP, GPS | NTP, GPS | NTP, GPS | NTP, GPS | NTP, GPS |
| Dual Mode Switch | × | √ | × | √ | √ | √ |
| HDMI Splicing Playback | × | × | × | √ 1080p up to level 8 | √ 1080p up to level 8 | √ 1080p up to level 8 |
| Audio Output | √ | √ | √ | √ | √ | √ |
| Sensor Access | √ | √ | √ | √ | √ | √ |
| Remotely Control Power | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card |
| Sensor | One aviation plug | One aviation plug | Two aviation plug | Two aviation plug | Two aviation plug | Two aviation plug |
| USB Local Playback | √ USB2.0 | √ USB2.0 | √ USB3.0 | √ USB3.0 | √ USB3.0 | √ USB3.0 |
| LAN | 100 Mbps | 100 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps |
| WiFi | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA |
| 4G | Support (Option) | Support (Option) | Support (Option) | Support (Option) | Support (Option) | Support (Option) |
| 5G | × | × | Support (Option) | Support (Option) | Support (Option) | Support (Option) |
| Viplex Handy (Cloud/PC/Mobile Phone) | √ | √ | √ | √ | √ | √ |
| Novastar SDK Agreement | √ | √ | √ | √ | √ | √ |
| Appearance Material | Metal Case | Metal Case | Metal Case | Metal Case | Metal Case | Metal Case |
| Power Port | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V |
| Certification | CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CQC, SRRC, RoHS | CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
- LED commercial display fields such as lamp pole screens, chain store screens, advertising machines, mirror screens, retail store screens, door head screens, car screens, and screens without PCs
Additional Files / Resources
- TB30 Specification Sheet (replacement for TB3)
- TB3 Specifications V1.5.0
- TB3 Firmware V1.8.3
- TB3 Release Notes V1.8.3
Description / Notes
NOTE: The NOVA TB3 has stopped production and is replaced by new model TB30.
Novastar Taurus TB3 LED Multimedia Player
