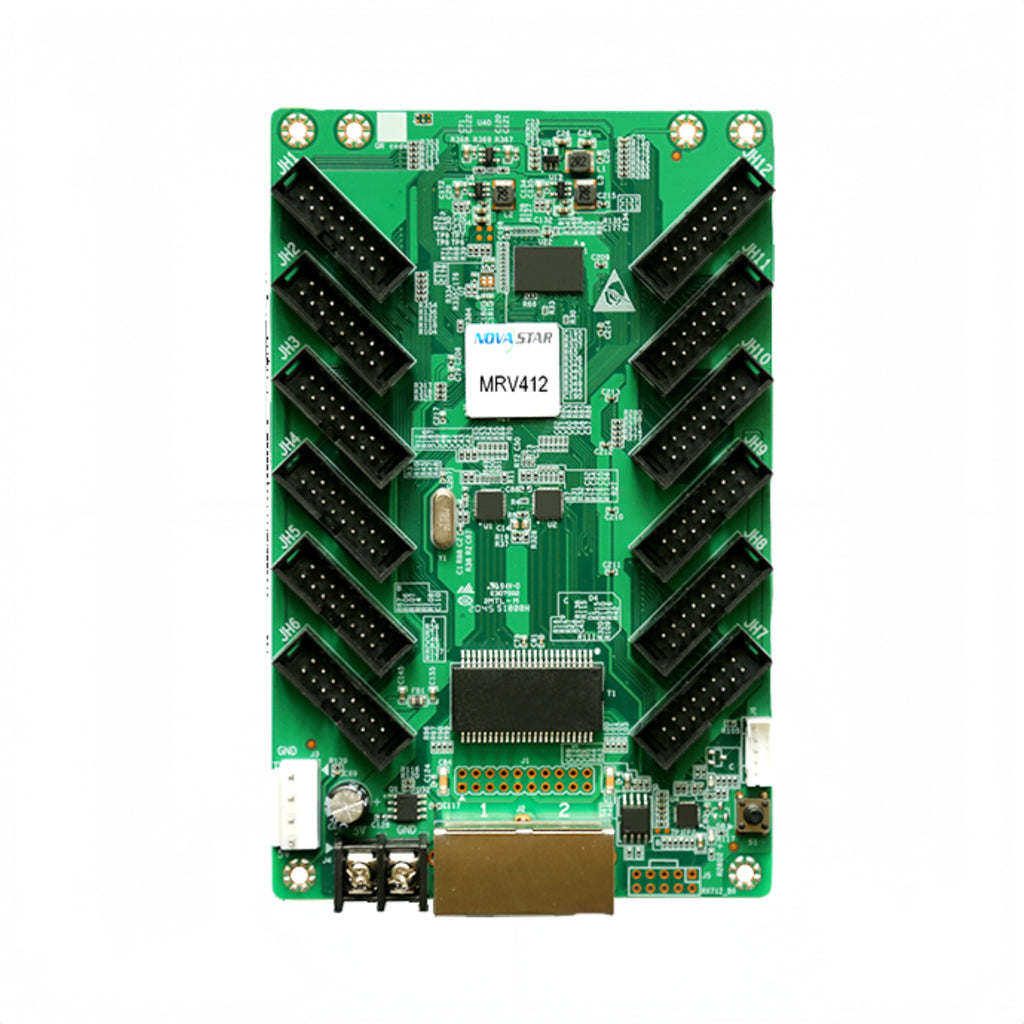

Novastar MRV412-N LED Screen Receiving Card – 512×384 Pixels | 24-Group Parallel RGB LED Controller Board for LED Display Screens

Package Included

Version	Package Included
MRV412-N	1× MRV412-1 Receiving Card 1× Antistatic Bag 1× User Manual

About this item

• High-performance LED screen controller supporting HUB75E input and 24-port parallel RGB output
• Compatible with multiple LED module pixel pitches, up to 512×512 pixels loading capacity
• Advanced NovaStar features such as mapping, pre-store picture, and redundancy backup for enhanced stability
• Compact design with efficient heat dissipation to ensure long-term reliability
• Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups

Order & Logistics

• Lead Time: Typically ships within 2–5 business days
• Packing: Cardboard box
• Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)

Key Specifications

• Input Ports: HUB75E
• Output Ports: HUB75E×12
• Supported Resolutions: Up to 512×512 pixels loading capacity
• Control Method: Network cable via sending card or all-in-one controller
• Power Supply: DC 3.3–5.5V
• Operating Temperature: -20°C to +75°C

Usage Notes / Installation Tips

• Always power off before connecting/disconnecting signal cables
• Use shielded network cables for stable data transmission
• Ensure adequate ventilation for prolonged operation

Technical Specifications

Model	MRV208-1	MRV412-N	MRV416-N
Loading capacity (pixel)	256×256	512×512	512×512
Max. parallel RGB data groups	16	24	32
Output Interface	HUB75E×8	HUB75E×12	HUB75E×16
Max. Scanning	64	64	64
3D	√	√	√
Pixel Level Brightness & Chroma Calibration	√	√	√
18bit+	–	√	√
Color Management	–	√	√
RGB Gamma Independent Adjustment	–	√	√
Low latency	–	√	√
Multi-batch Adjustment	√	√	√
Temperature, Voltage & Communication Status Monitoring	√	√	√
Redundancy Backup	√	√	√
Configuration File Dual Backup	√	√	√
Firmware Program Backup	√	√	√
Firmware Program Read-back	√	√	√
90-degree Multiple Rotation	–	√	√
Prestore Picture	√	√	√
Support for 5-pin LCD	√	√	√
Bit Error Testing	√	√	√
Mapping	√	√	√

Applications

• Fixed LED billboards
• Rental stage LED screens
• Indoor/outdoor advertising
• Conference / exhibition displays

MRV receiving cards

Ingenious creation, born for efficiency
Seamless connection of the picture, no black screen

MRV supports the preset picture setting of receiving card, and the specified picture can be set as both the startup screen of the display or the picture to be displayed when the network cable is disconnected or there is no video source signal, so that the screen will not be black and the picture is connected seamlessly.
Mapping functionality is supported, which can clearly obtain the location and wiring mode of the receiving card, ensuring box connection is easy, as well as quick location of problem box.

MRV series can check the temperature and voltage of the receiving card, detect the network communication quality between the transmitting equipment and the receiving card or between the receiving card and the receiving card without other peripheral devices, and help eliminate the hidden dangers of network communication.
Supports reading back firmware program and configuration parameters to avoid complicated operation and improve work efficiency.

Supports 3D functionality. With independent master control and 3D glasses supporting 3D functionality, you can achieve an immersive cinema-level 3D experience.
It also supports three backup modes: loop backup, configuration parameter backup and dual program backup, to maximize the smooth play of the screen.

It supports point by point color calibration. With NovaLCT and NovaCLB, it calibrates the brightness and chroma of each light point, effectively eliminates the color difference, ensures the uniformity of the entire display’s brightness and chroma, and improves the image quality of the screen.
