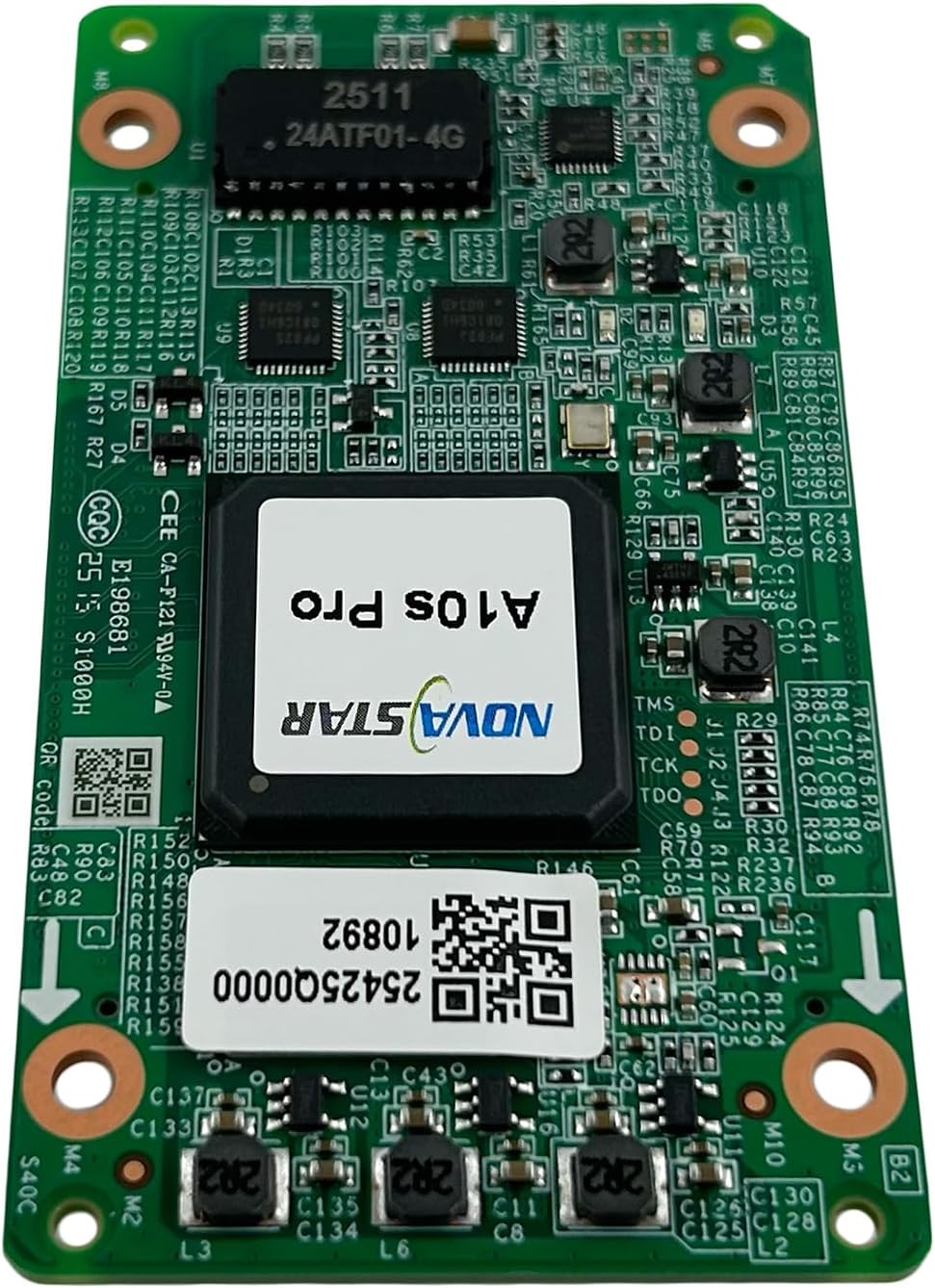

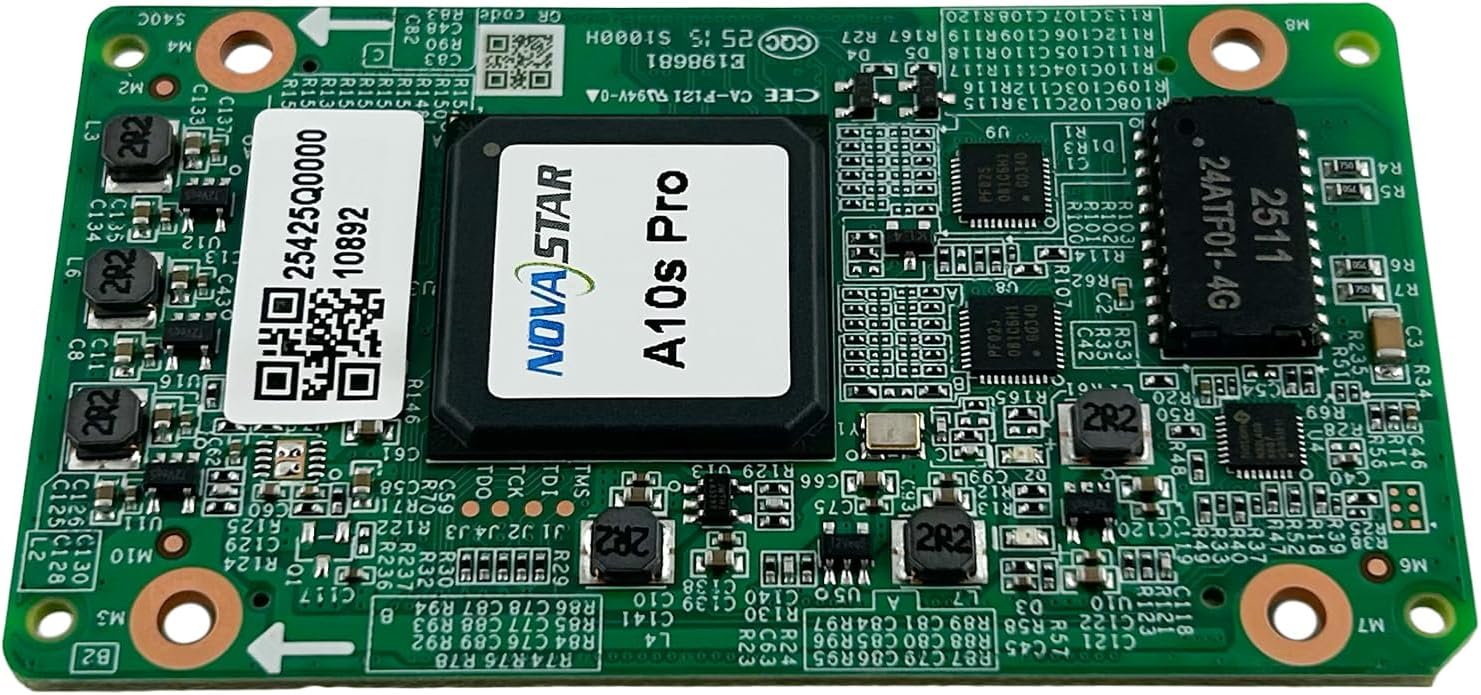

NovaStar A10s Pro Receiving Card – 512×512 Pixels | 5G Transmission‑Ready LED Display Control Card for LED Display Screens
Package Included
| Version |
Package Included |
| A10s Pro |
A10s Pro receiving card |
About this item
- High-performance LED screen controller supporting 512×512 pixels and 32-group RGB parallel data or 64-group serial data
- Compatible with multiple LED module pixel pitches, up to 512×512 resolution
- Advanced features such as HDR10 and HLG video input, pixel-level brightness and chroma calibration for enhanced stability
- Compact design with optimized hardware for stable, long-term operation
- Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
Key Specifications
- Input Ports: Compatible with controllers supporting HDR10 / HLG
- Output Ports: 32-group RGB parallel data or 64-group serial data
- Supported Resolutions: Up to 512×512 pixels
- Control Method: Network connection via compatible sending controller
- Power Supply: DC 3.8–5.5 V
- Operating Temperature: -20°C to +70°C
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Technical Specifications
| Model |
A5s Plus |
A8s-N |
A10s Pro |
| Loading capacity |
512×384 |
512×384 |
512×512 |
| Parallel RGB data groups |
32 |
32 |
32 |
| Serial data groups |
64 |
64 |
64 |
| HDR |
× |
√ |
√ |
| Mapping |
√ |
√ |
√ |
| Temperature, voltage and communication status monitoring |
√ |
√ |
√ |
| Dual-card backup |
√ |
√ |
√ |
| Automatic calibration |
√ |
√ |
√ |
| Pixel level brightness and chroma calibration |
√ |
√ |
√ |
| Calibration coefficient backup |
× |
√ |
√ |
| Firmware program readback |
√ |
√ |
√ |
| Individual gamma adjustment for RGB |
√ |
√ |
√ |
| 18bit+ |
√ |
√ |
√ |
| 22bit+ |
× |
√ |
√ |
| Precise grayscale |
× |
√ |
√ |
| Color management |
√ |
√ |
√ |
| Full grayscale calibration |
× |
× |
√ |
| Shutter fit |
× |
× |
√ |
| Dynamic booster |
× |
× |
√ |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
Description
NOTE: The A10S Plus-N has been replaced by A10s Pro. The two models cannot be mixed together to use.
