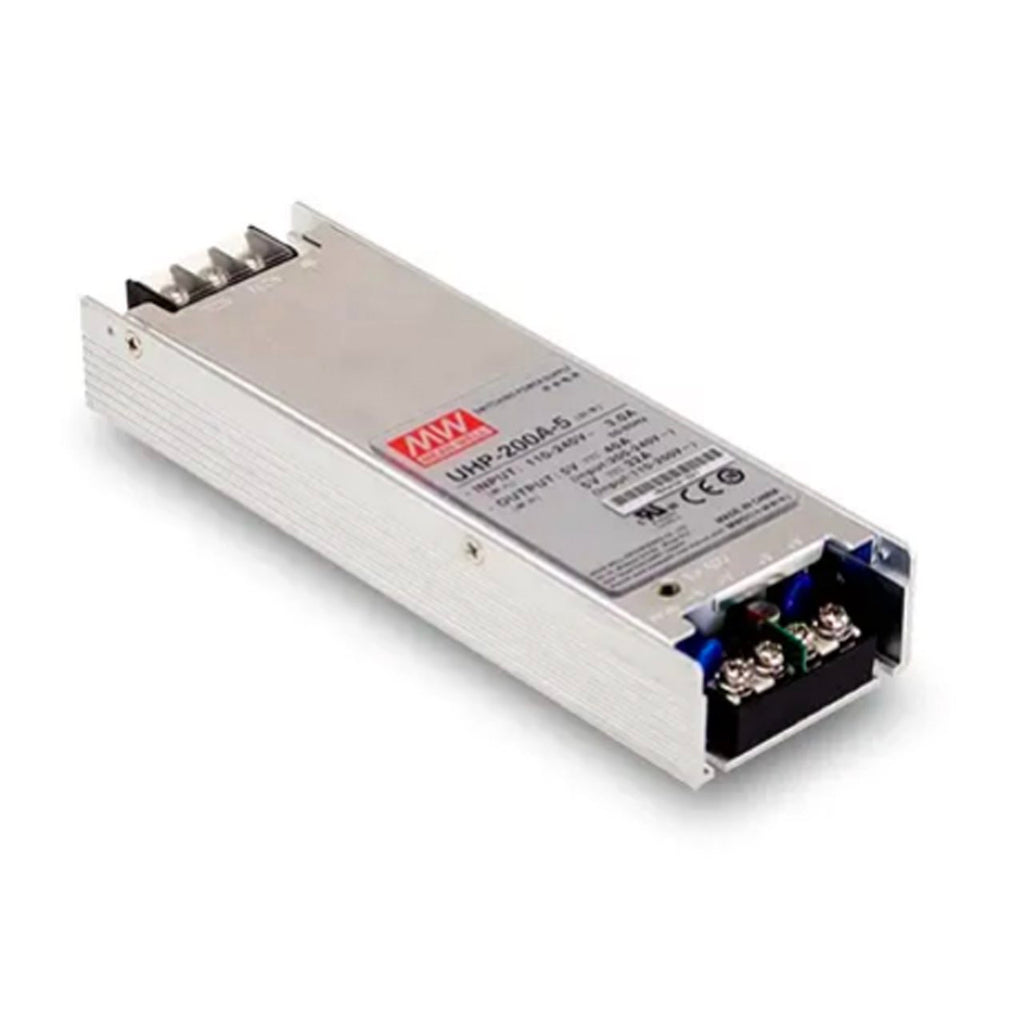

UHP-200A-5
■ Features
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Low profile: 26mm
• Built-in active PFC function
• Fanless design, cooling by free air convection
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Low leakage current < 1.0mA
• LED indicator for power on
• 3 years warranty
■ Applications
• LED signage display
• Moving sign
• LED channel letter
• LED TV wall
■ Description
UHP-200A series is a 200W LED display power solution. The ultra low profile design that allows the height and weight of the sign module to be slim. It greatly simplifies the delivery and installation process.
Accounting for high efficiency and energy saving, the series effectively achieves electricity reduction.
It is suitable for LED signage display, moving sign, LED channel letter and LED TV wall etc.
UHP-200A series is a 200W LED display power solution. The ultra low profile design that allows the height and weight of the sign module to be slim. It greatly simplifies the delivery and installation process.
Accounting for high efficiency and energy saving, the series effectively achieves electricity reduction.
It is suitable for LED signage display, moving sign, LED channel letter and LED TV wall etc.

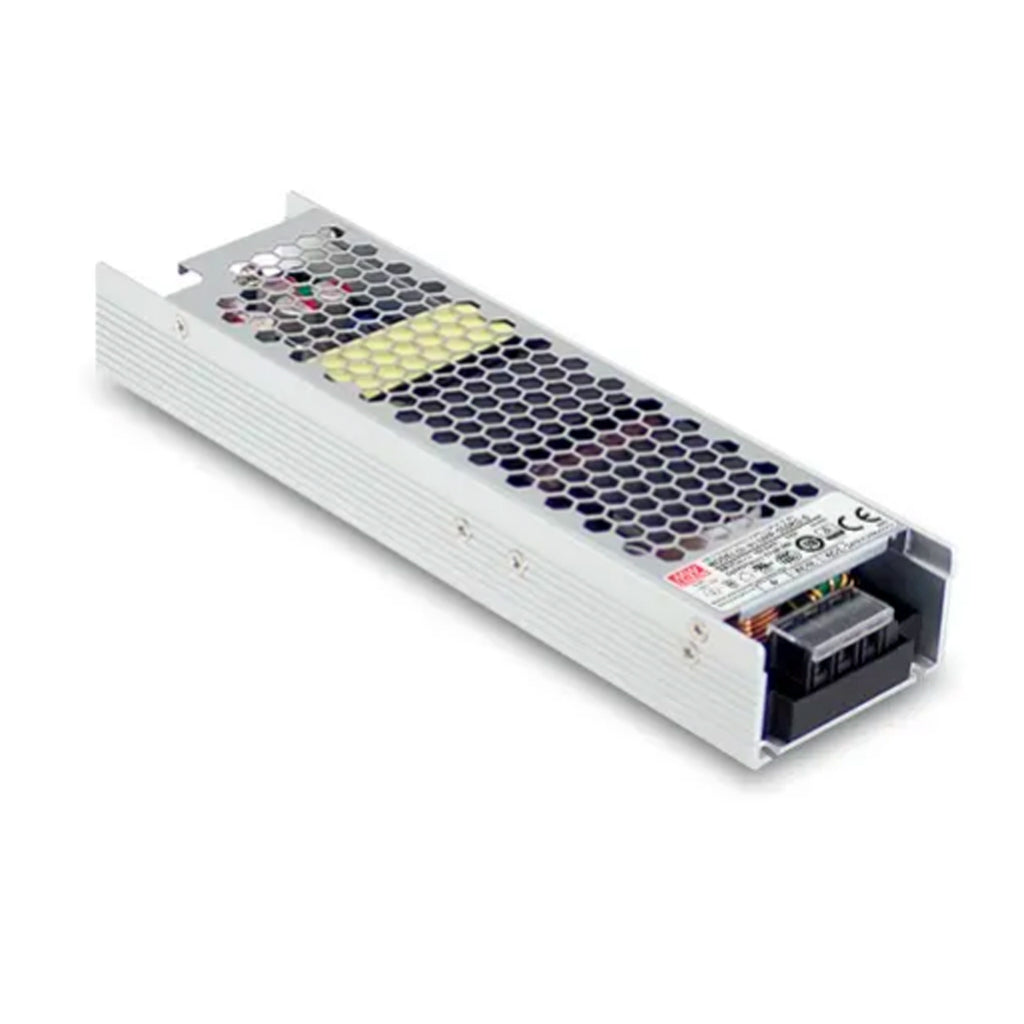

UHP-350-5
■ Features
• Slim low profile (31mm)
• Fanless design, 350W convection
• Withstand 300VAC surge input for 5 seconds
• Built-in active PFC function
• -30~+70°C working temperature
• Protections: Short circuit / Overload / Over voltage / Over temperature
• DC OK active signal and redundant function (option)
• Operating altitude up to 5000 meter (Note.5)
• LED indicator for power on
• 3 years warranty
■ Applications
• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipments or apparatus
• Household appliances
• LED display application
• Power Source Equipment for PoE (55V model)
■ Description
UHP-350 series is a 350W single-output slim type power supply with 31mm of low profile design.
Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V and 55V.
In addition to the high efficiency up to 94%, the whole series operates from -30°C ~ 70°C under air convection without fan.
UHP-350 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL 62368-1 and GB 4943.1.
UHP-350 series serves as a high performance power supply solution for various industrial applications.
