Description
IF-3S Series Indoor Flexible LED Module – P3.076 | 320×160mm | SMD | Soft Back Shell with Magnet | 600nits
About this item
- Durable & Reliable – GOB surface offers waterproof, shock-proof, and dust-proof protection, ensuring stable indoor performance and longer lifespan.
- High Precision Visuals – Pixel pitch 3.076 mm, 1/26 scan, delivering smooth and vivid display with precise color reproduction.
- Bright & Long-lasting – Over 600 nits brightness with excellent uniformity (≥97%) and low lumen decay for consistent visual quality.
- Wide Viewing Angle – Horizontal 150° / Vertical 120° for uniform color and brightness from all directions.
- Flexible Installation – Seamless splicing, supports creative curved, cylindrical, or custom-size displays; compatible with HUB75 interface, DC 5V power supply, and standard control system (receiving/sending cards + software).
Package Included
| Version | Package Included |
| 1 pcs Sample Pack | 1 × P3.076 Indoor Flexible LED Module (320×160 mm) |
| 48 pcs Standard Pack | 48 × P3.076 Indoor Flexible LED Modules (320×160 mm each) |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days if in stock.
- Packing: Protective cardboard box.
- Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse (Standard Shipping: 9–18 days | Express Shipping: 5–9 days).
Protection & Design Features
- Indoor Series (GOB Technology): Surface is waterproof, shock-proof, dust-proof, and anti-collision—protecting each LED bead from external impact and static damage.

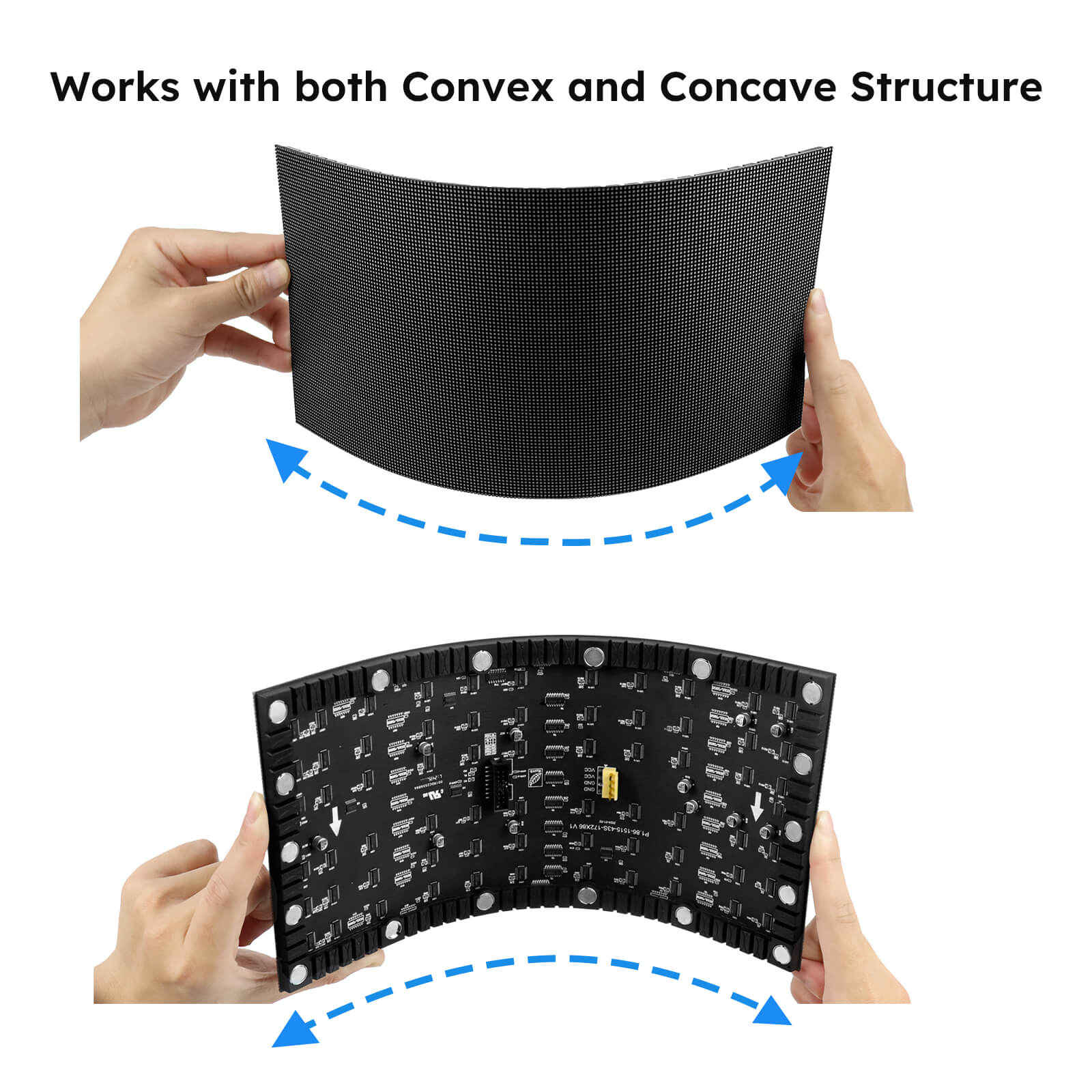

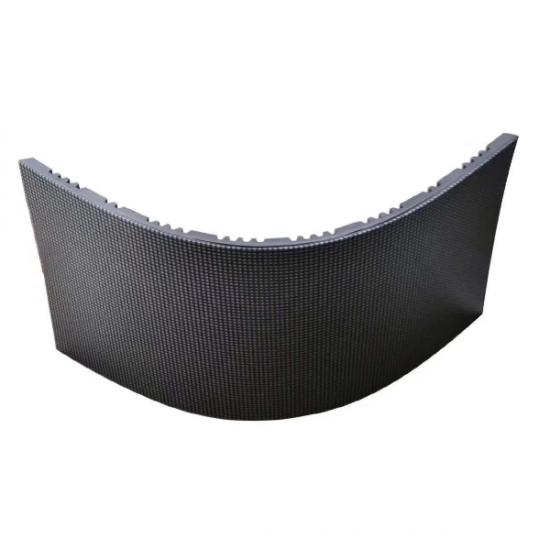

- Soft Back Shell with Magnet: Simplifies installation, reduces maintenance risk, and enables creative shapes like curved or cylindrical displays.
Installation Tips
- Always disconnect power before installation or maintenance.
- Ensure correct polarity when connecting power and data.
- Avoid bending the flexible PCB beyond its rated tolerance (≥135° arc).
- Use compatible receiving card, sending card, control software, and DC 5V power supply.
Technical Specifications
| Specification | Value |
| Model No. | IF3S-P3.076 |
| Module Size | 320×160×8.6 mm |
| Pixel Pitch | 3.076 mm |
| Resolution | 104×52 dots |
| Pixel Configuration | 1R1G1B Full Color |
| LED Type | SMD1515 |
| Pixel Density | 105,625 dots/m² |
| Scan Rate | 1/26 |
| Brightness | >600 nits |
| Refresh Rate | 3840 Hz |
| Viewing Angle (H/V) | ≥150° / ≥120° |
| Input Voltage | DC 5V |
| Power Consumption (Max/Average) | 21 W / 118 W/m² |
| Module Weight | 0.29 kg |
| Maintenance | Front & Rear |
| IP Rating | IP20 |
| Working Temperature | -20°C – 40°C |
| Lifespan | 100,000 hrs |
Applications
- Indoor Displays: Retail shops, conference rooms, exhibitions, studios, and stage backgrounds.

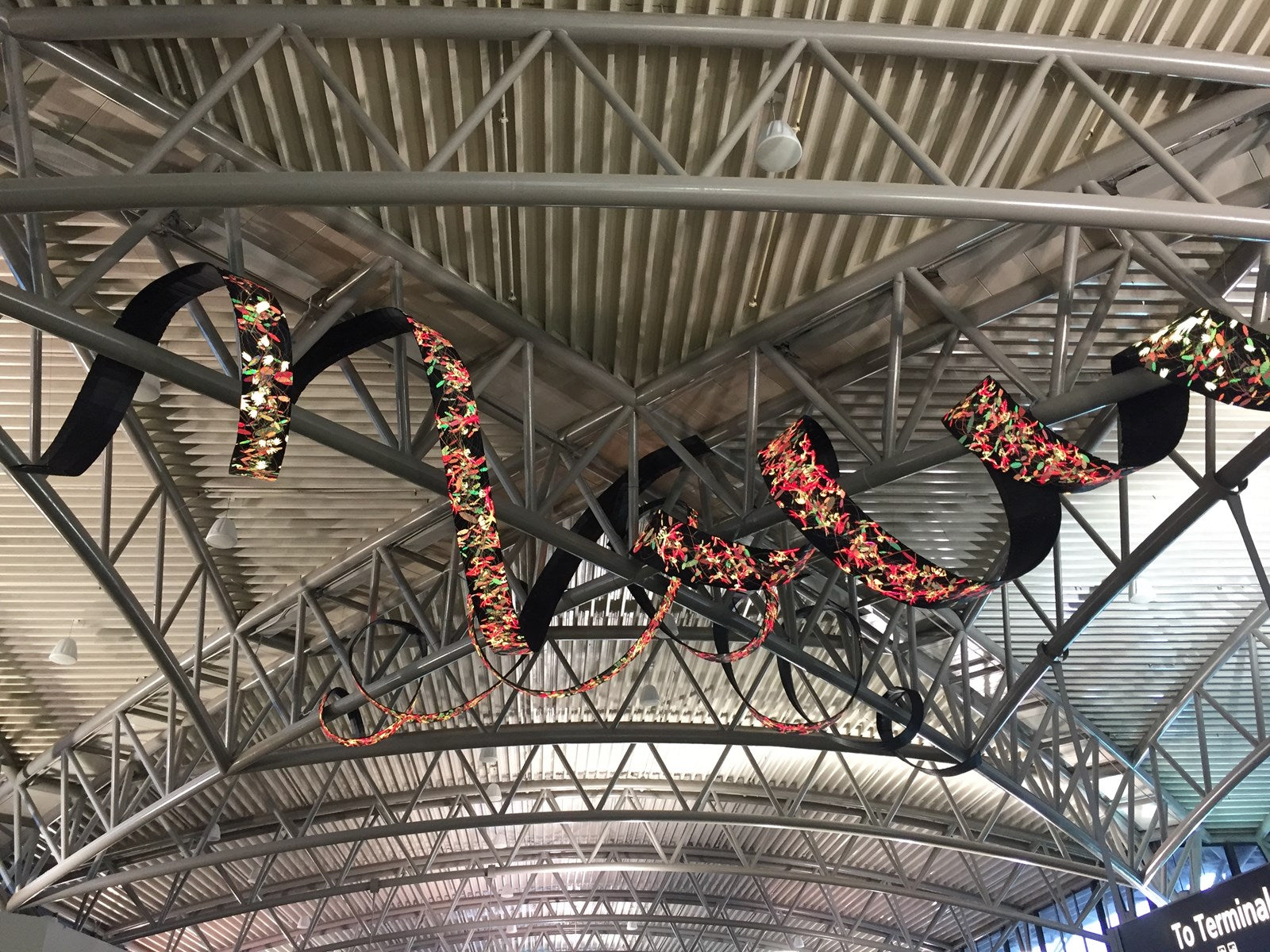

- Creative Installations: Curved walls, cylindrical LED columns, 3D artistic displays.
- Commercial Use: Advertising walls, product showrooms, and immersive visual setups.
