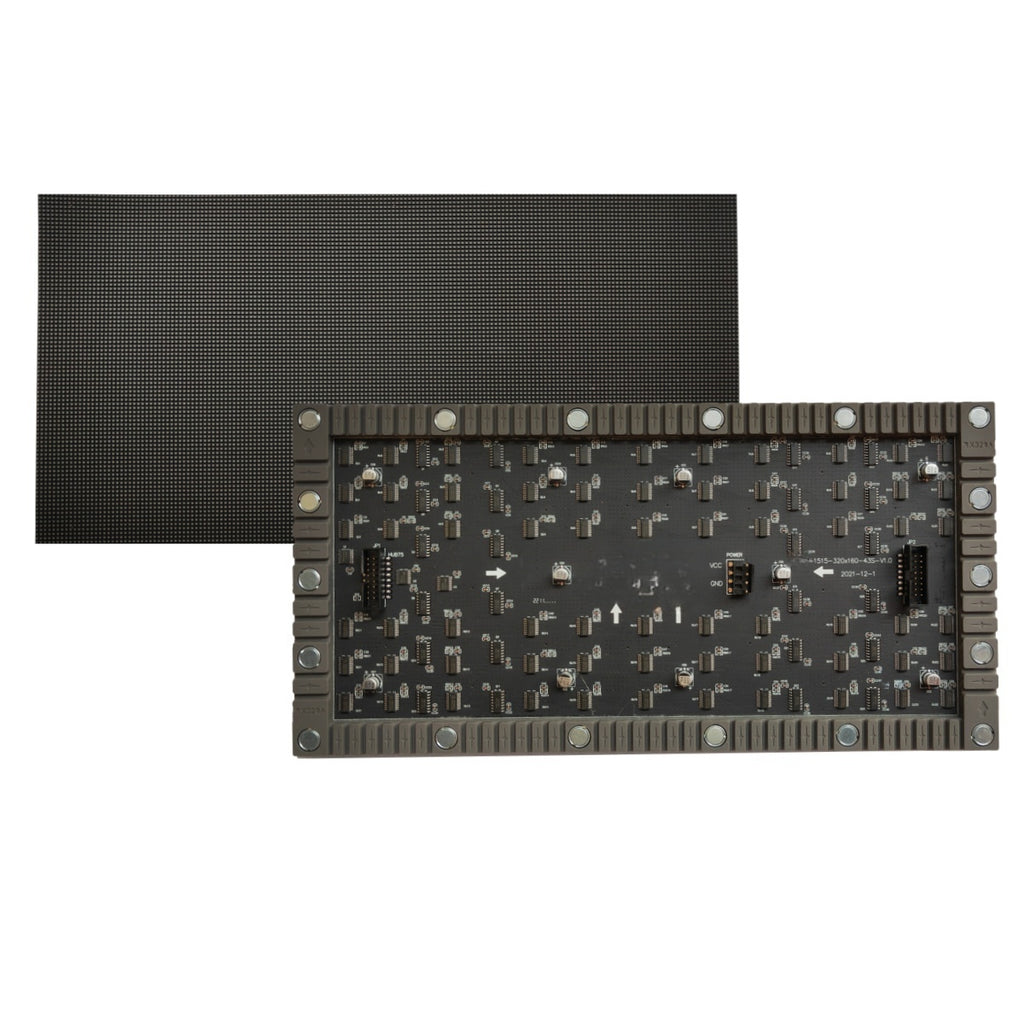

IF-3S Series Indoor Flexible LED Module – P1.86 | 320×160mm | SMD | Soft Back Shell with Magnet | 600nits
About this item
- Flexible & Seamless – 320×160 mm flexible modules fit custom metal enclosures and artistic curved walls for seamless creative displays.
- High Precision Visuals – 1.86 mm pixel pitch with 172×86 dots per module provides fine detail and smooth images.
- Bright & Consistent – ≥600 nits brightness, 16‑bit color processing, and up to 65,536 gray levels ensure vivid, accurate color.
- Wide Viewing – 160° (H) / 160° (V) viewing angles and 3840 Hz refresh for comfortable viewing in indoor applications.
- Easy Front Maintenance – Magnetic front service design; HUB75 interface for reliable data connection. Requires receiving card, sending card, control software, and power supply per project design.
Package Included
Version | Package Included |
1pcs Sample Pack | 1 × 5V AC Cable 1 × Flat Data Cable 1 × P1.86 320×160mm RGB Full Color LED Display Panel |
48pcs Standard Pack | 48 × 5V AC Cable 48 × Flat Data Cable 48 × P1.86 320×160mm RGB Full Color LED Display Panel |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express).
Structure & Design Features
- Flexible module with soft back shell and magnetic front maintenance for quick installation.

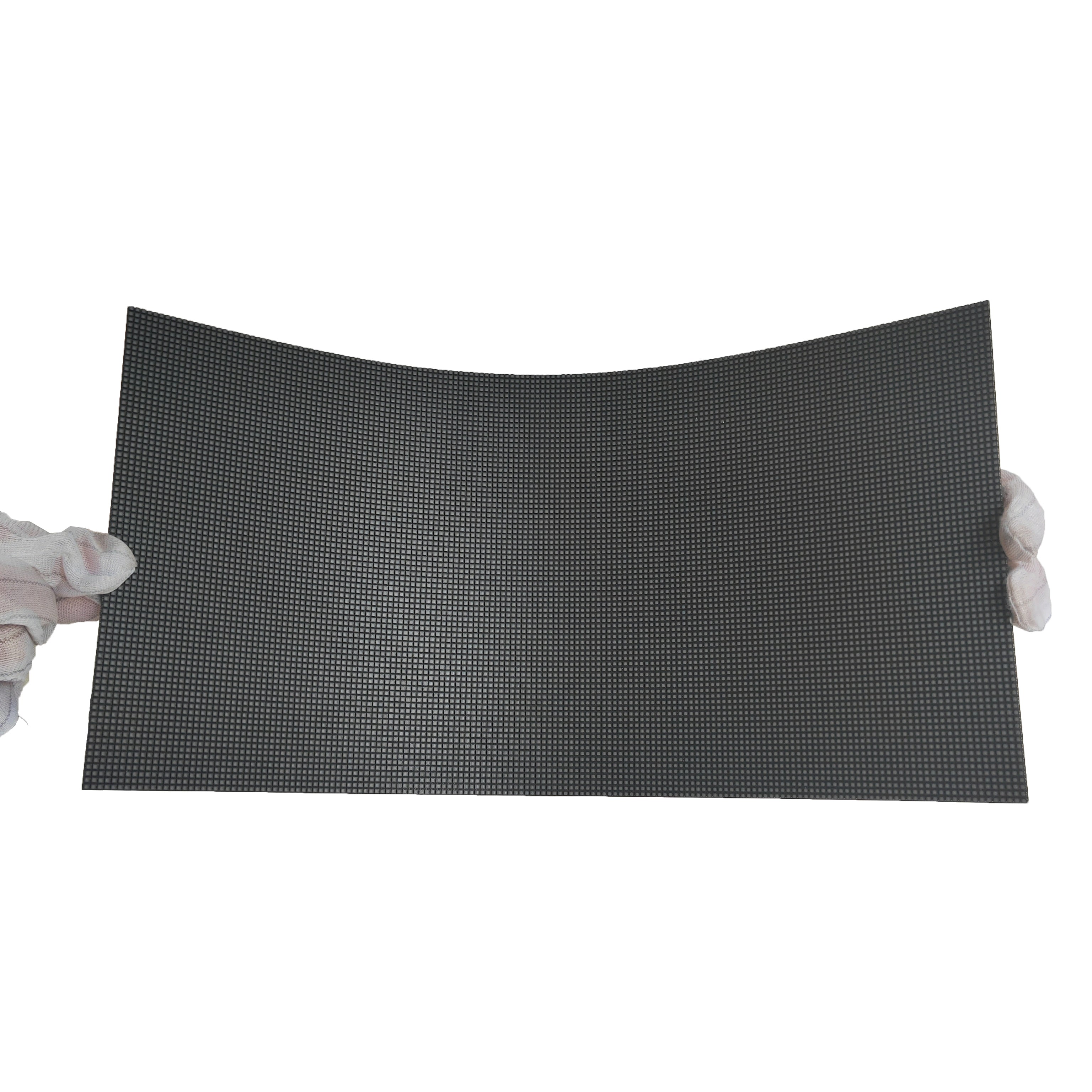

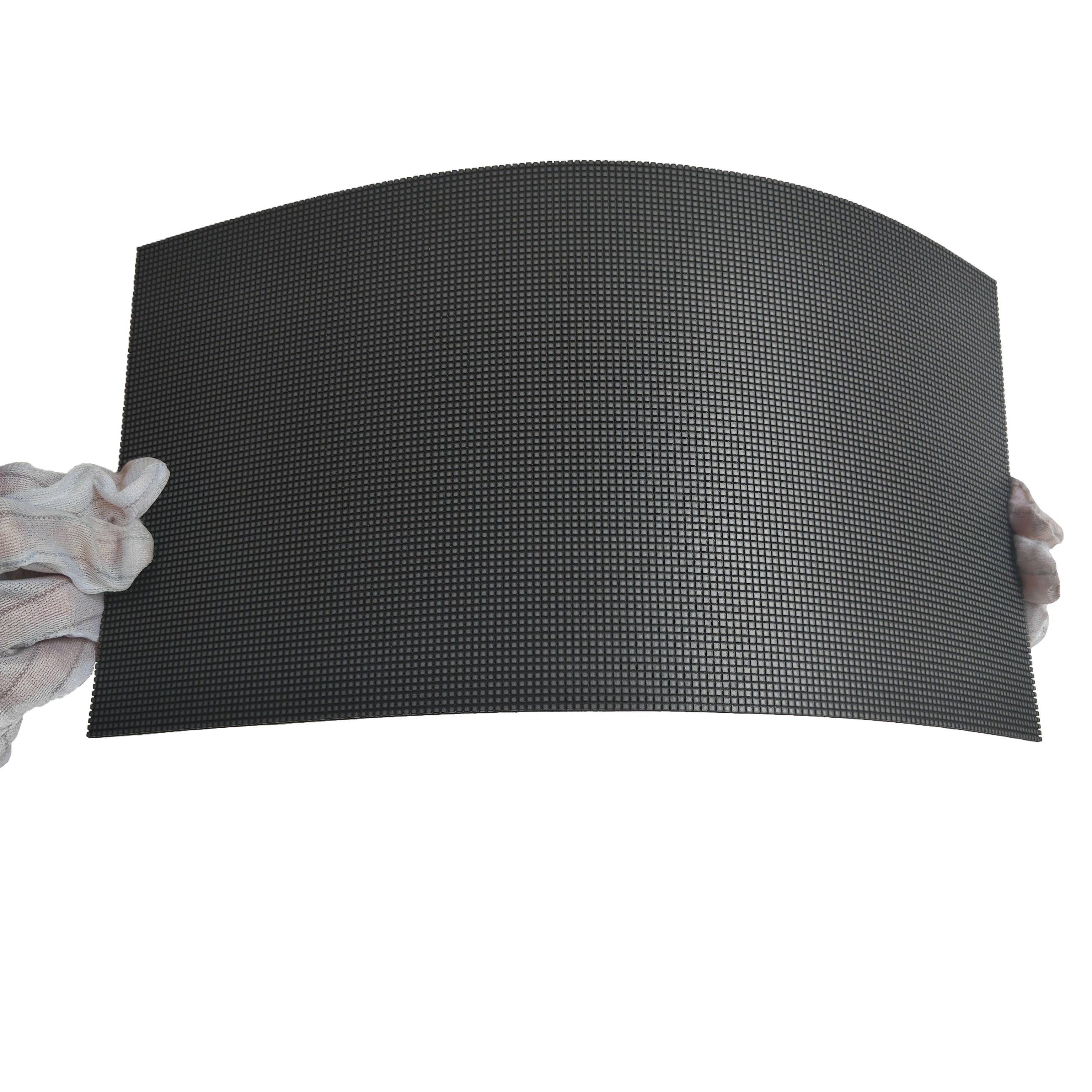

- Supports curved installations (curvature ≥162°) for creative wall‑mounted applications.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity and secure HUB75 data connections.
- Avoid bending or twisting the PCB beyond the rated curvature.
- Use compatible receiving card, sending card, control software, and suitable power supply.
Technical Specifications
Specification | Value |
Part number | IF3S-P1.86 |
Item | Flexible Indoor LED Module |
Pixel pitch | 1.86 mm |
LED configuration | Copper‑wired SMD1515 |
Module size | 320 × 160 mm |
Module resolution | 172 × 86 dots |
Pixel density | 289,444 dots/m² |
Curvature | ≥162° |
Driving mode (scan) | 1/43 |
Refresh rate | 3840 Hz |
Color processing | 16‑bit |
Gray level | 16–65,536 adjustable |
Brightness | ≥600 nits |
Viewing angle | 160° (H) / 160° (V) |
Hub connection | HUB75 |
Module weight | 0.19 kg |
Input voltage | AC110/220V ±10%, 50/60 Hz |
Max power / module | 25 W |
Operating temperature | -10°C ~ 70°C |
Operating humidity | 10% ~ 90% RH |
Storage humidity | 10% ~ 85% RH (no condensation) |
Lifetime | ≥100,000 hours |
Usage environment | Creative wall‑mounted |
Maintenance | Magnetic front |
Applications
- Indoor: Creative wall‑mounted installations, retail features, exhibitions, studios.
- Creative: Curved and artistic shapes using flexible modules.
