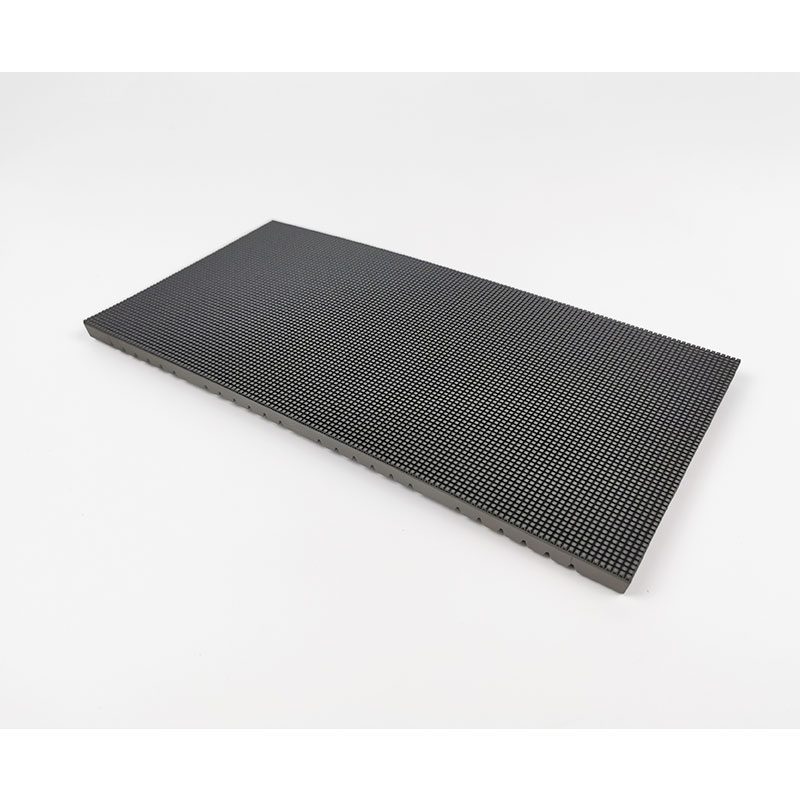

IF-3G Series Indoor Flexible GOB LED Module – P1.53 | 320×160mm | GOB | Soft Back Shell with Magnet | 550nits
About this item
- Flexible & Seamless – 320×160 mm flexible modules fit custom metal enclosures and artistic curved walls for seamless creative displays.

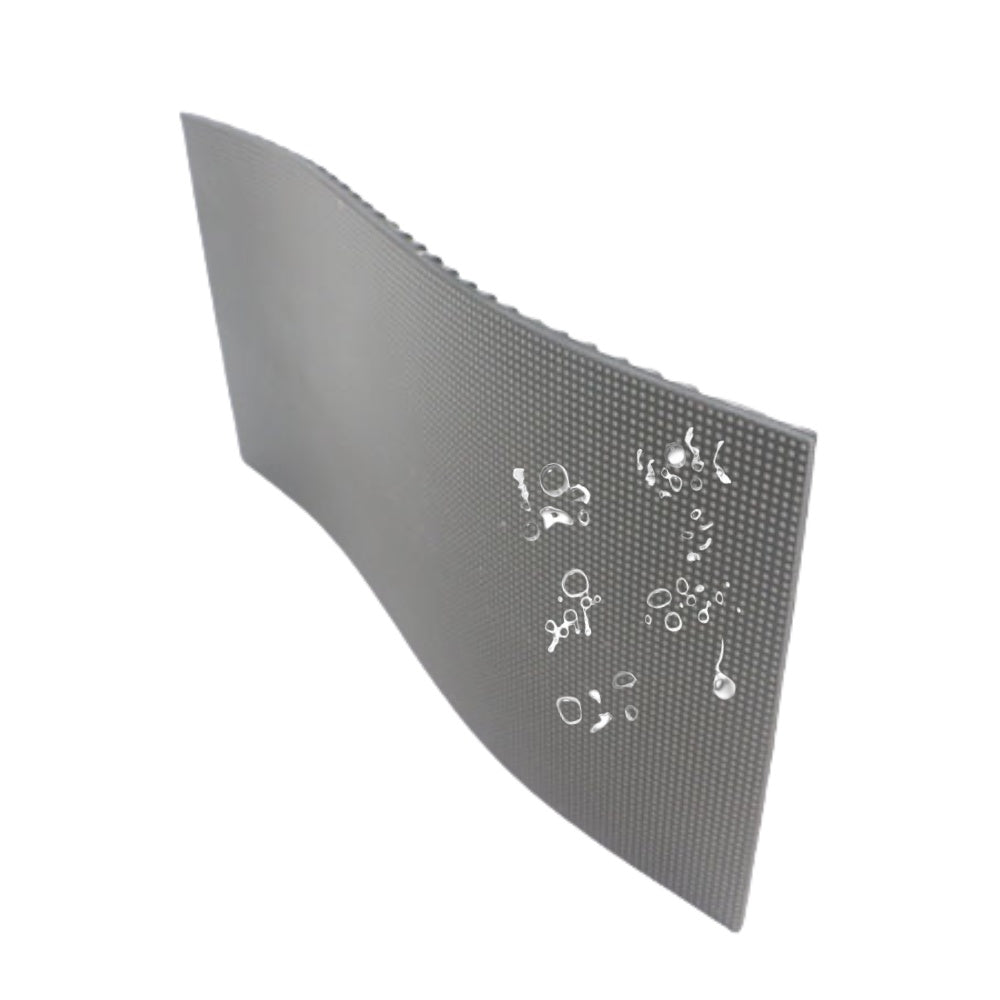

- GOB Surface Technology – Surface is waterproof, shock‑proof, and dust‑proof for enhanced durability and daily protection.
- Ultra‑Fine Pitch – 1.53 mm pixel pitch with 208×104 dots per module delivers high‑definition indoor visuals.
- Bright & Accurate – ≥550 nits brightness, 16‑bit color processing, up to 65,536 gray levels.
- Easy Front Maintenance – Magnetic front service; HUB75 data interface. Requires receiving card, sending card, control software, and suitable power supply.
Package Included
| Version | Package Included |
| 1pcs Sample Pack | 1 × 5V AC Cable 1 × Flat Data Cable 1 × P1.53 320×160mm RGB Full Color LED Display Panel (GOB Surface) |
| 48pcs Standard Pack | 48 × 5V AC Cable 48 × Flat Data Cable 48 × P1.53 320×160mm RGB Full Color LED Display Panel (GOB Surface) |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express).
Structure & Design Features
- Flexible module with soft back shell and magnetic front maintenance for quick installation.

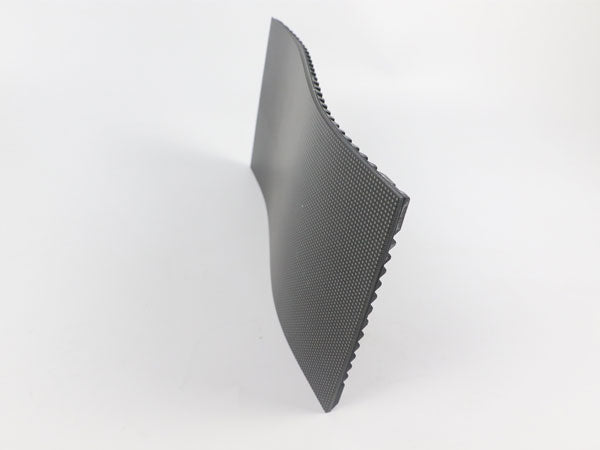

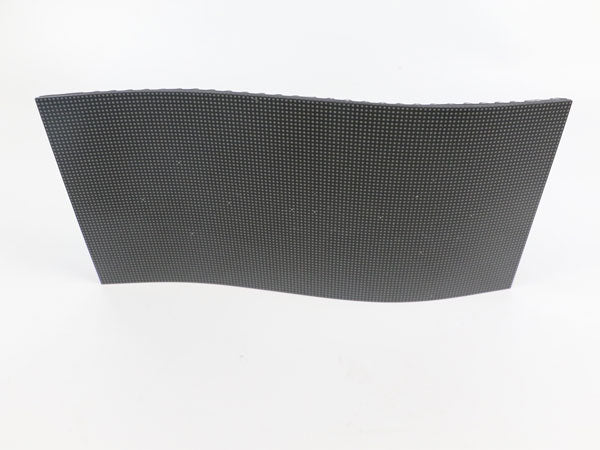

- Supports curved installations (curvature ≥162°) for creative wall‑mounted applications.
- GOB protective layer improves resistance to moisture, dust, and mechanical impact.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity and secure HUB75 data connections.
- Avoid bending or twisting the PCB beyond the rated curvature.
- Use compatible receiving card, sending card, control software, and a suitable power supply.
Technical Specifications
| Specification | Value |
| Part number | IF3G-P1.53 |
| Item | Flexible Indoor LED Module |
| Pixel pitch | 1.53 mm |
| LED configuration | Copper‑wired SMD1212 |
| Module size | 320 × 160 mm |
| Module resolution | 208 × 104 dots |
| Pixel density | 432,640 dots/m² |
| Hub connection | HUB75 |
| Curvature | ≥162° |
| Module weight | 0.275 kg |
| Color processing | 16‑bit |
| Gray level | 16–65,536 adjustable |
| Refresh rate | 3840 Hz |
| Driving mode (scan) | 1/52 |
| Brightness | ≥550 nits |
| Viewing angle | ≤160° (H) / 160° (V) |
| Input voltage | AC110/220V ±10%, 50/60 Hz |
| Max power / module | 25 W |
| Operating temperature | -10°C ~ 70°C |
| Operating humidity | 10% ~ 90% RH |
| Storage humidity | 10% ~ 85% RH (no condensation) |
| Lifetime | ≥100,000 hours |
| Usage environment | Creative wall‑mounted |
| Maintenance | Magnetic front |
Applications
- Indoor: Creative wall‑mounted installations, retail features, exhibitions, studios.
- Creative: Curved and artistic shapes using flexible modules with GOB protection.
| Waterproof | Shock-proof | Dust-proof |
 |
 |
 |
