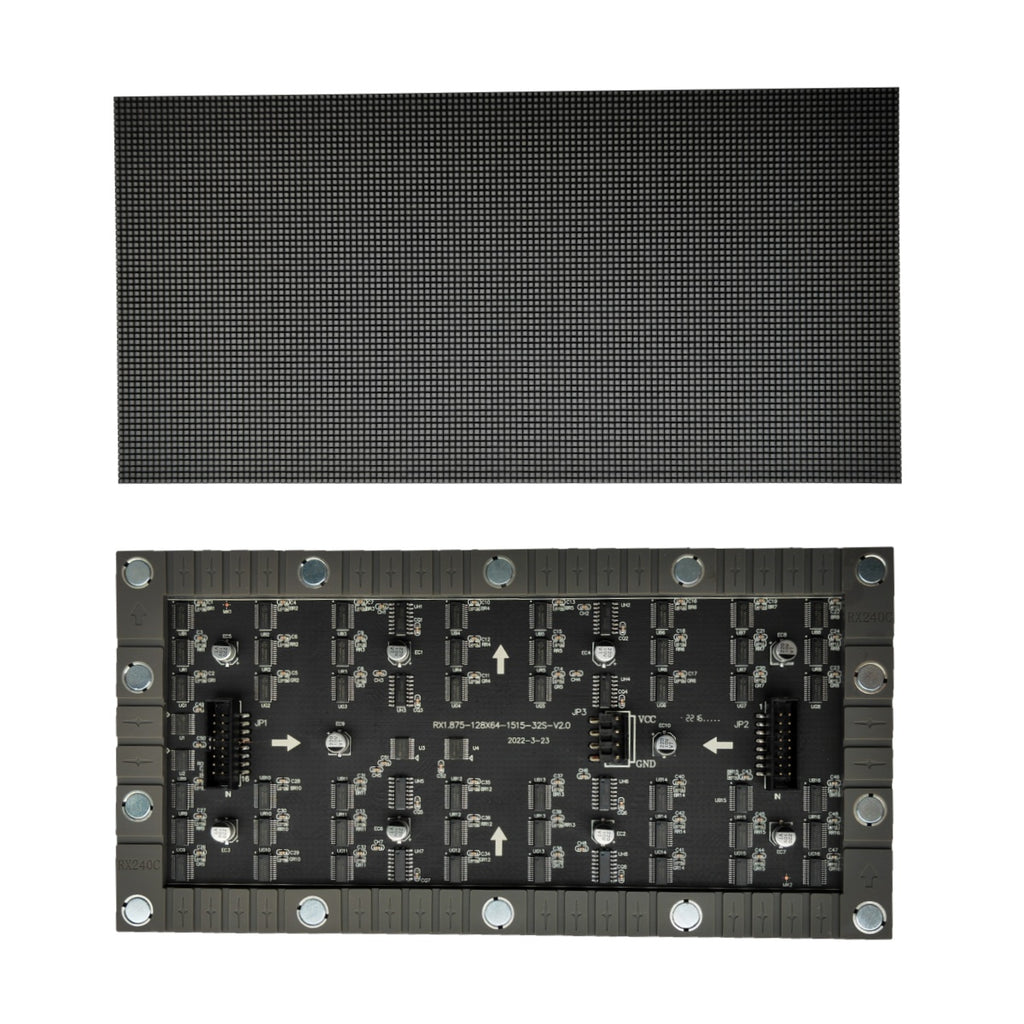

IF-2S Series Indoor Flexible LED Module – P1.875 | 240×120mm | SMD | Soft Back Shell with Magnet | 600nits


Pixel Pitch: P1.875
Package Qty: 1pcs Sample Pack
Price:
Sale price$31.95 USD

Description

IF-2S Series Indoor Flexible LED Module – P1.875 | 240×120mm | SMD | Soft Back Shell with Magnet | 600nits

About this item

  • More Elaborate Performance – Pixel pitch of just 1.875mm smooths on-screen images and reveals more detail. With 1/32 scan rate, it delivers excellent dynamic expression.
  • Bright and Even for Long Usage – 600 nits brightness with automatic adjustment to ambient light. Lower lumen depreciation compared to LCD and DLP displays, ensuring consistent performance over time.
  • Vivid Visual Experience – Wide 160° × 160° viewing angle with digital RGB chip for vibrant colors. 1/32 scanning rate offers lifelike visuals.
  • A Whole Screen – Seamless splicing creates a unified screen without the black gaps seen in LCD or DLP displays.
  • DIY & Wide Usage – Highly flexible for various combinations to fit your setup. Requires receiving card, sending card, software, and DC 5V power supply.

Package Included

Version Package Included
1pcs Sample Pack 1 × Power Cable
1 × Data Cable
1 × P1.875 240×120mm RGB Full Color LED Display Module
84pcs Standard Pack 84 × Power Cable
84 × Data Cable
84 × P1.875 240×120mm RGB Full Color LED Display Module

Order & Logistics

  • Lead Time: Typically ships within 1–3 business days.
  • Packing: Cardboard box with protective packaging.
  • Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express).

Structure & Design Features

  • Indoor flexible module with soft silicone back shell and magnetic mounting for quick assembly and maintenance.
  • Supports seamless splicing for large displays, ideal for creative setups.

Installation Tips

  • Always disconnect power before installing or servicing the module.
  • Ensure correct polarity for power and data connections.
  • Avoid bending or twisting the PCB beyond the rated tolerance.
  • Use compatible receiving card, sending card, control software, and DC 5V power supply.

Technical Specifications

Specification Value
Model # IF2S-P1.875
Pixel pitch 1.875 mm
Module size 240 × 120 mm
Module resolution 128 × 64
Module pixels 8192 dots
Scan 1/32
Pixel density 284,444 dots/m²
Viewing distance >2 m
LED type SMD1515
Pixel configuration 1R 1G 1B
Brightness ≥600 nits
Contrast ratio 5000:1
Color depth 16-bit
Gray level 16384
Refresh frequency >3840 Hz
Driving IC FM/ICN/Default
Color uniformity ≥97%
Protection rating IP30
Lifespan ≥100,000 hours
Operating temperature -20°C ~ 60°C
Operating humidity 10% ~ 90%
Voltage 5 V
Viewing angle 160° (H) / 160° (V)
Max power / module 15 W
Blind spot rate ≤0.0003

Applications

  • Indoor: Retail shops, conference rooms, exhibitions, broadcast studios.
  • Creative: Curved splicing, cylindrical screens, artistic installations.
