Description

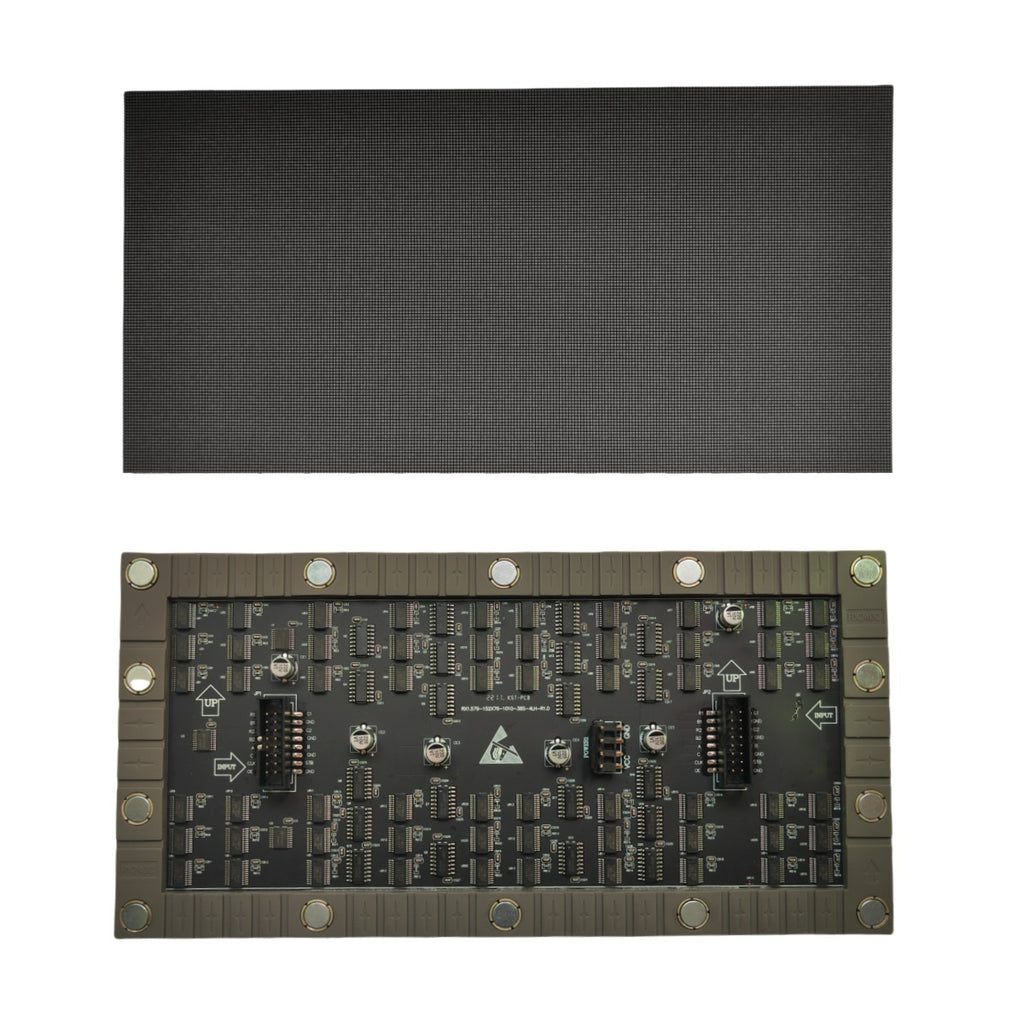

IF-2S Series Indoor Flexible LED Module – P1.25 | 240×120mm | SMD | Soft Back Shell with Magnet | 600nits
About this item
- More Elaborate Performance – Pixel pitch of just 1.25 mm smooths on‑screen images and reveals more detail.
- Bright and Even for Long Usage – 600 nits brightness with automatic adjustment to ambient light; lower lumen depreciation than LCD/DLP for consistent performance over time.
- Vivid Visual Experience – Wide viewing angles up to 160° (H) / 140° (V) with digital RGB chip for lifelike color.
- A Whole Screen – Seamless splicing for a unified display, avoiding the black gaps common to LCD/DLP walls.
- DIY with Wide Usage – Flexible combinations to fit your setup. Tips: Requires a receiving card, sending card, software, and DC 5V power supply.
Package Included
| Version | Package Included |
| 1pcs Sample Pack | 1 × Power Cable 1 × Data Cable 1 × P1.25 240×120mm RGB Full Color LED Display Module |
| 84pcs Standard Pack | 84 × Power Cable 84 × Data Cable 84 × P1.25 240×120mm RGB Full Color LED Display Module |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express).
Structure & Design Features
- Indoor flexible module with soft silicone back shell and magnetic mounting for quick assembly and maintenance.
- Supports seamless splicing for large, unified displays; ideal for creative setups.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity for power and data connections.
- Avoid bending or twisting the PCB beyond the rated tolerance.
- Use compatible receiving card, sending card, control software, and DC 5V power supply.
Technical Specifications
| Specification | Value |
| Model # | IF2S-P1.25 |
| Pixel pitch | 1.25 mm |
| Module size | 240 × 120 mm |
| Module resolution | 192 × 96 |
| Module pixels | 18,432 dots |
| Scan | 1/38 |
| Pixel density | 640,000 dots/m² |
| Viewing distance | >1.25 m |
| LED type | SMD1010 |
| Pixel configuration | 1R 1G 1B |
| Brightness | ≥600 nits |
| Contrast ratio | 5000:1 |
| Color depth | 16-bit |
| Gray level | 16384 |
| Refresh frequency | >3840 Hz |
| Driving IC | ICN/FM |
| Color uniformity | ≥97% |
| Protection rating | IP30 |
| Lifespan | ≥100,000 hours |
| Operating temperature | -20°C ~ 60°C |
| Operating humidity | 10% ~ 90% |
| Voltage | 5 V |
| Viewing angle | 160° (H) / 140° (V) |
| Max power / module | 15 W |
| Blind spot rate | ≤0.0003 |
Applications
- Indoor: Retail shops, conference rooms, exhibitions, broadcast studios.
- Creative: Curved splicing, cylindrical screens, artistic installations.
