Description

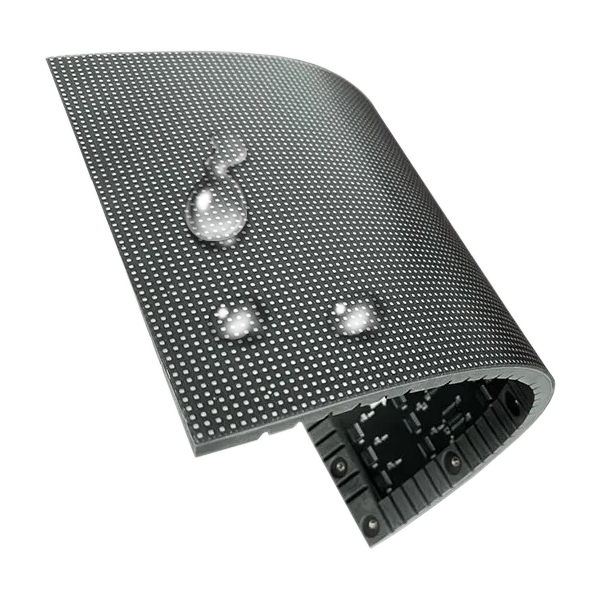

IF-2G Series Indoor Flexible GOB LED Module – P1.875 | 240×120mm | GOB | Soft Back Shell with Magnet | 550nits
About this item
- GOB Technology Surface – Waterproof, shock-proof, and dust-proof protection for the LED module surface.
- More Elaborate Performance – Pixel pitch of only 1.875 mm smooths on-screen images and reveals more detail. 1/32 scan delivers excellent dynamic performance.
- Bright and Even for Long Usage – 550 nits brightness with automatic adjustment to ambient light. Lower lumen depreciation than LCD/DLP ensures consistent performance over time.
- Vivid Visual Experience – Wide viewing angles of 160°–170° with digital RGB chip for lifelike color. 1/32 scan rate offers near real-life image reproduction.
- A Whole Screen – Seamless splicing without the visible black gaps found in LCD/DLP video walls.
- DIY with Wide Usage – Flexible combinations to suit various display plans. Tips: Requires a receiving card, sending card, software, and DC 5V power supply.
Package Included
| Version | Package Included |
| 1pcs Sample Pack | 1 × Power Cable 1 × Data Cable 1 × P1.875 240×120mm RGB Full Color LED Display Module |
| 84pcs Standard Pack | 84 × Power Cable 84 × Data Cable 84 × P1.875 240×120mm RGB Full Color LED Display Module |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express).
Structure & Design Features
- Indoor flexible GOB LED module with soft silicone back shell and magnetic mounting for easy installation.
- GOB encapsulation for enhanced durability, protection, and easy maintenance.
Installation Tips
- Disconnect power before installation or maintenance.
- Ensure correct polarity for power and data connections.
- Do not bend or twist the PCB beyond the rated tolerance.
- Use with compatible receiving card, sending card, control software, and DC 5V power supply.
Technical Specifications
| Specification | Value |
| Model # | IF2SG-P1.875 |
| Pixel pitch | 1.875 mm |
| Module size | 240 × 120 mm |
| Module resolution | 128 × 64 |
| Module pixels | 8,192 dots |
| Scan | 1/32 |
| Pixel density | 284,444 dots/m² |
| Viewing distance | >2 m |
| LED type | SMD1515 |
| Pixel configuration | 1R 1G 1B |
| Brightness | ≥550 nits |
| Contrast ratio | 5000:1 |
| Color depth | 16-bit |
| Gray level | 16384 |
| Refresh frequency | >3840 Hz |
| Driving IC | FM / ICN / Default |
| Color uniformity | ≥97% |
| Protection rating | IP30 |
| Lifespan | ≥100,000 hours |
| Operating temperature | -20°C ~ 60°C |
| Operating humidity | 10% ~ 90% |
| Voltage | 5 V |
| Viewing angle | 160° (H) / 160° (V) |
| Max power / module | 15 W |
| Blind spot rate | ≤0.0003 |
Applications
- Indoor: Retail stores, exhibitions, conference halls, creative displays.
- Special Shapes: Curved, cylindrical, and irregular installations.
