Description

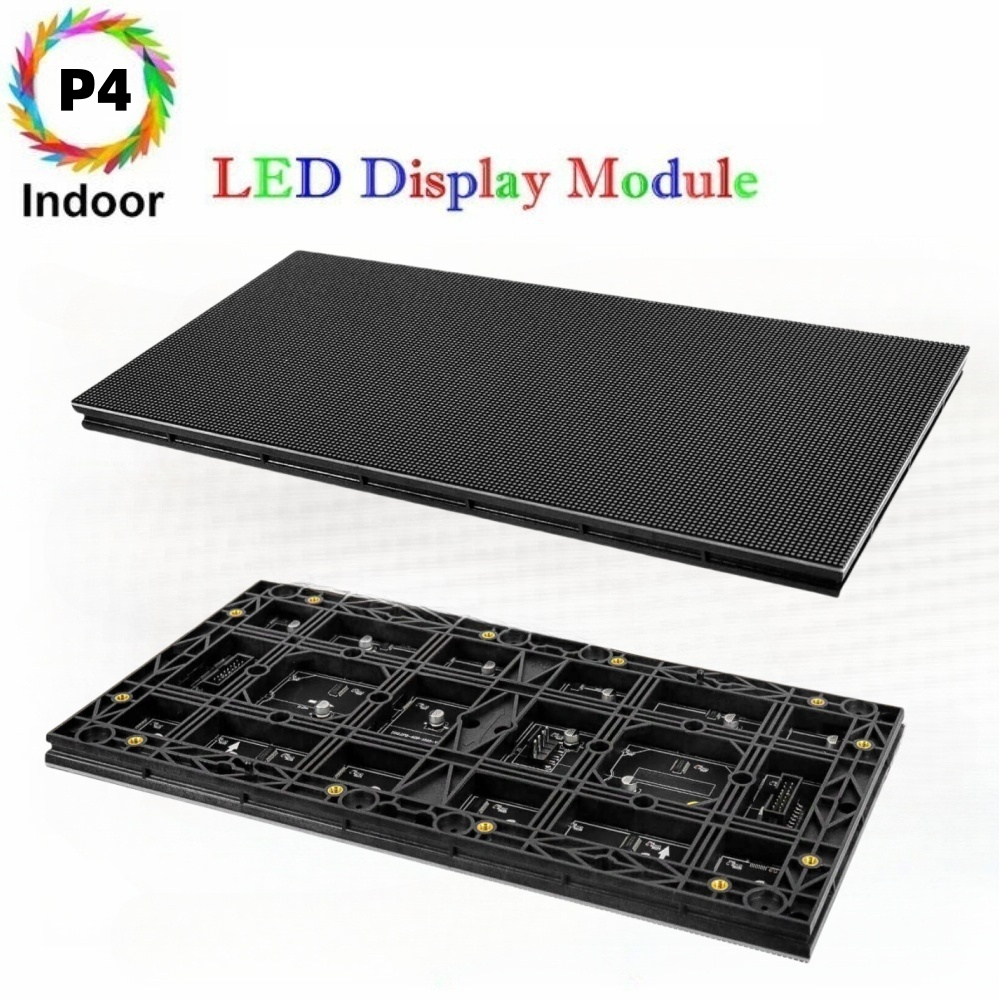

ID-S Series – P4 Indoor LED Display Module | 320×160mm | 3,200 Pixels RGB Tile | Full Color LED Panel | 600nits
About this item
- Durable & Reliable – Indoor LED module with stable performance for long-term use in controlled environments.
- High Precision Visuals – Pixel pitch 4mm, 1/20 scan, vivid and smooth display with accurate color reproduction.
- Bright & Long-lasting – 600 nits brightness with low lumen depreciation for consistent performance over time.
- Wide Viewing Angle – 160° viewing angle for uniform color and brightness across the screen.
- Flexible Installation – Seamless splicing design, supports creative arrangements. Requires receiving card, sending card, software, and DC 5V power supply.
Package Included
| Version | Package Included |
| 1pc Pack | 1× P4 LED Module 1× 5V Power Cable 1-to-2 Split 1× Flat Data Cable |
| 40pcs Pack | 40× LED Matrix Module 20× 5V Power Cable 1-to-2 Split 40× Flat Data Cable |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
Protection & Design Features
- Indoor Series design – stable operation in indoor environments.
- High-quality SMD2121 LEDs ensure color consistency and long lifespan.
- Seamless modular design for uniform display without visible gaps.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity for power/data connections.
- Avoid bending or twisting the PCB beyond rated tolerance.
- Use compatible receiving card, sending card, software, and DC 5V power supply.
Technical Specifications
| Specification | Value |
| Module Size | 320×160mm |
| Pixel Pitch | 4mm |
| LED Type | SMD2121 |
| Brightness | ≥600 nits |
| Scan Rate | 1/20 |
| Viewing Angle | H:160° / V:160° |
| Pixel Density | 62,500 dots/m² |
| Module Resolution | 80×40 pixels |
| Module Pixels | 3,200 dots |
| Contrast Ratio | 3000:1 |
| Color Depth | 16bit |
| Grey Level | 16,384 |
| Refresh Rate | >3840Hz |
| Driving IC | ICN/FM |
| Color Uniformity | ≥97% |
| Protection Rating | IP30 |
| Life Span | ≥100,000 hours |
| Operating Temp | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% |
| Input Voltage | DC 5V |
| Power Consumption | Max. 20W |
| Blind Spot Rate | ≤0.0003 |
Applications
- Indoor: Retail shops, conference rooms, exhibitions, broadcast studios, control centers.
- Creative: Video walls, artistic installations, brand showcases.
